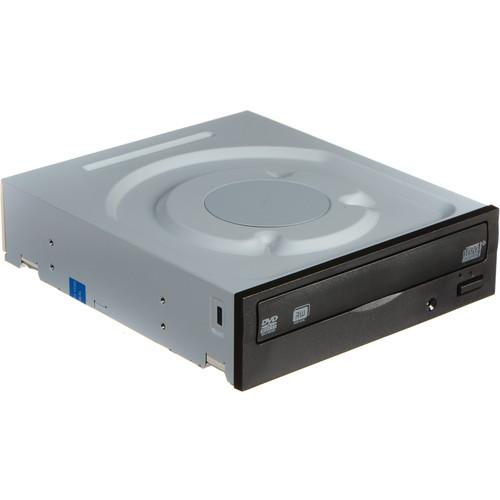

User Manual for ASUS DRW-24F1ST 24x Internal SATA Multi DVD Writer Click to enlarge the picture
Contents of the user manual for the ASUS DRW-24F1ST 24x Internal SATA Multi
- Product category: Optical Drives & Burners ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Optical Drives & Burners
|
User manual for the ASUS DRW-24F1ST 24x Internal SATA Multi contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|
Product description The DRW-24F1ST 24x Internal SATA Multi DVD Writer from ASUS is a Windows 8, 7, Vista, and XP compatible optical drive that supports a broad range of 8 and 12cm media, including DVD±R (SL/DL), DVD±RW, DVD-ROM (SL/DL), DVD-RAM, CD-R, CD-RW, and CD-ROM. It features a maximum DVD write speed of 24x, a maximum DVD read speed of 16x, and a maximum CD write speed of 48x. It also supports DVD playback at 6x and Audio CD and VCD playback at 16x. This optical drive mounts within your system's 5.25" drive bay using a SATA connection and is also equipped with access times of 130 ms for DVDs and 170 ms for CDs. The DRW-24F1ST also utilizes E-Green technology which auto-closes the drive application when it is not in use, helping to reduce power consumption. Additionally, Disc Encryption II software helps increase security with password-controls and hidden-file functionality. General Features - Green Focus
- E-Green software auto-closes the drive application when not in use, saving on power consumption for users
- Disc Encryption II
- Disc Encryption II increases security with password-controls and hidden-file functionality, helping to protect important user data
- Drag-and-Burn
- User-friendly interface with only three steps to burn a disc
UPC: 886227440634 In the Box ASUS DRW-24F1ST 24x Internal SATA Multi DVD Writer Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS DRW-24F1ST 24x Internal SATA Multi DVD Writer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS DRW-24F1ST Specs | Read Speeds | DVD±R: 16x
DVD±RW: 12x
DVD-ROM: 16x
DVD±R (DL): 12x
DVD-ROM (DL): 12x
DVD-RAM: 5x
CD-R: 48x
CD-RW: 40x
CD-ROM: 48x
DVD Video Playback: 6x
VCD Playback: 16x
Audio CD Playback: 16x | | Write Speeds | DVD±R: 24x
DVD+RW: 8x
DVD-RW: 6x
DVD±R (DL): 8x
DVD-RAM: 5x
CD-R: 48x
CD-RW: 24x | | Writing Mode | DVD+R & DVD+R (DL): Sequential Write
DVD-R & DVD-R (DL): DAO/Incremental Recording
DVD+RW: Random Write
DVD-RW: DAO/Incremental Recording
CD-R/RW: DAO/TAO/SAO/Packet Write | | Access Time | DVD: 130 ms
CD: 170 ms | | Interface | SATA | | OS Support | Windows 8, 7, Vista, and XP | | System Requirements | CPU: Intel Pentium 300 MHz or higher
RAM: 128 MB or more is recommended
HDD: 10 GB or more | | Software | Power2Go 8
E-Green | | Disc Diameters | 8 & 12 cm | | Mounting Orientation | Vertical and Horizontal (-5 ~ +5°) | | Power | DC +5 V ±5%
DC +12 V ±10% | | Temperature | Operating: 41 to 113°F / 5 to 45°C
Storage: -4 to 140°F / -20 to 60°C | | Humidity | Operating: 20 ~ 80% (non-condensing)
Storage: 15 ~ 90% (non-condensing) | | Color | Black | | Dimensions | 5.8 x 6.7 x 1.7" / 148.0 x 170.0 x 42.0 mm | | Weight | 24.0 oz / 680.0 g | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 9.0 x 6.2 x 2.0" |
