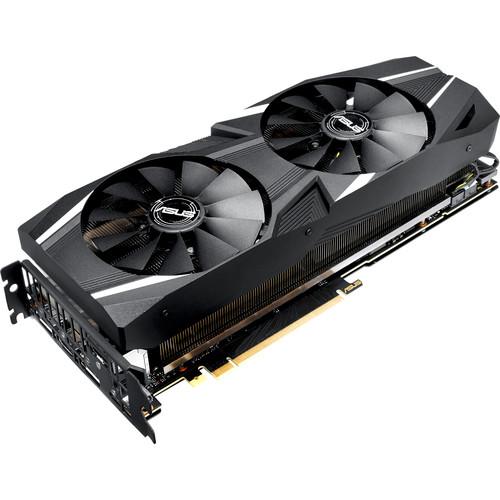

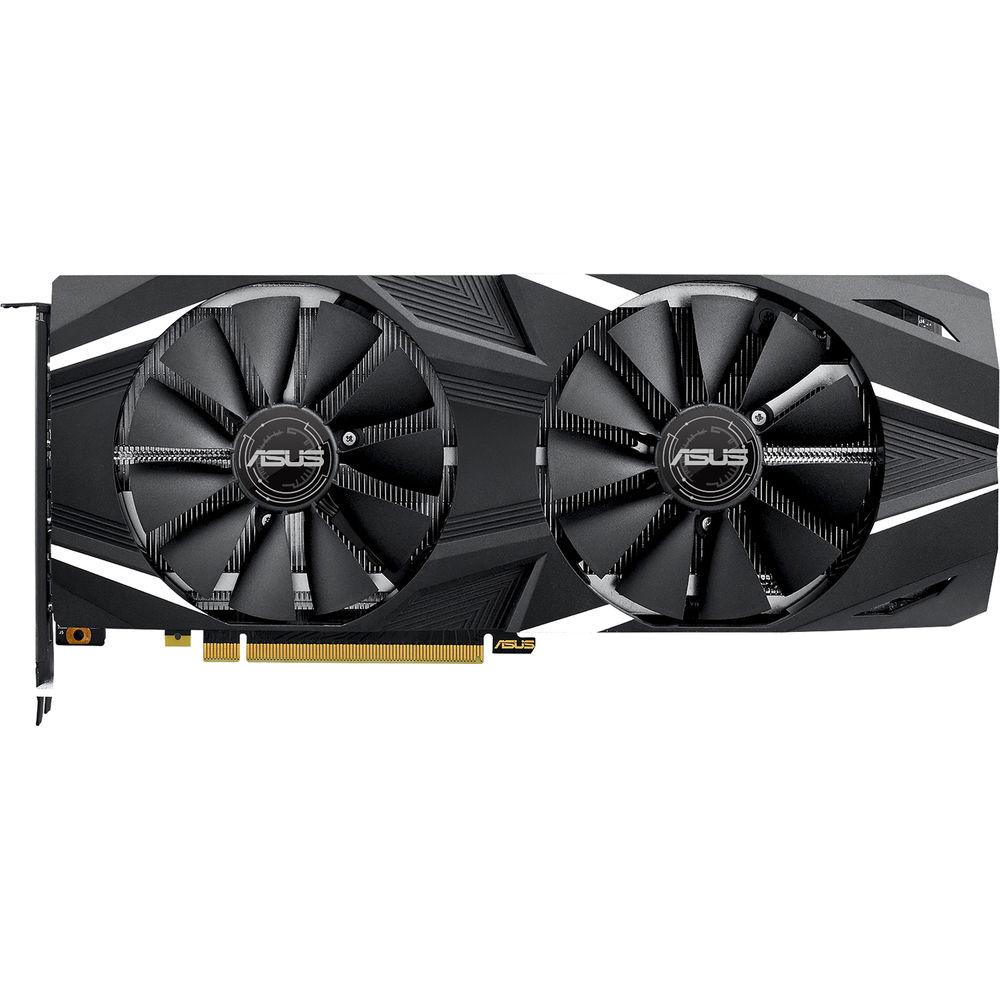

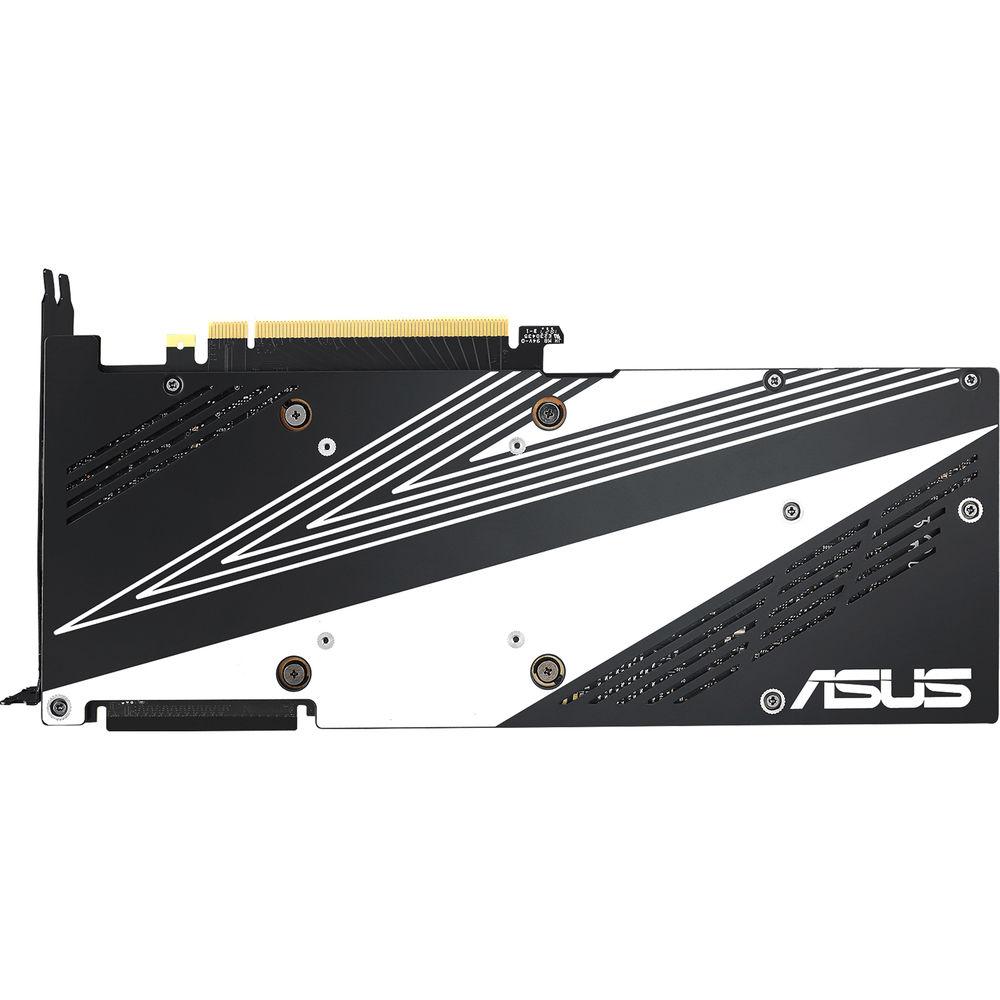

User Manual for ASUS Dual GeForce RTX 2070 Graphics Card

Click to enlarge the picture
ASUS Dual GeForce RTX 2070 Graphics Card Contents of the user manual for the ASUS Dual GeForce RTX 2070 Graphics
  • Product category: Graphic Display Cards ASUS
  • Brand: ASUS
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for ASUS Graphic Display Cards

ASUS Dual GeForce RTX 2070 Graphics Card ASUS Dual GeForce RTX 2070 Graphics Card ASUS Dual GeForce RTX 2070 Graphics Card ASUS Dual GeForce RTX 2070 Graphics Card
User manual for the ASUS Dual GeForce RTX 2070 Graphics contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any ASUS product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!



Product description

Based on the Turing architecture and designed to handle the graphical demands of 4K gaming, the ASUS Dual RTX 2070 Graphics Card brings the power of real-time ray tracing and AI to your PC games. It also features enhanced technologies to improve the performance of VR applications, including Variable Rate Shading, Multi-View Rendering, and VRWorks Audio. The front panel of the card features a variety of outputs. There are two DisplayPort 1.4 outputs, one HDMI 2.0b output, and one USB Type-C port with the VirtualLink standard. The RTX 2070 is not just about high-resolution gaming. Computationally intensive programs can utilize the GPU's 2304 cores to accelerate tasks using CUDA or other APIs. For cooling, ASUS implemented dual Wing-Blade fans. The patented wing-blade design delivers maximum air flow and improved 105% static pressure over the heat sink while also operating quieter than reference cards.
    Real-Time Ray Tracing
  • The NVIDIA GeForce RTX platform enables real-time ray tracing of objects and environments with physically accurate shadows, reflections, refractions, and global illumination. The RTX 2070 features 6 GigaRays per second and up to 42T RTX-OPS*.

    *Equivalent aggregate math operations contributed by the Turing Shaders, CUDA Cores, Tensor Cores, and RT Cores needed to render RTX graphics.
    USB Type-C with VirtualLink
  • VirtualLink is an open industry standard that enables next-gen VR headsets to connect with PCs and other devices using a single, high-bandwidth USB Type-C connector. The Alternate Mode of USB Type-C simplifies and speeds up VR setup time, avoiding key obstacles to VR adoption. VirtualLink connects with VR headsets to simultaneously deliver four high-speed HBR3 DisplayPort lanes, which are scalable for future uses, a USB 3.1 Gen 2 data channel for supporting high-resolution cameras and sensors and provides up to 27W of power.
    SLI Ready
  • With a compatible motherboard and a connecting bracket, two or more NVIDIA GPUs of the same model can combine processing power using NVIDIA's Scalable Link Interface (SLI). How the cards work together can be customized to suit your preferences. Alternate frame rendering has each alternating card prepare the next frame, essentially multiplying the capabilities of a single card's maximum capable frame rate output. Each card in the configuration can also be used to improve anti-aliasing by being able to process an image in parallel with the other cards before filtering out jagged edges.

    The NVIDIA GeForce RTX NVLink Bridge (sold separately) provides 50 times the available transfer bandwidth of previous technologies. Delivering smooth gameplay, it's an effective way to enjoy surround gaming and it's only compatible with the GeForce RTX 2080 and 2080 Ti graphics cards.

    Note: The benefits of SLI will vary based on component configuration.
    NVIDIA GPU Boost 4.0
  • Boosts the card's clock speed in real-time based on the target temperature. If the card is running below the set target temperature, GPU Boost 4.0 will increase the clock speed to improve performance. The target temperature can be reset depending on your preference, so you can have the card run more quietly for everyday tasks and older games, and run at full tilt during intense high-resolution gaming sequences.
    NVIDIA Ansel
  • With Ansel, gamers can compose the gameplay shots they want, pointing the camera in any direction and from any vantage point within a gaming world. They can capture screenshots at up to 32 times the screen resolution, and then zoom in where they choose without losing fidelity. With photo-filters, they can add effects in real-time before taking the shot. And they can capture 360-degree stereo photospheres for viewing in a VR headset or Google Cardboard.
    CUDA
  • NVIDIA's parallel computing platform which enables an increase in computing performance by harnessing the parallel nature of GPU processing. CUDA-compatible applications can assign intensive parallel computing tasks, such as real-time video rendering, to the GPU to process, freeing up the computer's CPU to run other tasks.
    G-SYNC Ready
  • When used with a monitor that has G-SYNC hardware installed, the monitor's refresh rate will sync and lock with the graphics card's output frame rate. Establishing this sync removes tearing and stuttering which can result from conventional fixed screen refresh rates, especially important for gaming in stereoscopic 3D. An additional benefit of G-SYNC is reduced lag so gamers will benefit from the improved command response time as well.
UPC: 192876144374 In the Box ASUS Dual GeForce RTX 2070 Graphics Card
  • Driver Disc
  • Limited 3-Year Warranty
  • More info from ASUS Table of Contents




    Upload User Manual

    Have you got an user manual for the ASUS Dual GeForce RTX 2070 Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    ASUS Dual GeForce RTX 2070 Specs

    GPU Model NVIDIA GeForce RTX 2070
    Stream Processors 2304 CUDA Cores
    Boost Clock Speed Gaming Mode: 1620 MHz
    OC Mode: 1650 MHz
    Base Clock Speed Gaming Mode: 1410 MHz
    OC Mode: 1410 MHz
    Interface PCI Express 3.0
    Supported APIs DirectX: 12
    OpenGL: 4.5
    Memory Speed 14 Gb/s
    Memory Configuration 8 GB
    Memory Interface GDDR6
    Memory Interface Width 256-Bit
    Memory Bandwidth 448 GB/s

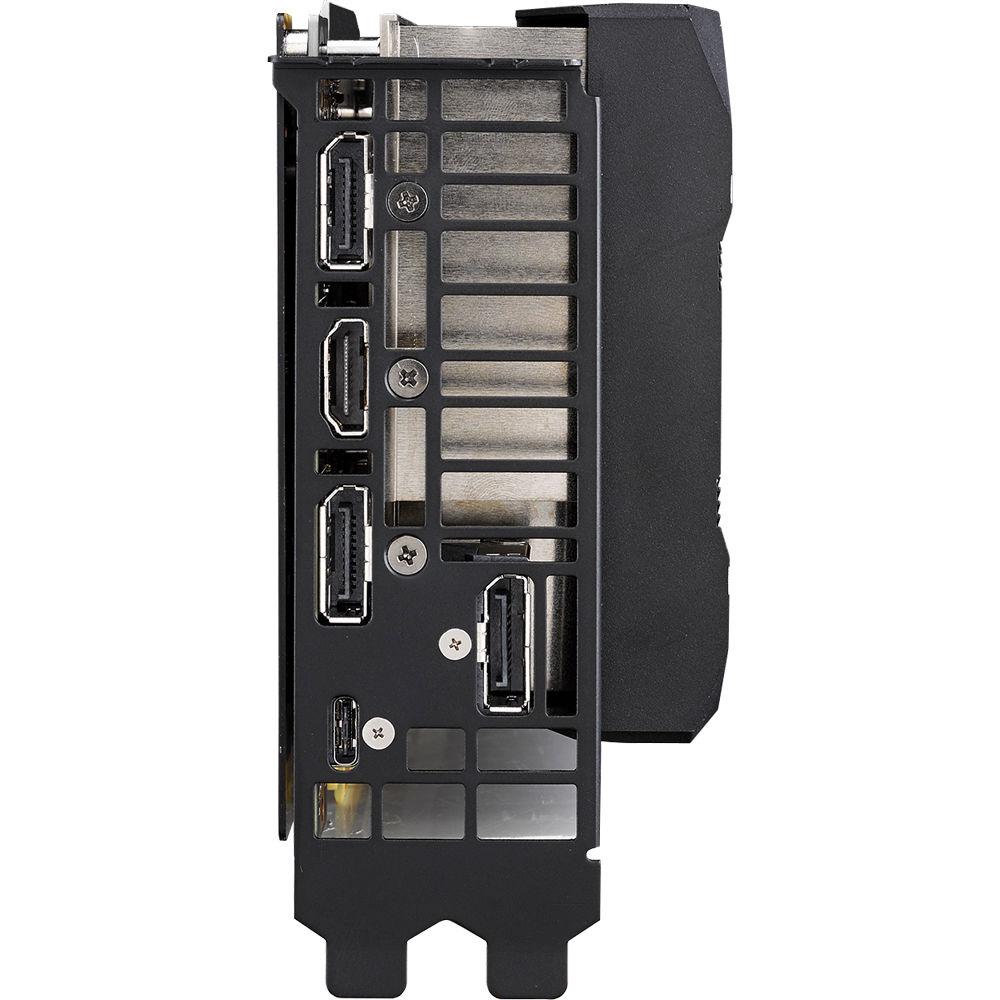

    Display Connectors 3 x DisplayPort 1.4
    1 x HDMI 2.0b
    1 x USB Type-C
    Maximum Digital Resolution 7680 x 4320 @ 60 Hz
    PCI Power Connectors 1 x 6-Pin
    1 x 8-Pin
    Recommended System Power Requirement 550 W
    Height 4.47" / 113.54 mm
    Length 10.53" / 267.46 mm
    Width 2.75-Slot
    Cooler Type Open Fansink
    Package Weight 3.87 lb
    Box Dimensions (LxWxH) 16.0 x 9.2 x 3.6"
