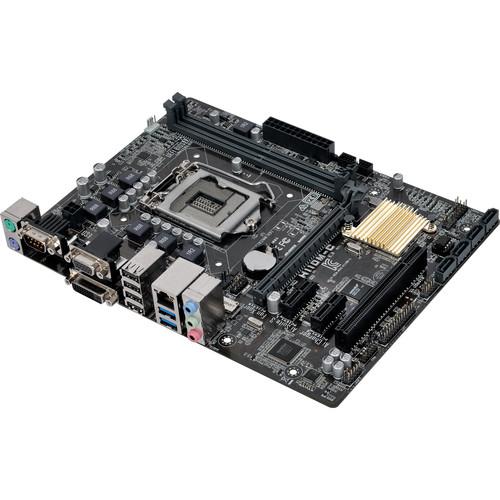

User Manual for ASUS H110M-C CSM Motherboard Click to enlarge the picture
Contents of the user manual for the ASUS H110M-C CSM Motherboard
- Product category: Motherboards ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Motherboards
 |
User manual for the ASUS H110M-C CSM Motherboard contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|
Product description This 10-pack of H110M-C/CSM Motherboards from ASUS is designed to fit in cases that support a micro-ATX form factor. The 9.6 x 7.2" H110M-C/CSM supports 6th Generation (Skylake) Intel Core i7, i5, i3, Pentium, and Celeron processors, the LGA 1151 socket, as well as the Intel H110 chipset. This motherboard supports Windows 10 (64-bit), 8.1 (64-bit), and 7 (64 and 32-bit).
The micro-ATX form factor of the H110M-C/CSM has 2 x DIMM slots that can support up to 32GB of non-ECC unbuffered DDR4 RAM and dual channel memory architecture. The supported memory speeds are DDR4 2133 and 1866 MHz memory modules. The H110M-C/CSM has a total of 4 x SATA III 6 Gb/s ports, 1 x PCIe 3.0/2.0 x16 slot, 1 x PCIe 2.0 x1 slot, 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports at mid-board), 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 at mid-board), and 2 x PS/2 ports. Using the Realtek ALC887 codec, it can support 7.1-channel HD audio, or 8-channel HD audio if the chassis has an HD audio module in the front panel.
The H110M-C/CSM has integrated Intel HD graphics support with 1 x DVI-D port and 1 x VGA port. It can use up to 1,024MB of shared memory and also supports Intel InTru 3D, Intel Quick Sync Video, Intel Clear Video HD, and Intel Insider. Its DVI-D and VGA port can both support a maximum resolution of 1920 x 1200 @ 60 Hz.
The H110M-C/CSM has also been designed with LAN guard, overvoltage protection, DRAM overcurrent protection, a stainless-steel backplate, ESD Guards, UEFI BIOS, Fan Xpert, AI Suite 3, and more. This motherboard is protected by a limited 3-year warranty and includes an I/O shield and 2 x SATA III 6 Gb/s cables. Stability - 5X Protection II
- - Surge-Protected Networking
- Overvoltage Protection
- ESD Guards
- Overcurrent Protection
- Stainless-Steel Back I/O - LANGuard
- ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically-guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges
- Overvoltage Protection
- A circuit design with built-in voltage regulators to help protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies
- DRAM Overcurrent Protection
- Onboard resettable fuses help prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of both your system and connected devices
- Stainless-Steel Back I/O
- Corrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's up to three times (3x) longer than ordinary panels
- ESD Guards
- Electrostatic discharge (ESD) can happen suddenly, and its damaging effects are easily underestimated. ASUS ESD Guards are tested to very high standards, capable of up to ±10kV for air discharge and ±6kV for contact discharge. ASUS employs an active protective circuit design to guard your system against electrostatic interference and damage, providing greater component longevity
Performance - DDR4 Support
- With DDR4, you'll accelerate memory frequencies up to 2133 MHz. ASUS works with almost every DDR4 memory vendor, so you're assured compatibility
- UEFI BIOS
- The mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way, quickly and easily
- EZ Flash 3
- Update the BIOS via the Internet and from within the BIOS
- S.M.A.R.T
- Check up your storages devices' Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T) logs to gauge reliability and even determine if they're about to fail
- Q-Fan Control
- You can configure the fan's operating speed manually or use the pre-configured fan profiles to select Standard, Silent, Turbo, or Full Speed modes
- My Favorites
- Quickly find tuning options and add preferred tools to the list
- EZ Mode
- Intuitive Graphical Fan Control:
Fine-tune individual fans simply by dragging a curve with the mouse
EZ XMP:
Improve your DRAM performance with a click
SATA Information:
View SATA port details for easy device recognition
Fast Clock Adjustment:
Use mouse controls to change the time and date - Advanced Mode
- Last Modified Log:
Track last change and save preferred profiles onto a USB drive
SATA Port Renaming:
Rename SATA ports for easy identification Transfer Speed - Front Panel USB 3.0
- ASUS put USB 3.0 right where you need it - two ports on the front panel. Experience data-transfer speeds up to 10x faster than USB 2.0 with plug-and-play connectivity, so no more back-breaking contortions in the hunt for hard-to-reach rear ports
PC DIY - Safe Motherboard Mounting
- Fitting your ASUS motherboard is now safer than ever. The comprehensive component-free 'safe zones' around every case-mounting hole minimizes the risk of damage and short circuits caused by contact - so you'll assemble your PC with total confidence
- Q-Slot
- The large winged clip is easy to reach and easy to operate. Just press the Q-Slot clip lightly and the graphics card will pop out
- Q-DIMM - Memory Removal
- Even if you work with a smaller case, just push down on the one-sided clip and push or pull RAM modules in or out
Optimized Cooling - Fan Xpert
- Fan Xpert helps ensure every fan achieves a balance of cooling performance and low noise - and with our 100 series boards and their hardware-level 4-pin/3-pin PWM/DC mode for case fans, a simple BIOS adjustment lets you run your case fan in PWM/DC. Fan Xpert even includes Auto-Tuning mode to scan and detect all fan characteristics for single-click customization
One-Stop Control - AI Suite 3
- ASUS AI Suite 3 offers a user experience through a clearer and more attractive interface with support for larger monitors. It consolidates all ASUS features into one simple-to-use package, allowing you to supervise overclocking, energy consumption, fan speeds, voltages, and more. This all-in-one app offers diverse and easy to use functionality, with no need to switch back and forth between different utilities
Intel CPU and Chipset Features - Intel H110 Express Chipset
- The Intel Express chipset is a single-chipset design that supports 6th-generation Intel LGA 1151 Core i7/Core i5/Core i3/Pentium/Celeron processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. It natively supports up to four USB 3.0 ports for up to ten times faster transfer than USB 2.0. Moreover, the Intel H110 Express chipset also supports iGPU functions, letting users enjoy Intel integrated graphics performance
- Ready for 6th-generation Intel LGA 1151 Core i7/Core i5/Core i3/Pentium/Celeron Processors
- This motherboard supports 6th-generation Intel Core i7/i5/i3/Pentium/Celeron processors in the LGA 1151 package, with graphics, memory, and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, dual channel (2 DIMM) DDR4 memory, and 16 PCI Express 3.0/2.0 lanes for great graphics performance.
In the Box ASUS H110M-C/CSM Motherboard (10-Pack) I/O Shield 2 x SATA III 6 Gb/s Cables Limited 3-Year Warranty User Manual PDF 5.5mbvyrsewwsef Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS H110M-C CSM Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS H110M-C/CSM/C/SI Specs | | | Chipset | Intel H110 | | CPU Socket | LGA 1151 | | | | USB | 2 x USB 3.1 Gen 1 Type-A
4 x USB 2.0 Type-A | | Display | 1 x DVI-D
1 x VGA | | Audio | 3 x 3.5 mm | | Ethernet / Controller | 1 x Realtek 8111H Gigabit | | PS/2 | 2 x PS/2 | | Legacy | 1 x Serial | | | | Memory Slots | 2 x 288-Pin | | Memory Support | DDR4 1866, 2133 MHz | | Maximum Capacity | 32 GB | | ECC Support | Non-ECC Unbuffered | | | | SATA | 4 x SATA III | | M.2 | None | | U.2 | None | | RAID Support | None | | | | Expansion Slots | 1 x PCIe 3.0 x16
1 x PCIe 2.0 x1 | | USB | 1 x USB 2.0 Header (Supports 2 USB Type-A Ports)
1 x USB 3.1 Gen 1 Header (Supports 2 USB Type-A Ports) | | Multi-GPU Support | None | | Air Cooling | 1 x 4-Pin CPU
1 x 4-Pin System | | Power Connectors | 1 x 24-Pin Mainboard
1 x 4-Pin CPU | | Security | Chassis Intrusion, TPM Module | | LED Header | None | | Audio | 1 x Speaker | | Diagnostics | Clear CMOS | | Legacy | 1 x Serial | | | | I/O Connection Headers | AAFP | | | | Audio Codec | Realtek ALC887 (8-Channel) | | | | Supported Operating Systems | Windows 10 (64-Bit)
Windows 8/8.1 (64-Bit)
Windows 7 (32/64-Bit) | | | | Form Factor | Micro-ATX | | Dimensions | 9.6 x 7.2" / 24.4 x 18.3 cm | | | | Package Weight | 18.55 lb | | Box Dimensions (LxWxH) | 22.0 x 11.5 x 11.2" |
