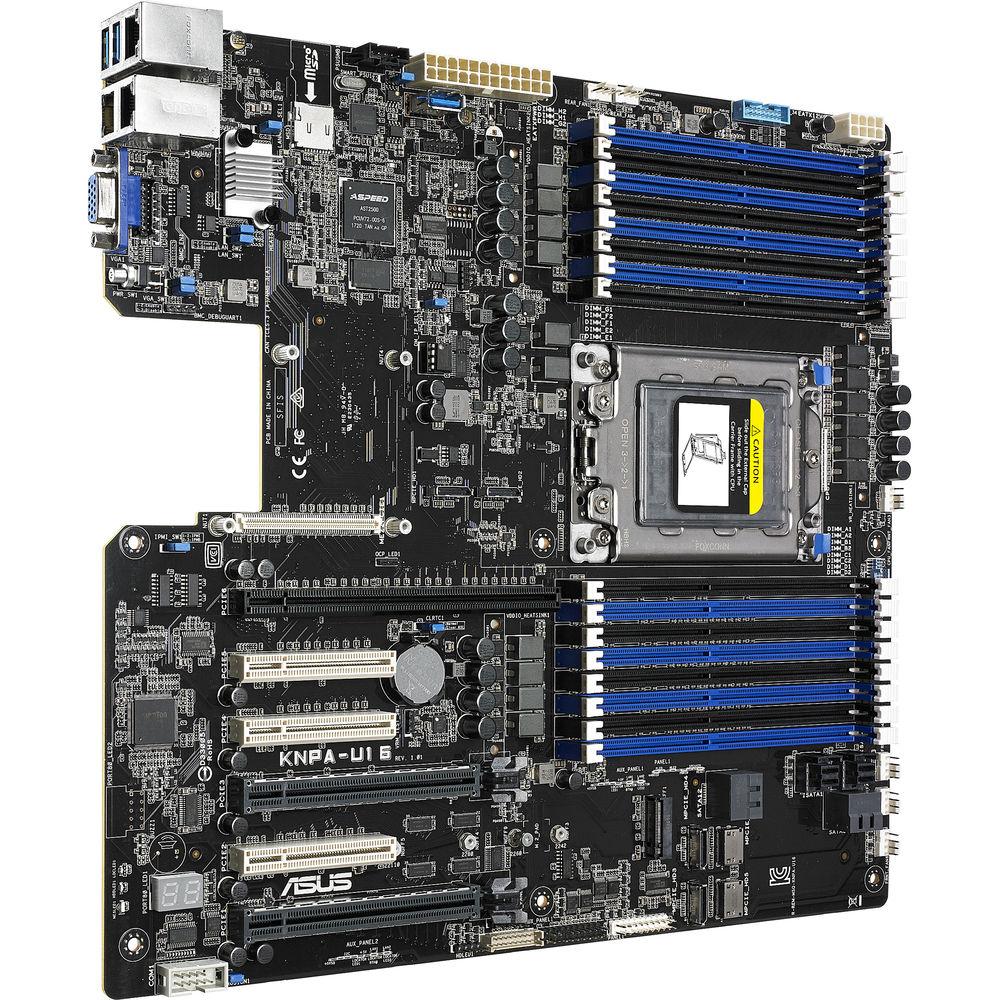

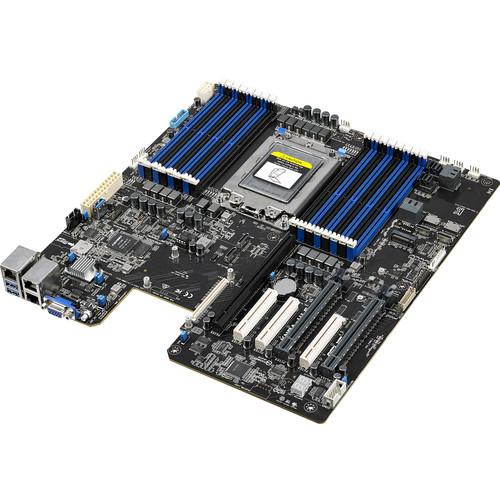

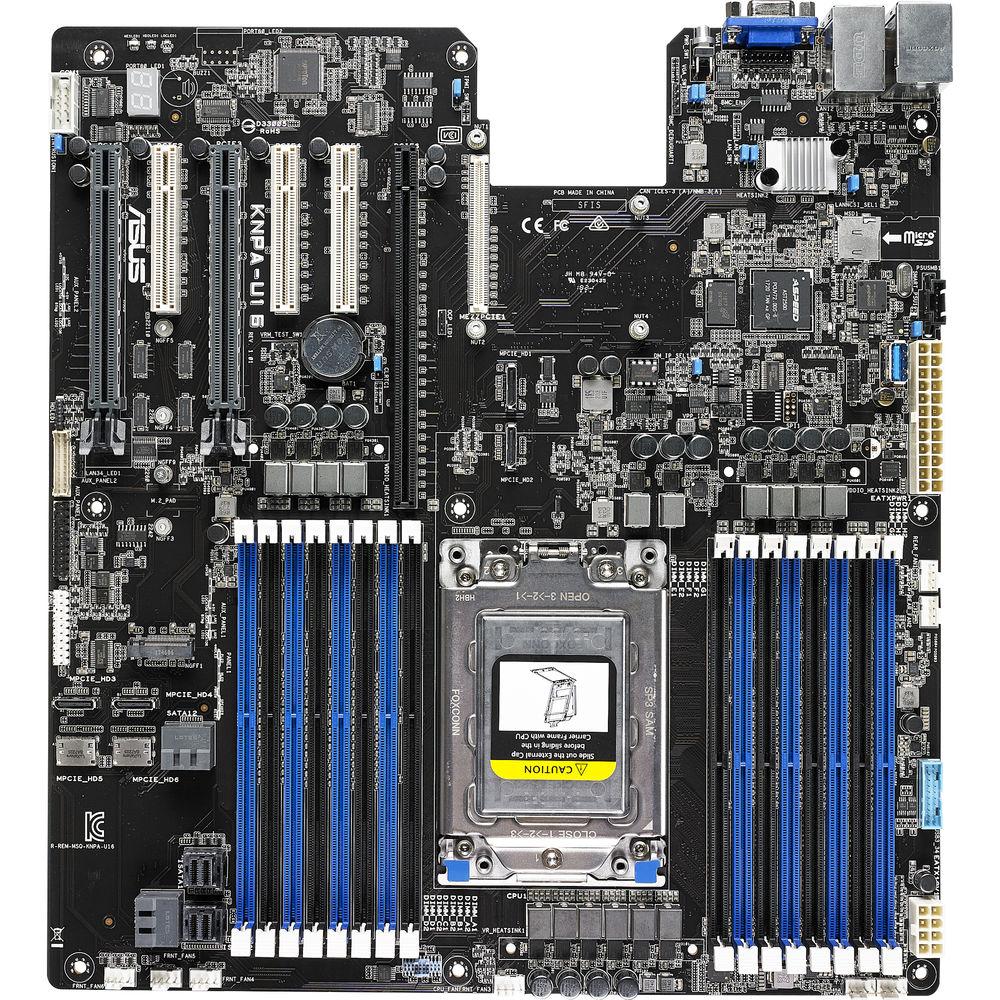

Product description The KNPA-U16 SP3 EEB Motherboard from ASUS is built on the AMD EPYC 7000 processor, an SoC platform that delivers advanced performance for servers. With up to 32 cores per CPU and 64 threads, the KNPA-U16 delivers power in a minimal 12 x 13" EEB form factor. Sixteen 288-pin DIMM slots support up to 2048GB (2TB) of 2666 and 2400 MHz RDIMM, LRDIMM, and LR-DIMM 3DS memory. RDIMMs are supported for 8, 16, and 32GB modules, LRDIMMs are supported for 32 and 64GB modules, and LR-DIMM 3DS is supported for 64 and 128GB modules. Additionally, an integrated I/O controller on the processor helps to eliminate the data transfer bottlenecks caused by discrete I/O chipsets for reduced latency and faster system performance.

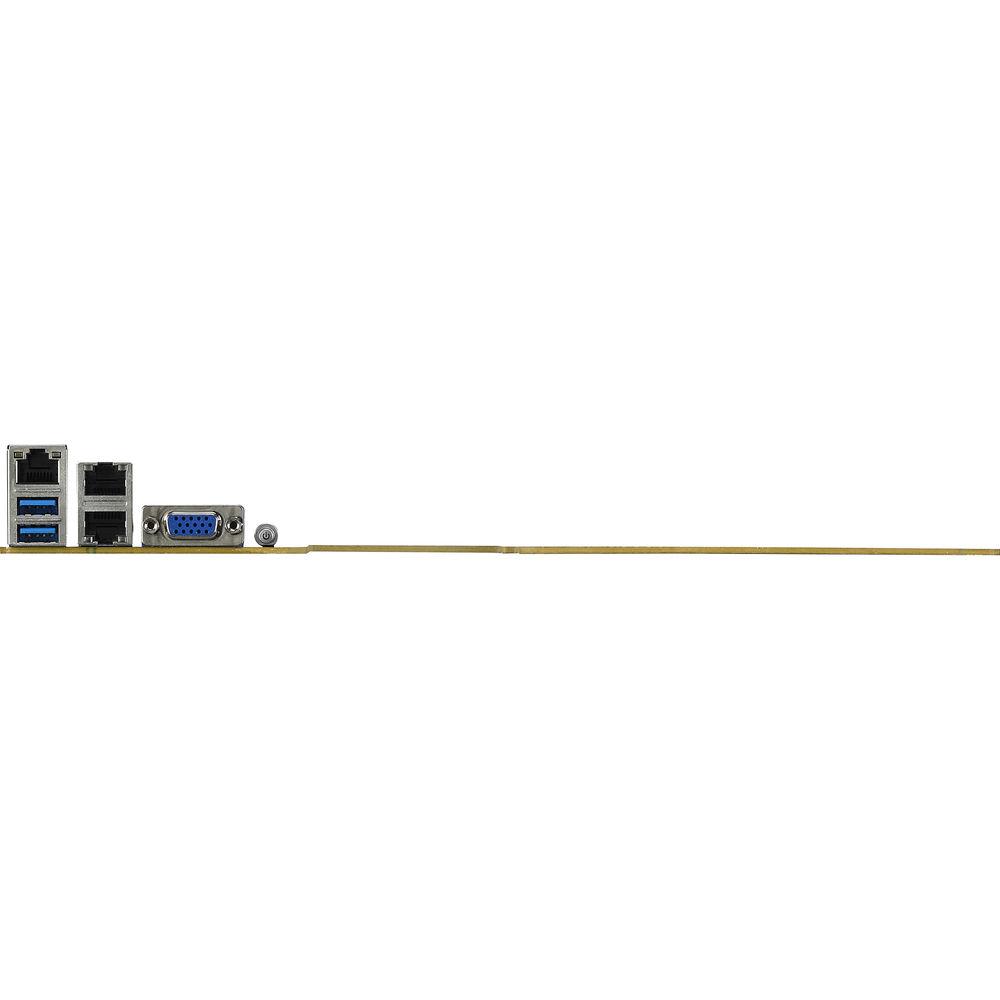

Other features include a dual port Intel I350-AM2 Gigabit LAN controller, one Management LAN port, integrated Aspeed AST2500 graphics with 64MB of video memory, two USB 3.0 Type-A ports (rear), one VGA port (rear), one USB 3.0 header that supports up to two devices (internal), one USB Type-A port (internal), a microSD card slot (internal), a serial port header (internal), and a VGA header (internal). Expand this motherboard using its six PCIe slots and one connector for an OCP 2.0 Mezzanine card. In terms of storage, there are four SATA III 6 Gb/s connectors, two Mini-SAS HD connectors that support eight SATA III drives, six OCuLink connectors for NVMe SSDs, and one M.2 slot that supports SATA III and PCIe 3.0 x4 2242, 2260, 2280, and 22110 SSDs. General Features - Speed up Your System with M.2
- With SATA III 6 Gb/s or PCIe Gen3 x4 bandwidth, the KNPA-U16 features one M.2 slot with data transfer speeds of up to 32 Gb/s and form factor support for 2242, 2260, 2280, and 22110. It is a good choice for an operating system or application drive, providing faster access to data.
- Support for up to Six NVMe SSDs
- The KNPA-U16 supports up to twelve SATA drives via two Mini-SAS HD and four SATA connectors for more connectivity with external devices and cleaner cable routing. With six onboard OCuLink connectors that provide efficient port-to-port connection with NVMe devices, the KNPA-U16 eliminates the need for PCIe transaction cards, while providing the reduced latency and higher maximum bandwidth of NVMe technology.
- Flexible Expandability with Six PCIe Slots
- With the scalable PCIe lane support of AMD EPYC processors, the KNPA-U16 provides flexible expandability with six PCIe slots, as well as one connector for OCP 2.0 Mezzanine card support for applications that require high-bandwidth to transfer large data such as data center, HPC, web-hosting, and enterprise uses.
- Thermal Radar Technology for Energy Efficiency
- KNPA-U16 features ASUS-exclusive Thermal Radar technology with ambient sensors for internal and external temperature monitoring, and dynamic fan-curve adjustment, which lowers fan power consumption by up to 20% and reduces total cost of ownership, making it suitable for data centers with extreme workloads.
- Comprehensive IT Infrastructure Management
- The KNPA-U16 features an embedded iKVM module and is bundled with ASUS Control Center to provide comprehensive out-of-band and in-band management features for small and mid-size businesses.
The embedded ASMB9-iKVM module supports remote BIOS updates, fan control, standalone KVMs, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics—even if the operating system is down or offline—through a user-friendly, web-based graphical interface that works with major browsers.
ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure. - ASUS ProCool Connector
- ASUS ProCool power connectors are designed without any hollow areas, enabling lower impedance, faster heat dissipation, and cooler operating temperatures for reduced power loss and increased cost savings.
- Quick Initialization Guidance
- The KNPA-U16 provides instant system information during initialization and reports any unusual diagnostic results for more efficient IT operation and easy troubleshooting.
- Visible Q-Code
- The KNPA-U16 has a visible Q-Code/port 80 LED display for simple monitoring of the entire boot process, from power on through loading of the operating system.
- OS Drive Installation and Debugging
- An internal USB 3.0 port accepts boot disks, providing a safer way to install Linux or VMware Hypervisor, as well as additional access for debugging.
- MicroSD Card Support
- A BMC (baseboard management controller) supports microSD cards to facilitate remote OS updates, image file and video storage, and log data tracking.
UPC: 192876102664 In the Box ASUS KNPA-U16 SP3 EEB Motherboard 4 x SATA III 6 Gb/s Cables I/O Shield Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS KNPA-U16 SP3 EEB Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS EPYC Specs | | | USB | 2 x USB 3.1 Gen 1 Type-A | | Thunderbolt | None | | Display | 1 x VGA | | Audio | None | | Ethernet / Controller | 2 x Intel I350-AM2 Gigabit
1 x Management | | | | Memory Slots | 16 x 288-Pin | | Memory Support | DDR4 2400, 2666 MHz | | Maximum Capacity | 2048 GB | | | | SATA | 4 x SATA III
8 x SATA III | | M.2 | 1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4, SATA III) | | U.2 | None | | Memory Card Slots | 1 x microSD (Unspecified Type) | | | | Expansion Slots | 6 x PCIe | | USB | 1 x USB 3.1 Gen 1 Header (Supports 2 USB Type-A Ports) | | Multi-GPU Support | None | | Air Cooling | 8 x 4-Pin CPU | | Security | Chassis Intrusion, TPM Module | | Audio | None | | Legacy | 1 x Serial | | | | I/O Connection Headers | None | | | | Form Factor | EEB | | Dimensions | 12 x 13" / 304.80 x 330.20 mm |
