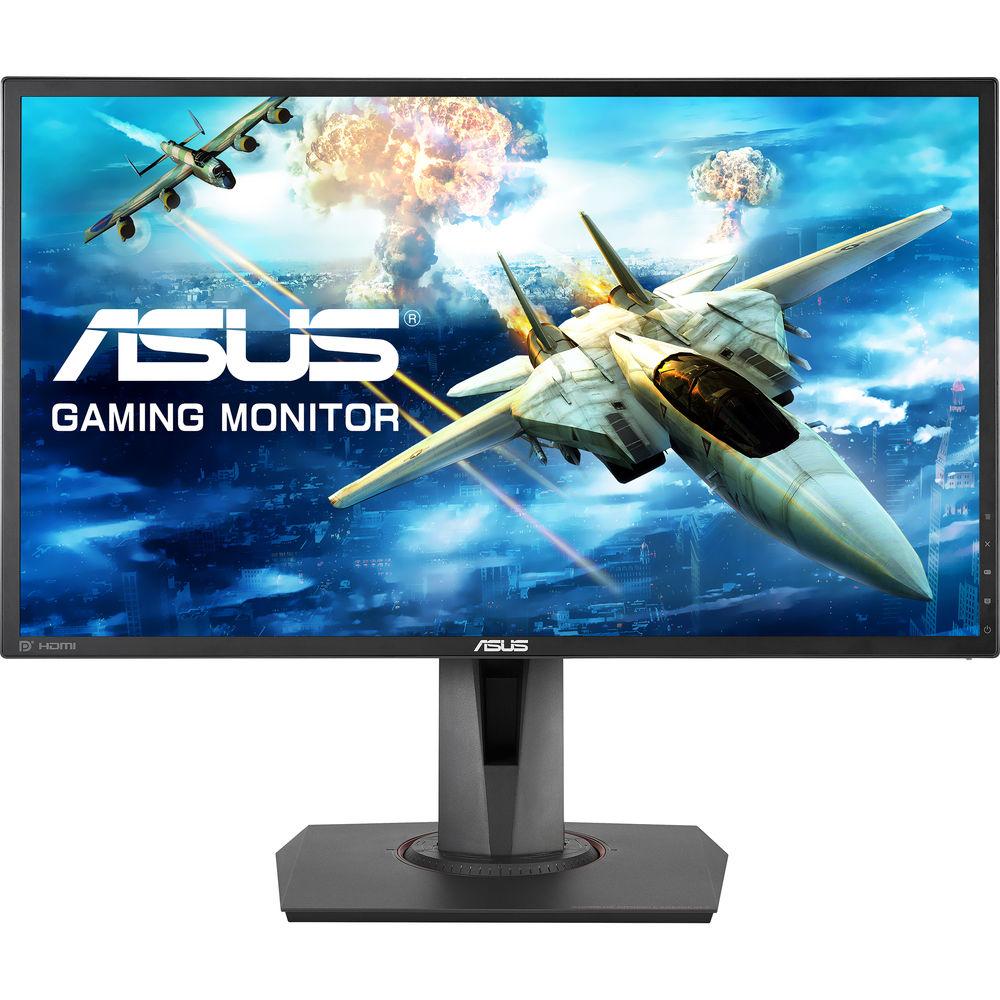

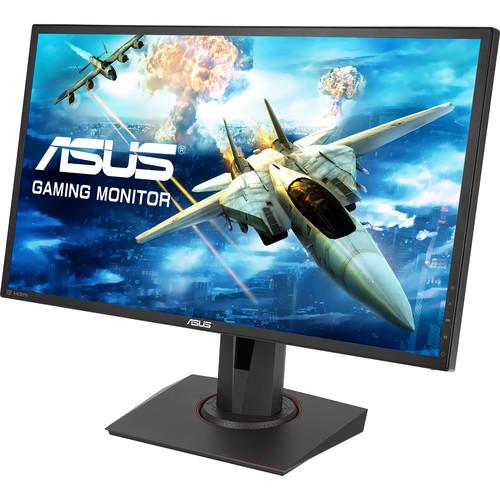

User Manual for ASUS MG248QR 24" 16:9 FreeSync LCD Gaming Monitor Click to enlarge the picture
Contents of the user manual for the ASUS MG248QR 24" 16:9 FreeSync LCD
- Product category: Computer Monitors ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Computer Monitors
 |
User manual for the ASUS MG248QR 24" 16:9 FreeSync LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More cyutbeszry With the 144 Hz refresh rate and 1 ms response time found on the MG248QR 24" 16:9 FreeSync LCD Gaming Monitor from ASUS, gamers benefit from smoother gameplay with virtually no ghosting or blur. ASUS has also included both GamePlus and DisplayWidget functionality right into the display allowing users to tweak game settings including GameVisual properties, image specifications, low blue light settings, and much more.
Setting up the ASUS MG248QR is simple as it can be attached to the ergonomically designed stand or mounted to the wall using a VESA compatible mount. Once set up, it is possible to plug this monitor into nearly any computer configuration as it comes equipped with HDMI 1.4, DisplayPort, and dual-link DVI connectivity. To complete the in-game experience ASUS has included a 3.5mm audio jack as well as a pair of 2-watt speakers built right into the monitor. The 24" display features a Full HD 1920 x 1080 resolution, a 350 cd/m² brightness rating, a 1 ms response time, and ASUS' own smart contrast ratio, which supports deeper dark and brighter bright colors, creating a more dynamic picture. - 1 ms Rapid Response Time
- The ASUS MG248QR boasts a 1 ms response time to virtually eliminate smearing and motion blur. This lets you react instantly to what you see onscreen, especially in fast paced games. There's also the ASUS Extreme Low Motion Blur Technology to make objects in motion look sharper, so gameplay is more fluid and responsive.
- 144 Hz Refresh Rate
- With an enhanced 144 Hz refresh rate, fast-moving visuals pose no problem for MG248QR. There's no frustrating lag or motion blur, so you get the upper hand in first person shooters, racers, real-time strategy, and sports titles.
- Adaptive-Sync Technology for Smooth Gameplay
- The MG248QR features Adaptive-Sync (Free-Sync) technology - it eliminates screen tearing and choppy frame rates to give you seamless visuals and smooth gameplay.
- ASUS-Exclusive GamePlus Technology
- The ASUS MG248QR features the ASUS-exclusive GamePlus hotkey to give you in-game enhancements that help you get more out of your game. A crosshair overlay provides four different crosshair options, so you can select the one that best suits the shooter you're currently playing.
- ASUS-Exclusive DisplayWidget
- The exclusive ASUS DisplayWidget is intuitive software utility that lets users tweak settings or display properties of ASUS GameVisual, App Sync, and Ultra-Low Blue Light technologies. Although every adjustment can be done via the OSD and the navigational joystick and buttons, it's easier via DisplayWidget. It makes accessing and using these various settings faster and easier.
- Rich Connectivity Options

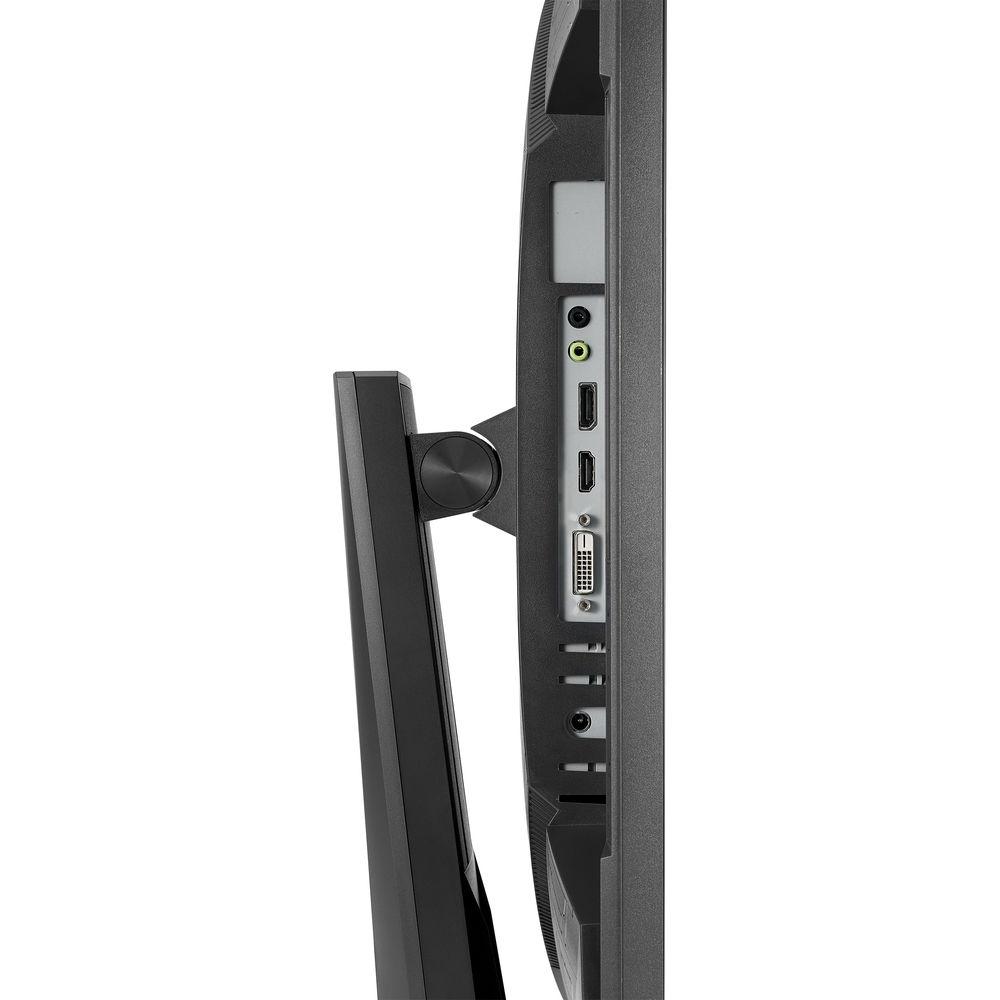

- The ASUS MG248QR has extensive connectivity options, including dual-link DVI-D, DisplayPort, and HDMI (v1.4) ports, so you can hook it up to a wide array of multimedia devices. It has a super-narrow 0.39" / 1cm bezel, ideal for an immersive and panoramic gaming setup.
- Flicker-Free Technology
- Flicker-Free technology reduces flicker to give you a comfortable gaming experience. This minimizes instances of eyestrain and other potentially damaging eye ailments when you're embroiled in long, drawn-out gaming sessions.
- Ultra-Low Blue Light Technology
- ASUS Ultra-Low Blue Light technology reduces the amount of harmful blue. You can access and select four different filter settings onscreen easily through the OSD menu or DisplayWidget interface to find one that best suits the content you're viewing.
The MG248QR gaming monitor has undergone stringent performance tests and is certified by TÜV Rheinland laboratories, a global provider of technical, safety, and certification services, to be flicker-free and to emit low blue light levels. - Ergonomically Designed

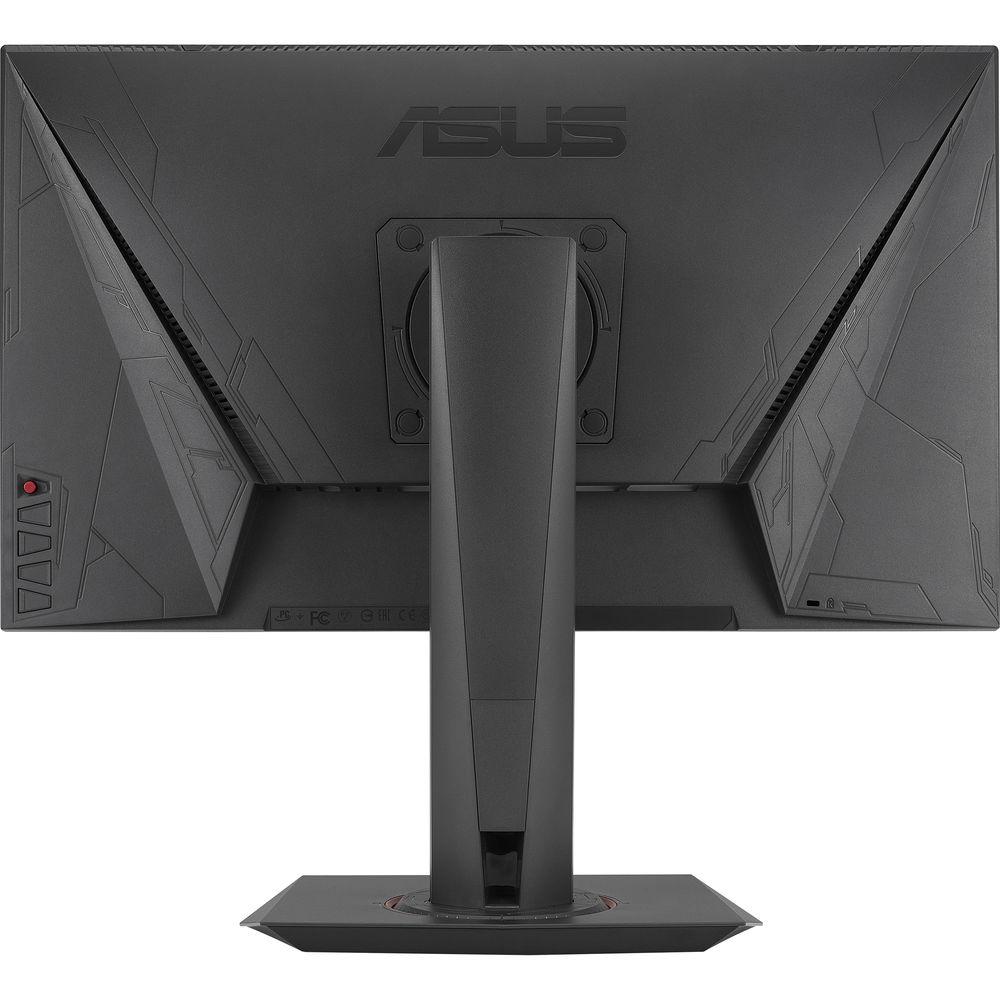

- The ASUS MG248QR is specially designed for long marathon gaming sessions. Its ergonomically-designed stand lets you adjust the tilt, swivel, pivot, and height of the monitor so you always find your ideal viewing position. It can also be VESA wall-mounted to fit in any limited space.
UPC: 889349680483 In the Box ASUS MG248QR 24" 16:9 FreeSync LCD Gaming Monitor (w/ Ultra Low Motion Blur Technology) Power Cord Power Adapter Limited 3-Year Warranty User Manual PDF 3.8mb More info from ASUS Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS MG248QR 24" 16:9 FreeSync LCD Gaming Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS MG248QR Specs | | | Display Size | 24" / 61 cm | | Color Saturation (NTSC) | 72% | | Panel Type | TN | | Resolution | 1920 x 1080 | | Pixel Pitch | 0.2768 mm | | Brightness | 350 cd/m² | | ASUS Smart Contrast Ratio (ASCR) | 100,000,000:1 | | Viewing Angles (H/V) | 170°/160° | | Response Time (GtG) | 1 ms | | Aspect Ratio | 16:9 | | Display Colors | 16.7 Million | | | | Video Features | Trace Free Technology
Skin Tone Selection: 3 modes
Color Temperature Selection: 4 modes
GamePlus: 4 modes (crosshair, timer, FPS counter, display alignment)
Low Blue Light
HDCP Support
VividPixel
GameVisual: 6 Modes (scenery/racing/cinema/RTS/RPG/FPS/sRGB modes)
FreeSync Technology Supported
DisplayWidget | | | | Video | Signal Input
HDMI (v1.4)
DisplayPort (v1.2)
Dual-link DVI-D | | Audio | 1 x 3.5 mm
2 x 2 W RMS Stereo Speakers | | | | Signal Frequency | Analog Signal Frequency
30~160 kHz(H) / 50~144 Hz(V)
Digital Signal Frequency
Display port 160~160 kHz(H) / 40~144 Hz(V) | | | | Power Consumption (Operating) | < 65 W (based on ENERGY STAR 6.0) | | Power Consumption | Power Saving Mode: < 0.5 W
Power Off Mode: < 0.5 W | | | | Tilt (Angle) | -5 to 33° | | Swivel (Angle) | ±90° | | Pivot | ±90° | | Height Adjustment Range | 0 to 5.1" / 0 to 130 mm | | VESA Compatibility | 100 x 100 mm | | | | Security | Kensington lock (lock sold separately) | | Dimensions (W x H x D) | With Stand: 22.09 x 14.13-19.26 x 8.31" / 56.12 x 35.89-48.92 x 21.12 cm
Without Stand: 22.09 x 12.96 x 1.99" / 56.12 x 32.92 x 5.05 cm | | Weight | 11.46 lb / 5.2 kg | | | | Package Weight | 16.5 lb | | Box Dimensions (LxWxH) | 26.0 x 16.0 x 8.5" |
