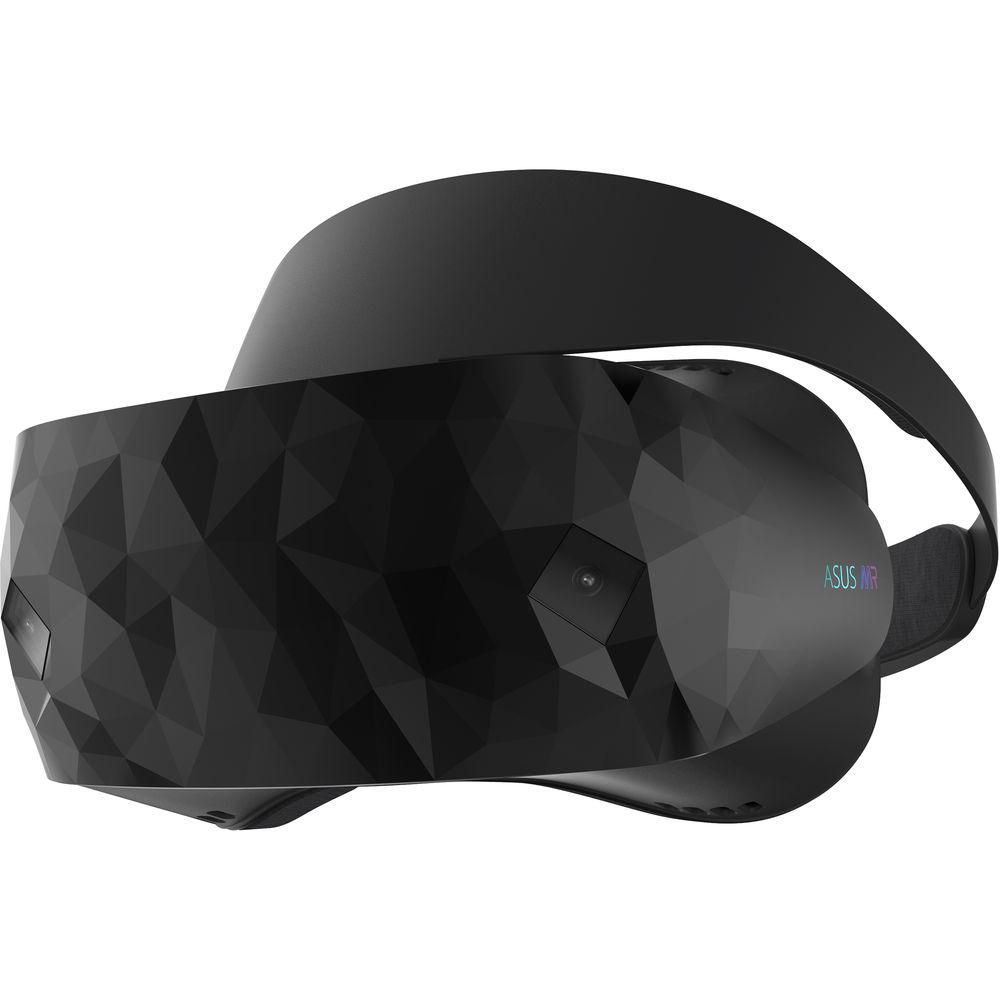

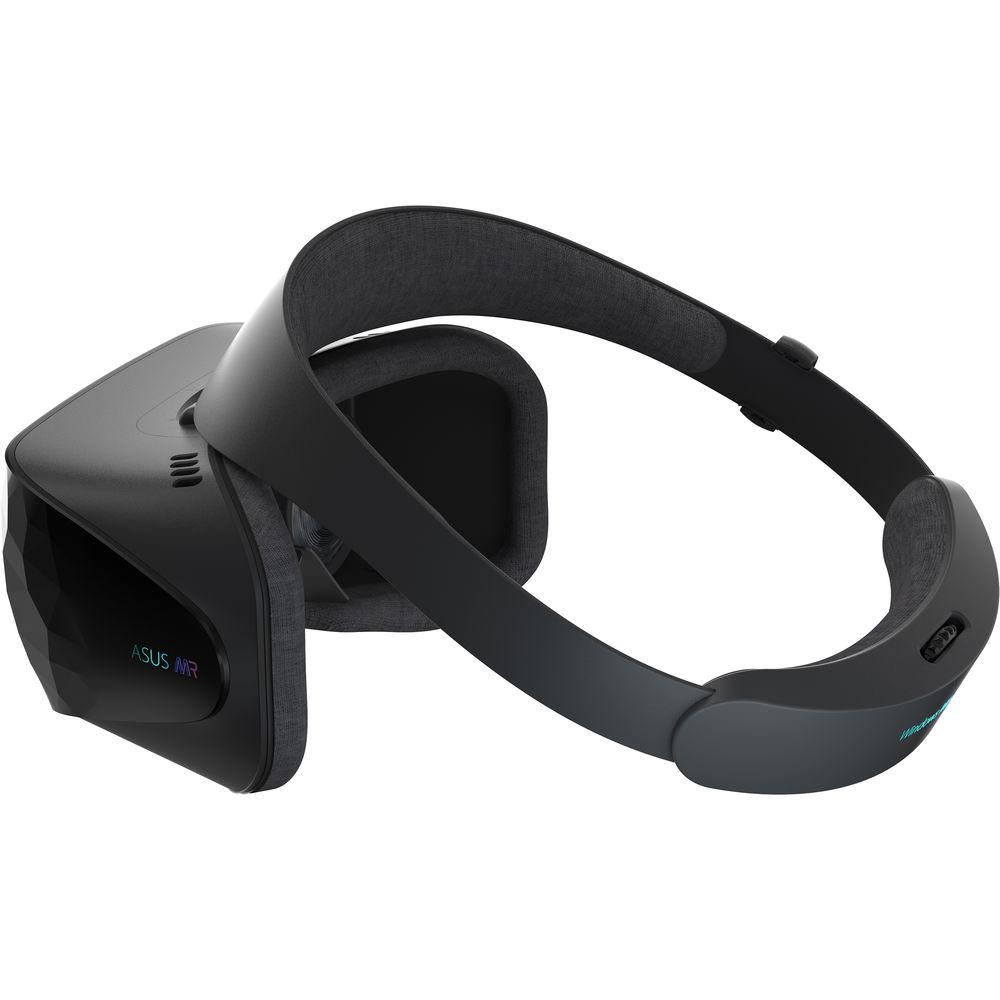

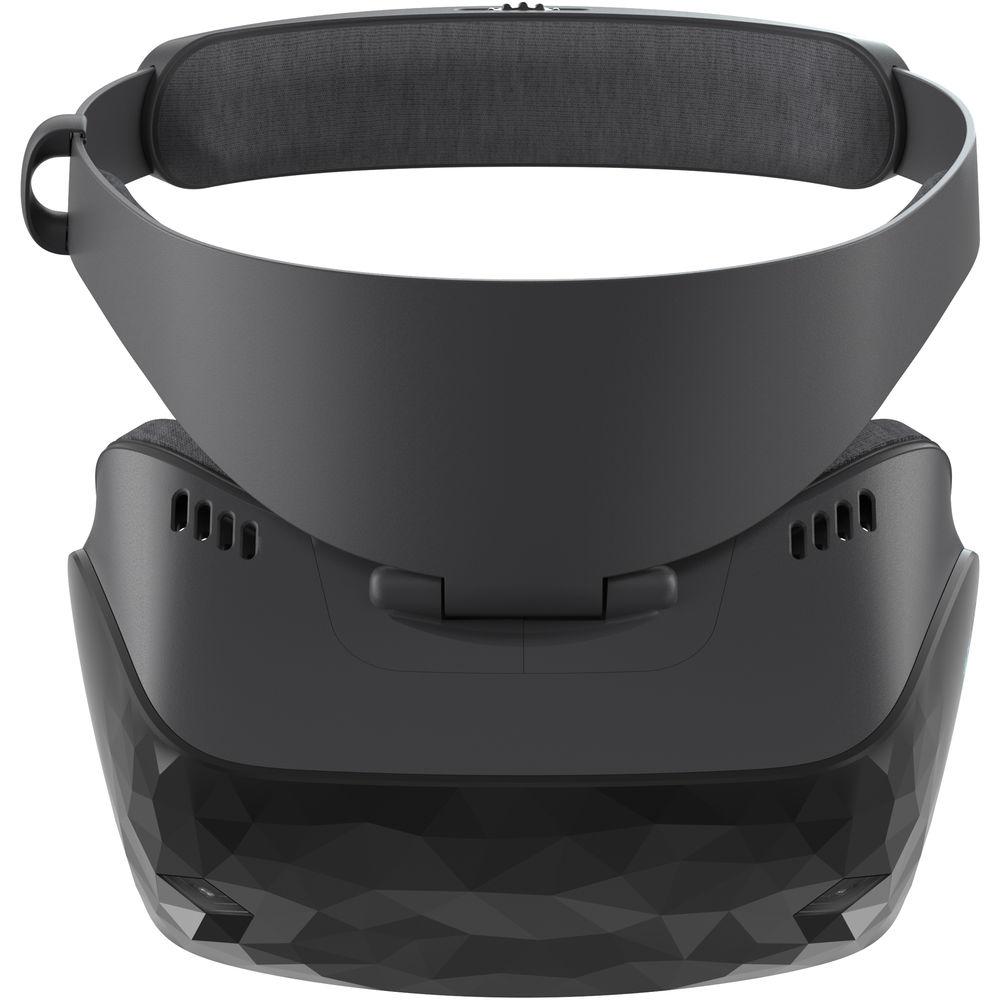

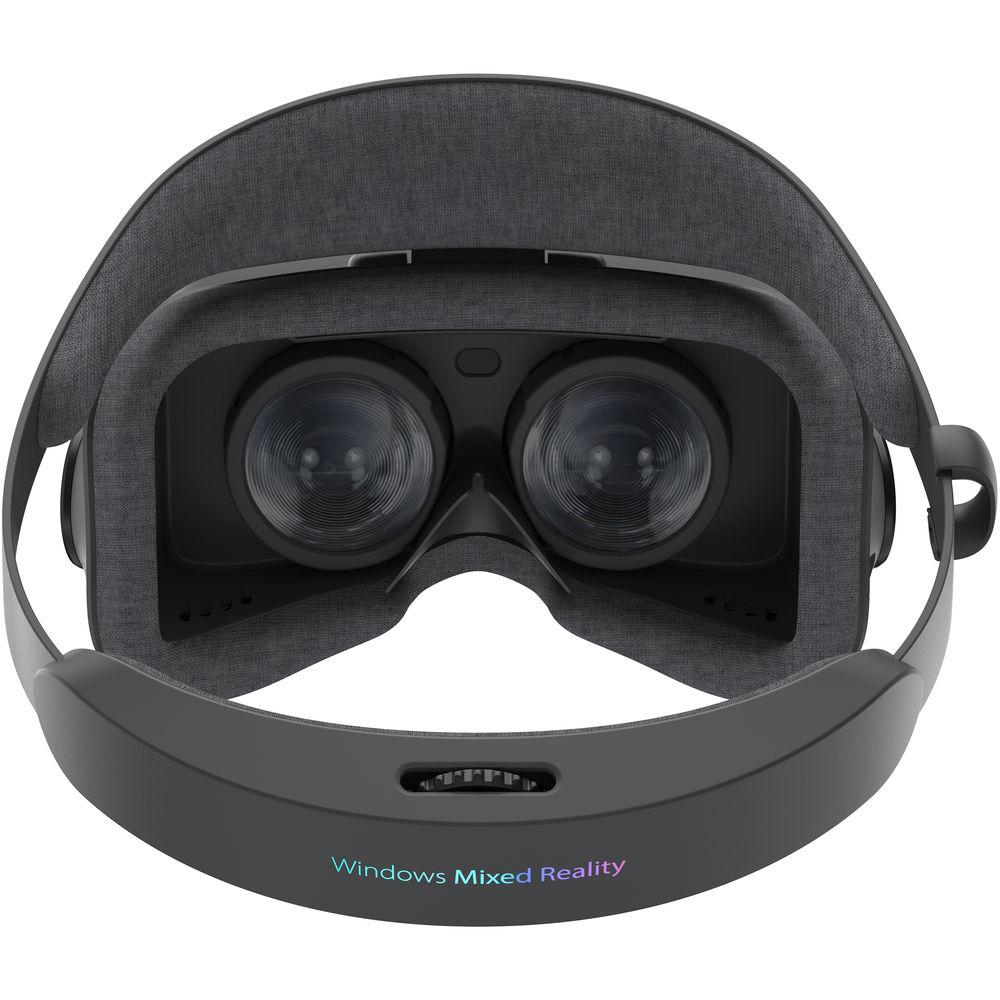

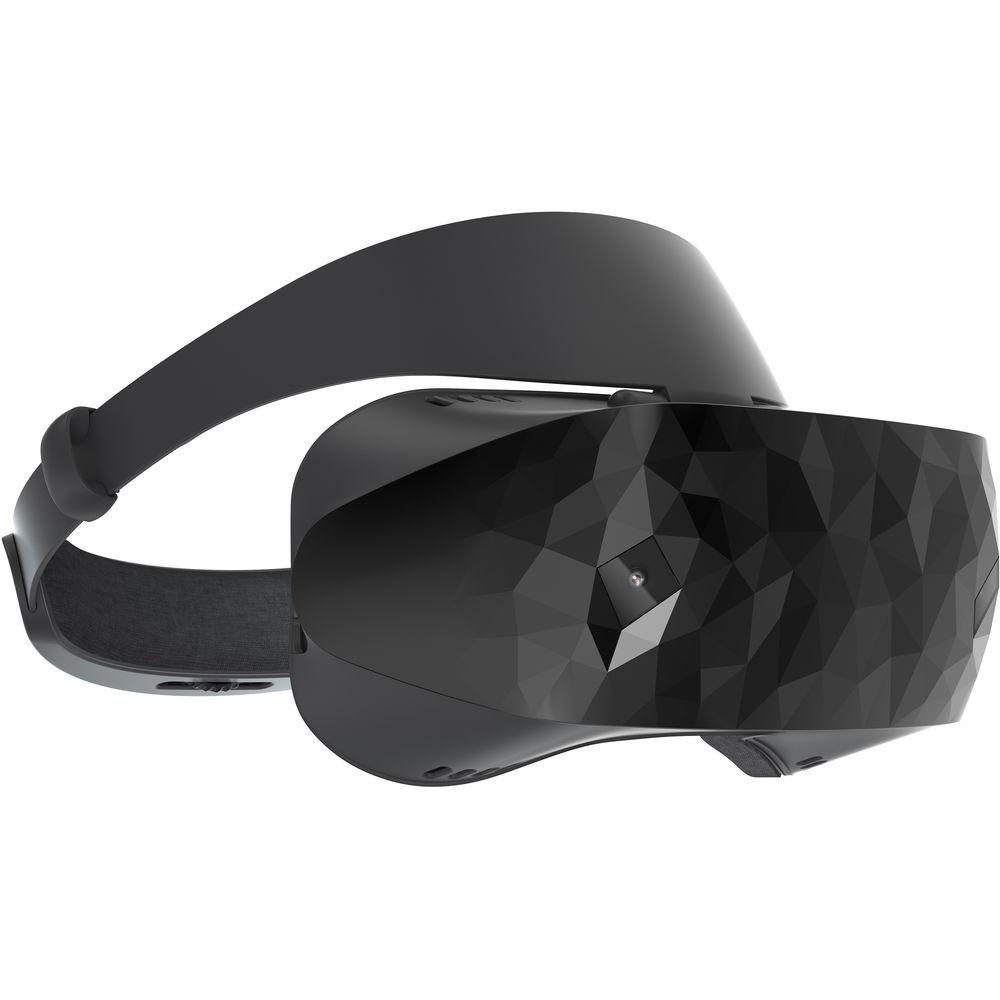

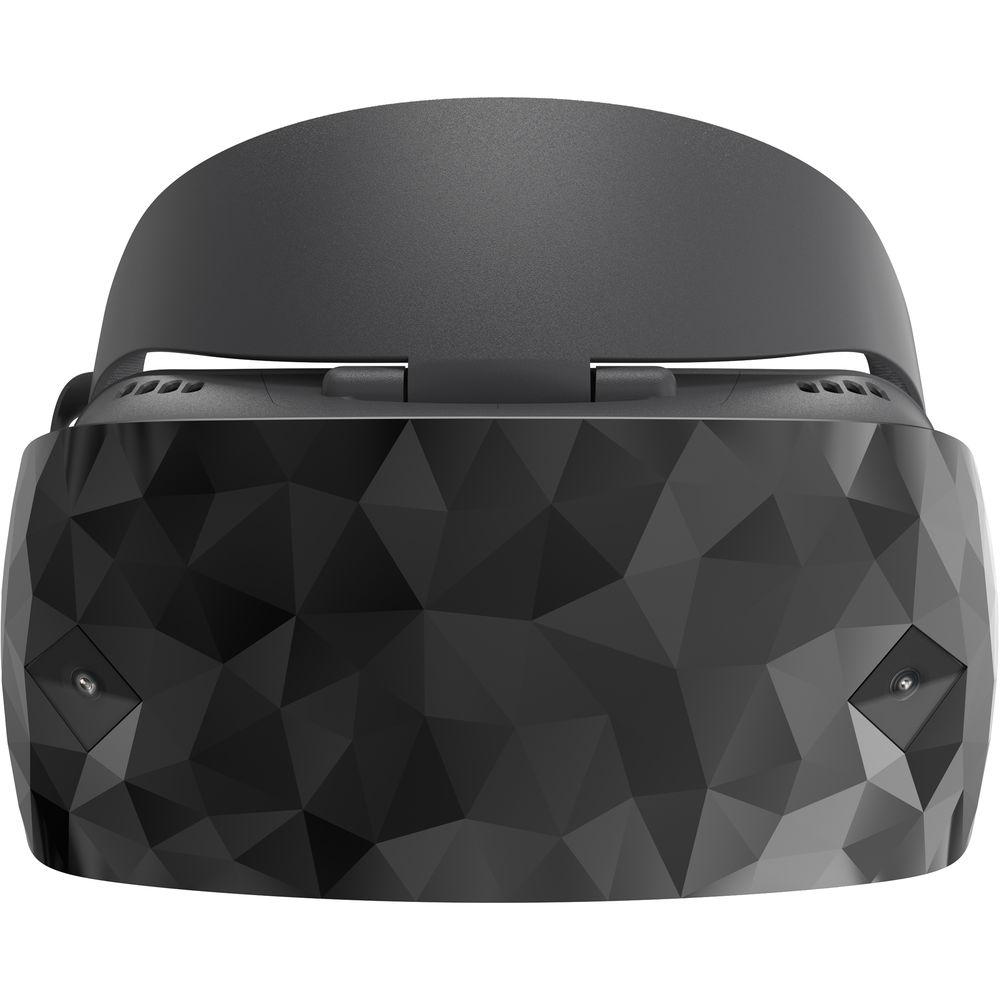

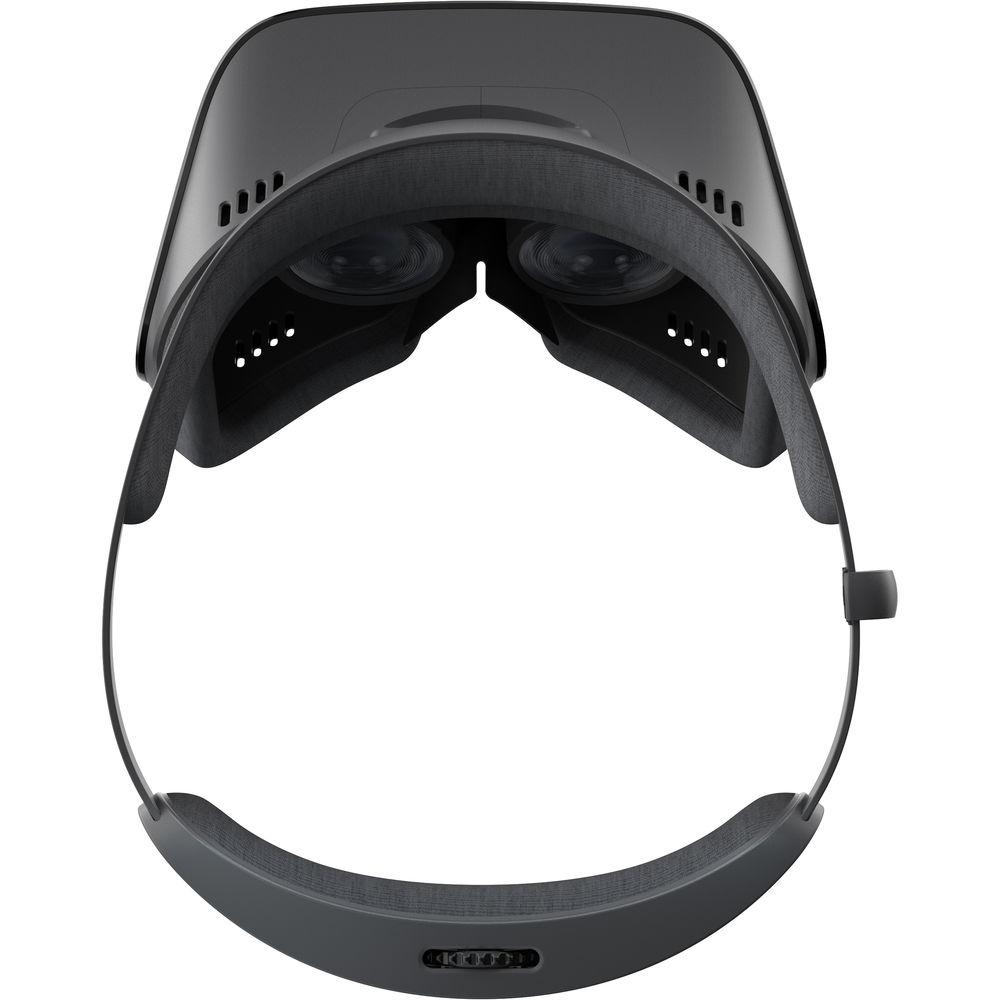

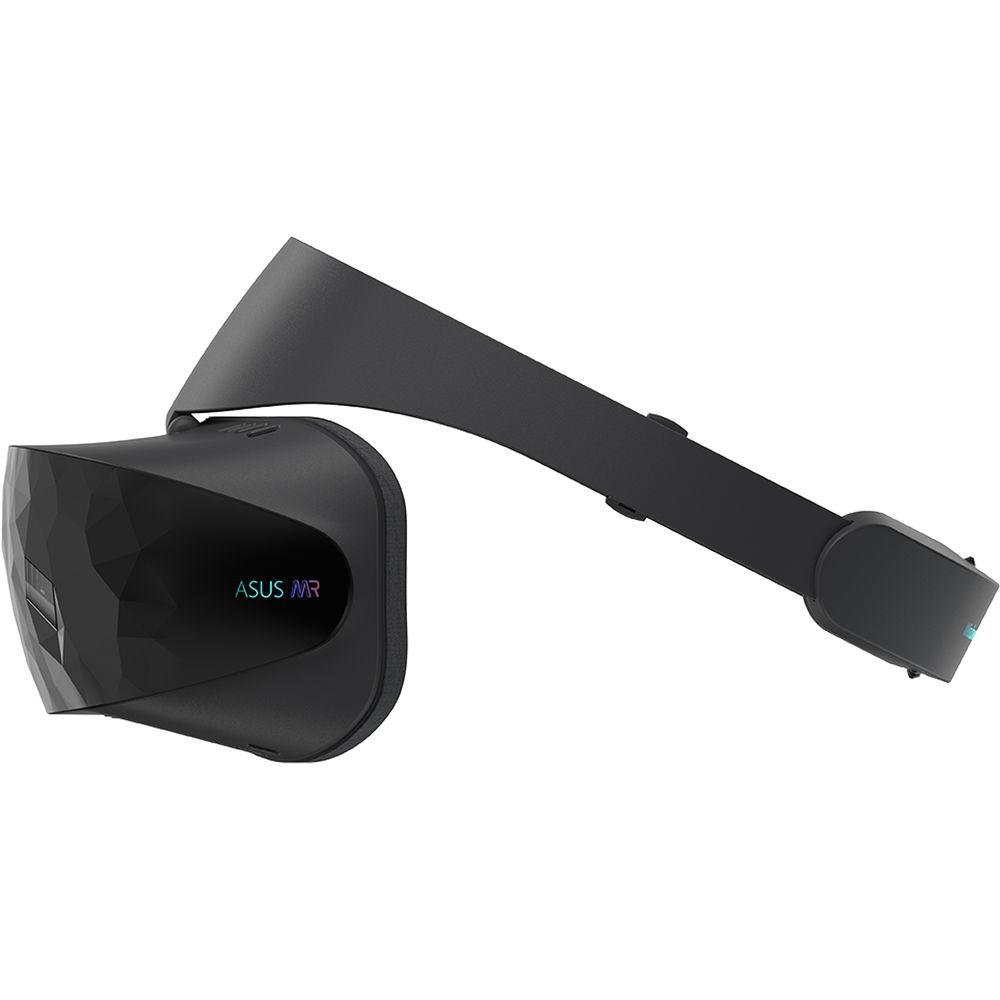

Product description Announcing the ASUS Mixed Reality Headset Read More - ASUS Windows Mixed Reality Headset - Explore Your Imagination
Designed for Windows Mixed Reality, the ASUS Mixed Reality Headset with Two Motion Controllers was engineered to be a natural extension of your computer.Compatible with a variety of laptops and desktop computers that meet the requirements of Windows Mixed Reality, the ASUS headset allows you to watch shows in a virtual environment, play virtual reality games, travel the world through holo-tours, watch immersive 3D, 360°, and 4K videos, browse websites, or simply get some work done in the Microsoft Office suite. With the ASUS Mixed Reality Headset, you have several different options for controlling your computer. You can use the included motion controllers for natural, fine-tuned interactions using Bluetooth Classic wireless technology.The ASUS Mixed Reality Headset has dual 2.89" LCD displays, each with 1440 x 1440 resolution, for a total resolution of 2880 x 1440. It has a field of view of 95°. It has a built-in 13' Y-cable that has a USB 3.0 Type-A and an HDMI 2.0 plug to connect to your computer. You'll be able to move around without any additional external sensors. Please note that the Windows 10 Fall Creators Update is required. - Dual 2.89" LCD Displays
- Each of the dual 2.89" LCD displays has a 1440 x 1440 resolution, for a total of 2880 x 1440. The displays also have a 90 Hz refresh rate for a smooth virtual reality experience.
- Inside-Out Tracking
- Two built-in, front-facing tracking cameras with six degrees of freedom (6DoF) position tracking and 32 LED lights on each controller allows the ASUS mixed reality headset to map your environment and track your movements—all without the need for external sensors. The headset also contains multiple sensors, such as the gyroscope, accelerometer, and magnetometer. Setup is also straightforward, thanks to the 13.1' cable with HDMI and USB 3.0 connectors.
- Unique Futuristic Design
- The ASUS mixed reality headset features a modern design, composed of hundreds of 3D polygons. The headset also has a glossy tone-on-tone effect.
- Flip Visor
- Switch between the virtual world and the real world with the flip visor design. Simply lift the visor for a temporary reality check, and flip it back down to jump back into the virtual world without having to take off the headset.
- Lightweight
- Weighing under 400 g, the balanced-crown design puts most of the weight on the forehead and the back of the skull for better support. This relieves the pressure on your nose and face for a more comfortable VR experience.
- Headset Strap
- The strap on the headset is made of cool-touch fabrics and quick-drying materials with antibacterial surfaces. It also features an adjustable dial so you can find a good fit easily.
UPC: 889349881163 In the Box ASUS Mixed Reality Headset with Two Motion Controllers 2 x Motion Controller More info from ASUS Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS Mixed Reality Headset with Two Motion Controllers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS Mixed Reality Specs | Display | Resolution
2880 x 1440 (1440 x 1440 per eye)
Refresh Rate
90 Hz
Size
2 x 2.89" / 7.34"
FOV
95°
Brightness
100 cd/m²
Type
LCD
Material
Not specified by manufacturer | | Room Size | Not specified by manufacturer | | Ports and Connectors | 1 x HDMI 2.0
1 x USB 3.0
1 x 3.5 mm audio jack | | Sensors | Headset
Motion tracking B&W VGA cameras
Proximity sensor
Gyro sensor
Accelerometer
Magnetometer
Controller
IMU + Magnetic sensor | | Tracking | Headset
Latency: 30 fps (camera), 1000 Hz (IMU)
Controller
6DOF tracking within the head-mounted display's camera FOV | | Bluetooth | Classic | | Controller | - Thumbstick with mechanical select
- Touchpad with mechanical select
- Analog trigger button
- Grip button
- Home button
- Menu button
- Pairing button
| | Supported Operating Systems | Windows 10 Fall Creators Update
(also known as Windows 10 Autumn Creators Update in certain countries) | | System Requirements | Windows Mixed Reality
CPU: Intel Core i5-7200U (7th gen)
RAM: 8 GB
Storage: 10 GB
GPU: Integrated Intel HD Graphics 620 or NVIDIA MX150/965M
Display Output: HDMI 2.0 or DisplayPort 1.2
USB 3.0 Type-A or Type-C
Bluetooth 4.0
Windows Mixed Reality Ultra
CPU: Intel Core i5 4590 quad-core (4th gen) or AMD Ryzen 5 1400 quad-core
RAM: 8 GB
Storage: 10 GB
GPU: NVIDIA GeForce GTX 960/1050 or AMD Radeon RX 460/560 (PCIe 3.0 x4+ slot)
Display Output: HDMI 2.0 or DisplayPort 1.2
USB 3.0 Type-A or Type-C
Bluetooth 4.0 | | Cable Length | 13.1' / 4.0 m | | Power | Controllers
2 x AA batteries | | Dimensions (W x H x D) | Headset
Not specified by manufacturer
Controller
Not specified by manufacturer | | Weight | 14.1 oz / 400 g | | | | Package Weight | 6.9 lb | | Box Dimensions (LxWxH) | 18.8 x 13.2 x 6.5" |
