User Manual for ASUS MZ27AQ Designo 27" 16:9 IPS Monitor with 6W Speakers & 5W Subwoofer Click to enlarge the picture
Contents of the user manual for the ASUS MZ27AQ Designo 27" 16:9 IPS
- Product category: Computer Monitors ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Computer Monitors
 |
User manual for the ASUS MZ27AQ Designo 27" 16:9 IPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|

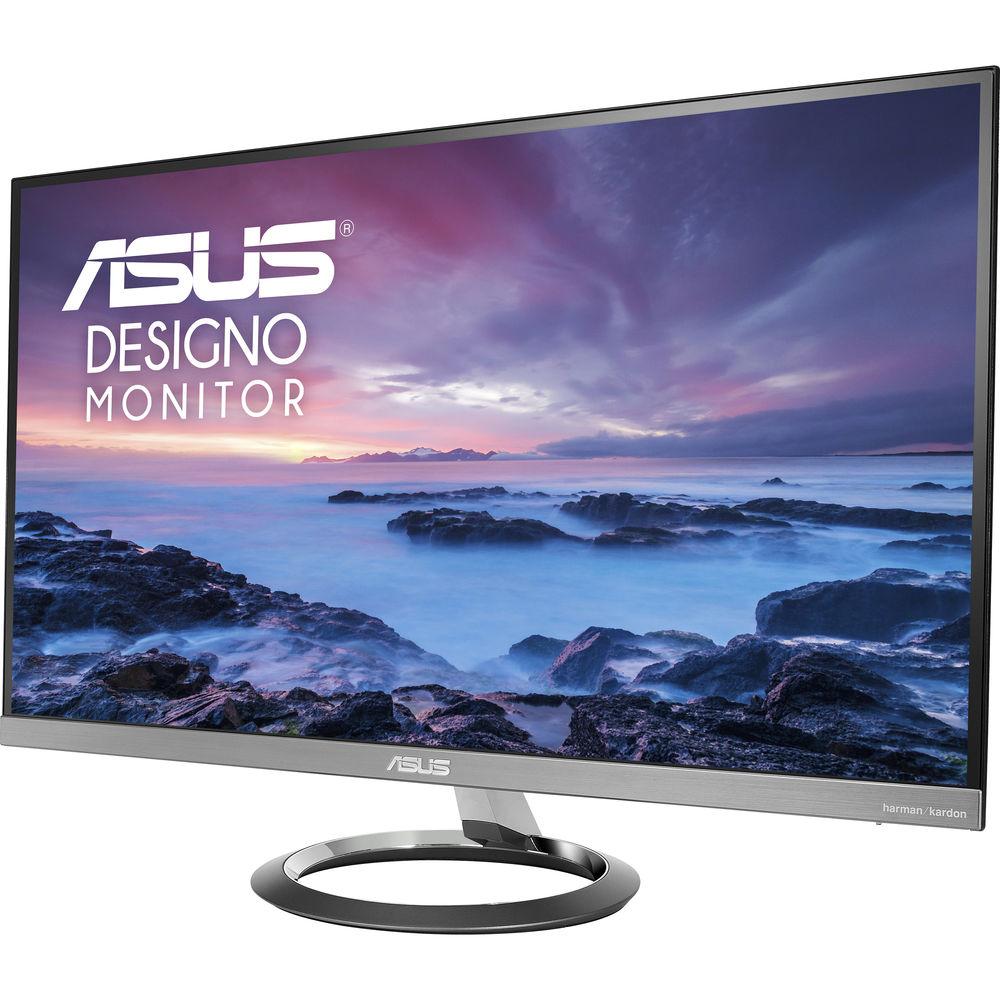

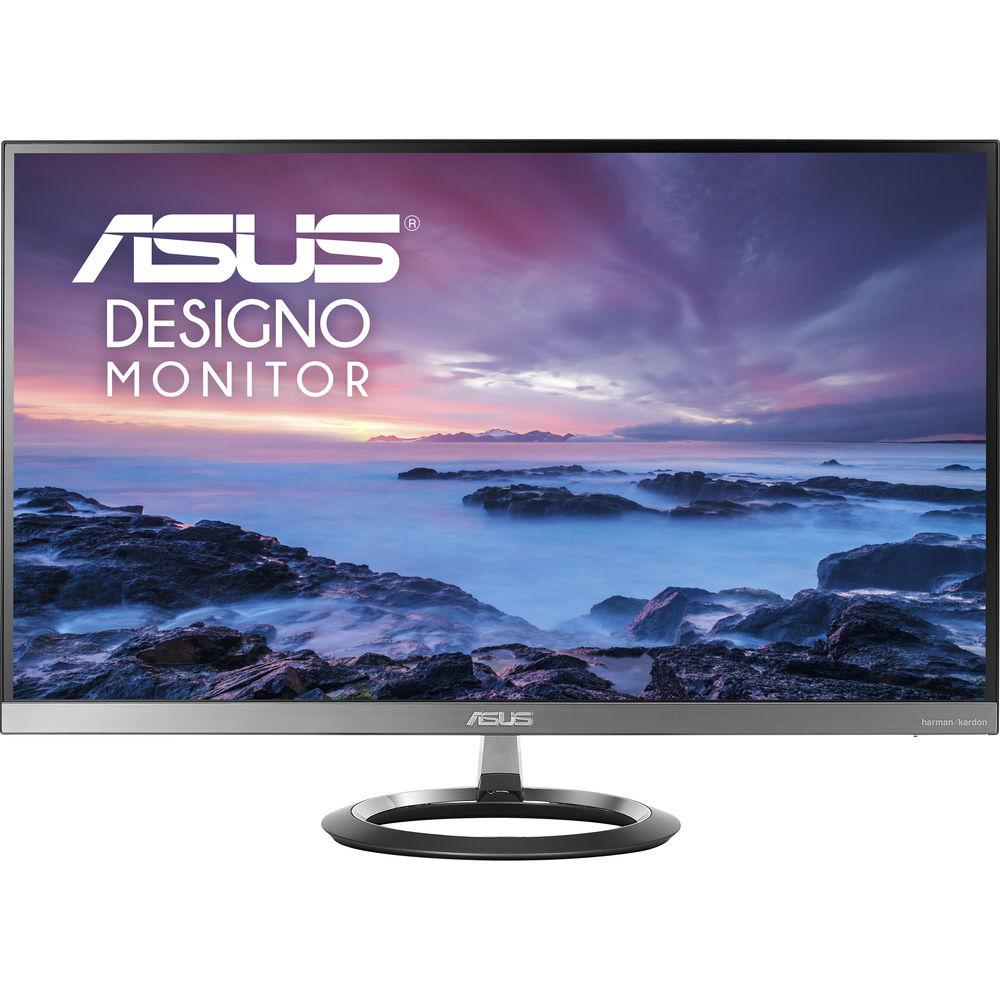

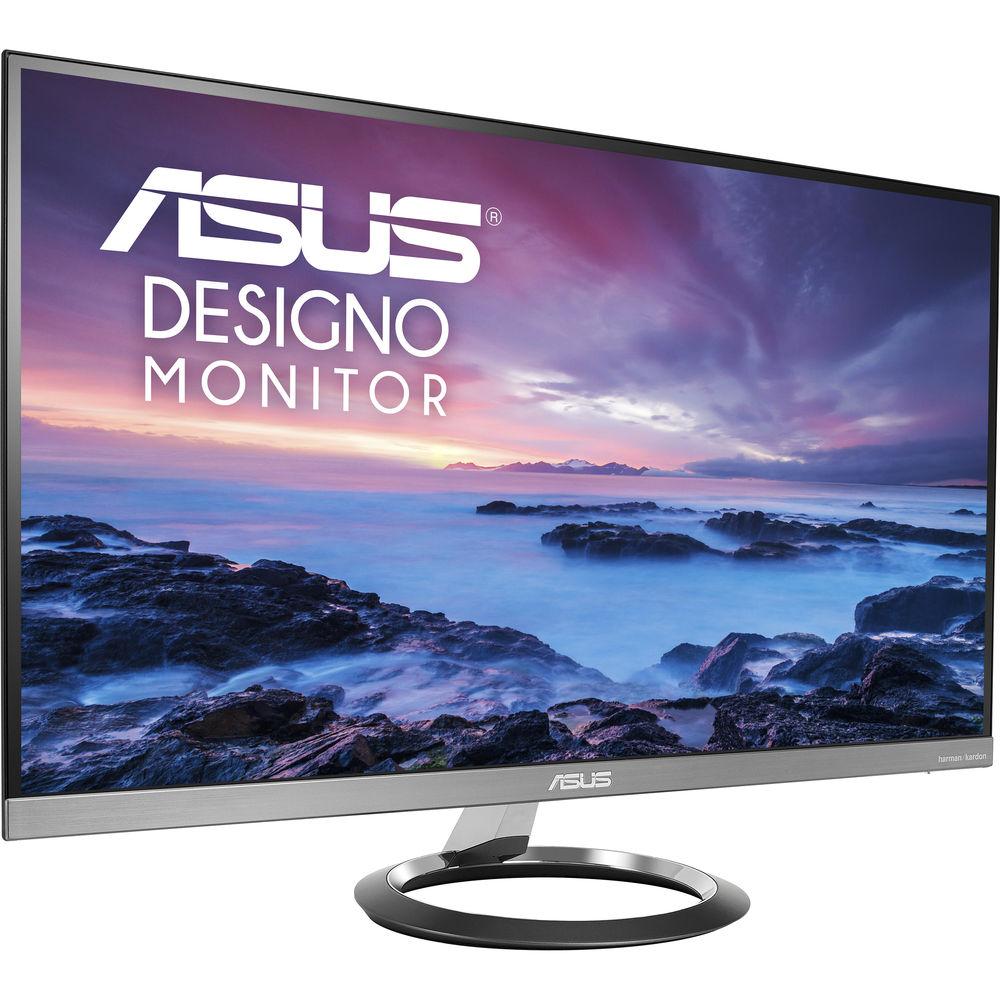

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More xsxewvqdazbdyvfa With a virtually frameless design, the MZ27AQ Designo 27" 16:9 IPS Monitor from ASUS offers an enhanced viewing experience without the distraction.
This ASUS monitor features a 2560 x 1440 WQHD resolution, a 1000:1 contrast ratio, a 350 cd/m² brightness rating, and a 5 ms response time to provide a crisp, clear picture with reduced ghosting. Viewers can also take advantage of multiple viewing modes supported by this monitor, including eight SPLENDID Video preset modes, three Skin-Tone selection modes, and four Color Temperature selection modes. QuickFit, Low Blue Light, VividPixel, and EyeCheck modes are also provided to accommodate the content being viewed on the screen.
If that's not enough, this ASUS monitor comes equipped with dual 6W stereo speakers and a 5W subwoofer to offer enhanced audio playback to complete your multimedia viewing experience. These speakers feature ASUS SonicMaster technology, co-developed by Harman Kardon to provide a wide range of sound with enhanced clarity and rich bass.

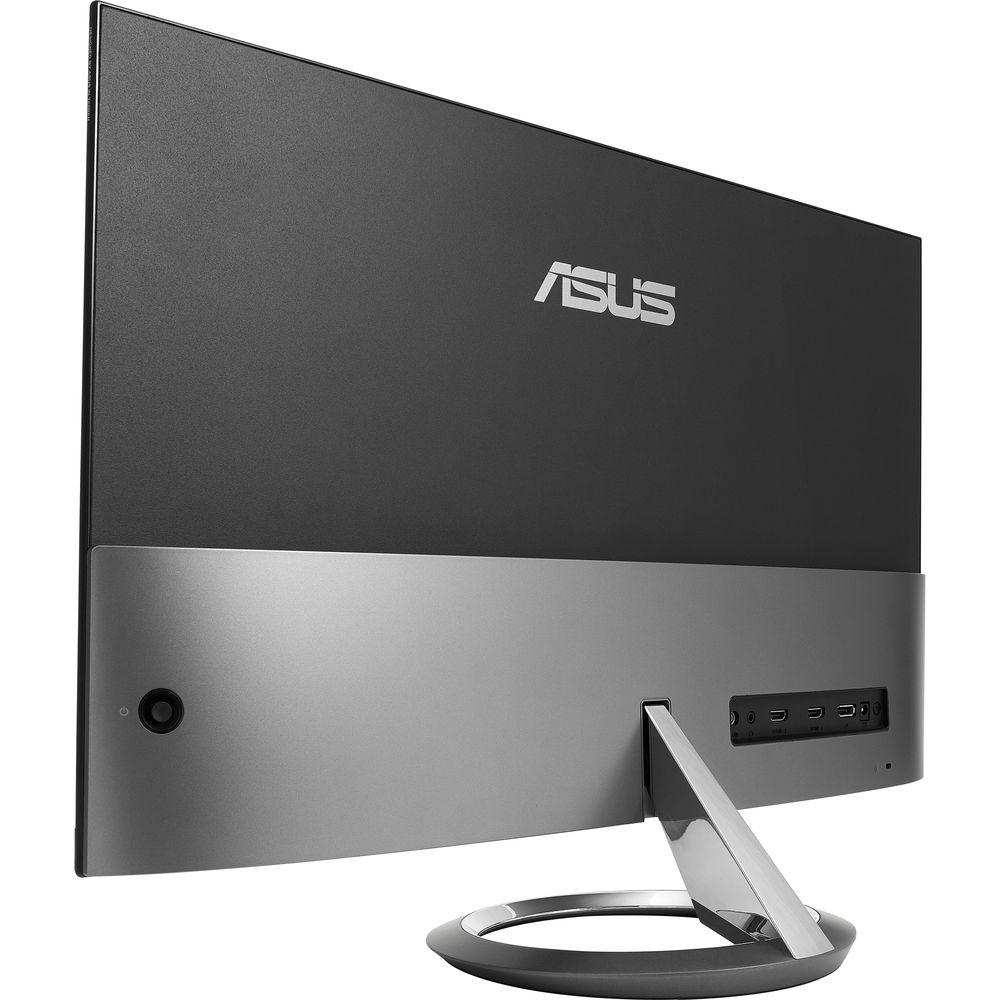

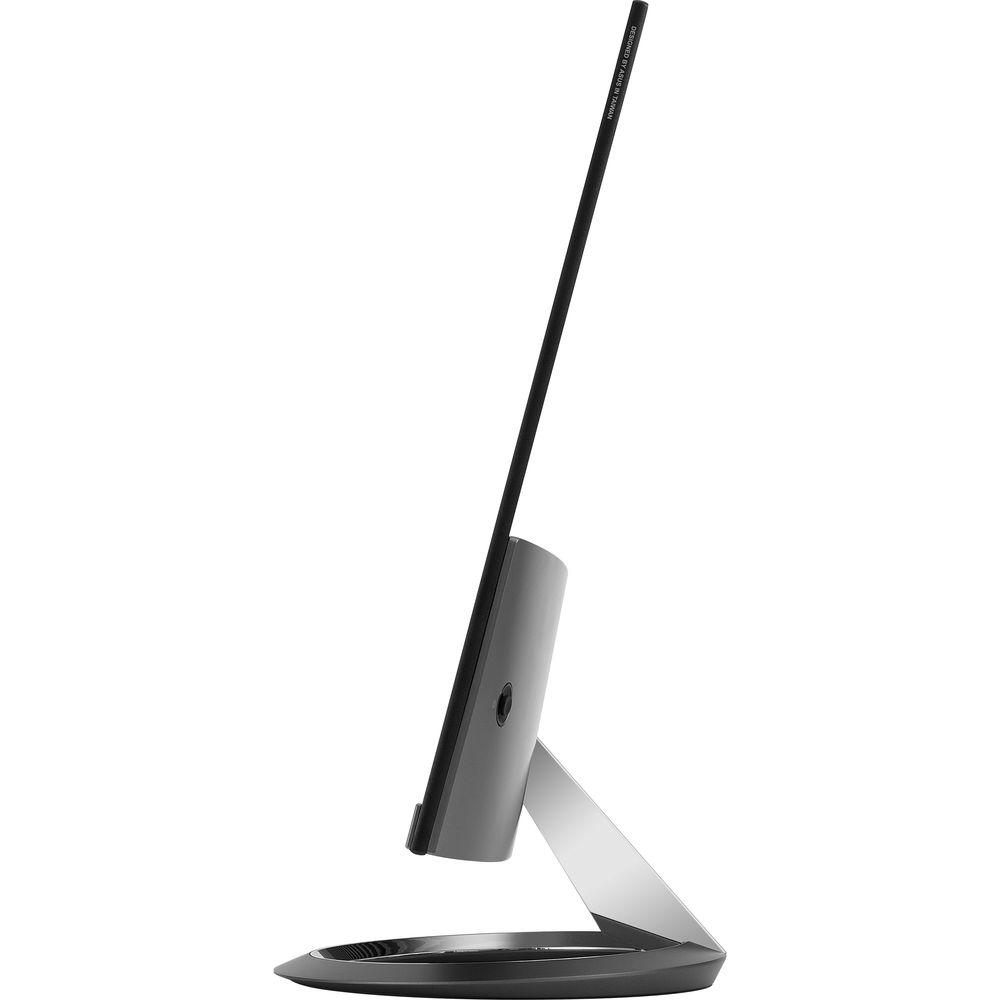

The Designo MZ27AQ monitor comes equipped with both HDMI and DisplayPort inputs for easy configuration with a variety of computer setups. Once installed, the monitor can be tilted from -5 to 22 degrees to allow viewers to take full advantage of the 178° horizontal and vertical viewing angles offered by this IPS (In-Plane Switching) panel. - Slim Profile, Power Audio

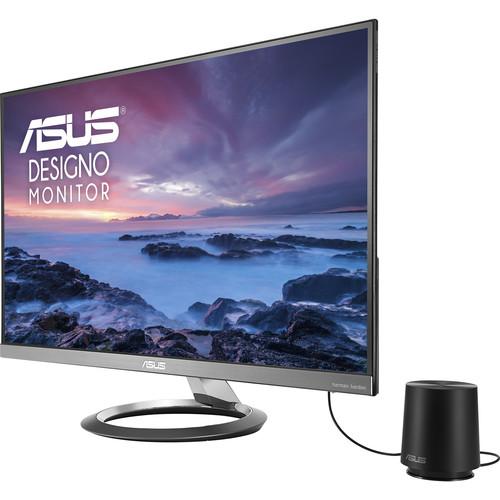

- The Designo MZ27AQ features a frameless panel and slim-profile design, yet delivers 2.1-channel audio performance with two 6W stereo speakers and an external 5W subwoofer, co-developed with Harman Kardon.
- Ultra-Slim, Frameless Design

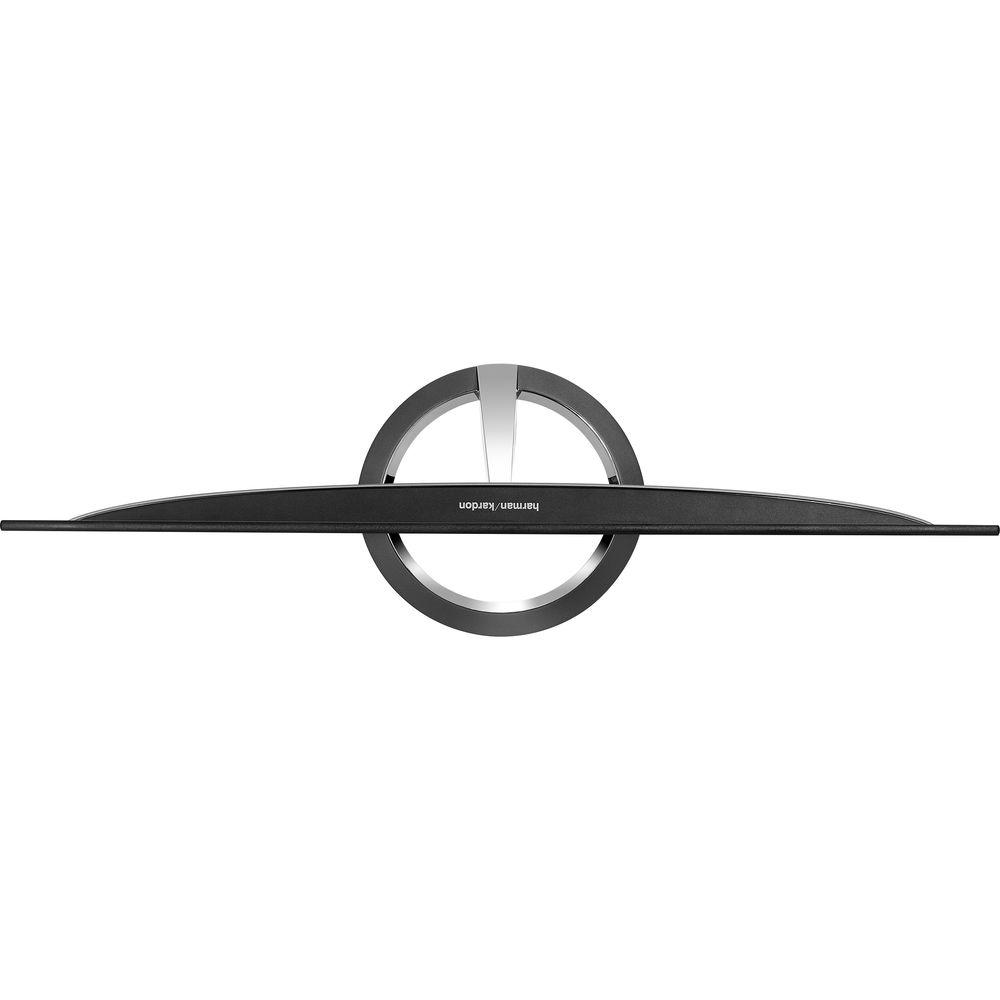

- The Designo MZ27AQ has an ultra-slim profile that measures just 7mm at its thinnest point, and its small footprint takes up minimal desktop space.
- Precision to the Finest Detail
- With a WQHD (2560 x 1440) resolution, the Designo MZ27AQ displays 77% more pixels than conventional Full HD monitors, offering improved picture quality and sharp imagery for a detailed viewing experience. And, with so much extra screen space, you can work more easily and comfortably with less scrolling and zooming.
- Wide Viewing Angles
- The Designo MZ27AQ features 178° wide-view technology across its horizontal and vertical planes, allowing you to enjoy beautiful visuals from almost any angle.
- Enhanced Audio
- Featuring ASUS SonicMaster technology, co-developed by Harman Kardon, the Designo MZ27AQ delivers incredible audio experiences. Its two 6W stereo speakers and a bundled 5W subwoofer reproduce a wide range of sound for exceptionally well-balanced audio with stunning clarity and deep, rich bass.
- ASUS AudioWizard Optimization
- ASUS AudioWizard provides optimized audio settings to suit different types of content. It features four pre-set modes that can be accessed via the onscreen display menu.
Music Mode
Enhances bass and gives you a wider audio range.
Movie Mode
Enhances vocals and overall audio for a true theater-like audio experience.
Gaming Mode
Enhances in-game sound effects and vocals to add a new level of immersion to your gaming experience.
User Mode
Manual mode allowing you to customize your preferred audio settings. - Protect Your Eyes with ASUS Eye Care Technology
- ASUS Blue Light Filter
Exclusive ASUS Ultra-Low Blue Light technology protects you from harmful blue light. It offers four blue-light filter settings that are easily accessed through the onscreen display menu via the hotkey.
ASUS Flicker-Free Technology
It's time to say goodbye to those tired, strained eyes. Flicker-Free technology helps reduce onscreen flicker, giving you a more comfortable, movie-marathon-ready environment. It is designed to minimize eyestrain, headaches, and eye fatigue when you spend long, countless hours in front of the display. - Exclusive ASUS Features for Added Versatility
- SplendidPlus Video Intelligence Technology
The Designo MZ27AQ features ASUS SplendidPlus technology that optimizes videos and images by enhancing color brightness, contrast, and sharpness. It features a wide variety of modes, including Reading, Darkroom, Scenery, Standard, Theater, sRGB, Game, and Night View.
ASUS MultiFrame Management Software
ASUS MultiFrame keeps your desktop neat and organized, helping you manage multiple windows simultaneously.
ASUS GamePlus
The ASUS-exclusive GamePlus hotkey provides in-game enhancements such as a crosshair overlay, an onscreen timer, and a frames-per-second counter. The crosshair overlay offers four crosshair options, so you can select the one that best suits your current game environment. The onscreen timer (positioned on the left of the screen) helps track elapsed game time while the fps counter tells you how smoothly the game is running. All functions can easily be accessed via the onscreen display menu. This function is co-developed with input from pro gamers, allowing them to practice and improve their gaming skills. UPC: 889349765784 In the Box ASUS MZ27AQ Designo 27" 16:9 IPS Monitor with 6W Speakers & 5W Subwoofer Power Cable Power Adapter DisplayPort Cable Subwoofer Limited 3-Year Warranty User Guide PDF 4.3mb More info from ASUS Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS MZ27AQ Designo 27" 16:9 IPS Monitor with 6W Speakers & 5W Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS Designo MZ27AQ Specs | | | Panel Size | 27" / 68.5 cm | | Aspect Ratio | 16:9 | | Color Saturation | 100% (sRGB) | | Panel Backlight / Type | IPS (In-Plane Switching) | | Resolution | 2560 x 1440 | | Viewing Area (HxV) | 23.49 x 13.21" / 59.67 x 33.56 cm | | Display Surface | Non-glare | | Pixel Pitch | 0.233 mm | | Brightness | 350 cd/m² | | Contrast Ratio | 1000:1 | | ASUS Smart Contrast Ratio (ASCR) | 100,000,000:1 | | Viewing Angles (H/V) | 178°/178° | | Response Time | 5 ms (GtG) | | Display Colors | 16.7 million (8-bit) | | Video Specifications | Trace Free Technology: Yes
8 x SPLENDID Video Preset Modes: sRGB, Scenery, Theater, Standard, Night View, Game, Reading, Darkroom
Skin-Tone Selection: 3 modes
Color Temperature Selection: 4 modes
QuickFit Modes: Letter, A4, B5, Alignment Grid, Photo
GamePlus Modes: Crosshair, Timer, FPS Counter, Display Alignment
Low Blue Light: Yes
HDCP support: Yes
VividPixel: Yes
EyeCheck: Yes | | Audio Specifications | Subwoofer: 5 W
Stereo Speakers: 2 x 6 W Stereo RMS with ASUS SonicMaster and Harman Kardon technologies
4 x AudioWizard Preset Sound Modes: Gaming, Movie, Music, User | | Convenient Hotkey | Blue Light filter
Volume adjustment
5-way OSD navigation joystick | | I/O Ports | 2 x HDMI (v1.4)
1 x DisplayPort 1.2
1 x 3.5 mm mini-jack | | Signal Frequency | Digital: 30~90 Hz (H)/40~60 Hz (V) | | Power Consumption | Power ON: < 50 W
Power Saving: < 0.5 W
Power Off Mode: < 0.5 W | | Tilt | -5 to 22° | | Security | Kensington lock | | Compliance and Standards | ENERGY STAR, BSMI, CB, CCC, CE, CU, ErP, FCC, J-MOSS, KCC, UL/cUL, VCCI, WEEE, WHQL (Windows 10, 8.1, and 7), RCM, TUV Flicker-free, eStandby, TUV Low Blue Light | | Dimensions | With Stand: 24.2 x 17 x 8.9" / 61.4 x 43.3 x 22.5 cm | | Weight | 9.5 lb / 4.3 kg | | | | Package Weight | 16.6 lb | | Box Dimensions (LxWxH) | 28.0 x 20.0 x 6.0" |
