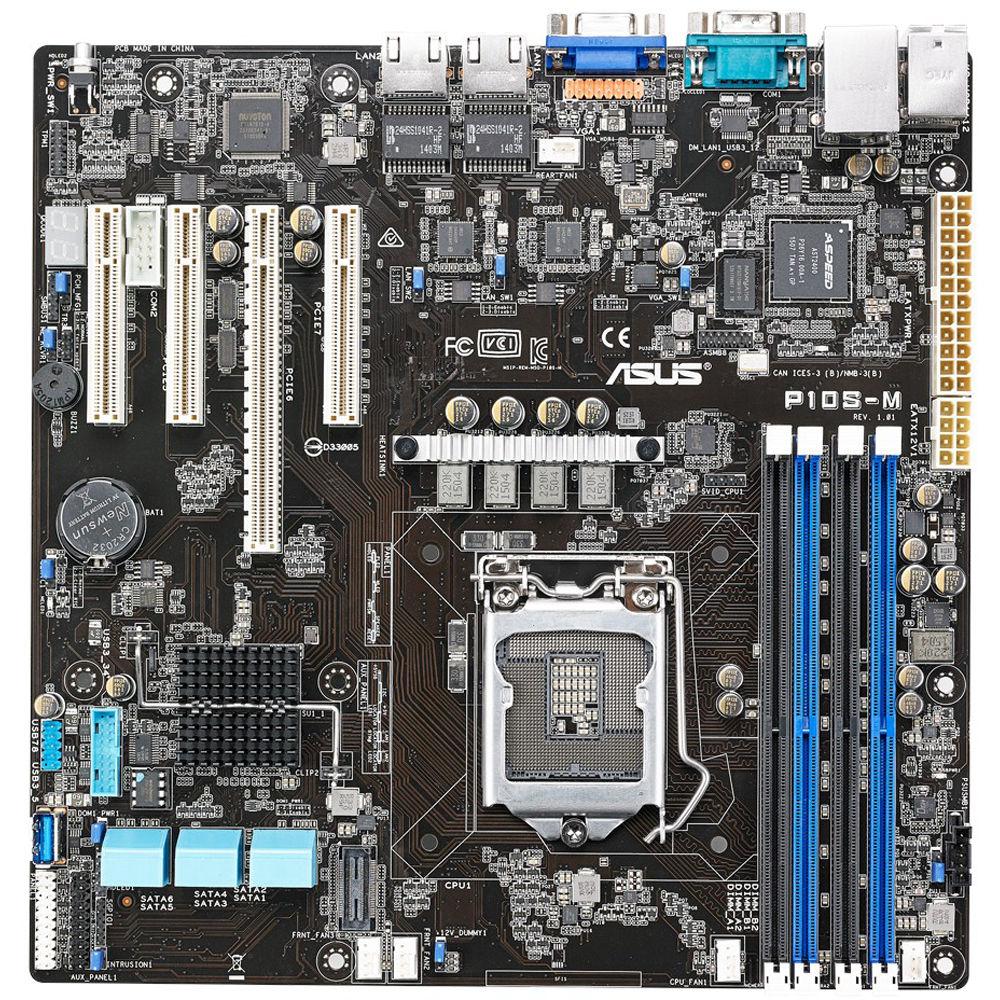

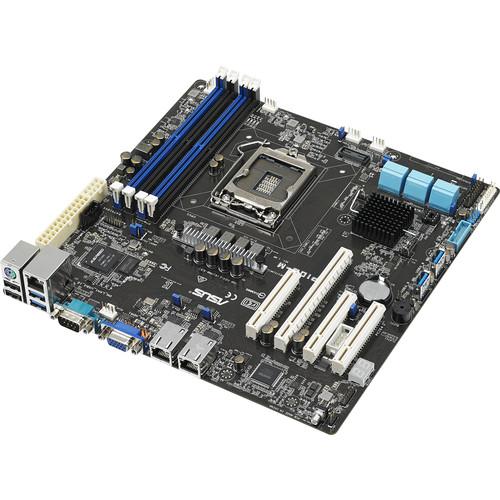

Product description The P10S-M LGA 1151 Micro ATX Motherboard from ASUS is a Greenlow platform serverboard based on the Intel C232 chipset, LGA 1151 socket, and a 9.6 x 9.6" Micro ATX form factor that can be integrated into short-depth chassis to help increase rack computer density. It supports Intel Xeon E3-1200 v5, Core i3, Pentium, and Celeron processors, as well as Windows and Linux operating systems.
The P10S-M has four UDIMM slots, each of which supports a maximum of 16GB of ECC and non-ECC 2133 MHz DDR4 memory, for a total of 64GB. This serverboard also has a total of 6 x SATA III 6 Gb/s ports, 1 x PCIe x16 (Gen3 x8 link) slot, 1 x PCIe x8 (Gen3 x8 link), 2 x PCIe x8 (Gen3 x4 link) slots, 2 x USB 3.0 Type-A ports, 2 x USB 2.0 Type-A ports, 1 x Serial port, and 1 x PS/2 keyboard/mouse port. Network connectivity is achieved using 2 x Intel I210AT Gigabit Ethernet LAN ports, as well as an Mgmt LAN port.
The P10S-M is equipped with graphics support via Aspeed AST2400 graphics with 32MB of VRAM and one VGA output. It also offers NVMe support, an optional PIKE II 3x08 Series SAS 12 Gb/s solution, ASUS' platinum-grade power efficiency, initialization guidance, and remote server management. General Features - NVMe Support
- To implement NVMe applications on the P10S-M, users can directly plug in PCIe NVMe devices or use an ASUS-made PCIe to U.2 adapter (ASUS PCIE-NVME1). By using a mini-SAS HD to mini-SAS HD cable or mini-SAS HD to SFF-8639 cable, the ASUS-made PCIe to U.2 adapter offers a flexible NVMe upgrade package within different usage scenarios.
- Optional PIKE II 3x08 Series SAS 12 Gb/s solution
- The ASUS PIKE II 3x08 series is a 12 Gb/s SAS and PCIe 3.0 high reliability enterprise storage solution. It meets users' needs with support for 12 Gb/s SAS storage, various RAID levels, and data protection. Upon installing the PIKE II card, the P10S Series can immediately enlarge its capacity and improve its performance, making it a worthy upgrade option.
- ASUS Platinum-Grade Power Efficiency
- The ASUS P10S-M server board is designed with a platinum power solution built from hand-chosen components which provide titanium efficiency up to 92%. The platinum power solution consists of 3 pillars to achieve its 92% efficiency: 12K Ultra Longevity Solid Capacitor, Beat Thermal Choke III, and Digi+ VRM. 12K solid capacitors are able to withstand up to 1.2 million hours of temperatures as high as 149°F / 65°C (12K hours @ 221°F / 105°C). The 3rd generation Beat Thermal Choke has lower DCR and results in 37°F / 3°C lower choke temperatures to enhance power efficiency. ASUS DIGI+ VRM is a digital VR controller that provides an accurate voltage/current that the CPU requires to reduce switching loss. Therefore, when used in a server machine running 24 hours per day, it will help reduce electronic costs for customers.
- Serviceability - Quick Boot
- The ASUS P10 Series features quick initialization guidance which lets users realize a system initialization state in seconds. The power-on button also activates a screen that displays three pieces of key information: (1) a progress bar that showcases the boot status, (2) a BMC IP address if the ASMB module is mounted on the server, and (3) 2-digit POST code messages are available to give users an understanding of the startup process and also to clearly indicate boot-up status, which can help with troubleshooting
- Remote Server Management
- The optional IPMI 2.0-compliant ASMB8-iKVM module enables remote BIOS updates, backup and restore configurations, SNMP agent support (MIBs files), audit log, and BIOS post code. With out-of-band management, ASMB8-iKVM provides round-the-clock remote monitoring and diagnosis, even if the server operating system is down or offline, and all through a user-friendly web-based graphical interface that works with all major browsers. In addition, ASWM Enterprise software provides one-to-multiple centralized management including BIOS flash, software dispatch, task scheduler, remote control, and power control, all via a colorful and informative graphical interface.
UPC: 889349273708 In the Box ASUS P10S-M LGA 1151 Micro ATX Motherboard Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS P10S-M LGA 1151 Micro ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS P10S-M Specs | Processor / System Bus | 1 x Socket LGA 1151
Intel Xeon E3-1200 v5 product family
Intel Core i3 processors
Intel Pentium processors
Intel Celeron processors | | Core Logic | Intel C232 Chipset | | Memory | Total Slots: 4 (2-channel)
Capacity: 64 GB UDIMM (max)
Memory Type: Single Channel DDR4-2133 UDIMM, non-ECC with ECC
Memory Size: 4, 8, and 16 GB | | Expansion Slots | Total Slots: 4
Slot Location 4: PCIe x8 (Gen3 x4 Link)
Slot Location 5: PCIe x8 (Gen3 x4 Link)
Slot Location 6: PCIe x16 (Gen3 x8 Link)
Slot Location 7: PCIe x8 (Gen3 x8 Link) | | Form Factor | Micro ATX
9.6 x 9.6" / 24.4 x 24.4 cm | | Storage | SATA Controller:
Intel C232
6 x SATA III 6 Gb/s ports
Intel Rapid Storage Technology Enterprise (RSTe, for Linux/Windows)
Supports Software RAID 0, 1, 5, and 10
SAS Controller:
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card (optional)
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card (optional) | | Networking | 2 x Intel I210AT + 1 x Mgmt LAN | | Graphics | Aspeed AST2400 with 32 MB VRAM | | On Board I/O | 1 x TPM Header
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12 V power connector)
1 x Onboard header for optional management card
1 x USB 3.0 pin header, up to two devices
1 x USB 2.0 pin header, up to two devices
1 x USB Connector
5 x Fan Header, 4-pin
1 x SMBus
1 x Chassis Intruder
2 x Front LAN LED
1 x Serial Port Header

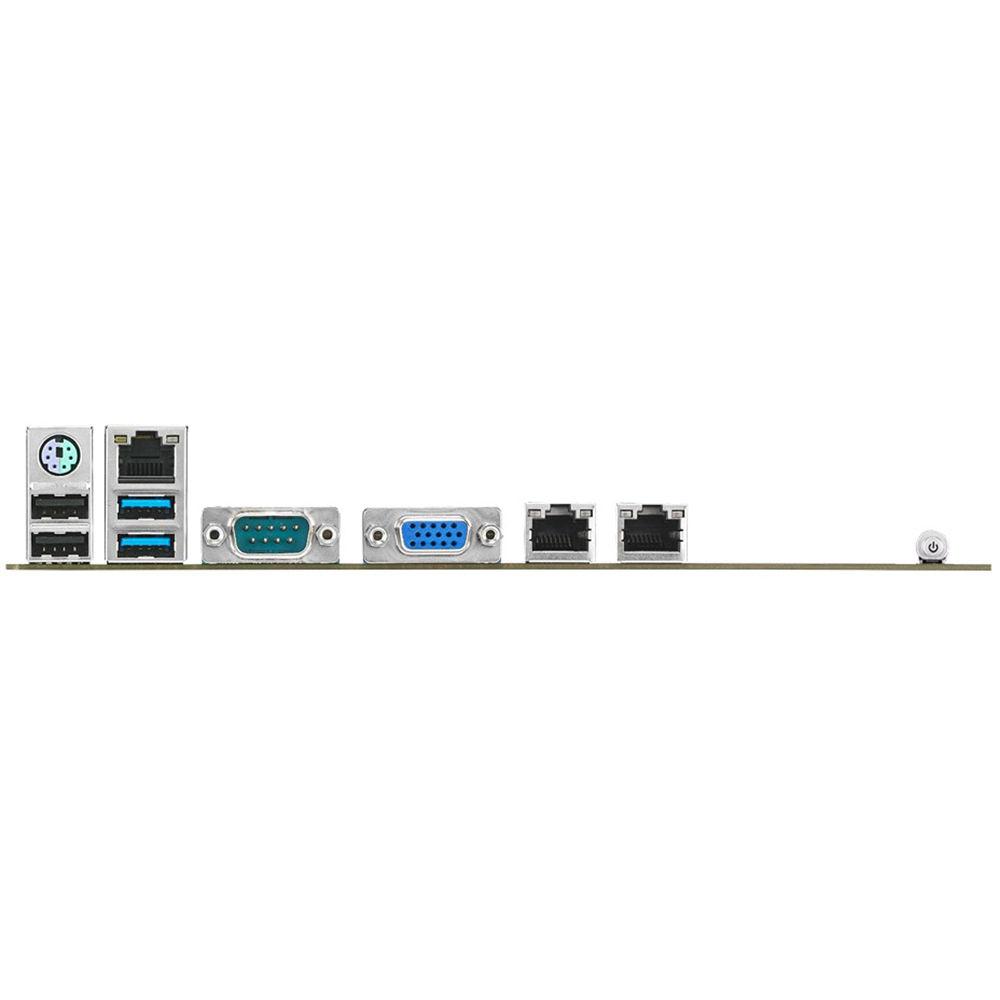

1 x VGA Header | | Back I/O Ports | 1 x External Serial Port
2 x USB 3.0 Type-A
2 x USB 2.0
1 x VGA Port
2 x GbE LAN + 1 x Mgmt LAN
1 x PS/2 keyboard/mouse | | Management Solution | ASWM Enterprise
Optional ASMB8-iKVM for KVM-over-Internet | | Monitoring | CPU Temperature
Fan RPM | | | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 13.2 x 11.0 x 3.1" |
