User Manual for ASUS P10S WS Server Motherboard for DIY Workstation Build Click to enlarge the picture
Contents of the user manual for the ASUS P10S WS Server Motherboard for
- Product category: Motherboards ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Motherboards
 |
User manual for the ASUS P10S WS Server Motherboard for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|
Product description Provided by third party: Optimized for Professional Workstation Builds - Optimized integrated graphic power supported latest API
- Quad PCIE3.0 x16 slots for flexible extended add-on cards

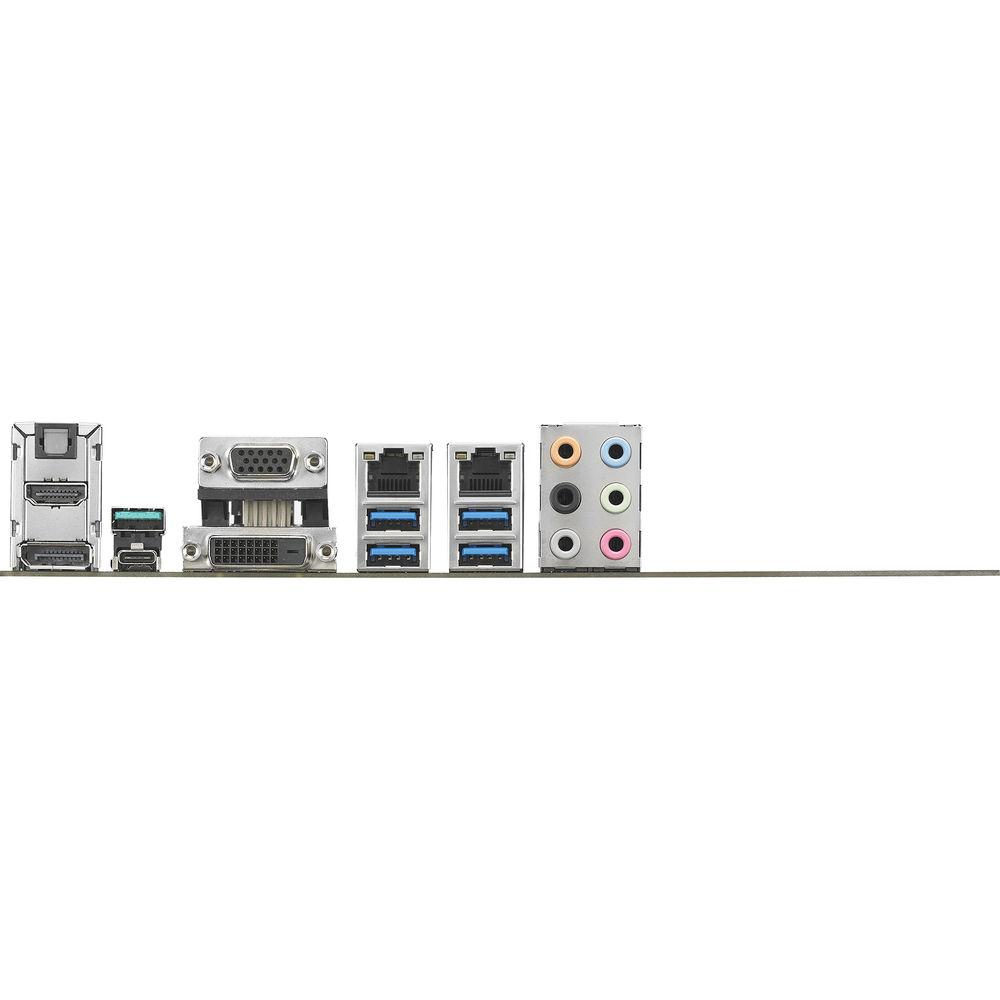

- Drive three independent displays simultaneously with HDMI, DisplayPort, DVI-D, VGA ports
- Performance increasing and data redundancy with Dual M.2 by SATA mode
- The latest 10Gb/s USB 3.1 on board for high transfer speed

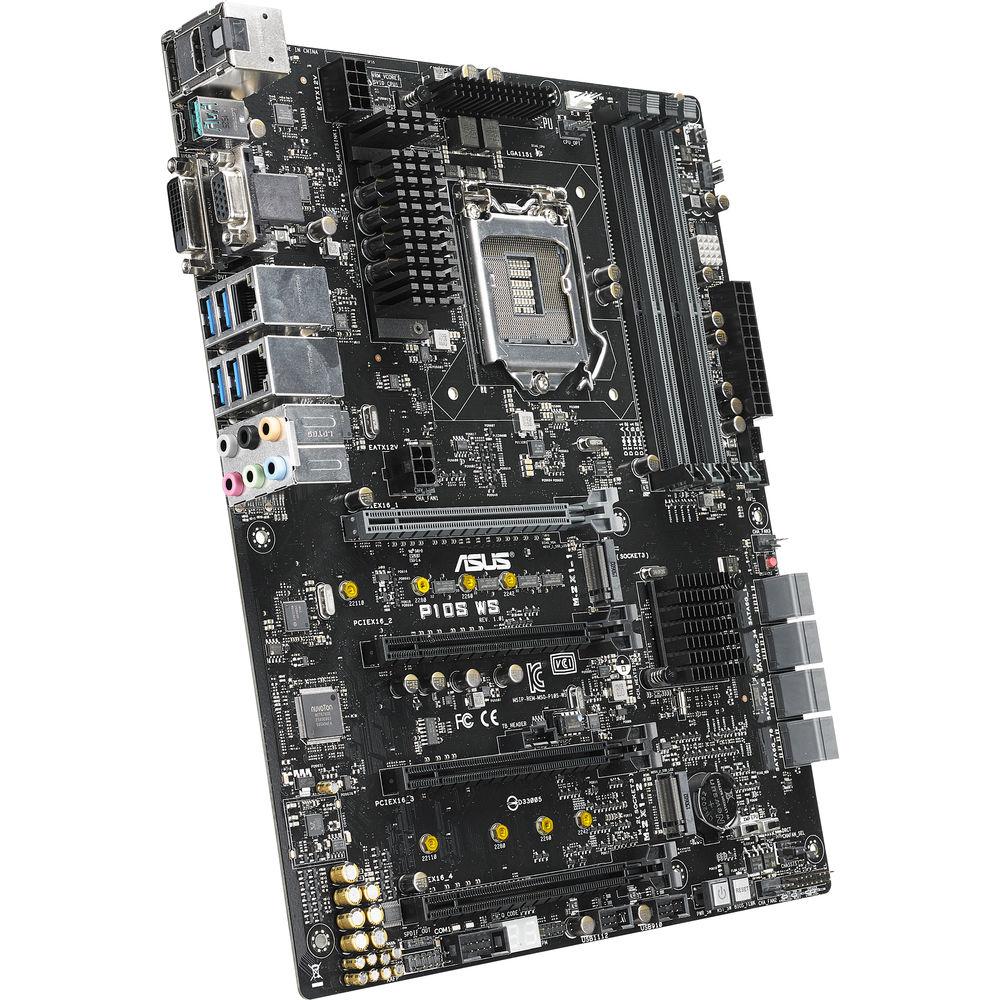

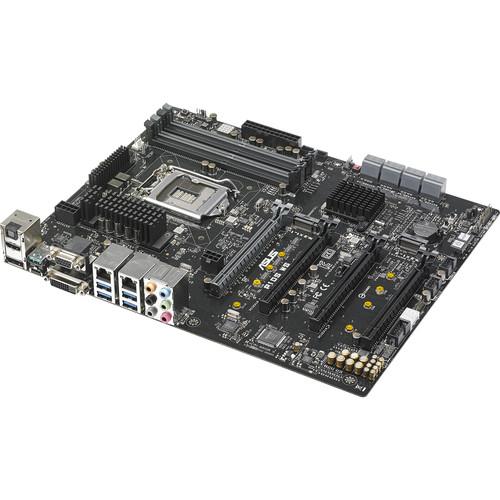

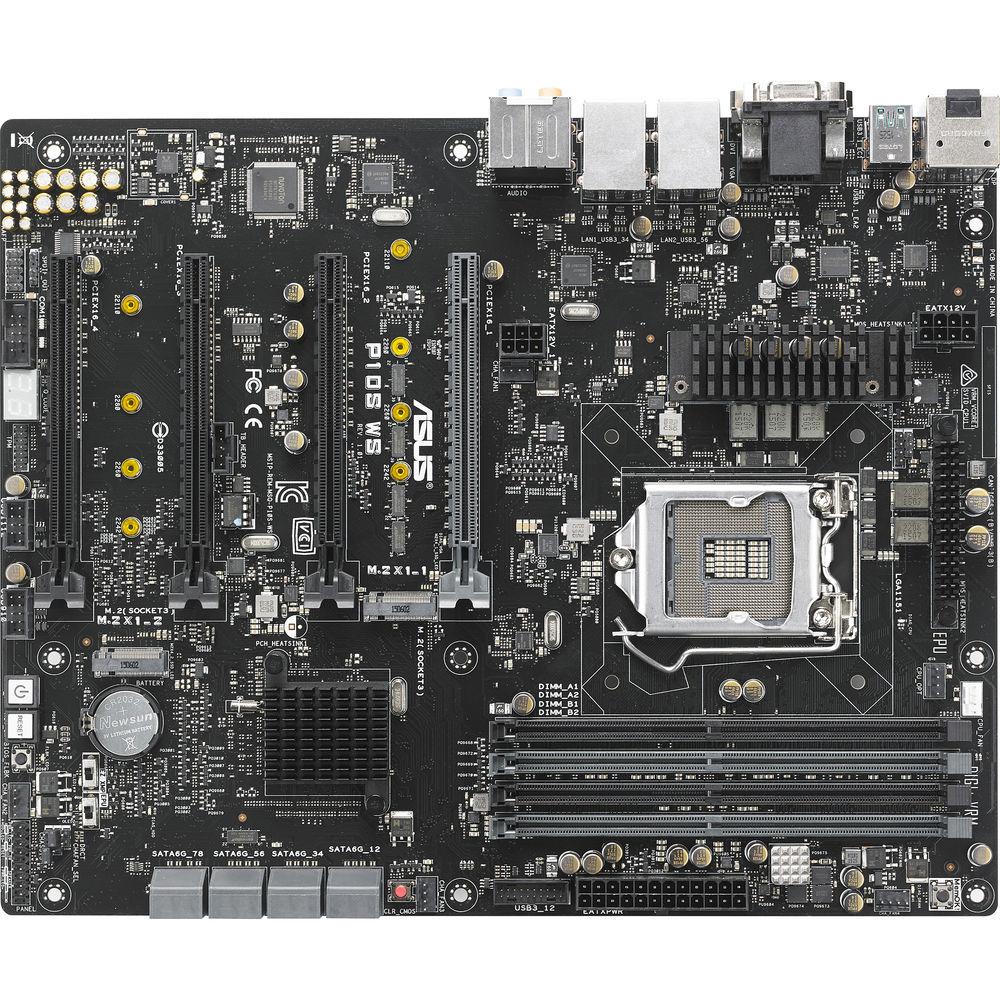

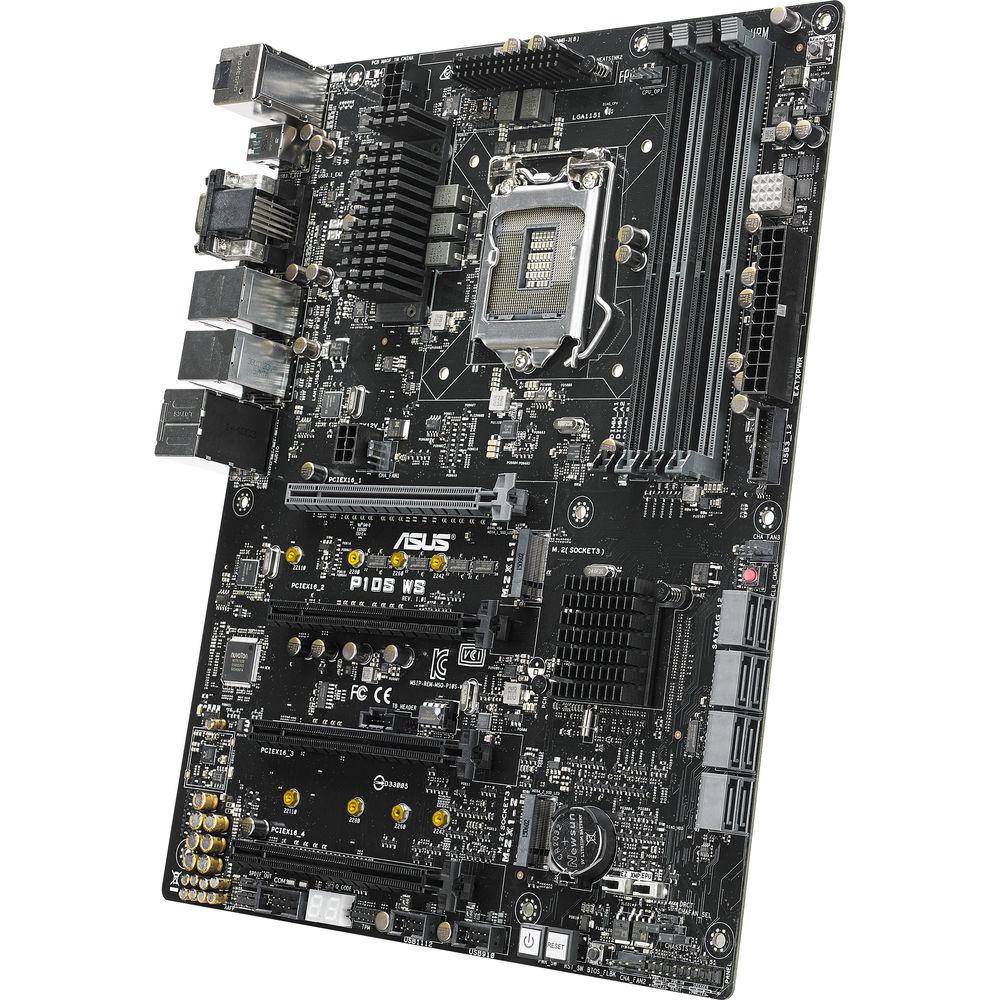

Optimized integrated graphic power supported latest API The P10S WS features Intel® Socket 1151 with the C236 chipset specially-designed for workstations. It supported latest API software like DirectX 3D 2015, OGL 4.4, OpenGL ES 3.0 and OpenCL2.1. ISV application testing and certification with integrated graphics cores on E3-1200 v5 processors are perfect for entry-level workstations and software such as Autodesk AutoCAD, Autodesk Maya and Adobe After Effects CC, etc. The P10S WS is your best choice for DIY workstation build that rivals top-tier pre-built workstations. Quad PCIE3.0 x16 slots for flexible extended add-on cards P10S WS supports AMD® Quad-GPU CrossFireXTM Technology via dual x16 slots up to x16 link. And quad flexible x16 slots can extend add-on card, such as graphic cards, RAID cards, LAN cards and Profession VGA cards, which is the perfect choice for operating conveniently.
Drive three independent displays simultaneously P10S WS is equipped for total display flexibility, with HDMI, DisplayPort, DVI-D and VGA connectivity all built in to the board. With a compatible latest-generation Intel® process, you'll be able to connect and drive three independent displays simultaneously - great for multitasking, and even better for productivity.
Performance increasing and data redundancy with Dual M.2 by SATA mode P10S WS dual M.2 sockets provide the flexibility to enable top-flight performance or data redundancy on SATA mode. In performance-maximizing RAID 0 configurations, P10S WS writes up to 40% faster than a single-drive M.2 setup and an astonishing 84% quicker for read operations. Or, for total reassurance, pair your M.2 devices into a RAID 1 configuration for instant data redundancy.
Speed up your system with M.2, up to 22110 With dual PCI Express 3.0 bandwidth, M.2 support 8Gbit/s data-transfer speeds and up to 22110 NGFF. It is the perfect choice for customers installing various SSD capacities, even if up to 1 TB capacity.
The latest 10Gb/s USB 3.1 on board for high transfer speed P10S WS has both Type-A and Type-C USB 3.1 connectivity built for data-transfer speeds up to 10Gbit/s - or twice as fast USB3.0. And Type-C is the all-new reversible socket for any-way-up convenience. UPC: 889349268346 Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS P10S WS Server Motherboard for DIY Workstation Build in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS P10S Specs | | | Chipset Manufacturer | Intel | | Chipset Model | C236 | | Total Processor Supported | 1 | | Processor Socket | Socket H4 LGA-1151 | | Processor Supported | Celeron
Core i3
Core i5
Core i7
Pentium
Xeon | | Multi GPU Supported | CrossFireX | | | | Number of Memory Slots | 4 | | Memory Form Factor | DIMM | | Maximum Memory | 64 GB | | Memory Technology | DDR4 SDRAM | | Memory Speed Supported | 2.13 GHz | | | | Controller Type | Serial ATA/600 | | RAID Supported | Yes | | RAID Levels | 0
1
10
5 | | | | Onboard Video | CPU Dependent Video | | Graphics Controller Manufacturer | Intel | | | | Number of Total Expansion Slots | 4 | | Total Number of PCI Express Slots | 4 | | Number of PCI Express x16 Slots | 4 | | | | Total Number of USB Ports | 6 | | Number of USB 3.0 Ports | 4 | | Number of USB 3.1 Ports | 2 | | S/PDIF | Yes | | VGA | Yes | | HDMI | Yes | | DisplayPort | Yes | | DVI | Yes | | | | Number of SATA Interfaces | 8 | | Number of M.2 Interfaces | 2 | | Total Number of Onboard USB Ports | 6 | | Number of Onboard USB 3.0 Ports | 2 | | Onboard S/PDIF Header | Yes | | | | Form Factor | ATX | | Width | 12" | | Depth | 9.6" | | | | Environmentally Friendly | Yes | | Environmental Certification | RoHS
WEEE | | Country of Origin | China | | | | Package Weight | 3.25 lb | | Box Dimensions (LxWxH) | 12.9 x 10.4 x 2.8" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 32 owners. Add your rating and experience with the product.
