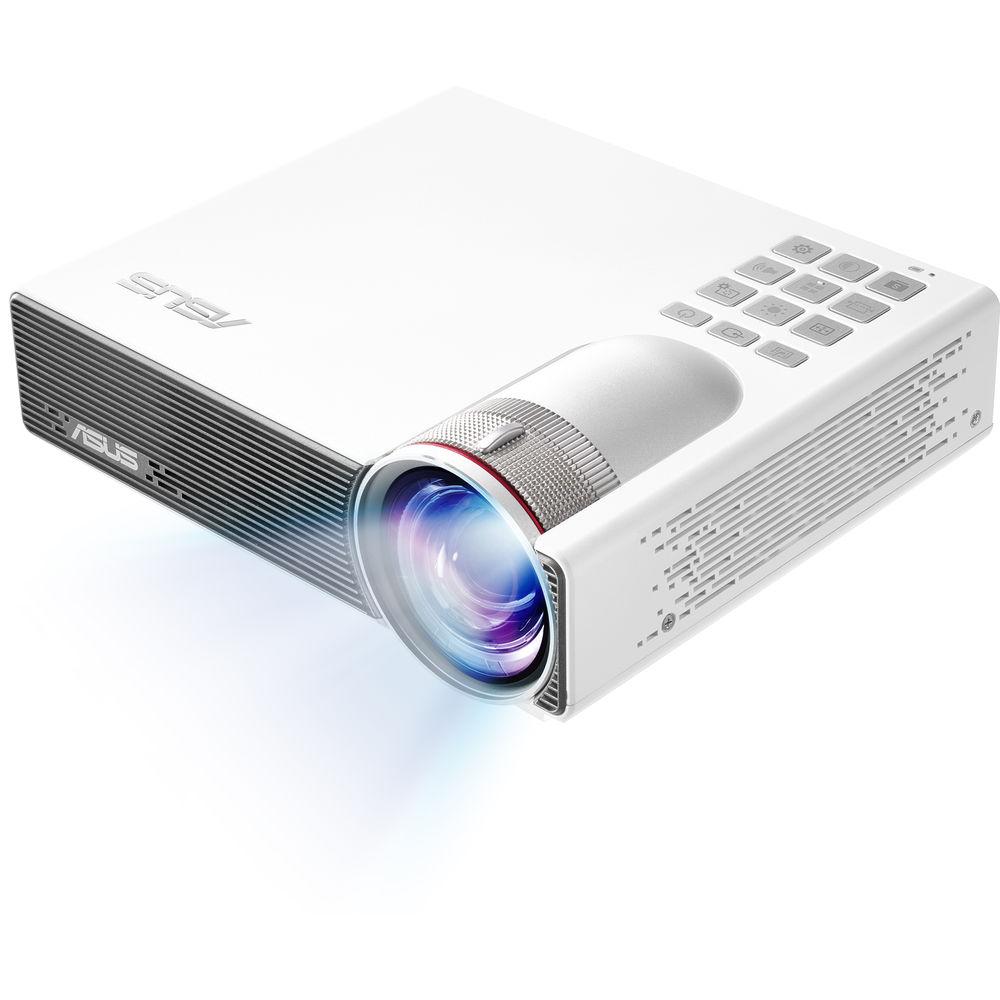

User Manual for ASUS P3B Battery-Powered Portable LED Projector Click to enlarge the picture
Contents of the user manual for the ASUS P3B Battery-Powered Portable LED Projector
- Product category: Pico Projectors ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Pico Projectors
 |
User manual for the ASUS P3B Battery-Powered Portable LED Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|

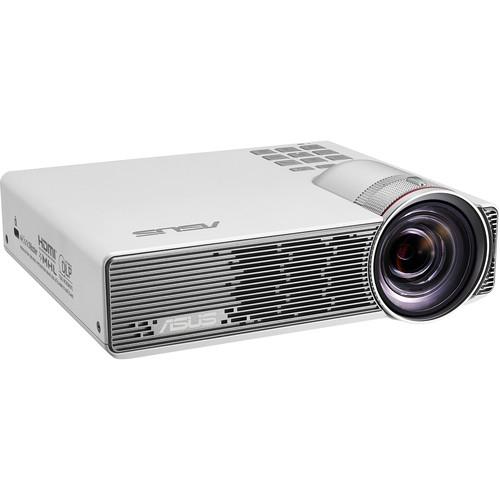

Product description The P3B Battery-Powered Portable LED Projector from ASUS is a battery-powered, short-throw projector with a compact and lightweight design that makes it easy to carry in a briefcase or bag. The P3B provides crisp WXGA 1280 x 800 resolution images with a maximum brightness of 800 lumens. Its built-in rechargeable battery gives you up to 3 hours of cable-free projection time and also doubles as a 12,000mAh power bank for charging mobile devices.

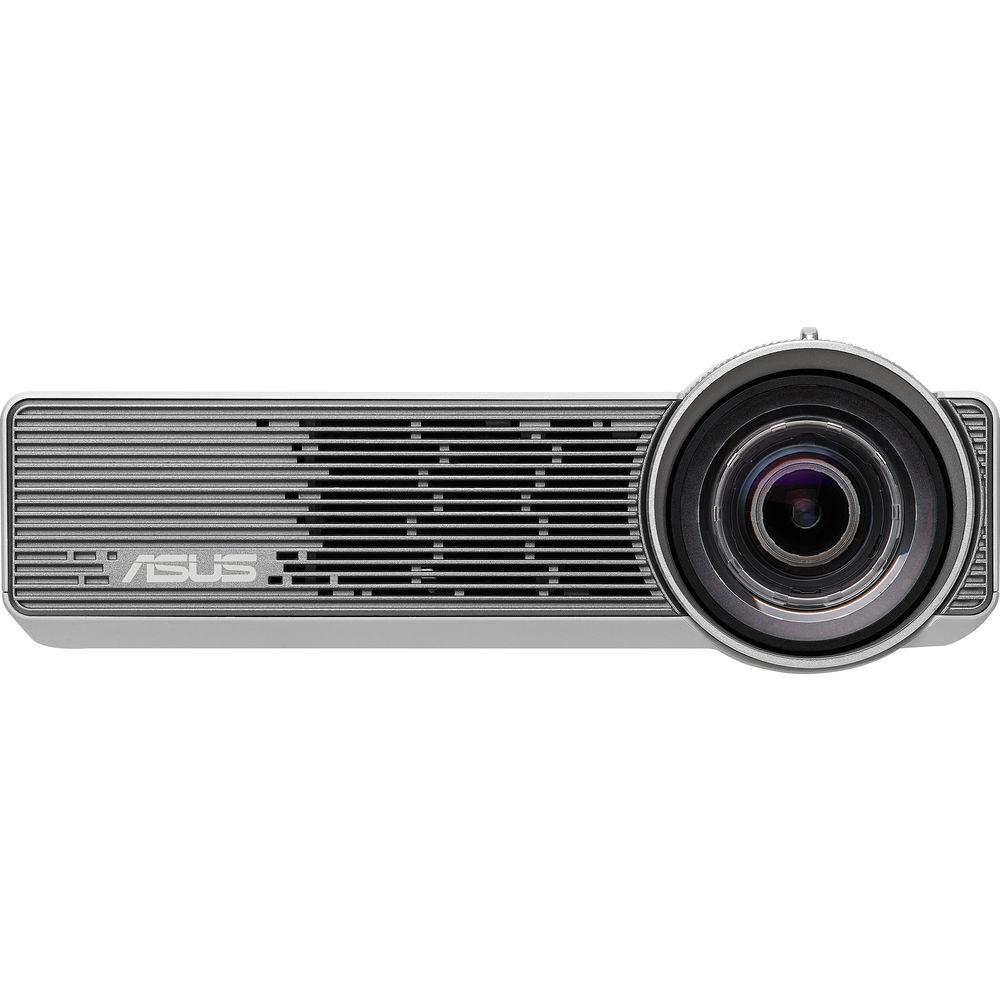

An ultra-short-throw lens lets the P3B project images measuring from 25 to 200” at very close range. The P3B is designed to be used anywhere – outdoors while camping, in a home theater, or in small meeting rooms. - 800-lumen light output to deliver sharp and vivid WXGA 1280 x 800 visuals
- Built-in 12,000mAh battery provides up to 3 hours of projection time and doubles as a power bank for mobile devices
- Auto Keystone Correction feature ensures you get perfect projections by detecting the P3B's orientation and automatically correcting distorted images from angled projections
- Also works with most Asus notebook AC power adapters (≧65W)
- Instant On/Off capability as there is no need for the LED light source to warm up or cool down

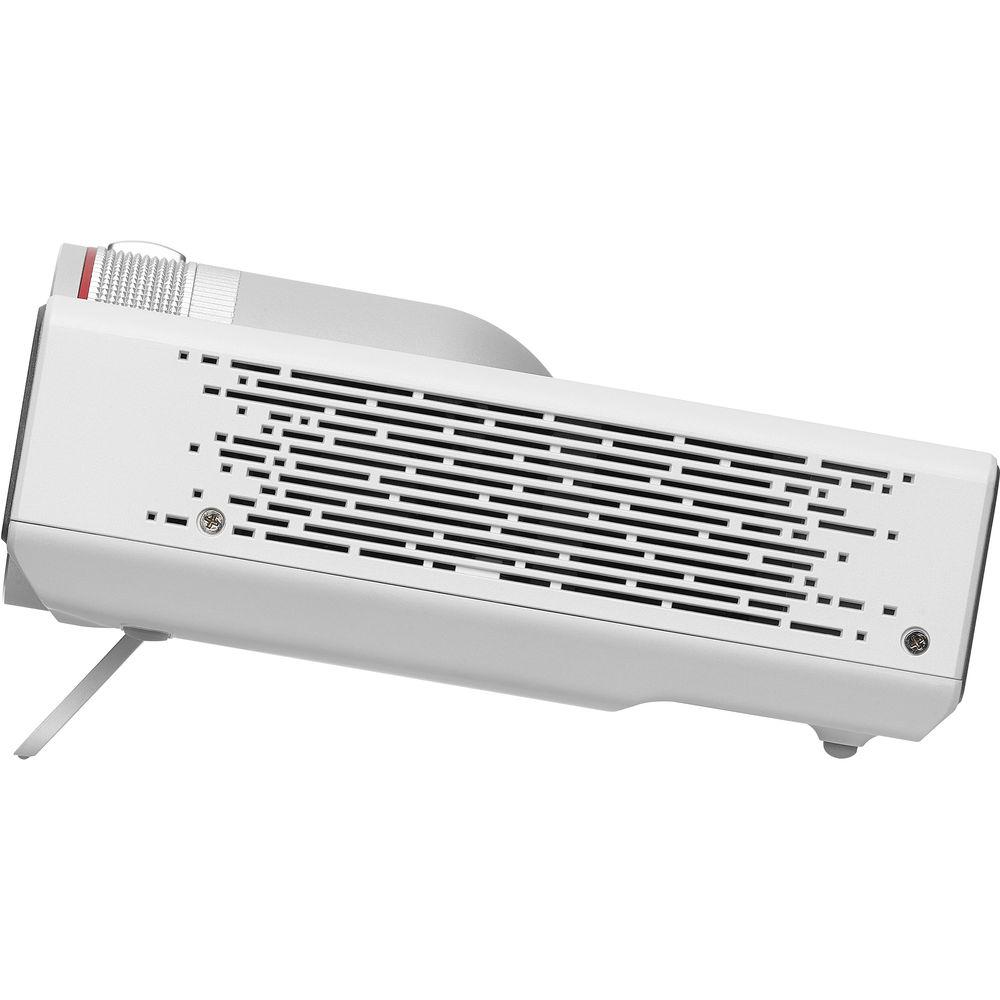

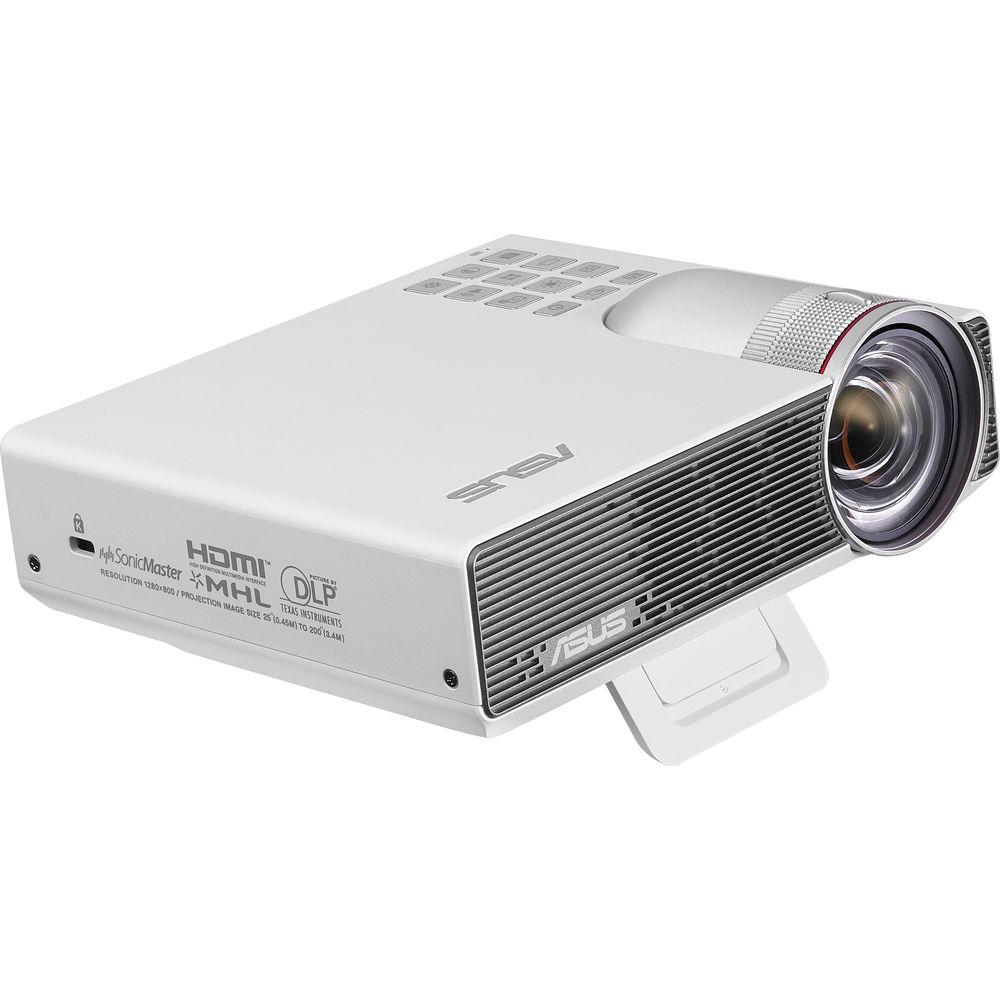

- Instant height adjustment thanks to a two-level flip-down stand that can be quickly adjusted to suit the task at hand
- ASUS Wi-Fi Projection for wireless presentations and media streaming (Wi-Fi adapter sold separately)

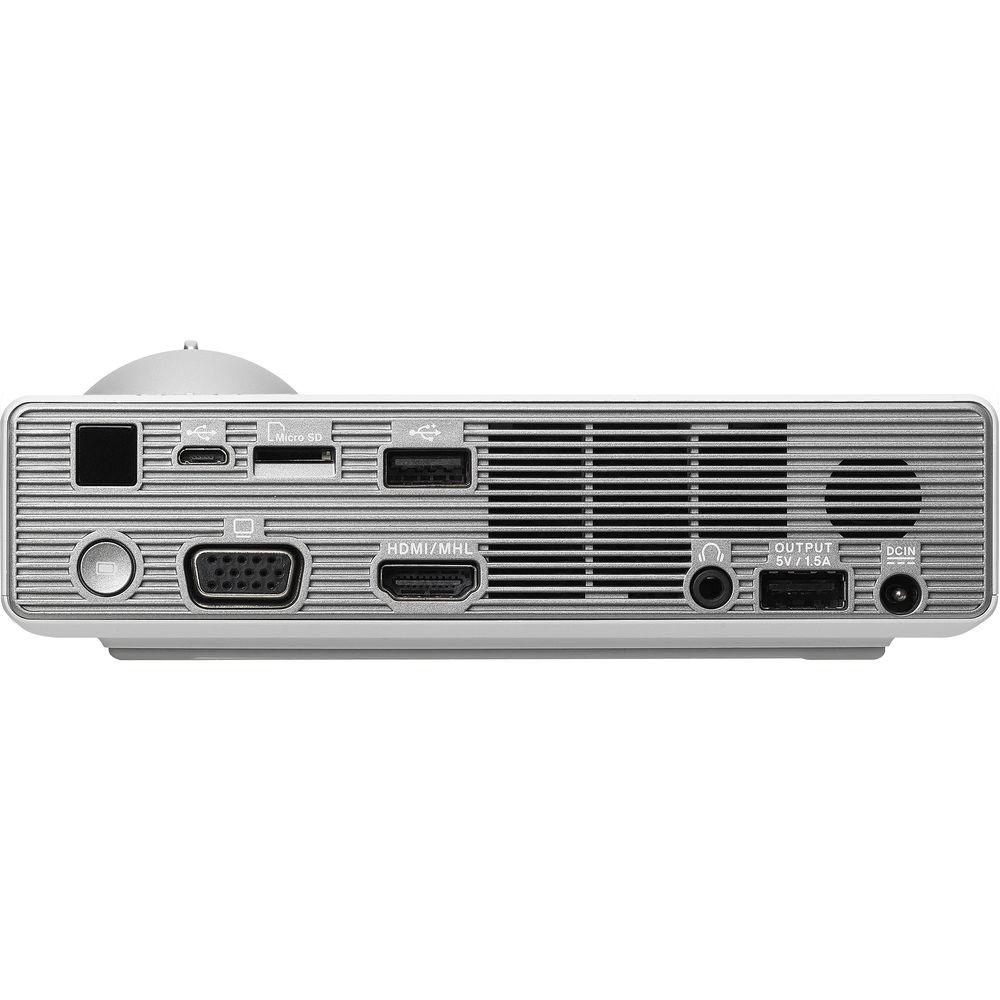

- Project content from various devices via HDMI/MHL or VGA, from a USB drive, from a microSD memory card (up to 32GB), or from the onboard storage
- PC-Free Office Viewer and Multimedia Playback to project videos, photos, or music
- Provides sound through ASUS SonicMaster-enhanced speaker
- Tripod socket for connectors

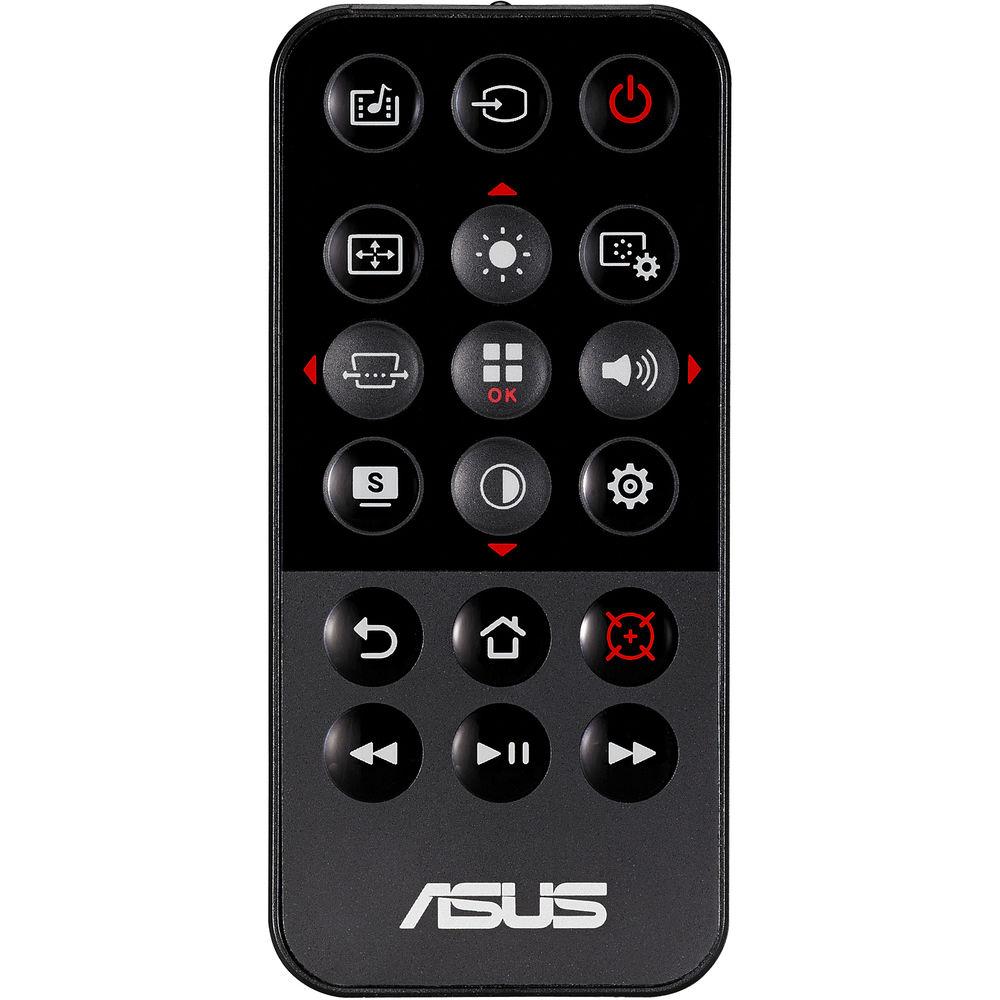

UPC: 886227927241 In the Box ASUS P3B Battery-Powered Portable LED Projector Carrying Bag HDMI Cable Power Cord Power Adapter Remote Control Limited 2-Year Warranty More info from ASUS Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS P3B Battery-Powered Portable LED Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS P3B Specs | | | Display System | 0.45" DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Max Brightness | 800 Lumens | | Offset | 100% ± 5% | | Aspect Ratio | Native: 16:10
Supported: 4:3
Supported: 16:9 | | Contrast Ratio | 100000:1 | | DLP Link 3D | Yes | | Color Depth | 8-Bit (16.78 Million Colors) | | | | Throw Distance | 1.312 - 11.155' / 0.4 - 3.4 m | | Projection Size | 25 - 200" / 63.50 - 508.00 cm | | | | Keystone Correction | : ± 40° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Stereo) | | Speaker Power | 2W | | | | Inputs/Outputs | 1 x HDMI Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x USB 2.0 Type-A Female (Output) | | Memory Card Slot | 1 x microSD (Unspecified Type) | | Internal Storage | 2.0GB | | Wireless LAN / Wi-Fi | Yes, Built-in | | | | Light Source | LED | | Expected Lamp Life | Medium Brightness: 30,000 Hours | | Security | Cable Lock Slot | | Supported Audio File Types | AAC, MP1, MP2, MP3, WAV, WMA | | Supported Document File Types | PDF, PPT, TXT, XLS | | Supported Photo File Types | BMP, JPEG | | Supported Video File Types | AVI, MKV, MOV, MP4, MPEG, WMV | | Power Consumption | Medium Brightness: <65 W
Standby Mode (Lamp Off): <0.5 W | | Temperature | Operating
32 to 104°F (0 to 40°C)
Humidity: 20 - 90% | | Dimensions (W x H x D) | 6.0 x 1.7 x 5.2" / 153.5 x 43.0 x 131.2 mm | | Weight | 26.46 oz / 750 g | | | | Package Weight | 3.75 lb | | Box Dimensions (LxWxH) | 11.8 x 9.9 x 3.2" |
