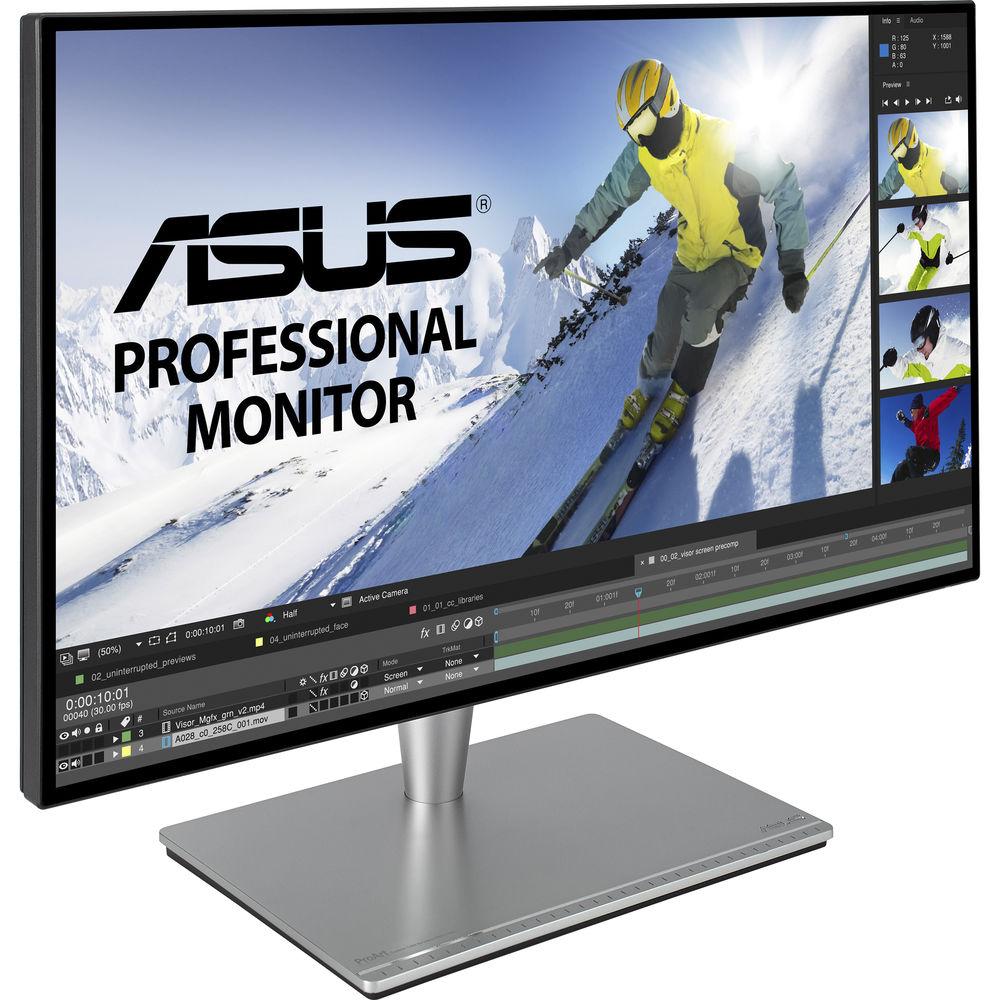

User Manual for ASUS PA27AC 27" 16:9 ProArt IPS Monitor Click to enlarge the picture
Contents of the user manual for the ASUS PA27AC 27" 16:9 ProArt IPS
- Product category: Computer Monitors ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Computer Monitors
 |
User manual for the ASUS PA27AC 27" 16:9 ProArt IPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|

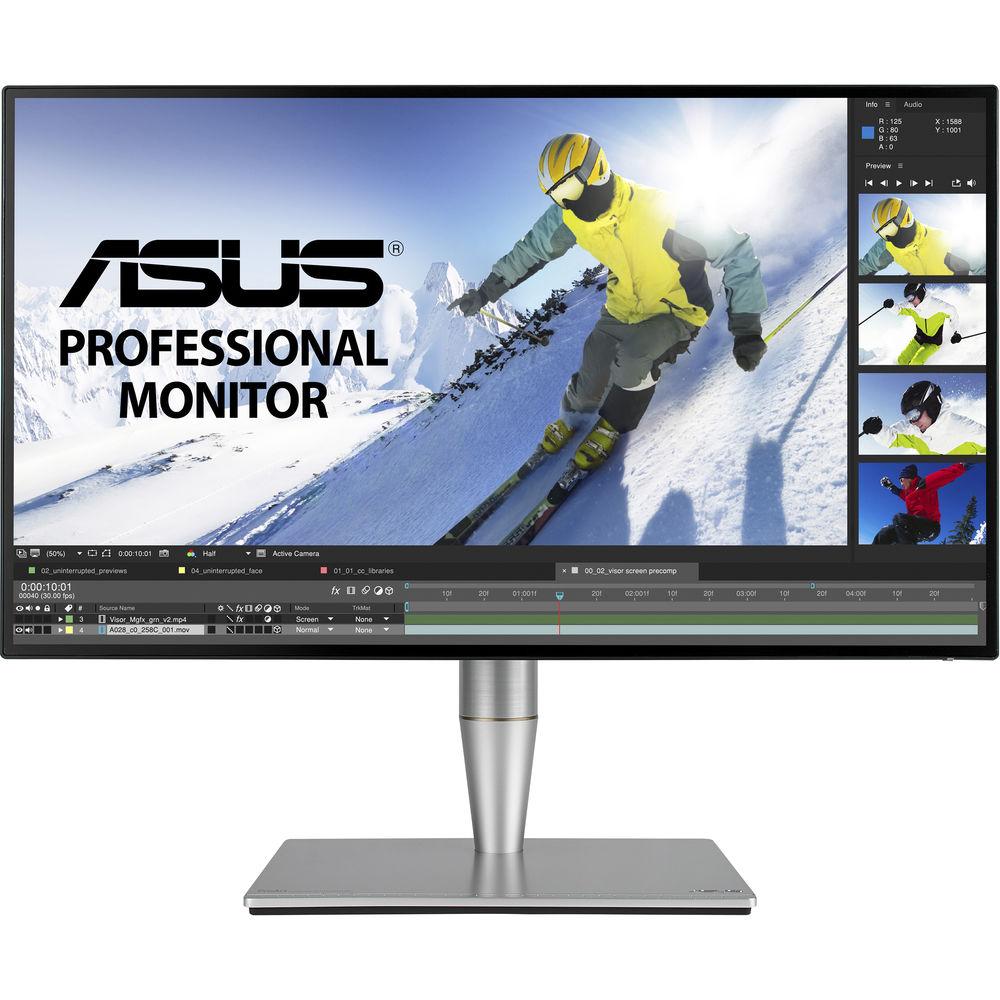

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With the PA27AC 27" 16:9 ProArt IPS Monitor you can take advantage of enhanced color accuracy as this monitor comes with 100% coverage of the sRGB and Rec. 709 color spaces and factory pre-calibrated for color accuracy to DeltaE<2.
The 27" IPS (In-Plane Switching) display features reduced size bezels so you can focus on the WQHD 2560 x 1440 resolution. In addition to the enhanced resolution found on the PA27AC, viewers also benefit from a 400 cd/m² brightness rating, a 5 ms response time, and support for up to 16.7 million colors. Setup has also been greatly simplified thanks to the Thunderbolt 3, HDMI, and DisplayPort inputs, and with built-in USB ports you can also connect USB compatible peripherals directly to the display.
Included with this display is ASUS ProArt calibration technology. This technology gives you the ability to adjust your monitor to meet a variety of viewing specifications. Adjust color gamut, brightness, black levels, gamma correction, and color temperatures and uniformity. You can even save color parameter profiles directly to the monitor's internal scaler integrated circuit for easy reference as this display comes compatible with a wide variety of color calibration sensors. - Enhanced Clarity & Contrast
- The ASUS ProArt PA27AC is a 27-inch HDR400 monitor equipped with Thunderbolt 3 connectivity. It features a WQHD IPS panel with a 4-side frameless design with a wide 100% sRGB color gamut. Up to 400 cd/m
|
Upload User Manual
Have you got an user manual for the ASUS PA27AC 27" 16:9 ProArt IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS ProArt PA27AC Specs | | | Size | 27" | | Screen Area | 23.96 x 13.71" / 60.86 x 34.83 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 2560 x 1440 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 109 ppi | | Maximum Brightness | 400 cd/m2 | | Dynamic Contrast Ratio | 100,000,000:1 | | Adaptive Sync Technology | FreeSync | | Horizontal Frequency | 30 to 120 kHz (DisplayPort)
30 to 120 kHz (HDMI) | | Vertical Frequency | 48 to 60 Hz (DisplayPort)
48 to 60 Hz (HDMI) | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | HDR Compatibility | HDR10 | | Color Gamut | 100% sRGB | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | | | Connectivity | 1 x HDMI 2.0a Input
1 x DisplayPort 1.2 Input
2 x HDMI 1.4 Input
1 x 3.5 mm
1 x USB Type-C (Thunderbolt 3) Input
1 x USB Type-C (Thunderbolt 3) Output
1 x USB Type-C (USB 3.1 Gen 1) Output
1 x USB Type-B (USB 3.1 Gen 1) Input
1 x USB (USB 3.1 Gen 1) Output | | HDCP Support | Yes, Version 2.2 | | Built-In Speakers | Yes, 2 x 2 W | | | | Power Consumption | 25 W (Typical)
0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Certifications | BSMI, CE, ENERGY STAR, EPEAT Silver, FCC, Kcc, Microsoft WHQL, RCM, RoHS, TCO Certified, TUV, UL, VCCI, WEEE, cUL, as per Manufacturer | | | | Height Adjustment | 4.72" / 120 mm | | Rotation Adjustment | 180° (-90 to 90°) | | Swivel Adjustment | 120° (-60 to 60°) | | Tilt Adjustment | -5 to 23° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 24.2 x 19.9 x 8.7" / 61.4 x 50.6 x 22.1 cm (With Stand)
24.2 x 13.9 x 2.2" / 61.4 x 35.3 x 5.5 cm (Without Stand) | | Weight | 18.74 lb / 8.5 kg (With Stand)
11.90 lb / 5.4 kg (Without Stand) | | | | Package Weight | 25.3 lb | | Box Dimensions (LxWxH) | 29.5 x 16.75 x 11.5" |
