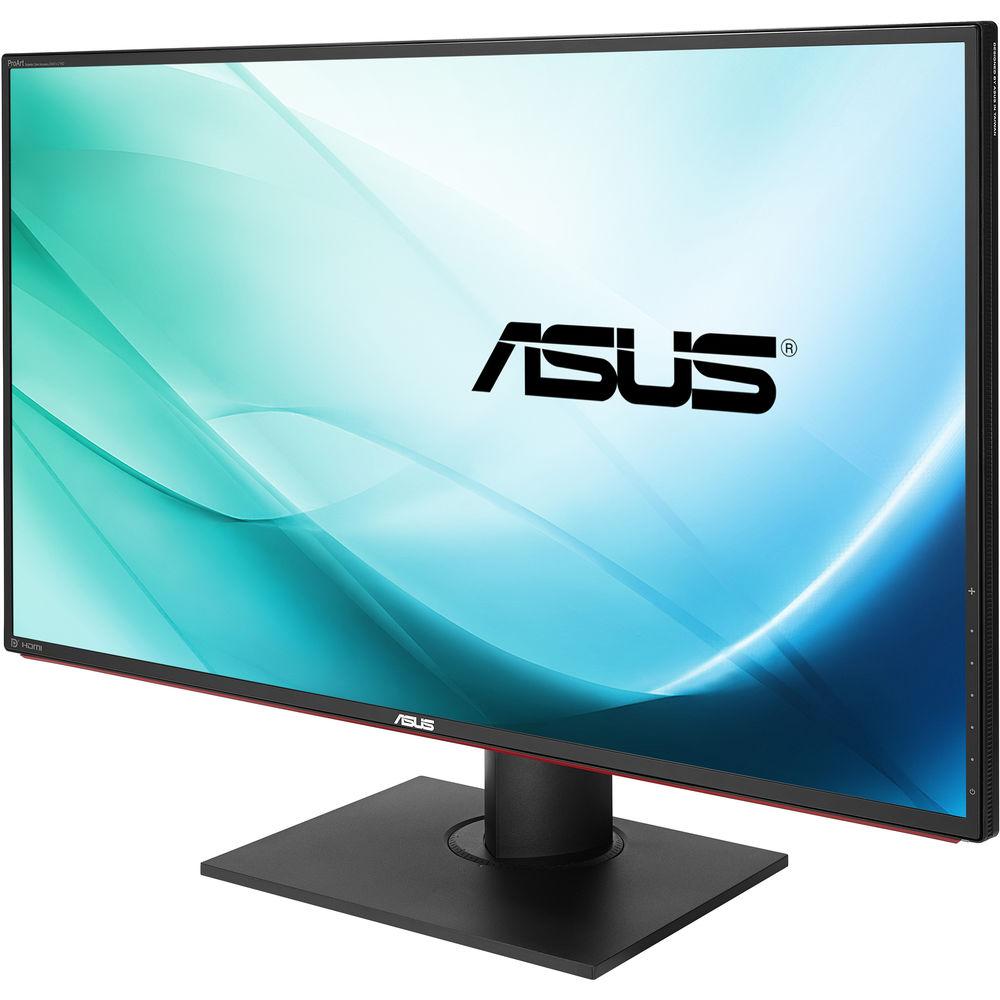

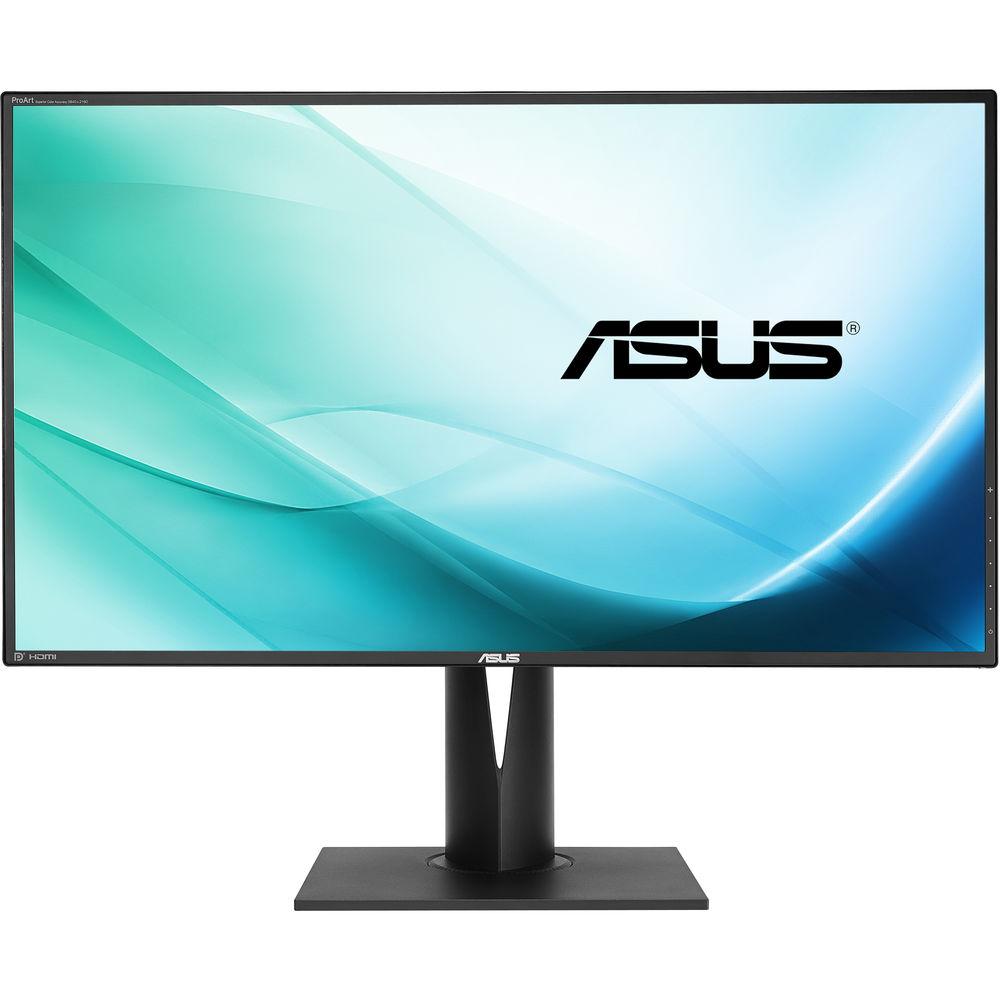

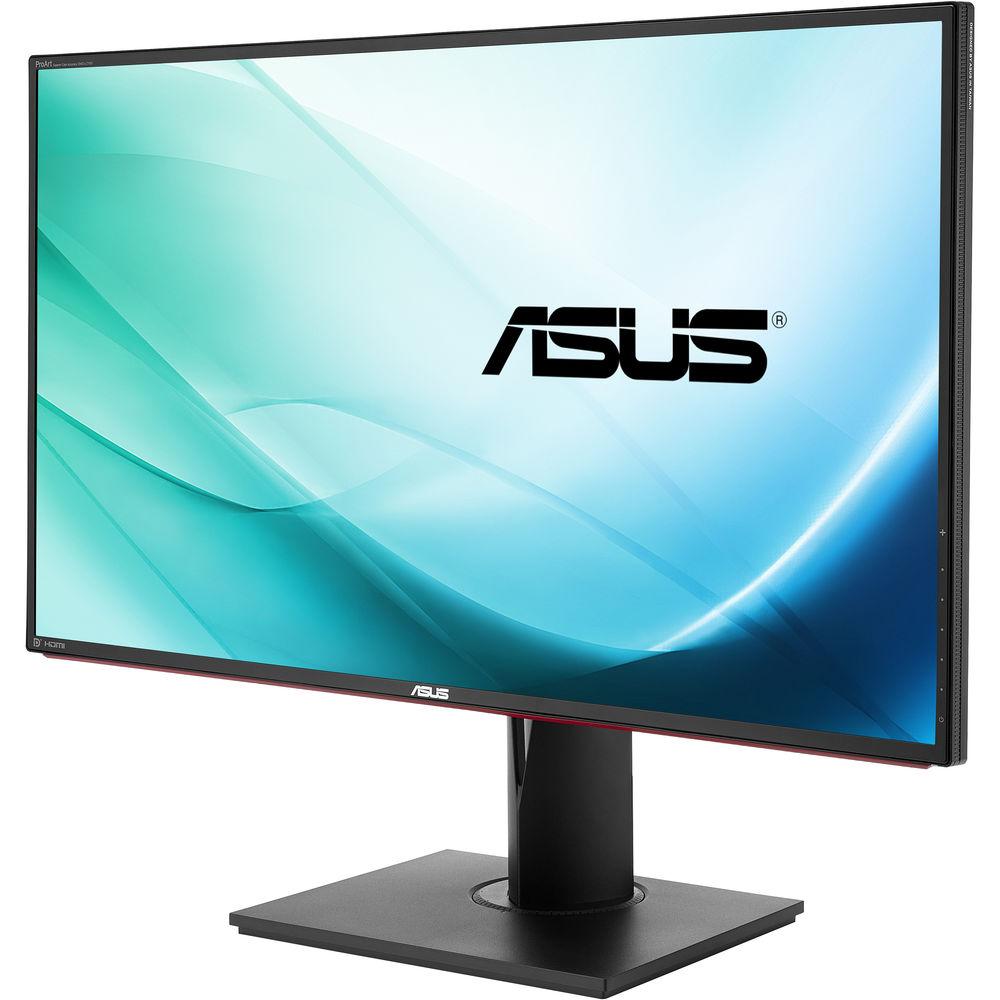

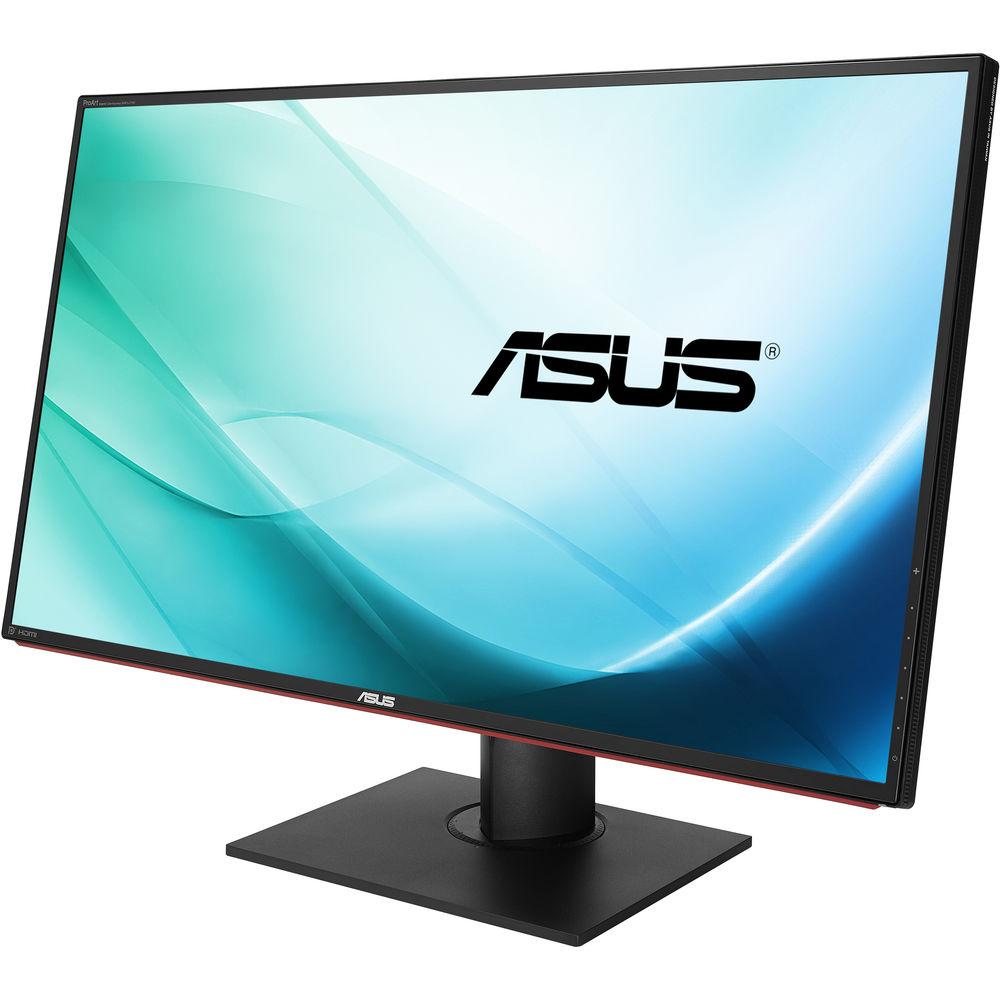

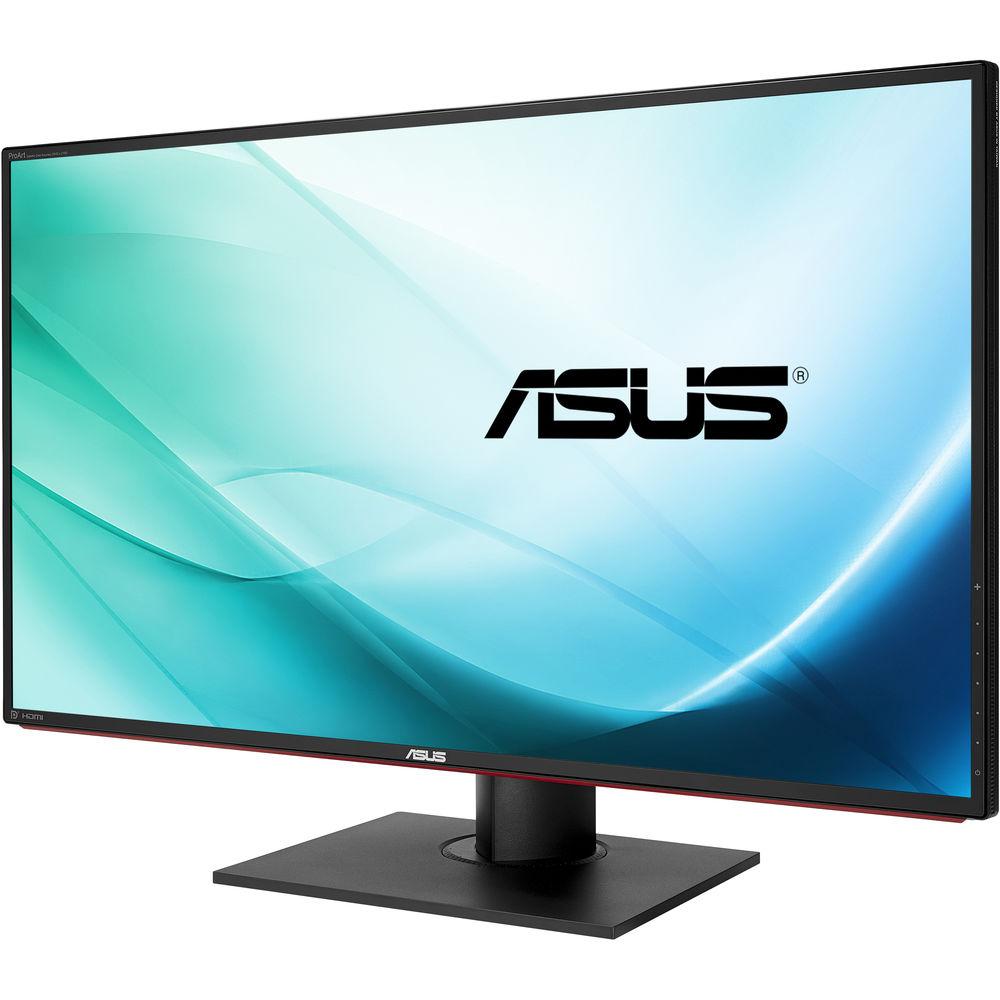

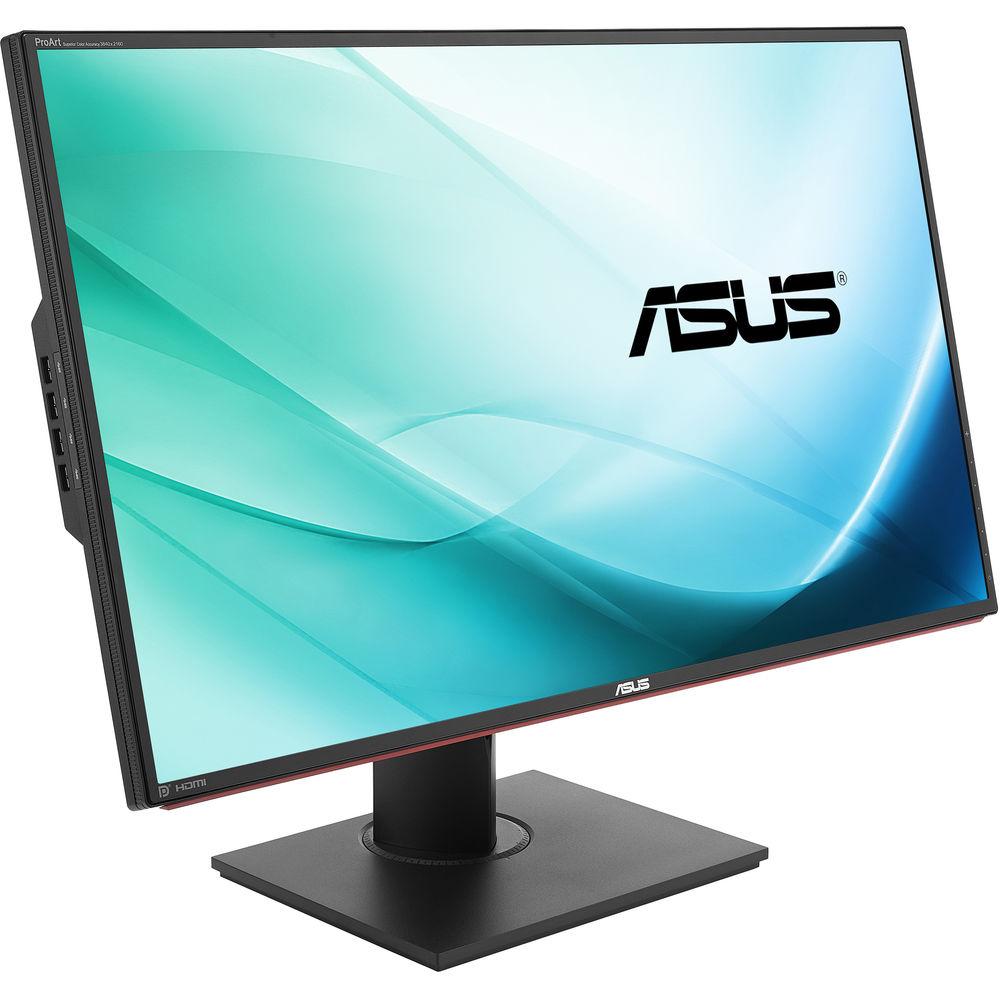

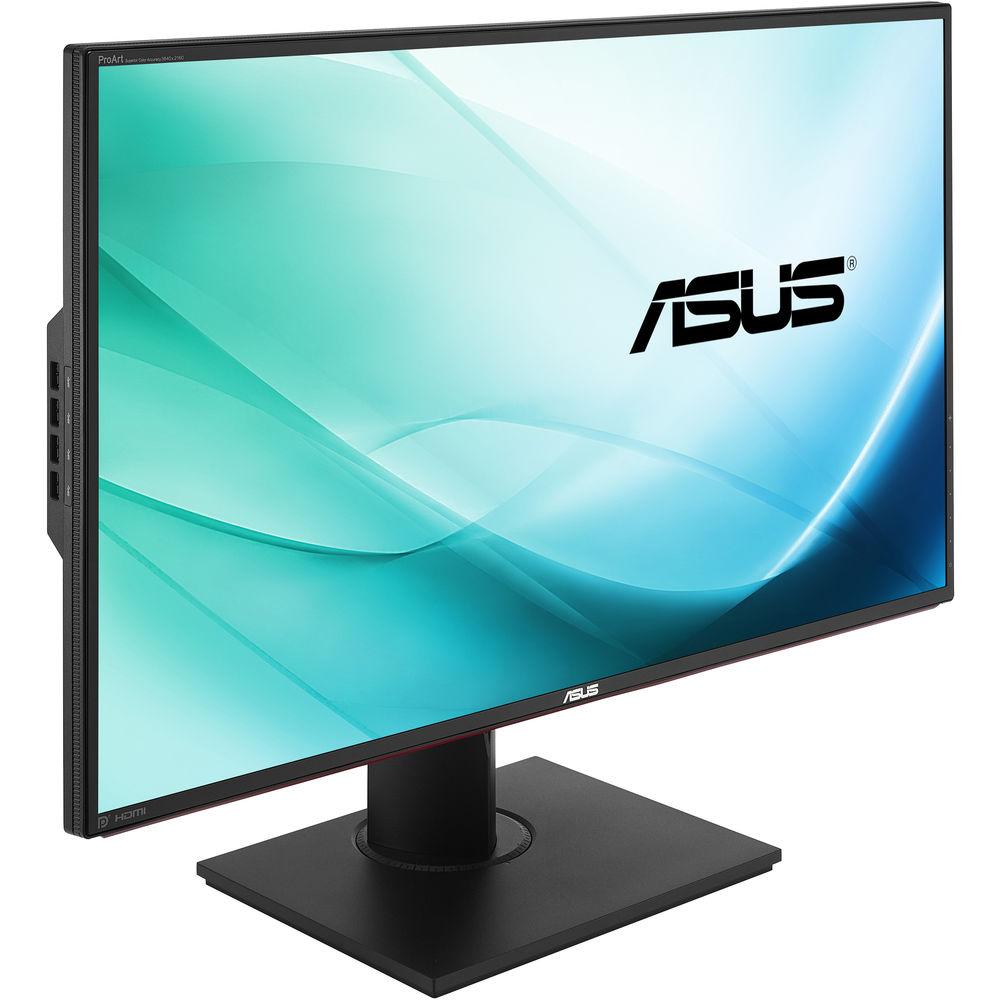

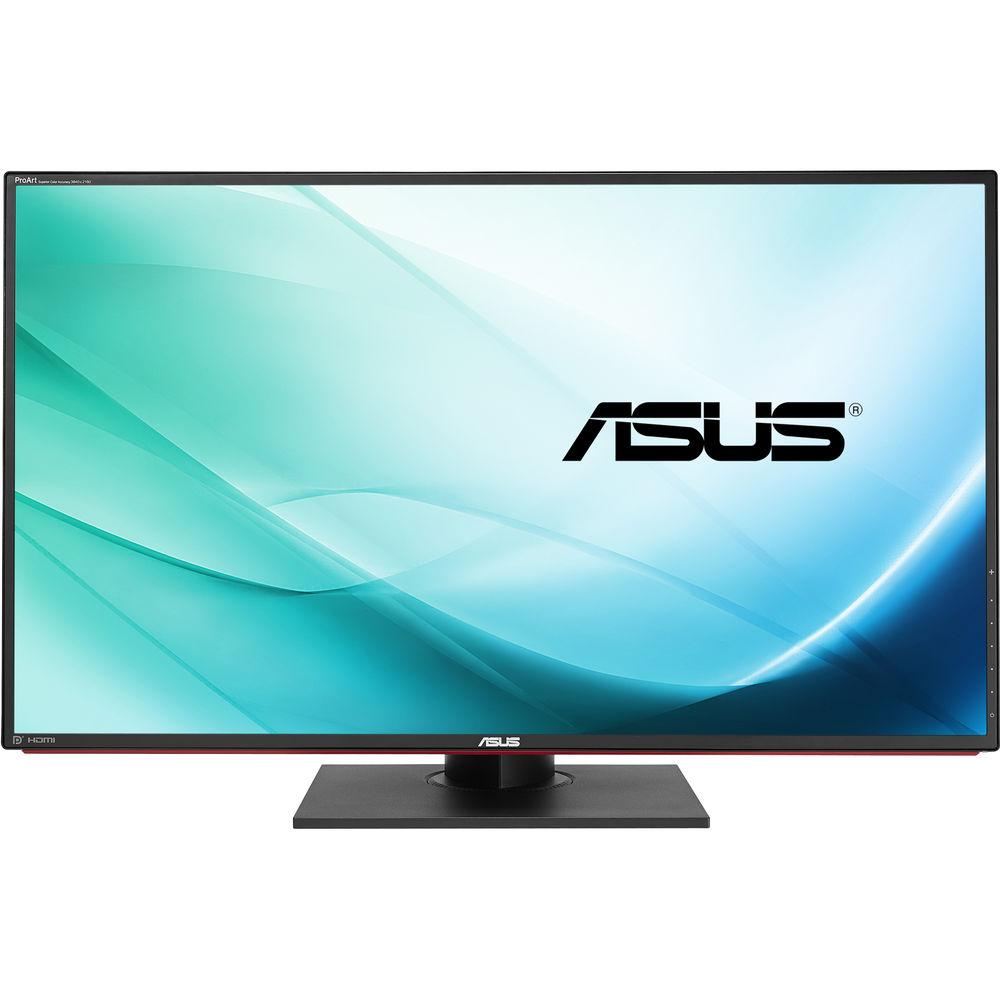

User Manual for ASUS PA328Q 32" 16:9 4K UHD IPS Monitor Click to enlarge the picture
Contents of the user manual for the ASUS PA328Q 32" 16:9 4K UHD
- Product category: Computer Monitors ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Computer Monitors
 |
User manual for the ASUS PA328Q 32" 16:9 4K UHD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With 100% sRGB and 99.5% Adobe RGB color coverage and Rec. 709 support the PA328Q 32" 16:9 4K/UHD IPS Monitor from ASUS is the go to display for viewing and editing photos, multimedia content, and much more. This 4K, Ultra High Definition display sports a 3840 x 2160 resolution complete with support for 1,073.7 million colors and a 12-bit look up table. When setting up your ASUS PA328Q 4K monitor you can choose from a variety of inputs including DisplayPort 1.2 and Mini DisplayPort 1.2, two HDMI inputs, and one HDMI-1/MHL 3.0 port.
The MHL input is designed to stream content directly from your smartphone or tablet to the monitor for immediate playback. You can take advantage of a refresh rate of 60 Hz over the HDMI-1 and DisplayPort 1.2 inputs while the HDMI-2, HDMI-3, and MHL inputs supporting a refresh rate up to 30 Hz. Regardless of your input you can take advantage of a 6 ms gray-to-gray response time for enhanced playback of all of your multimedia content.
Viewing a monitor for an extended period of time can be stressful on the eyes. As a result, ASUS has included both reduced flicker and low blue light technologies into this display. Once setup this display offers a variety of ergonomic features including the ability to tilt, pivot, swivel, and raise and lower the height of the monitor to make for a comfortable viewing experience. - 4K / UHS Visuals
- Experience enhanced levels of detail with the ASUS PA328Q true 4K ultra-high definition (4K/UHD) monitor. It features a super-narrow bezel design and a 16:9 aspect ratio, 32-inch panel to give you stunning visuals in resolutions of up to 3840 x 2160.
- Enjoy an Expansive Workspace
- The PA328Q gives you more onscreen space to work with than similarly-sized Full HD displays, allowing you to spread out your various work windows for more productive multitasking.
- Enhanced Color Support
- Take advantage of accurate, true-to-life color reproduction. The PA328Q monitor is factory pre-calibrated to guarantee industry-leading color accuracy (∆E ≤ 2), so your images are accurately reproduced onscreen, allowing you to see exactly how your work is going to look when it's finished.
The PA328Q also comes with 91 - 103% Uniformity Compensation to guard against brightness and chroma (color) fluctuations on different parts of the screen. - 100% sRGB and REC. 709 Color Space Support
- This IPS (In-plane Switching) technology display features a 350 cd/m² brightness rating and 100,000,000:1 ASUS Smart Contrast Ratio (ASCR). The PA328Q supports 100% coverage of the sRGB color space, as well as Rec. 709 color space for video production.
PA328Q offers 10-bit color to display over one billion colors. It uses a 12-bit internal lookup table (LUT) and supports Gamma values of 2.4, 2.2 and 1.8 to give you natural-looking images as well as smoother transitions between hues. There's also customized hue and saturation control with 6-axis color adjustment, so you can adjust red, green, blue, cyan, magenta, and yellow hues independently without affecting other colors. - Smooth 4K/UHD Content Playback
- Be immersed in enhanced 4K/UHD visuals with the PA328Q. It is equipped with DisplayPort 1.2, Mini DisplayPort 1.2, two HDMI ports, and a HDMI-1 / MHL 3.0 port. PA328Q supports 4K/UHD content playback at 60 Hz through HDMI-1 port or DisplayPort 1.2, and 30 Hz through HDMI-2 port or HDMI-3 port or MHL 3.0. With a 6 ms gray-to-gray response time, the PA328Q gives you smooth video playback and enhanced visuals for work and play.
- User Friendly Features
- Increase productivity and work smarter with ASUS QuickFit Virtual Scale. PA328Q provides you with an onscreen grid overlay so you can align and preview photos and documents in their actual sizes prior to printing.
There's also an intuitive 5-way navigation joystick so you can easily access and switch OSD settings on the onscreen menu. - ASUS Eye Care Technology
- When you're spending countless hours working on a project, it's important to have a display with Flicker-free and Low Blue Light technologies to reduce instances of strained eyes.
The PA328Q has undergone stringent performance tests and is certified flicker-free by TÜV Rheinland laboratories, a global provider of technical, safety, and certification services - Ergonomic Design
- With a slim profile and ergonomically-designed stand with tilt, swivel, pivot, and height adjustments, the PA328Q provides you with a comfortable viewing angle. It's versatile too, the ability to pivot the screen 90 degrees for use in Portrait mode comes in handy when working with websites or long documents.
UPC: 886227919536 In the Box ASUS PA328Q 32" 16:9 4K/UHD IPS Monitor Mini DisplayPort to DisplayPort Cable Power Cord USB 3.0 Cable HDMI Cable Limited 3-Year Warranty User Manual PDF 2.7mbtyrrfwtzudfq More info from ASUS Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS PA328Q 32" 16:9 4K UHD IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS PA328Q Specs | | | Size | 32" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Finish | Matte | | Maximum Brightness | 350 cd/m2 | | Dynamic Contrast Ratio | 100,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 135 kHz | | Vertical Frequency | 24 to 76 Hz | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | Look-Up Table | 12-Bit | | Color Gamut | 99.5% Adobe RGB
100% sRGB | | Response Time | 6 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.1845 x 0.1845 mm | | | | Connectivity | 1 x DisplayPort 1.2 Input
1 x Mini DisplayPort 1.2 Input
2 x HDMI
1 x HDMI (MHL) | | HDCP Support | Yes | | Built-In Speakers | Yes, 2 x 3 W | | | | Power Consumption | 0.5 W (Standby)
138.3 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Certifications | TCO Certified, ENERGY STAR, RoHS, WEEE, EPEAT GOLD, as per Manufacturer | | | | Height Adjustment | 5.1" / 13 cm | | Rotation Adjustment | 180° (-90 to 90°) | | Swivel Adjustment | 120° (-60 to 60°) | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 28.9 x 24.2 x 9.5" / 73.4 x 61.5 x 24.0 mm (With Stand)
28.9 x 17.0 x 2.6" / 73.4 x 43.1 x 6.7 mm (Without Stand) | | Weight | 25.8 lb / 11.7 kg | | | | Package Weight | 35.2 lb | | Box Dimensions (LxWxH) | 33.0 x 21.5 x 14.0" |
