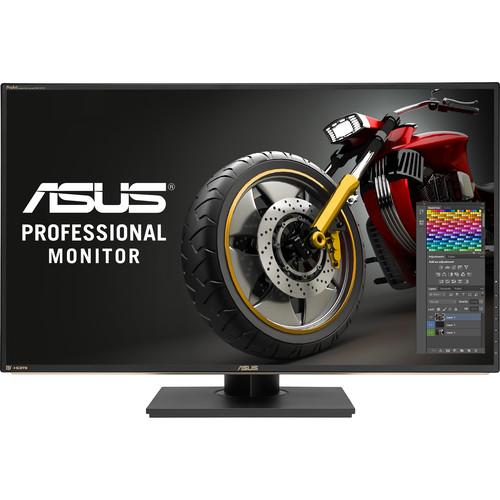

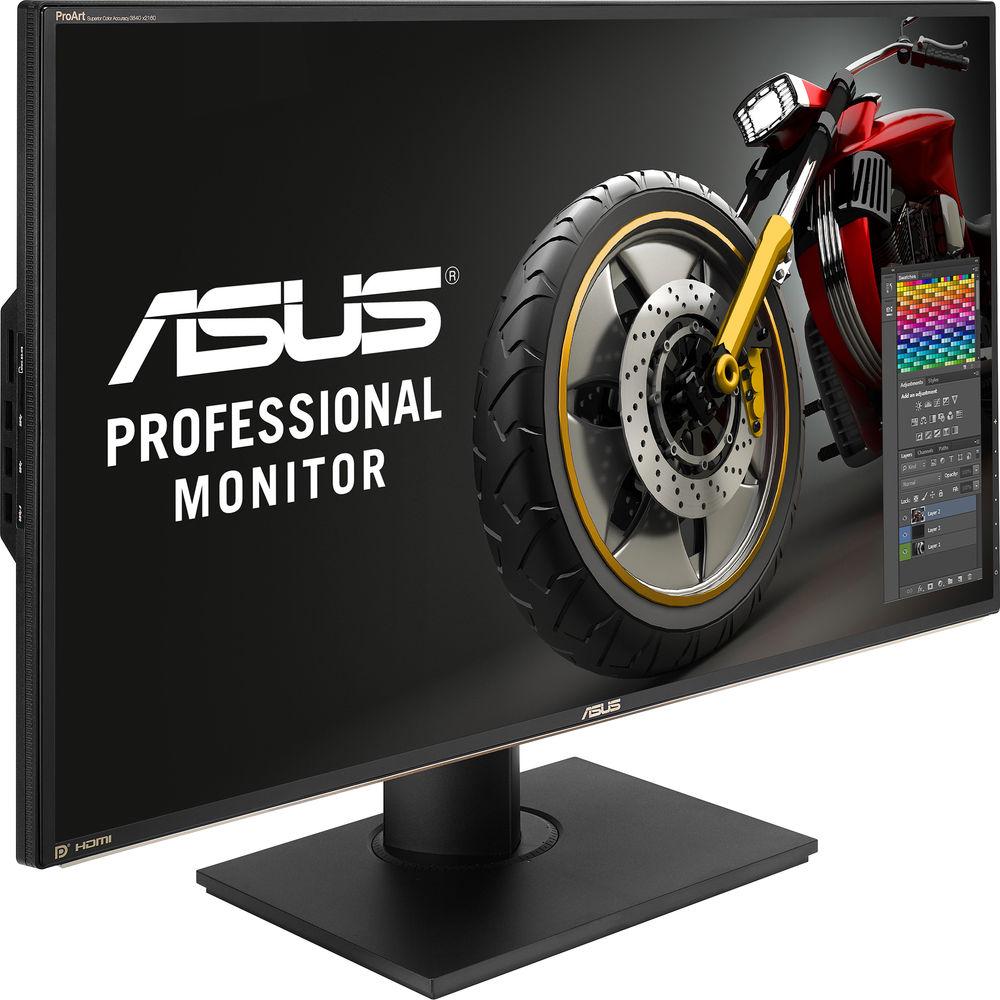

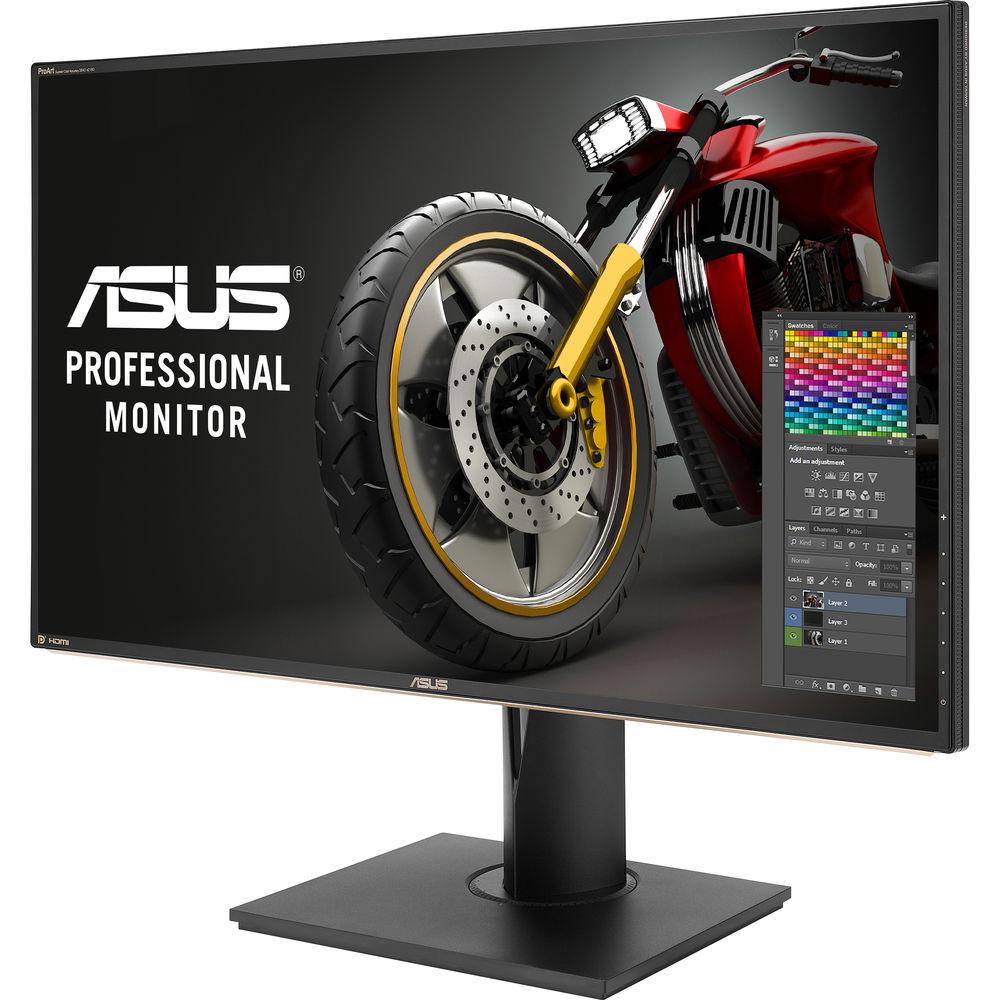

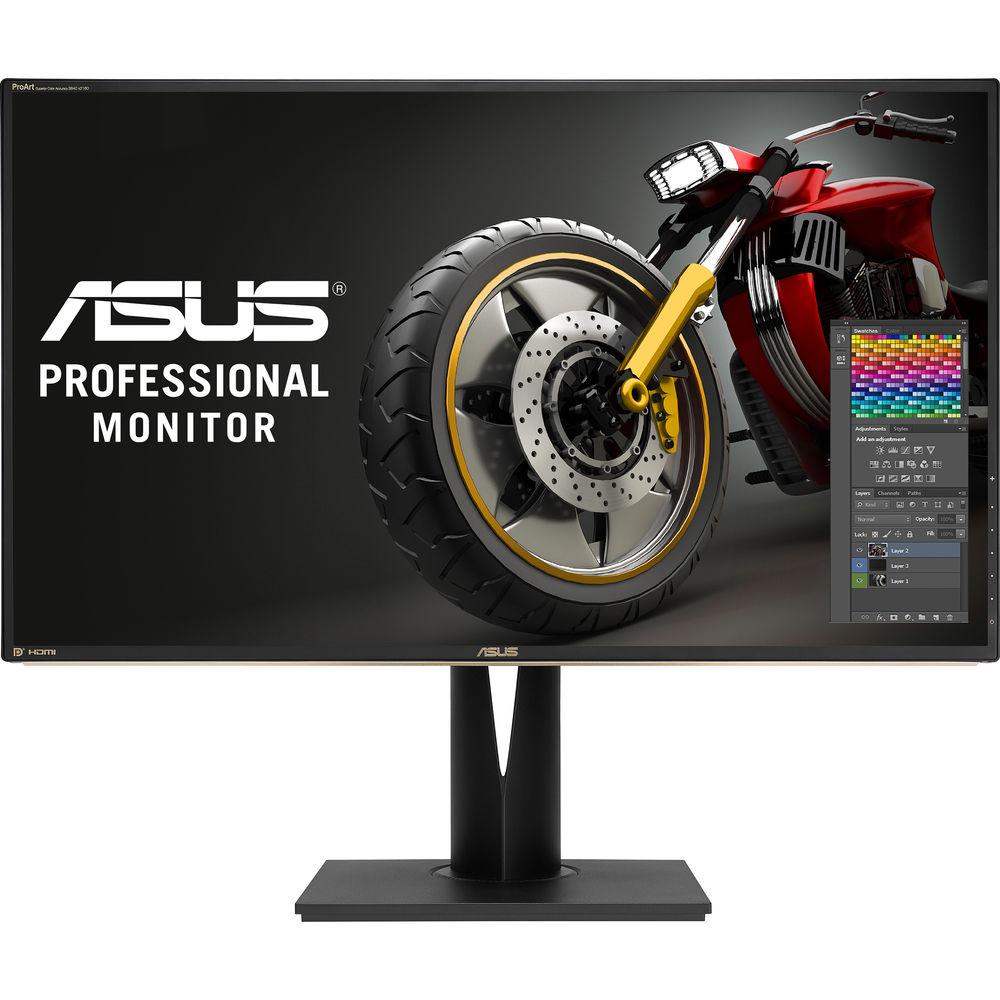

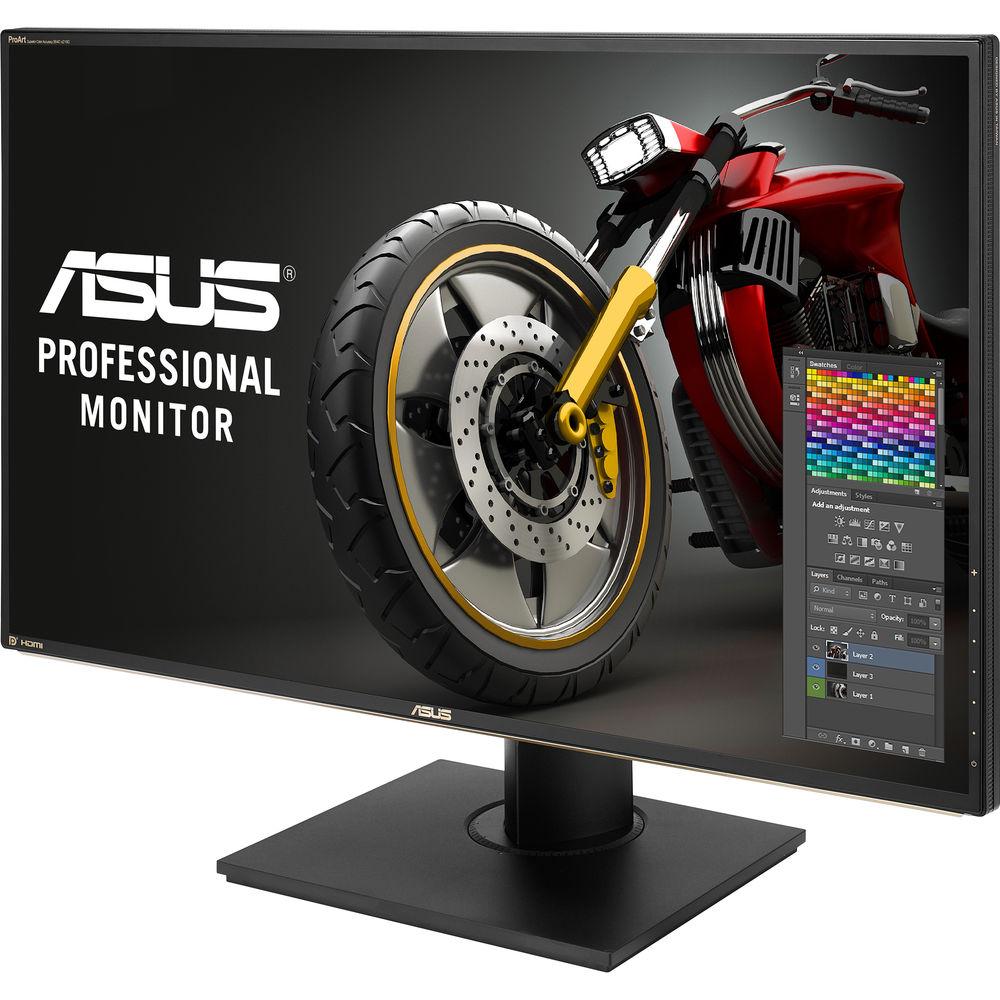

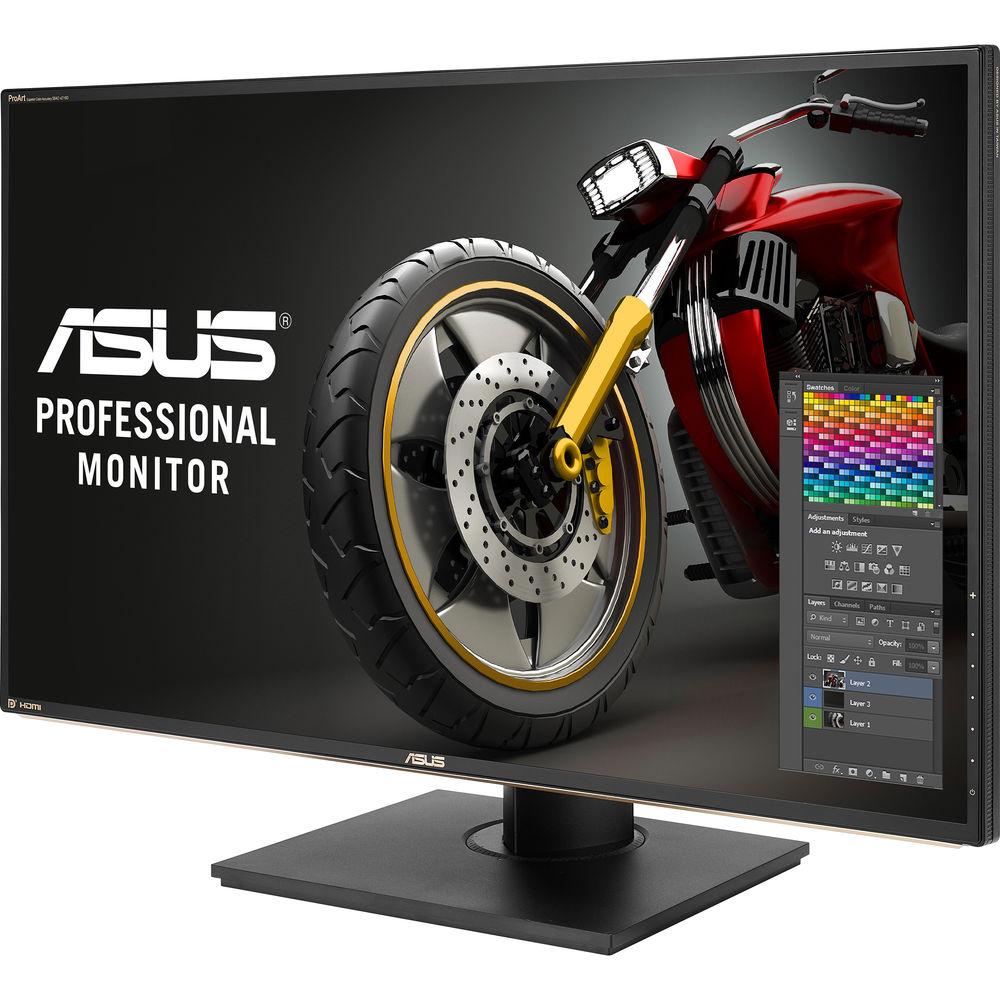

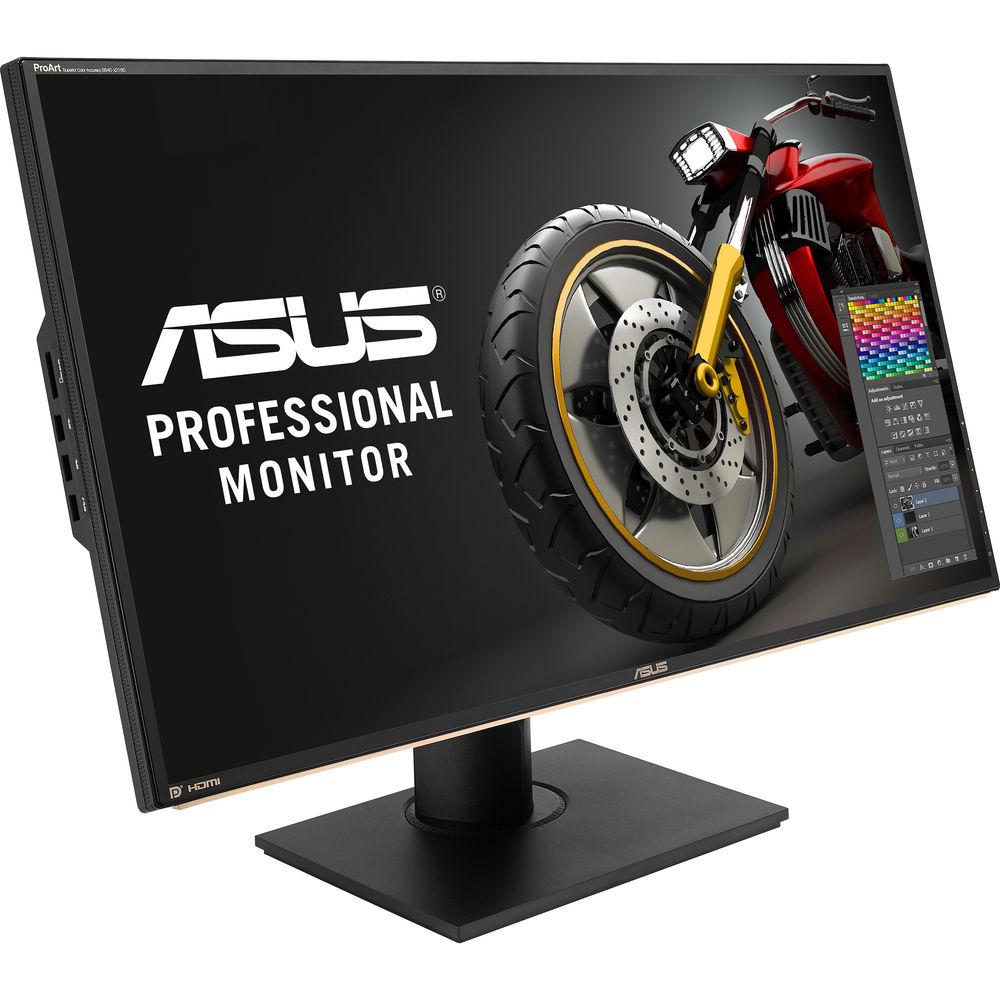

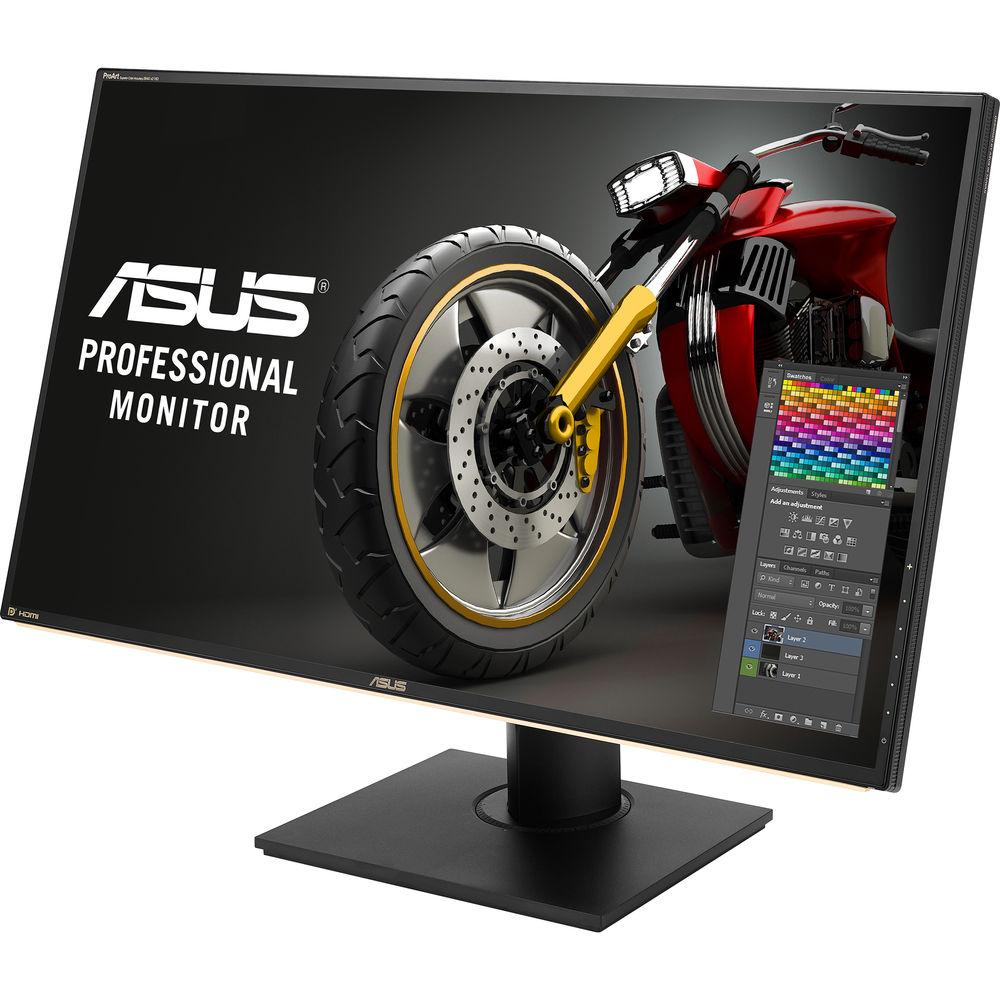

User Manual for ASUS PA329Q 32" 16:9 4K UHD IPS Monitor Click to enlarge the picture
Contents of the user manual for the ASUS PA329Q 32" 16:9 4K UHD
- Product category: Computer Monitors ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Computer Monitors
 |
User manual for the ASUS PA329Q 32" 16:9 4K UHD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Featuring 100% coverage of the Rec.709 color space and 99.5% coverage of the Adobe RGB color space, the PA329Q 32" 16:9 4K/UHD IPS Monitor from ASUS is designed to satisfy the needs of photographers, graphic designers, and those requiring accurate color representation. This 4K UHD monitor even comes pre-calibrated to ΔE <2 to ensure minimal adjustments are needed during setup. Along with enhanced color accuracy, ASUS has included their own ProArt Calibration technology complete with a 14-bit lookup table and support for up to 1.074 billion colors. This offers enhanced color uniformity and the ability to tweak and save settings for future use thanks to the built-in IC chip inside the monitor.
Accompanying the enhanced color accuracy, this ASUS 4K/UHD monitor features a 3840 x 2160 resolution complete with a 5 ms response time, 350 cd/m² brightness rating, all within a non-glare panel. Setup and configuration of this monitor is simple thanks to both HDMI 2.0 and DisplayPort 1.2 connectivity along with a single 3.5mm audio jack and five USB 3.0 ports. Once configured, users can take advantage of a variety of display functions such as picture-in-picture, picture-by-picture, and Asus QuickFit Virtual Scale. ASUS has also included both low-blue light and flicker-free technologies into the display to help protect the eyes during periods of extended viewing. - 360-Degree Rotation
- The ASUS ProArt PA329Q 4K UHD professional monitor delivers accurate and brilliant color reproduction and is designed for graphics professionals. The PA329Q is ideal for high-end video editing, thanks to a wide color gamut of 100% Rec.709 and 99.5% Adobe RGB for enhanced color fidelity, and it has the ability to display multiple 4K UHD video inputs at up to 60 Hz. In addition, ASUS ProArt Calibration Technology offers advanced color tuning and uniformity compensation to ensure improved color accuracy, making PA329 a great monitor for photographers, colorists, graphic designers, and film editors.
- True-to-Life Color
- The ProArt PA329Q has a wide color gamut so you have an entire spectrum of colors to play with. The use of 3M Quantum Dot Enhancement Film (QDEF) provides a wide color range, allowing PA329Q to support 100% Rec. 709, 100% sRGB, 99.5% Adobe RGB, 90% DCI-P3, and Rec with 2,020 color spaces for video editing and production. On top of that, IPS display technology gives you wide viewing angles so there's no color shift, even when you're viewing PA329Q from extreme positions. The PA329Q also offers 10-bit color to display over 1.07 billion colors. It uses a 14-bit internal lookup table (LUT) and supports Gamma values of 2.4, 2.2, 2.0, and 1.8 to give you natural-looking images, and smoother transitions between hues.
- High Color Fidelity
- Take advantage of pure, expressive hues thanks to accurate, true-to-life color reproduction. Each ProArt PA329Q monitor is factory pre-calibrated to guarantee industry-leading color accuracy (∆E < 2), so your images are accurately reproduced onscreen, allowing you to see exactly how your work is going to look when it's finished. The PA329Q also comes with 95% uniformity compensation to guard against brightness and chroma (color) fluctuations on different parts of the screen.
- ASUS ProArt Calibration Technology
- Whether you're using a desktop, laptop, or Mac, ASUS ProArt Calibration Technology offers color accuracy tuning and uniformity compensation to make things easy when it's time to recalibrate your display's brightness and color consistency.
- Color Accuracy Optimization
- Optimum setting in different contents requires different color spaces, ProArt Calibration allows 'Advanced' recipe setup with 5 different color spaces and several additional options if the main parameters besides the 'Standard' option with sRGB.
- Uniformity Compensation
- With two matrix levels of Uniformity compensation, designers can ensure consistency brightness level of the PA329Q screen by ProArt Calibration algorithm generating compensated brightness data, reducing color shift while moving graphics on anywhere of screen.
- Data Saved on the IC Chip Inside the Monitor
- The ASUS ProArt Calibration Technology saves all color parameter profiles on the PA329Q's internal scaler IC chip instead of the PC. This lets you connect PA329Q to different devices without needing to continuously change existing settings. It also reduces the signal distortion between the IC and the LCD optical spectrum. The color profiles can be easily activated by using the hotkey on the monitor next time without a PC or calibrators.
- High Hardware Calibrators Compatibility
- The ASUS ProArt Calibration Technology is also compatible with the top major hardware calibrators such as X-rite i1 Display Pro and Datacolor Spyder 5 series.
- See Photos and Video in 4K UHD
- The ProArt PA329Q features a 32-inch 4K UHD (3840 x 2160) panel with 138 pixels per inch (PPI) to give you four times the pixel density and up to 300% more onscreen space than similarly-sized Full HD displays. This means you get to enjoy sharp, detailed visuals, perfect for editing 4K UHD photos and videos. On top of that, more onscreen space for multitasking so you get more things done quickly.
- Smooth 4K UHD Content Playback at up to 60 Hz
- The PA329Q features an array of connectivity options and supports 4K UHD content playback at 60 Hz via DisplayPort 1.2, mini DisplayPort 1.2, and its four HDMI (v2.0) ports. In addition, you're offered five USB 3.0 ports and a 9-in-1 card reader for your memory cards, peripherals, and various devices.
- Picture-in-Picture & Picture-by-Picture
- Built-in Picture-in-Picture (PiP) and Picture-by-Picture (PbP) functionality lets you view content from multiple 4K UHD sources simultaneously, along with the ability to switch between them, including audio, easily.
- QuickFit Virtual Scale
- Save time and work smarter with ASUS QuickFit Virtual Scale. It provides you with an onscreen grid overlay so you can align and preview documents in their actual sizes prior to printing. There's also an intuitive 5-way navigation joystick so you can easily access and switch OSD settings on the onscreen menu.
- Ultra-Low Blue Light Monitor
- The TÜV Rheinland-certified ASUS Blue Light Filter protects you from harmful blue light, and you can easily access its four different filter settings via a hotkey. ProArt PA329Q has undergone stringent performance tests and has been certified by TÜV Rheinland laboratories, a global provider of technical, safety, and certification services, to be flicker-free and to emit low blue light levels.
- Flicker-Free Technology
- The ProArt PA329Q features TÜV Rheinland-certified ASUS Flicker-Free technology to reduce flicker for a comfortable viewing experience. This technology helps minimize instances of eyestrain and other damaging ailments, especially when you spend long, countless hours in front of a display watching favorite videos.
- Ergonomic Design

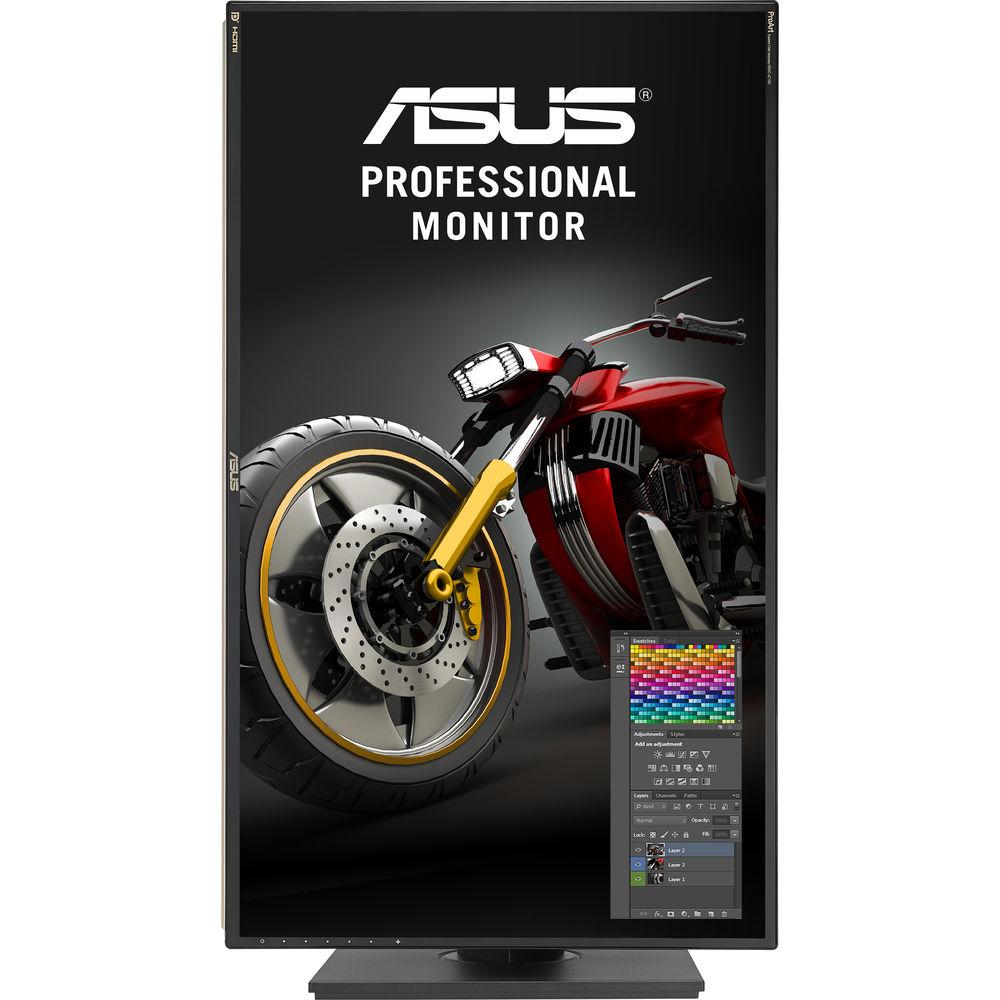

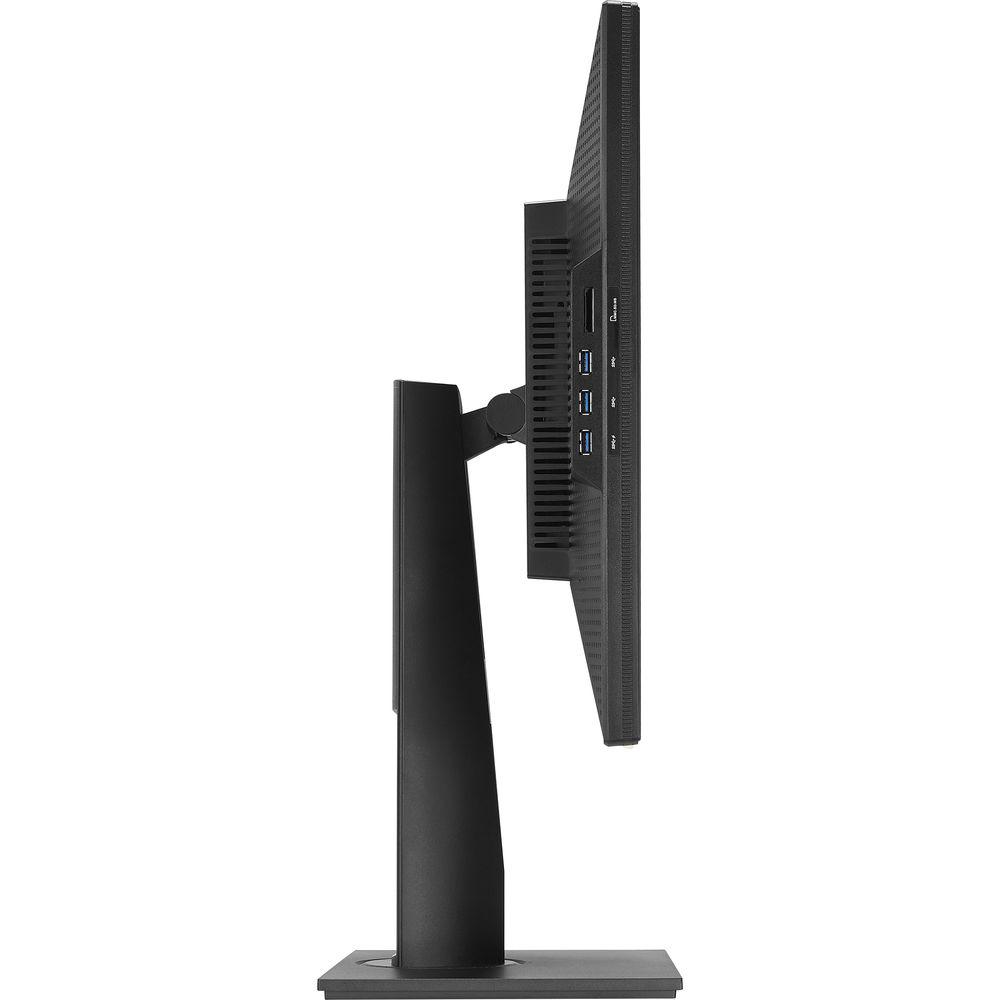

- With ProArt PA329Q, a comfortable viewing position is always within reach thanks to its slim profile and ergonomically-designed stand with tilt, swivel, pivot, and height adjustments. The Auto Rotation function adjusts the orientation of the content when you pivot the display into Portrait mode - handy when working with websites or longer documents.
UPC: 889349270684 In the Box ASUS PA329Q 32" 16:9 4K/UHD IPS Monitor Cable Tie Mini-DisplayPort to DisplayPort Cable USB Cable HDMI Cable Limited 3-Year Warranty User Manual PDF 2.9mb More info from ASUS Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS PA329Q 32" 16:9 4K UHD IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS PA329Q Specs | | | Size | 32" | | Screen Area | 27.9 x 15.7" / 70.8 x 39.9 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Finish | Matte | | Maximum Brightness | 350 cd/m2 | | Dynamic Contrast Ratio | 100,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 135 kHz | | Vertical Frequency | 24 to 76 Hz | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | Look-Up Table | 14-Bit | | Color Gamut | 99.5% Adobe RGB
100% Rec. 709
100% sRGB
90% DCI-P3 | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.1845 x 0.1845 mm | | | | Connectivity | 1 x 3.5 mm Output
5 x USB Type-A (USB 3.1 Gen 1) Output
1 x DisplayPort Input
1 x Mini DisplayPort 1.2 Input | | Built-In Speakers | Yes, 2 x 3 W | | | | Power Consumption | 1.4 W (Standby)
138.3 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Certifications | ENERGY STAR, RoHS, WEEE, as per Manufacturer | | | | Height Adjustment | 5.1" / 13 cm | | Rotation Adjustment | 90° | | Swivel Adjustment | 120° (-60 to 60°) | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 28.9 x 24.2 x 9.5" / 73.5 x 61.5 x 24.0 cm | | Weight | 27.6 lb / 12.5 kg | | | | Package Weight | 36.5 lb | | Box Dimensions (LxWxH) | 33.0 x 21.2 x 14.0" |
