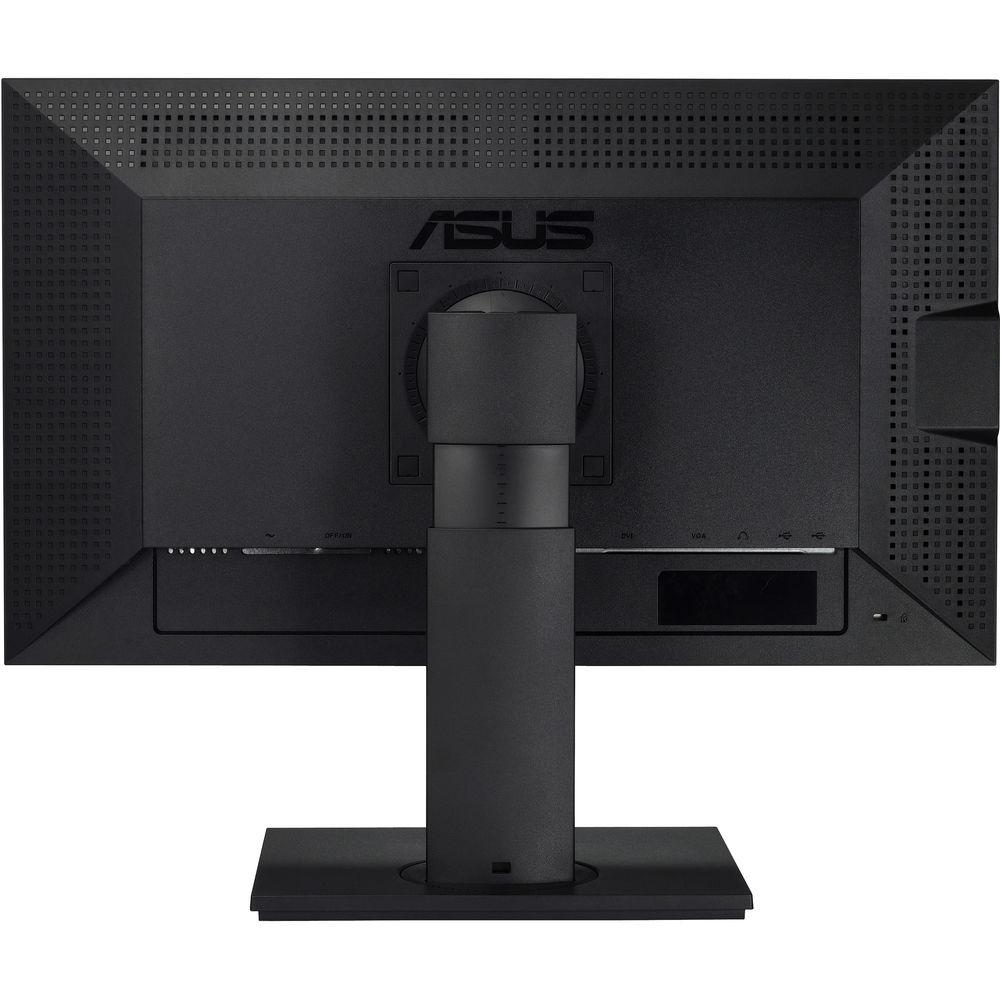

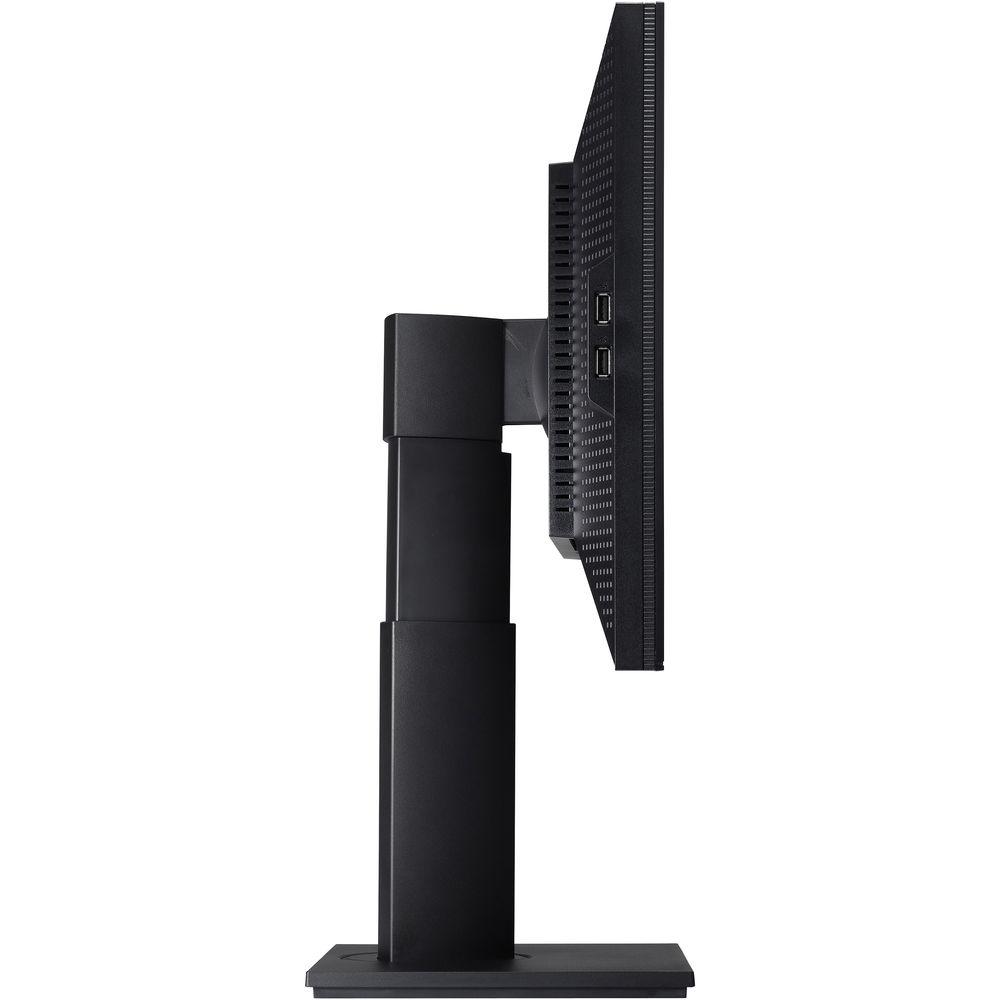

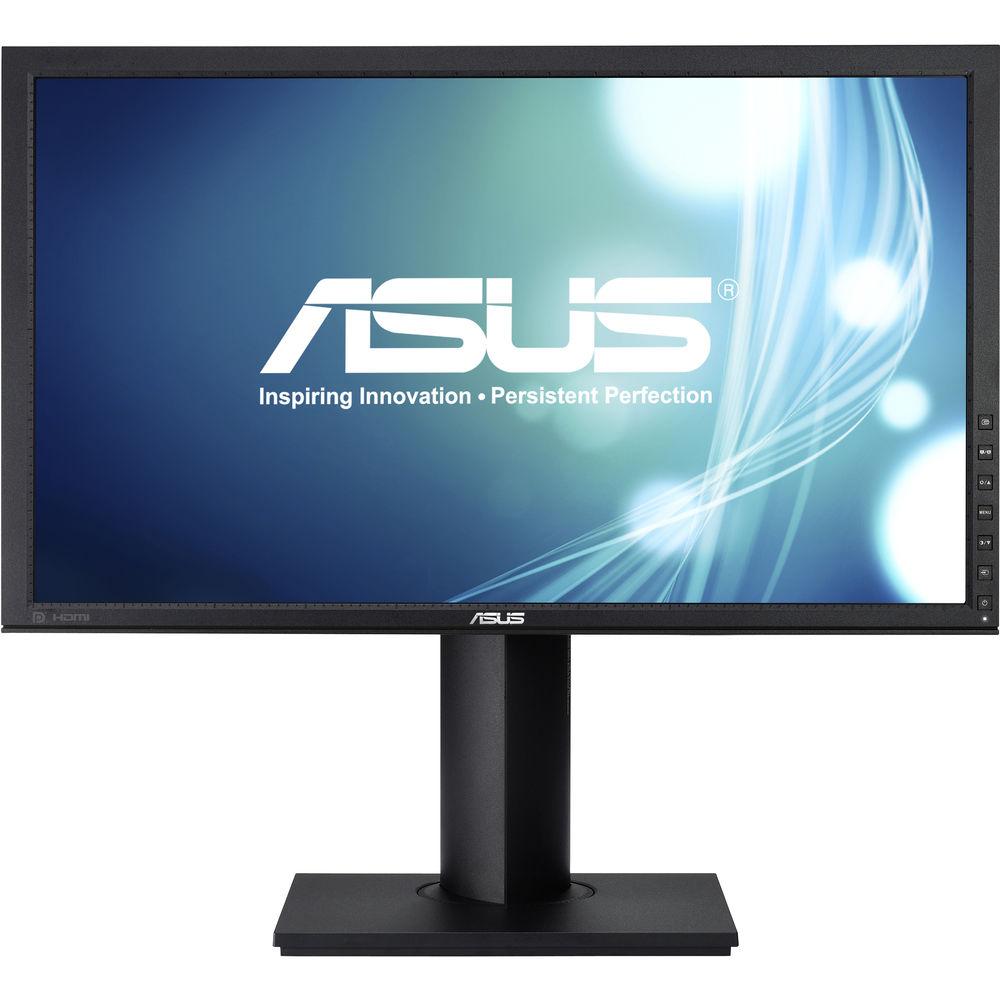

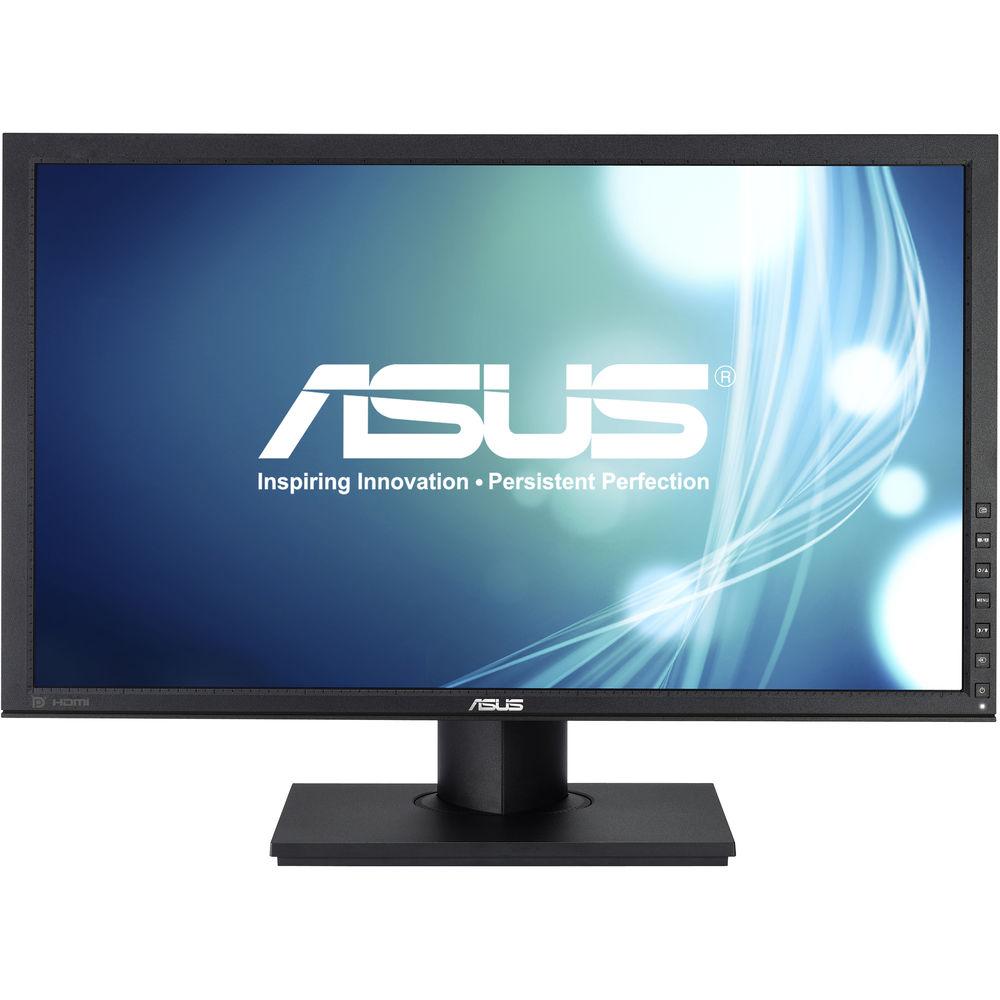

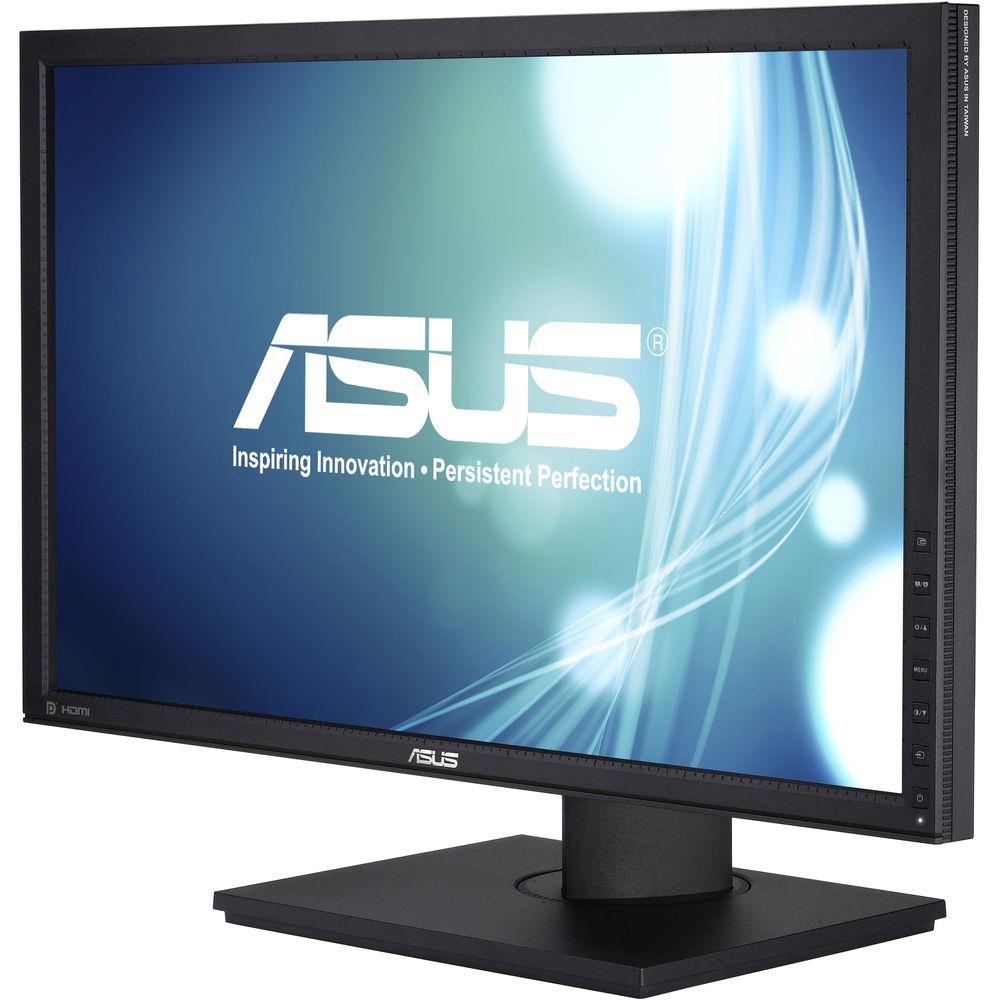

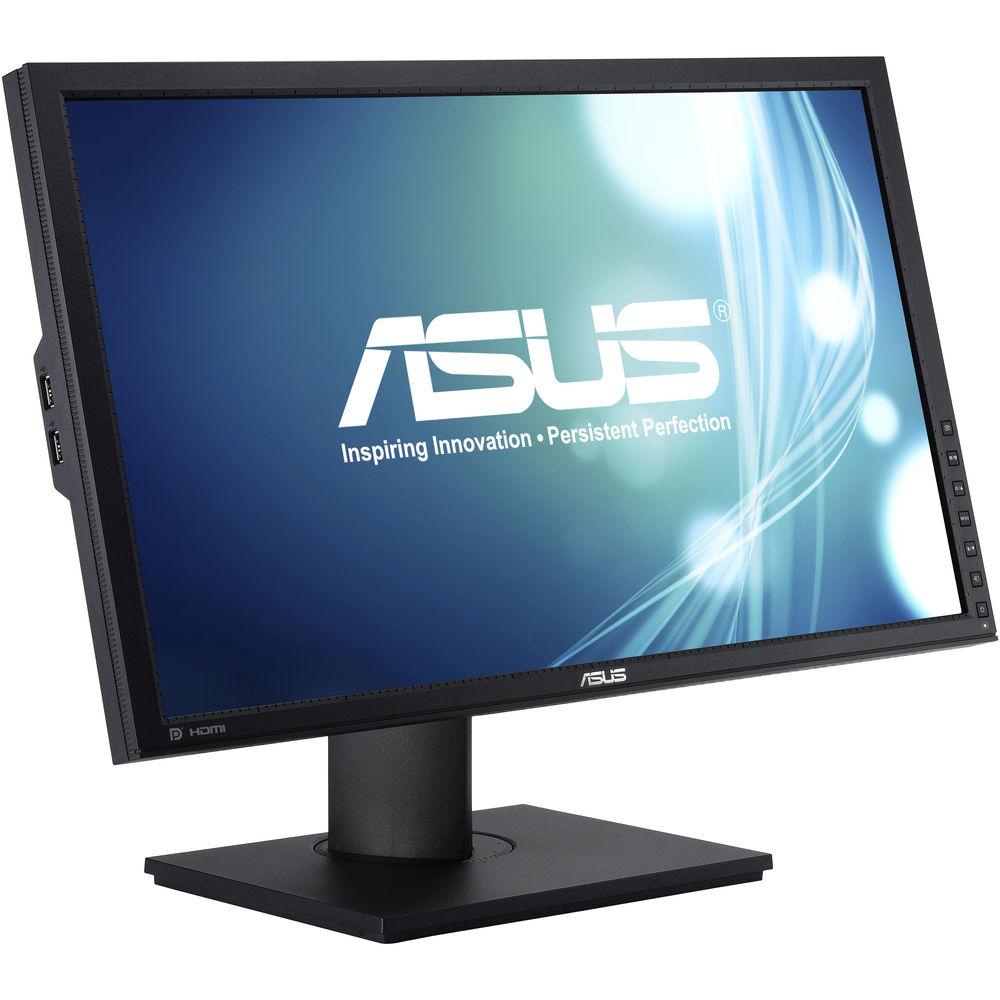

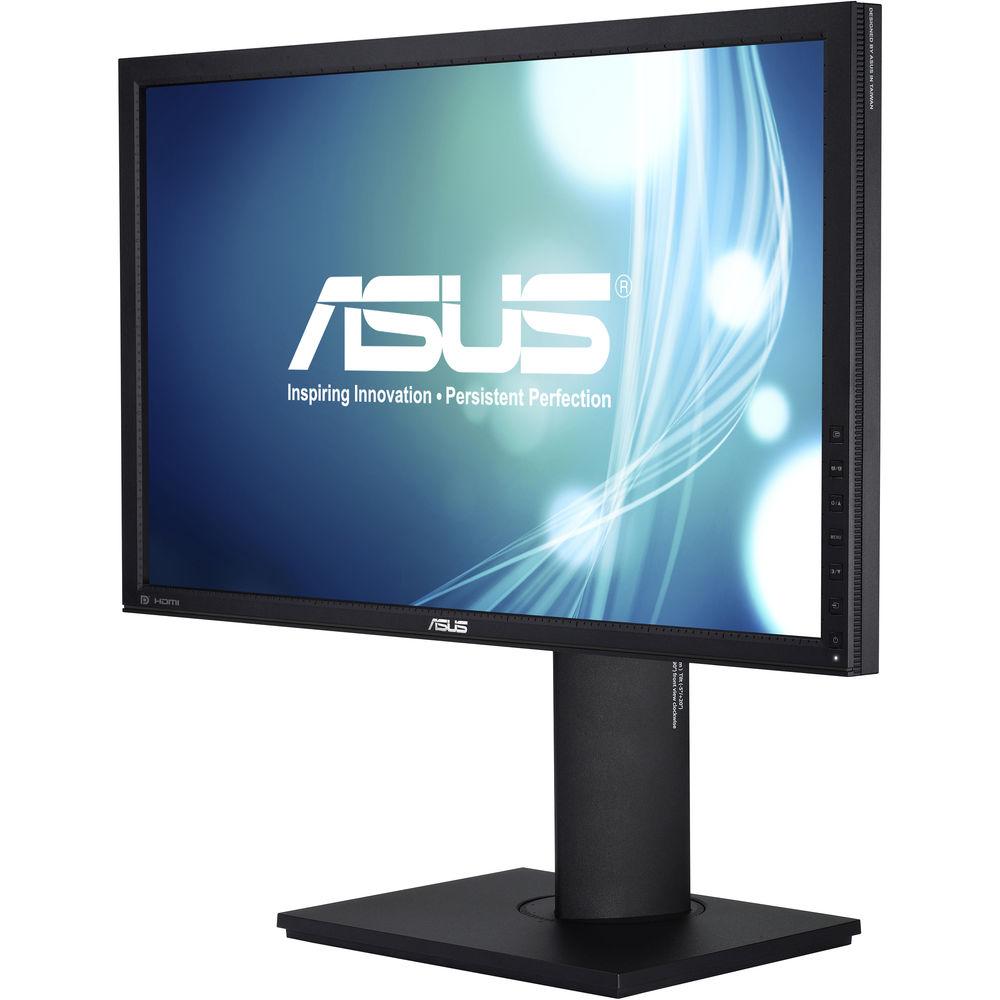

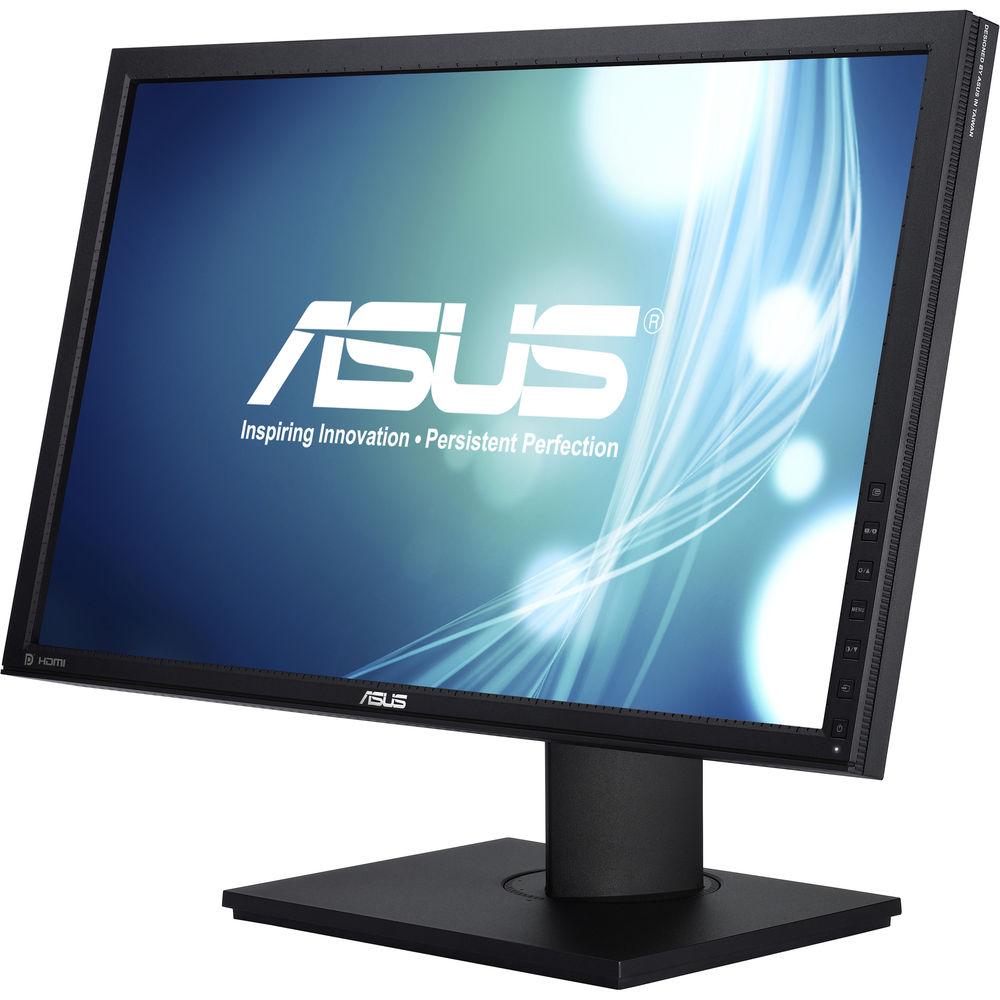

User Manual for ASUS PB238Q 23" Widescreen LED Backlit IPS LCD Monitor Click to enlarge the picture
Contents of the user manual for the ASUS PB238Q 23" Widescreen LED Backlit
- Product category: Computer Monitors ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Computer Monitors
 |
User manual for the ASUS PB238Q 23" Widescreen LED Backlit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|
Product description Which ASUS Monitor is Right for You? Read More The PB238Q 23" Widescreen LED Backlit IPS LCD Monitor from ASUS is a fully equipped monitor with a variety of connection options including HDMI, D-Sub, DisplayPort, and DVI-D ports. The wide 178° horizontal and vertical viewing angles allow for reduced color shift from nearly any angle of view. Take advantage of a more dynamic picture with an 80,000,000:1 contrast ratio providing for darker dark and brighter bright colors.
Utilize ASUS exclusive QuickFit Virtual Scale for real-size document, photo, and grid mode on top of operating windows on the screen. The integrated SPLENDID video preset modes allow for a variety of viewing options including standard, game, theater, scenery, and night view mode further enhancing the picture quality. Along with the SPLENDID video presets, the PB238Q comes with 3 skin tone selection modes including reddish, natural, and yellowish giving you the ability to adjust picture quality for human subjects on the screen. Many of the options such as SPLENDID Video Preset Mode Selection, Auto Adjustment, Brightness Adjustment, Volume Adjustment, Input Selection, and Quick Fit found within the PB238Q can be accessed via a hotkey for added convenience. - 80,000,000:1 ASUS Smart Contrast Ratio
- The ASUS Smart Contrast Ratio dynamically enhances the display's contrast by adjusting the luminance of the backlight to achieve the darkest black and brightest white - delivering lifelike images.
- 178° Wide Viewing Angle
- The PB238Q adopts 178° of horizontal and vertical viewing angles that eradicates color shift on your screen no matter where and how you look at it
- Full HD with HDMI
- Enter a world of enhanced colors with Full HD 1080p (1920 x 1080) support as well as an integrated HDMI port
- Extensive Connectivity / Built-in Stereo Speaker
- •The PB238Q comes with rich connectivity options including HDMI, DisplayPort, DVI-D, and D-Sub ports. You can also take advantage of four USB 2.0 ports enabling users to connect a wide variety of peripherals such as USB drives, a keyboard, mouse, and digital camera.
•The built-in stereo speakers give you the ability to enjoy a variety of multimedia options such as Full HD Blu-ray Disc players, DVD players, and even set top boxes. - QuickFit Virtual Scale
- The ASUS-exclusive QuickFit built in the monitor provides real-size document, photo, and grid mode on top of the operating windows on the screen. The QuickFit feature can be activated via a hotkey on the monitor and used as a guide to accurately view and edit photos.
Supporting Formats:
•Document: A4, letter
•Photo: 8" x 10", 5" x 7", 4" x 6", 3" x 5", and 2" x 2"
•Grid: Alignment, Centimeters, Inches - Ergonomic Design

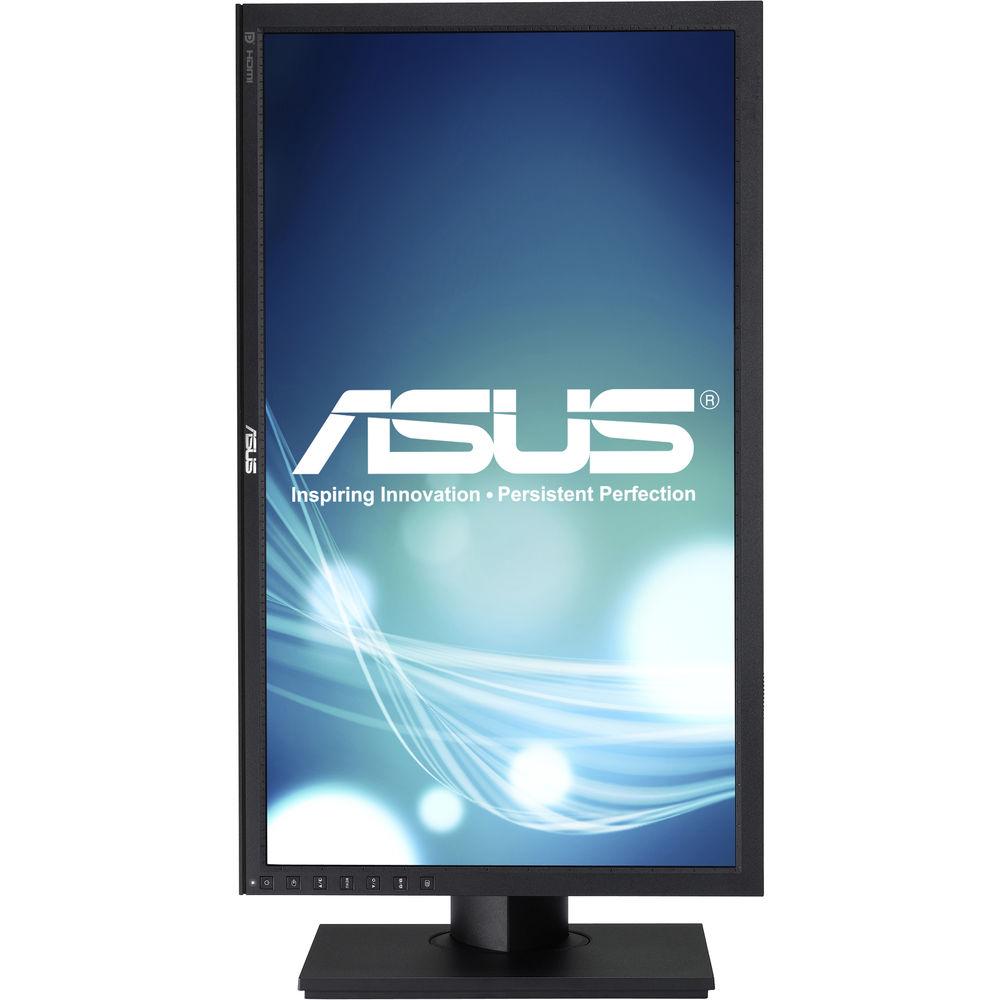

- The ergonomically-designed PA238Q Professional Monitor comes with swivel, tilt, pivot, and height adjustments for the ideal viewing position
UPC: 886227211982 In the Box ASUS PB238Q 23" Widescreen LED Backlit IPS LCD Monitor DVI Cable VGA Cable Audio Cable Power Cord USB Cable Quick Start Guide Limited 3-Year North American Warranty (USA, Canada & Mexico) 10 Factors to Consider When Selecting A Monitor for Video Editing Mary Latvis 03/04/2019 xsbxszbuaewwvrabsstsdtcqzsrfxr Manual PDF 2.5mb More info from ASUS Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS PB238Q 23" Widescreen LED Backlit IPS LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS PB238Q Specs | | | Size | 23" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Maximum Brightness | 250 cd/m2 | | Dynamic Contrast Ratio | 80,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 24 to 83 kHz | | Vertical Frequency | 55 to 75 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 6 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.2652 x 0.2652 mm | | | | Connectivity | 1 x 3.5 mm Input
1 x USB Type-B Input
4 x USB Type-A Output
1 x DVI-D
1 x DisplayPort Input
1 x HDMI
1 x VGA | | Built-In Speakers | Yes, 2 x 2 W | | | | Power Consumption | 0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Certifications | ENERGY STAR, RoHS, WEEE, as per Manufacturer | | | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 21.6 x 16.3 x 7.9" / 54.9 x 41.4 x 20.1 mm (With Stand)
21.6 x 12.7 x 2.3" / 54.9 x 32.4 x 5.8 mm (Without Stand) | | Weight | 12.1 lb / 5.5 kg | | | | Package Weight | 18.3 lb | | Box Dimensions (LxWxH) | 26.0 x 15.2 x 9.8" |
