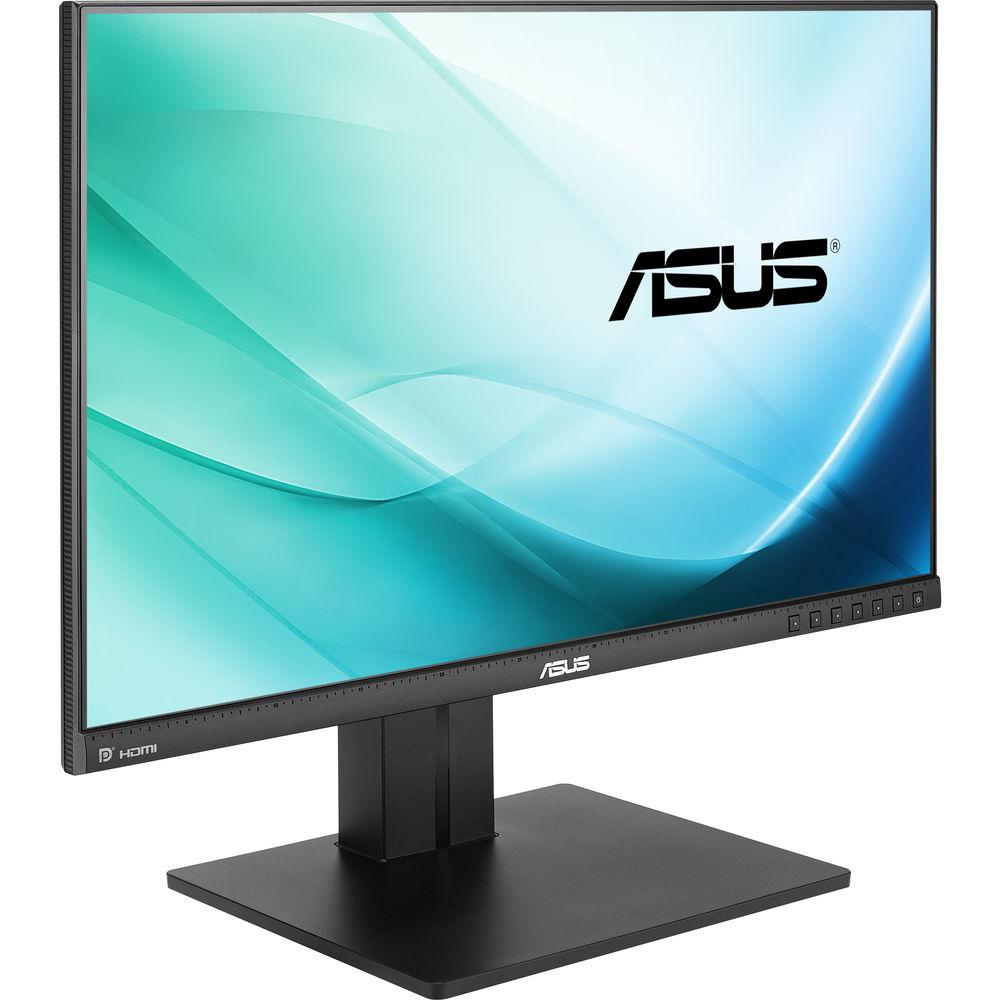

User Manual for ASUS PB258Q 25" Widescreen LED Backlit WQHD Monitor Click to enlarge the picture
Contents of the user manual for the ASUS PB258Q 25" Widescreen LED Backlit
- Product category: Computer Monitors ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Computer Monitors
 |
User manual for the ASUS PB258Q 25" Widescreen LED Backlit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|

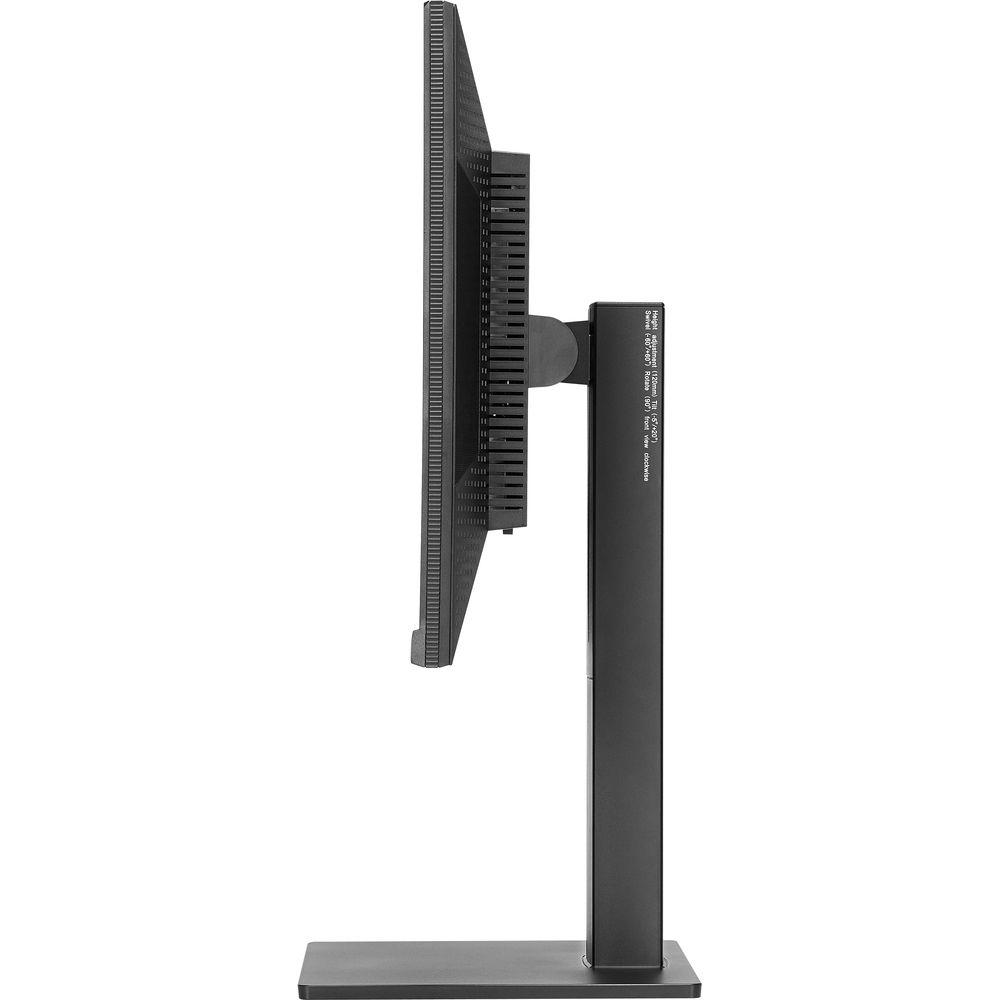

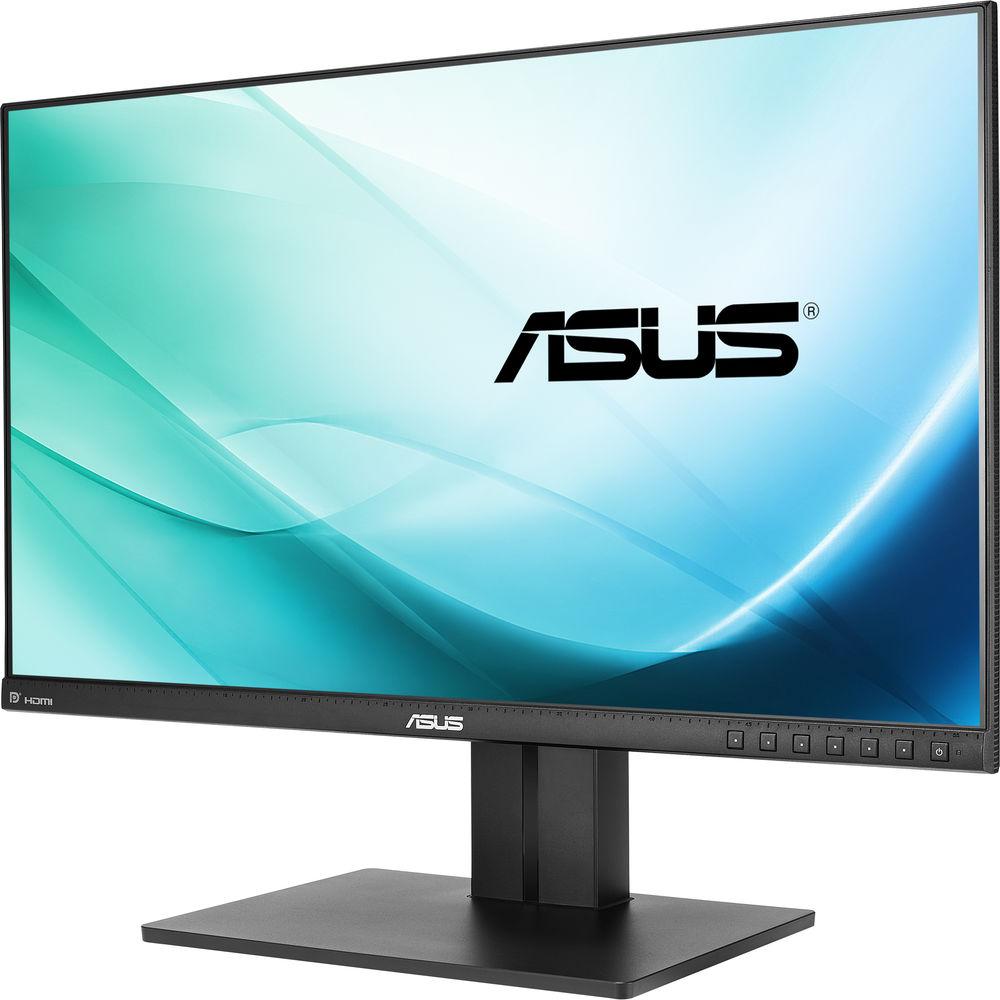

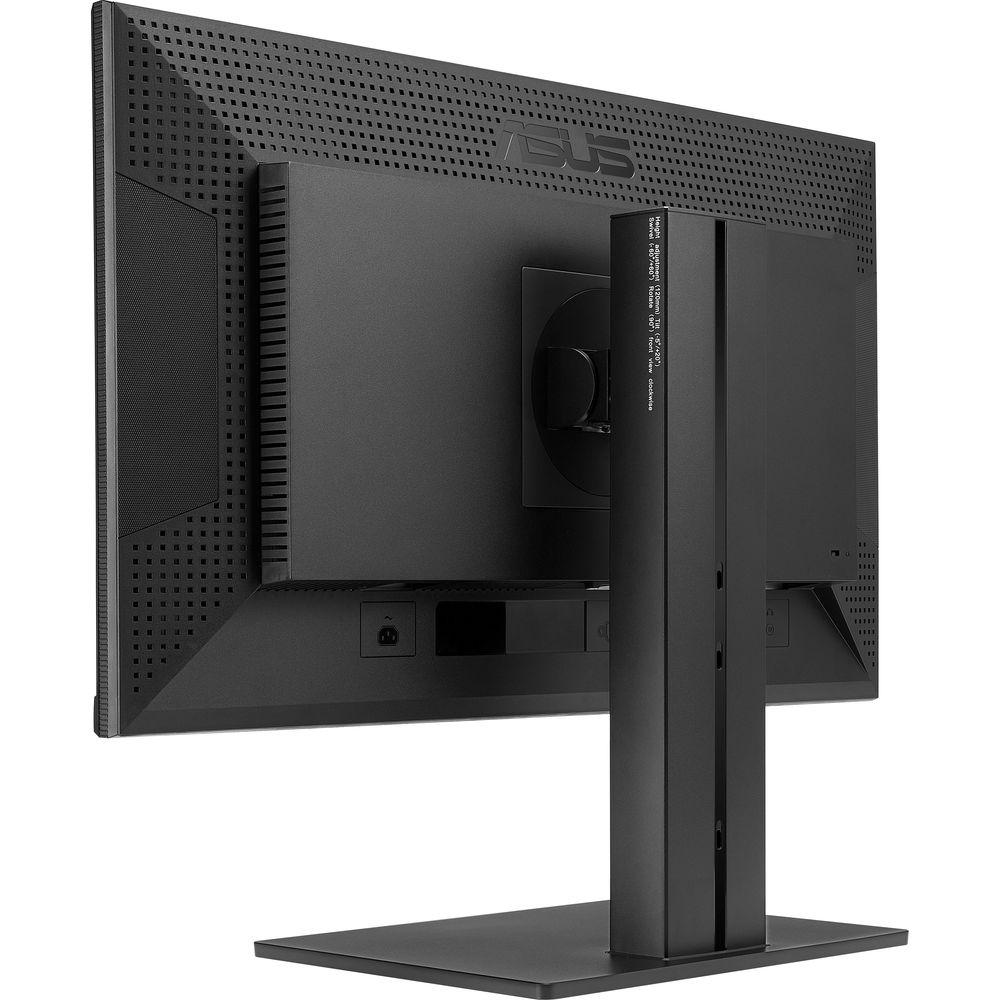

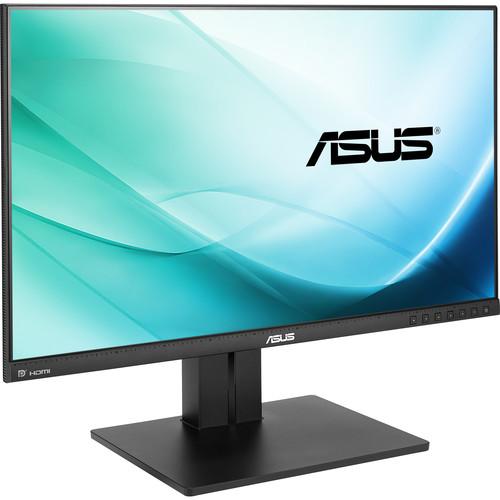

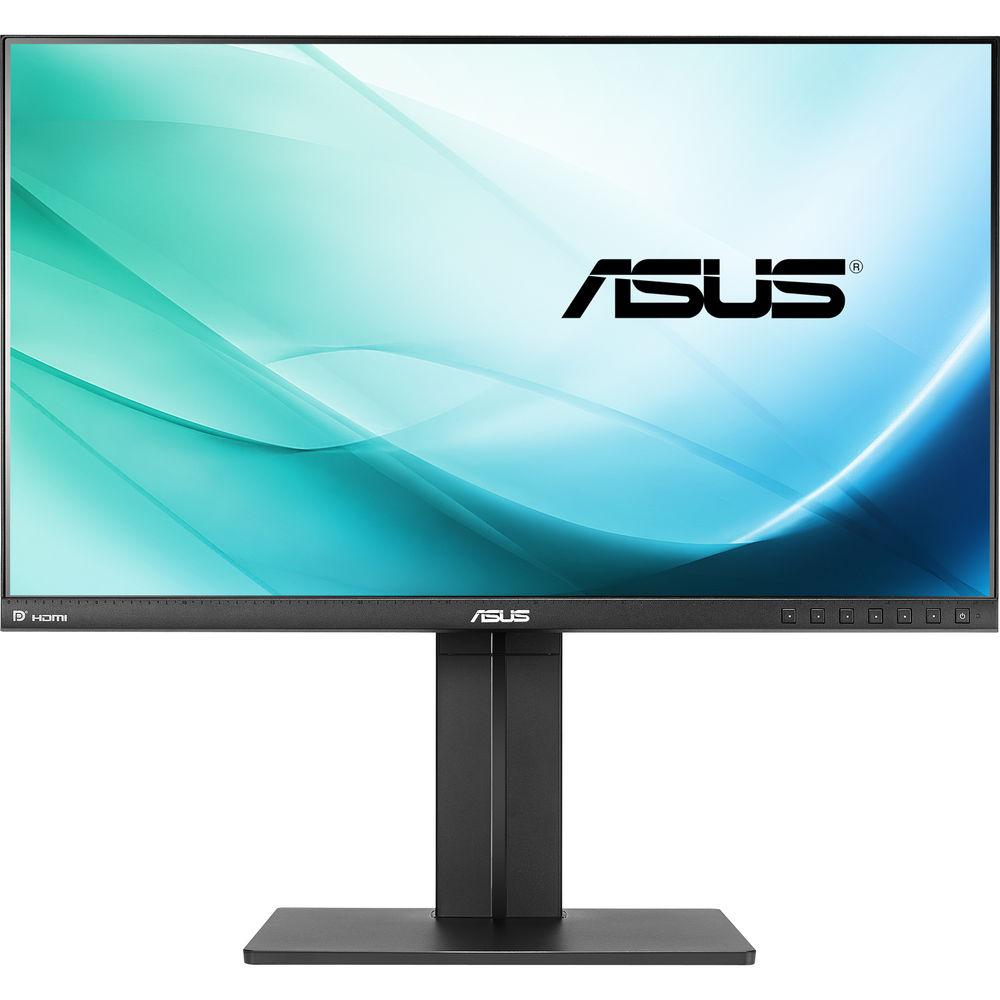

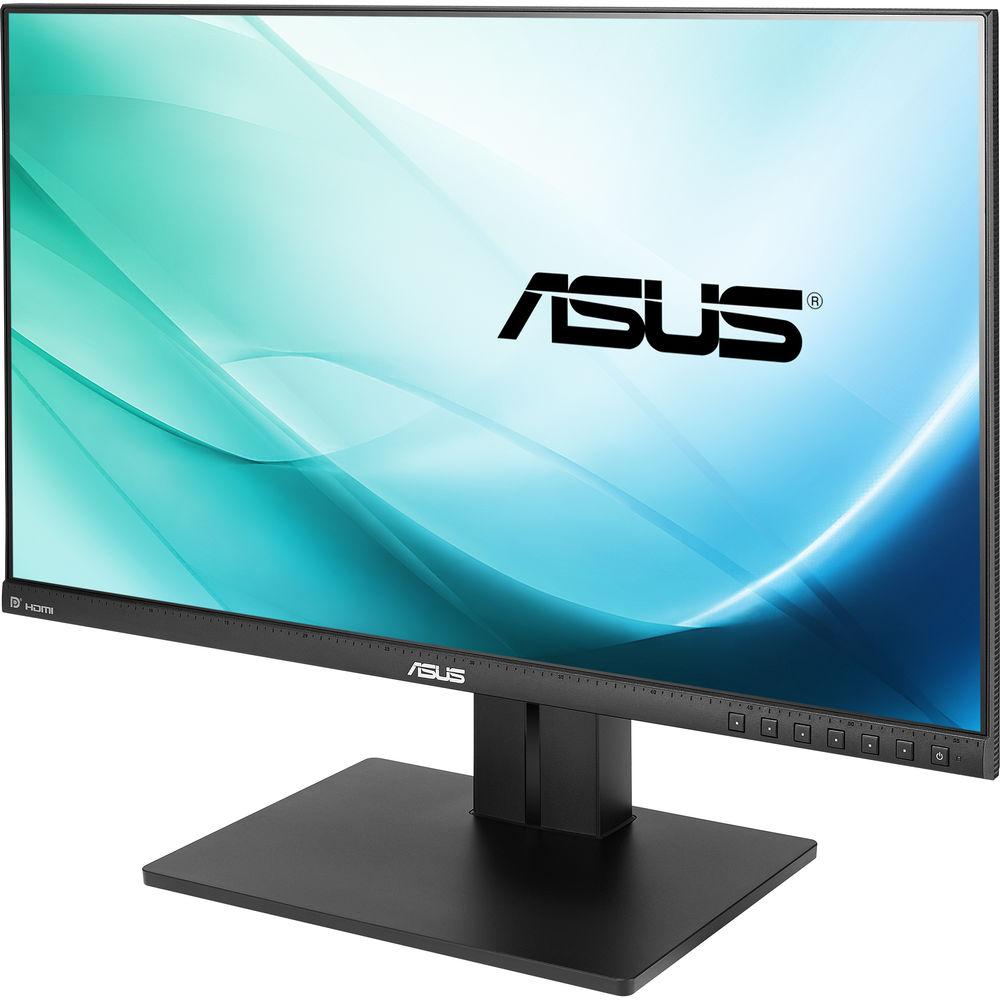

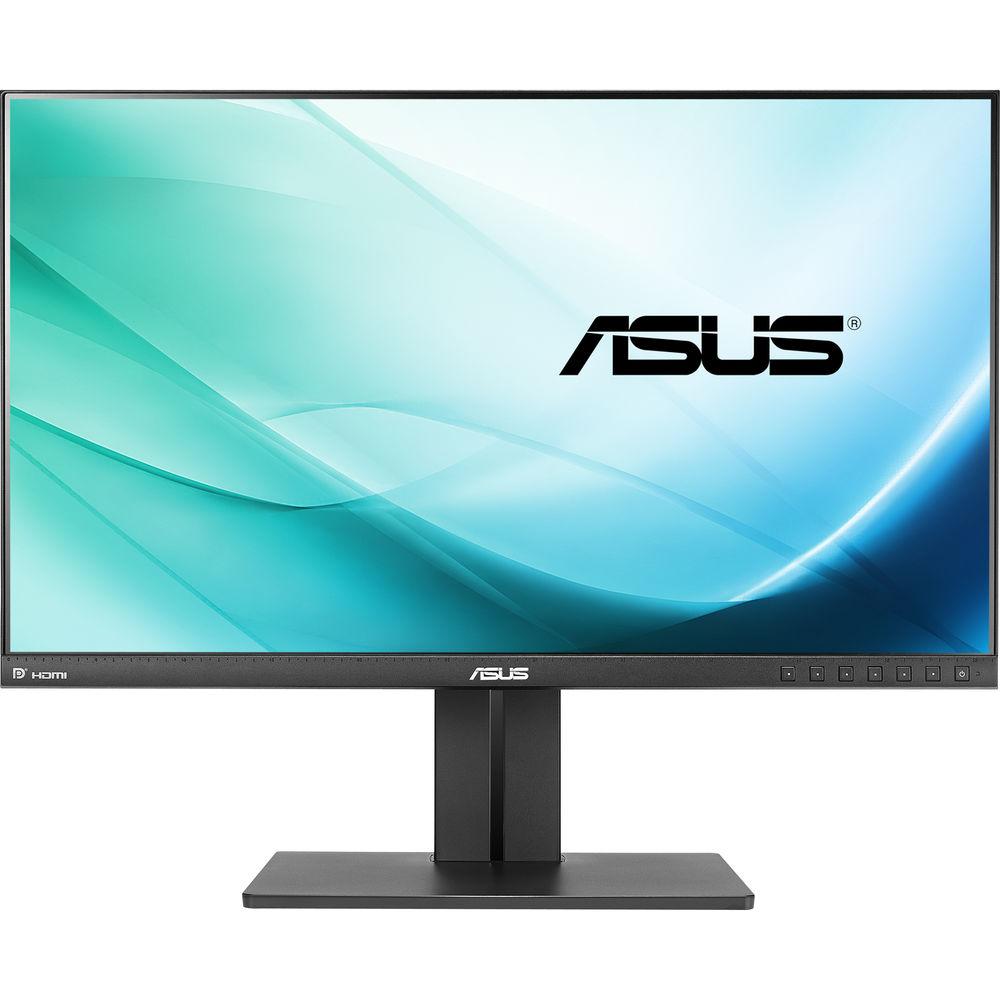

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The PB258Q 25" Widescreen LED Backlit WQHD Monitor from ASUS features an IPS LED-backlit panel with an aspect ratio of 16:9 and a resolution of 2560 x 1440 WQHD. This monitor supports 178° vertical and horizontal viewing angles, thereby minimizing onscreen color shift even when viewed from extreme angles. Additionally, the stand allows for tilt, swivel, pivot, and height adjustments of the display. The stand is removable, giving you the option of mounting the monitor on a wall via the VESA mount. The PB258Q's edge-to-edge frameless design is suitable for seamless multi-display setups.

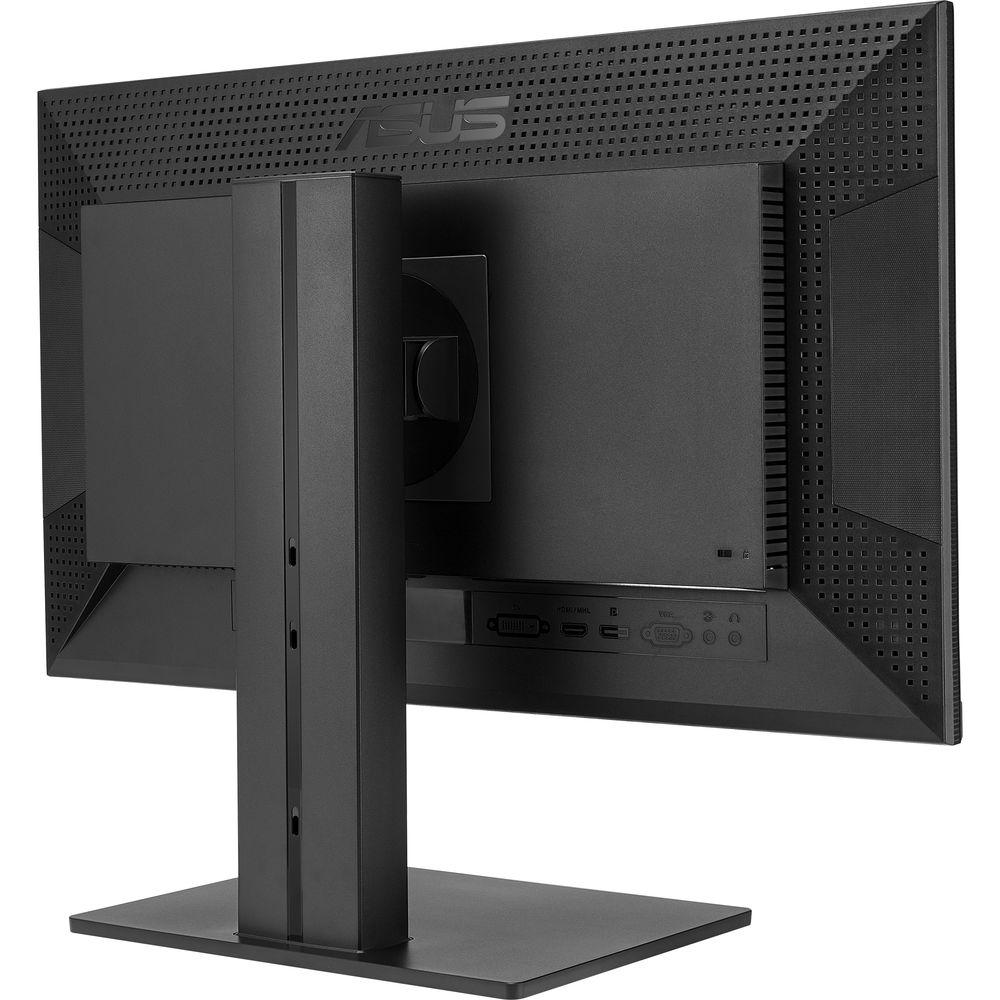

On the back of the monitor you will find various ports: HDMI/MHL2.0, DisplayPort1.2, Dual-link DVI for native WQHD, and Sub-D for full HD 1080p content transmission. Alongside the video connectors you will find one 3.5mm audio input and one 3.5mm headphone jack. The 3.5mm audio input works in conjunction with the built-in dual 2.5W stereo speakers.
The PB258Q features ASUS flicker-free and low blue light technologies to reduce instances of eyestrain and other damaging effects when spending long hours in front of a display. - See Better and Wider
- The PB258Q WQHD monitor features an IPS LED-backlit panel that provides 117 pixels per inch (PPI), resulting in high quality 2560 x 1440 visuals - equaling four times the resolution of standard 720p sets. It allows users to view greater image detail and do more with an onscreen footprint larger than that of standard displays.
The screen's 117 PPI density means there are 117 RGB matrices within one inch. Generally, the more pixels a display has, the more lighting (or power) those pixels require in order to achieve the best visuals. However, with advanced LED backlighting on the PB258Q, power and energy savings are no longer compromised, while better visuals are assured. - Made for Work and Play
- The ASUS PB258Q features IPS panel which provides an ultra-wide 178° viewing angle on both horizontal and vertical planes, thereby minimizing onscreen color shift even when viewed from extreme angles. With its WQHD display, you enjoy 77% more desktop space than a full HD screen to spread out your windows and palettes. It is also about 25% sharper than a generic 25" full HD display, delivering smooth visuals thanks to a 5 ms (GtG) response time. This ensures you get virtually lag-free experiences in movies and gaming, with the latter looking more vivid, with all in-game details shown in true color.
- Native WQHD Content Support
- The PB258Q features a host of connectivity options that include HDMI/MHL2.0, DisplayPort1.2, and dual-link DVI for native WQHD, plus D-sub for full HD 1080p content transmission. Twin built-in 2.5W speakers provide quality audio for a completely immersive home theater experience.
- Flicker-Free and Low Blue Light
- The PB258Q features ASUS Flicker-free and Low Blue Light technologies to reduce instances of eyestrain and other damaging effects when spending long, countless hours in front of a display.
- SplendidPlus Video Intelligence Technology
- The PB258Q features SplendidPlus Video Intelligence Technology that optimizes videos and images by enhancing color brightness, contrast, and sharpness. SplendidPlus features 8 preset modes - Reading, Darkroom, Scenery, Standard, Theater sRGB, Game, and Night View modes to adapt to the content being viewed on the screen.
- QuickFit Virtual Scale
- ASUS QuickFit Virtual Scale's onscreen alignment grid overlay also helps you align and preview actual-size photos and documents on screen prior to printing, thereby adding to the overall flexibility and productivity aspects of the PB258Q display.
UPC: 886227951574 In the Box ASUS PB258Q 25" Widescreen LED Backlit WQHD Monitor Stand VGA Cable Audio Cable Power Cord Limited 3-Year Warranty User Manual PDF 3.3mbfzbqeezu More info from ASUS Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS PB258Q 25" Widescreen LED Backlit WQHD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS PB258Q Specs | | | Size | 25" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 2560 x 1440 | | Aspect Ratio | 16:9 | | Maximum Brightness | 350 cd/m2 | | Dynamic Contrast Ratio | 100,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 24 to 160 kHz | | Vertical Frequency | 23 to 80 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Color Gamut | 100% sRGB | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.216 x 0.216 mm | | | | Connectivity | 1 x 3.5 mm Input/Output
1 x 3.5 mm Output
1 x DVI-D
1 x DisplayPort 1.2 Input
1 x HDMI (MHL)
1 x VGA | | HDCP Support | Yes | | Built-In Speakers | Yes, 2 x 2.5 W | | | | Power Consumption | 0.5 W (Standby)
28 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Certifications | ENERGY STAR, EPEAT GOLD, RoHS, TCO Certified, as per Manufacturer | | | | Height Adjustment | 4.7" / 11.9 cm | | Rotation Adjustment | 90° | | Swivel Adjustment | 120° (-60 to 60°) | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 22.5 x 16.2 x 8.7" / 57.1 x 41.1 x 22.0 mm (With Stand)
22.5 x 13.4 x 2.3" / 57.1 x 34.0 x 5.8 mm (Without Stand) | | Weight | 16.5 lb / 7.5 kg | | | | Package Weight | 22.05 lb | | Box Dimensions (LxWxH) | 25.0 x 20.4 x 7.7" |
