User Manual for ASUS PB277Q 27" 16:9 WQHD LCD Monitor Click to enlarge the picture
Contents of the user manual for the ASUS PB277Q 27" 16:9 WQHD LCD
- Product category: Computer Monitors ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Computer Monitors
 |
User manual for the ASUS PB277Q 27" 16:9 WQHD LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More wybvszydcssfs With 109 pixels per inch, the PB277Q 27" 16:9 WQHD LCD Monitor from ASUS offers an enhanced viewing experience with up to four times greater detail than a standard 720p display. This ASUS monitor features a WQHD resolution of 2560 x 1440 along with ASUS' own Smart Contrast Ratio, resulting in deeper dark and brighter light colors for a more dynamic picture. Viewers also benefit from a 1 ms response time which greatly reduces blur and ghosting when viewing videos and movies.

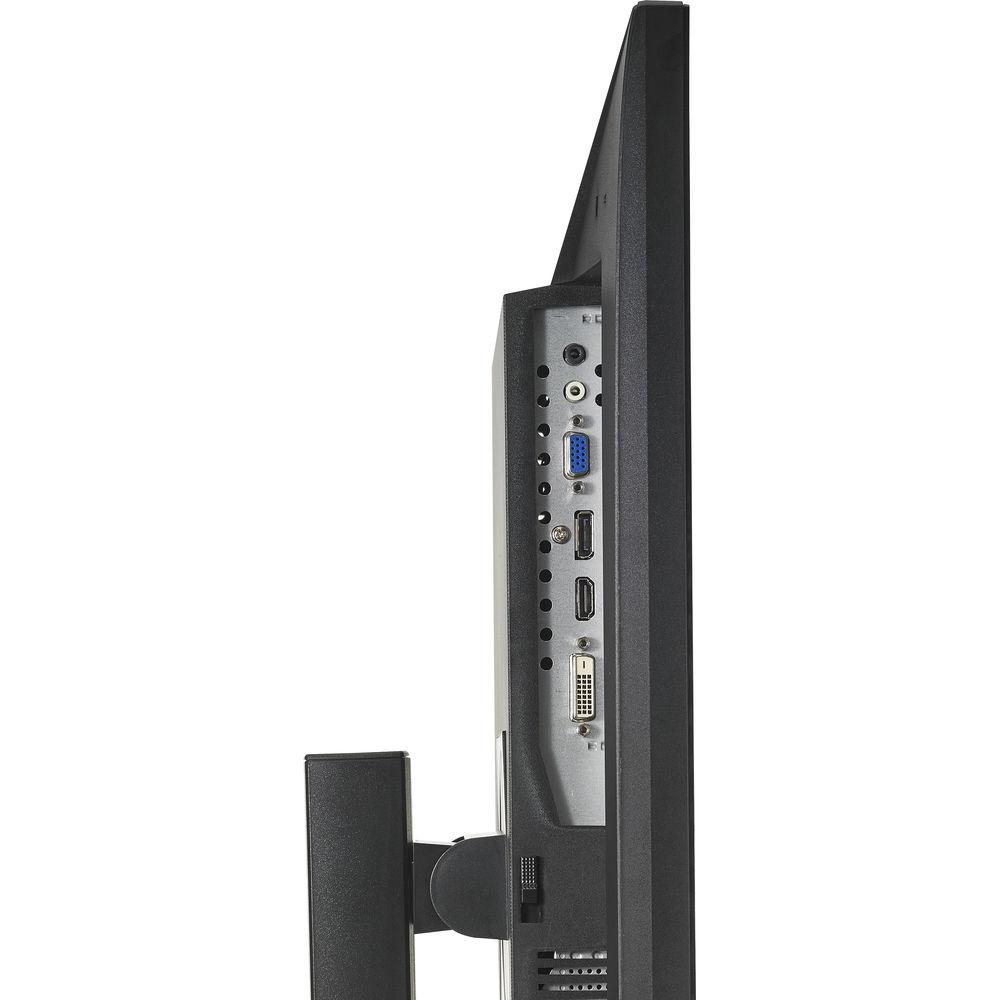

Setting up the PB277Q is simple as it comes equipped with HDMI, DisplayPort, D-Sub, and Dual-Link DVI inputs along with a single 3.5mm mini-jack allowing headphone to be plugged directly into the monitor. Once setup is complete the display can be configured using a variety of built-in ASUS smart technologies including SPLENDID video preset modes, color temperature selection modes, and much more. The monitor even comes with a pair of built-in 2 watt stereo speakers to complete the multimedia viewing experience. - True-to-Life Visuals
- The PB277Q WQHD monitor provides 109 pixels per inch (PPI), resulting in high quality 2560 x 1440 visuals—equaling four times the resolution of standard 720p sets. It allows users to view greater image detail and do more with an onscreen footprint larger than that of standard displays.
The screen's 109 PPI density means there are 109 RGB matrices within one inch. Generally, the more pixels a display has, the more lighting (or power) those pixels require to achieve the best visuals. - Made for Work and Play
- With its WQHD display, you enjoy 77% more desktop space than a Full HD screen to spread out your windows and palettes. It is also about 25% sharper than a generic 27" Full HD display, delivering ultra-smooth visuals thanks to a 1 ms (GtG) response time. This ensures you get lag-free experiences in movies and gaming, with the latter looking more vivid, with all in-game details shown in true color.
- Game Fast and Game Smooth
- 1 ms (GtG) response time eliminates tracers by controlling voltage levels when driving liquid crystals thus resulting in fluid and clear video playback without smearing or ghosting.
This, together with the refresh rate of 75 Hz, helps to eliminate tracing and ensure crisp and clear video playback. - Native WQHD Content Support
- The PB277Q features a host of connectivity options that include HDMI, DisplayPort, and dual-link DVI for native WQHD, plus D-Sub for Full HD 1080p content transmission.
- QuickFit Virtual Scale
- ASUS includes its exclusive QuickFit Virtual Scale feature with the PB277Q, allowing you to preview photos and documents on-screen in their actual size prior to printing. It can be activated via a monitor hotkey, and serves as a highly useful guide to accurately view and edit photos in their native size.
- ASUS Exclusive Technologies
- The PB277Q features the SplendidPlus Video Intelligence Technology that optimizes videos and images by enhancing color brightness, contrast, and sharpness. SplendidPlus features two modes, Reading and Darkroom, in addition to the Scenery, Standard, Theater, sRGB, and Night View modes. Low-blue Light and Flicker-free technologies also reduce the strain on your eyes after long-time usage.
- ASUS Eye Care Technology
- ASUS Eye Care provides features, Flicker free and Low Blue Light technology, with 4 different levels that prevent your eyes from fatigue, strain caused by screen flicker, hazardous blue light, and various light sources from office environment. PB277Q is awarded with professional certification organization TUV for Low Blue Light & Flicker free test.
UPC: 889349334256 In the Box ASUS PB277Q 27" 16:9 WQHD LCD Monitor D-Sub Cable Audio Cable Power Cord DisplayPort Cable HDMI Cable Limited 3-Year Warranty User Manual PDF 2.4mbwybvszydcssfs More info from ASUS Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS PB277Q 27" 16:9 WQHD LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS PB277Q Specs | | | Size | 27" | | Screen Area | 23.5 x 13.2" / 59.7 x 33.6 cm | | Panel Type | TN LCD | | Touchscreen | No | | Resolution | 2560 x 1440 | | Aspect Ratio | 16:9 | | Finish | Matte | | Maximum Brightness | 350 cd/m2 | | Dynamic Contrast Ratio | 80,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 24 to 83 kHz | | Vertical Frequency | 50 to 75 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Color Gamut | 72% NTSC | | Response Time | 1 ms (GtG) | | Viewing Angle | Horizontal: 170°
Vertical: 160° | | Dot Pitch | 0.233 x 0.233 mm | | | | Connectivity | 1 x 3.5 mm Output
1 x DVI-D
1 x DisplayPort Input
1 x HDMI
1 x VGA | | HDCP Support | Yes | | Built-In Speakers | Yes, 2 x 2 W | | | | Power Consumption | 0.5 W (Standby)

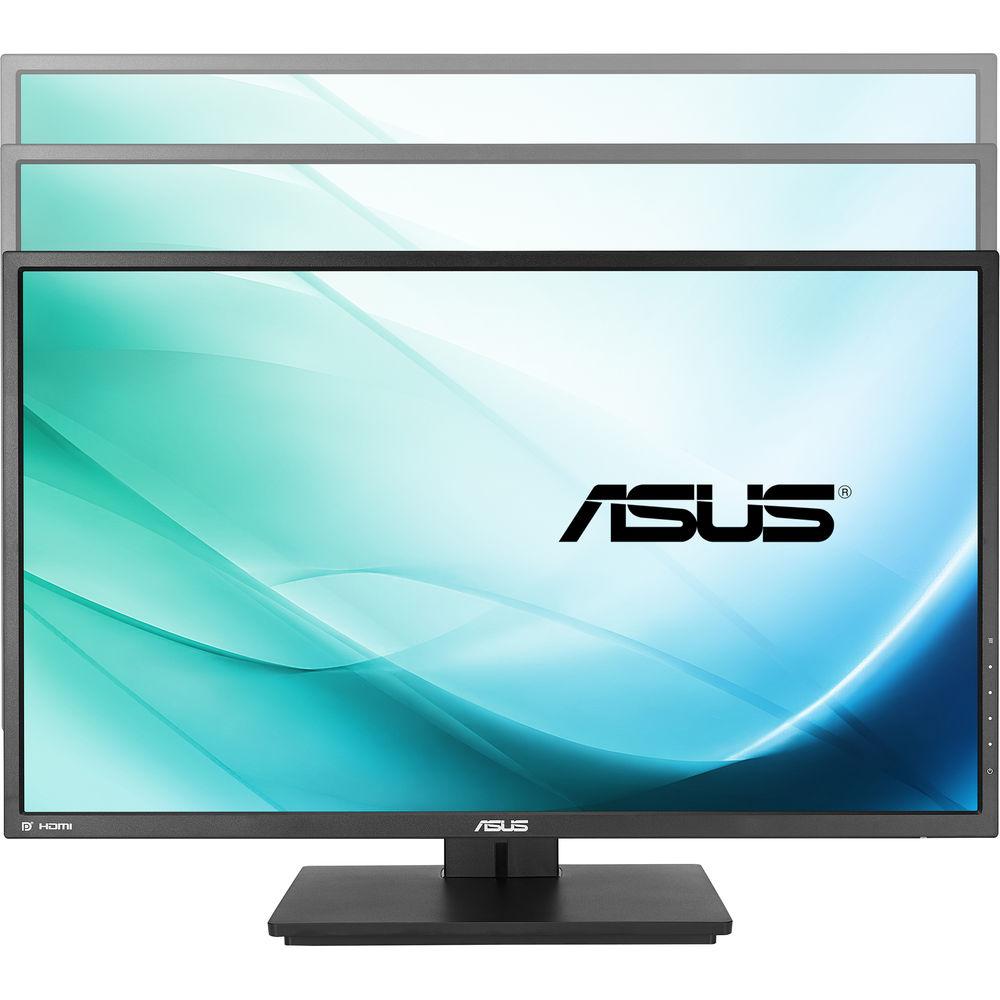

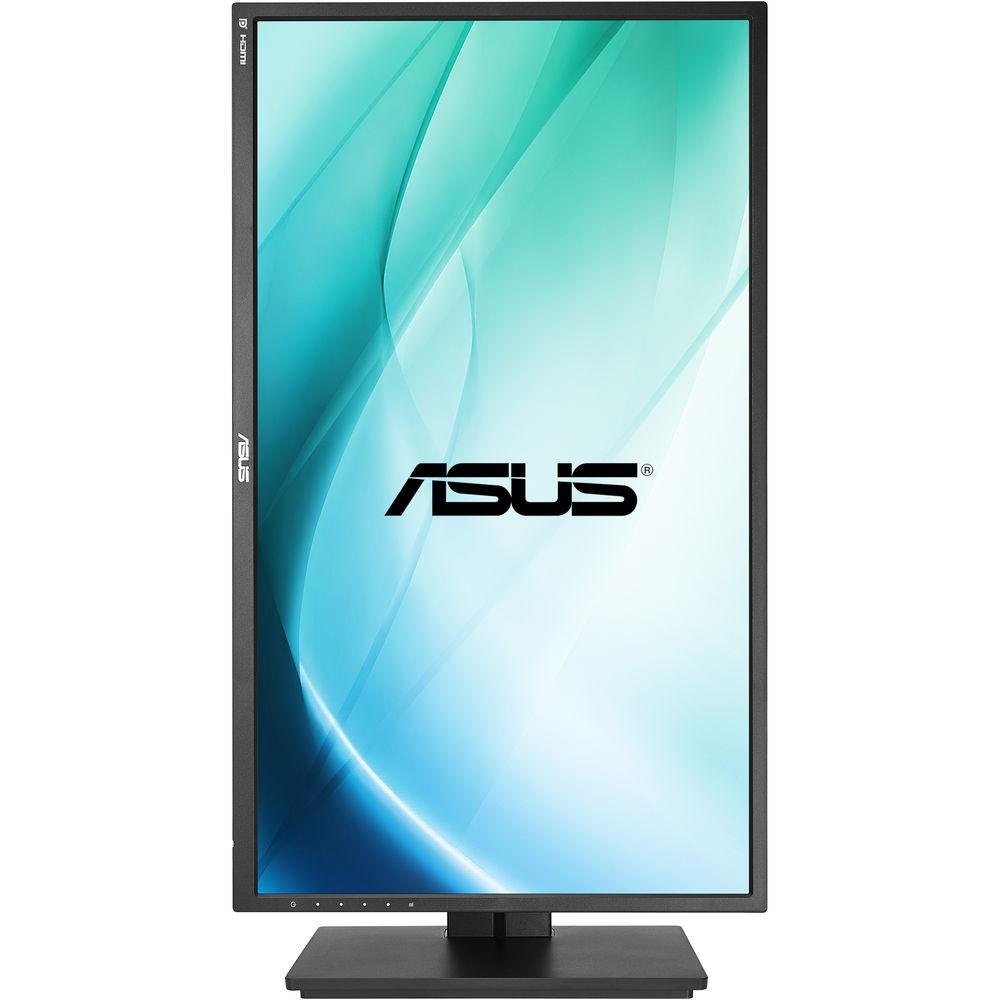

38.7 W (Typical) | | | | Certifications | ENERGY STAR, RoHS, TCO Certified, as per Manufacturer | | | | Height Adjustment | 4.7" / 11.9 cm | | Rotation Adjustment | 90° | | Swivel Adjustment | 120° (-60 to 60°) | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 24.6 x 14.5 x 2.5" / 62.5 x 36.8 x 6.3 mm (Without Stand)
24.6 x 16.9 x 8.6" / 62.5 x 42.8 x 21.8 mm (With Stand) | | Weight | 16.1 lb / 7.3 kg | | | | Package Weight | 21.5 lb | | Box Dimensions (LxWxH) | 29.5 x 17.5 x 9.0" |
