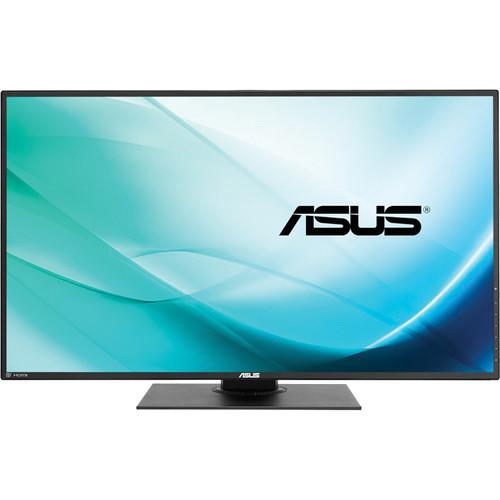

User Manual for ASUS PB328Q 32" Widescreen LED Backlit WQHD Monitor Click to enlarge the picture
Contents of the user manual for the ASUS PB328Q 32" Widescreen LED Backlit
- Product category: Computer Monitors ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Computer Monitors
 |
User manual for the ASUS PB328Q 32" Widescreen LED Backlit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|

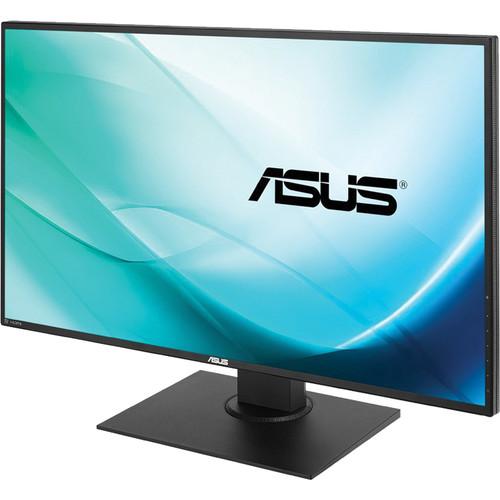

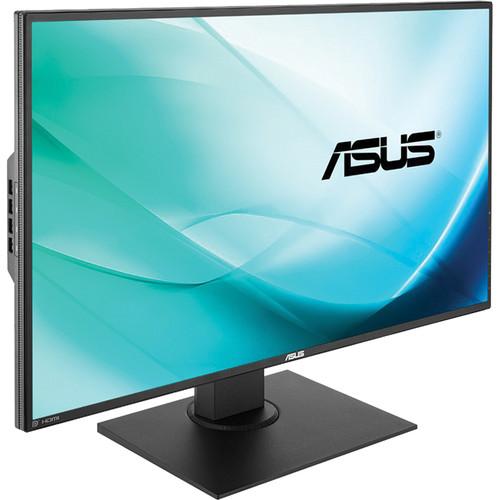

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With a narrow bezel, the PB328Q 32" Widescreen LED Backlit WQHD Monitor from ASUS offers an enhanced viewing experience. It features a 178°/178° ultra-wide viewing angle that eliminates color shift. The PB328Q features a wide color gamut of 100% sRGB designed to deliver high picture quality. The monitor offers 10-bit display color for over one billion onscreen colors and supports a 12-bit internal look-up table (LUT) for smoother gradations and a more natural transition between hues. Additionally, this monitor also features a 100,000,000 ASUS Smart Contrast Ratio for enhanced image contrast.

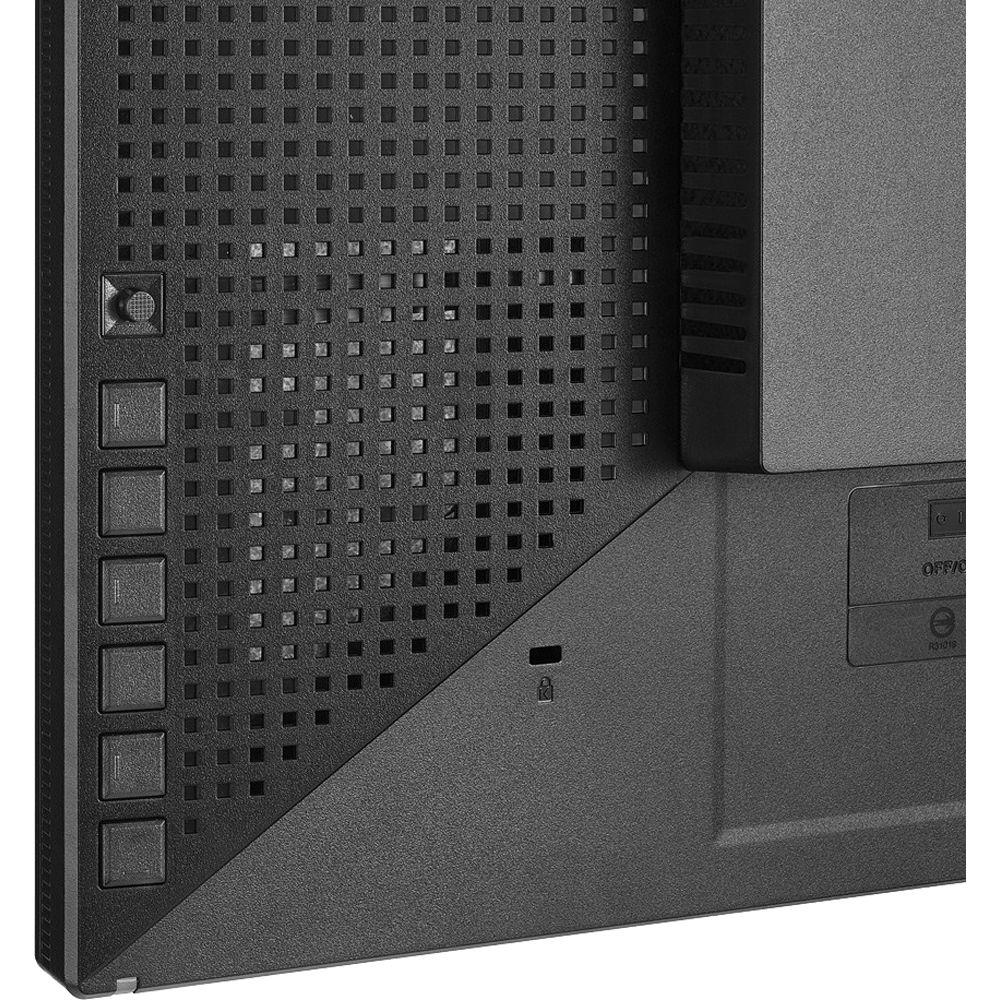

This monitor allows you to view greater image detail, and provides you with increased desktop space to spread out your windows and palettes. The customized hue and saturation control allows you to adjust six colors (red, green, blue, cyan, magenta, and yellow) independently without affecting other colors. The user-friendly, intuitive, 5-way navigation joystick allows you to go right, left, up, or down on your OSD menu. The PB328Q features customizable OSD shortcuts through two designated hotkeys for quick address to the 8 most frequently used OSD functions.
The Picture-in-Picture (PIP) and Picture-by-Picture (PBP) features allow you to view images from different signals in various ways, and lets you switch between the main and PIP source, including audio. The QuickFit Virtual Scale Function included with this monitor allows users to preview photos and documents on screen in their actual sizes prior to printing. It can be activated via a hotkey on monitor and used as a guide to accurately view and edit photos. Additionally, the PB328Q also comes with a choice of seven different background colors for you to choose from.

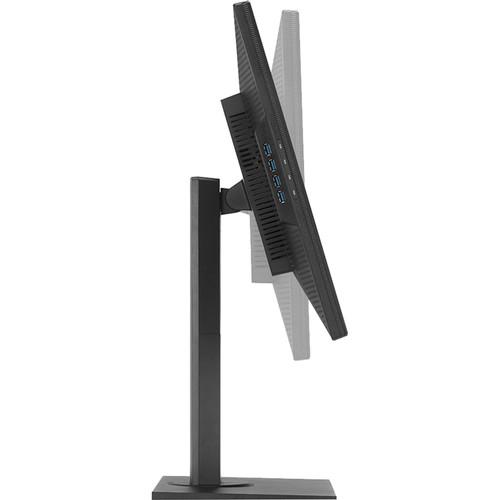

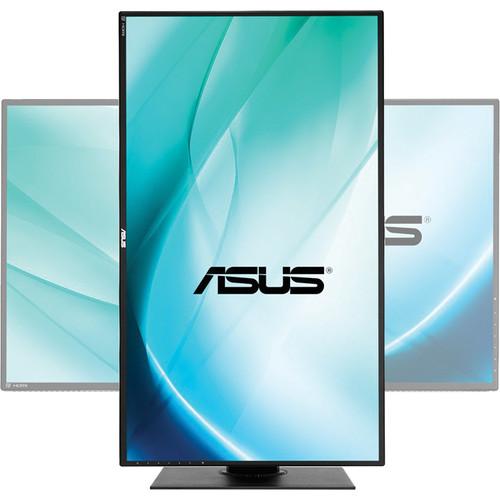

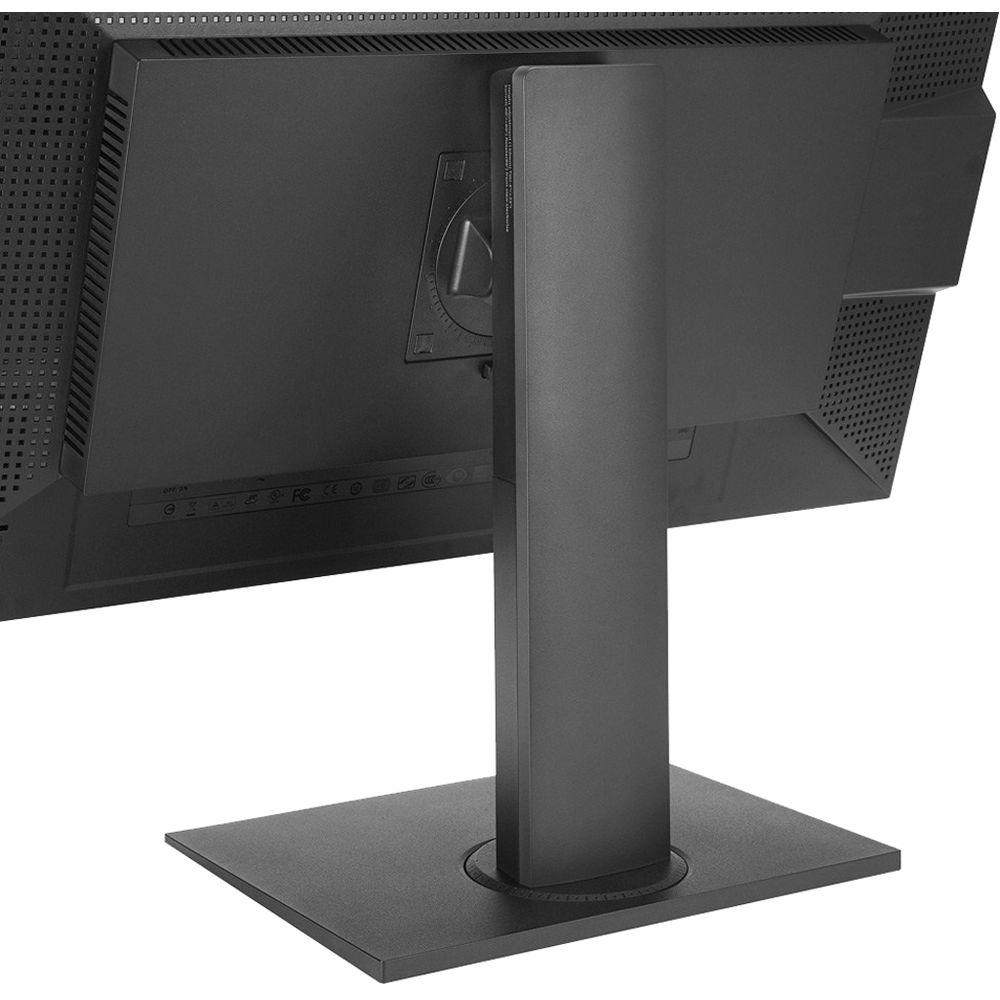

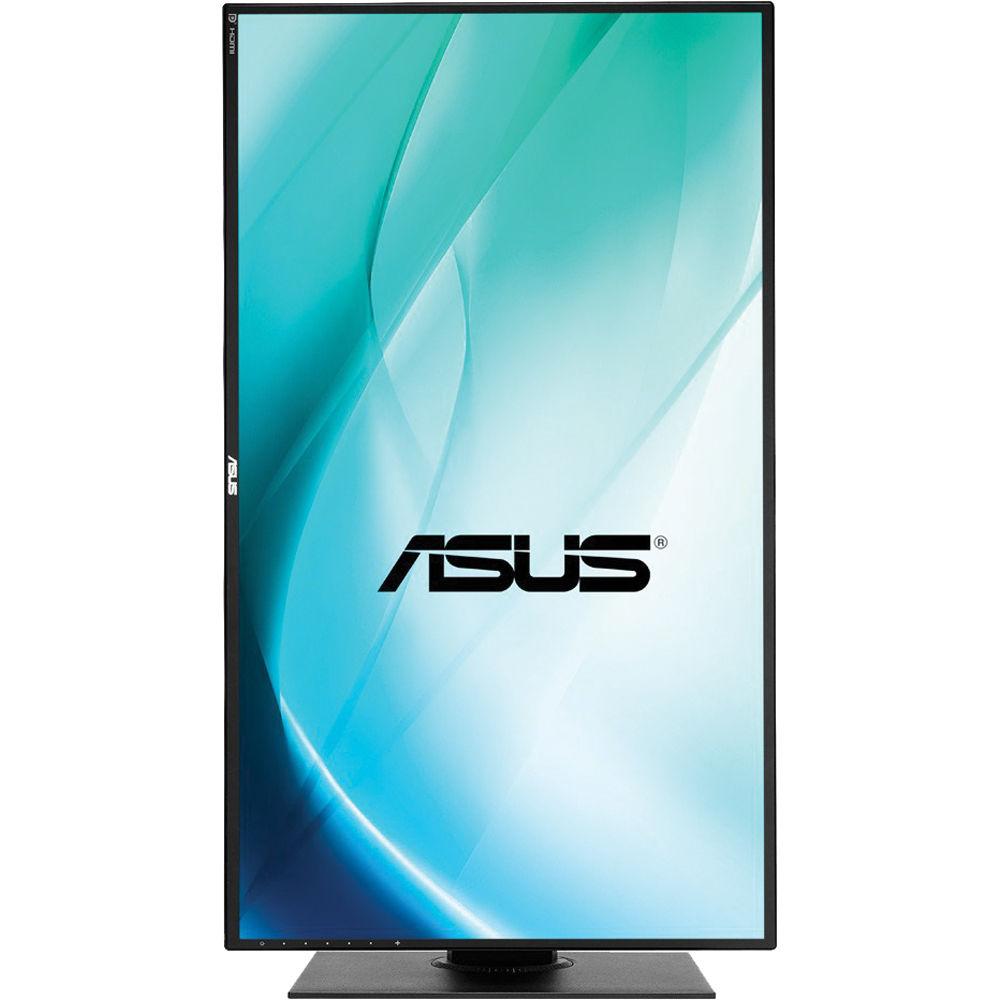

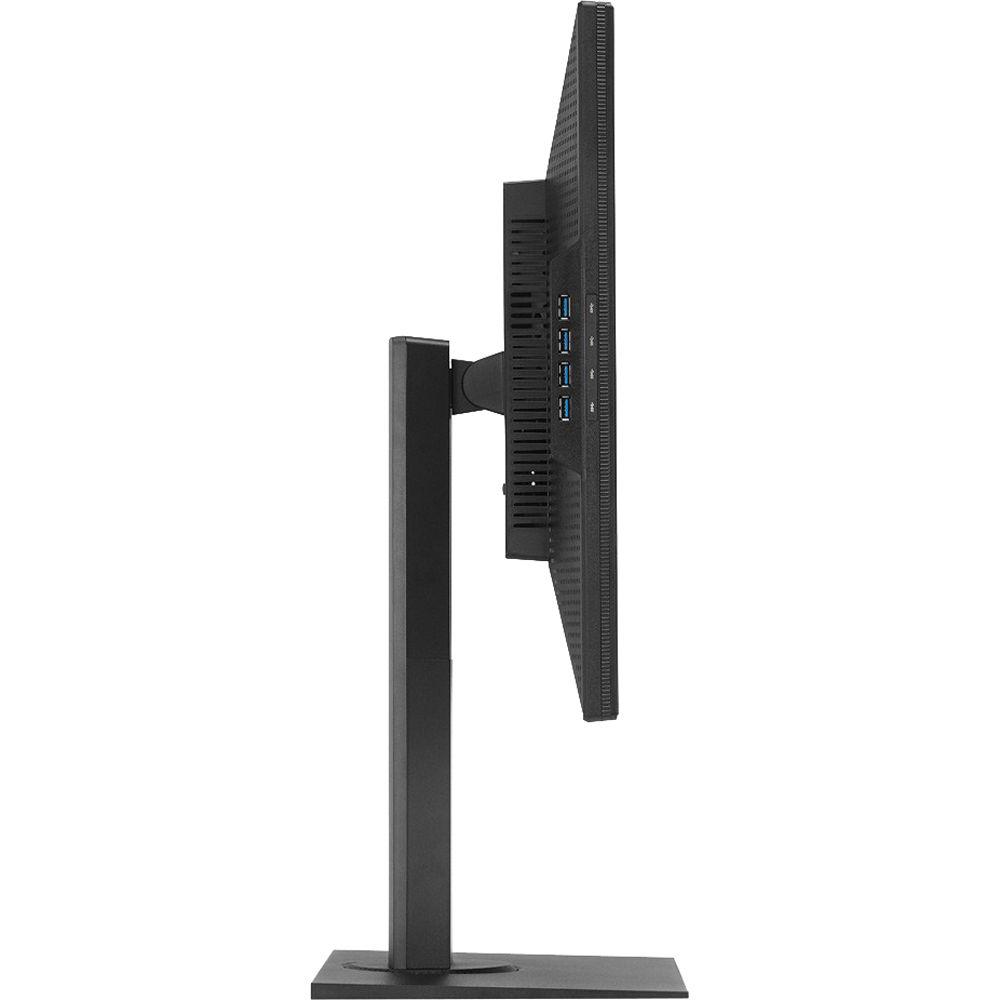

This 32" monitor comes with a versatile stand with full tilt, swivel, pivot, and height adjustment. A user-friendly quick release stand is included for hassle-free setting. The Flicker-free and Low Blue Light features prevent your eyes from fatigue, strain, and other possible eye symptoms that can be caused by screen flicker and hazard blue light. - True to Life Picture Detail & Colors
- 1.07 Billion display color
- 10-bit color
- For smooth gradations
- Wide Viewing angle
- 178° (H)/ 178° (V) ultra-wide viewing angles display
- WQHD Resolution
- View greater detail and spacing with crisp and vivid visuals
- Expanded Desktop Space
- 2560 x 1440 Resolution allows you to show four 720p HD videos simultaneously
- 6-axis independent color adjustment
- Allows you to adjust six colors (red, green, blue, cyan, magenta, and yellow) independently without effecting other colors
- Hassle-free setting
- 5-way navigation joystick and customizable OSD shortcuts
- Picture-in-Picture and Picture-by-Picture
- Picture-in-Picture (PIP) and Picture-by-Picture (PBP) allows you to view images from different signals and lets you switch between the main and PIP source
- QuickFit Virtual Scale Function
- Allows you to preview photos and documents on screen in their actual sizes prior to printing
- Ergonomic Design
- VESA-wall mount compliant, comes with a versatile stand with full tilt, swivel, pivot, and height adjustment
- Eye Care Features
- Flicker-free and Low Blue Light that prevent your eyes from fatigue and strain
UPC: 886227987504 In the Box ASUS PB328Q 32" Widescreen LED Backlit WQHD Monitor Dual-Link DVI Cable VGA Cable Audio Cable Power Cord DisplayPort Cable USB 3.0 Cable HDMI Cable Limited 3-Year Warranty User Manual PDF 2.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS PB328Q 32" Widescreen LED Backlit WQHD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS PB328Q Specs | | | Size | 32" | | Panel Type | VA LCD | | Touchscreen | No | | Resolution | 2560 x 1440 | | Aspect Ratio | 16:9 | | Finish | Matte | | Maximum Brightness | 300 cd/m2 | | Dynamic Contrast Ratio | 100,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 29 to 130 kHz | | Vertical Frequency | 49 to 76 Hz | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | Look-Up Table | 12-Bit | | Response Time | 4 ms (GtG) | | Viewing Angle | Horizontal: 178°

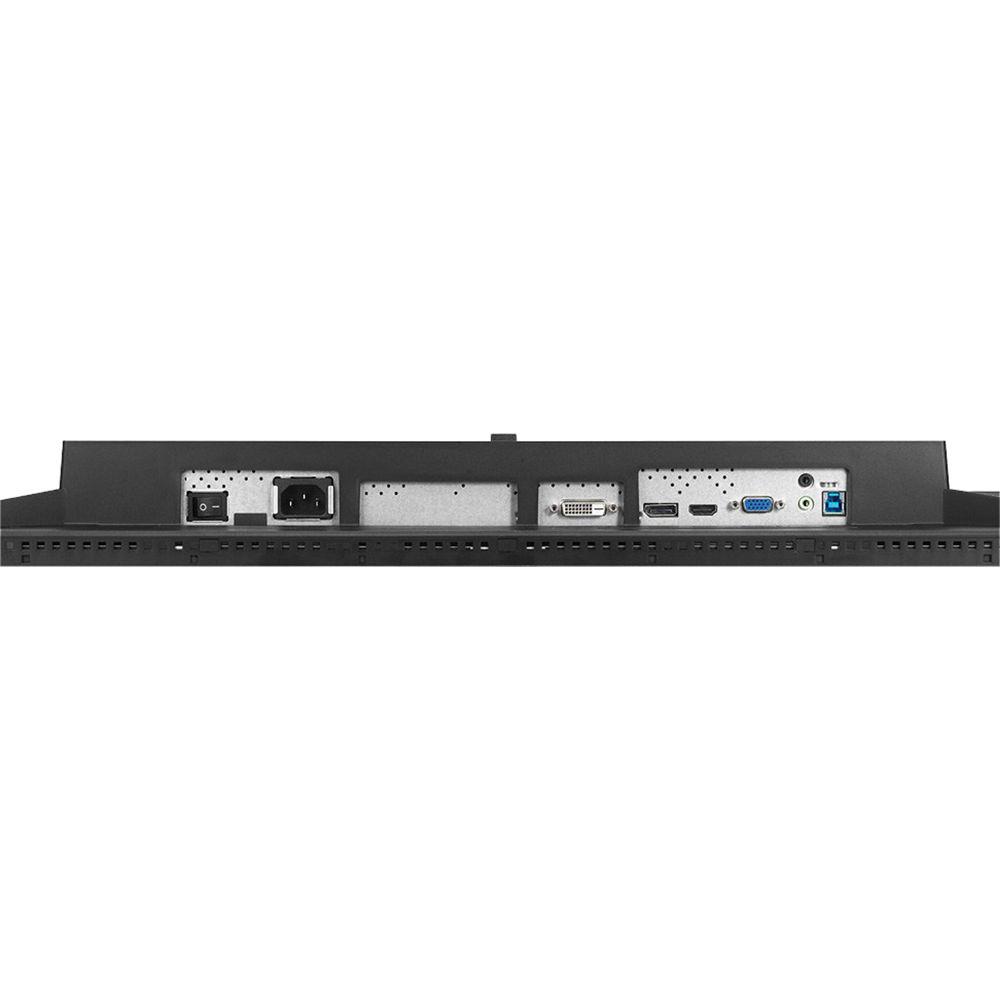

Vertical: 178° | | Dot Pitch | 0.277 x 0.277 mm | | | | Connectivity | 1 x DVI-D
1 x DisplayPort Input
1 x HDMI
1 x VGA | | Built-In Speakers | Yes, 2 x 3 W | | | | Power Consumption | 0.5 W (Standby)
89.9 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Certifications | TCO Certified, ENERGY STAR, RoHS, WEEE, EPEAT GOLD, as per Manufacturer | | | | Height Adjustment | 5.9" / 15 cm | | Rotation Adjustment | 90° | | Swivel Adjustment | 120° (-60 to 60°) | | Tilt Adjustment | -5 to 20° | | Lock Slot | Yes | | Dimensions (W x H x D) | 28.9 x 24.6 x 9.5" / 73.5 x 62.5 x 24.2 mm (With Stand)
28.9 x 17.0 x 2.6" / 73.4 x 43.1 x 6.7 mm (Without Stand) | | Weight | 26 lb / 11.8 kg | | | | Package Weight | 36.0 lb | | Box Dimensions (LxWxH) | 32.9 x 21.45 x 13.25" |
