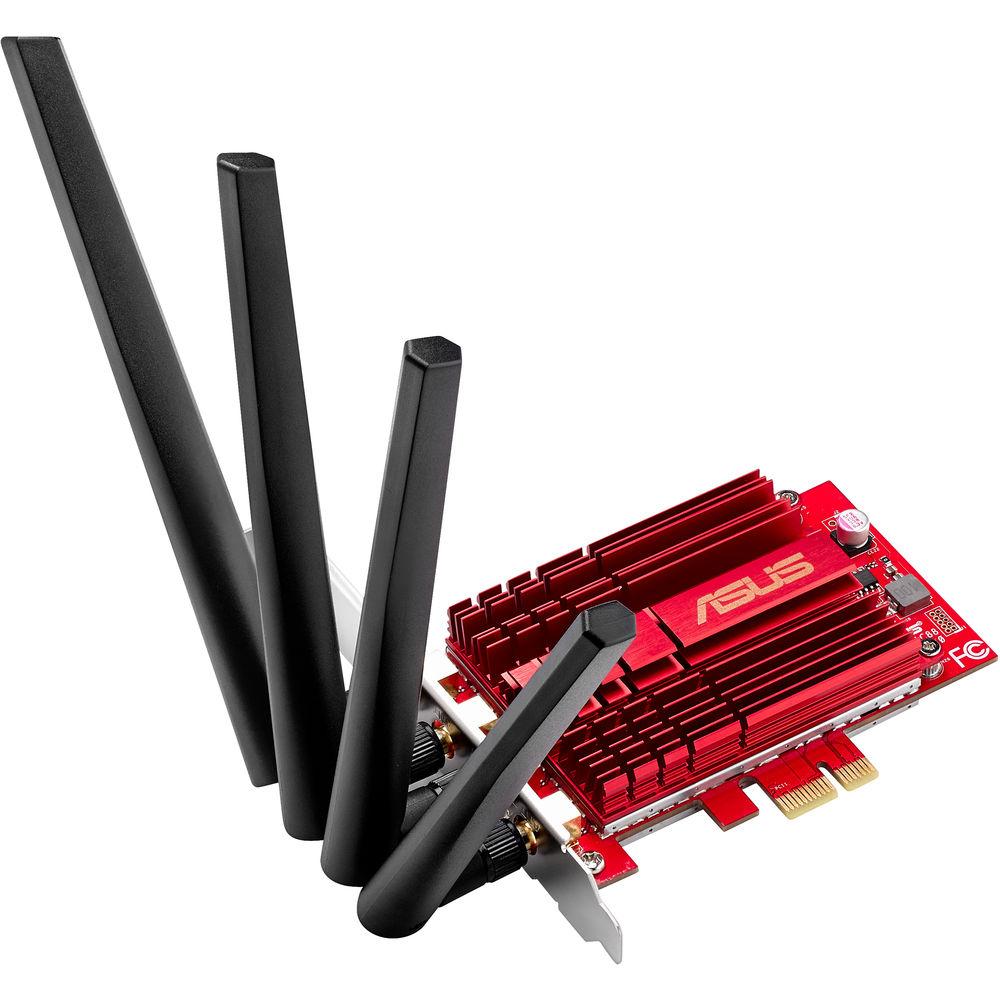

Product description Upgrade the wireless connectivity of your computer with the PCE-AC88 Dual-Band AC3100 Wireless PCIe Adapter from ASUS. Simply install this PCIe network adapter and take advantage of dual-band 2.4 GHz and 5 GHz connectivity along with 802.11ac Wi-Fi compatibility. Once installed, users benefit from data transfer rates of up to 3100 Mbps. The external magnetic antenna base allows for optimal placement to ensure the four adjustable antennas are able to receive a strong signal from the router. - NitroQAM Technology
- NitroQAM (1024-QAM) technology gives PCE-AC88 Wi-Fi speeds of up to 2100 Mbps (5 GHz) and 1000 Mbps (2.4 GHz), so you can enjoy smooth streaming and low-latency online gaming on your desktop PC.
- 4x4 Antenna Design
- With a four-transmit, four-receive (4x4) antenna design, Wi-Fi range and signal stability are improved dramatically for faster, clearer and stronger Wi-Fi. PCE-AC88 pushes your desktop's Wi-Fi reception to higher level, and allows you to unlock the full potential of your 4x4 router!
- Easy Installation

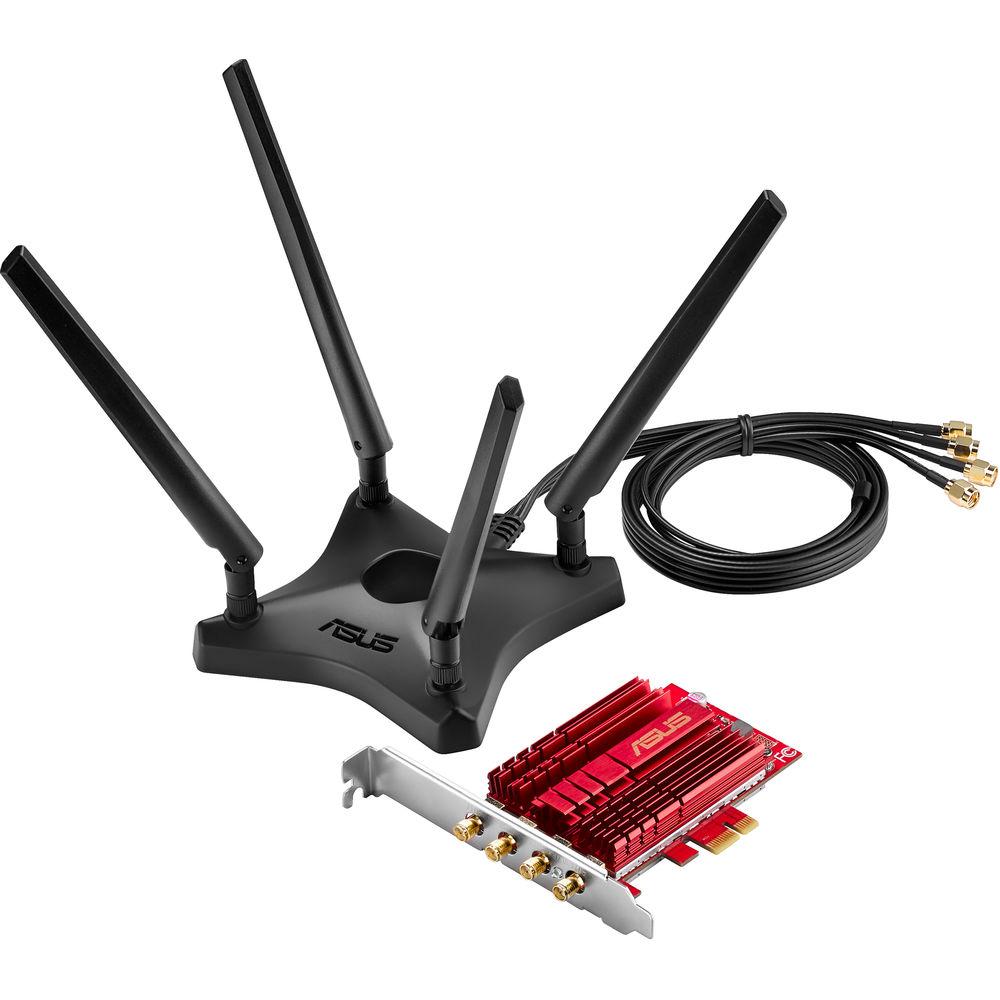

- The PCE-AC88 includes extension cables for its detachable antennas, plus a magnetized antenna base that can be attached to any suitable surface - horizontal or vertical. This makes it incredibly easy to find the best antenna location for optimum signal quality.

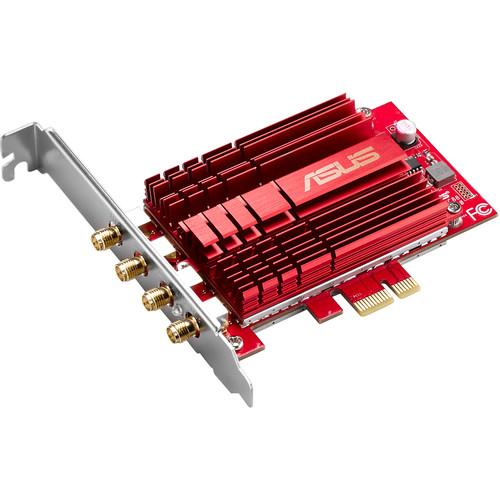

- Customized Heatsink
- The stylish, customized heatsink is crafted for non-stop operation, giving you improved stability and reliability for connections when running bandwidth-intensive network tasks in hot environments.
UPC: 889349272251 In the Box ASUS PCE-AC88 Dual-Band AC3100 Wireless PCIe Adapter 4 x Dipole Antenna External Magnetic Antenna Base Low Profile Bracket Limited 3-Year Manufacturer Warranty Brochure PDF 775.8kb More info from ASUS Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS PCE-AC88 Dual-Band AC3100 Wireless PCIe Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS PCE-AC88 Specs | Interface | PCI Express | | Antenna | 4 x R SMA antenna | | Operating Frequency | 2.4 GHz / 5 GHz | | Operation Channel | 11 for N. America, 13 Europe (ETSI) | | Data Rate | 802.11 b/g/n/ac: Downlink up to 1000 Mbps, uplink up to 1000 Mbps (20/40 MHz)
802.11 a/n/ac: Downlink up to 2167 Mbps, uplink up to 2167 Mbps (20/40/80 MHz) | | Output Power | ac mode: 18~21.5 dBm
b mode: 24 dBm
g mode: 22.5 ~24 dBm
n mode: 21 ~24 dBm
a/n mode: 19.5 ~24 dBm | | Modulation | 1024 QAM | | Utilities | Wireless setting | | Certifications | CE, FCC, C-Tick, IC, IDA, NCC, RCM | | Temperature & Humidity | Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -4 to 149°F / -20 to 65°C
Operating Humidity: 10 to 90% non-condensing
Storage Humidity: 10 to 90% non-condensing | | OS Support | Windows 10, Windows 7 | | Dimensions | 4.1 x 2.7 x 0.8" / 103.3 x 68.9 x 21.0 mm | | Weight | 0.3 lb / 125 g | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 11.0 x 8.5 x 2.4" |
