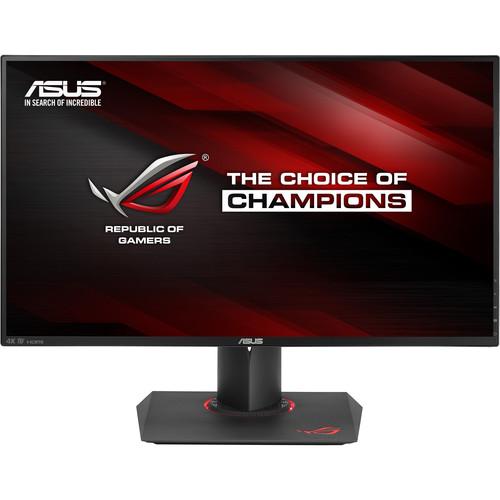

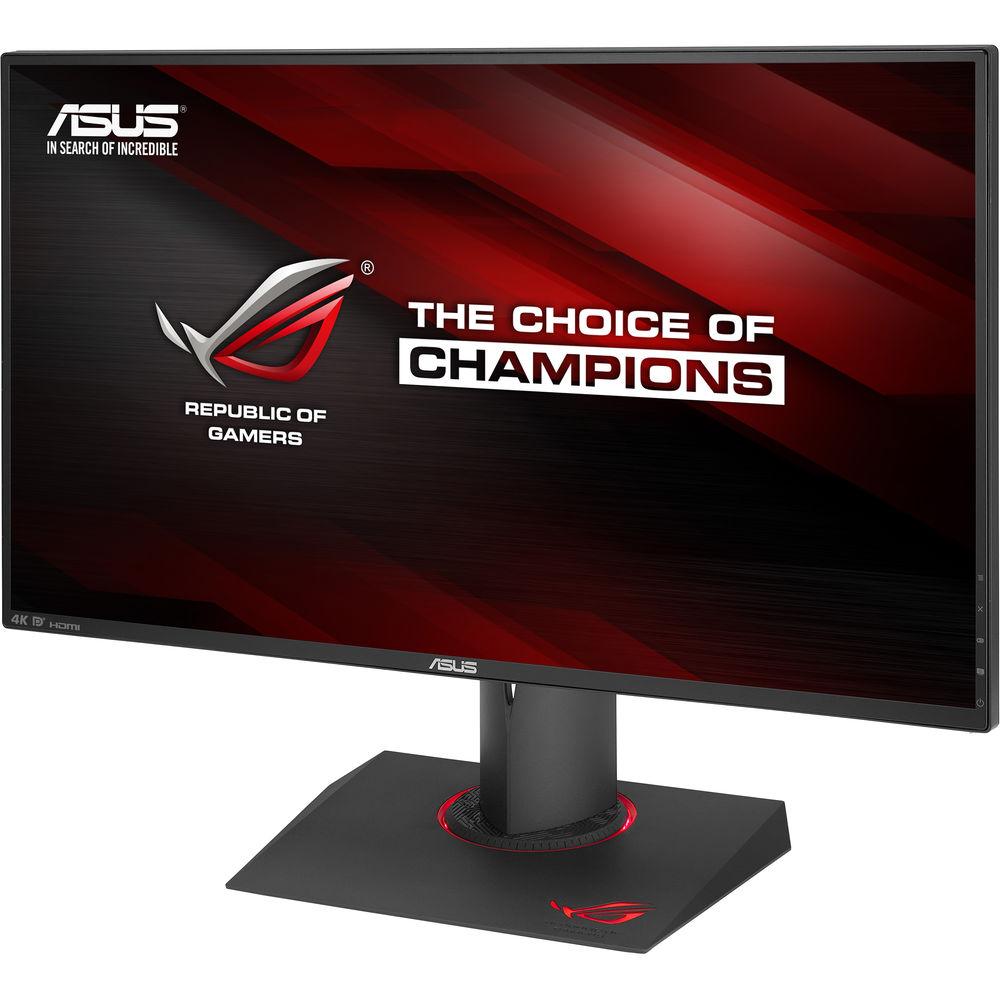

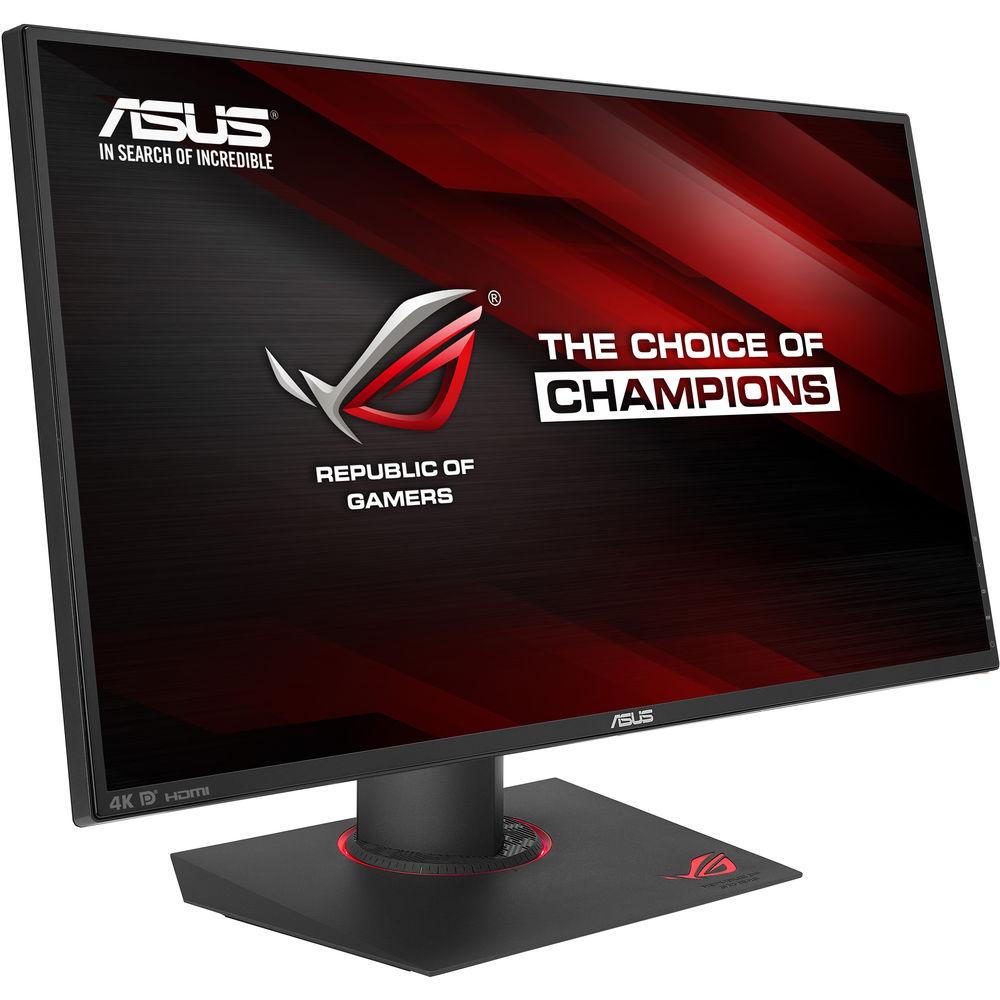

User Manual for ASUS PG27AQ 27" 16:9 Republic of Gamers Swift 4K UHD IPS Monitor Click to enlarge the picture
Contents of the user manual for the ASUS PG27AQ 27" 16:9 Republic of
- Product category: Computer Monitors ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Computer Monitors
 |
User manual for the ASUS PG27AQ 27" 16:9 Republic of contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With an IPS panel, the PG27AQ 27" 16:9 Republic of Gamers Swift 4K UHD IPS Monitor from ASUS supports enhanced picture quality along with a 3840 x 2160 UHD resolution, viewable from nearly any angle thanks to 178° horizontal and vertical viewing angles. With built-in NVIDIA G-Sync technology gamers benefit from a smooth, fast gaming experience as this monitor is capable of syncing with your GeForce GTX-powered PC. In addition to built-in G-Sync technology, this monitor features ASUS exclusive technologies including Ultra-Low Blue Light, Flicker-Free, GamePlus, and GameVisual technologies. These technologies offer a healthier more aesthetically pleasing viewing experience whether you are in the middle of an intense first person shooter game or reading the news.
This ASUS Republic of Gamers monitor comes equipped with both HDMI and DisplayPort inputs making it compatible with a variety of computer configurations. In addition to signal inputs this monitor features a 3.5mm audio mini-jack and a pair of built-in 2 watt RMS stereo speakers for a complete multimedia gaming experience. Once configured, gamers and other viewers benefit from a 300 cd/m² brightness rating, 1,000:1 contrast ratio, a 4 ms response time, and support for up to 1073.7 million display colors. - 3840 x 2160 UHD Resolution
- The ROG Swift PG27AQ gaming monitor has a 27-inch 4K/UHD 3840 x 2160 resolution panel with a pixel density of 163 ppi to provide crisp text and sharp images. The 4K/UHD resolution has four times the pixels of Full HD 1080p displays, providing more detailed images when playing games or watching movies, and larger onscreen desktop space for various work windows.
- Enhanced Image Quality
- The ROG Swift PG27AQ monitor comes equipped with a 100% sRGB color gamut, 1,000 contrast ratio, and 10-bit color for 1.07 billion distinct hues. The IPS panel provides wide 178-degree viewing angles for minimal distortion and color shift even when being viewed from extreme angles.
- NVIDIA G-Sync
- This monitor incorporates NVIDIA G-SYNC display technology, which delivers a smooth and fast gaming experience. G-SYNC synchronizes the monitor's refresh rate to the GPU in a GeForce GTX-powered PC, virtually eliminating screen tearing, and minimizing display stutter and input lag.
- ASUS-Exclusive GamePlus Hotkey
- The ROG Swift PG27AQ gaming monitor features the ASUS-exclusive GamePlus hotkey for in-game enhancements. The crosshair overlay has four different crosshair options to suit the game being played. There's also an onscreen timer that can be positioned on the left of the display to show the elapsed gaming time; while the FPS (frames per second) counter shows how smooth the game is running.
- ASUS GameVisual Technology
- ASUS GameVisual Technology has six pre-set display modes to optimize visuals for different types of content. This unique feature can be easily accessed through a hotkey or the On Screen Display (OSD) settings menu.

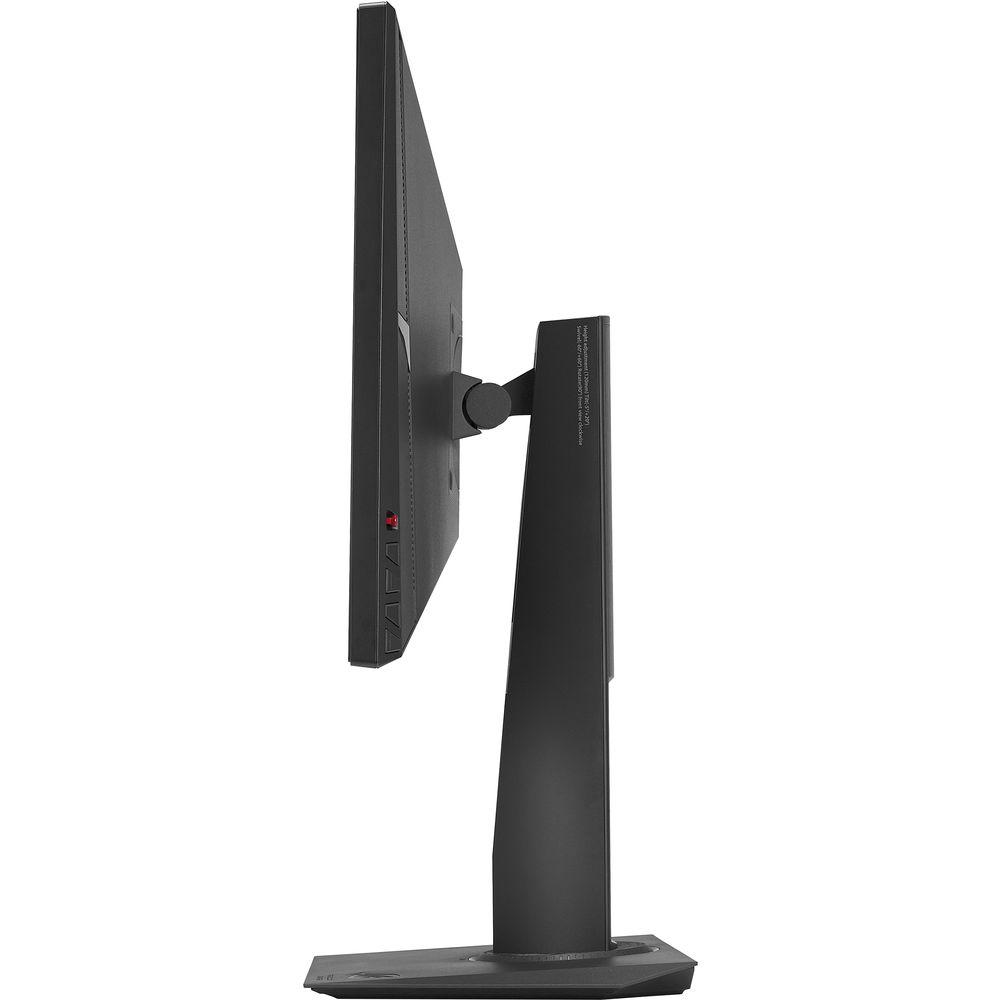

- Slim Profile

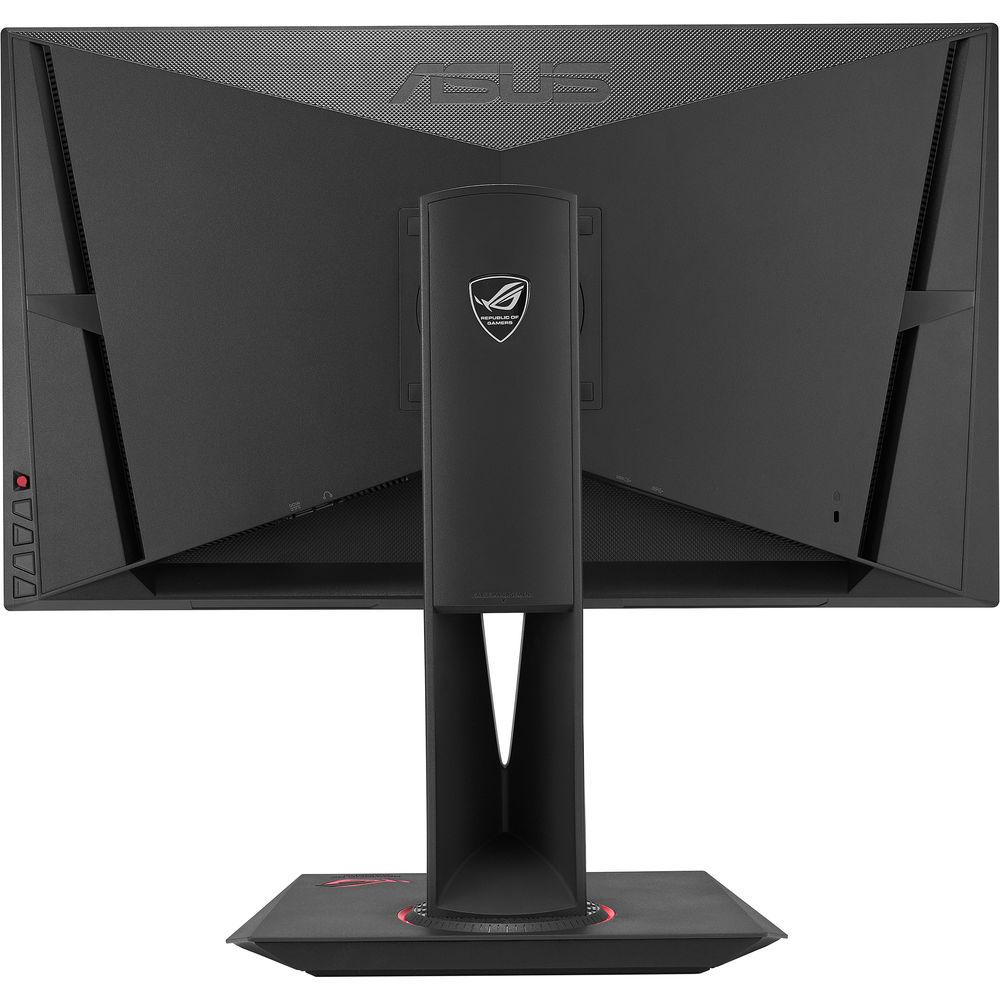

- The ROG Swift PG27AQ's slim profile and super-narrow 6 mm bezel makes it suitable for almost seamless multi-display setups. Additionally, it can also be VESA wall-mounted.
- Versatile Connectivity Options
- This monitor has a wide selection of connectivity options for native 4K/UHD content support including DisplayPort 1.2 and HDMI ports. The ROG Swift PG27AQ also has two USB 3.0 ports to quick-charge mobile devices while gaming; it can also be used as an alternative high-speed signal input port.
- Ultra-Low Blue Light Filters

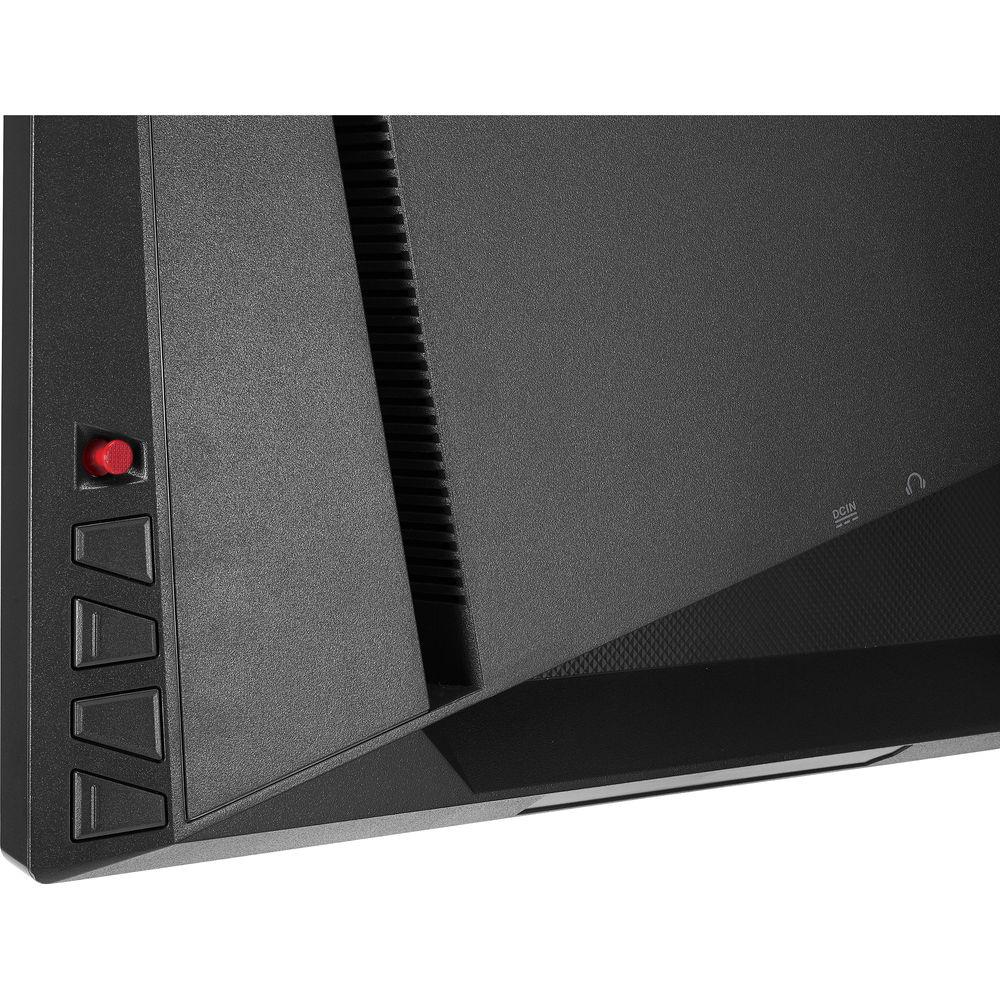

- The ROG Swift PG27AQ also comes with the ASUS Ultra-Low Blue Light filters to protect you from harmful blue light. Access and selection four different filter settings onscreen through a handy five-way joystick.
The ROG Swift PG27AQ gaming monitor has undergone stringent performance tests and is certified by TÜV Rheinland laboratories, a global provider of technical, safety, and certification services, to be flicker-free and to emit low blue light levels. - Flicker-Free Technology
- Flicker-Free technology reduces flicker to provide a comfortable gaming experience. This minimizes instances of eyestrain and other damaging effects.
- Ergonomically Designed Stand

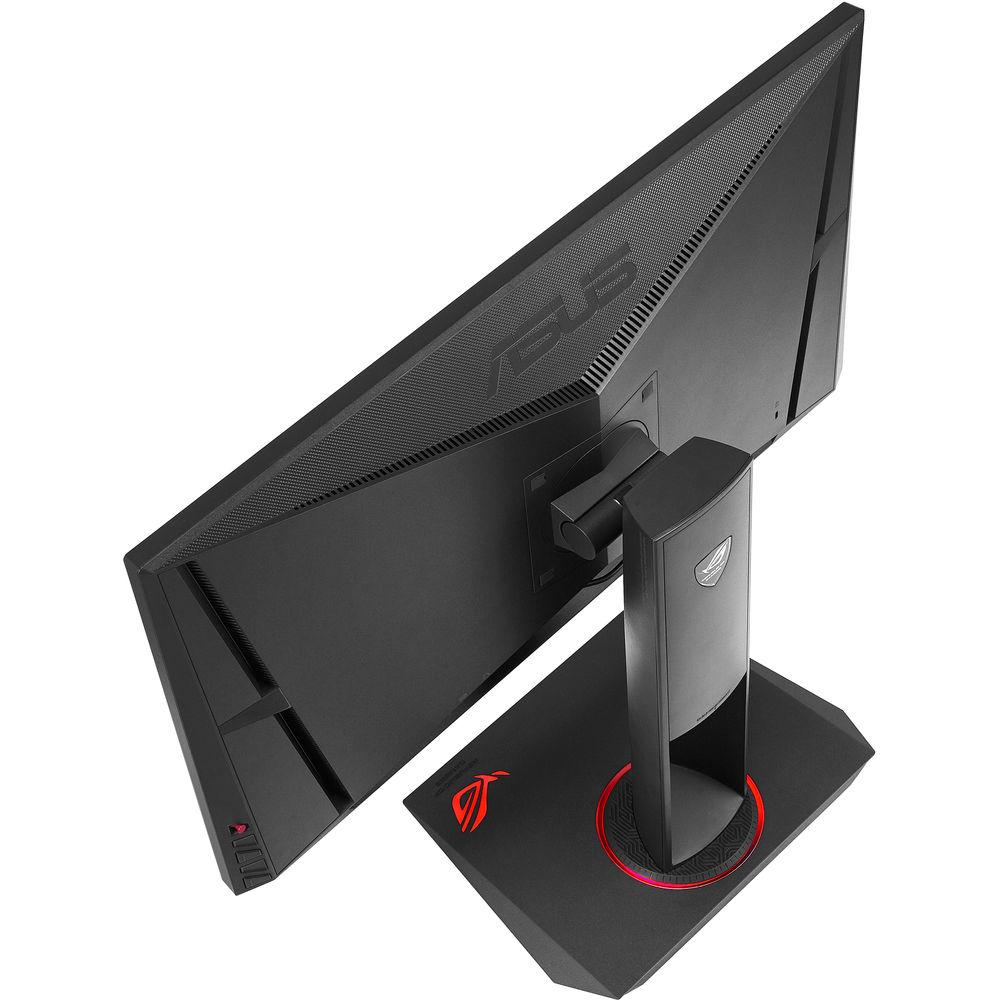

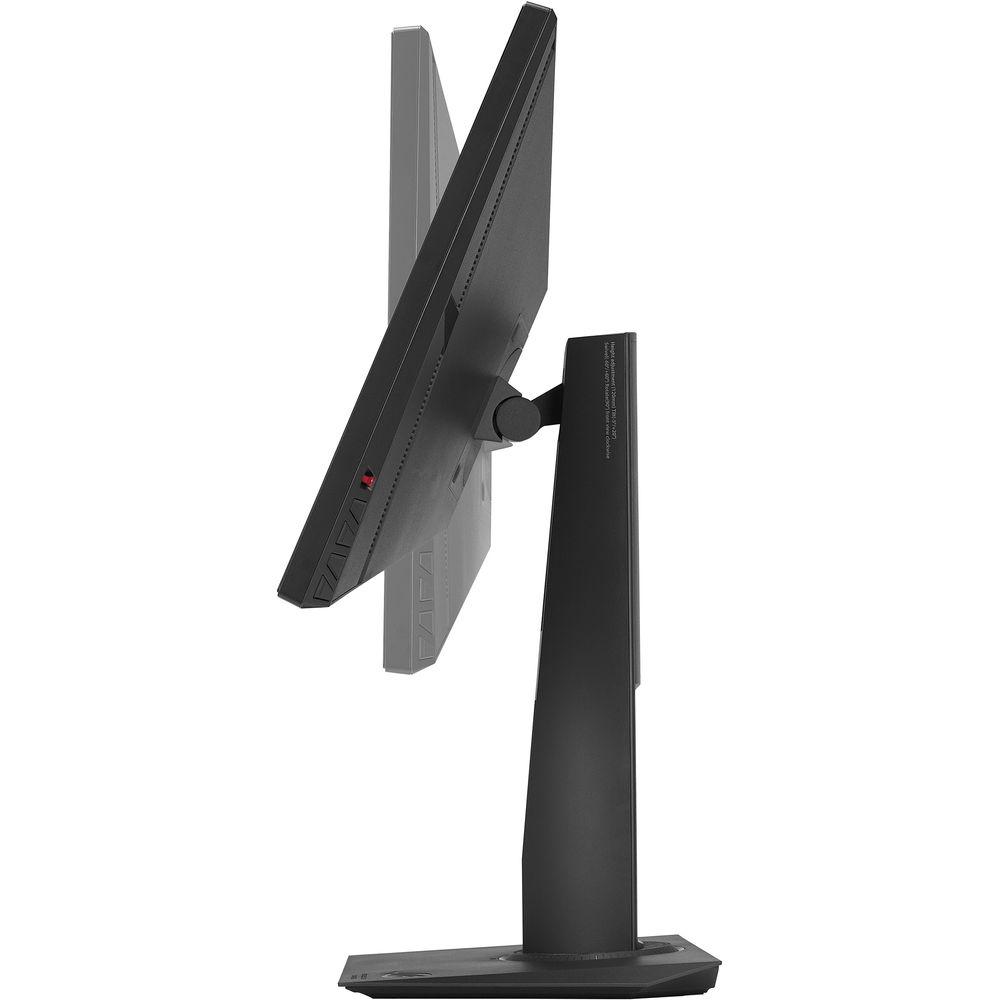

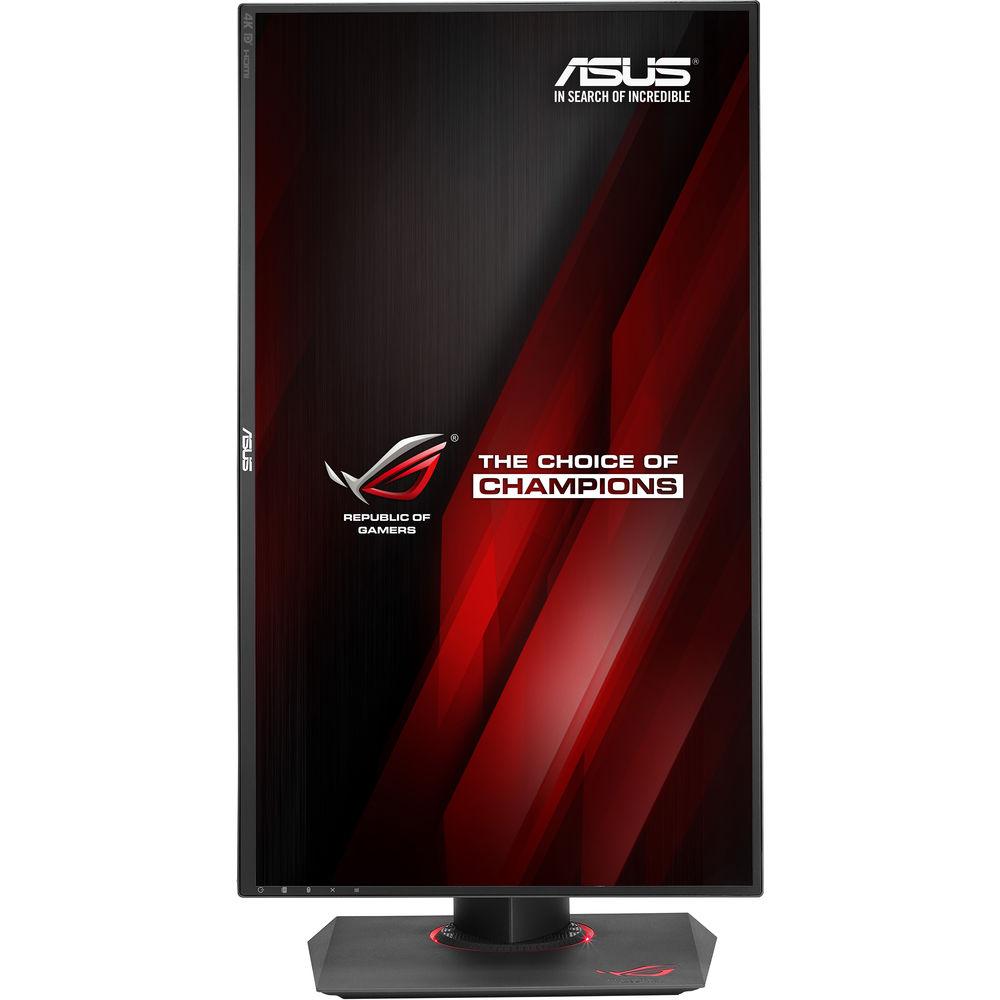

- The ROG Swift PG27AQ is specially designed for marathon gaming sessions. It has an ergonomically-designed stand with tilt, swivel, pivot, and height adjustment to always find that ideal viewing position.
- Stays Cool During Long Gaming Sessions
- It employs a custom heatsink to make sure the monitor stays cool during marathon gaming sessions. Cooling is also aided by a Smart Air Venting Design that uses convective currents to generate airflow. This passive setup works entirely without fans, making it completely silent and maintenance-free.
UPC: 886227950706 In the Box ASUS PG27AQ 27" 16:9 Republic of Gamers Swift 4K UHD IPS Monitor Power Cord Power Adapter DisplayPort Cable USB 3.0 Cable HDMI Cable Limited 3-Year Warranty Manual PDF 4.5mbrwuzuqrfccax More info from ASUS Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS PG27AQ 27" 16:9 Republic of Gamers Swift 4K UHD IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS PG27AQ Specs | | | Size | 27" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Finish | Matte | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 1000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 140 kHz | | Vertical Frequency | 24 to 60 Hz | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | Color Gamut | 100% sRGB | | Response Time | 4 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.155 x 0.155 mm | | | | Connectivity | 1 x 3.5 mm Output
1 x USB Type-B (USB 3.1 Gen 1) Input
2 x USB Type-A (USB 3.1 Gen 1) Output
1 x DisplayPort Input
1 x HDMI | | HDCP Support | Yes | | Built-In Speakers | Yes, 2 x 2 W | | | | Power Consumption | 0.5 W (Standby)
90 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Certifications | ENERGY STAR, RoHS, WEEE, as per Manufacturer | | | | Height Adjustment | 4.7" / 11.9 cm | | Rotation Adjustment | 90° | | Swivel Adjustment | 120° (-60 to 60°) | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 24.4 x 14.3 x 2.6" / 62.0 x 36.3 x 6.6 mm (Without Stand)
24.4 x 21.8 x 9.4" / 62.0 x 55.2 x 23.8 mm (With Stand) | | Weight | 15.9 lb / 7.2 kg | | | | Package Weight | 23.0 lb | | Box Dimensions (LxWxH) | 29.4 x 17.8 x 11.8" |
