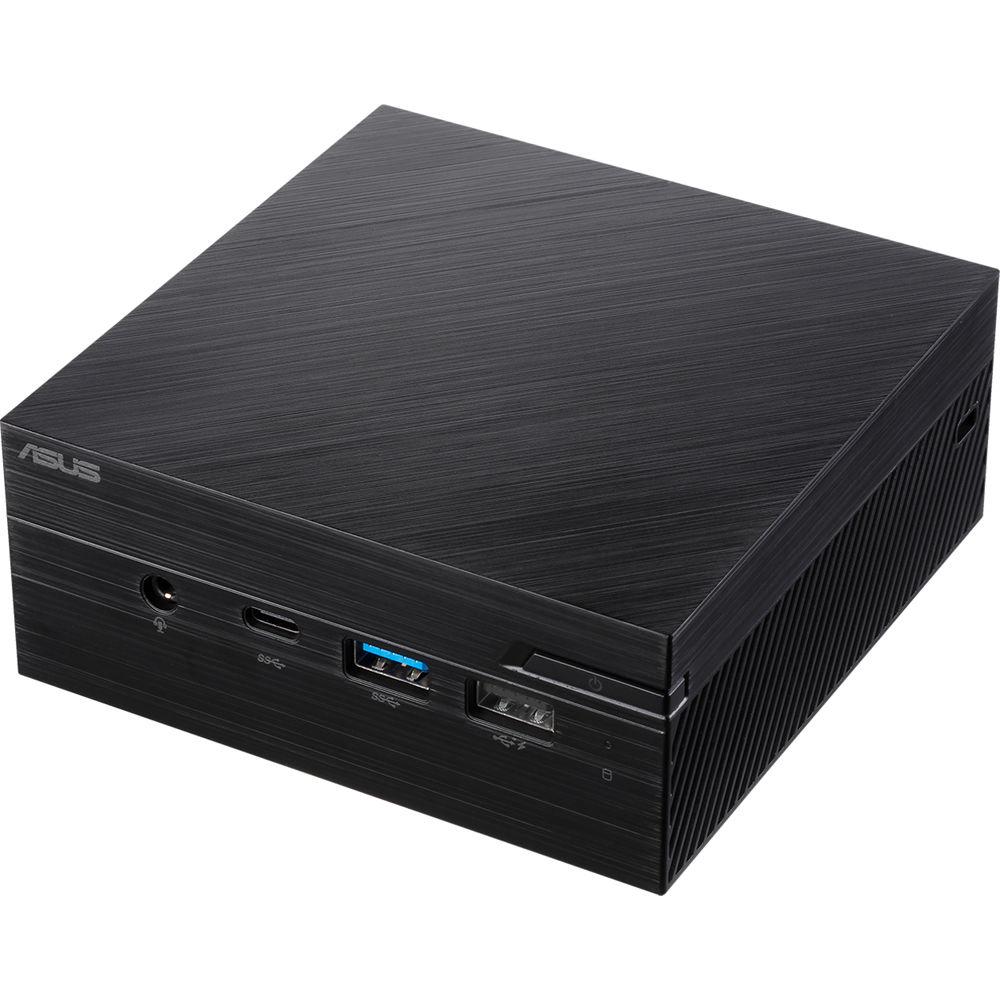

User Manual for ASUS PN40 Mini Desktop Computer Click to enlarge the picture
Contents of the user manual for the ASUS PN40 Mini Desktop Computer
- Product category: Barebone PCs ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Barebone PCs
 |
User manual for the ASUS PN40 Mini Desktop Computer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|

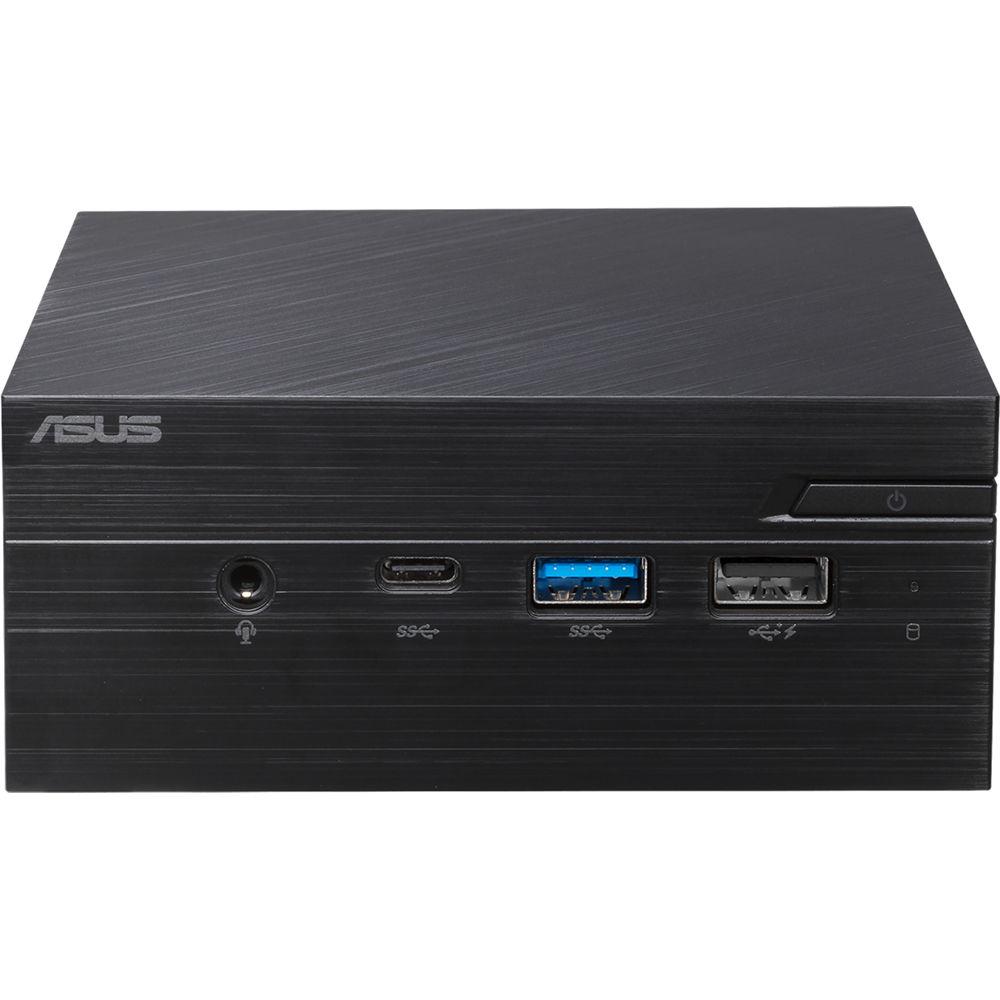

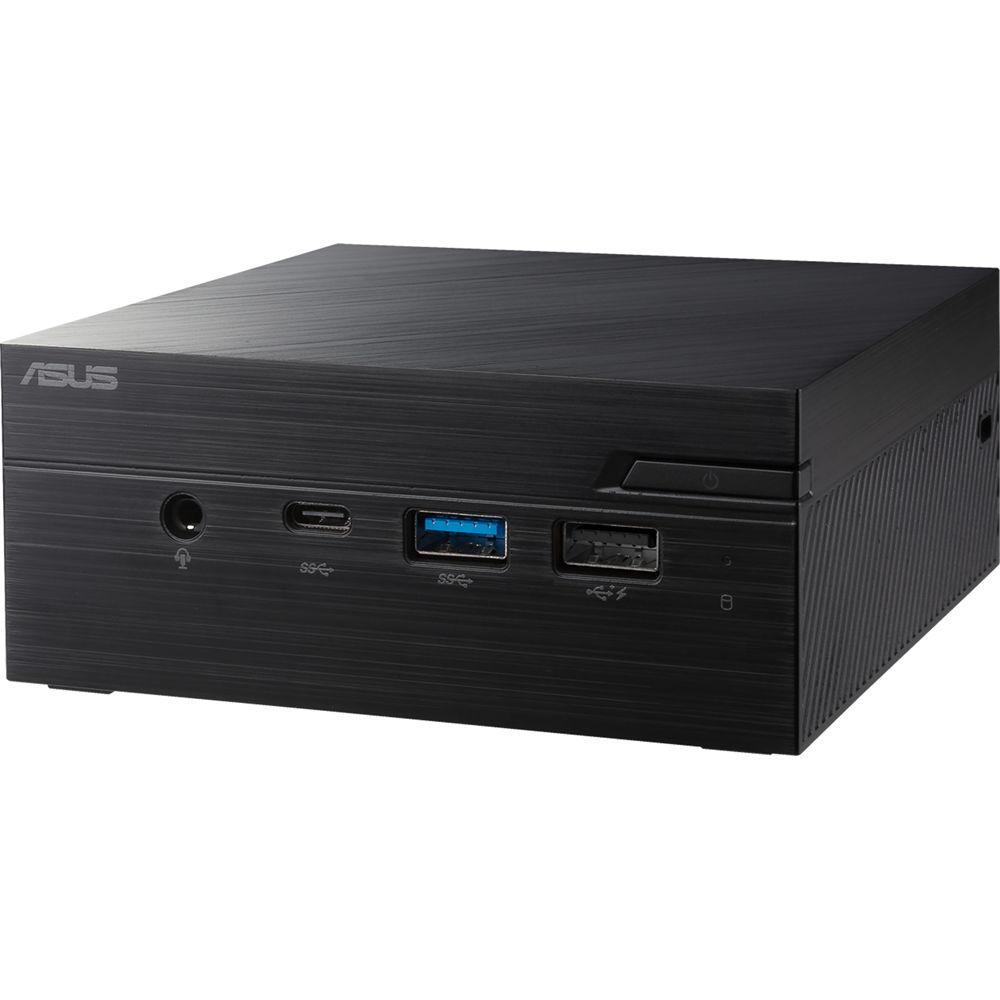

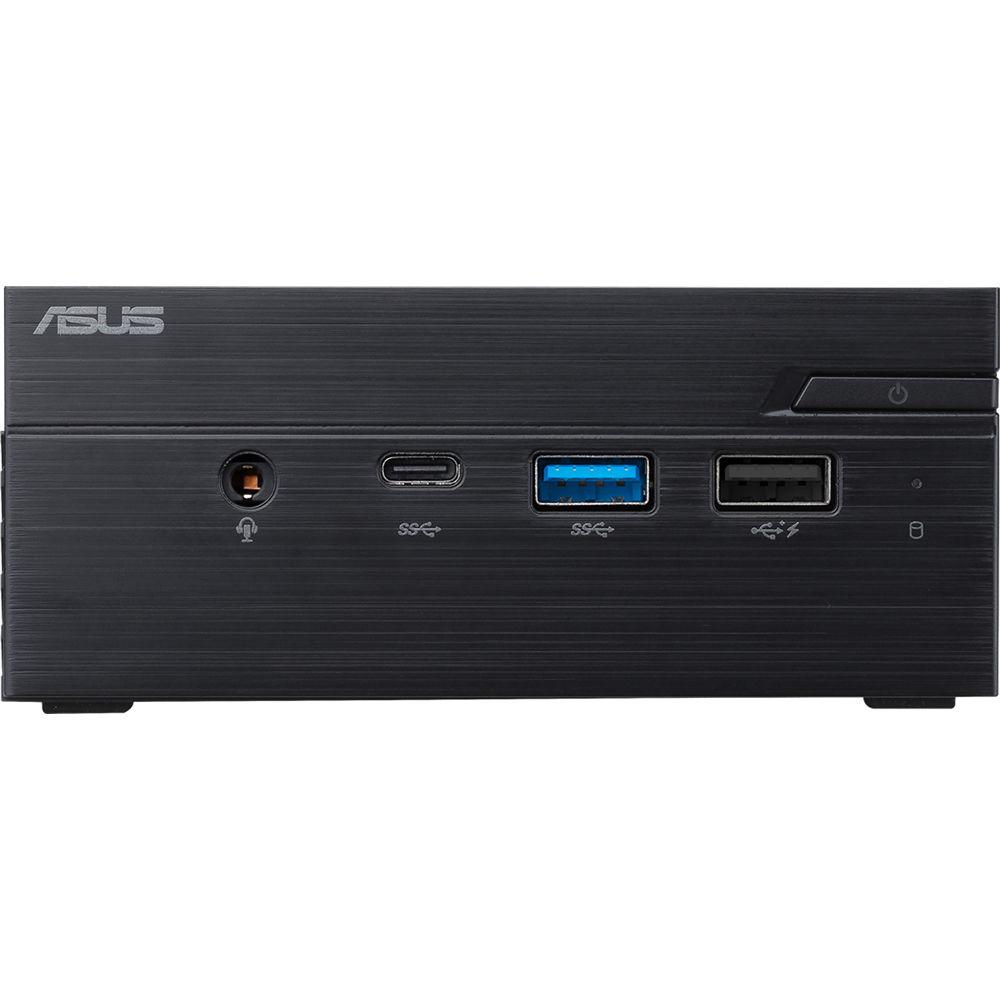

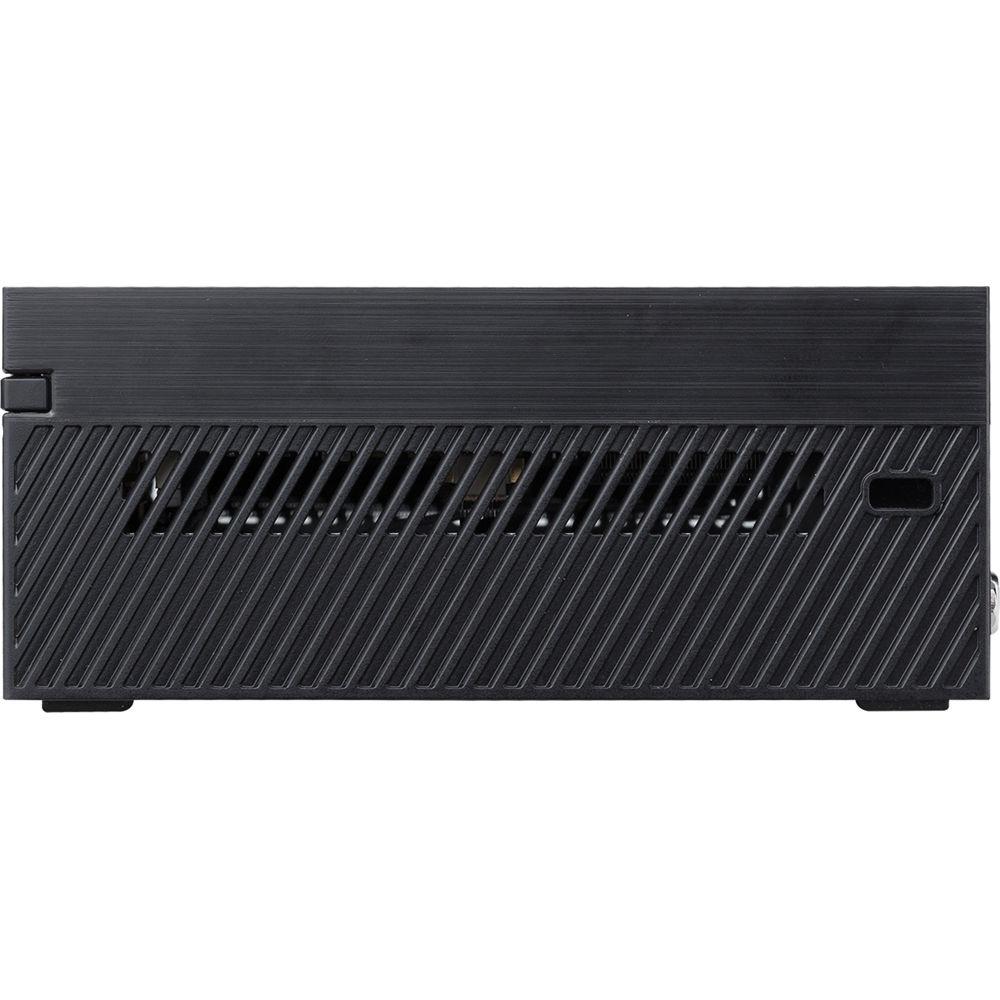

Product description As a barebones system, the ASUS PN40 Mini Desktop Computer allows you to customize your desktop to your preferences. While the PN40 does come with a 1.1 GHz Intel Celeron N4000 dual-core processor, you'll have the option to add your own RAM, storage, and operating system. The PN40 features two SO-DIMM slots for up to 8GB 2400 MHz DDR4 RAM. There is also a 2.5" SATA drive bay and an M.2 slot for storage. You can output to two external displays via the HDMI and Mini DisplayPort. Connect to the internet via the Gigabit Ethernet jack or 802.11ac Wi-Fi. You can also connect peripherals wirelessly with Bluetooth 4.2 technology. The PN40 also has one USB 3.1 Gen 1 Type-C port, three USB 3.1 Gen 1 Type-A ports, a USB 2.0 Type-A port with quick charging, and an audio jack. For security, you can utilize the Kensington lock slot. The PN40 features a compact design that can fit on your desk. It also has a unique sliding design so it's easier to access the internal components for upgrading. In addition to its compact size, the PN40 also features a fanless design that remains silent even under load from performance-intensive tasks. - Barebones System
- The ASUS PN40 is a barebones system and does not include RAM, storage, or an operating system. Please note that you will have to install these on your own for it to function.
- Integrated UHD Graphics

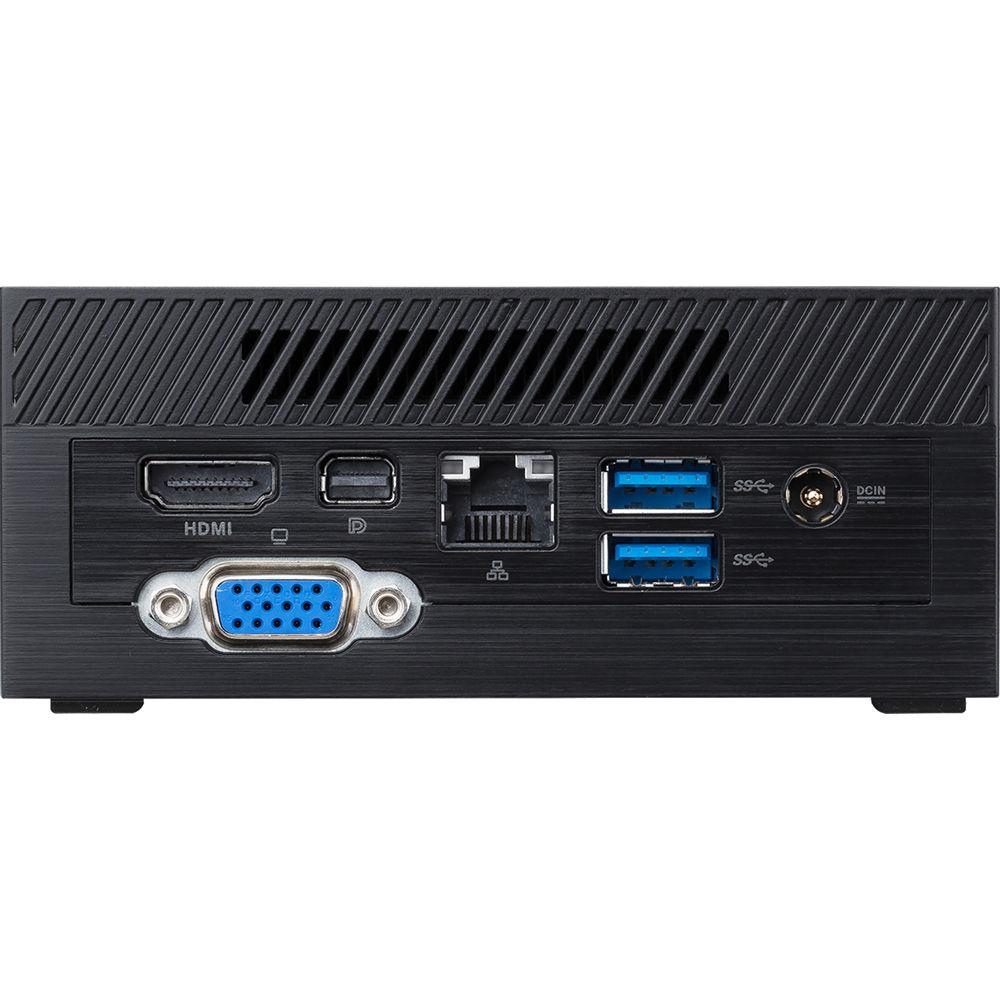

- The integrated Intel UHD Graphics 600 can support two monitors using the HDMI and Mini DisplayPort.

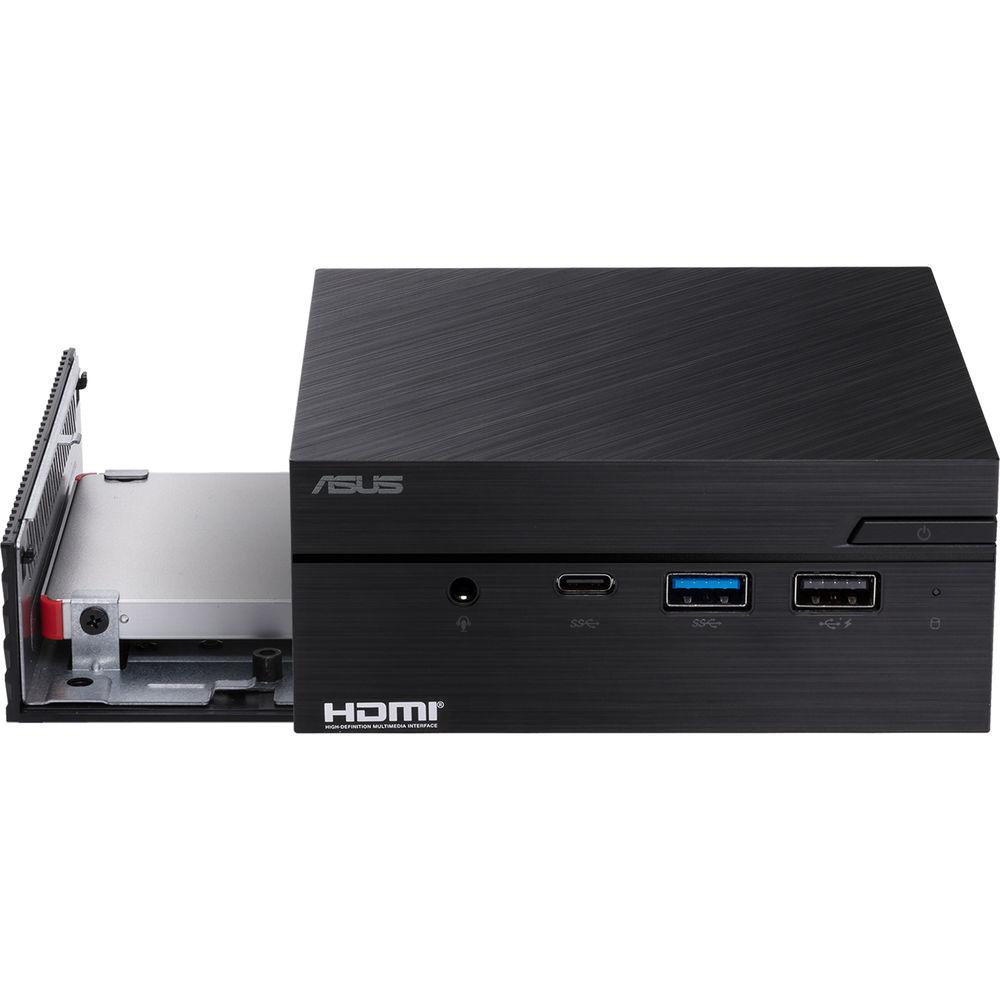

- Sliding Bottom Case

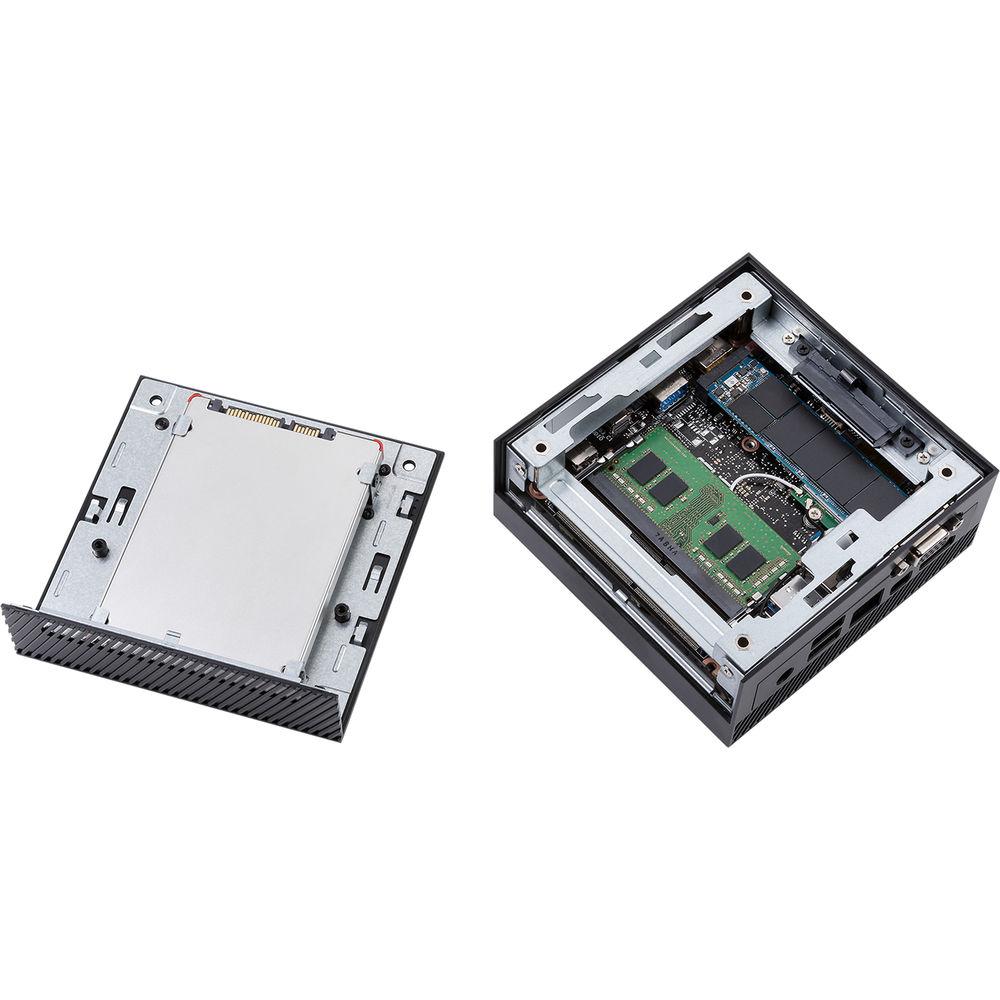

- The bottom of the case slides out so you can gain easy access to the components inside. Easily add storage and RAM with the use of a screwdriver.

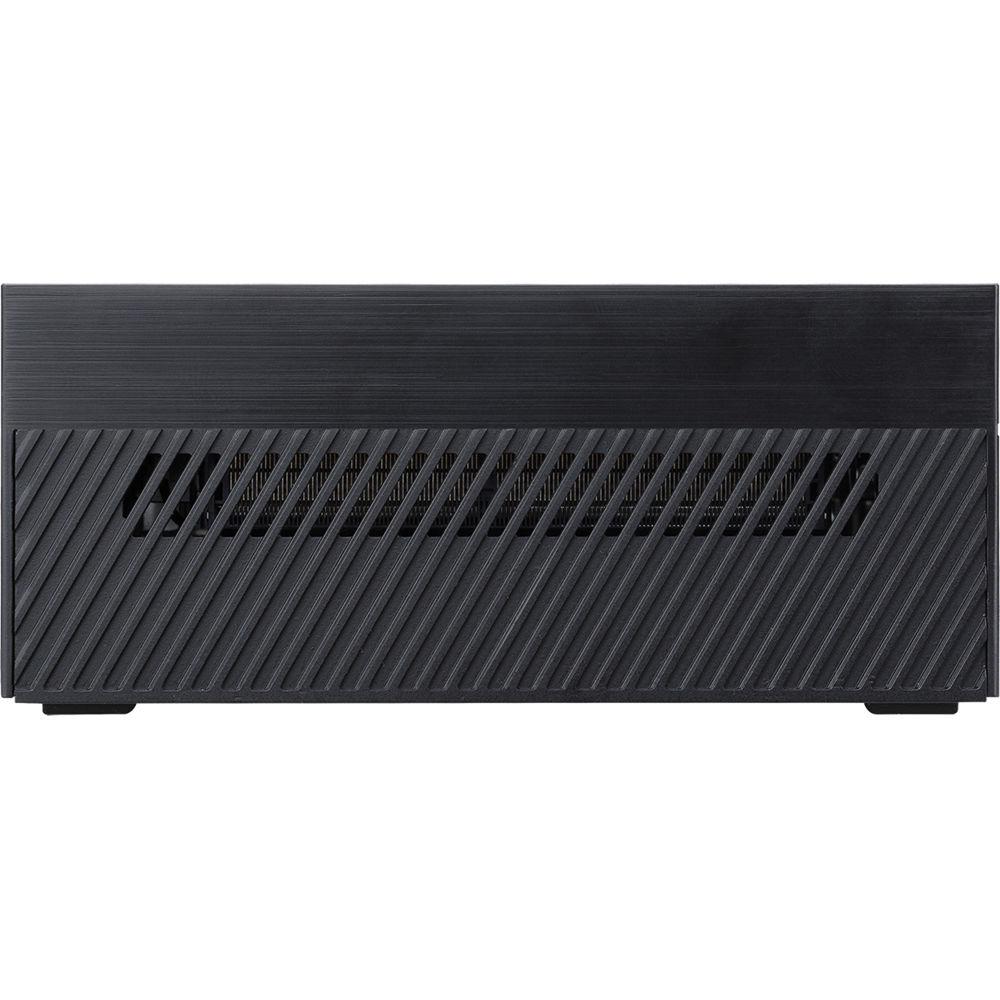

- Fanless Design
- The PN40 features a fanless design that delivers silent performance even under full load.
UPC: 192876014714 In the Box ASUS PN40 Mini Desktop Computer Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS PN40 Mini Desktop Computer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS PN40 Specs | | | CPU Socket | BGA 1090 | | CPU | 1.1 GHz Intel Celeron N4000 Dual-Core | | Maximum Boost Speed | 2.6 GHz | | L3 Cache | 4 MB | | Memory Type | 2400 MHz DDR4 | | Total Installed Memory | None | | Maximum Memory Capacity | 8 GB | | Available Memory Slots | 2 | | Graphics Type | Integrated | | GPU | Intel UHD Graphics 600 | | | | Total Drive Bays | 1 x 2.5" (Internal) | | SSD Slots | 1 x M.2 (Available) | | Hard Disk Storage | None | | Optical Drive | None | | | | Ports | 1 x USB Type-A (USB 2.0)
3 x USB Type-A (USB 3.1 Gen 1) | | USB Type-C Ports | 1 x USB 3.1 Gen 1 | | Display | 1 x HDMI
1 x Mini DisplayPort | | Audio | 1 x 1/8" / 3.5 mm Line Output | | Media Card Slots | None | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | Bluetooth | 4.2 | | | | Power Supply | 65 W | | Dimensions | 4.5 x 4.5 x 1.9" / 115 x 115 x 49 mm | | Weight | 1.5 lb / 0.7 kg | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 11.3 x 7.0 x 2.7" |
