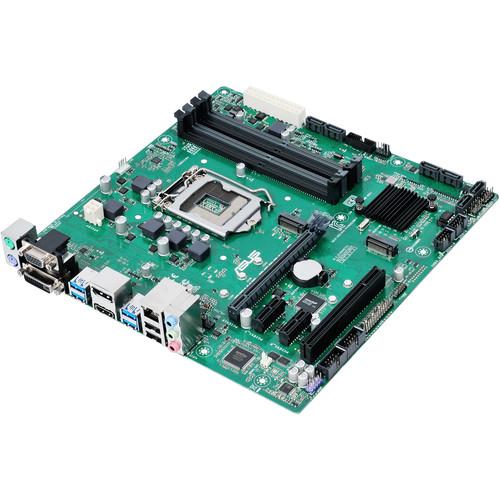

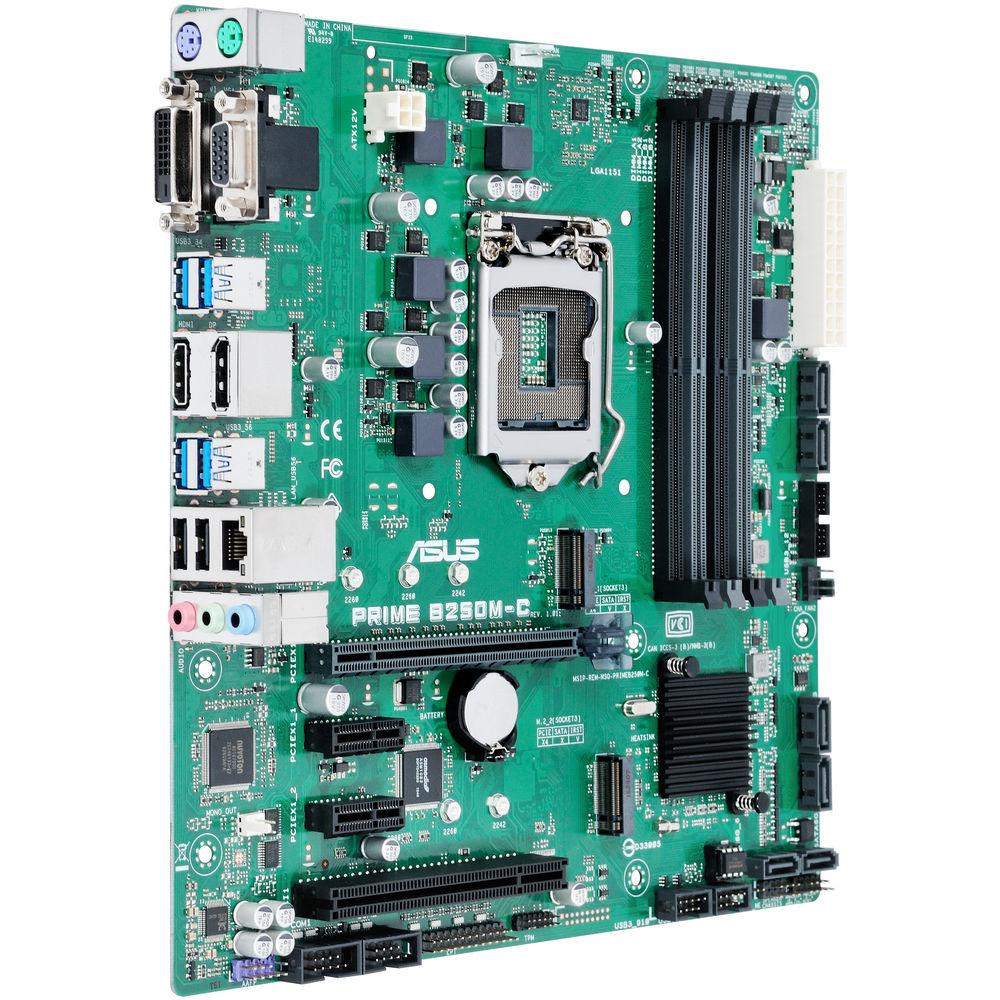

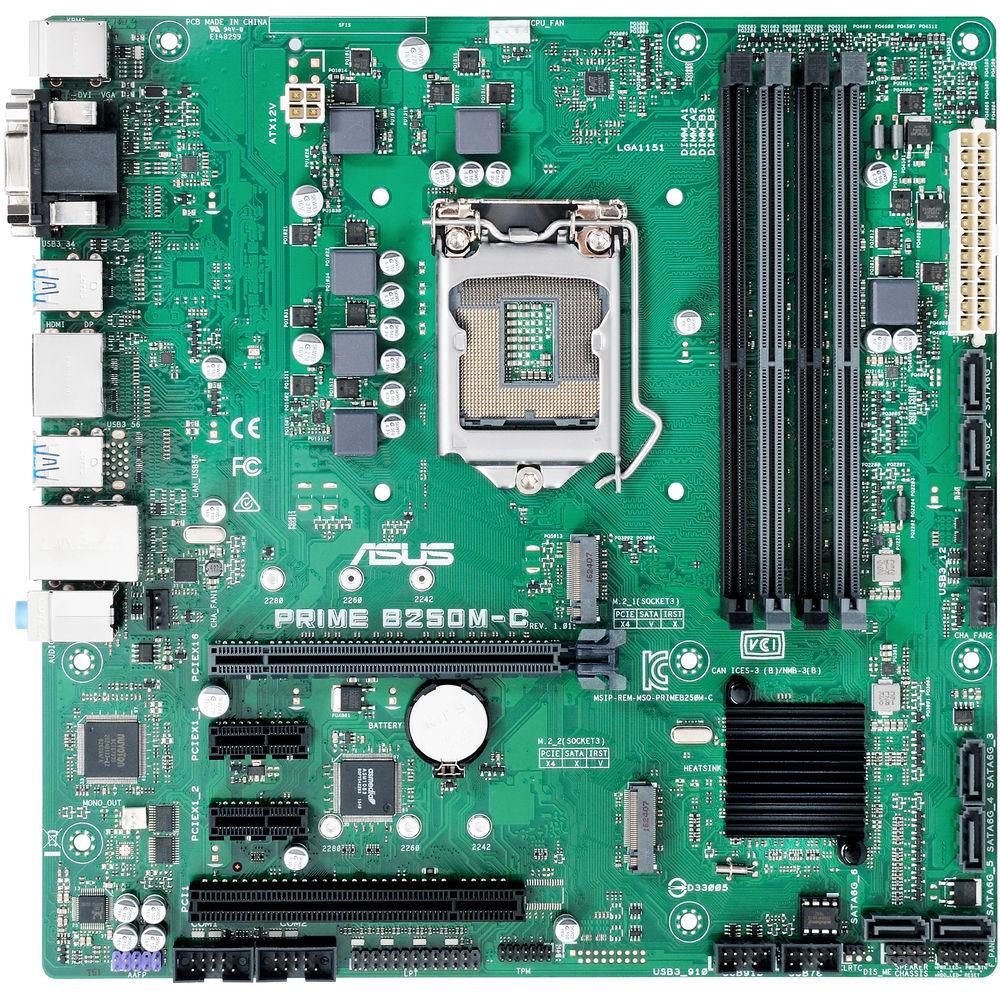

User Manual for ASUS Prime B250M-C CSM LGA 1151 Micro-ATX Motherboard Click to enlarge the picture
Contents of the user manual for the ASUS Prime B250M-C CSM LGA 1151
- Product category: Motherboards ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Motherboards
 |
User manual for the ASUS Prime B250M-C CSM LGA 1151 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|
Product description Ready for 7th Generation Intel Core Kaby Lake processors, the Prime B250M-C/CSM LGA 1151 Micro-ATX Motherboard from ASUS delivers customizable performance. 5X Protection III with FanXpert 2 PLUS provides hardware-level safeguards, 8-channel HD audio delivers clear sound, and M.2 and USB 3.0 ports deliver fast data transfers. This motherboard is designed to fit in micro-ATX sized cases and supports both 6th and 7th generation Intel Core i7, i5, i3, Pentium, and Celeron processors, the LGA 1151 socket, and the B250 chipset. This motherboard is compatible with Windows 10 (64-bit), 8.1 (64-bit), and 7 (32/64-bit) operating systems.
The micro-ATX form factor of the Prime B250M-C/CSM can support 64GB of RAM and comes with four dual-channel DIMM slots that can each hold 16GB of DDR4 2400 or 2133 MHz memory. It also has a total of 6 x SATA III 6 Gb/s ports, 2 x M.2 Socket 3 connectors that support SATA & PCIe SSDs, 6 x USB 3.0 ports, 6 x USB 2.0/1.1 ports, and 1 x Gigabit LAN port. For those looking to expand their system using PCIe, there is 1 x PCIe 3.0/2.0 x16 slot and 2 x PCIe 3.0/2.0 x1 slots. There is also a single legacy PCI port.

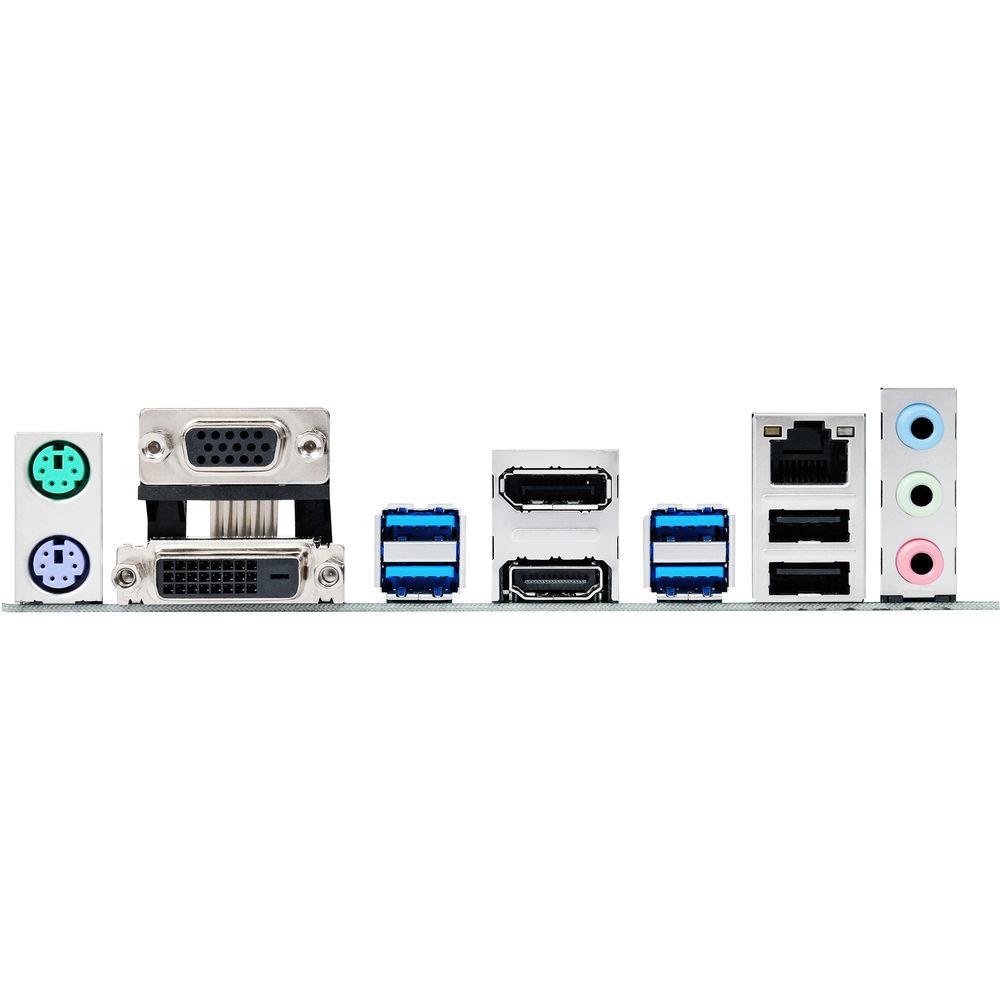

For delivering sharp, clear graphics, this motherboard contains integrated Intel HD Graphics with access to up to 1,024MB of shared graphics memory and is equipped with DisplayPort, HDMI, DVI, and VGA video outputs. Using the 8-Channel ALC 887 HD audio codec, this motherboard can support audio with higher fidelity than standard controllers. This motherboard is protected by a limited 3-year warranty. General Features - Maximize your connectivity and speed with integrated Dual M.2 slots with Intel Optane Memory compatibility, front panel USB 3.0, and rear USB 3.0 connections.
- 5X Protection III hardware-level safeguards provide component longevity and reliability.
- FanXpert 2 PLUS delivers advanced fan controls for dynamic cooling.
- Patent-pending SafeSlot Core fortified PCIe slot prevents damage caused by heavyweight GPUs.
- Front panel USB 3.0 connectivity for easy access and accelerated data transfers.
UPC: 889349595794 In the Box ASUS Prime B250M-C/CSM LGA 1151 Micro-ATX Motherboard Limited 3-Year Warranty Quick start Guide PDF 1.2mbwsfweeyzsaaseeuettecwtxuctdy Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS Prime B250M-C CSM LGA 1151 Micro-ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS B250M-C/CSM Specs | | | Chipset | Intel B250 | | CPU Socket | LGA 1151 | | | | USB | 4 x USB 3.1 Gen 1 Type-A
2 x USB 2.0 Type-A | | Display | 1 x DisplayPort
1 x HDMI
1 x DVI-D
1 x VGA | | Ethernet / Controller | 1 x Gigabit | | | | Memory Slots | 4 x 288-Pin | | Memory Support | DDR4 2133, 2400 MHz | | Maximum Capacity | 64 GB | | Channel Architecture | Dual Channel | | ECC Support | Non-ECC Unbuffered | | | | SATA | 6 x SATA III | | M.2 | 1 x M Key 2260, 2280, 22110 (PCIe 3.0 x4, SATA III)
1 x M Key 2260, 2280 (PCIe 3.0 x4) | | RAID Support | None | | | | Expansion Slots | 1 x PCIe 3.0 x16
2 x PCIe 3.0 x1
1 x PCI | | USB | 1 x USB 3.1 Gen 1 Header (Supports 2 USB Type-A Ports)
2 x USB 2.0 Header (Supports 4 USB Type-A Ports) | | Multi-GPU Support | None | | Legacy | 1 x Parallel
2 x Serial | | | | Audio Codec | Realtek ALC887 (8-Channel) | | | | Supported Operating Systems | Windows 10 (64-Bit)
Windows 8/8.1 (64-Bit)
Windows 7 (32/64-Bit) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 10.7 x 10.4 x 2.1" |
