User Manual for ASUS Prime B450 Plus AM4 ATX Motherboard Click to enlarge the picture
Contents of the user manual for the ASUS Prime B450 Plus AM4 ATX
- Product category: Motherboards ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Motherboards
 |
User manual for the ASUS Prime B450 Plus AM4 ATX contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|
Product description The Prime B450 Plus AM4 ATX Motherboard from Asus is built on the AMD B450 chipset supporting first- and second-generation socket AM4 AMD Ryzen processors. It has four memory slots, which can accommodate up to 64GB of DDR4 RAM at speeds of up to 3200 MHz when overclocked. For storage, there are six SATA III ports and one M.2 slot that supports both SATA and PCIe 3.0 x4 interface for speeds of up to 32 Gb/s when used with an appropriate M.2 drive. While it's equipped with DVI-D and HDMI ports for integrated graphics, this motherboard also has one PCIe 3.0 x16 slot for a dedicated GPU as well as one PCIe 2.0 x16 and three PCIe 2.0 x1 slots for other PCIe-based hardware. Other noteworthy integrated features include Realtek ALC 887-VD2 8-channel HD audio, Realtek 8111H Gigabit LAN, and Asus Aura RGB lighting. - Cooling
- To help keep things cool, the Prime B450 has multiple fan headers that support both DC and PWM modes, so you can control their speed within BIOS or a third-party software to find a perfect balance between noise and cooling.
- Storage
- Aside from six SATA ports, this motherboard is also equipped with a single M.2 slot, which supports both PCIe and SATA interfaces, for speeds of up to 32 Gb/s when used with an appropriate drive. Moreover, all AMD B450 motherboards come with AMD StoreMI technology, which is a software designed to increase system responsiveness by caching frequently used data to your SSD or RAM.
- Memory
- There are four memory slots supporting up to 64GB of DDR4 RAM at speeds of up to 3200 MHz when overclocked. It also supports ECC memory; however, compatibility varies by CPU.
- Audio
- The Prime B450 is built with Realtek ALC 887-VD2 8-channel HD audio, LED illumination, audio shielding, dedicated PCB layers, and premium audio capacitors to deliver an immersive listening experience for all types of applications whether you're using speakers or headphones.
- Lighting
- Aside from the built-in LED-illuminated audio section of this motherboard, it also has an Asus Aura Sync RGB header that you can use for other RGB-compatible products to light up your build.
- Graphics
- For Ryzen processors with integrated Radeon Vega graphics, this motherboard has HDMI and DVI-D ports you can use to connect a display. DVI-D supports a maximum resolution of 1920 x 1200 at 60 Hz whereas HDMI can support up to 4096 x 2160 at 60 Hz.
- Additional Features
-
- UEFI BIOS
- Q-DIMM & Q-Slot enhanced RAM circuitry
- Asus 5x Protection III: SafeSlot Core, ESD Guard, Over-voltage Protection, Stainless-Steel Back I/O, Digi+ VRM
- Asus AI Charger, Asus File Transfer, Asus AI Suite 3, Asus PC Cleaner

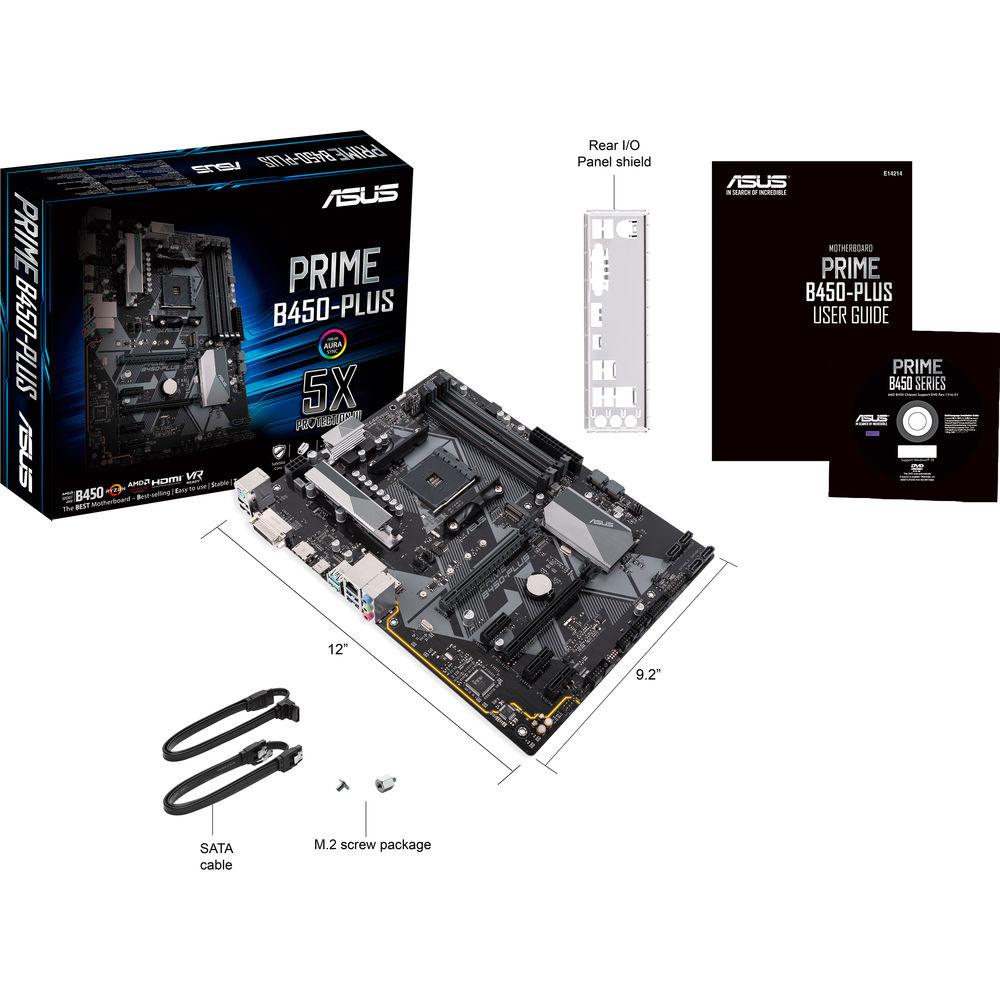

UPC: 192876075678 In the Box ASUS Prime B450 Plus AM4 ATX Motherboard I/O Shield 2 x SATA Cable M.2 Screw Package Limited 3-Year Warranty User Manual PDF 3mb More info from ASUS Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS Prime B450 Plus AM4 ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS PRIME B450-PLUS Specs | | | Chipset | AMD B450 | | CPU Socket | AM4 | | | | USB | 2 x USB 3.1 Gen 2 Type-A
1 x USB 3.1 Gen 1 Type-A
1 x USB 3.1 Gen 1 Type-C
2 x USB 2.0 Type-A | | Display | 1 x DVI-D
1 x HDMI 2.0b | | Audio | 3 x 3.5 mm | | Ethernet / Controller | 1 x Realtek 8111H Gigabit | | PS/2 | 1 x Combo | | | | Memory Slots | 4 x 288-Pin | | Memory Support | DDR4 2133, 2400, 2666, 2800, 3000, 3200 MHz | | Maximum Capacity | 64 GB | | Channel Architecture | Dual Channel | | ECC Support | Non-ECC, ECC Unbuffered | | | | SATA | 6 x SATA III | | M.2 | 1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4, SATA III) | | U.2 | None | | Optane Memory Support | No | | | | Expansion Slots | 1 x PCIe 3.0 x16
1 x PCIe 2.0 x16
3 x PCIe 2.0 x1 | | USB | 1 x USB 3.1 Gen 1 Header (Supports 2 USB Type-A Ports)
2 x USB 2.0 Header (Supports 4 USB Type-A Ports) | | Multi-GPU Support | None | | Air Cooling | 1 x 4-Pin CPU
3 x 4-Pin System | | Liquid Cooling | 1 x 4-Pin Pump | | Power Connectors | 1 x 24-Pin Mainboard
1 x 8-Pin CPU | | Security | TPM Module | | LED Header | 1 x RGB | | Audio | 1 x S/PDIF | | Diagnostics | Clear CMOS | | Legacy | 1 x Serial | | | | I/O Connection Headers | AAFP, USB 3.1 | | | | Audio Codec | Realtek ALC 887-VD2 (8-Channel) | | | | Supported Operating Systems | Windows 10 (64-Bit) | | | | Form Factor | ATX | | Dimensions | 12 x 9.2" / 304.80 x 233.68 mm | | | | Package Weight | 2.3 lb | | Box Dimensions (LxWxH) | 12.8 x 12.2 x 2.2" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 66 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
The discussion is empty - enter the first post
Post a new topic / query / comment:
|
|
|
| Request for user manual |
You can’t find the operation manual you are looking for? Let us know and we will try to add the missing manual:
I’m looking for a manual / Request for manual
Current requests for instruction manuals:
Expert intel sixcore i5-8400 4GHZ turbo...
Color LaserJet Pro MFP M281fdw...
call of duty world war II...
Audio Technica AUDIO-AT8631
data sheet ...
