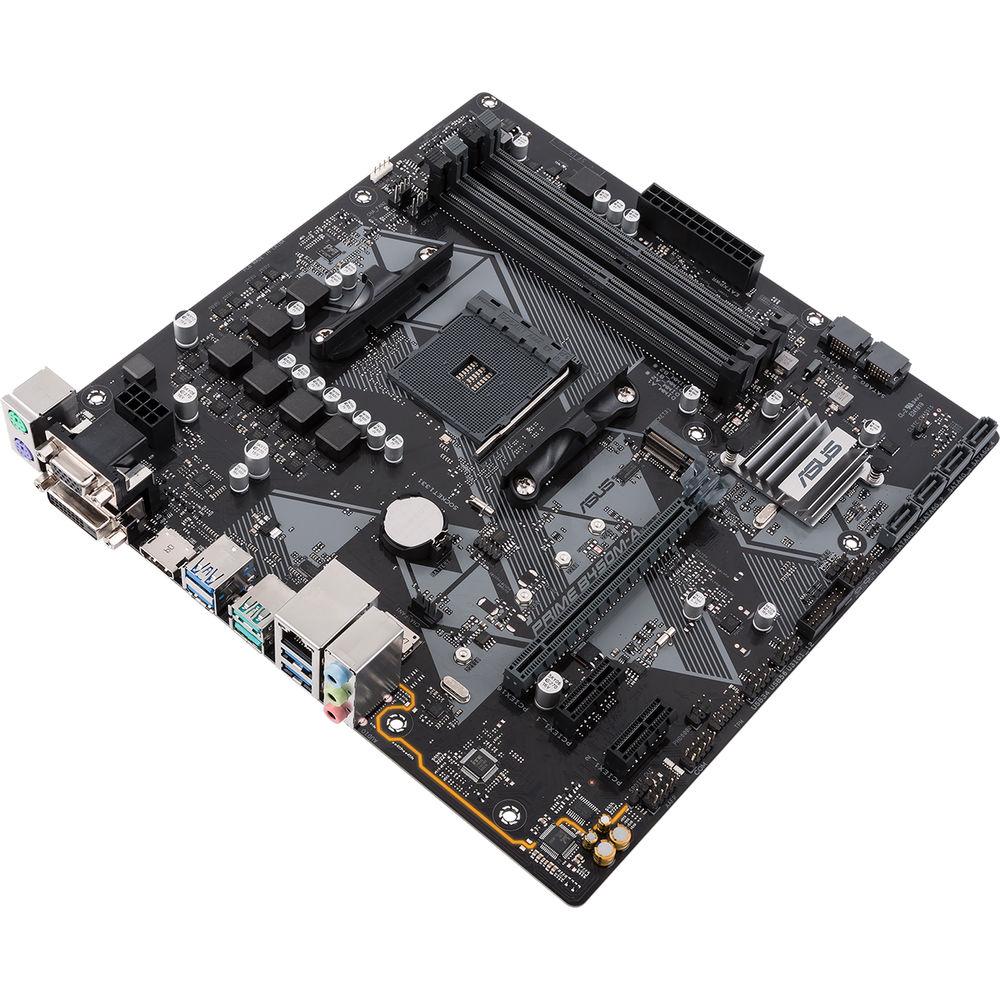

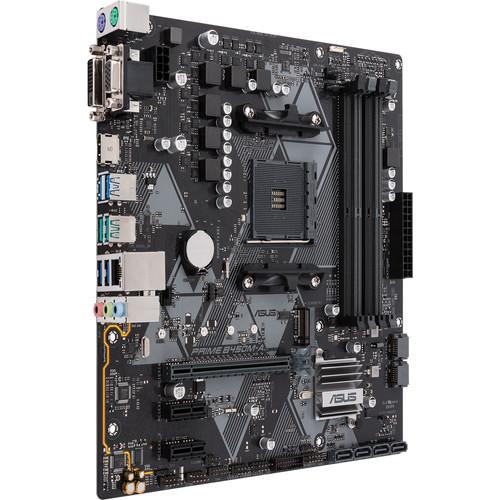

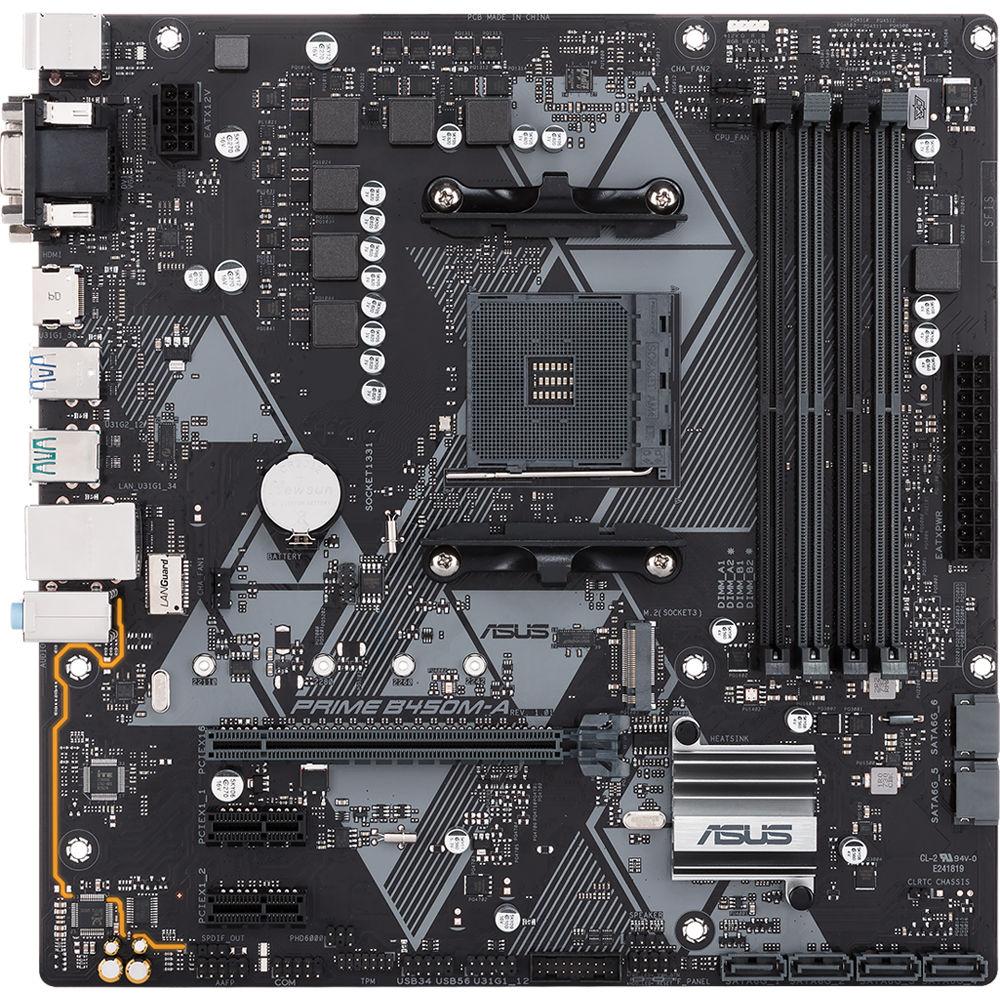

Product description The Prime B450M-A/CSM AM4 Micro-ATX Motherboard from Asus is built on the AMD B450 chipset supporting first- and second-generation socket AM4 AMD Ryzen processors. It has four memory slots, which can accommodate up to 64GB of DDR4 RAM at speeds of up to 3200 MHz when overclocked. For storage, there are six SATA III ports and one M.2 slot that supports both SATA and PCIe 3.0 x4 interface for speeds of up to 32 Gb/s when used with an appropriate M.2 drive. While it's equipped with VGA, DVI-D, and HDMI ports for integrated graphics, this motherboard also has one PCIe 3.0 x16 slot for a dedicated GPU as well as two PCIe 2.0 x1 slots for other PCIe-based hardware. Other noteworthy integrated features include Realtek ALC 887-VD2 8-channel HD audio, Realtek 8111H Gigabit LAN, and Asus Aura RGB lighting. - Cooling
- To help keep things cool, the B450M has multiple fan headers that support both DC and PWM modes, so you can control their speed within BIOS or a third-party software to find a perfect balance between noise and cooling.
- Storage
- Aside from six SATA ports, this motherboard is also equipped with a single M.2 slot, which supports both PCIe and SATA interfaces, for speeds of up to 32 Gb/s when used with an appropriate drive. Moreover, all AMD B450 motherboards come with AMD StoreMI technology, which is a software designed to increase system responsiveness by caching frequently used data to your SSD or RAM.
- Memory
- There are four memory slots supporting up to 64GB of DDR4 RAM at speeds of up to 3200 MHz when overclocked. It also supports ECC memory; however, compatibility varies by CPU.
- Audio
- The Prime B450M is built with Realtek ALC 887-VD2 8-channel HD audio, LED illumination, audio shielding, dedicated PCB layers, and premium audio capacitors to deliver an immersive listening experience for all types of applications whether you're using speakers or headphones.
- Lighting
- Aside from the built-in LED-illuminated audio section of this motherboard, it also has an Asus Aura Sync RGB header that you can use for other RGB-compatible products to light up your build.
- Graphics

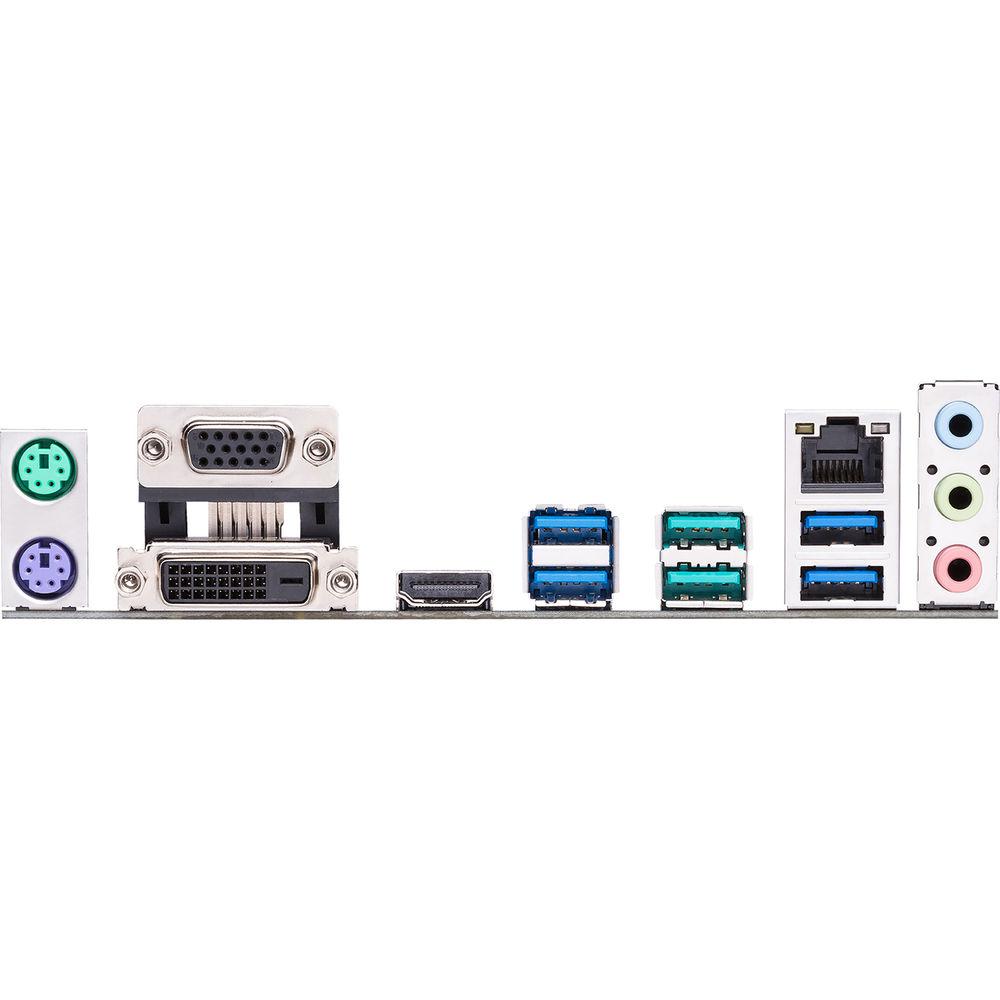

- For Ryzen processors with integrated Radeon Vega graphics, this motherboard has HDMI, DVI-D, and VGA ports you can use to connect a display. Both DVI-D and VGA supports up to a max resolution of 1920 x 1200 at 60 Hz, whereas the HDMI interface can reach up to 4096 x 2160 at 60 Hz.
- Additional Features
-
- UEFI BIOS
- Q-DIMM & Q-Slot enhanced RAM circuitry
- Asus 5x Protection III: SafeSlot Core, ESD Guard, Over-voltage Protection, Stainless-Steel Back I/O, and Digi+ VRM

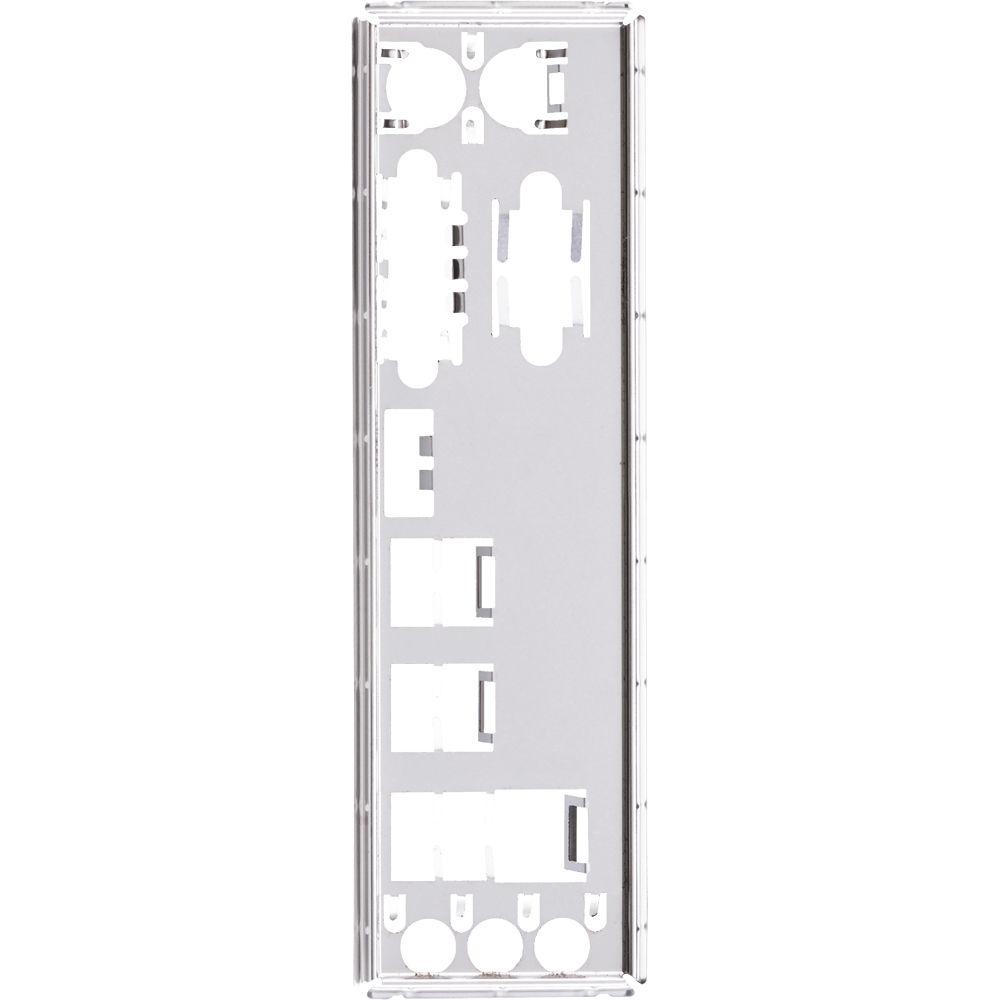

UPC: 192876078808 In the Box ASUS Prime B450M-A/CSM AM4 Micro-ATX Motherboard I/O Shield 2 x SATA Cable M.2 Screw Package Limited 3-Year Warranty User Manual PDF 2.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS Prime B450M-A CSM AM4 Micro-ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS PRIME B450M-A/CSM Specs | | | Chipset | AMD B450 | | CPU Socket | AM4 | | | | USB | 4 x USB 3.1 Gen 1 Type-A
2 x USB 3.1 Gen 2 Type-A | | Display | 1 x VGA
1 x DVI-D
1 x HDMI 2.0b | | Audio | 3 x 3.5 mm | | Ethernet / Controller | 1 x Realtek 8111H Gigabit | | PS/2 | 2 x PS/2 | | | | Memory Slots | 4 x 288-Pin | | Memory Support | DDR4 2133, 2400, 2666, 2800, 3000, 3200 MHz | | Maximum Capacity | 64 GB | | Channel Architecture | Dual Channel | | ECC Support | Non-ECC, ECC Unbuffered | | | | SATA | 6 x SATA III | | M.2 | 1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4, SATA III) | | U.2 | None | | Optane Memory Support | No | | | | Expansion Slots | 1 x PCIe 3.0 x16
2 x PCIe 2.0 x1 | | USB | 1 x USB 3.1 Gen 1 Header (Supports 2 USB Type-A Ports)
2 x USB 2.0 Header (Supports 4 USB Type-A Ports) | | Multi-GPU Support | None | | Air Cooling | 1 x 4-Pin CPU
2 x 4-Pin System | | Power Connectors | 1 x 24-Pin Mainboard
1 x 8-Pin CPU | | Security | TPM Module | | LED Header | 1 x RGB | | Audio | 1 x S/PDIF
1 x Speaker | | Diagnostics | Clear CMOS | | Legacy | 1 x Serial | | | | I/O Connection Headers | AAFP, USB 3.1 | | | | Audio Codec | Realtek ALC 887-VD2 (8-Channel) | | | | Supported Operating Systems | Windows 10 (64-Bit) | | | | Form Factor | Micro-ATX | | Dimensions | 9.6 x 9.6" / 243.84 x 243.84 mm | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 10.8 x 10.5 x 2.5" |
