User Manual for ASUS Prime H310M-A LGA 1151 Micro-ATX Motherboard Click to enlarge the picture
Contents of the user manual for the ASUS Prime H310M-A LGA 1151 Micro-ATX
- Product category: Motherboards ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Motherboards
 |
User manual for the ASUS Prime H310M-A LGA 1151 Micro-ATX contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|

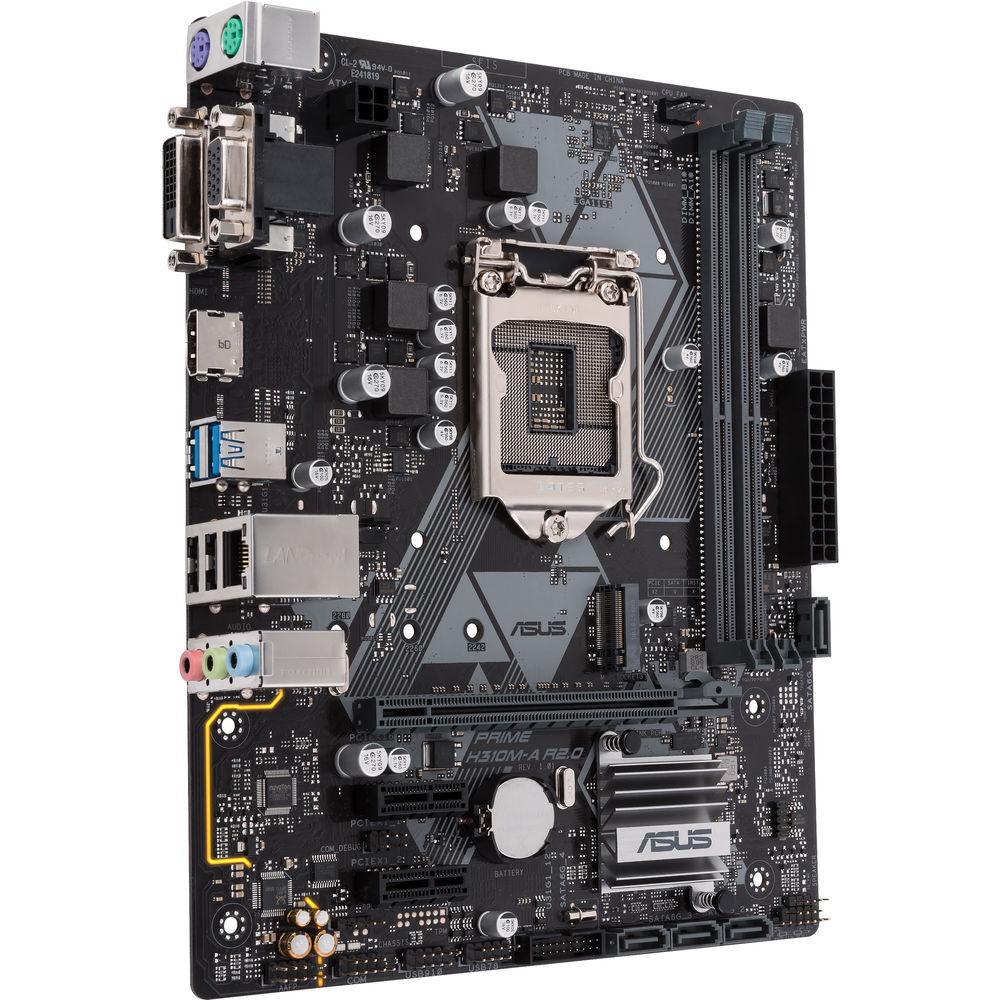

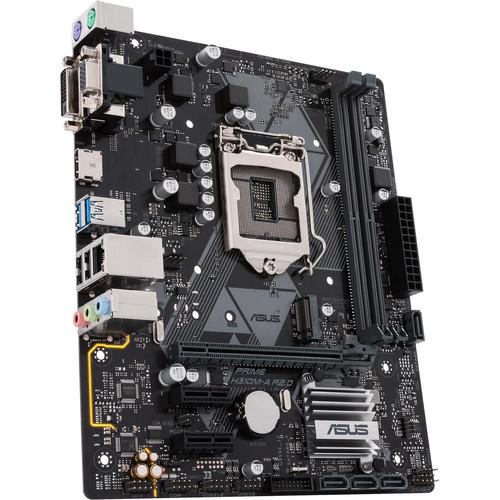

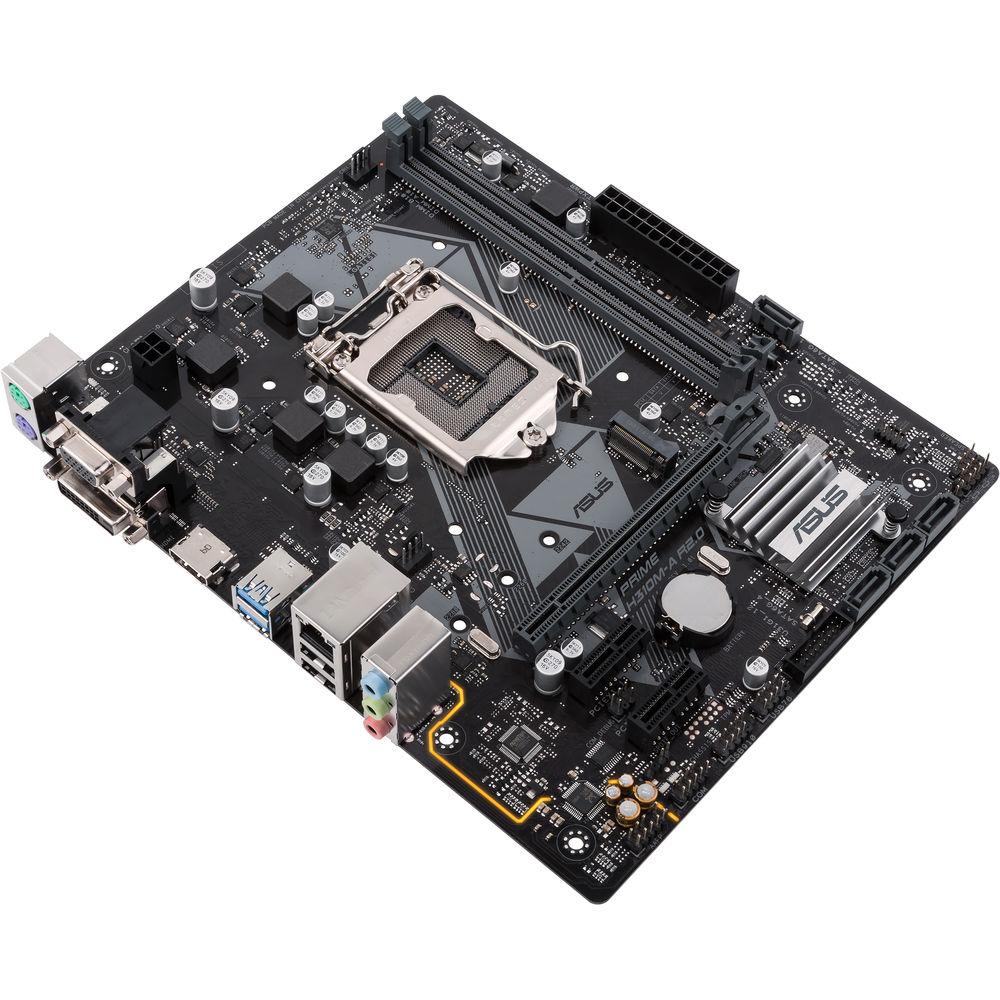

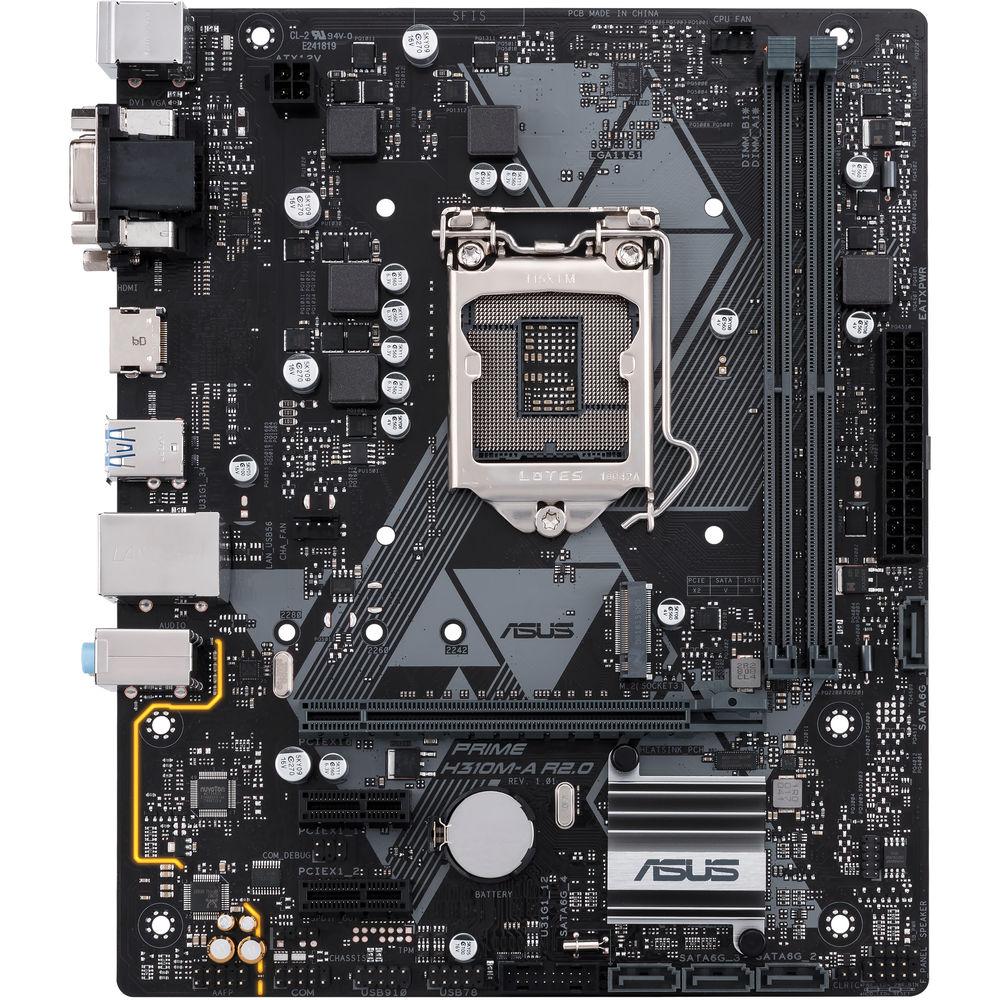

Product description The Prime H310M-A LGA 1151 Micro-ATX Motherboard from Asus is built on the Intel H310 chipset supporting 8th generation socket LGA 1151 Core, Pentium, and Celeron processors. Smaller than standard ATX motherboards, this micro-ATX board has two DDR4 memory slots for up to 32GB of RAM, four SATA III ports, an M.2 slot, as well as one PCIe 3.0 x16 and two PCIe 2.0 x1 slots. Should you opt for integrated graphics, the Prime H310M is equipped with DVI-D, VGA, and HDMI ports. Other notable integrated features include Realtek ALC887 8-channel HD audio and Realtek RTL8111H Gigabit LAN. - DDR4
- Asus OptiMem utilizes optimal routing traces to preserve memory signals for stable performance. Combined with T-Topology trace layout, which ensures time-aligned signals, this motherboard offers support for a wide range of memory kits with lower latencies at equivalent voltages.
- EPU
- The Energy Processing Unit (EPU) automatically optimizes power consumption and features Away mode, a smart setting that saves even more energy by turning off unused I/O controllers.
- Fan Xpert
- Fan Xpert is a software that lets you manually or automatically adjust your system's fans. With Auto-Tuning mode, you can easily set premade or custom profiles with a single click.
- Cooler by Design
- The Prime 300 Series features multiple onboard temperature sensors for accurate readouts as well as 4-pin PWM/DC fan headers for controllable fan speeds.
- Built to Last
- Asus motherboards undergo extensive testing including compatibility, reliability, and safety tests.
- Audio
- The Prime H310M features onboard Realtek ALC887 8-channel HD audio. In addition, it has audio shielding and separate left- and right-track layers to help reduce interference.
UPC: 192876030622 In the Box ASUS Prime H310M-A LGA 1151 Micro-ATX Motherboard Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS Prime H310M-A LGA 1151 Micro-ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

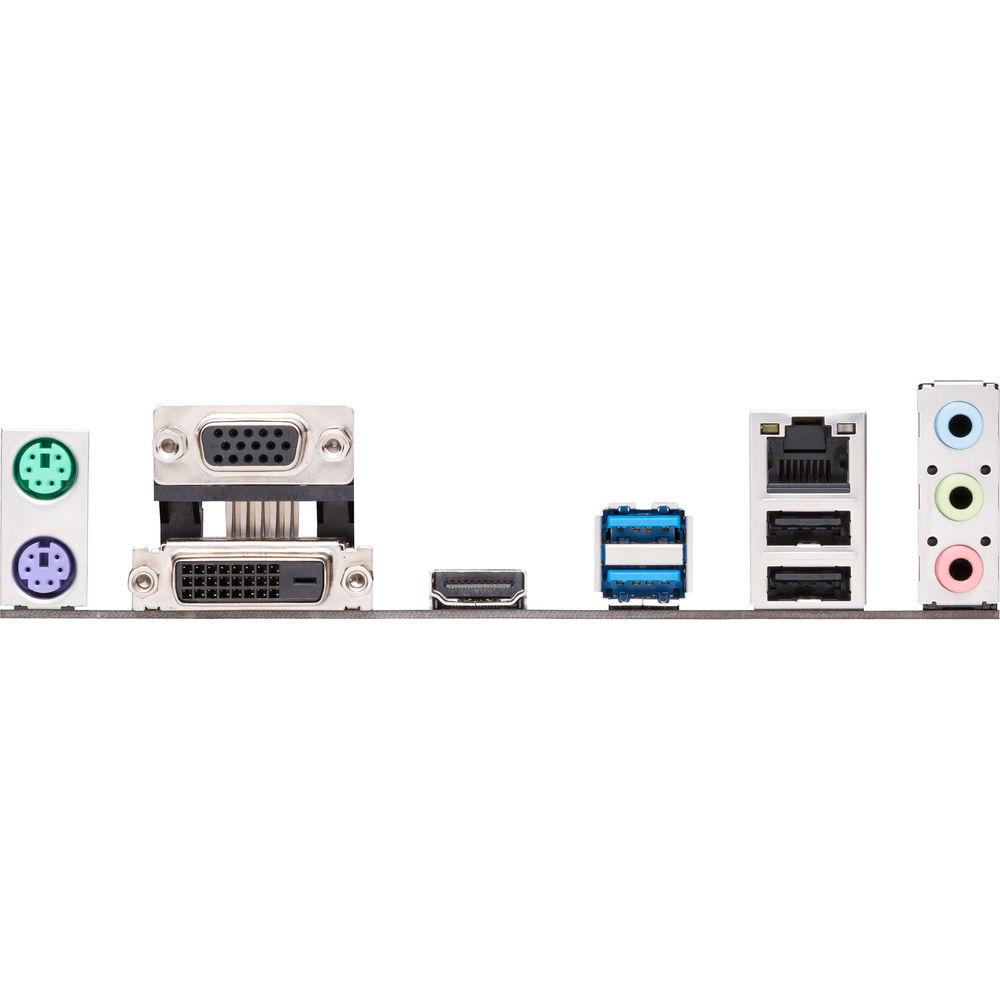

Technical parametersASUS PRIME H310M-A R2.0/CSM Specs | | | Chipset | Intel H310 | | CPU Socket | LGA 1151 | | | | USB | 2 x USB 3.1 Gen 1 Type-A
2 x USB 2.0 Type-A | | Thunderbolt | None | | Display | 1 x DVI-D
1 x VGA
1 x HDMI | | Audio | 3 x 3.5 mm | | Ethernet / Controller | 1 x Realtek RTL8111H Gigabit | | PS/2 | 2 x PS/2 | | | | Memory Slots | 2 x 288-Pin | | Memory Support | DDR4 2133, 2400, 2666 MHz | | Maximum Capacity | 32 GB | | Channel Architecture | Dual Channel | | ECC Support | Non-ECC Unbuffered | | | | SATA | 4 x SATA III | | M.2 | 1 x M Key 2242, 2260, 2280 (PCIe 2.0 x2, SATA III) | | U.2 | None | | Optane Memory Support | No | | | | Expansion Slots | 1 x PCIe 3.0 x16
2 x PCIe 2.0 x1 | | USB | 1 x USB 3.1 Gen 1 Header (Supports 2 USB Type-A Ports)
2 x USB 2.0 Header (Supports 4 USB Type-A Ports) | | Multi-GPU Support | None | | Air Cooling | 1 x 4-Pin CPU
1 x 4-Pin System | | Power Connectors | 1 x 24-Pin Mainboard
1 x 4-Pin CPU | | Audio | 1 x S/PDIF
1 x Speaker | | Diagnostics | Clear CMOS | | Legacy | 1 x Serial | | | | I/O Connection Headers | AAFP, USB 3.1 | | | | Audio Codec | Realtek ALC887 (8-Channel) | | | | Supported Operating Systems | Windows 10 (64-Bit) | | | | Form Factor | Micro-ATX | | Dimensions | 7.3 x 8.9" / 185.42 x 226.06 mm | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 10.0 x 9.0 x 2.0" |
