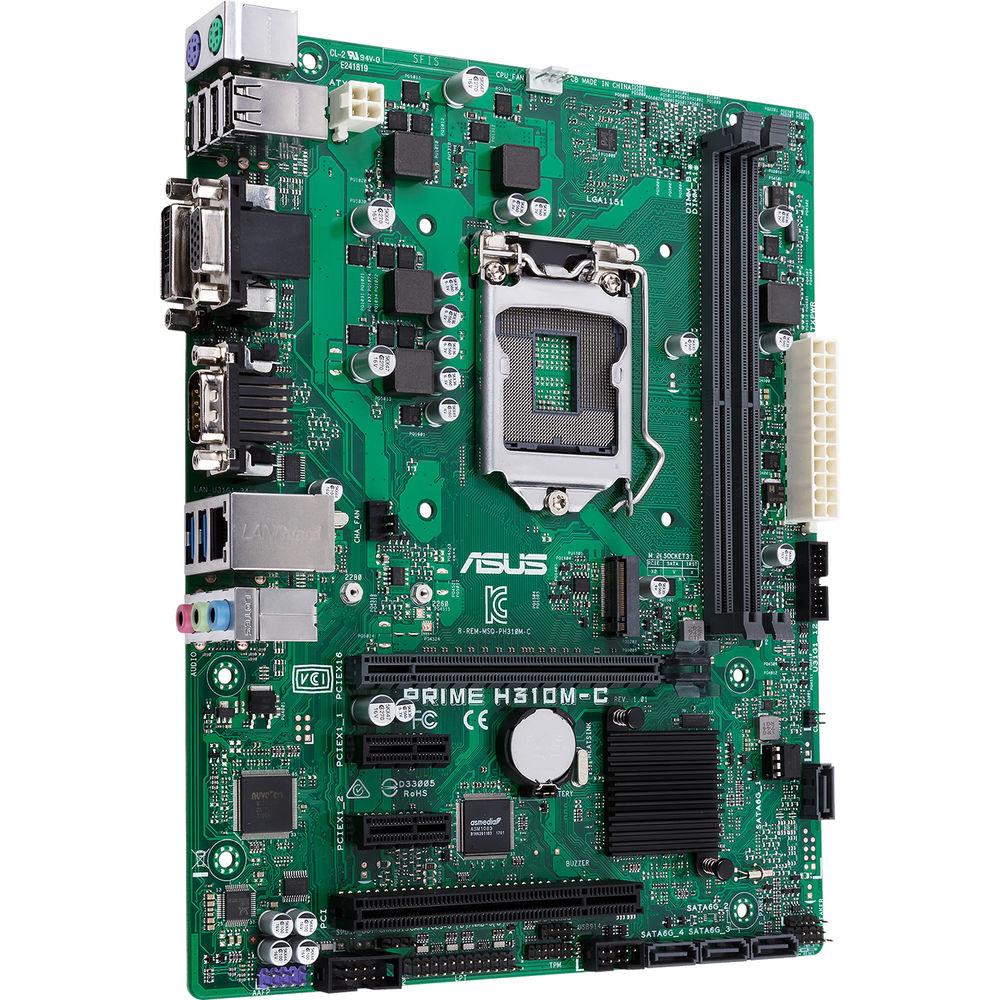

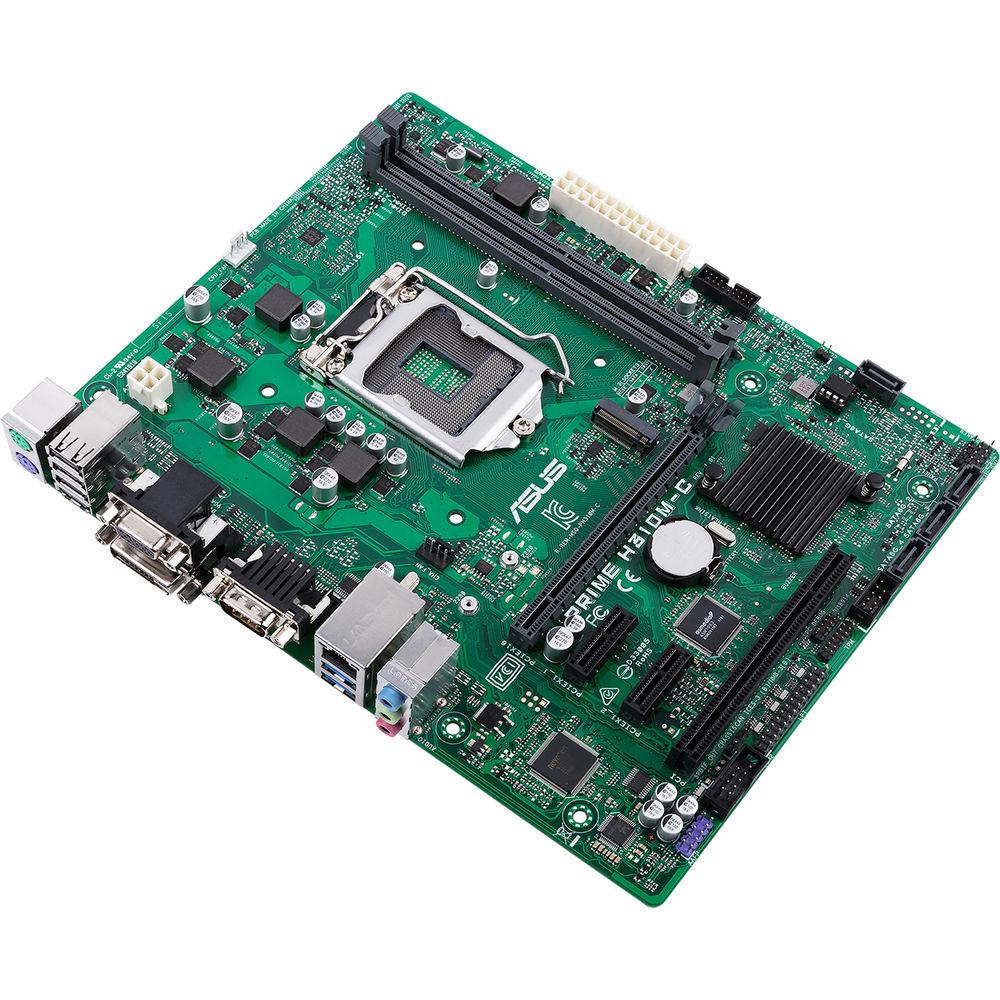

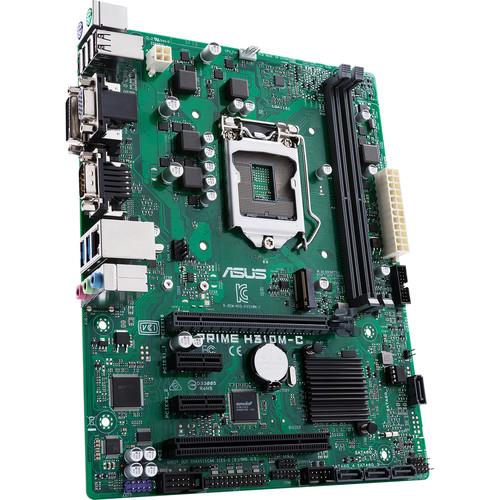

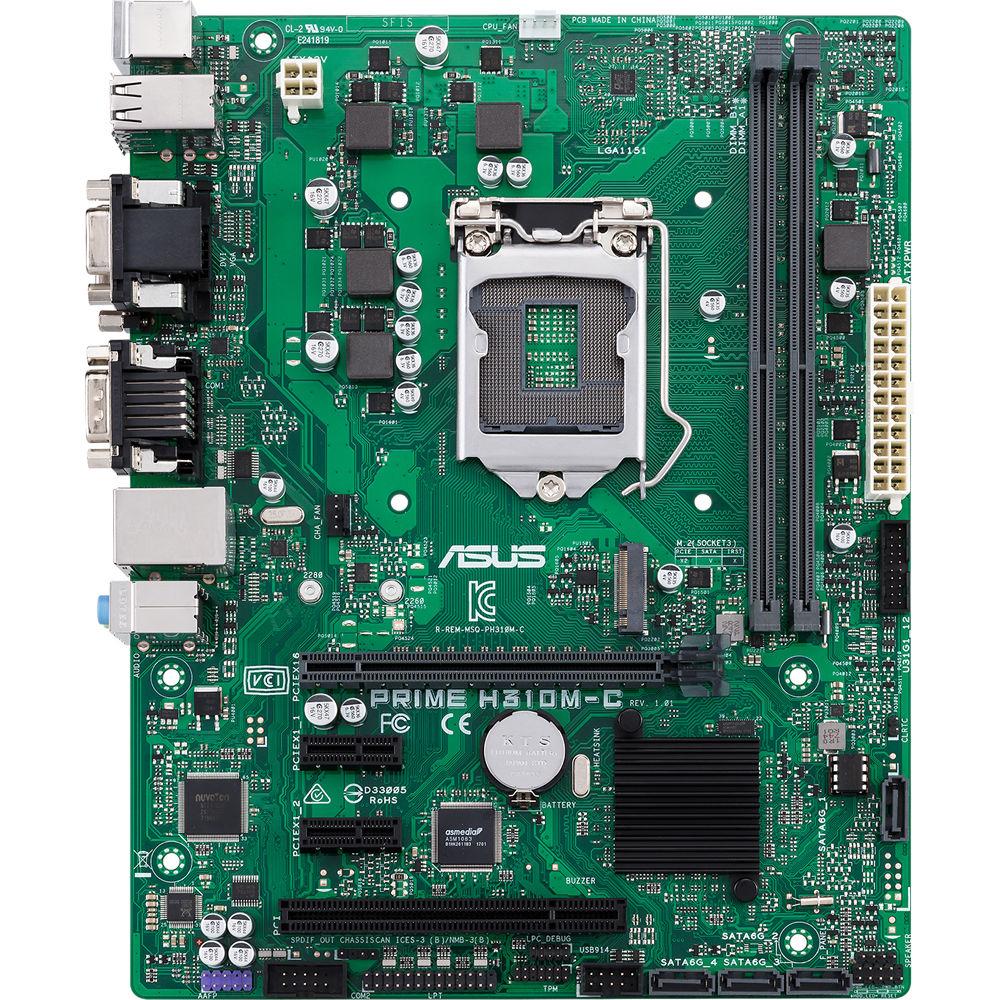

Product description Powered exclusively by 8th Generation Intel Core i7, i5, i3, Pentium, and Celeron processors, the Prime H310M-C/CSM LGA 1151 Micro-ATX Motherboard from ASUS is designed for business use and provides features to smooth IT operations, including comprehensive system protection, 24/7 stability and reliability, and an improved management suite for more user-friendly customization. This motherboard is designed to fit in micro-ATX sized cases, supports the LGA 1151 socket, and the Intel H310 chipset.
The micro-ATX form factor of the Prime H310M-A can support up to 32GB of DDR4 RAM over two dual-channel slots, or 16GB per slot at speeds of 2666, 2400, and 2133 MHz non-ECC unbuffered memory. For storage, there are four SATA III 6 Gb/s ports and one M.2 Socket 3, with M key, type 2260 and 2280 for both SATA and PCIe drives.

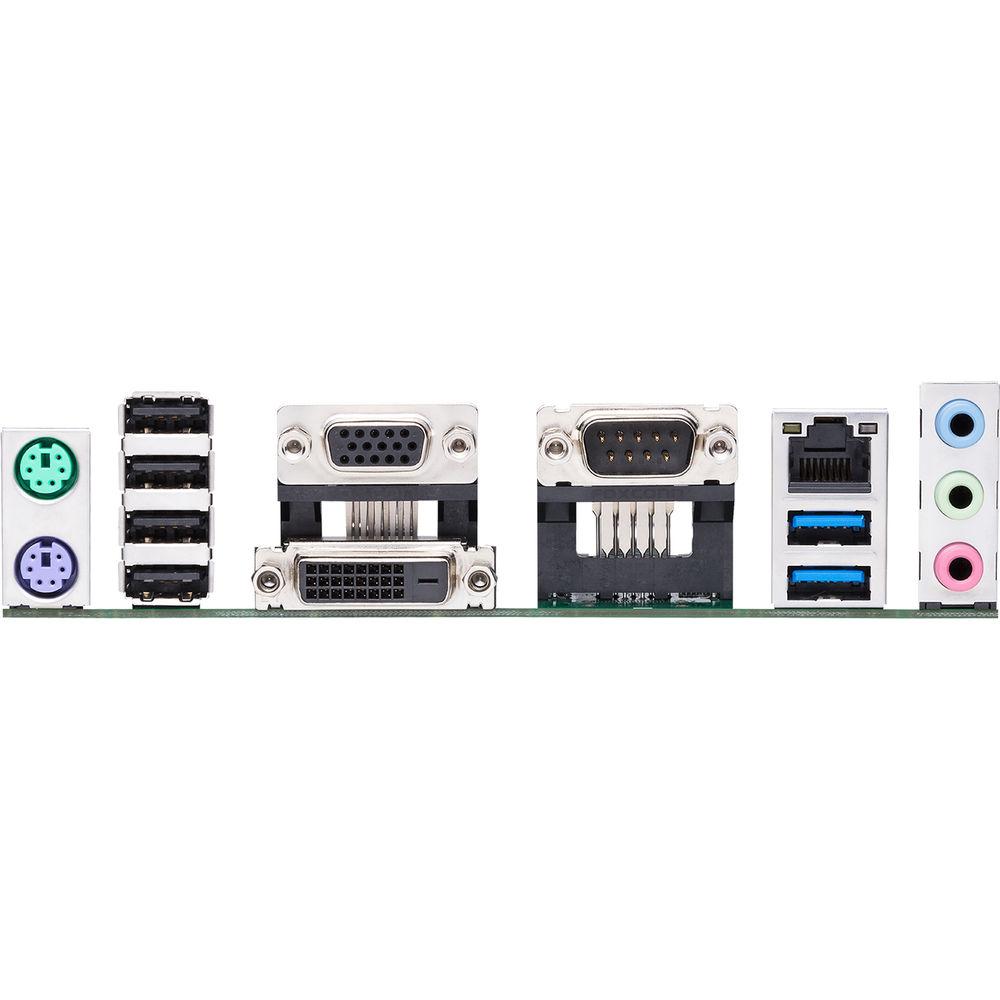

There are also a total of two USB 3.1 Gen 1 Type-A ports (back panel), one USB 3.1 Gen 1 connector (mid-board) that supports two additional USB 3.1 Gen 1 ports, four USB 2.0 Type-A ports (back panel), and one USB 2.0 connector (mid-board) that supports an additional two USB 2.0 ports. For those looking to expand their system using PCIe, there is one PCIe 3.0/2.0 x16 slot that runs at x16, two PCIe 2.0 x1 slots, and one PCI slot.
For delivering sharp, clear graphics, this motherboard supports Intel HD Graphics with DVI-D, and VGA outputs, both of which support a maximum resolution 1920 x 1200 @ 60 Hz. Integrated graphics supports two simultaneous displays, has access to up to 1024MB of shared memory, and also supports Intel InTru 3D, Quick Sync Video, Clear Video HD, and Intel Insider.
Using the 8-Channel Realtek ALC887 HD audio codec, the Prime H310M-C/CSM can support audio with higher fidelity than standard controllers. Audio can also be output using the integrated three audio outputs. ASUS' Prime H310M-C/CSM LGA 1151 Micro-ATX Motherboard is equipped with features to enhance system security, ensure consistent performance, make customization and management more efficient, and more. Included is an I/O shield, two SATA III 6 Gb/s cables, one M.2 screw package, and a supporting DVD. This motherboard is protected by a limited 3-year warranty. General Features - ASUS Corporate Stable Model
- ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. It offers up to 36 months of product life cycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center - server-grade IT management software.
- Internationally Certified Business Motherboard
- ASUS business motherboards are designed for enterprise use and certified by multiple international safety and environmental organizations, including UL and Blue Angel. ASUS business motherboards provide a safe, secure, and sustainable solution, making them a suitable choice for your business.
ASUS Shield - ASUS Shield
- Enhances system security from bottom to top.
- ASUS Self-Recovering BIOS
- ASUS-exclusive BIOS protection technology automatically recovers the system BIOS with a verified backup in the event of an update failure, preventing the need to replace or reinstall hardware.
- ASUS Secure Boot
- This ASUS business motherboard is set to check the firmware and signature of each piece of boot software.
- Trusted Platform Module (TPM)
- Hardware-based security offers better data protection, enhances network security, protects digital identities, and ensures platform integrity.
- Certified NIST SP 800-147
- This ASUS business motherboard is certified by the national computer security standards.
ASUS Reliant - ASUS Reliant
- Ensures consistent performance with the fine components and rigorous reliability testing.
- Troubleshooting Solution
- ASUS Debug header is a 10-1 pin low pin count (LPC) header for connecting to debug cards for faster, more efficient motherboard troubleshooting. When connected to an ASUS Debug Card, administrators can view error and debugging codes on the integrated LCD display, and get better idea of initialization and recovery processes. ASUS business motherboards provide a complete troubleshooting solution, making mass production faster and more cost effective.
- 24/7 Reliability Test
- Optimized for 24/7 operations, the motherboard is tested under temperature up to 113°F / 45°C and relative humidity up to 80% to ensure it can handle diverse temperature and humidity range of different location.
- Anti-Moisture Coating
- An moisture-resistant coating protects the motherboard in humid environments, such as factories, libraries, data centers, and internet cafes. It also minimizes internal corrosion by preventing adhesion and migration of moisture, prolonging the life of the motherboard.
- Anti-Sulfur Resistors
- Considering long-term reliability of commercial product, this ASUS business motherboard is equipped with anti-sulfur resistors. The resistors provide resistance to sulfuration by constructed in a high-grade ceramic body (aluminum oxide). With anti-sulfur resistors, ASUS business motherboards can be operated under harsh environments.
- LANGuard
- ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and anti-EMI surface-mounted capacitors to ensure a more reliable connection and better throughput, plus electrostatically guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.
- Overvoltage Protection
- An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
- Stainless-Steel Back I/O
- Corrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.
- ESD Guards
- ASUS ESD Guards prevent damage from electrostatic discharge, up to ±10kV for air discharge and ±15kV for contact discharge, arranged in an active-protective-circuit design that prolongs the life of components.
ASUS Management Suite - ASUS Management Suite
- Makes customization and management more efficient.
- Event Log
- A built-in event log enables easier troubleshooting by capturing useful system information.
- BIOS Updates
- Update status, latest version, and update time.
- AC Power Loss
- Abnormal power loss events.
- RTC Reset
- Time of real-time-clock (RTC) reset.
- Chassis Intrusion
- Record of when the chassis is opened.
- Hardware Changes
- Modifications to CPU, memory, or HDDs.
- Hardware Status
- USB overcurrent, CPU overtemperature, and CPU overvoltage events.
ASUS Control Center - ASUS Control Center
- ASUS Control Center is centralized IT management software designed to provide a convenient, effective, secure, and cost-saving solution for enterprises, small and medium-sized businesses, and data centers in any type of industry. With the help of ASUS Control Center, your organization will be equipped to succeed even in challenging modern IT environments.
- Optimize IT Endpoint Management
- Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely.
- Automate IT Maintenance
- Allows IT staff to schedule automatic updates of the latest BIOS, software, and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility.
- Securely Manage All of Endpoints
- Securely manage endpoint configuration, portable storage, access and Windows software applications by enabling them to create grouping rules on individual devices.
ASUS Commercial BIOS Kit - BIOS Value Edit Tool
- Customize the BIOS options.
- BIOS Boot Logo Tool
- Brand your builds with a customized boot logo.
- OEM Activation (OA) Tools
- Add or remove the OEM activation key.
- Desktop Management Interface (DMI)
- Easily add customer information, such as company name, to the BIOS
- Intel Management Engine (Intel ME) Driver
- Update the Management Engine without flashing the whole BIOS.
User-Friendly Assembly - Box Headers
- All USB 3.1 Gen 1 and 2.0 headers are box style, enabling fast connector installation and preventing pin damage.
- Fixed-Position Connectors
- Connector positions on ASUS business motherboards remain consistent across product generations, protecting training, manufacturing, and investments in supporting hardware.
- Color-Coded Connections
- Color-coded connectors enable easy identification and cable matching, speeding up the production line.
- Q-Slot - PCI Express Component Removal
- The large winged clip is easy to reach and easy to operate. Just press the Q-Slot clip lightly, and graphics card just pop out. Installing or removing even the biggest graphics cards is user-friendly.
- Q-DIMM - Memory Removal
- Even if you work with a smaller case, just push down on the one-sided clip and push or pull RAM modules in or out. Removing memory is that simple!
Intel CPU and Chipset Features - Intel H310 Chipset
- The Intel H310 is a single-chipset design that supports 8th Generation Intel Core LGA 1151 processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, the H310 chipset provides a maximum of four USB 3.1 Gen 1 ports, four SATA 6 III Gb/s ports, and 10 Gb/s M.2 and PCIe 2.0 lane-speed support, for faster data retrieval. Intel H310 also supports integrated-graphics, so you'll enjoy sharp graphics performance.
- Ready for 8th Generation Intel LGA 1151 Core Processors
- This motherboard supports 8th Generation Intel Core processors in the LGA1151 package, with integrated graphics, memory, and PCI Express controllers to support onboard graphics output with dedicated chipsets, dual-channel (2-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance.

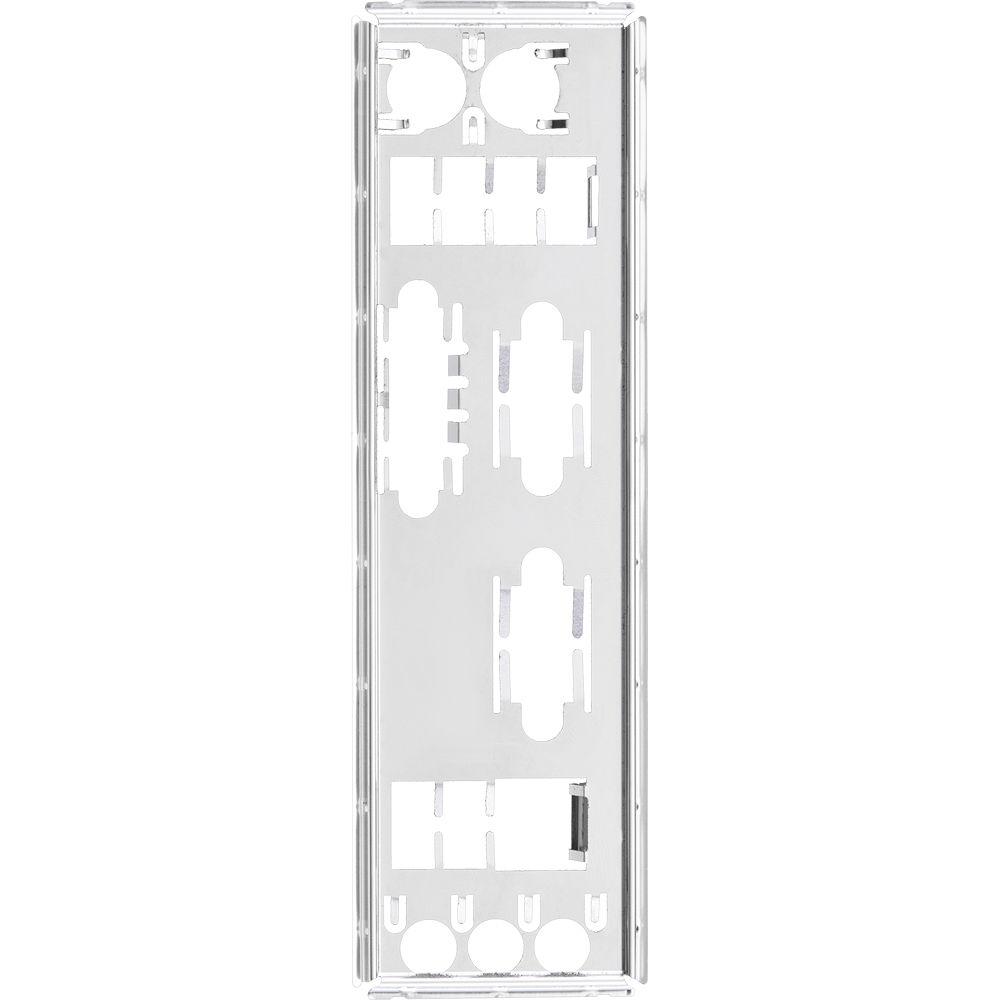

UPC: 889349892442 In the Box ASUS Prime H310M-C/CSM LGA 1151 Micro-ATX Motherboard 2 x SATA III 6 Gb/s Cables I/O Shield M.2 Screw Package Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS Prime H310M-C CSM LGA 1151 Micro-ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS PRIME H310M-C/CSM Specs | | | Chipset | Intel H310 | | CPU Socket | LGA 1151 | | | | USB | 2 x USB 3.1 Gen 1 Type-A
4 x USB 2.0 Type-A | | Display | 1 x DVI-D
1 x VGA | | Audio | 3 x 3.5 mm | | Ethernet / Controller | 1 x Realtek RTL8111H Gigabit | | PS/2 | 2 x PS/2 | | | | Memory Slots | 2 x 288-Pin | | Memory Support | DDR4 2133, 2400, 2666 MHz | | Maximum Capacity | 32 GB | | Channel Architecture | Dual Channel | | ECC Support | Non-ECC Unbuffered | | | | SATA | 4 x SATA III | | M.2 | 1 x M Key 2260, 2280 (PCIe (Unspecified), SATA (Unspecified)) | | U.2 | None | | RAID Support | None | | | | Expansion Slots | 1 x PCIe 3.0 x16
2 x PCIe 2.0 x1
1 x PCI | | USB | 1 x USB 3.1 Gen 1 Header (Supports 2 USB Type-A Ports)
1 x USB 2.0 Header (Supports 2 USB Type-A Ports) | | Multi-GPU Support | None | | Air Cooling | 1 x 4-Pin System
1 x 4-Pin CPU | | Power Connectors | 1 x 24-Pin Mainboard
1 x 4-Pin CPU | | Security | Chassis Intrusion, TPM Module | | Audio | 1 x Speaker | | Diagnostics | Clear CMOS | | Legacy | 2 x Serial
1 x Parallel | | | | I/O Connection Headers | AAFP | | | | Audio Codec | Realtek ALC887 (8-Channel) | | | | Form Factor | Micro-ATX | | Dimensions | 9.6 x 7.6" / 24.38 x 19.30 cm | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 10.7 x 10.3 x 2.1" |
