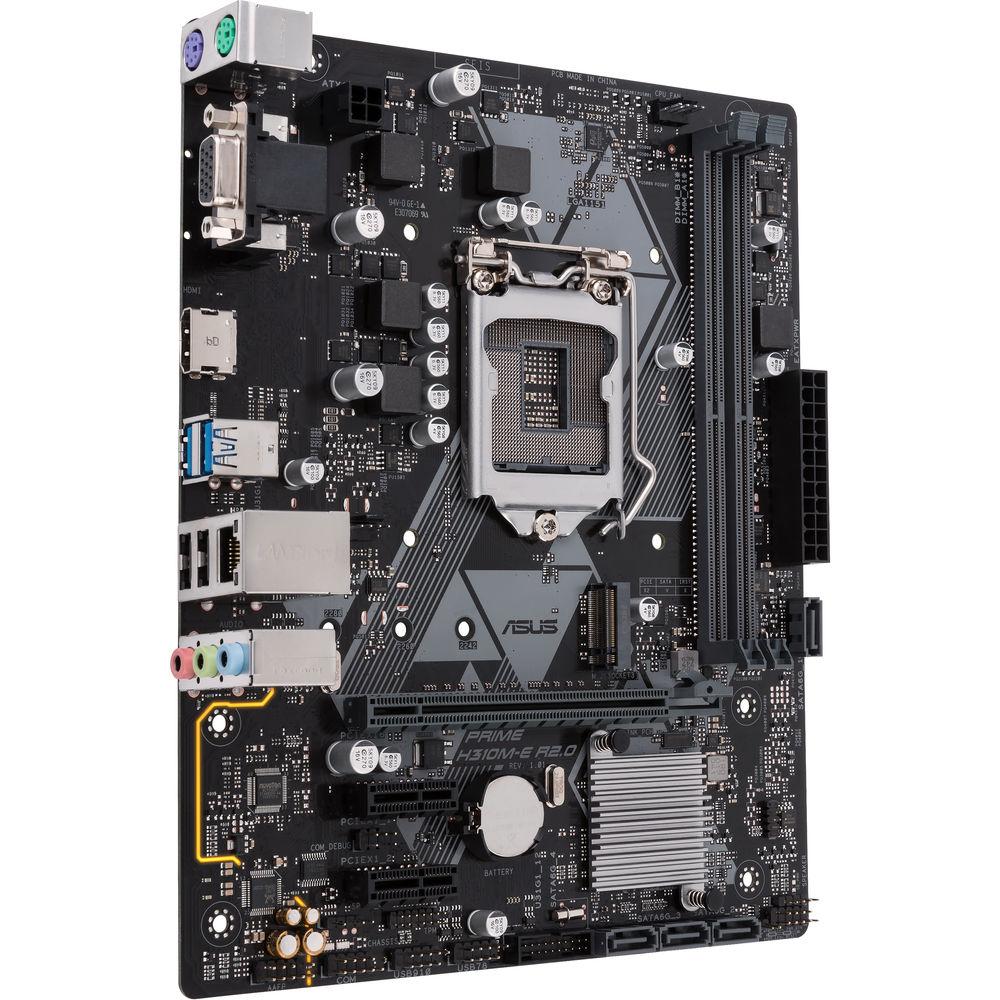

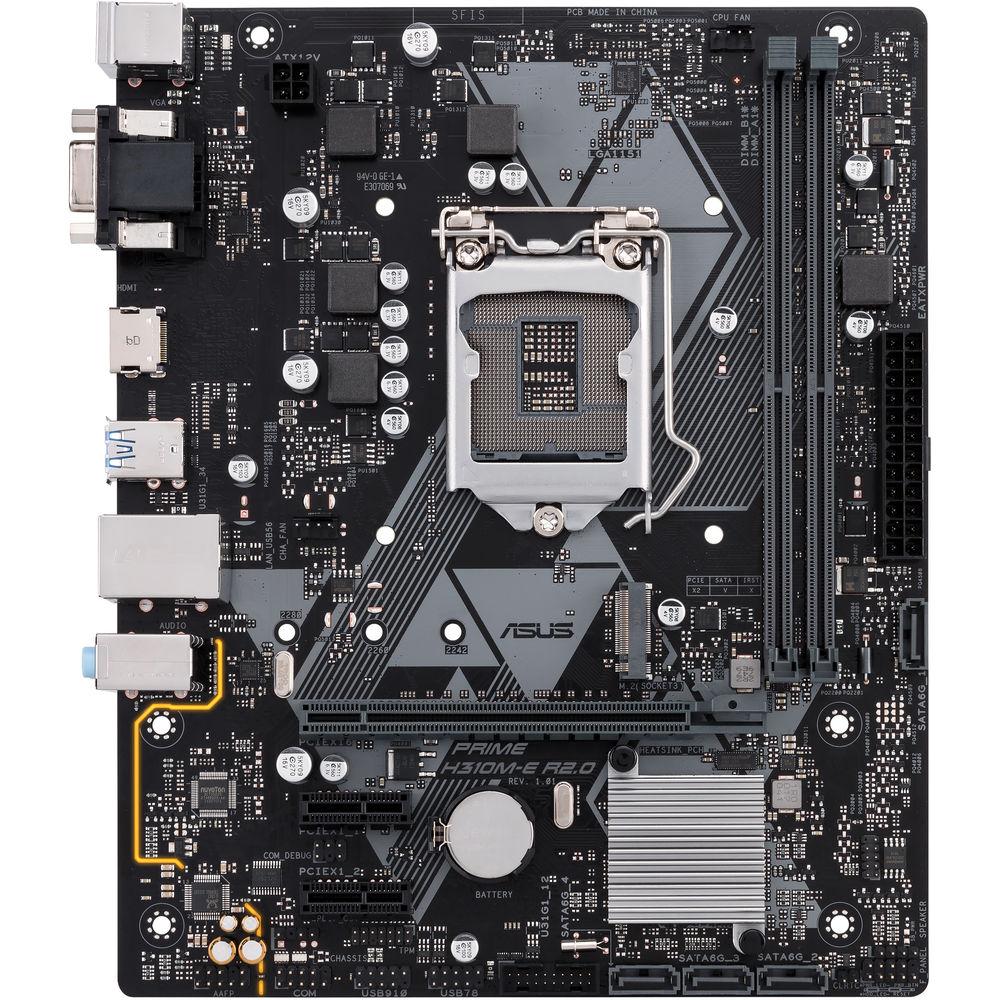

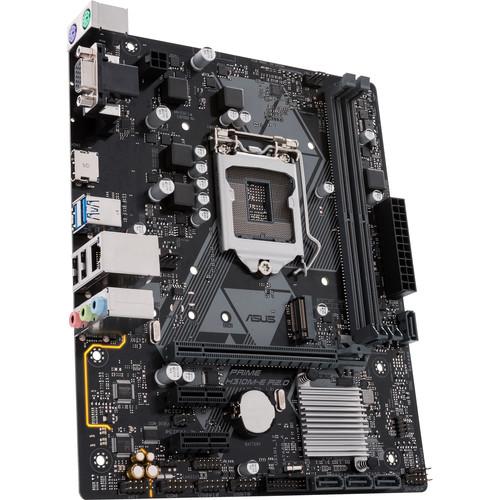

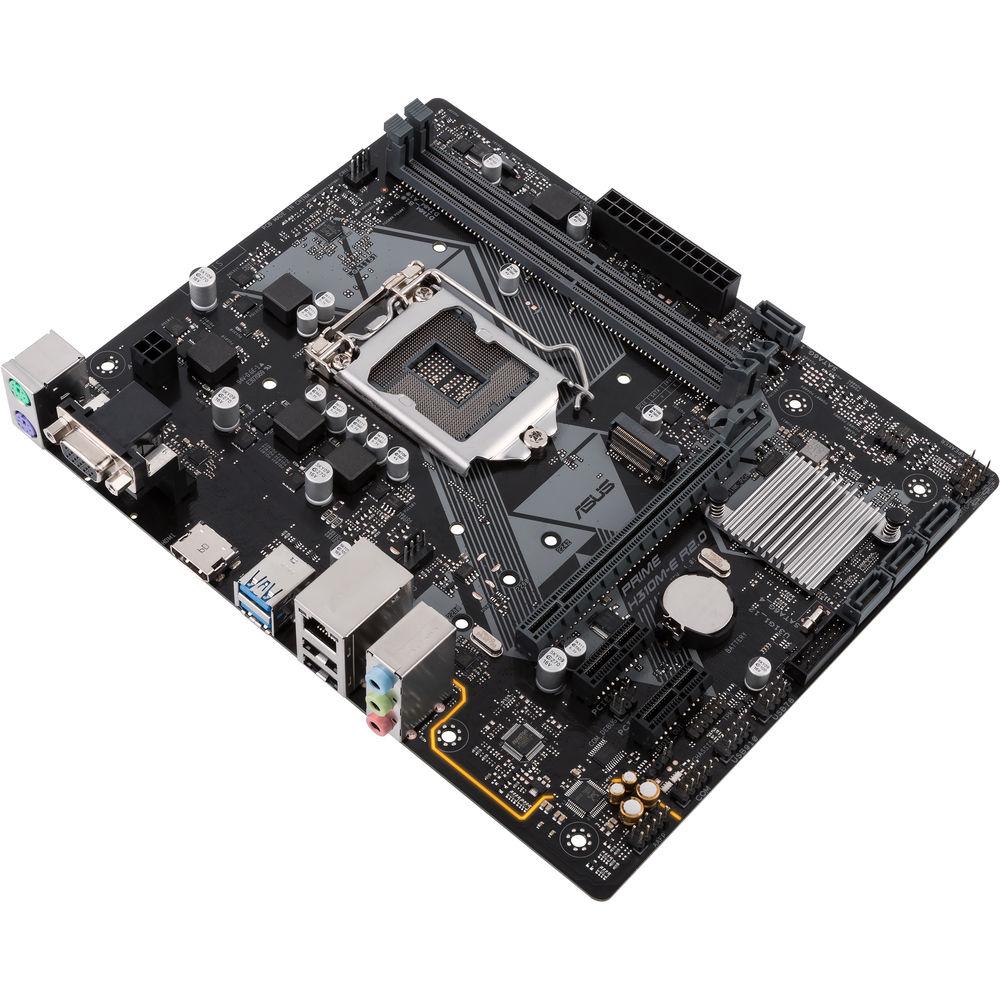

Product description Powered exclusively by 8th Generation Intel Core i7, i5, i3, Pentium, and Celeron processors, the Prime H310M-E R2.0 Micro-ATX Motherboard from ASUS provides a solid foundation for your first build, plus the flexibility for growth, all of which are backed by automated system tuning, cooling controls, and onboard audio. This motherboard is designed to fit in micro-ATX sized cases, supports the LGA 1151 socket, the Intel H310 chipset, and is compatible with Windows 10 (64-bit).
The micro-ATX form factor of the Prime H310M-E can support up to 32GB of DDR4 RAM over two dual-channel slots, or 16GB per slot at speeds of 2666, 2400, and 2133 MHz non-ECC unbuffered memory. For storage, there are four SATA 6 Gb/s ports and one M.2 Socket 3, with M key, type 2242, 2260, and 2280 for both SATA and PCIe 2.0 x2 drives.

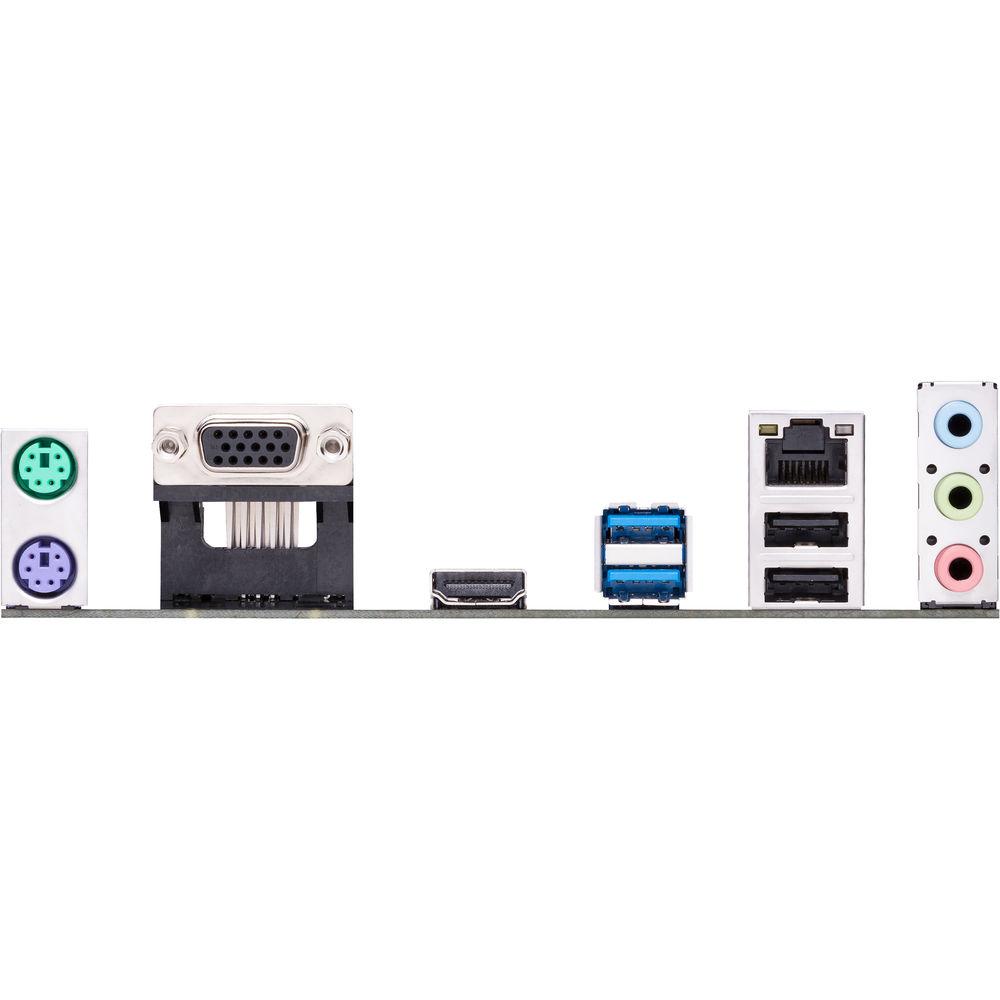

There are two USB 3.1 Gen 1 Type-A ports (back panel), one USB 3.1 Gen 1 connector (mid-board) that supports two additional USB 3.1 Gen 1 ports, two USB 2.0 Type-A ports (back panel), and two USB 2.0 connectors (mid-board) that support an additional four USB 2.0 ports. For those looking to expand their system using PCIe, there is one PCIe 3.0/2.0 x16 slot that runs at x16, plus two PCIe 2.0 x1 slots.
For delivering sharp, clear graphics, this motherboard supports Intel HD Graphics with HDMI 1.4b and VGA outputs. HDMI 1.4b supports a maximum resolution of 4096 x 2160 @ 24 Hz or 2560 x 1600 @ 60 Hz, and VGA supports a maximum resolution of 1920 x 1200 @ 60 Hz. Integrated graphics has access to up to 1024MB of shared memory and also supports Intel InTru 3D, Quick Sync Video, Clear Video HD, and Intel Insider.
Using the 8-Channel Realtek ALC887 HD audio codec, the Prime H310M-E can support audio with higher fidelity than standard controllers. Audio can also be output using the integrated three audio outputs or S/PDIF output header. ASUS' Prime H310M-E LGA 1151 Micro-ATX Motherboard is equipped with features such as SafeSlot Core, LANGuard, overvoltage protection, a stainless steel back, DIGI+ VRM 4 phase digital power design, AI Suite 3, Ai Charger, CrashFree BIOS 3, EZ Flash 3, UEFI BIOS, and more. Included is an I/O shield, two SATA 6 Gb/s cables, one M.2 anchor, and a supporting DVD. Tune It Your Way - Improved DDR4 Stability
- ASUS OptiMem preserves memory signal integrity by routing traces to the optimal PCB layer, and their T-Topology trace layout ensures time-aligned signaling by balancing trace lengths between memory slots. These enhancements allow the Prime 300 Series to support a wide range of memory kits, while providing your rig with the stability it needs to deal with any type of workload, whether you're gaming or running intensive applications.
- All-Round Energy Efficiency
- With the Energy Processing Unit (EPU), you'll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away Mode, a smart setting that creates an extreme energy-savings scenario by shutting down unused I/O controllers.
- Flexible Cooling Controls
- Prime 300 Series motherboards offer comprehensive control over system fans via the included Fan Xpert software. Auto-Tuning mode intelligently configures all parameters with a single click.
- Cooler by Design
- The Prime 300 series features the most comprehensive cooling controls ever, configurable via ASUS Fan Xpert software or the UEFI BIOS.
- Media-Acclaimed UEFI BIOS
- The UEFI BIOS is an early waypoint on any PC-building journey. Its Q-Fan Control can configure the fan's operating speed manually, or use the easy pre-configured fan profiles to select Standard, Silent, Turbo or Full Speed modes, plus automatic switch to full speed if the temperature hits 75°C.
Ultrafast Connectivity - USB 3.1 Gen 1 Front-Panel Connector
- USB 3.1 Gen 1 is right where you need it, with two super-speed headers for the front panel. Experience data-transfer speeds up to 10X faster than USB 2.0 with instant plug-and-play connectivity, and avoid back-breaking contortions in the hunt for hard-to-reach rear ports.
Reliable Stability & Compatibility - Built to Last
- ASUS motherboards are extensively tested for compatibility with more than 1,000 components and devices, and each new model undergoes a minimum of 8,000 hours of strict validation, offering the peace of mind of knowing that your ASUS motherboard is fit for all environments and applications. Choosing ASUS is an assurance of trouble-free DIY experiences.
- 5X Protection III
- Prime 300 series motherboards are engineered with 5X Protection III, which is designed to be a hardware safeguard for long-term durability regarding its components and circuitry.
- SafeSlot Core
- SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, SafeSlot Core provides up to a 1.6x stronger retention and up to a 1.3x greater shearing resistance than standard expansion slots. ASUS Prime motherboards have strengthened solder points around both the PCIe and DIMM pins.
- LANGuard
- ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors to help ensure a more reliable connection and better throughput, plus electrostatically guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.
- Overvoltage Protection
- An exclusive circuit design with built-in voltage regulators to help protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
- DIGI+ VRM
- ASUS-exclusive DIGI+ VRM intelligently delivers power to the processor based on real-time demands, reducing energy waste and improving system stability.
- DRAM Overcurrent Protection
- Onboard resettable fuses help prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to help safeguard the lifespan of your system and connected devices.
- Stainless-Steel Back I/O
- Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's up to three times longer than ordinary panels.
- ESD Guards
- ASUS ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to
|
Upload User Manual
Have you got an user manual for the ASUS Prime H310M-E R2.0 Micro-ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS PRIME H310M-E R2.0 Specs | | | Chipset | Intel H310 | | CPU Socket | LGA 1151 | | | | USB | 2 x USB 3.1 Gen 1 Type-A
2 x USB 2.0 Type-A | | Thunderbolt | None | | Display | 1 x HDMI
1 x VGA | | Audio | 3 x 3.5 mm | | Ethernet / Controller | 1 x Realtek RTL8111H Gigabit | | PS/2 | 2 x PS/2 | | | | Memory Support | DDR4 2133, 2400, 2666 MHz | | Maximum Capacity | 32 GB | | Channel Architecture | Dual Channel | | ECC Support | Non-ECC Unbuffered | | | | SATA | 4 x SATA III | | M.2 | 1 x M Key 2242, 2260, 2280 (PCIe (Unspecified), SATA (Unspecified)) | | U.2 | None | | Optane Memory Support | No | | RAID Support | None | | | | Expansion Slots | 1 x PCIe 3.0 x16 (x16 mode)
2 x PCIe 2.0 x1 | | USB | 1 x USB 3.1 Gen 1 Header (Supports 2 USB Type-A Ports)
2 x USB 2.0 Header (Supports 4 USB Type-A Ports) | | Multi-GPU Support | None | | Power Connectors | 1 x 24-Pin Mainboard
1 x 4-Pin CPU | | Audio | 1 x Speaker
1 x S/PDIF | | Diagnostics | Clear CMOS | | Legacy | 1 x Serial | | | | Audio Codec | Realtek ALC887 (8-Channel) | | | | Supported Operating Systems | Windows 10 (64-Bit) | | | | Form Factor | Micro-ATX | | Dimensions | 8.9 x 7.3" / 22.61 x 18.54 cm | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 20.1 x 10.9 x 9.9" |
