User Manual for ASUS Prime J4005I-C SoC Mini-ITX Motherboard Click to enlarge the picture
Contents of the user manual for the ASUS Prime J4005I-C SoC Mini-ITX Motherboard
- Product category: Motherboards ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Motherboards
 |
User manual for the ASUS Prime J4005I-C SoC Mini-ITX Motherboard contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|

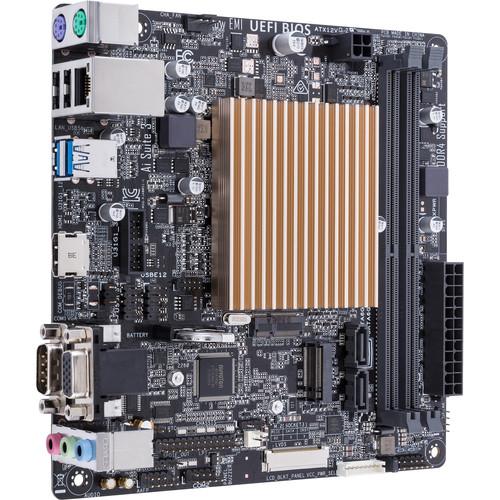

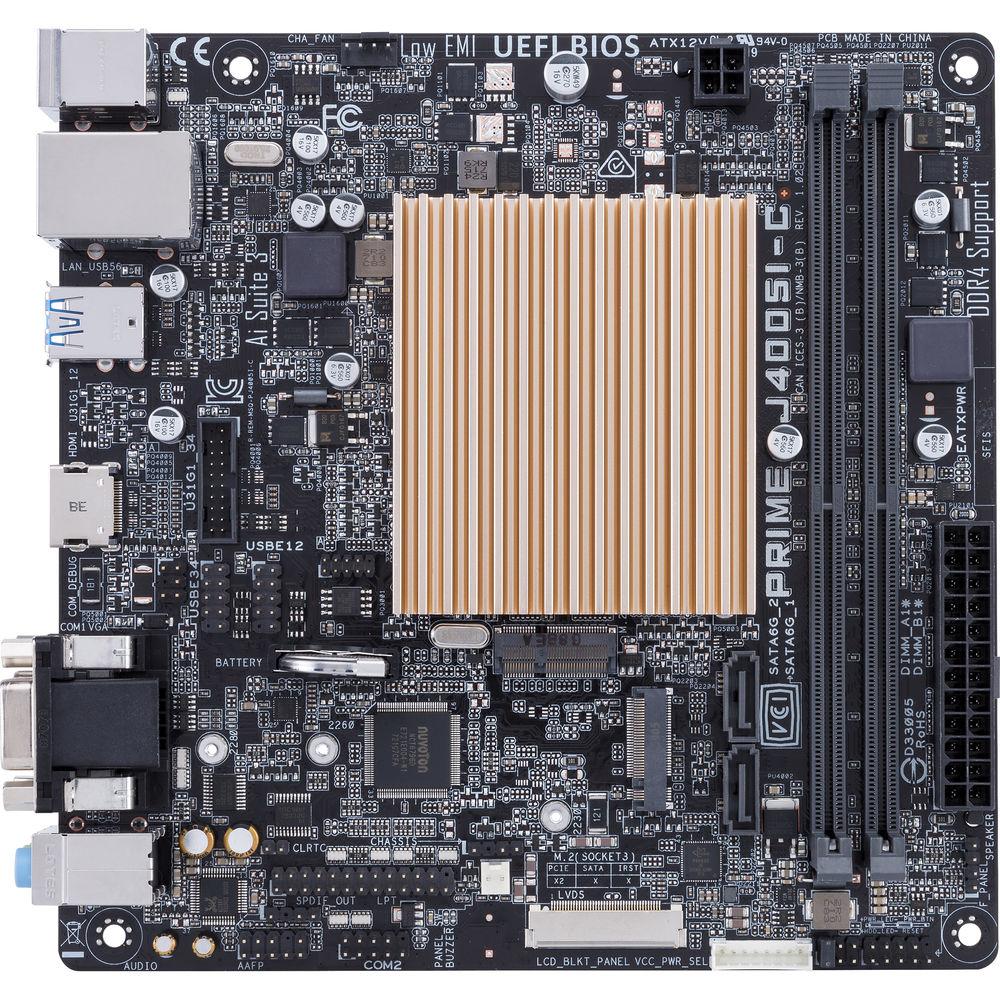

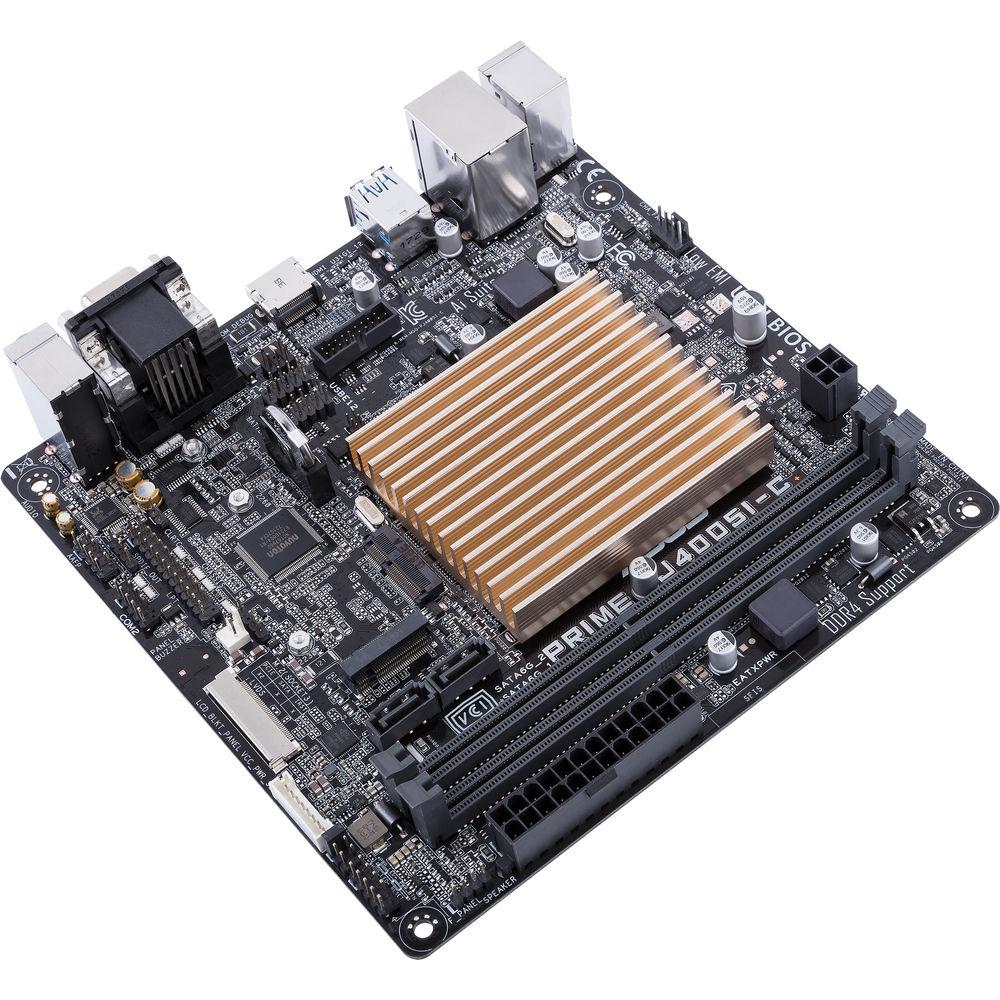

Product description The Prime J4005I-C SoC Mini-ITX Motherboard from Asus features a soldered-on 2.0 GHz Intel Celeron J4005 dual-core processor, designed for a low-power and fan-less build. It features two memory slots that support up to 8GB of 2400 MHz DDR4 RAM, two SATA III ports, and two M.2 slots, one of which is designed for M.2 Wi-Fi cards. This motherboard relies on integrated graphics, so there are no expansion slots; however, it has HDMI and VGA ports for connecting displays. Other integrated features include Realtek ALC887-VD2 8-Channel HD audio, Realtek RTL811H Gigabit LAN, as well as COM, LPT, and LVDS connectivity. - Protection
-
- Surge-protected networking
- Over-voltage protection
- ESD guards
- Over-current protection
- Stainless-steel back I/O
- Reliability
-
- Temperature and humidity test
- Thermal measurement test
- Insertion test
- Aging test
- Power consumption test
- Temperature and DC margin test
- Thermal shock test
- Non-operation shock test
- Burn-in test
- Installation test
- Drop test
- Salt and spray test
UPC: 889349899434 In the Box ASUS Prime J4005I-C SoC Mini-ITX Motherboard I/O Shield 2 x SATA III Cable 2 x M.2 Screw Package Limited 3-Year Warranty User Manual PDF 1.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS Prime J4005I-C SoC Mini-ITX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

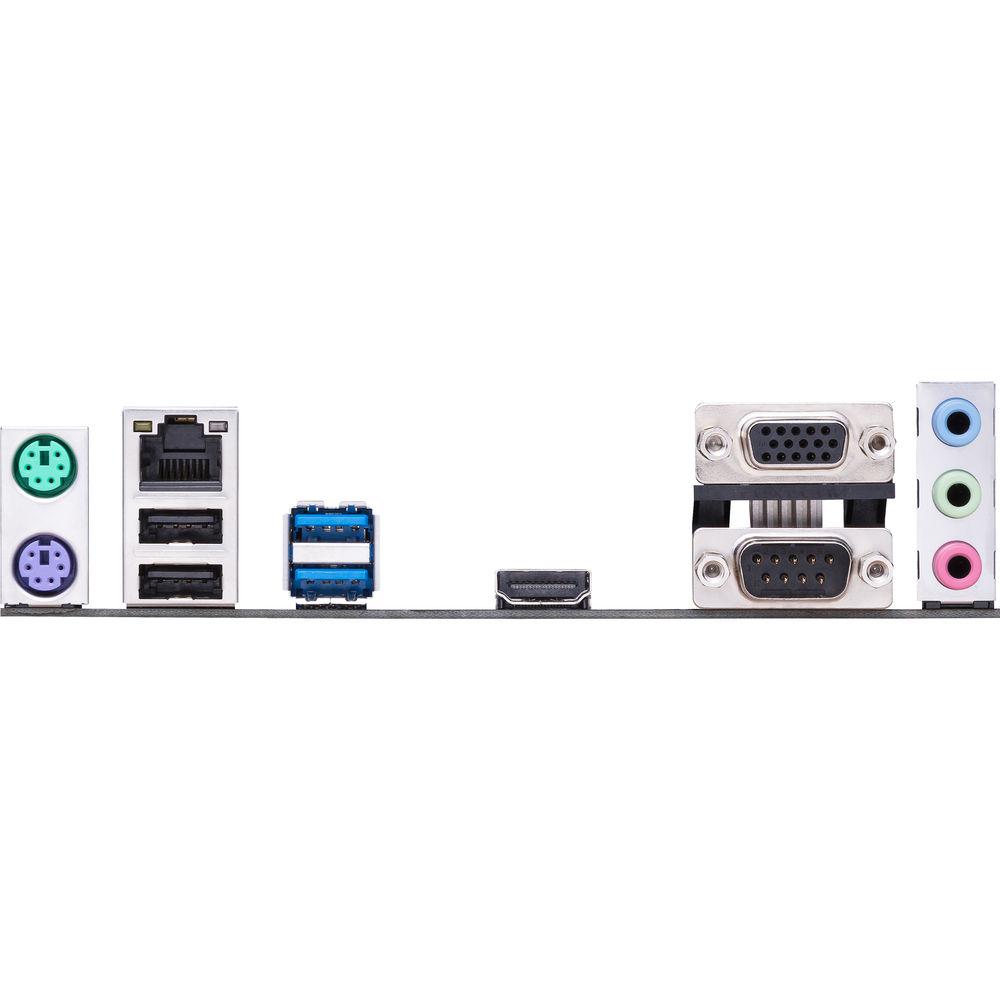

Technical parametersASUS PRIME J4005I-C Specs | | | USB | 2 x USB 3.1 Gen 1 Type-A
2 x USB 2.0 Type-A | | Display | 1 x VGA
1 x HDMI | | Audio | 3 x 3.5 mm | | Ethernet / Controller | 1 x Realtek RTL8111H Gigabit | | PS/2 | 2 x PS/2 | | Legacy | 1 x Serial | | | | Memory Slots | 2 x 288-Pin | | Memory Support | DDR4 2133, 2400 MHz | | Maximum Capacity | 8 GB | | Channel Architecture | Dual Channel | | ECC Support | Non-ECC Unbuffered | | | | SATA | 2 x SATA III | | M.2 | 1 x M Key 2260, 2280 (PCIe (Unspecified))
1 x E Key | | U.2 | None | | Optane Memory Support | No | | | | Expansion Slots | None | | USB | 2 x USB 3.1 Gen 1 Header (Supports 4 USB Type-A Ports)
1 x USB 2.0 Header (Supports 2 USB Type-A Ports) | | Multi-GPU Support | None | | Air Cooling | 1 x 4-Pin System | | Power Connectors | 1 x 24-Pin Mainboard
1 x 4-Pin CPU | | Security | Chassis Intrusion | | Audio | 1 x S/PDIF
1 x Speaker | | Diagnostics | Clear CMOS | | Legacy | 1 x Serial | | | | I/O Connection Headers | AAFP, USB 3.1 | | | | Audio Codec | Realtek ALC887-VD2 (8-Channel) | | | | Module Support | 1 E Key M.2 | | | | Supported Operating Systems | Windows 10 (64-Bit) | | | | Form Factor | Mini-ITX | | Dimensions | 6.7 x 6.7" / 170.18 x 170.18 mm | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 9.0 x 7.35 x 2.4" |
