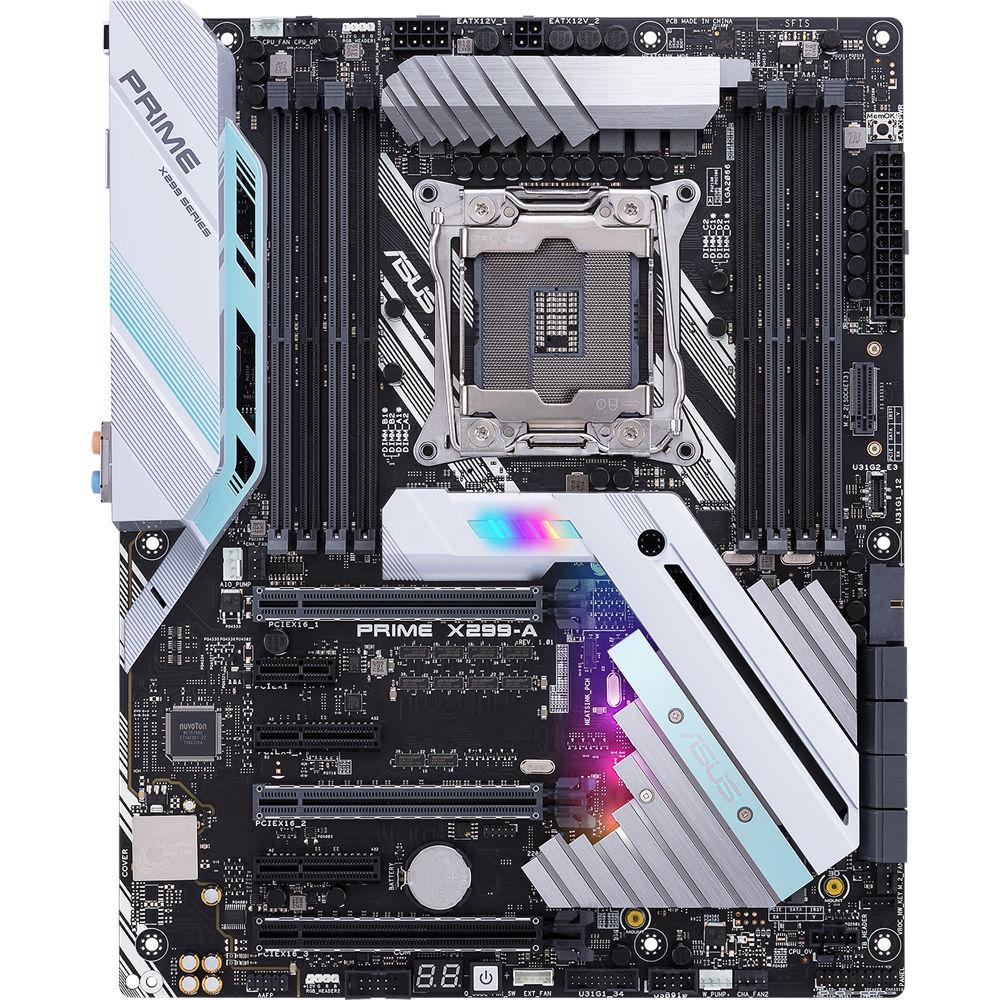

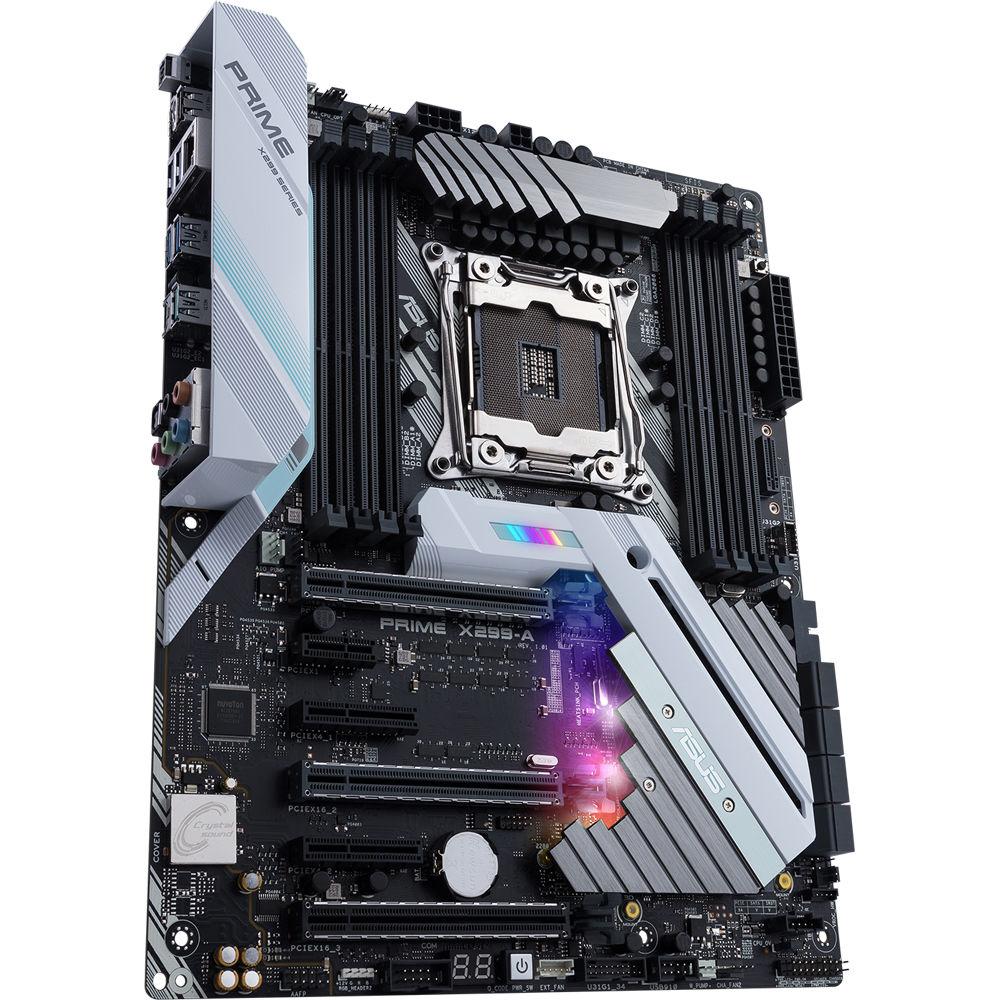

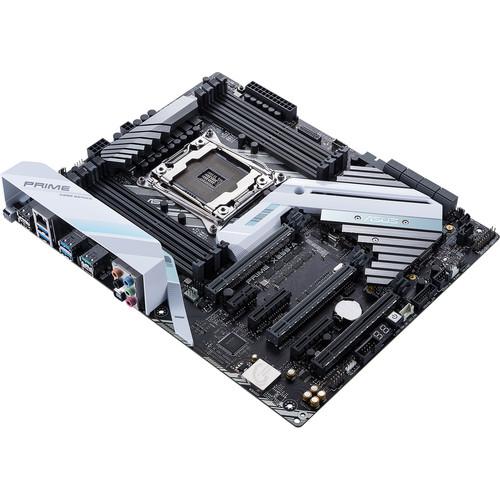

Product description The Prime X299-A ATX Motherboard from ASUS comes equipped with an LGA 2066 socket and Intel X299 chipset to support the performance from your Intel Core X-Series processor. The motherboard is armed with eight DDR4 memory slots along with two PCIe 3.0 x4 and three PCIe 3.0 x16 slots. With an optional Intel Core i9 processor installed, the motherboard can fully utilize all memory banks and operate the PCIe 3.0 x16 slots in a x16, x16, and x8 configuration. For storage, it comes outfitted with eight SATA connectors and two M.2 slots for accommodating PCIe- or SATA-based SSDs.

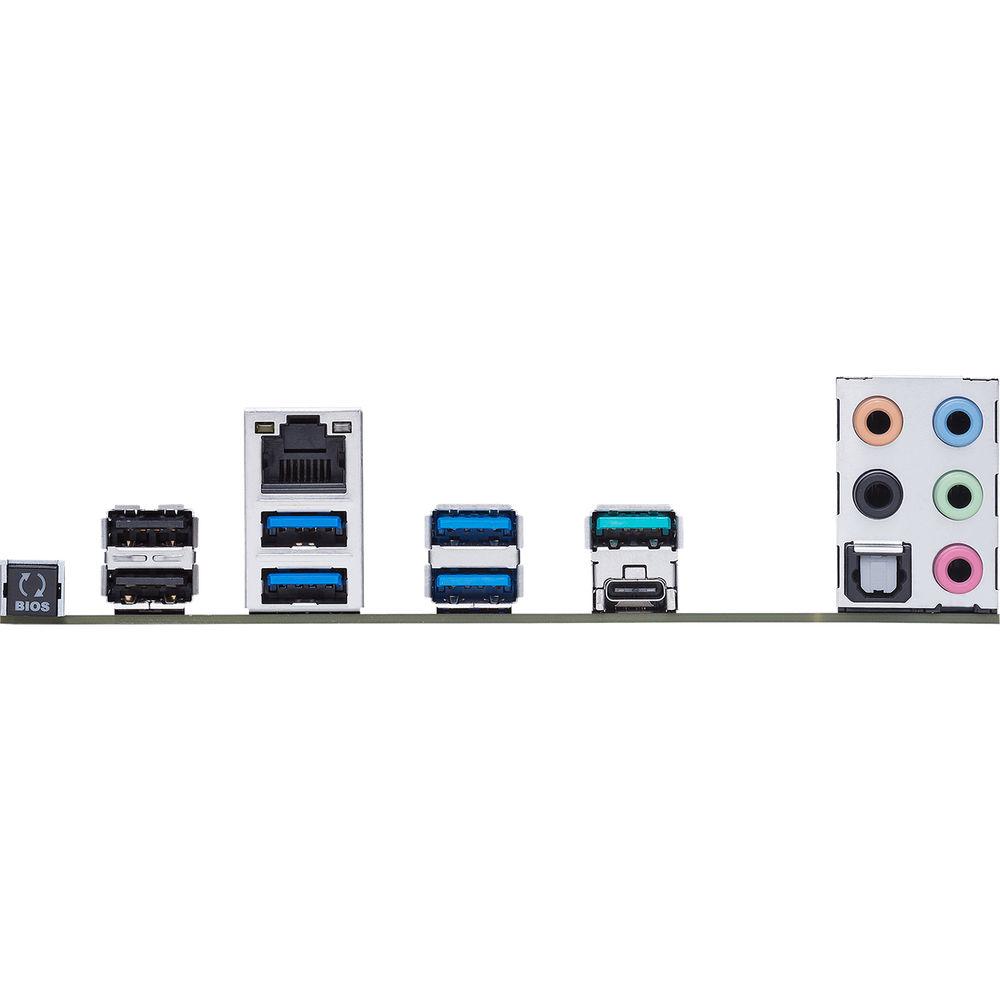

The ASUS Prime X299-A motherboard connects to your printers, external storage drives, and other USB devices via its four USB 3.0, two USB 2.0, and two USB 3.1 ports. Both of the USB 3.1 ports feature up to 10 Gb/s transfer rates, and one of these ports has a USB Type-C interface, which lets you connect a USB-C cable on the first try. Other notable connections include a Gigabit Ethernet port and six audio jacks that are powered by a Realtek ALC S1220A audio processor. The motherboard also has internal I/O headers, so you can provide your system with additional USB 3.1, USB 3.0, and USB 2.0 ports as well as a Thunderbolt 3 port with an add-on PCIe card.
ASUS helps you overclock your unlocked Intel Core X-series processor by offering liquid-cooling support and providing ASUS PRO Clock II technology. Aside from enhancing the processor's performance, Aura Sync is on board to illuminate the insides of your case with RGB LEDs. Additional RGB LED strips can be installed and synced to the built-in LEDs via two Aura RGB headers. - Intel Core X-Series Processors for LGA 2066 Socket
- The LGA 2066 socket supports Intel Core X-series processors that sport four, six, and higher core counts. Four-core X-Series CPUs support dual-channel memory configurations and offer up to sixteen PCIe 3.0 lanes. With six-core and above, the motherboard can handle quad-channel memory builds, while the processor delivers up to 44 PCIe 3.0 lanes.
- Intel X299 Chipset
- The Intel X299 chipset supports LGA 2066-socket Intel Core X-series processors. It provides stability and performance by utilizing serial point-to-point links, allowing increased bandwidth. Additionally, X299 provides a maximum of 10 USB 3.0 ports and 8 SATA 6 Gbps ports along with 32 Gbps M.2 support for faster data retrieval.
- 5-Way Optimization
- One click takes care of complex tuning. ASUS 5-Way Optimization dynamically optimizes essential aspects of the system, providing overclocking and cooling profiles that are tailored for your rig.
- Automated tuning utility optimizes overclocking and cooling profiles
- Fans stay quiet for everyday computing, and deliver optimal airflow when the system is crunching through CPU or GPU-intensive tasks
- Stress test allows users to optimize and overclock for CPU or memory-centric workloads
- Cooling Support
- The Prime X299-A comes with three 4-pin fan headers that support PWM or DC fans. Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling. One of these headers can be used for self-contained water-cooling setup. Additionally, a dedicated header can supply over 3A of current to a high-performance PWM or DC water pump. Other notable features include three thermal-probe headers as well as an integrated circuit for protecting each fan header from over-temperature and over-current.
- Audio
- The Realtek S1220A audio processor features a 120dB signal-to-noise ratio for the stereo line-out and a 113dB SNR for the line-in. Additionally, an impedance-sensing circuit automatically adjusts the gain to ensure an optimal volume range for your headphones. Crystal Sound 3 includes power pre-regulators, audio shielding, separate layers for left and right tracks, integrated amplifier, de-pop circuit, and Japanese-made capacitors.
- Aura Sync
- ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as sold-separately strips connected to the onboard RGB headers. The presets offered are Static, Breathing, Strobing, Rainbow, Color Cycle, Comet, Flash & Dash, Wave, Glowing Yo Yo, Starry Night, Music Effect, and CPU temperature.
- Additional Features
-
- TurboV Processing Unit (TPU) is an automated system-tuning utility for fine-tuning voltages, monitoring system stats, and adjusting overclock parameters
- Energy Processing Unit (EPU) provides system-wide power savings by automatically optimizing power consumption and offering an Away mode, which shuts down unused I/O controllers
- Fan Expert 4 is compatible with liquid- and air-cooling solutions and intelligently configures all parameters with a single click
- Digi+ Power Control delivers real-time control over voltage droop, switching frequency, and power-efficiency settings to fine-tune CPU voltage regulation
- Turbo Core app lets you assign applications to specific processor cores
- UEFI BIOS has EZ and Advanced modes to help you find the system's settings, quickly and easily
- Optimized trace paths for the memory banks help with time-aligned signaling and minimal crosstalk, enabling support for fast memory speeds
- ASUS PRO Clock II technology extends CPU and memory overclocking margins by enhancing voltage and base-clock overclocking controls
- M.2 slot supports up to 32 Gbps data-transfer speeds via PCIe 3.0 x4
- M.2 heatsink helps reduces temperatures by up to 68°F / 20°C for M.2 drives

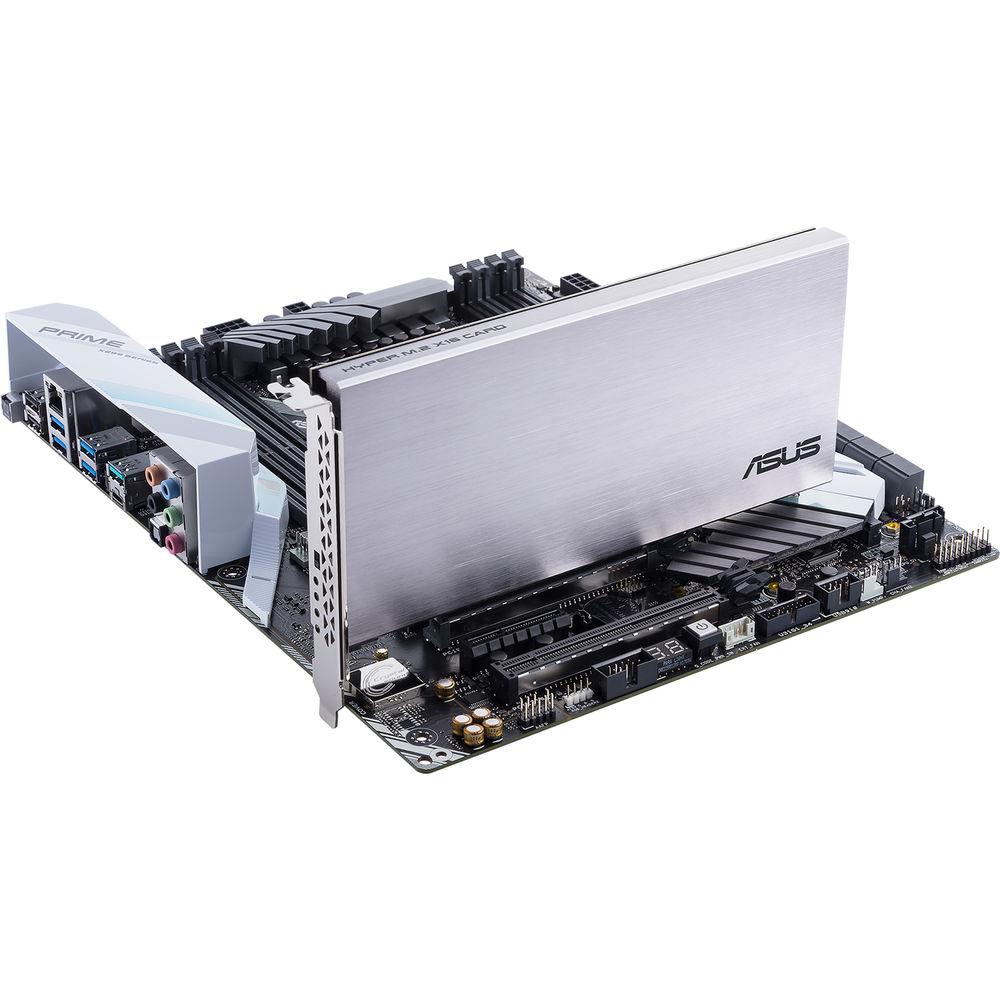

- Virtual RAID on CPU (VROC) supports up to four M.2 drives configured in a bootable RAID array via an optional ASUS Hyper M.2 X16 card
- Intel Optane memory ready for accelerating attached storage drives
- USB 3.1 header for supporting additional USB 3.1 ports
- Thunderbolt 3 ready with an onboard header that supports a user-supplied ThunderboltEX 3 card
- Intel Ethernet port with LANGuard protection and Turbo LAN optimization provide high TCP and UDP throughputs for fast, smooth data transfers
- SafeSlot design and additional solder points to support heavy graphics cards
- Dedicated 3D mounts on the motherboard makes installing 3D-printed parts easy
UPC: 889349769430 In the Box ASUS Prime X299-A LGA 2066 ATX Motherboard Q-Shield Vertical M.2 Bracket Set 4 x SATA 6 Gb/s Cables Package of M.2 Screws Support DVD SLI HB Bridge (2-Way-M) Q-Connector Limited 3-Year Warranty User Manual PDF 12.2mb More info from ASUS Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS Prime X299-A LGA 2066 ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS PRIME X299-A Specs | | | Chipset | Intel X299 | | CPU Socket | LGA 2066 | | | | USB | 1 x USB 3.1 Gen 2 Type-A
1 x USB 3.1 Gen 2 Type-C
4 x USB 3.1 Gen 1 Type-A
2 x USB 2.0 Type-A | | Display | None | | Audio | 5 x 3.5 mm
1 x S/PDIF | | Ethernet / Controller | 1 x Intel I219V Gigabit | | Buttons | BIOS Flashback | | | | Memory Slots | 8 x 288-Pin | | Memory Support | DDR4 2133, 2400, 2666, 3600, 4000 MHz | | Maximum Capacity | 128 GB | | ECC Support | Non-ECC Unbuffered | | | | SATA | 8 x SATA III | | M.2 | 1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA III)
1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4, SATA III) | | U.2 | None | | RAID Support | RAID 0, 1, 5, 10 | | | | Expansion Slots | 3 x PCIe 3.0 x16
2 x PCIe 3.0 x4 | | USB | 2 x USB 3.1 Gen 1 Header (Supports 4 USB Type-A Ports)
2 x USB 2.0 Header (Supports 4 USB Type-A Ports) | | Multi-GPU Support | 2-Way
3-Way
4-Way NVIDIA SLI
4-Way AMD CrossFireX | | Air Cooling | 2 x 4-Pin CPU
2 x 4-Pin System | | Liquid Cooling | 2 x 4-Pin Pump | | Power Connectors | 1 x 24-Pin Mainboard
1 x 8-Pin CPU
1 x 4-Pin CPU | | LED Header | 2 x RGB | | Diagnostics | Clear CMOS, CPU Overclock, Power, RAM Check | | Add-On | 1 x Thunderbolt Card Header | | | | I/O Connection Headers | AAFP | | | | Audio Codec | Realtek S1220A (8-Channel) | | | | Supported Operating Systems | Windows 10 | | | | Form Factor | ATX | | Dimensions | 12.0 x 9.6" / 30.5 x 24.4 cm | | | | Package Weight | 3.8 lb | | Box Dimensions (LxWxH) | 13.0 x 10.5 x 2.9" |
