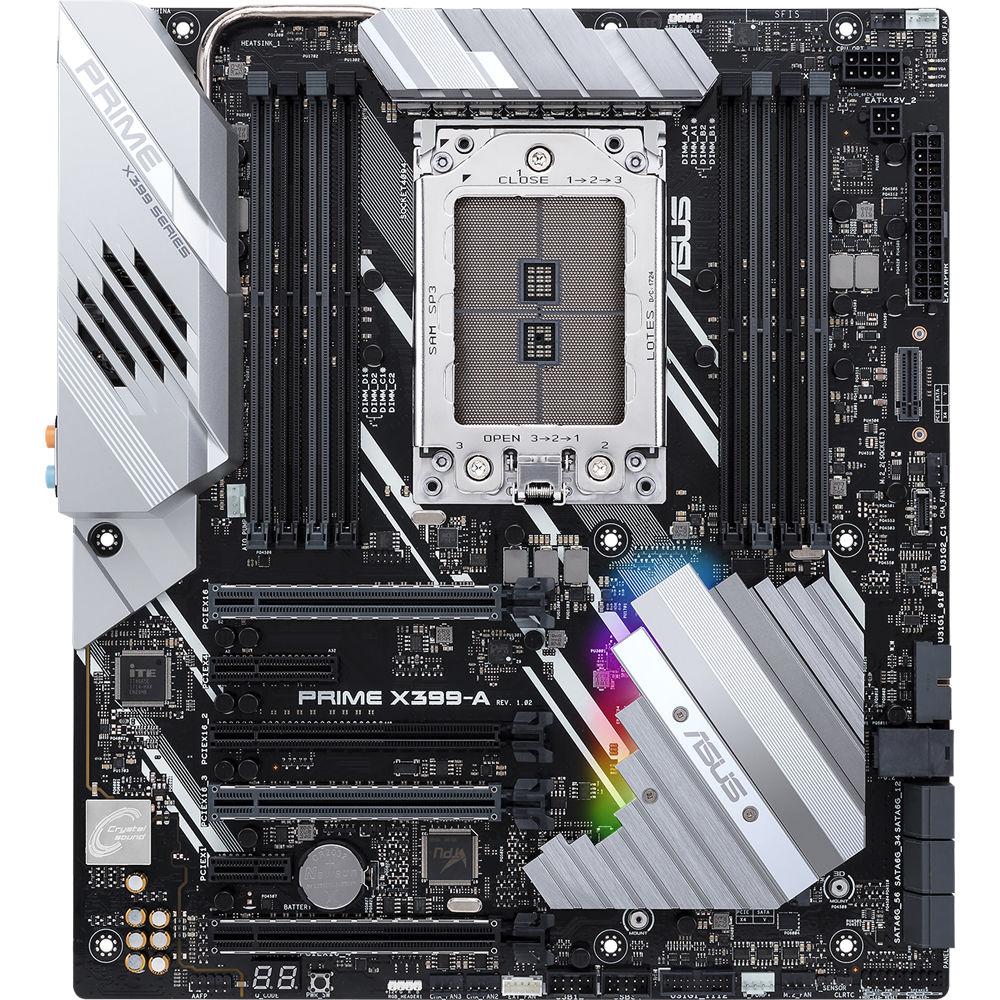

Product description Ready for AMD Ryzen Threadripper processors, the Prime X399-A TR4 Extended ATX Motherboard from ASUS allows users to enjoy the benefits of customization and tuning, with controls made easily accessible for a strong DIY PC experience. It provides users with 5-Way Optimization, 5X Protection III, AURA SYNC, native SATA III, M.2 and U.2 support, 10 Gb/s USB 3.1, the UEFI BIOS, and more. This motherboard is designed to fit in Extended ATX (EATX) sized cases, supports the TR4 socket, the AMD X399 chipset, and is compatible with Windows 10 (64-bit).
The EATX form factor of the Prime X399-A can support 128GB of DDR4 RAM, or 16GB in each of the eight 288-pin DIMM slots at memory speeds of 3200 (OC), 3000 (OC), 2800 (OC), 2666, 2400, and 2133 MHz. It also has a total of 6 x SATA III 6 Gb/s ports, 1 x M.2 Socket 3 connector that supports Type 2242/2260/2280/22110 SATA and PCIe 3.0 x4 SSDs, 1 x M.2 Socket 3 connector that supports Type 2242/2260/2280 PCIe 3.0 x4 and SATA SSDs, and 1 x U.2 port that supports NVMe PCIe 3.0 x4 storage.

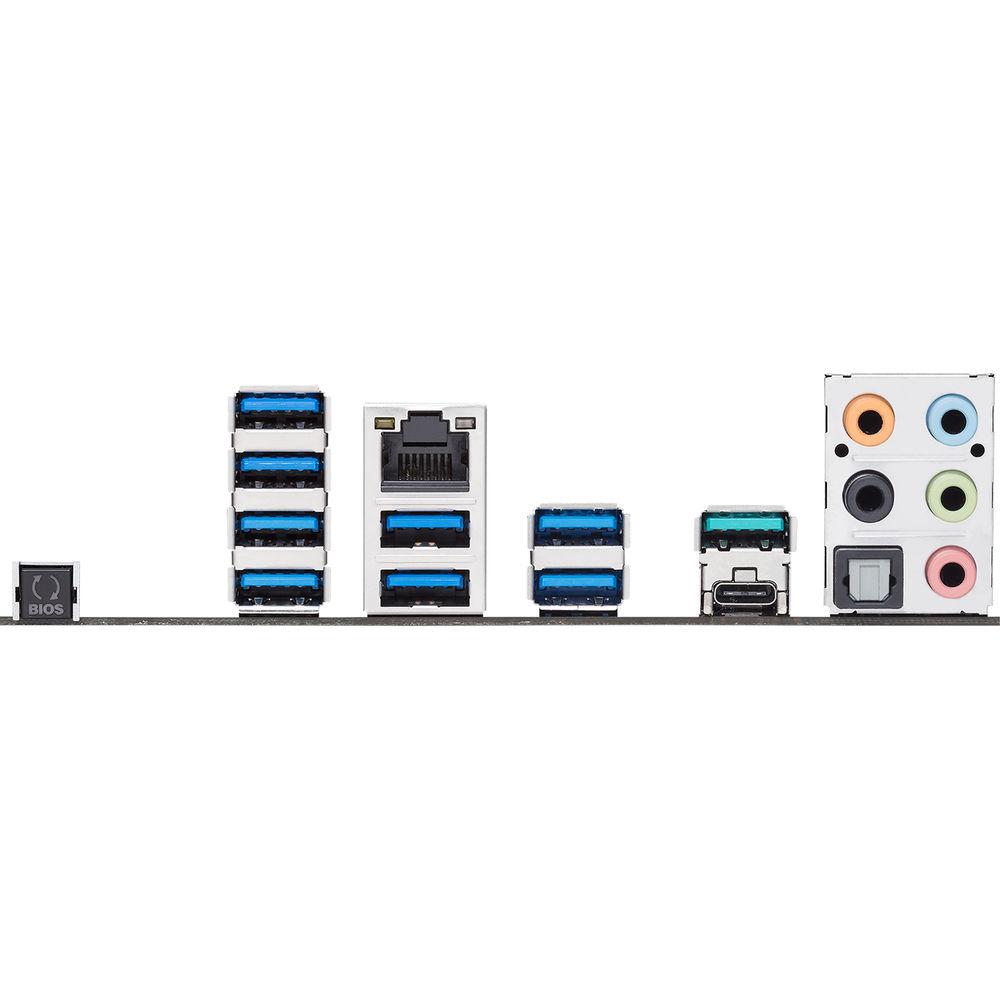

There are also eight USB 3.0 Type-A ports, one USB 3.1 Type-C port, and one USB 3.1 Type-A port, all at the back panel, as well as one USB 3.1 front-panel connector, four USB 3.0 ports (mid-board), and four USB 2.0 ports (mid-board). For those looking to expand their system using PCIe, there are four PCIe 3.0 x16 slots that supports single at x16, dual at x16/x16, and triple at x16/x16/x8 modes, as well as one PCIe 2.0 x4 slot and one PCIe 2.0 x1 slot.
The Prime X399-A does not contain any support for integrated graphics, meaning that users will need to purchase a compatible dedicated GPU of their choice. Once that GPU is installed, multi-GPU output is supported, with NVIDIA 3-Way/2-Way/Quad-GPU SLI technology and AMD 3-Way/2-Way/Quad-GPU CrossFireX technology.
Using the SupremeFX S1220 8-Channel HD audio codec, the Prime X399-A delivers audio with high fidelity, which can also be output using the five integrated audio jacks or one S/PDIF output. The motherboard is also equipped with features such as Gigabit Ethernet, Fan Xpert 4, AI Suite 3, Ai Charger, SafeSlot Core, LANGuard, overvoltage protection, DIGI+ VRM, overcurrent protection, and more. This motherboard is protected by a limited 3-year warranty. ASUS Exclusive Features Performance - OC Design: ASUS PRO Clock Technology
- Full BCLK range for increased overclocking performance
- 5-Way Optimization
- Whole system optimization with a single click. Efficiently consolidates better CPU performance, power saving, digital power control, system cooling, and app usages.
DIGI+ Power Control
- CPU Power: Digital 8+3-phase power design
- DRAM Power: Digital 4-phase power design
TPU
- Auto Tuning
EPU
Fan Xpert 4
Turbo App
UEFI BIOS
- CrashFree Bios 3
- EZ Flash 3
- EZ Tuning Wizard Gaming - 3D Printing-friendly design
EZ Management EZ DIY - Q-Design
- ASUS Q-Code
ASUS Q-Connector
ASUS Q-DIMM
ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
ASUS Q-Shield
ASUS Q-Slot ASUS Special Features - ASUS SafeSlot
- Protect your graphics card investment
- ASUS 5X Protection III
- ASUS SafeSlot Core
Fortified PCIe with solid soldering
ASUS LANGuard
Helps protect against LAN surges, lightning strikes, and static electricity discharge
ASUS Overvoltage Protection
Circuit-protecting power design
ASUS DIGI+ VRM
Digital power design
ASUS DRAM Overcurrent Protection
Enhanced DRAM overcurrent protection
ASUS Stainless-Steel Back I/O
Up to 3x greater corrosion resistance for greater durability ASUS Quiet Thermal Solution - ASUS MOS & M.2 heatsink design
In the Box ASUS Prime X399-A TR4 Extended ATX Motherboard 4 x SATA III 6 Gb/s Cables SLI HB Bridge (2-Way-M) M.2 Screw Package M.2 Vertical Bracket Q-Connector ASUS Q-Shield Supporting DVD Limited 3-Year Warranty User Manual PDF 7.4mb More info from ASUS Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS Prime X399-A TR4 Extended ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS PRIME X399-A Specs | | | Chipset | AMD X399 | | CPU Socket | TR4 | | | | USB | 1 x USB 3.1 Gen 2 Type-A
1 x USB 3.1 Gen 2 Type-C
8 x USB 3.1 Gen 1 Type-A | | Audio | 5 x 3.5 mm
1 x S/PDIF | | Ethernet / Controller | 1 x Intel | | Buttons | BIOS Flashback | | | | Memory Slots | 8 x 288-Pin | | Memory Support | DDR4 2133, 2400, 2666, 2800, 3000, 3200 MHz | | Maximum Capacity | 128 GB | | Channel Architecture | Quad Channel | | ECC Support | Non-ECC Unbuffered | | | | SATA | 6 x SATA III | | M.2 | 1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA III)
1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4, SATA III) | | U.2 | 1 | | RAID Support | RAID 0, 1, 10 | | | | Expansion Slots | 4 x PCIe 3.0 x16
1 x PCIe 2.0 x4
1 x PCIe 2.0 x1 | | USB | 2 x USB 3.1 Gen 1 Header (Supports 4 USB Type-A Ports)
2 x USB 2.0 Header (Supports 4 USB Type-A Ports) | | Multi-GPU Support | 3-Way
4-Way
Quad-GPU NVIDIA SLI
Quad-GPU AMD CrossFireX | | Air Cooling | 2 x 4-Pin CPU
1 x 3-Pin Cover
3 x 4-Pin System
1 x 4-Pin M.2
1 x 5-Pin Extension
1 x Thermal Sensor | | Liquid Cooling | 2 x 4-Pin Pump | | Power Connectors | 1 x 24-Pin Mainboard
1 x 8-Pin CPU
1 x 4-Pin CPU | | LED Header | 2 x RGB | | Diagnostics | 2-Digit Debug LED, Clear CMOS, Power | | | | I/O Connection Headers | AAFP, USB 3.1 | | | | Audio Codec | Realtek S1220A (8-Channel) | | | | Supported Operating Systems | Windows 10 (64-Bit) | | | | Form Factor | E-ATX | | Dimensions | 12.0 x 10.6" / 30.5 x 26.9 cm | | | | Package Weight | 5.65 lb | | Box Dimensions (LxWxH) | 14.5 x 12.1 x 4.3" |
