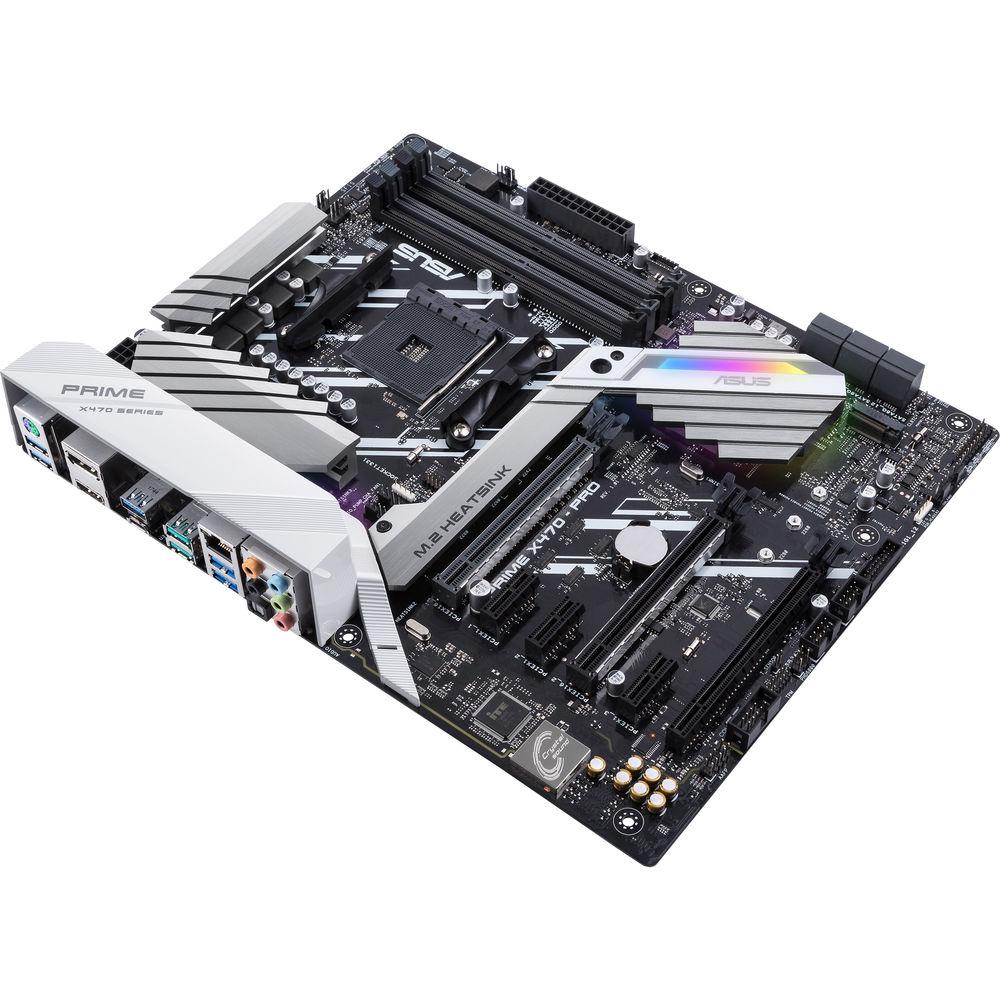

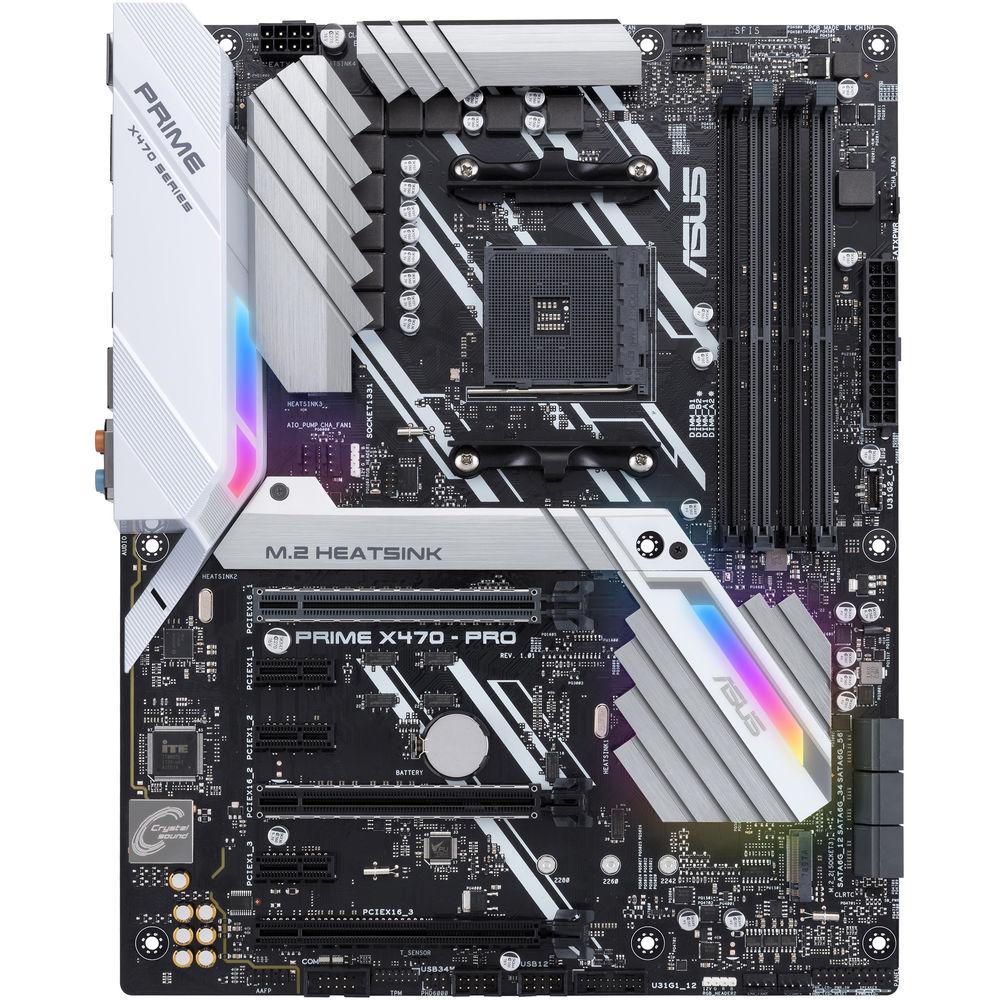

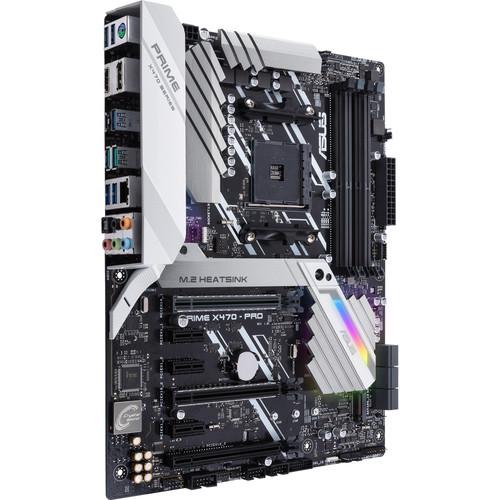

Product description The Prime X470-Pro AM4 ATX Motherboard from Asus is built on the AMD X470 chipset, supporting AMD AM4 socket CPUs such as first- and second-generation Ryzen and 7th generation A-series and Athlon X4 processors. It features four DDR4 memory slots that can accommodate up to 64GB of 3600 MHz RAM depending on your processor, six SATA III ports, and two M.2 slots, one of which can utilize the PCIe 3.0 x4 interface for transfer rates of up to 32 GB/s. For graphics cards and other PCIe-based hardware, it has two PCIe 3.0 x16, one PCIe 2.0 x16, and three PCIe 2.0 x1 slots. Other notable integrated features include Intel I211-AT Gigabit LAN, Realtek S1220A 8-channel HD audio, multiple USB ports, and Asus Aura Sync RGB LED lighting. - TurboV Processing Unit
- The TurboV Processing Unit allows for intelligent and automatic system-tuning using the Asus AI Suite 3 software. You can use it to optimize voltages, monitor system stats, and adjust overclock parameters.
- Energy Efficiency
- The Energy Processing Unit within this motherboard automatically optimizes power consumption and maximizes savings with Away mode.
- Fan Xpert 4
- Fan Xpert4 is a software within the UEFI BIOS that lets you automatically or manually adjust fan speeds and curves as needed. It also features an Auto-Tuning mode for one-click tuning as well as Extreme Quiet mode for quiet operation.
- Digi+ Power Control
- Digi+ offers real-time control over voltage drops, switching frequency, and power efficiency settings for CPU voltage regulation and system stability.
- Turbo App
- The Asus Turbo App is a tool that you can use for CPU overclocking, fan profiles, prioritizing network data, and even adjusting audio settings.
- Memory
- This motherboard is built with an optimized trace layout for improved memory stability. Please note that different processors will have different supported RAM speeds.
- Cooling
- There are multiple temperature sensors and fan headers on this motherboard for monitoring system temperature and cooling.
- Asus Aura Sync
- Asus Aura Sync provides your system with some customizable RGB LED lighting. Use it to control built-in lighting, LED strips, and even other Aura Sync-compatible gear.
- M.2
- There are two M.2 slots on this motherboard, one of which supports the PCIe 3.0 x4 interface for speeds of up to 32 Gb/s. You can also set up a RAID with two M.2 drives or a M.2 drive and a PCIe card. To help reduce temperatures, one of the slots is equipped with a heatsink that can prevent throttling and increase longevity.
- SafeSlot
- SafeSlot is a reinforced PCIe slot with enhanced retention and shearing resistance to keep expansion cards firmly in place.
- Realtek S1220A 8-Channel HD Audio
- The Realtek S1220A features a 120 dB signal-to-noise ratio for stereo line-out and a 113 dB signal-to-noise ratio for the line-in for enhanced audio clarity.
- Crystal Sound 3
- Crystal Sound 3 is a combination of hardware improvements for better audio quality including: audio shielding, separate layers for left and right tracks, an integrated amplifier for headphones, and premium audio capacitors.
UPC: 889349935101 In the Box ASUS Prime X470-Pro AM4 ATX Motherboard Limited 3-Year Warranty More info from ASUS Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS Prime X470-Pro AM4 ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

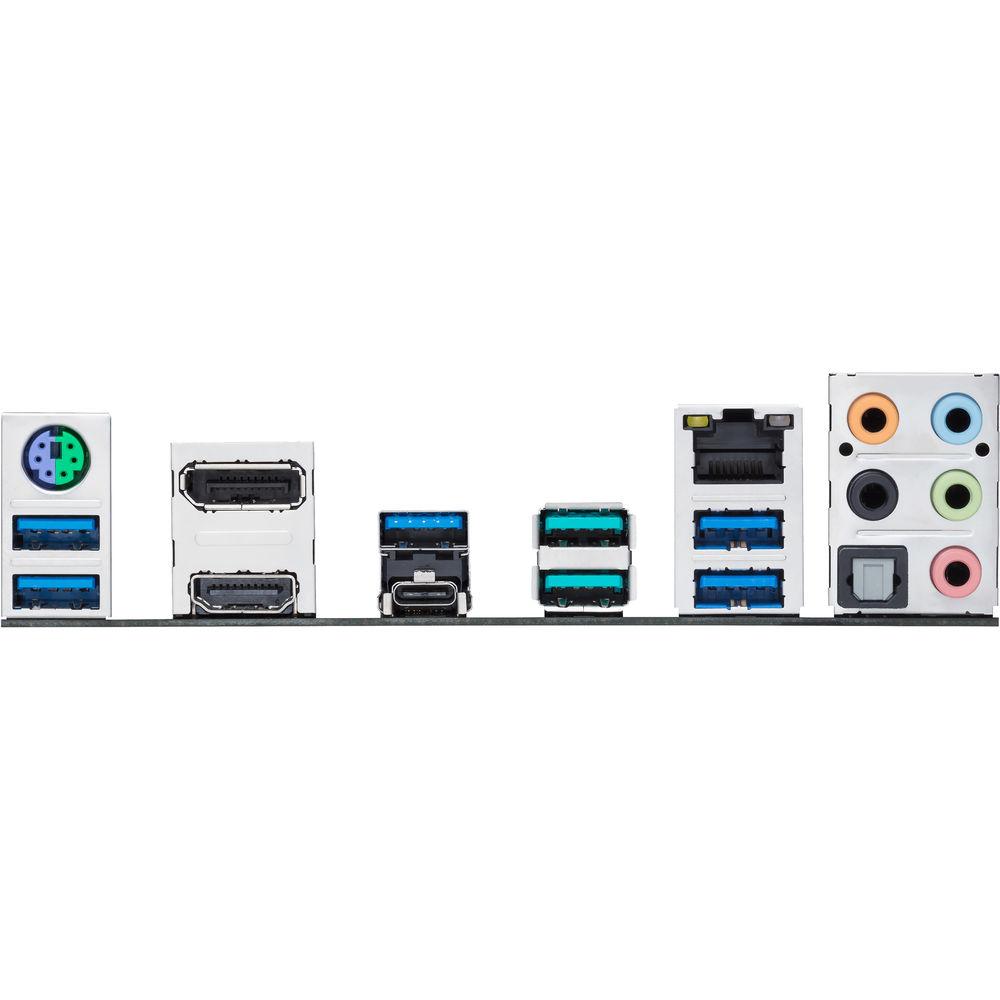

Technical parametersASUS PRIME X470-PRO Specs | | | Chipset | AMD X470 | | CPU Socket | AM4 | | | | USB | 2 x USB 3.1 Gen 2 Type-A
1 x USB 3.1 Gen 1 Type-C
5 x USB 3.1 Gen 1 Type-A | | Display | 1 x DisplayPort 1.2
1 x HDMI 1.4b | | Audio | 1 x S/PDIF
5 x 3.5 mm | | Ethernet / Controller | 1 x Intel I211-AT Gigabit | | PS/2 | 1 x Combo | | | | Memory Slots | 4 x 288-Pin | | Memory Support | DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3466, 3600 MHz | | Maximum Capacity | 64 GB | | Channel Architecture | Dual Channel | | ECC Support | Non-ECC, ECC Unbuffered | | | | SATA | 6 x SATA III | | M.2 | 1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4, SATA III)
1 x M Key 2242, 2260, 2280 (PCIe 3.0 x2, SATA III) | | U.2 | None | | RAID Support | RAID 0, 1, 10 (SATA) | | | | Expansion Slots | 2 x PCIe 3.0 x16
1 x PCIe 2.0 x16 (x4 mode)
3 x PCIe 2.0 x1 | | USB | 1 x USB 3.1 Gen 1 Header (Supports 2 USB Type-A Ports)
2 x USB 2.0 Header (Supports 4 USB Type-A Ports) | | Multi-GPU Support | 2-Way NVIDIA SLI
2-Way AMD CrossFireX | | Air Cooling | 1 x 4-Pin CPU
1 x 4-Pin Assistant
3 x 4-Pin System
1 x Thermal Sensor | | Liquid Cooling | 2 x 4-Pin Pump | | Power Connectors | 1 x 24-Pin Mainboard
1 x 8-Pin CPU | | Security | TPM Module | | LED Header | 2 x RGB | | Audio | None | | Diagnostics | Clear CMOS | | Legacy | 1 x Serial | | | | I/O Connection Headers | AAFP, USB 3.1 | | | | Audio Codec | Realtek S1220A (8-Channel) | | | | Supported Operating Systems | Windows 10 (64-Bit) | | | | Form Factor | ATX | | Dimensions | 12 x 9.6" / 304.80 x 243.84 mm | | | | Package Weight | 3.35 lb | | Box Dimensions (LxWxH) | 13.0 x 10.6 x 2.7" |
