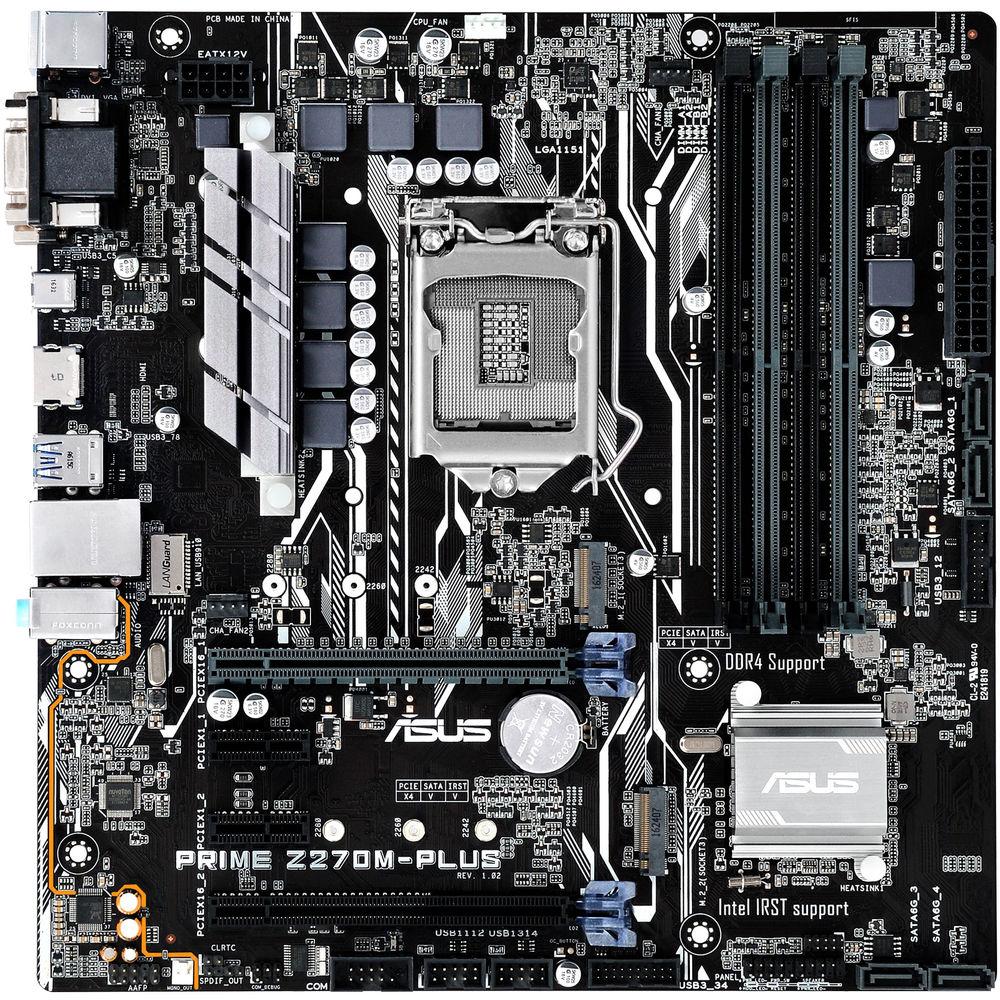

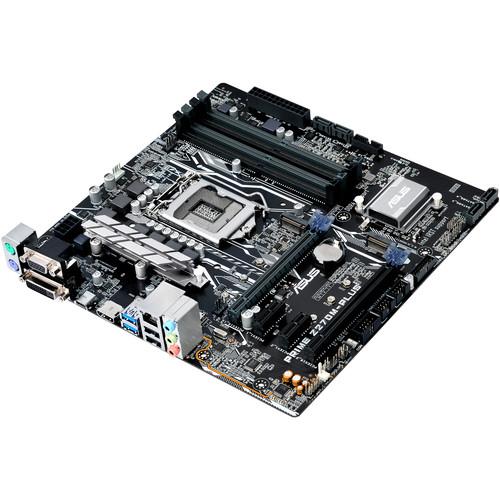

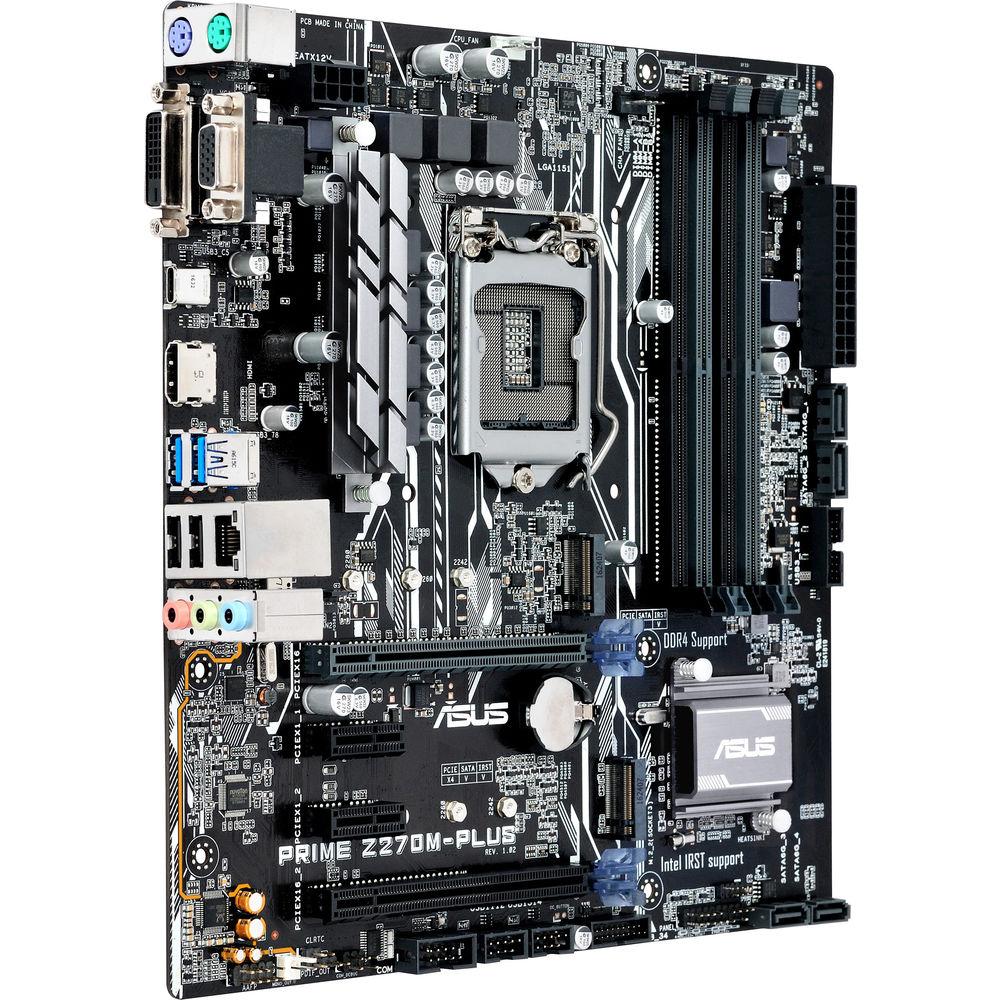

Product description Ready for 7th Generation Intel Core Kaby Lake processors, the Prime Z270M-Plus LGA 1151 Micro-ATX Motherboard from ASUS delivers customizable performance. 5X Protection III with FanXpert 4 Core provides hardware-level safeguards, while CrossFireX drives support for multiple GPUs, and dual M.2 slots and USB 3.0 Type-A and Type-C ports deliver fast transfer speeds. This motherboard is designed to fit in ATX sized cases and supports both 6th and 7th generation Intel Core i7, i5, i3, Pentium, and Celeron processors, the LGA 1151 socket, and the Z270 chipset. This motherboard is compatible with Windows 10 (64-bit).

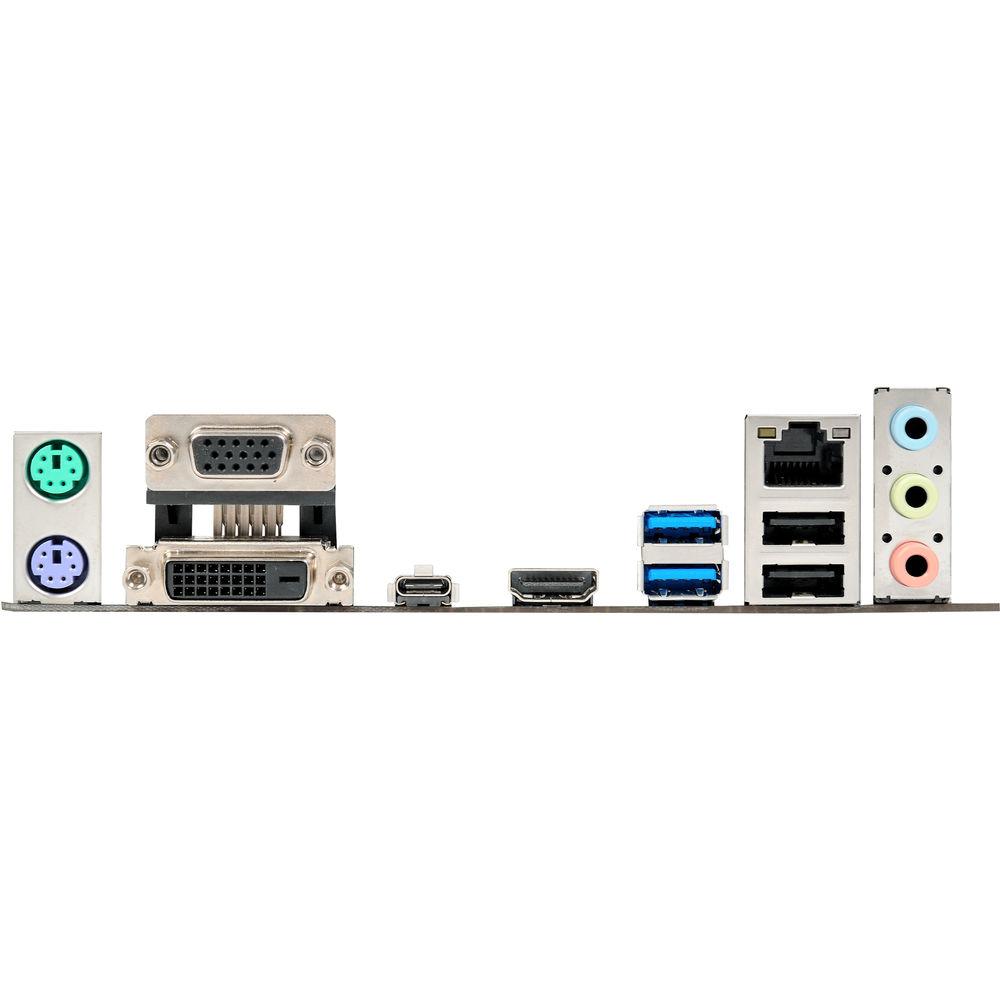

The micro-ATX form factor of the Prime Z270M-Plus can support 64GB of RAM and comes with four dual-channel DIMM slots that can each hold 16GB of DDR4 3866 (OC), 3733 (OC), 3600 (OC), 3466 (OC), 3400 (OC), 3333 (OC), 3300 (OC), 3200 (OC), 3000 (OC), 2800 (OC), 2666 (OC), 2400 (OC), and 2133 MHz non-ECC and unbuffered memory. It also has a total of 4 x SATA III 6 Gb/s ports that support RAID 0, 1, 5, and 10, 2 x M.2 Socket 3 connectors that support SATA & PCIe SSDs, 4 x USB 3.0 ports (front), 1 x USB 3.0 Type-C and 2 x USB 3.0 Type-A ports (rear), and 1 x Gigabit LAN port. For those looking to expand their system using PCIe, there is 1 x PCIe 3.0/2.0 x16 slot (x16 mode), 1 x PCIe 3.0/2.0 x16 slot (x4 mode), and 2 x PCIe x1 slots.
For delivering sharp, clear graphics, this motherboard supports integrated Intel HD Graphics with access to up to 1,024MB of shared graphics memory and is equipped with HDMI, DVI, and VGA video outputs, and AMD CrossFireX (x16/x4) technology supports multi-GPU output. Using the 8-Channel ALC 887 HD audio codec, this motherboard can support audio with higher fidelity than standard controllers.
ASUS' Prime Z270M-Plus LGA 1151 Micro-ATX Motherboard is equipped with features such as AI Charger, ASUS C.P.R. (CPU Parameter Recall), ASUS CrashFree BIOS 3, ASUS MyLogo 3, Q-Design, a heat-sink, GPU Boost, DIGI+ VRM, AI Suite3, UEFI BIOS, EZ Flash 3, DX12, ASUS 5X Protection III, ASUS SafeSlot, Fan Xpert 4 Core, and more. This motherboard is protected by a limited 3-year warranty. General Features - Maximize your connectivity and speed with integrated dual M.2 slots, Intel Optane Memory compatibility, and rear USB 3.0 Type-A and Type-C connections.
- 5X Protection III hardware-level safeguards provide component longevity and reliability.
- FanXpert 4 Core delivers advanced fan control for dynamic cooling.
- Dual patent-pending SafeSlot Core fortified PCIe slots prevent damage caused by heavyweight GPUs.
- On-board 3D-printing mounts for creating unique designs on your customized build.

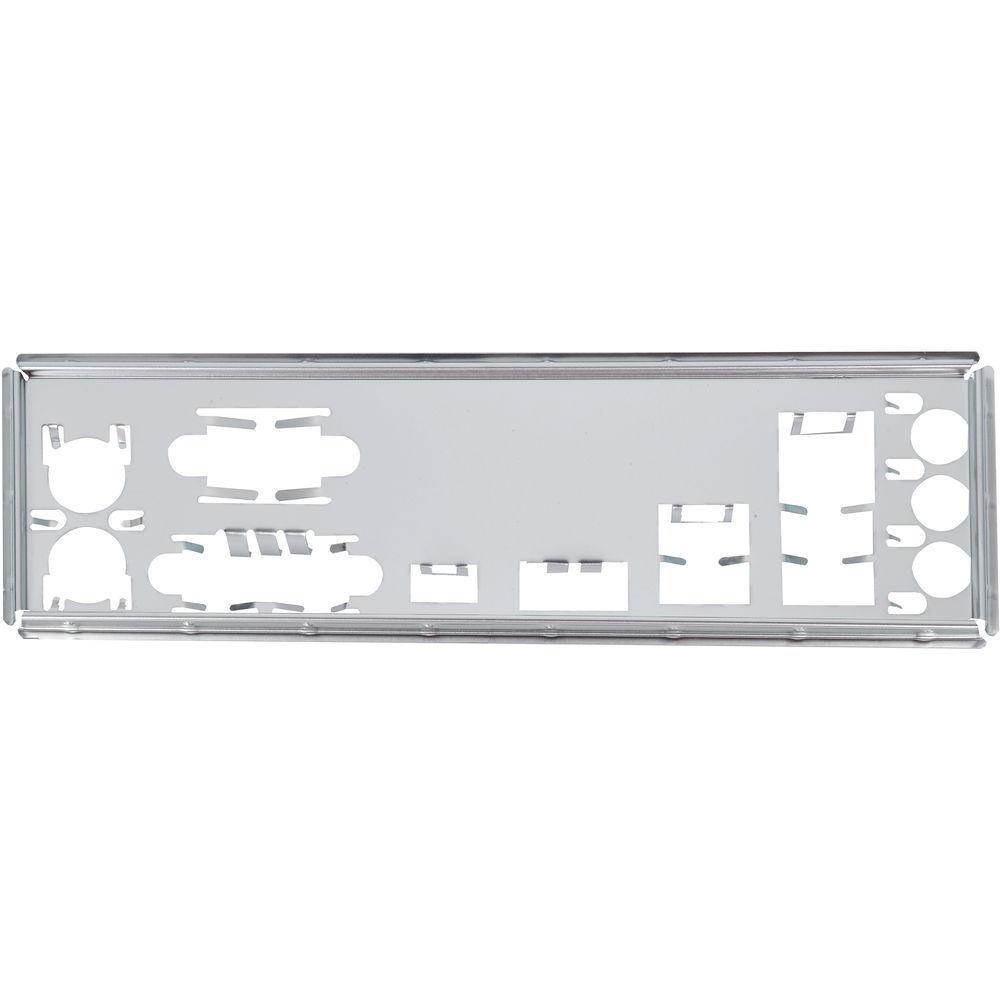

UPC: 889349574225 In the Box ASUS Prime Z270M-Plus LGA 1151 Micro-ATX Motherboard Limited 3-Year Warranty More info from ASUS beafbtsz Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS Prime Z270M-Plus LGA 1151 Micro-ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS Z270M-Plus Specs | CPU | Intel Socket LGA 1151 for 7th & 6th Generation Core i7, i5, i3, Pentium, and Celeron processors | | Chipset | Intel Z270 | | Memory | 4 x DIMM, Max. 64 GB, DDR4 3866 (OC), 3733 (OC), 3600 (OC), 3466 (OC), 3400 (OC), 3333 (OC), 3300 (OC), 3200 (OC), 3000 (OC), 2800 (OC), 2666 (OC), 2400 (OC), and 2133 MHz
Dual-Channel Memory Architecture | | Graphics | Integrated Graphics Processor - Intel HD Graphics support
Output support: 1 x HDMI, 1 x DVI, 1 x VGA
Maximum shared memory of 1,024 MB | | Multi-GPU Support | AMD CrossFireX @ x16/x4 | | Expansion Slots | 1 x PCIe 3.0/2.0 x16
1 x PCIe 3.0/2.0 x16 (x4 mode)
2 x PCIe x1 | | Storage | 2 x M.2 Socket 3, with M Key, type 2240/2260/2280 storage device support (both SATA & PCIe 3.0 x4 modes)
4 x SATA III 6 Gb/s ports (RAID 0, 1, 5, 10) | | LAN | 1 x Gigabit LAN Controller | | Audio | 8-CH (HD) ALC 887 Codec | | USB Ports | 4 x USB 3.0 (front)
1 USB 3.0 Type-C (rear)
2 x USB 3.0 Type-A (rear)
6 x USB 2.0 | | COM Ports | 1 x Header (without cable) | | OS Support | Windows 10 (64-bit) | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 10.6 x 10.3 x 2.3" |
