User Manual for ASUS ProArt PA32UC 32" 16:9 Wide Gamut IPS Monitor Click to enlarge the picture
Contents of the user manual for the ASUS ProArt PA32UC 32" 16:9 Wide
- Product category: Computer Monitors ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Computer Monitors
 |
User manual for the ASUS ProArt PA32UC 32" 16:9 Wide contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|

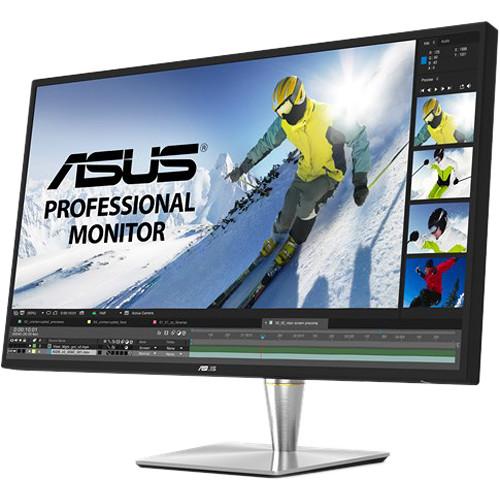

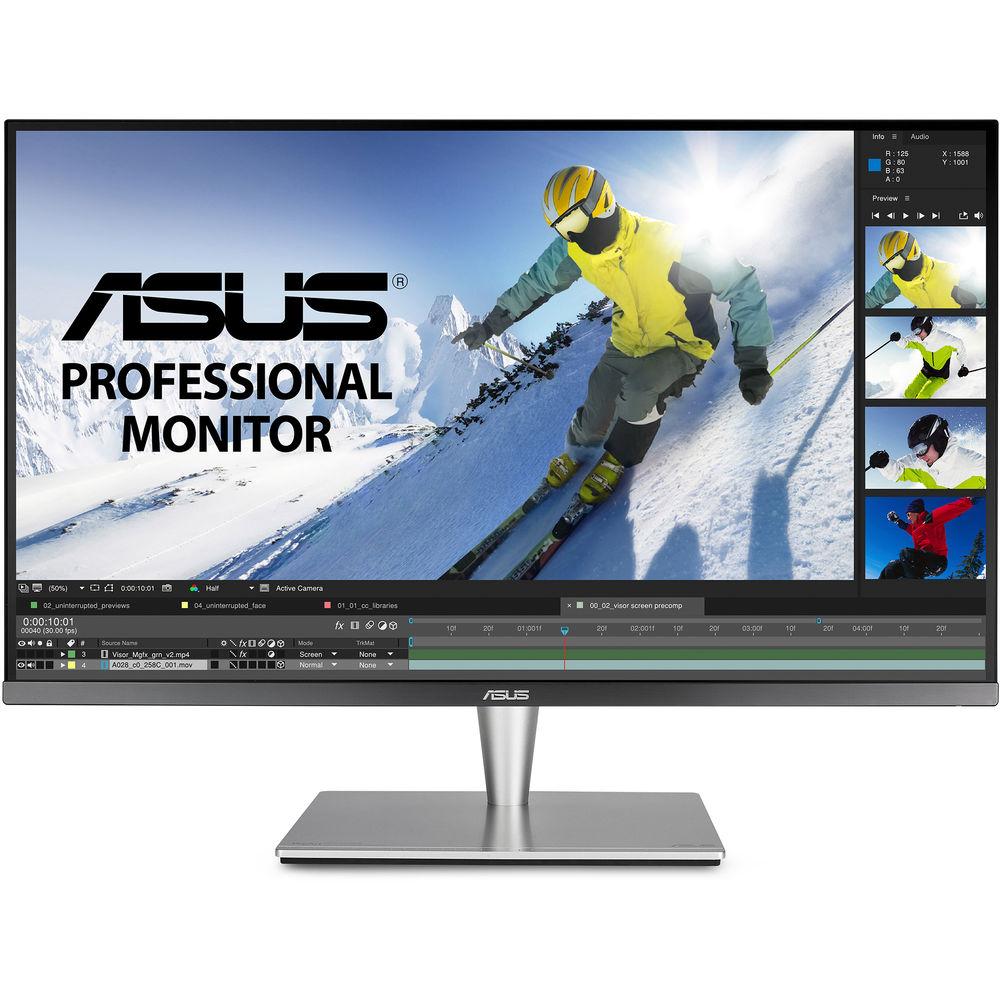

Product description Big and Brilliant: the ASUS ProArt PA32UC 32" 4K HDR Display Read More wwqrrxaxdfvazedcvzrtaqzc The ProArt PA32UC 32" 16:9 Wide Gamut IPS Monitor from ASUS has an anti-glare panel featuring a native resolution of 3840 x 2160 with a 60 Hz refresh rate. It also features In-Plane Switching (IPS) technology, support for 1.07 billion colors and HDR10, a widescreen 16:9 aspect ratio, a static contrast ratio of 1000:1, an ASUS Smart Contrast Ratio of 100,000,000:1, 1000 cd/m2 brightness, 138 pixels per inch, and a 5 ms (GtG) response time. Using the 178° horizontal and vertical viewing angles, it is possible to watch content from virtually any position. This display has two Thunderbolt 3 ports (one upstream, one downstream), one DisplayPort 1.2 port, and four HDMI 2.0b ports, as well as an upstream USB 3.0 Type-B port, two USB 3.0 Type-A ports, and a USB 3.0 Type-C port. The HDMI ports also support audio input and audio can be output using the dual integrated 3W stereo speakers.
ASUS has engineered the PA32UC with support for 99.5% of the Adobe RGB gamut, 100% of the sRGB (Rec. 709) gamut, 95% of the DCI-P3 gamut, and 85% of the Rec. 2020 color space. Color accuracy is set at △E<2, gamma values can be set at 2.6, 2.4, 2.2, 2.0, and 1.8, while users may also choose from color temperatures of 5000K, 5500K, 6500K, and 9300K. If you prefer to use preset video modes, there are eight pre-configured ones, including Adobe RGB, Rec. 2020, DCI-P3, HDR, sRGB, Standard, plus two modes that may be configured by the user. The PA32UC also supports HDCP 1.4 & 2.2, a 14-bit internal lookup table, 384 zone dynamic local dimming, Picture-in-Picture, Picture-by-Picture, Adaptive Sync via Display Port and Thunderbolt 3, Ultra-Low Blue Light technology, Flicker-Free technology, and more.

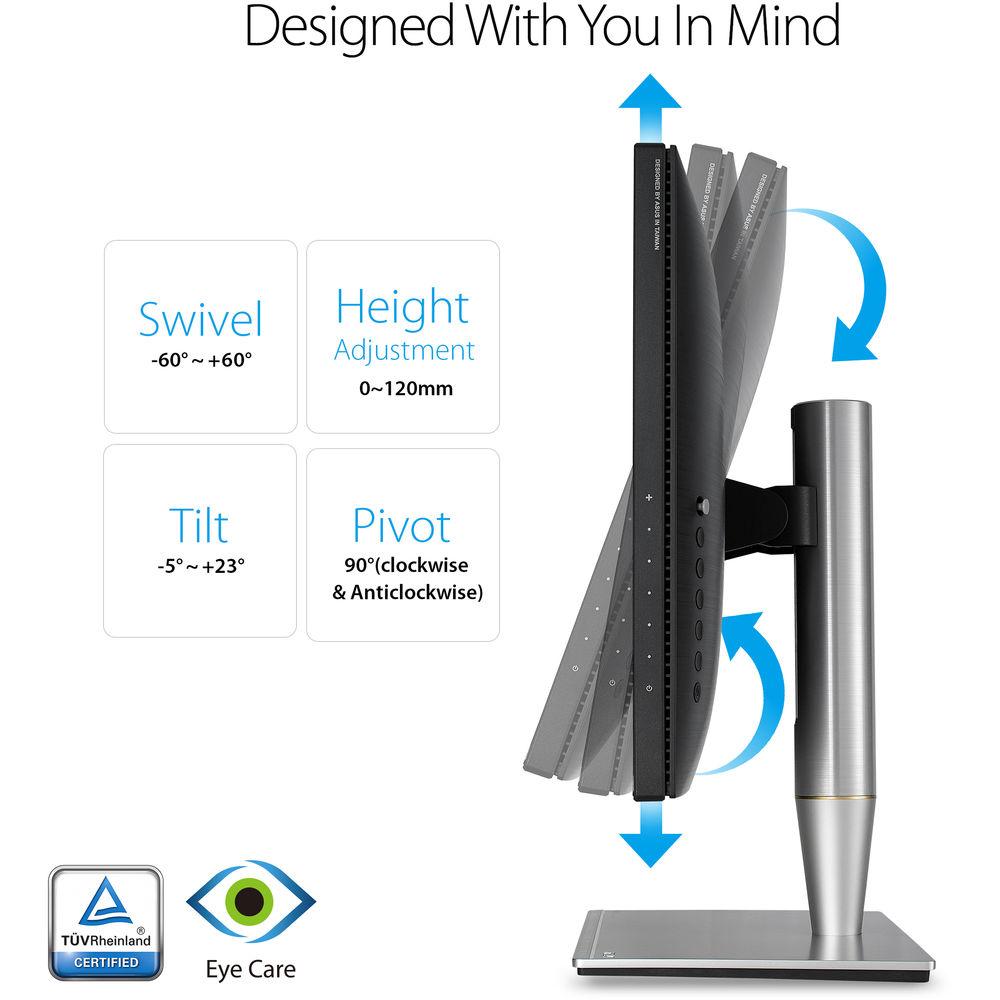

To further help improve viewing and accessibility, the PA32UC features a vertical tilt of -5 to 23°, a left/right swivel of ±60°, a clockwise/counterclockwise pivot of 90°, and a height adjustment of 5.12". General Features - Contrast & Realism
- The ProArt PA32UC delivers onscreen realism with its Ultra HD Premium-certified 4K IPS panel, which produces up to 1000 cd/m² of brightness and delivers 85% Rec. 2020, 99.5% Adobe RGB, 95% DCI-P3, and 100% sRGB color spaces, providing a lifelike HDR experience that is suited for high-end video editing. The ProArt PA32UC is factory pre-calibrated and it includes ProArt Calibration technology to help ensure color accuracy with a ∆E value below 2. Certified for Windows and Mac OS, it's made for graphic designers, photographers, and professional content creators.
- Capture Every Detail
- The ProArt PA32UC features a 32" 4K (3840 x 2160) panel with 138 ppi for four times the pixel density and up to 300% more onscreen space than other Full HD monitors of a similar size. Enjoy great clarity with the fine details while performing visually intensive design tasks or while watching 4K video.
- A Brighter, More Lifelike Viewing Experience
- The ProArt PA32UC has an Ultra HD Premium certification - the industry standard for HDR. Designed to enhance the contrast between the brightest and darkest parts of an image, HDR technology delivers greater onscreen clarity and detail.
- Deep Blacks, Bright Whites
- Featuring a full-array LED backlight with ASUS LED Driving technology, the ProArt PA32UC has 384 LED zones and a peak brightness of 1000 cd/m², so it can produce deep blacks and bright whites.
- Bring Out the Beauty of Your Pictures
- The ProArt PA32UC achieves wide color coverage to exceed industry standards by delivering 85% Rec. 2020, 99.5% Adobe RGB, 95% DCI-P3, and 100% sRGB color gamuts. It features 14-bit color graphics to display more than 1.07 billion colors. It also uses a 14-bit internal lookup table and supports Gamma values of 2.6, 2.4, 2.2, 2.0, and 1.8 to produce natural-looking images with smoother transitions between hues.
- Higher Color Fidelity for Expressive Hues
- The ProArt PA32UC monitors are pre-calibrated to help guarantee strong color accuracy with a ∆E value below 2. Each monitor comes with a report of calibration levels 63, 127, and 255, and features gray-scale tracking technology to help ensure your images are accurately reproduced onscreen. The monitor also includes technology to help ensure 95% uniformity compensation to help guard against brightness and chroma (color) fluctuations across the screen.

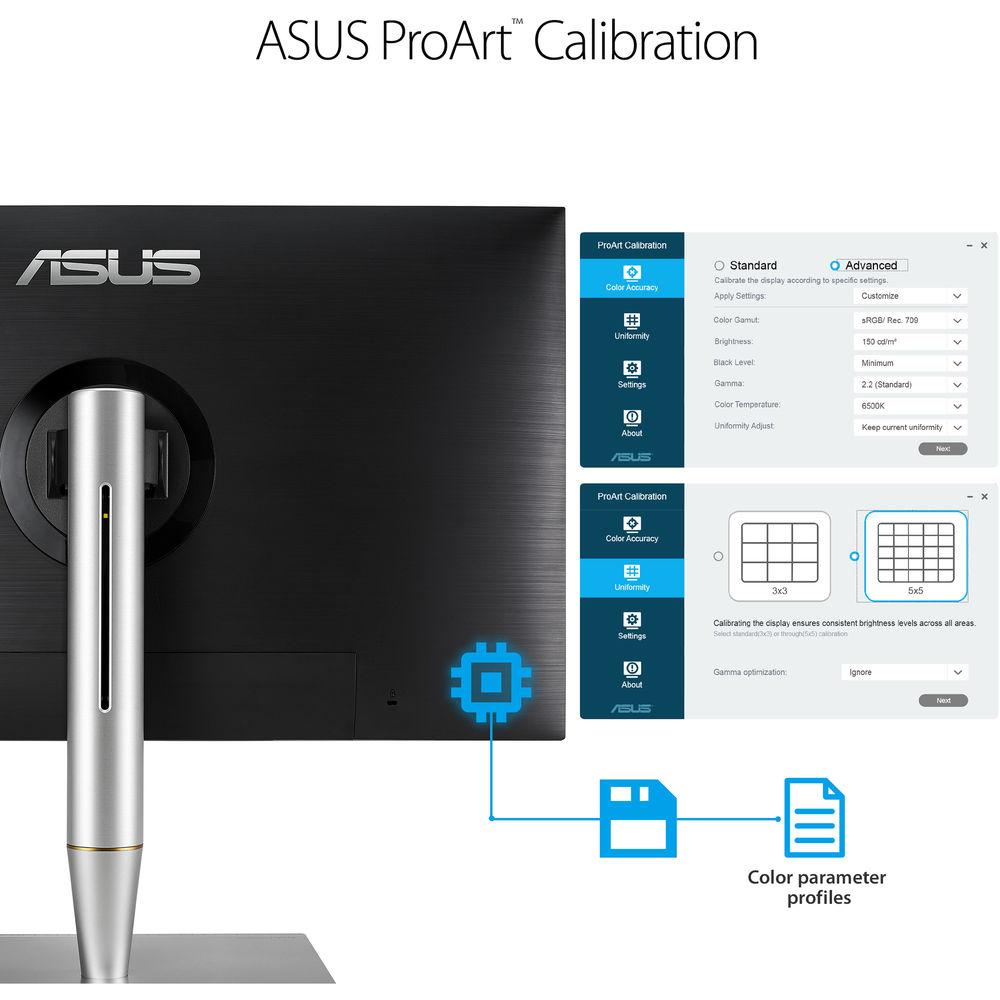

- ASUS ProArt Calibration Technology
- Whether you're using a desktop, laptop, Windows, or Mac, ASUS ProArt Calibration technology offers color accuracy tuning and uniformity compensation to make things easy when it's time to recalibrate your display's brightness and color consistency.
Color Accuracy Optimization
Achieve optimum color accuracy when working with different types of content with a variety of advanced presets, allowing you to easily adjust color gamut, brightness, black levels, gamma correction, color temperature and uniformity.
Uniformity Compensation
Select a 3 x 3 or 5 x 5 uniformity compensation matrix to help ensure consistent brightness across the screen and to reduce color shift.
Color Parameter Profiles
The ProArt PA32UC allows you to save color profiles on an integrated circuit (IC) chip - so your settings travel with the monitor if you connect it to a different device, eliminating the need for recalibration. It also helps reduce the signal distortion between the IC chip and the LCD optical spectrum. Color profiles can be easily activated via the hotkey on the monitor, without a computer or calibrator.
Compatible with Most Calibrators
The ProArt PA32UC is compatible with most major hardware calibrators, including X-rite i1 Display Pro and Datacolor Spyder 5 series. - Thunderbolt 3 for Versatile, Fast Connections
- The ProArt PA32UC includes two USB Type-C ports that support Thunderbolt 3 for data transfer speeds of up to 40 Gb/s, as well as a DisplayPort and USB 3.0 with Power Delivery to provide up to 60W of power to external devices. Thunderbolt 3 also makes it possible to daisy-chain several displays through a single port, without the need for a hub or a switch.
- Picture-in-Picture & Picture-by-Picture
- Both built-in Picture-in-Picture (PiP) and Picture-by-Picture (PbP) functionalities allow you to view content from multiple sources simultaneously and switch between them easily. You can even select which audio source to play.
- Picture-by-Picture (PbP) Mode
- To simultaneously experience different settings, place multiple input sources side by side onscreen and configure each individual window's color settings with sRGB, Adobe RGB, DCI-P3, Rec. 2020, User Mode 1, or User Mode 2.
- Picture-in-Picture (PiP) Mode
- Place your second input source in a window in one corner of the display.
- QuickFit Virtual Scale
- Save time and work smarter with ASUS QuickFit Virtual Scale ― an onscreen grid overlay that lets you align and preview documents in their actual sizes, prior to printing. An intuitive 5-way navigation joystick makes it easy to access and switch settings using the onscreen menu.
- ASUS Eye Care Technology / ASUS Blue Light Filter
- ASUS' Ultra-Low Blue Light technology is designed to help protect viewers from harmful exposure to blue light. The blue light filter offers four settings that are accessed through the onscreen display menu via the hotkey.
- ASUS Flicker-Free Technology
- ASUS Flicker-Free technology provides a more comfortable viewing experience by reducing onscreen flicker to minimize eye strain, headaches, and eye fatigue.
- Ergonomic Design
- A comfortable viewing position can be achieved with the ProArt PA32UC, thanks to its slim profile and ergonomically designed stand that offers tilt, swivel, pivot, and height adjustments. Its onscreen menu even rotates automatically to display correctly when the monitor is used in portrait orientation, which is handy when working with websites or longer documents. Swivel from -60 to 60°, pivot from -90 to 90°, and tilt from -5 to 23°. Its height can also be adjusted by up to 5.12".
UPC: 889349903681 In the Box ASUS ProArt PA32UC 32" 16:9 Wide Gamut IPS Monitor Power Cable Thunderbolt 3 Cable DisplayPort Cable HDMI Cable USB 3.0 Cable Cable Clip Zero Bright Dot Warranty Limited 3-Year Warranty 10 Factors to Consider When Selecting A Monitor for Video Editing Mary Latvis 03/04/2019 User Manual PDF 3.1mb More info from ASUS Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS ProArt PA32UC 32" 16:9 Wide Gamut IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS PA32UC Specs | | | Size | 32" | | Screen Area | 27.89 x 15.69" / 70.84 x 39.85 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 138 ppi | | Finish | Matte | | Maximum Brightness | 1000 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 100,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | FreeSync | | Horizontal Frequency | 142 kHz (Thunderbolt 3)
142 kHz (DisplayPort)
109 to 142 kHz (HDMI) | | Vertical Frequency | 40 to 60 Hz (Thunderbolt 3)
40 to 60 Hz (DisplayPort)
29 to 65 Hz (HDMI) | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | Look-Up Table | 14-Bit | | HDR Compatibility | HDR10 | | Color Gamut | 99.5% Adobe RGB
95% DCI-P3
85% Rec. 2020
100% sRGB | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178° (89/89)
Vertical: 178° (89/89) | | Dot Pitch | 0.1845 x 0.1845 mm | | | | Connectivity | 1 x USB Type-C (Thunderbolt 3) Input
1 x USB Type-C (Thunderbolt 3) Output
4 x HDMI 2.0b
1 x DisplayPort 1.2
1 x USB Type-B (USB 3.1 Gen 1) Input
2 x USB Type-A (USB 3.1 Gen 1) Output
1 x USB Type-C (USB 3.1 Gen 1) Output
1 x 3.5 mm Output | | HDCP Support | Yes, Version 2.2 | | Built-In Speakers | Yes, 2 x 3 W | | | | Power Consumption | 56.84 W (Typical)
0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | USB Power Delivery | 60 W | | | | Certifications | BSMI, CCC, CE, ENERGY STAR, FCC, Kcc, Microsoft WHQL, RoHS, UL, VCCI, WEEE, cUL, as per Manufacturer | | | | Height Adjustment | 5.12" / 130 mm | | Rotation Adjustment | 180° (-90 to 90°) | | Swivel Adjustment | 120° (-60 to 60°) | | Tilt Adjustment | -5 to 23° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes, Kensington | | Dimensions (W x H x D) | 28.6 x 23.6 x 9.0" / 727.0 x 600.0 x 229.0 mm (With Stand)
28.6 x 16.8 x 2.7" / 727.0 x 426.0 x 69.0 mm (Without Stand) | | Weight | 25.13 lb / 11.4 kg (With Stand)
17.20 lb / 7.8 kg (Without Stand) | | | | Package Weight | 36.9 lb | | Box Dimensions (LxWxH) | 35.5 x 20.5 x 14.0" |
