Product description The Republic of Gamers Aura Terminal Addressable RGB Controller from ASUS features four independently controllable addressable RGB headers that let you synchronize colors and lighting effects without Aura-enabled gear, or enjoy lighting that reacts to onscreen action for a unique gaming experience. Each of the four channels supports up to 90 LEDs and 210 LEDs in total, which is equivalent to a maximum of 13.78' of addressable LED strips. General Features - Attention to Detail

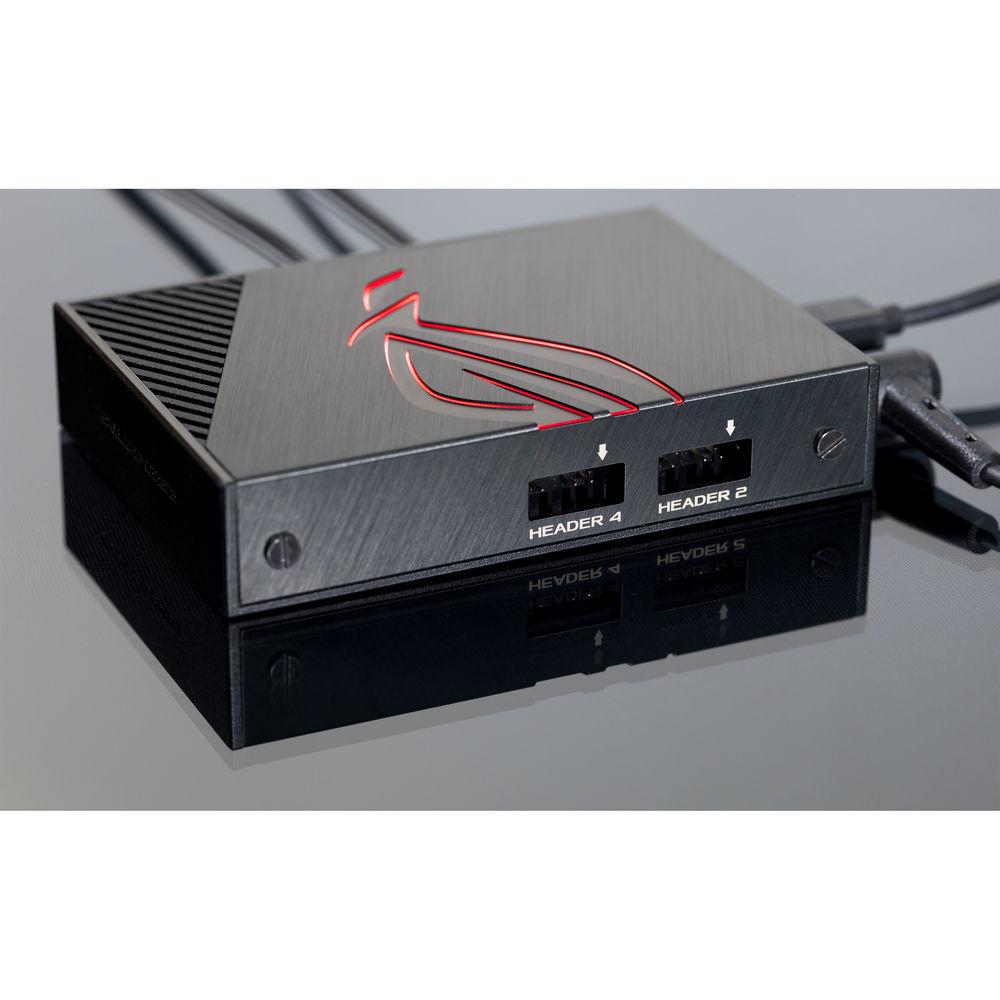

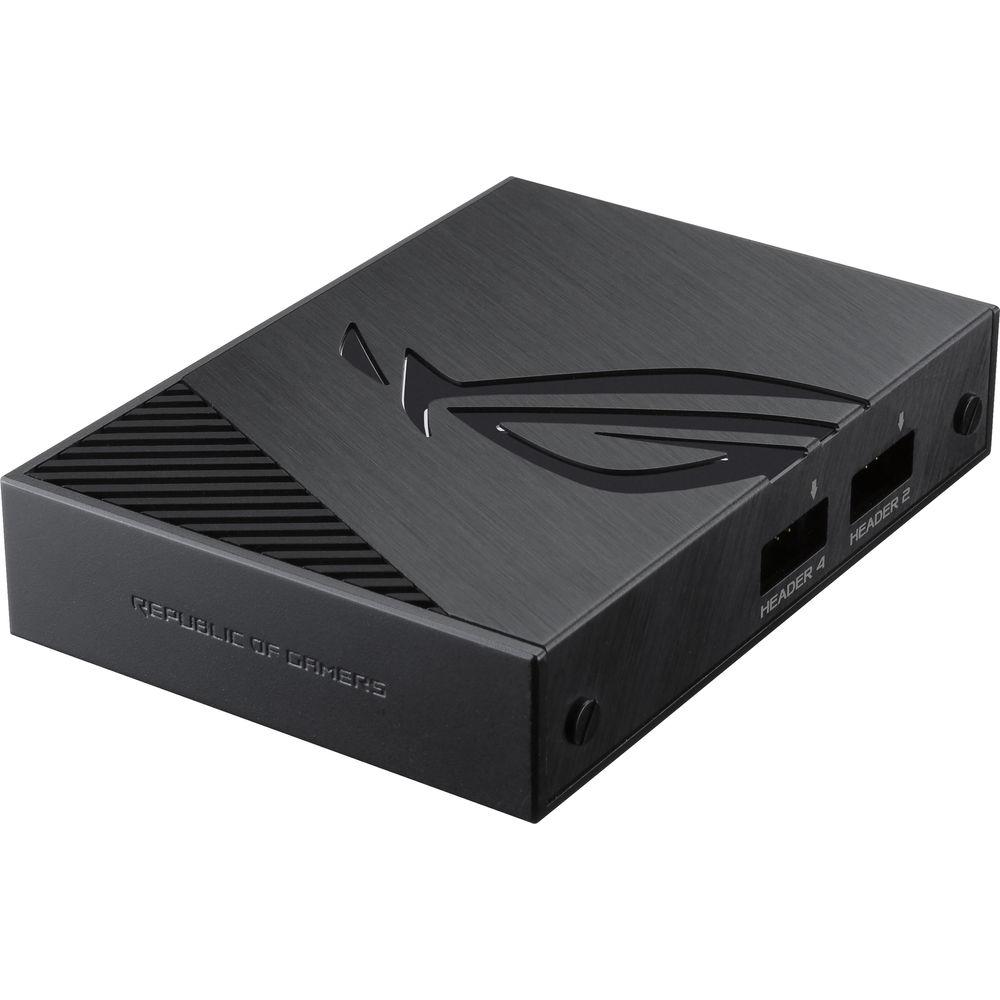

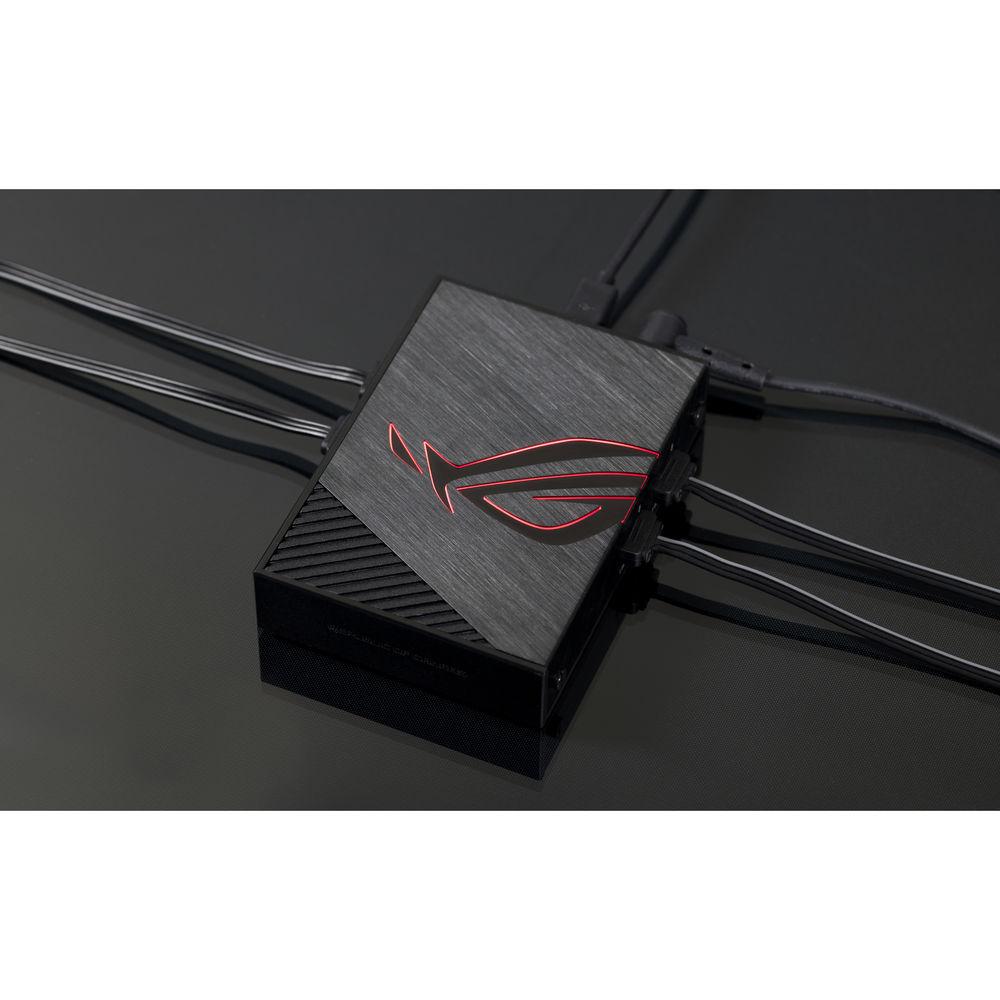

- Featuring a black, brushed aluminum finish, and a subtle backlit logo, the Aura Terminal is crafted to look good wherever it's mounted. The Terminal is configurable to any of the following lighting modes when used as a standalone product, such as Static, Breathing, Color Cycle, and Off.
- The Next Level of Immersion
- Halo raises the bar by intelligently casting RGB lighting effects into the room when you're playing games or watching movies. The added backlighting extends your display and reduces the glare of high-contrast scenes, mimicking on-screen color to fill your field of vision.
- How Does Halo Work?
- Halo analyzes content directly from a computer or laptop with a discrete graphics processor to determine the average color value for different areas of the screen, then replicates it by controlling the corresponding LEDs on attached RGB lighting strips.
- Simple and Scalable
- ROG Aura Terminal is adaptable and scalable: daisy chain and attach strips to match the rear edges of your display, and map them with Halo.
Step 1
Connect each addressable RGB strip to an extension cable, then plug it into ROG Aura Terminal.
Step 2
Attach the strips to the back of your monitor.
Step 3
Use the Halo software to configure the LED strips. - Versatile Illumination
- ROG Aura Terminal can be installed inside your PC or on your desk, extending options to personalize your living space with the full gamut of colors and effects. This flexibility makes the Terminal central to creating a cohesive visual theme across your entire system or for making small or big-screen gaming more immersive.
- Outshine the Competition
- Use the Terminal to upgrade your system with a range of Aura Sync products. Then, easily sync connected devices via the Aura software.
UPC: 889349968512 In the Box ASUS Republic of Gamers Aura Terminal Addressable RGB Controller 1 x QSG 2 x ROG Addressable RGB Strips (11.8" / 30.0cm) 1 x ROG Addressable RGB Strip (23.6" / 60.0cm) 3 x Extension Cables 1 x 45W Power Adapter 1 x DC to MOLEX Cable 1 x Micro-USB to USB 2.0 Type-A Cable 1 x Micro USB to 9-Pin Header Data Cable 3 x Packs of 3M Double-Sided Tape (2.0" / 5.0cm) 1 x ROG Stickers 2 x ROG Cable Ties Limited 3-Year Warranty More info from ASUS Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS Republic of Gamers Aura Terminal Addressable RGB Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS ROG AURA TERMINAL Specs | Inputs | USB 2.0 Connection for Data
- USB 2.0 9-pin header cable for internal case lighting
- USB 2.0 Type-A cable for external case lighting
12 V / 19 V DC Input for Power
- 12 V 4-pin molex to DC adapter cable for internal case lighting
- 19 V DC power adapter for external case lighting | | Outputs | 4-channel addressable RGB header (supports WS2812B addressable RGB LED devices [5V, data/ground], and each channel with a max of 90 LEDs and total channels support a max of 210 LEDs) | | Hardware Requirements | PSU with a free Molex socket
PC with a free USB port or free USB 2.0 header | | Minimum System Requirements | AURA
OS: Windows 10, 8, or 7
HALO
OS: Windows 10 (64-bit)
Graphics: Dedicated VGA (HALO does not support integrated graphics, iGPU, so connect your display to a DP/HDMI port located on your VGA card) | | Recommended System Requirements | AURA
OS: Windows 10 (64-bit)
HALO
OS: Windows 10 (64-bit)
Processor: 6th Generation Intel Core i5 or above, AMD 1st Generation Ryzen 5 or above
Graphics: NVIDIA GeForce GTX 900 series and later or AMD Radeon R9 series and later | | Dimensions | 3.9 x 2.8 x 0.8" / 100 x 70 x 20 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 8.4 x 8.0 x 4.0" |
