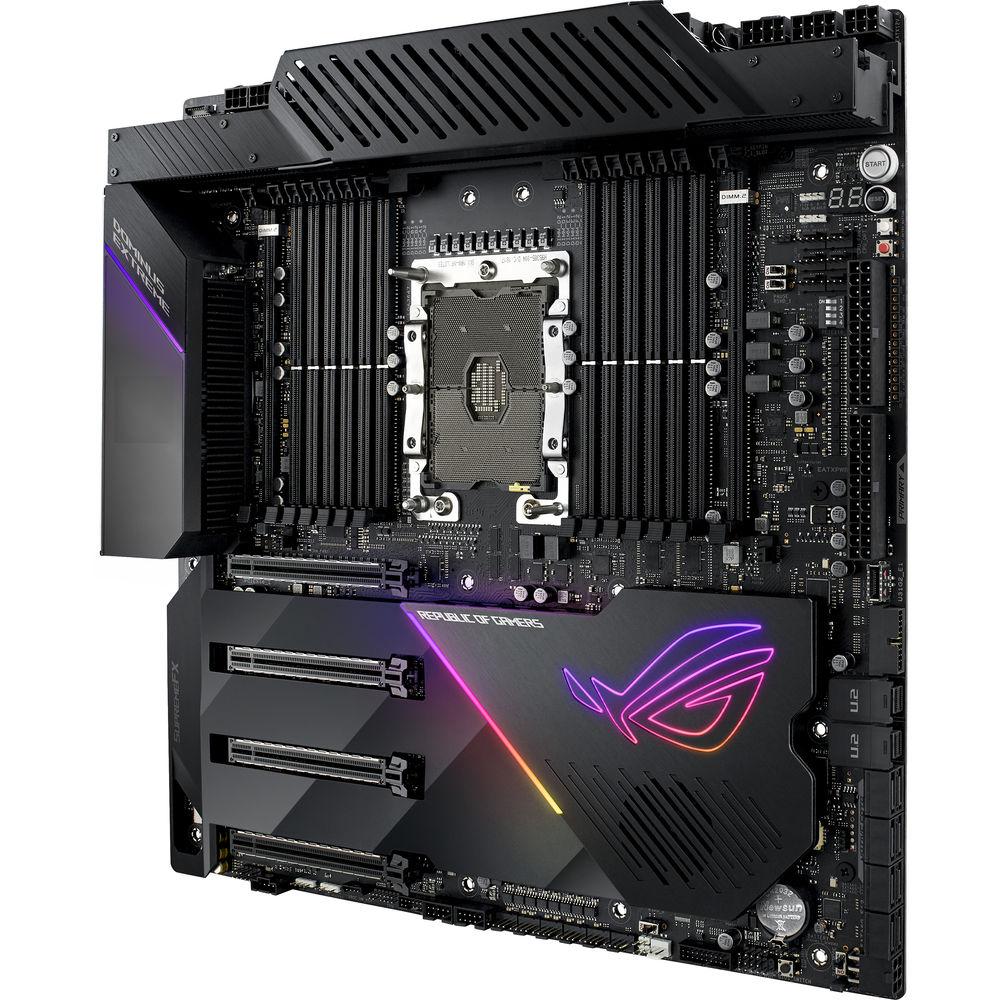

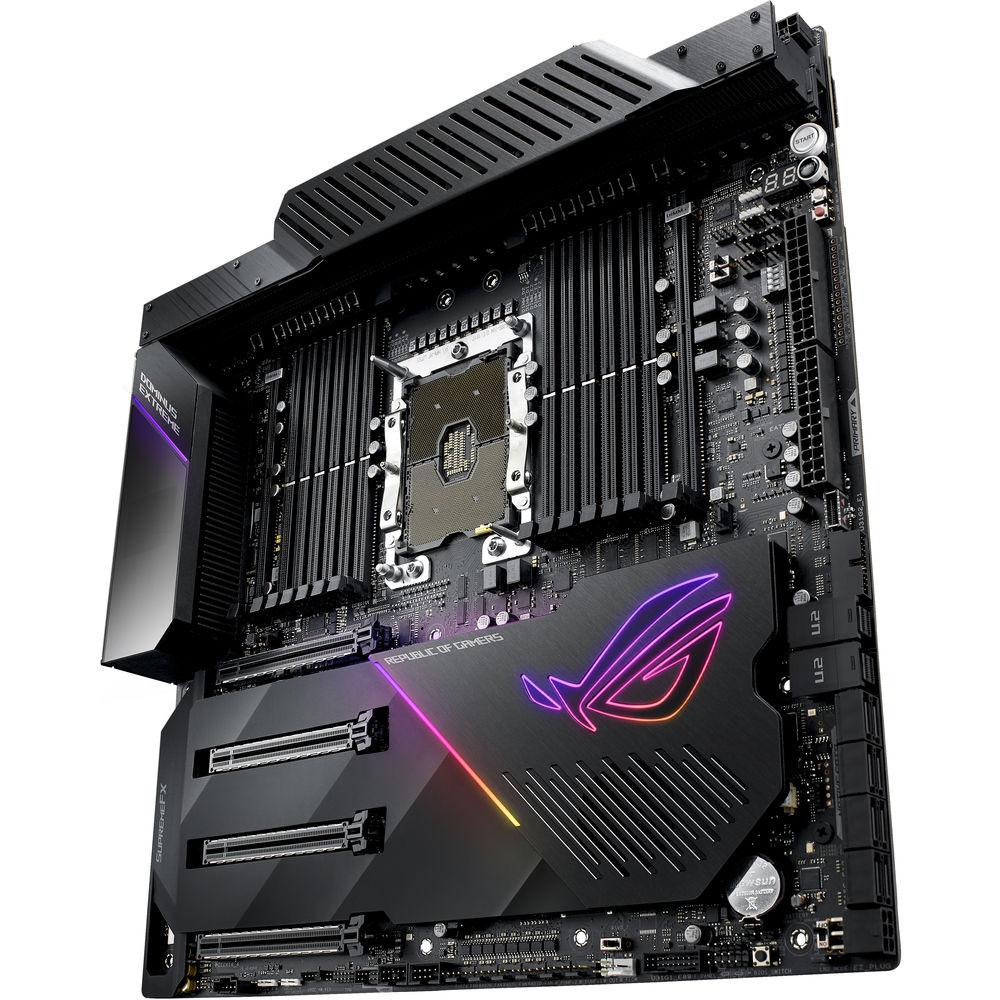

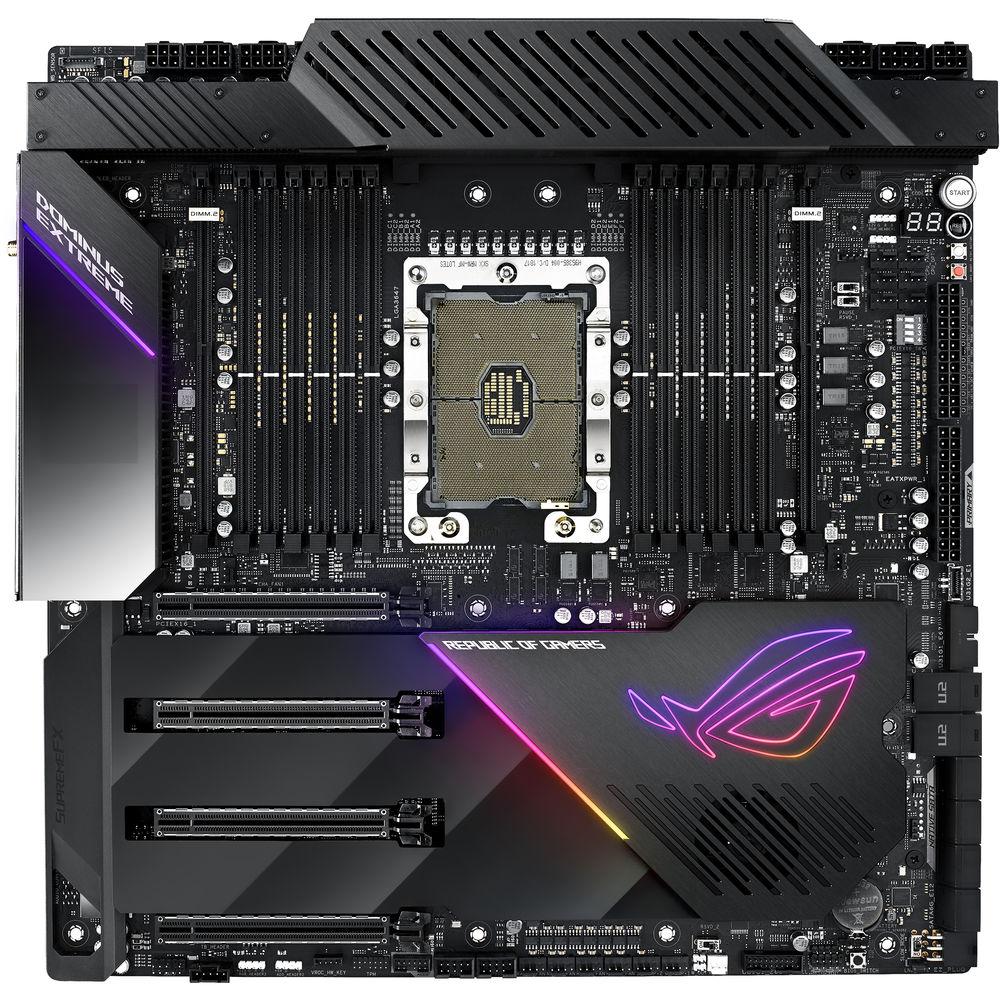

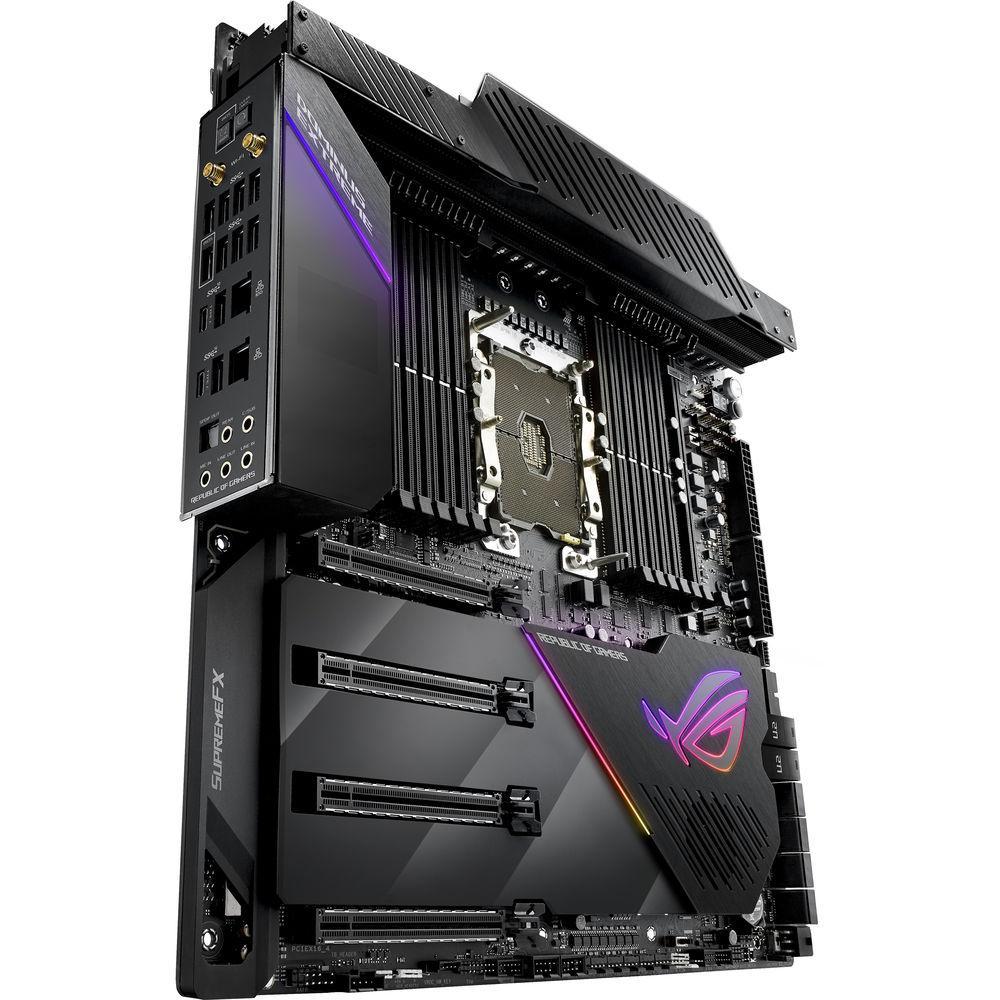

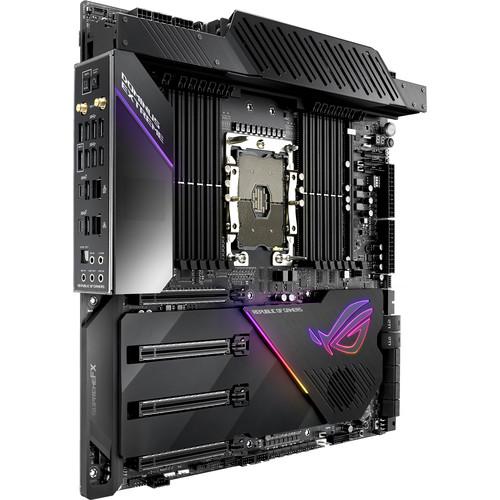

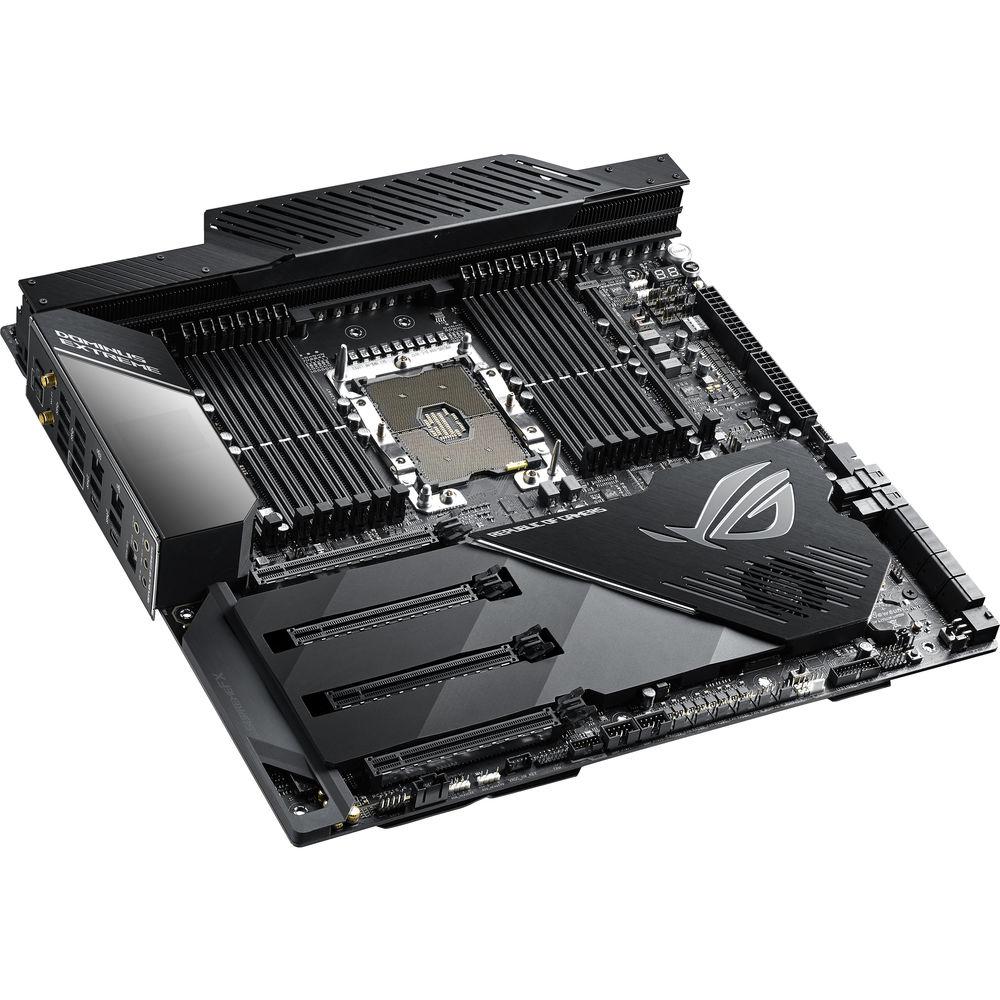

Product description Boost the power of your gaming PC build with the Republic of Gamers Dominus Extreme EEB/ATX 6-Channel DDR4 Motherboard from ASUS. This EEB/ATX motherboard comes equipped with an Intel C621 chipset and an LGA 3647 socket designed for a 28-core Xeon W-3175X CPU, while its six-channel DDR4-4200 memory architecture supports up to 192GB of RAM. The Dominus Extreme motherboard features eight SATA III ports, two U.2 ports, and two M.2 ports, along with four PCIe 3.0 x16 expansion slots. Also on board is ROG SupremeFX 8-channel HD audio, integrated dual-band Wi-Fi 5 with multi-user MIMO technology, and an Aquantia AQC-107 LAN interface. You can light up your build with ASUS Aura Sync RGB support, while the 1.77" LiveDash OLED displays motherboard status and customizable graphics. On-demand NVIDIA SLI and AMD CrossFireX technology allows for multi-GPU setups. Rear I/O ports includes two USB 3.1 Gen 2 Type-C ports, two USB 3.1 Gen 2 Type-A ports, and eight USB 3.1 Gen 1 Type-A ports. General Features - 5-Way Optimization Featuring Auto-Tuning and FanXpert 4
- Provides automatic overclocking profiles for maximum OC performance while 14 PWM fan headers help to ensure support for dynamic system cooling.
- ESD Guards
- Offer electrostatic protection for USB, audio, and LAN ports.
- TrueVolt USB
- Supplies 5V to all USB ports, minimizing power fluctuations for minimal data loss.
- 4 x SafeSlot
- Provides stronger PCIe device retention and greater shearing resistance.
- 12 x Q-DIMM
- One-sided clips for super-simple, super-secure handling of memory modules.
- 4 x Q-Slot
- Clip to swap or secure your graphics card.
- Q-Connector
- Sorts all front-panel cables.
Cooling Features - Aluminum I/O Cover
- The cover is crafted from pure aluminum to efficiently cool the 10G Ethernet controller.
- Dual Backplates
- Add rigidity and additional functionality to the oversized board. The upper backplate adds additional mass to siphon heat from the VRM.
- Active Heatsink
- Fans located within the heatsink turn on above 30°C and allow ROG Dominus Extreme to handle a sustained power draw of over 570A.
- Active PCH Heatsink
- The PCH heatsink blends seamlessly with the aluminum cover. Underneath is a fan that turns on above 30°C and prominently features the ROG logo.
- Cooling Options
- Configurable via Fan Xpert 4 or the UEFI BIOS. Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling. And all settings can be easily managed by Fan Xpert 4 or UEFI.
- Water-Cooling Zone
- Dual water-temperature headers and flow-rate header feed information straight into the AI Suite utility, so you can keep track of coolant temperatures, and the flow rate of the entire loop.
- Fan Extension Card II
- Adds six headers that are controllable via FanXpert 4. The card has three temperature-sensor headers to complement the on-board header. It also comes with three thermistors that you can affix to different components. In addition to supplying extra headers for cooling, it has three primed for RGB LED strips.
Performance Features - Quad 8-Pin ProCool Connectors
- Help to ensure a snug and reliable connection to the EPS 12V power lines.
- PowIRstages IR3555
- The Dominus Extreme VRM is comprised of 32 IR3555 PowIRstages, each rated to handle 60A.
- Microfine Alloy Chokes
- Each PowIRstage is accompanied by a high-permeability alloy-core choke rated to handle 40 amps.
- 10K Black Metallic Capacitors
- Input and output filtering is provided by solid-polymer capacitors rated to last thousands of hours at high operating temperatures.
- DDR4 4200 MHz
- HCC processors crunching multi-threaded compute workloads can demand colossal memory space and bandwidth. The Dominus Extreme features T-topology designed to maximize signal integrity and drive high-density memory configurations to speeds previously reserved for low-capacity setups.
UEFI BIOS Features - My Favorites
- Quickly find tuning options and add preferred tools to the list.
- EZ Flash 3
- Flash the latest BIOS via the internet from within the BIOS.
- SMART
- Check your storage device Self-Monitoring, Analysis, and Reporting Technology logs to gauge reliability and identify potential failures.
- GPU POST
- Automatically detect selected ASUS graphics cards to view detailed information.
- Secure Erase
- Restore your SSDs and NVMe storage to factory settings.
- Last Modified Log
- Track the last change and save preferred profiles to a USB drive.
- SATA Port Renaming
- Rename SATA ports for easy identification.
- User Profile
- Port configuration settings between different BIOS versions or share them with friends.
- Q-Fan Control
- Configure the fan's operating speed manually or use pre-configured fan profiles to quickly select Standard, Silent, Turbo or Full Speed modes. By default, system fans will automatically switch to full speed if the temperature reaches 75°C.
AI Suite - Energy Processing Unit (EPU)
- Automatically optimizes power consumption and maximizes savings with Away mode, a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
- Fan Xpert 4
- Lets you enjoy comprehensive control over fans and water pumps. Whether you're cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode, which reduces all fan speeds to below the default minimum, helping to keep your system quiet when performing light tasks.
- Digi+ Voltage-Regulator Module (VRM)
- Delivers real-time control over voltage droop, switching frequency, and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for optimal stability and performance.
Connectivity Features - Virtual RAID on CPU (VROC)
- Use the exclusive ROG DIMM.2 module to take advantage of Intel's Virtual RAID on CPU (VROC) feature by connecting the four M.2 drives in RAID configurations. With VROC, your RAID arrays are easily configured to be bootable, and traditional DMI bottlenecks are eliminated so your storage is not held back by other traffic. Additional purchase of an Intel VROC hardware key is required for RAID 1, 5 or 10.
- Intel Integrated Wi-Fi Support
- ROG Dominus Extreme features Intel Wireless AC-9260 Wi-Fi (802.11ac) with 2x2 MU-MIMO and wide 160 MHz channel support, for wireless speeds up to 1.73 Gb/s. Bluetooth 5.0 is also supported
- Intel Ethernet I219-LM
- ROG Dominus Extreme features an Intel Ethernet I219-LM connection, designed for faster, smoother performance, lower CPU overhead, and optimized TCP and UDP throughput.
Audio Features - LED-Illuminated Audio Jacks
- Backlit audio jacks save you from fumbling around in the dark.
- ESS SABRE9018Q2C DAC/AMP
- Creates an ideal balance for audio clarity capable of -115dB THD.
- S1220 Codec
- Supports 10 DAC channels, simultaneous 7.1-channel playback, independent 2.0-channel, multiple-stream stereo to front-panel outputs.
- Switching MOSFETs
- Unique design allows the codec's impedance-sensing function to be ported with either the front or rear headphone outputs.
- Nichicon Capacitors
- Produce a warmer, natural sound with exceptional clarity and fidelity.
Gaming and Graphics Features - GameFirst V
- Optimizes network traffic for faster, lag-free online gaming. Team your gateways, keeps tabs on bandwidth-hogging apps, and make adjustments on the fly.
- ROG First
- Interface directly with a ROG router and automatically configure QoS to prioritize network bandwidth to games.
- RAMCache
- Compatible with the latest NVM Express storage options, RAMCache's intelligent technology caches an entire storage device to help games and apps launch faster.
- Smart Mode
- Automatically caches all your storage devices to maximize your system's resources.
- Sonic Studio
- Supports HRTF-based (head-related transfer function) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.
- Sonic Studio Link
- Allows you to apply Sonic Studio effects on most playback devices. Simply press the Sonic Studio Link button to enjoy the effect on a playback device.
- LiveDash OLED
- A 1.77" built-in color OLED panel that displays useful information and customizable graphics. During the power-on, self-test (POST) phase, LiveDash shows key progress stats in simple language and via traditional POST codes. During normal operation, the panel shows a choice of CPU frequency, device temperatures, fan speeds, or information from the Water Cooling Zone.
- Armory Crate
- Keeps you updated with the latest drivers and BIOS releases. Its easy-to-use UI can be configured to show a variety of information, including security updates, bug patches, the latest ROG news, gaming events, and special offers.
UPC: 192876147399 In the Box ASUS Republic of Gamers Dominus Extreme EEB/ATX 6-Channel DDR4 Motherboard ROG Logo Plate Sticker M.2 Screw Package CPU Installation Tool ASUS 2T2R Dual-Band Wi-Fi Moving Antenna Fan Extension Card II (6 x 4-Pin Chassis Fan Connectors, 3 x RGB Headers, 3 x 2-Pin Thermal Sensor Header) Fan Extension Card II Power Cable Fan Extension Card II NODE Connector Cable Fan Extension Card II Screw Package SLI HB Bridge (2-Way-L) Q-Connector ROG Logo Sticker Extension Cable for RGB strips (31.5") Extension cable for Addressable LED 3 x Thermistor Cables USB Drive with Utilities and Drivers ROG Coaster ROG Weave SATA 6G Cable ROG DIMM.2 with Heatsink M.2 Pad for ROG DIMM.2 Limited 3-Year Warranty More info from ASUS zufdrrzrzwsvrszdtawqcsecsrzc Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS Republic of Gamers Dominus Extreme EEB ATX 6-Channel DDR4 Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

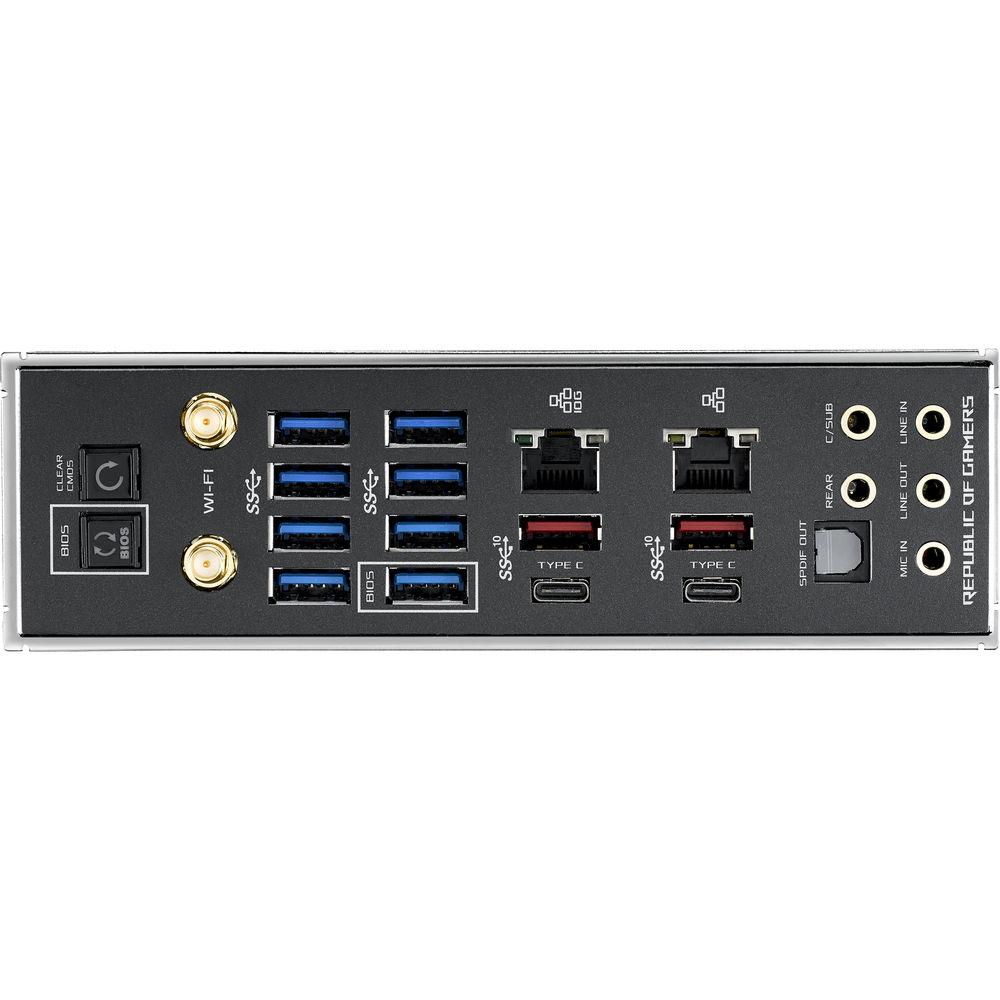

Technical parametersASUS Dominus Extreme Specs | | | Chipset | Intel C621 | | CPU Socket | LGA 3647 | | | | USB | 2 x USB 3.1 Gen 2 Type-A
2 x USB 3.1 Gen 2 Type-C
8 x USB 3.1 Gen 1 Type-A | | Audio | 1 x S/PDIF
5 x 3.5 mm | | Ethernet / Controller | 1 x Aquantia AQC-107 10GbE
1 x Intel I219-LM Gigabit | | Wi-Fi Antenna | 2 x Connector | | Buttons | BIOS Flashback, Clear CMOS | | | | Memory Slots | 12 x 288-Pin | | Memory Support | DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3400, 3466, 3600, 3733, 3800, 4000, 4200 MHz | | Maximum Capacity | 192 GB | | Channel Architecture | Hexa Channel | | ECC Support | Non-ECC, ECC Unbuffered | | | | SATA | 8 x SATA III | | M.2 | 4 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4) | | U.2 | 2 | | DIMM.2 | 2 | | Optane Memory Support | Yes | | RAID Support | RAID 0, 1, 5, 10 | | | | Expansion Slots | 4 x PCIe 3.0 x16 | | USB | 2 x USB 2.0 Header (Supports 4 USB Type-A Ports)
2 x USB 3.1 Gen 1 Header (Supports 4 USB Type-A Ports) | | Multi-GPU Support | 2-Way, 3-Way, 4-Way NVIDIA SLI
2-Way, 3-Way, 4-Way AMD CrossFireX | | Air Cooling | 2 x 4-Pin CPU
4 x 4-Pin System
1 x 3-Pin Cover
1 x 3-Pin W_FLOW
1 x 2-Pin W_IN
1 x 2-Pin W_OUT
2 x Thermal Sensor | | Liquid Cooling | 8 x Radiator Fan
1 x 9-Pin Monoblock Sensor
2 x 4-Pin Pump | | Power Connectors | 2 x 6-Pin ATX
2 x 24-Pin Mainboard
4 x 8-Pin CPU
1 x 6-Pin ATX | | Security | TPM Module | | LED Header | 4 x RGB | | Audio | 5 x Speaker
1 x S/PDIF | | Diagnostics | LN Mode, Reset, ReTry, Safe Boot, Slow Mode, Start | | Add-On | 1 x Thunderbolt Card Header | | | | I/O Connection Headers | USB 3.1 | | | | Audio Codec | SupremeFX S1220 (8-Channel) | | DAC | ESS SABRE9018Q2C | | | | Bluetooth | 5.0 | | Wi-Fi | Wi-Fi 5 (802.11ac) (MU-MIMO) | | | | Supported Operating Systems | Windows 10 (64-Bit) | | | | Form Factor | EEB | | Dimensions | 14 x 14" / 35.56 x 35.56 cm | | | | Package Weight | 13.745 lb | | Box Dimensions (LxWxH) | 16.5 x 16.5 x 4.6" |
