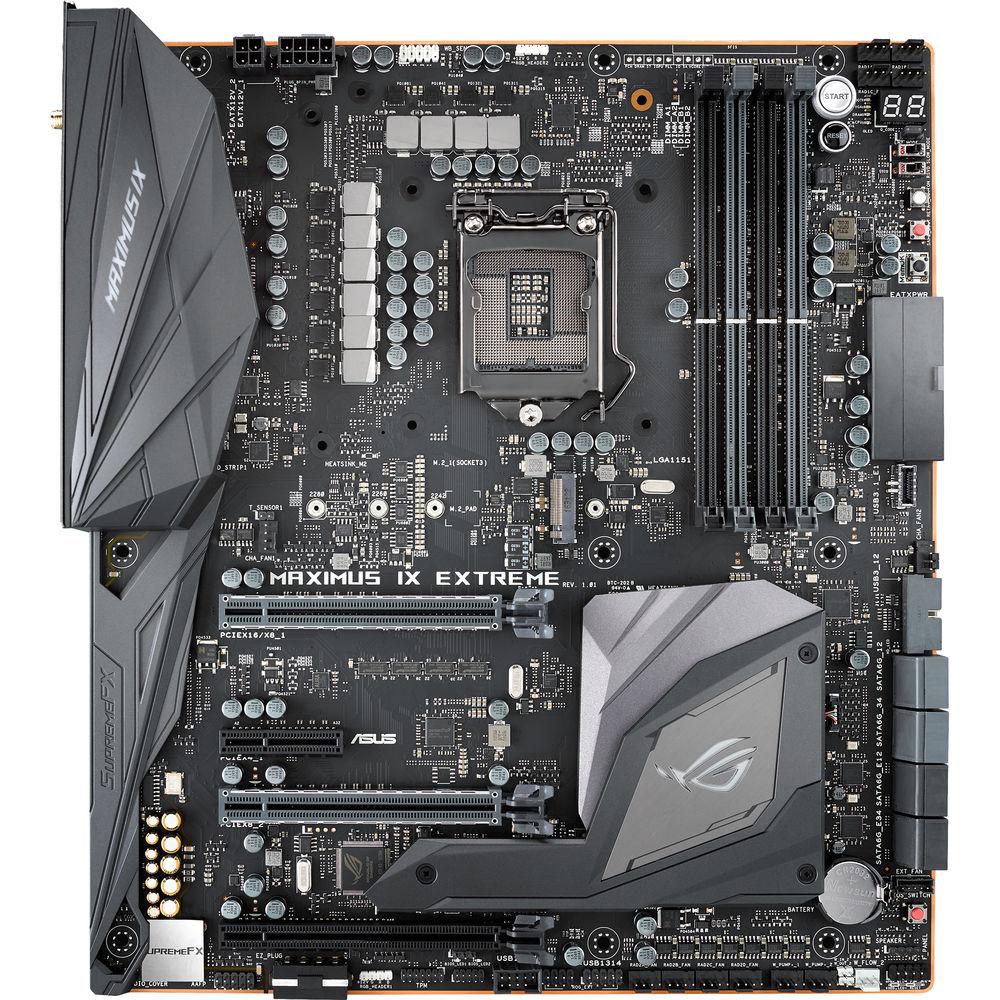

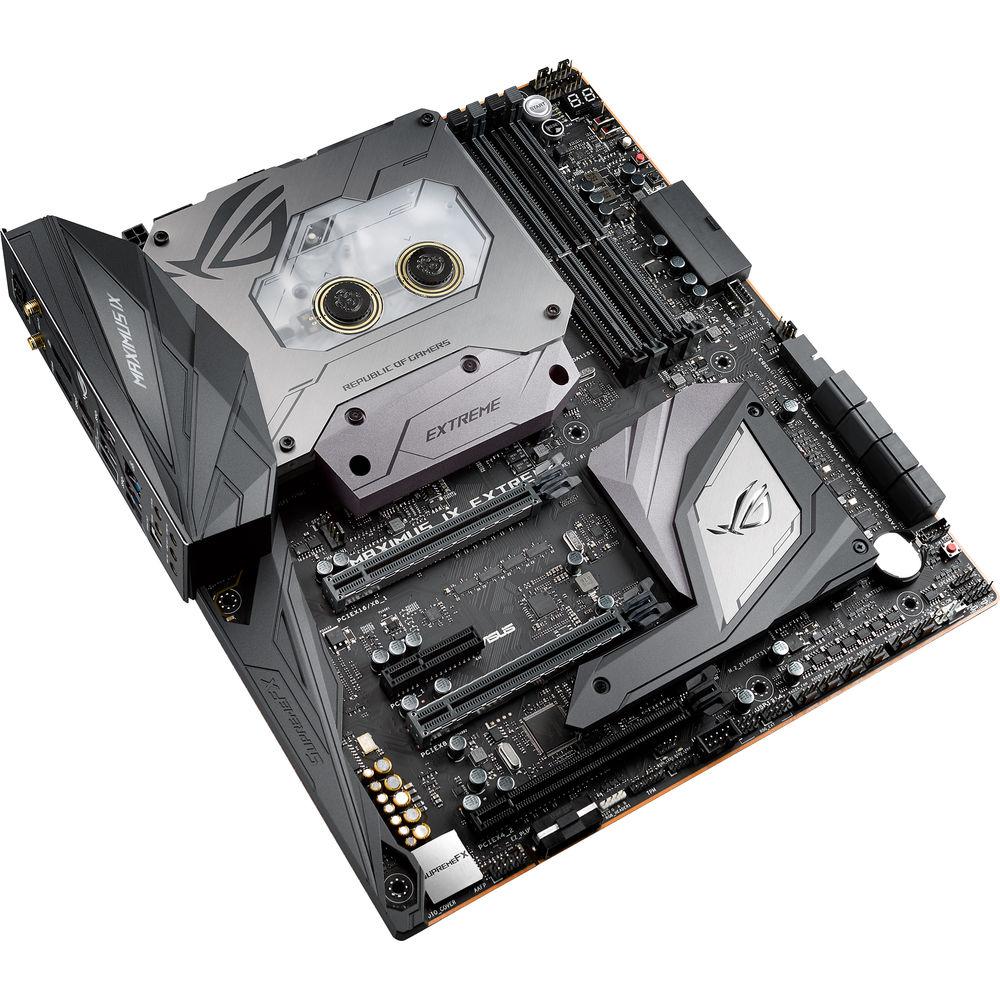

Product description The Republic of Gamers Maximus IX Extreme Z270 LGA 1151 E-ATX Motherboard from ASUS fits in full-tower cases and lets you build a gaming computer system running on a 7th- or 6th-gen Intel processor and multiple graphics cards. This motherboard comes outfitted with an LGA 1151 socket along with an Intel Z270 chipset, providing you with the ability to overclock an unlocked processor. To support the enhanced performance, the Maximus IX Extreme comes with a monoblock that directly connects to your liquid-cooling solution and mounts on top of the processor, VRM, and M.2 drives to dissipate heat effectively. Other notable features include onboard RGB LEDs, 802.11ac Wi-Fi with MU-MIMO, and Bluetooth 4.1 as well as two M.2 slots and one Thunderbolt 3 port to enable the system quick access to data. The motherboard also comes with eight SATA III connections for optical drives, hard drives, and SSDs.
ASUS has equipped this motherboard with four DDR4 memory slots that can accommodate up to 64GB of memory modules and handle frequencies of up to 4133 MHz. Three PCIe 3.0 x16 slots are available so you can link graphics cards in either NVIDIA 2-Way SLI or AMD 3-Way CrossFireX technology to render 3D textures quickly. For non-gaming builds, the motherboard supports integrated Intel graphics coming from the processor to deliver detailed visuals through its HDMI and DisplayPort outputs. To complete the multimedia experience, it comes armed with six audio jacks that connect to user-supplied speakers or headsets. Other ports offered are six USB 3.0 ports as well as one PS/2 combo port, one Gigabit Ethernet port, and one USB 3.1 port with 10 Gb/s speeds. There's also a PCIe 3.0 x4 slot to grant your system with extra capabilities. - Intel Z270 Chipset
- The Intel Z270 chipset supports 7th-generation and 6th-generation Intel LGA 1151 Core i7/Core i5/Core i3/Pentium/Celeron processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, the Z270 chipset provides a maximum of 10 USB 3.0 and four SATA 6 Gb/s ports as well as 32 Gb/s M.2 PCIe 3.0 technology and integrated graphics support.
- LGA 1151 Socket
- The ROG Maximus IX Extreme motherboard supports 7th-generation and 6th-generation Intel Core i7/Core i5/Core i3/Pentium/Celeron processors in the LGA 1151 package. Integrated graphics, memory and PCI Express controllers provide onboard graphics output with dedicated chipsets, two-channel (4-DIMM) DDR4 memory, and 16 PCIe Express 3.0/2.0 lanes.

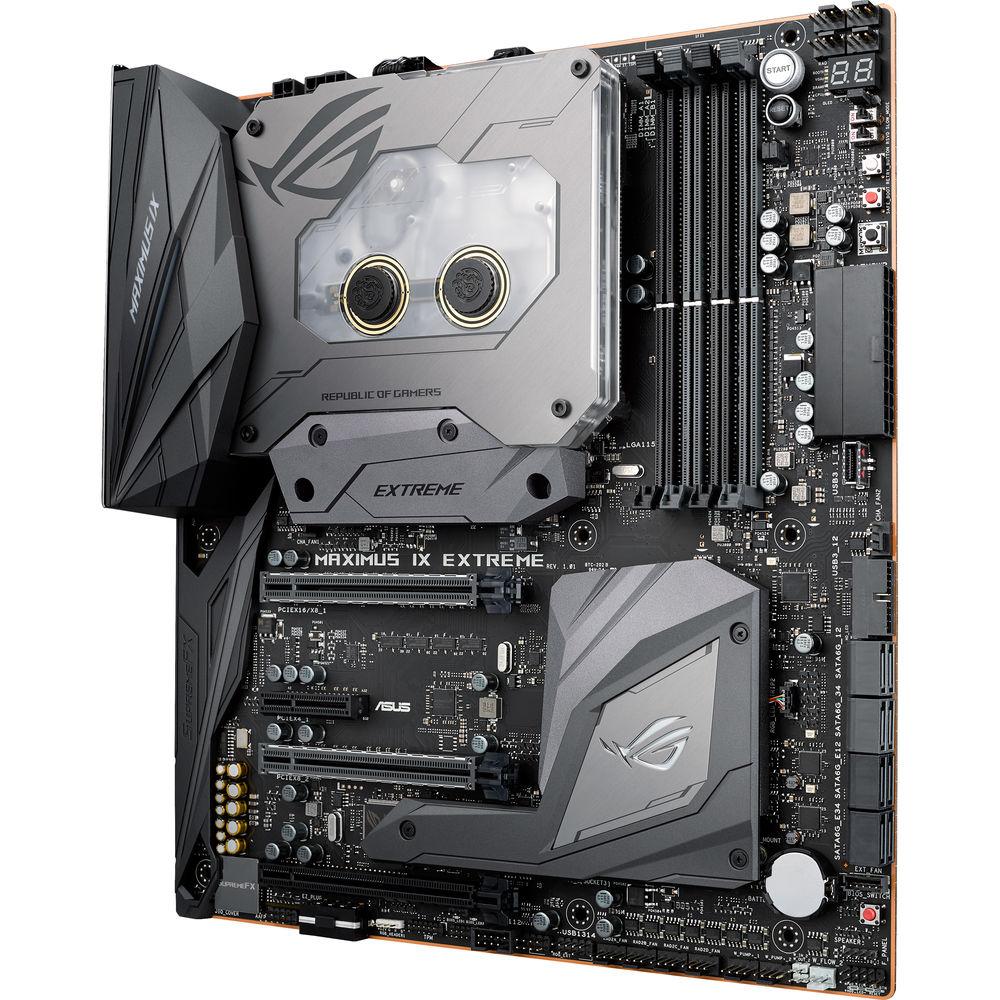

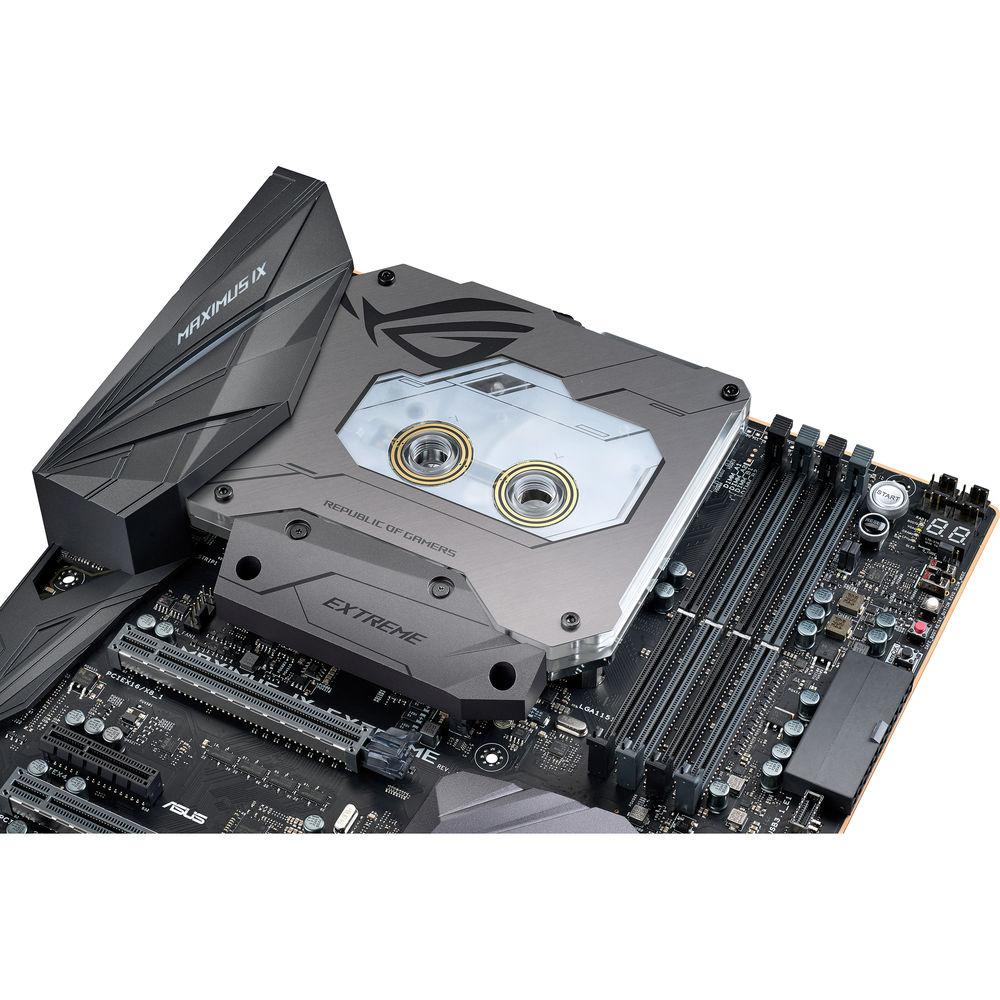

- Liquid-Compatible Monoblock
- The ROG Maximus IX Extreme motherboard comes with a monoblock that connects to your liquid-cooling solution to cool the processor, VRM, and M.2 storage drives. The monoblock sports integrated sensors for monitoring the flow rate, water-pump status, coolant leak, and temperature. Aside from the monoblock, the motherboard comes with fan headers for controlling the radiator's fans.

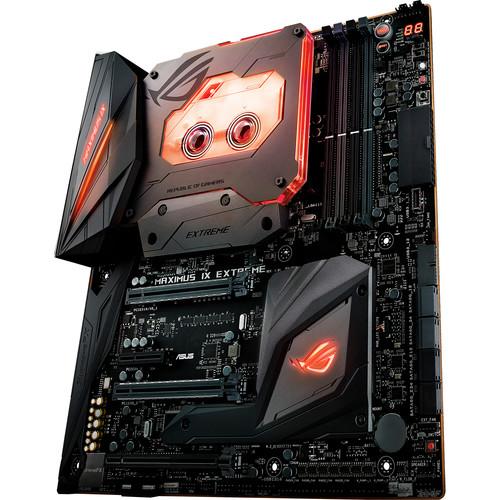

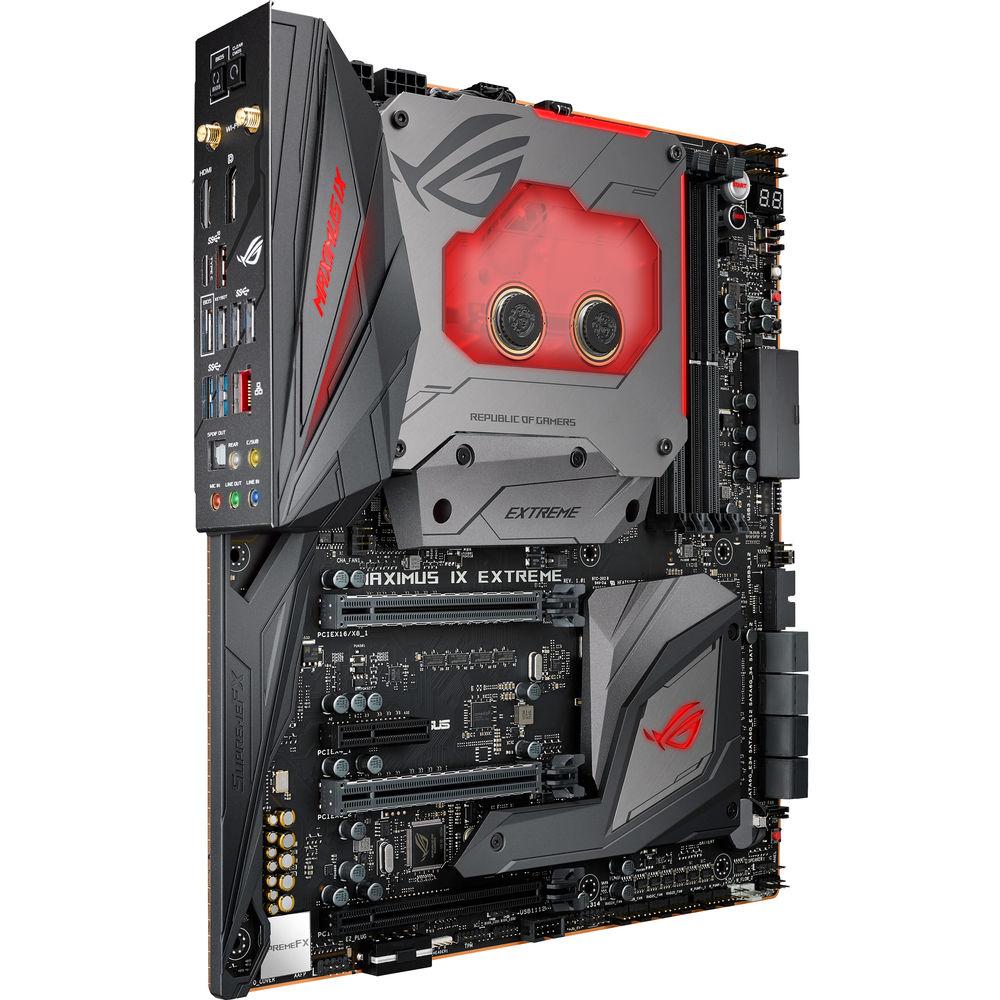

- Aura Lighting
- Aura Sync lighting-control software is provided for controlling optional RGB strips as well as onboard LEDs on the motherboard. Aura provides RGB color selection and nine lighting effects. Additionally, this software program is compatible with LED lights on your keyboard, mouse, and other devices.
- Gaming Audio
- With SupremeFX audio technology, the motherboard delivers 113 dB signal-to-noise ratio on the line-in connection and 120 dB on line-out. This technology provides a SupremeFX S1220 chipset, an ESS Sabre Hi-Fi ES9023P digital-to-analog converter, and a Texas Instruments RC4580 op-amp.
- OC Design
- A dedicated base-clock generator, which is designed for 7th-generation Intel processors, allows overclocked base frequencies of up to or beyond 425 MHz. This solution works in tandem with the ASUS TurboV Processing Unit (TPU) to enhance voltage and base-clock control. For memory performance, an ASUS T-Topology circuit design and OC socket help minimize coupling noise and signal reflection to support frequencies of up to 4133 MHz for compatible DDR4 memory modules.
- 5-Way Optimization
- 5-Way Optimization sorts out complex system management settings with a click to provide instant and controllable performance boosts. This technology optimizes essential aspects of your system based on real-time use, so you can experience fast CPU performance, everyday energy savings, stable digital power, cool and quiet fans, and enhanced networking that is tailored for the apps you are using.
- Thunderbolt 3
- The Thunderbolt 3 port features a reversible USB Type-C design and transfers data at a rate of up to 40 Gb/s.
- Storage Performance
- The Maximus IX Extreme has two PCIe 3.0 x4 M.2 slots that can support NVMe SSDs for fast storage performance. You can create a RAID configuration with up to three PCIe 3.0 storage devices, utilizing two M.2 slots and one PCIe x16 slot, to improve the drive's native read and write speeds.
- Wireless
- The external dual-band 2.4/5 GHz Wi-Fi antenna comes equipped with MU-MIMO technology to offer wireless transfer speeds of up to 867 Mb/s.
- Software Included
-
- ROG's Sonic Studio III is an audio-tuning suite that delivers audio streams to different outputs along with offering app-level preferences for instant audio profiles and noise filtering for conversations
- Sonic Radar III processes in-game sounds to provide an on-screen arrow that pinpoints the position of opponents
- GameFirst IV supports up to 4 networks and optimizes network traffic for fast, lag-free online gaming
- Overwolf offers an unobtrusive overlay that allows you to browse the Web, email, IM, stream, or record while you play
- ROG Clone Drive is a cloning solution that quickly and efficiently replicates the data on hard drives or SSDs to new storage drives
- RAMCache effectively caches an entire storage device so that frequently-used games and apps launch at fast speeds
- KeyBot II provides a microprocessor and intuitive user interface to record macros directly from the keyboard, switch profiles in moments, enable special functions with hotkeys from F1-F10, as well as start and boost your PC from shutdown (S5 mode)
- Kaspersky Anti-Virus (1 Year) for protection against viruses and spyware
- Additional Features
-
- SafeDIMM slots feature a metal key-pin design that increases durability, versus traditional DIMM slots
- Mouse-controlled graphical BIOS comes with EZ and Advanced modes
- Update the BIOS while the computer is off with the USB BIOS Flashback port
- Digital power controller consists of NexFET MOSFETs, MicroFine alloy chokes, Digi+PWM controller, and 10K black capacitors to deliver smooth core voltages
- 24-pin power connector features a ProCool design, which mounts the connector flush with motherboard, to enable lower impedance and better heat dissipation than traditional power connectors
- ASM 2142 USB 3.1 controller runs at PCIe 3.0 x2 to transfer data at a rate of up to 10 Gb/s and offers an onboard USB 3.1 front-panel connector
- Intel's I219-V Gigabit Ethernet controller reduces CPU overhead and offers high TCP and UDP throughputs
- LANGuard employs signal-coupling technology, surface-mounting processes, and ESD guards to protect the motherboard's connection
- I/O shield offers protection against electrostatic discharge of up to 12kV and is pre-fitted to make it even easier to install the motherboard
- SafeSlot for the PCIe slot to support heavy graphics cards
- Copper-plated edge design helps guard against electromagnetic interference
- Mounts on the motherboard allow you to install your 3D-printed parts
- VR Ready
UPC: 889349663714 In the Box ASUS Republic of Gamers Maximus IX Extreme Z270 LGA 1151 E-ATX Motherboard 8 x SATA III Cables M.2 Screw Package CPU Installation Tool Fan Extension Card (3 x 4-Pin Fan Out) Fan Extension Card Screw Pack ASUS 2T2R Adjustable Antenna 2-Way SLI HB Bridge ROG Big Sticker Q-Connector Package of 10-in-1 ROG Cable Labels 2 x Thermal Sensor Cable Packs 31.5" (80cm) RGB Extension Cable USB Drive with Utilities/Drivers ROG Coaster Limited 3-Year Warranty More info from ASUS ayayzbsuatsfrwtawccx Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS Republic of Gamers Maximus IX Extreme Z270 LGA 1151 E-ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS Maximus IX Extreme Z270 Specs | CPU | Intel Socket LGA 1151 for 7th & 6th Generation Core i7, i5, i3, Pentium, and Celeron processors | | Chipset | Intel Z270 | | Memory | - 4 x DIMM, Max. 64 GB, DDR4 4133 (OC), 4000 (OC), 3866 (OC), 3800 (OC), 3733 (OC), 3600 (OC), 3500 (OC), 3466 (OC), 3400 (OC), 2666 (OC), and 2400 (OC) MHz non-ECC unbuffered memory
- Dual-Channel Memory Architecture
- Supports Intel Extreme Memory Profile (XMP) | | Graphics | - Integrated Graphics Processor - Intel HD Graphics support
- Multi-VGA output support: HDMI/DisplayPort 1.2 Ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
- Maximum shared memory of 1024 MB | | Multi-GPU Support | NVIDIA 2-Way SLI or AMD 3-Way CrossFireX | | Expansion Slots | - 2 x PCIe 3.0/2.0 x16 (single at x16, dual at x8/x8)
- 1 x PCIe 3.0/2.0 x16
- 1 x PCIe 3.0 x4 | | Storage | - 1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage device support (both SATA & PCIe modes)
- 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage device support (PCIe mode)
- 8 x SATA III 6 Gb/s ports
- Support Raid 0, 1, 5, 10
- Supports Intel Smart Response Technology
- Supports Intel Rapid Storage Technology
- Intel Optane Memory Ready | | Wi-Fi | 802.11a/b/g/n/ac with MU-MIMO support | | Bluetooth | Bluetooth 4.1 | | Audio | - SupremeFX 8-channel high definition audio CODEC S1220

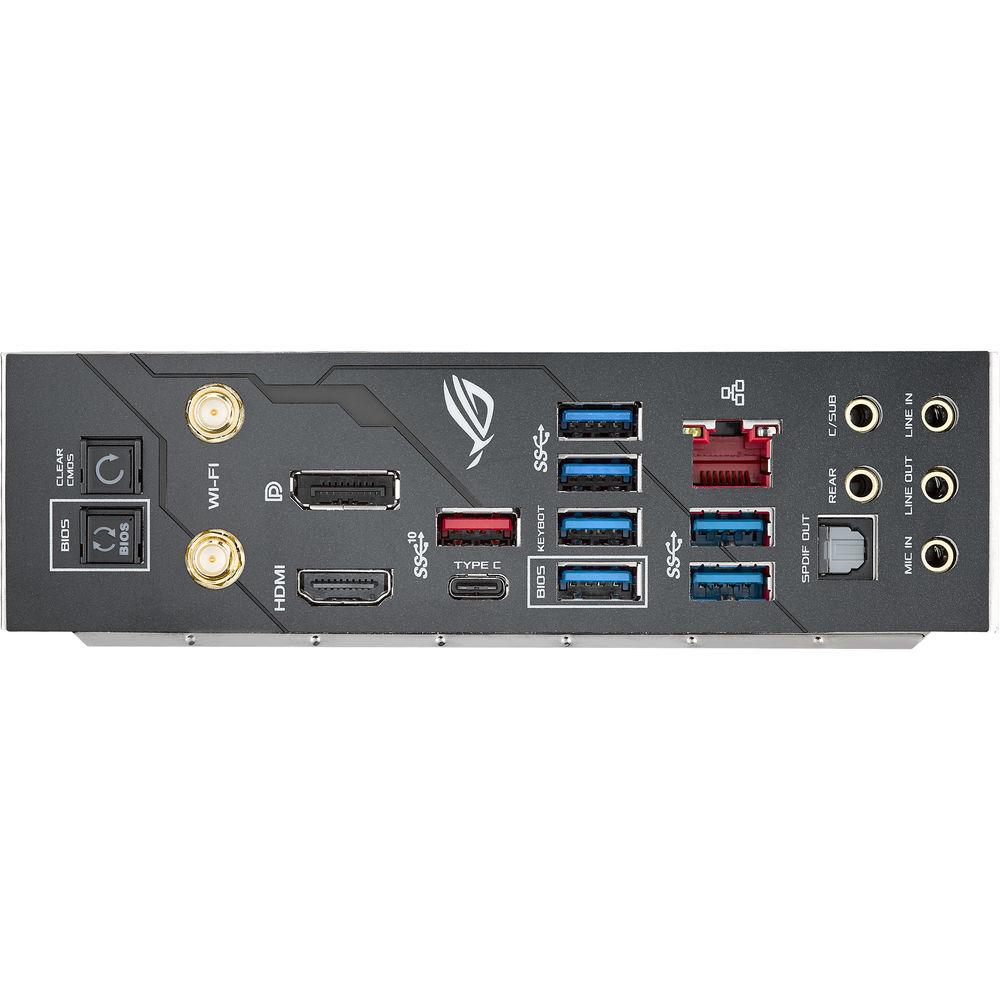

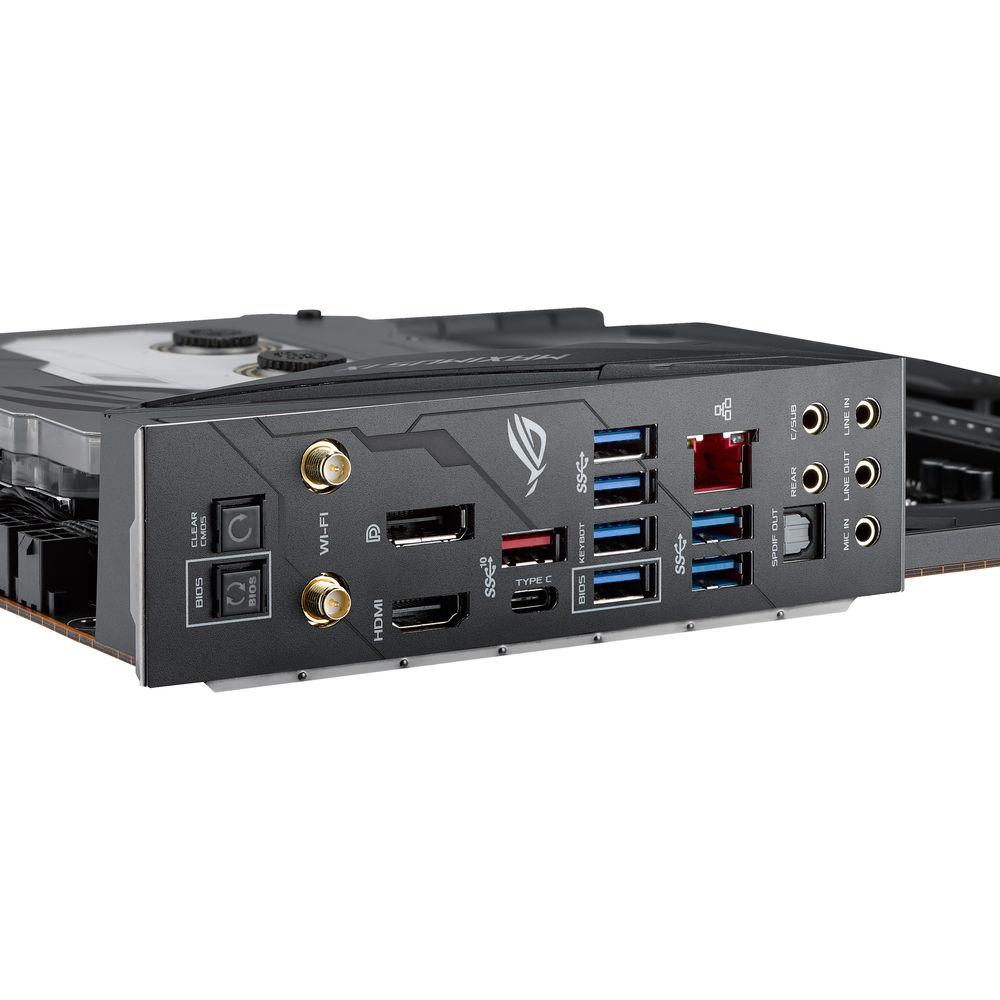

- 113 dB SNR stereo playback output and 110 dB SNR recording input | | I/O Ports | 1 x DisplayPort
1 x HDMI
1 x Intel I219V Gigabit Ethernet
1 x Thunderbolt 3 with USB Type-C interface
1 x USB 3.1 Type-A
6 x USB 3.0 (blue)
1 x Optical S/PDIF out
1 x Clear CMOS button
1 x USB BIOS flashback button
5 x LED-illuminated audio jacks | | Internal Ports | 1 x AAFP connector
2 x Aura RGB strip headers
1 x USB 3.0 connector (supports additional 2 USB 3.0 ports)
2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
1 x TPM connector
2 x Chassis Fan connectors
2 x W_PUMP+ connectors
1 x 24-pin EATX Power connector
1 x 8-pin ATX 12V Power connector
1 x 4-pin ATX 12V Power connector
1 x 4-pin EZ_PLUG Power connector
1 x Front panel audio connector (AAFP)
1 x System panel (Q-Connector)
1 x Slow Mode switch
1 x Thermal sensor connector
1 x EZ Plug connector (4-pin Molex power connector)
1 x Power-on button
1 x Reset button
1 x BIOS Switch button
1 x Clear CMOS button
1 x 5-pin EXT_FAN (Extension Fan) connector
1 x USB BIOS Flashback button
1 x LN2 Mode jumper
1 x ROG extension (ROG_EXT) header
1 x Safe Boot button
1 x ReTry button
1 x T_Sensor Connector
2 x W_Pump+ headers
1 x EXT_Fan header
1 x W_IN header
1 x W_OUT header
1 x W_FLOW header
1 x USB 3.1 front panel connector | | OS Support | Windows 10 (64-bit), 8.1 (64-bit), 7 (32/64-bit) | | Form Factor | Extended ATX | | Dimensions | 12 x 10.7" / 30.5 x 27.2 cm | | Weight | Not specified by manufacturer | | | | Package Weight | 9.05 lb | | Box Dimensions (LxWxH) | 14.5 x 12.2 x 10.4" |
