ASUS Republic of Gamers Rampage VI

User Manual for ASUS Republic of Gamers Rampage VI Extreme LGA 2066 Extended ATX Motherboard

• Product category: Motherboards ASUS
• Brand: ASUS
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for ASUS Motherboards

Product description

General Features

Customization

Outshine the Competition
• A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs, as well as strips connected to the two onboard 4-pin RGB headers. It can all be synced with an ever-growing portfolio of Aura Sync-enabled ASUS hardware.

RGB Headers
• Rampage VI Extreme features a duo of integrated 5050 RGB headers and an addressable header that can be connected to compatible lighting strips, fans, coolers, and PC cases, creating a large number of illumination possibilities. The addressable RGB header supports WS2812B addressable RGB LED strips (5V/Data/Ground), with a maximum power rating of 3A/5V and a max of 60 LEDs. The Aura RGB-strip header supports 5050 RGB LED strips with a maximum power rating of 3A/12V. For maximum brightness, strip length should not exceed 9.8'.

Lighting Possibilities
• ASUS Aura SDK allows developers to take full advantage of the vast eco-system of Aura Sync-capable PC gear. From in-system illumination to peripherals and beyond, the SDK provides an evolving toolkit of options to help enhance games and software with RGB lighting. Game effects, alerts, and audio can all be portrayed via Aura-compatible hardware, creating subtle or dazzling visual cues to augment the action. There's also scope to map system parameters such as temperatures to lighting, giving enthusiasts different ways to monitor vital information.

LiveDash OLED
• Rampage VI Extreme motherboards are equipped with LiveDash, which is a built-in OLED panel that displays useful information and customizable graphics. During the power-on, self-test (POST) phase, LiveDash shows key progress stats, in simple language and via traditional POST codes. Then, during normal operation, the panel shows a choice of CPU frequency, device temperatures, fan speeds, or information from the Water Cooling Zone. You're also able to customize the default LiveDash GIF, so it'll display your own image or animation.

Connectivity

802.11ad Wi-Fi
• The Rampage VI Extreme is engineered with the 802.11ad (WiGig) Wi-Fi for fast wireless connections with minimal lag of up to 4.6 Gb/s, delivering smooth streaming of 4K UHD video and improved online experiences.

Integrated 10GbE LAN
• Designed for the demanding requirements of power users and content creators who push the envelope, 10GbE LAN plugs you into an improved era of home networking. With up to 10x the bandwidth of standard gigabit Ethernet, you'll enjoy streaming uncompressed 4K UHD videos, backups, and file transfers that are faster than before. And there's also support for intermediate 2.5 Gbps and 5 Gbps connectivity, allowing you to step up to faster networks for maximum flexibility. Choose the bandwidth that meets your needs and enjoy low latency at almost any speed.

Intel I219-V Gigabit Ethernet
• Featuring Intel I219-V Gigabit Ethernet for faster, smoother gaming, this controller has a natural synergy with Intel processors and chipsets, helping to reduce CPU overhead and offering high TCP and UDP throughput, so there's more power for games and other tasks.

LANGuard
• LANGuard means safer, more reliable connections for your battles. Advanced signal-coupling technology and improved surface-mounting processes join forces to help protect your Rampage VI Extreme's connection and deliver pumped-up throughput, plus electrostatically guarded and surge-protected components (ESD Guards) greater tolerance to static electricity and protection against surges up to 15kV.

GameFirst IV
• GameFirst IV optimizes network traffic for faster, lag-free online gaming - and now we've added Multi-Gate Teaming to team all your networks for gargantuan bandwidth and the smoothest-ever gameplay. You'll also enjoy all-new Intelligent mode, which automatically compiles a database by parsing new app data to ensure that every game is optimized for the best performance.

Triple M.2
• The Rampage VI Extreme has the provision for three M.2 drives to make the most of Intel's IRST and VROC options. Two M.2 drives ride ASUS' DIMM.2 module next to the memory slots, while one slot is under the ROG Armor. A VROC array can be configured by pairing the DIMM.2 slots, and IRST RAID can be configured by pairing one DIMM.2 slot with the onboard M.2 slot.

ROG DIMM.2
• The ROG DIMM.2 module is an expansion card that allows two M.2 drives to be connected via a DDR4 interface. You can then add a fan via the bundled mounting bracket to direct cool air over the M.2 drives, helping to control thermals and ensure performance. ROG DIMM.2 accommodates M.2 drives up to 22110 (110mm) and includes a pair of built-in thermal headers that allow control over the speed and acoustics of mounted fans via Fan Xpert 4 software or the UEFI BIOS.

PCIe Gen 3.0 M.2
• The PCIe Gen 3.0 M.2 accommodates M.2 drives up to 2280 (80mm).

VROC
• Unleash the Rampage VI Extreme Virtual RAID on CPU (VROC) with the addition of an ASUS Hyper M.2 x16 Card, which allows you to attach up to four PCIe 3.0 x16 M.2 drives - for a total bandwidth of up to 128 Gb/s. PCH-based RAID arrays are bottlenecked by the 32 Gb/s limit of the DMI bus. VROC obliterates that limit by allowing you to utilize CPU PCIe lanes to configure a bootable RAID array that can transfer data at fast speeds.

U.2 / NVMe
• This is the specification that lets your SSDs operate at speeds of up to 32 Gb/s. Just attach your chosen drive with plug-and-play ease. Utilizing the U.2 slot will also free up a PCIe slot for another expansion card.

Intel Optane Memory
• Intel Optane is a non-volatile memory technology supported by the Rampage VI Extreme. Intel Optane memory modules accelerate attached storage to reduce boot and load times, so everything feels faster and more responsive.

Performance

5-Way Optimization
• One click takes care of all that complex tuning. ASUS 5-Way Optimization makes your PC smart. It dynamically optimizes essential aspects of the system, providing overclocking and cooling profiles that are tailored for your rig.

  TPU / CPU Performance Boost
  Unleash your PC's full performance with the ASUS AI Suite 3 utility. A TurboV Processing Unit (TPU) is the intelligence behind their automated system-tuning utility, offering the ability to fine-tune voltages, monitor system stats, and adjust overclock parameters for improved performance.

  EPU / Energy Efficiency
  With the Energy Processing Unit (EPU), you'll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away mode - a smart setting that creates an energy-saving scenario by shutting down unused I/O controllers.

  Fan Xpert 4
  With the ROG Rampage VI Apex, you have control over fans, water pumps, and even all-in-one coolers, via either Fan Xpert 4 or ASUS' UEFI. Whether you're cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode, which helps reduce all fan speeds to below the default minimum, keeping your system whisper-quiet when performing light tasks.

  Digi+ - Precise Digital Power Control
  Digi+ delivers real-time control over voltage droop, switching frequency and power efficiency settings, allowing you to finely tune CPU voltage regulation for improved stability and performance.

  Turbo Core App
  Intel's processors feature per-core tuning, and the ASUS Turbo Core app makes use of this feature by enabling you to assign applications to specific processor cores, allowing you to prioritize compute power where it's needed most.

Comprehensive Cooling Controls
• The Rampage VI Extreme features comprehensive cooling controls that are configurable via Fan Xpert 4 or the UEFI BIOS.

  Multiple Temperature Sources
  Each header can be set to monitor and react to three user-configurable thermal sensors for workload cooling. All of this is easily managed by Fan Xpert 4 or UEFI.

  Water Pump+
  A dedicated header than can supply over 3A to high-performance PWN or DC water pumps.

  4-Pin PWN/DC Fan
  Every onboard header supports auto-detection of PWM or DC fans.

  Bundled Fan Extension Card
  Includes three additional DC or PWM fan headers, plus three thermal-probe headers.

  Smart Protection
  A dedicated integrated circuit that protects each fan header from over-temperature and over-current.

  Water In/Out
  Allows for monitoring of temperature at the input/out of any component.

  Water Flow
  Allows for the constant monitoring of the flow rate of the entire loop.

  Water Block Sensor
  A special connector that lets water blocks designed for the Rampage VI Extreme provide flow, temp, and leakage data.

DDR4 Overclocking
• With optimized trace paths for time-aligned signaling and minimal crosstalk, ASUS T-Topology offers enhanced memory stability and compatibility, allowing support for memory speeds of DDR4-4200 MHz and beyond.

OC Design - ASUS Pro Clock II
• ASUS Pro Clock II is a dedicated base-clock generator that helps extend CPU and memory overclocking margins. This custom solution works in tandem with the TPU to enhance voltage and overclocking control, providing the flexibility to extract more performance from Intel Core X-Series processors.

UEFI BIOS
• The mouse-controlled graphical BIOS has been improved to make it even more user-friendly. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way, quickly and easily.

EZ Mode
• EZ Tuning Wizard
  OC and RAID. Select your hardware and apply different scenarios and tune system performance, or streamline your RAID configuration for faster data retrieval and backups.

  Intuitive Graphical Fan Control
  Fine-tune individual fans simply by dragging a curve with the mouse.

  SATA Information
  View SATA port details for easy device recognition.

  Fast Clock Adjustment
  Use mouse controls to change the time and date.

Advanced Mode
• My Favorites
  Quickly find tuning options and add preferred tools to the list.

  EZ Flash 3
  Flash the BIOS via the Internet from within the BIOS.

  SMART
  Check up your storage devices' Self-Monitoring, Analysis, and Reporting Technology logs to gauge reliability and to identify potential failures.

  GPU Post
  Automatically detect selected ASUS graphics cards to view detailed information.

  Secure Erase
  Restore your SSD to factory-fresh conditions.

  Last Modified Log
  Track last changes and save preferred profiles onto a USB drive.
  SATA Port Renaming
  Rename SATA ports for easy identification.

Gaming Audio

SupremeFX
• ROG has improved their integrated audio on the flagship Rampage VI Extreme. The front panel headphone output features a SABRE9018Q2C integrated DAC/AMP capable of reaching -115 dB THD+N to provide playback that conveys the subtleties and nuances of any audio track. The improved resolution derived from the ESS Hyperstream DAC architecture expands the soundstage to give a better sense of positioning. Beyond resolution, the 121 dB DNR provides a low noise-floor, further accentuating dynamics and punch. And, when you want to shift priority to musicality, their Sonic Studio software provides an array of EQ options, allowing the sound signature to be tweaked to suit your cans.

S1220 Codec
• Ten DAC channels, simultaneous 7.1-channel playback, independent 2.0-channel, multiple-stream stereo to front panel outputs.

ESS SABRE9018Q2C DAC/AMP
• Create a balance for top-tier audio clarity capable of -112 dB THD.

Nichicon Caps
• Japanese components help provide a warmer, more natural sound with strong clarity and fidelity.

LED-Illuminated Audio Jacks
• Backlit audio jacks help save you from fumbling around in the dark.

Switching MOSFETs
• This design allows the codec's impedance-sensing function to be ported with either the front or rear headphone outputs.

Sonic Studio III
• Sonic Studio now supports HRTF-based (head-related transfer function) virtual surround for VR headsets, casting a wide aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.

  App-Specific Profiles
  Apply customized settings to different applications, so what you do is tuned to the way you want to listen.

  Surround Sound
  Surround sound for an immersive audio experience.

  Sonic Studio Link
  Sonic Studio Link VR functionality extends its HRTF effects to headsets like the Oculus Rift and HTC Vive.

Sonic Radar III
• Sonic Radar III has an evolved audio engine that processes sounds more accurately, helping to ensure you're always aware of what's going on around you. An on-screen arrow has also been added to help you pinpoint an enemy's position.

  Improved Audio Algorithm
  The Sonic Radar audio algorithm is more accurate to allow enemies to be pinpointed with even more accuracy.

  3D Engine
  Sonic Radar III is built around its HUD with a 3D arrow for a more intuitive experience.

  Audio Boost
  This feature now allows the boosted audio to be heard directly.

  Audio Radar
  Sonic Radar III is effective, even if there is surrounding noise and chaos.

User-Friendly Design

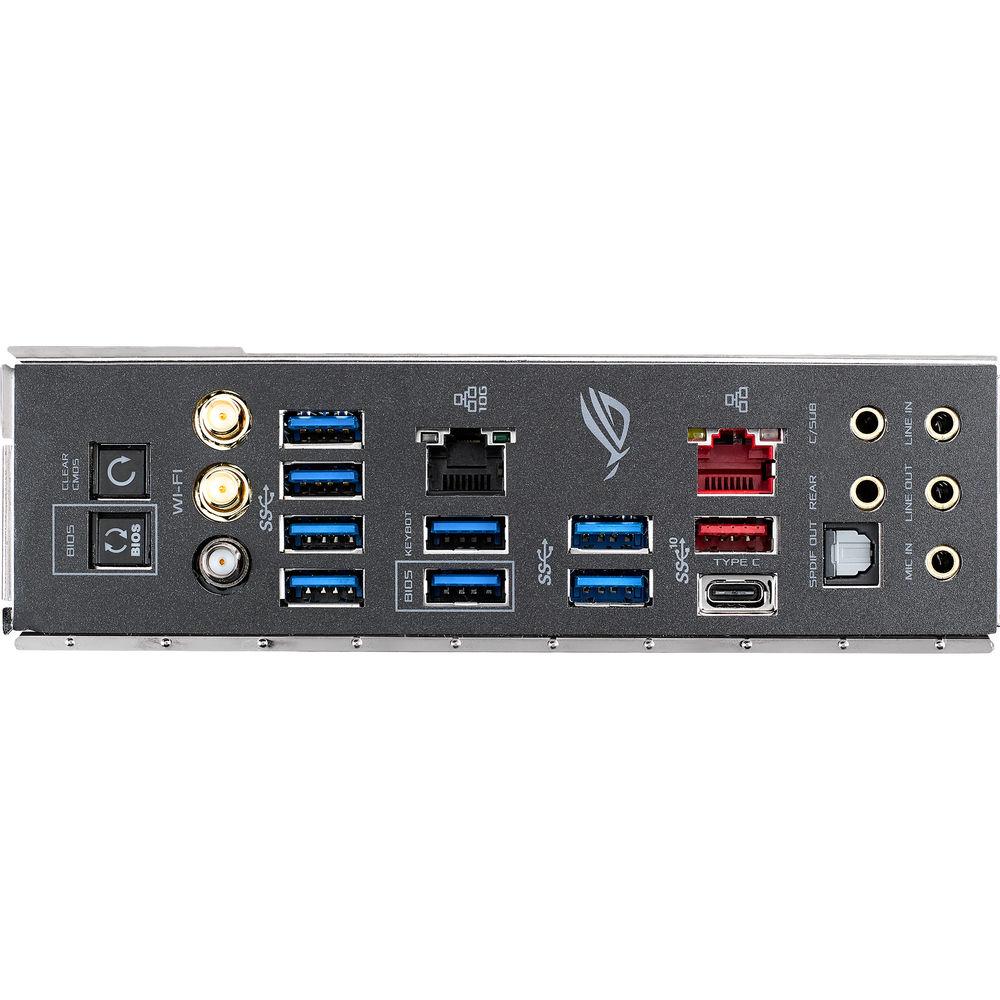

Preinstalled I/O Shield
• ROG's I/O shield is capable of withstanding electrostatic discharge up to 12kV, and is pre-fitted to help make it easier to install the motherboard.

Protect Your Graphics Card Investment
• The Rampage VI Extreme bundles a VGA holder that helps eliminate ugly and potentially damaging graphics card sag. The ROG VGA holder is crafted from a single piece of strong sheet metal and is capable of supporting up to 33.1 pounds, providing support for heavy graphics cards.

SafeSlot
• SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide greater retention and shearing resistance. Manufactured in a single step using an insert-molding process, SafeSlot integrates the slot with fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

Q-Connector
• The single connector helps to sort all cables on the front panel.

DRAM Overcurrent Protection
• One additional resettable fuse helps protect connection ports and DRAM against overcurrent and short-circuit damage

Multi-Colored Q-LED
• Onboard LEDs help to indicate power status and potential problems with the CPU, memory, graphics card, or boot device for a quick diagnosis.

TrueVolt USB
• Two dedicated power supplies provide a steady 5V to all USB ports, helping to minimize power fluctuations and the potential for data loss.

Q-Slot
• This single clip makes it easy to swap or secure your graphics card.

Q-DIMM
• These single-sided clips help to make the handling of memory modules user-friendly.

ROG Gives You More

Overwolf
• An unobtrusive overlay keeps you in the game and allows you to browse the web, email, IM, stream, or record while you play. The overlay is dressed in color-matched ROG skins to show you're part of an elite pack. Grab it now from the Overwolf Appstore.

ROG Clone Drive
• The ROG Clone Drive is a smart, convenient cloning solution that quickly and efficiently replicates hard drives or SSDs. Clone Drive can clone one drive to two target drives at the same time, or image any file from your disk at fast speeds.

RAMCache II
• ROG's intelligent technology effectively caches an entire storage device so that favorite games and apps launch at breakneck speeds, getting to work the moment it's activated. RAMCache II turns milliseconds into microseconds to boost game-load times to higher levels.

KeyBot II
• Get a free keyboard upgrade from a microprocessor and intuitive user interface. Record macros directly from the keyboard; switch profiles in moments; enable special functions with hotkeys from F1 to F10; or start and even boost your PC from shutdown (S5 mode).

AI Suite 3
• One-stop control panel.

ROG CPU-Z
• Shows your important system information.

Mem TweakIt
• Dynamic timing monitoring, DRAM efficiency gauge.

RAMDisk
• Boost your favorite applications at speeds faster than SSDs can provide with the junction function.

VR Ready
• The ROG Rampage VI Extreme isn't just ready for VR - it goes beyond. The ASUS ROG Beyond VR Ready marque means that the Extreme has been tested with lots of components to help ensure that your productivity, gaming, and entertainment needs are tuned for maximum performance. ASUS ROG Beyond VR Ready opens up a way to configure and build your system with greater confidence.

The Power of Intel

Intel Core X-Series Processors for the LGA 2066 Socket
• Intel Core X-Series CPUs (Six-Core and above): 4-channel (8-DIMM), 44/28 PCI Express 3.0/2.0 lanes.

Intel X299 Chipset
• The Intel X299 chipset supports the LGA 2066 socket and Intel Core X-Series processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, X299 provides a maximum of 10 x USB 3.0, 8 x SATA III 6 Gb/s ports, and 32 Gb/s M.2 support for faster data retrieval.
