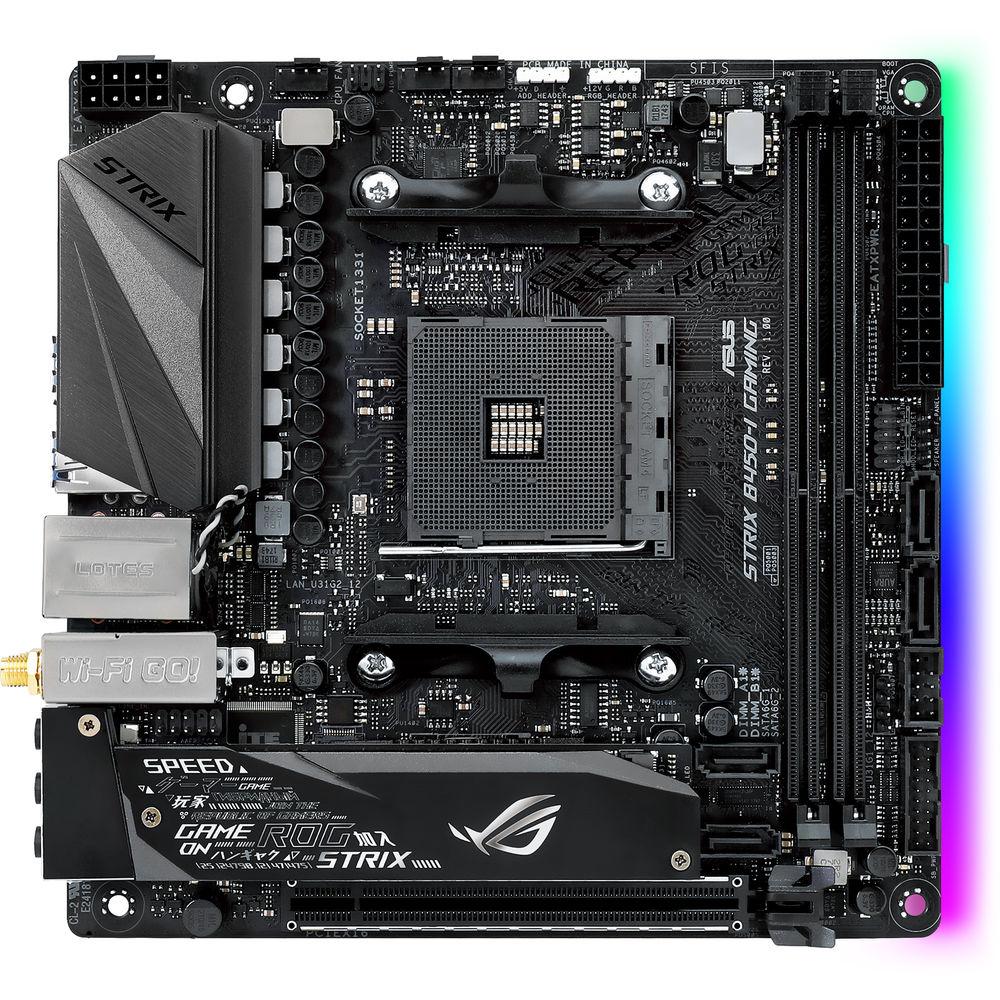

User Manual for ASUS Republic of Gamers Strix B450-I Gaming AM4 Mini-ITX Motherboard Click to enlarge the picture
Contents of the user manual for the ASUS Republic of Gamers Strix B450-I
- Product category: Motherboards ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Motherboards
 |
User manual for the ASUS Republic of Gamers Strix B450-I contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|

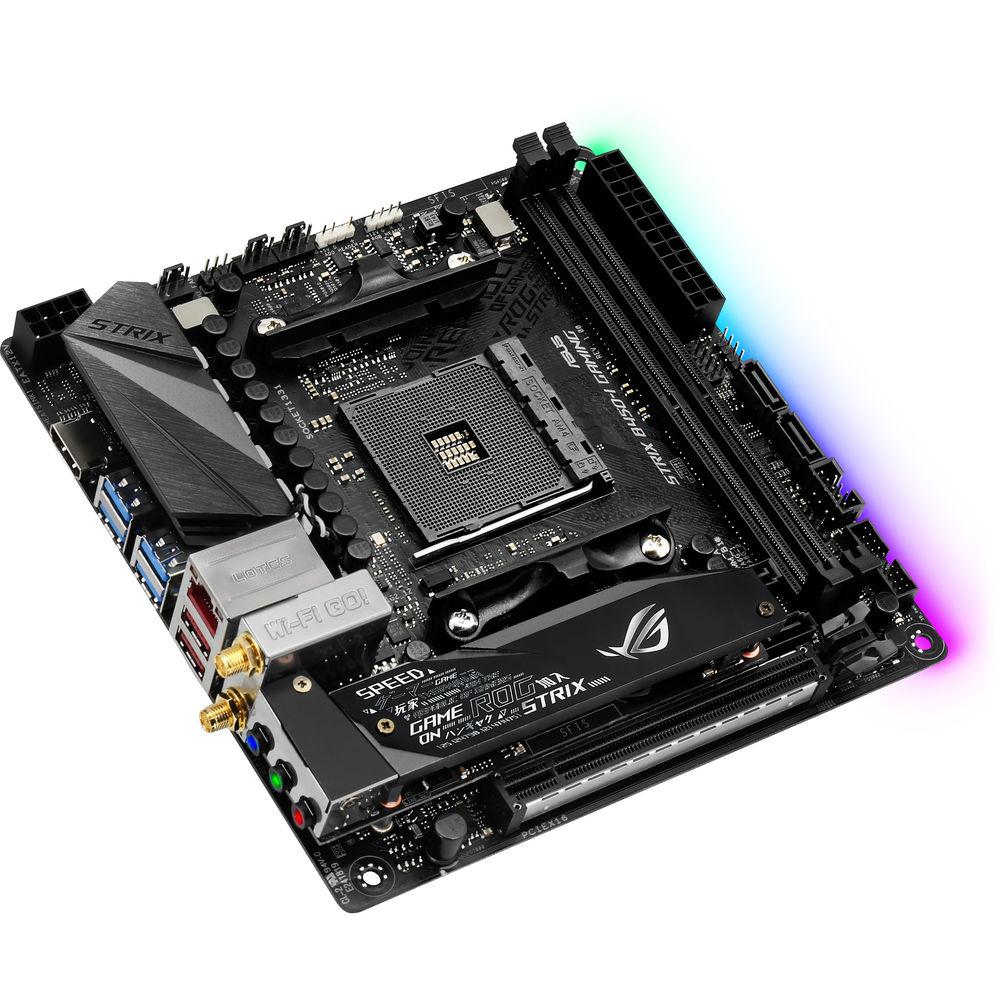

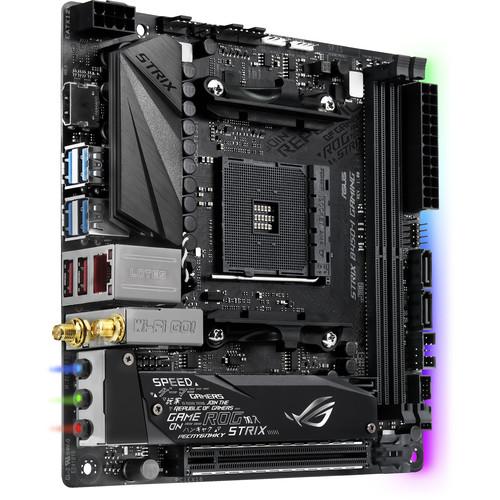

Product description The Republic of Gamers Strix B450-I Gaming AM4 Mini-ITX Motherboard from Asus is built on the AMD B450 chipset, supporting first- and second-generation Ryzen processors with an AM4 socket. It has two memory slots, which support up to 32GB of DDR4 RAM at speeds of up to 3600 MHz when overclocked. Please note that first- and second-generation Ryzen CPUs may support different RAM speeds. For storage, there are four SATA III ports and two M.2 slots, both of which can utilize the PCIe 3.0 x4 interface for speeds of up to 32 Gb/s when used with an appropriate drive. While it's equipped with a DisplayPort output for integrated graphics, this motherboard also has a single PCIe 3.0 x16 slot for a dedicated graphics card. Other notable integrated features include SupremeFX S1220A 8-channel HD audio, Intel I211-AT Gigabit LAN, and Asus Aura Sync RGB Lighting. - Asus Aura Sync RGB Lighting
- Equipped with Asus Aura Sync RGB lighting, this motherboard supports millions of colors and plenty of lighting effects that you can choose from to fit your style. Moreover, you can sync it with other Aura Sync-compatible hardware and peripherals to complete your setup.
- Cooling
- There are multiple fan headers that support both DC and PWM modes, so you can adjust fan speeds within BIOS or a third-party software to find the perfect balance between cooling and noise.
- Memory
- The B450-I Gaming has two memory slots that support up to 32GB of DDR4 RAM that can reach up to 3600 MHz when overclocked. Moreover, the RAM slots feature an enhanced design for more stable overclocking and ease-of-use.
- Storage
- Aside from the four SATA ports on this motherboard, it also has two M.2 slots, both of which support the PCIe 3.0 x4 interface for speeds of up to 32 Gb/s when used with an appropriate drive.
- Audio
- SupremeFX S1220A 8-Channel HD audio supports high-quality audio playback, impedance sense for both front and rear headphone outputs, EMI shielding, and dual OP amplifiers for a more immersive listening experience for all types of applications, whether you're using speakers or headphones.
- Additional Features
-
- ROG RAMCache II
- ROG Overwolf
- ROG CPU-Z
- Pre-Mounted I/O Shield
- SafeSlot
- DIGI+ VRM
- SRAM Overcurrent Protection
- ESD Guards on LAN, Audio, KBMS, and USB Ports
- Durable Components
- Aura Lighting Control
- AI Suite 3
- AI Charger
- Asus Grid
- Asus Q-LED, Q-Slot, & Q-DIMM

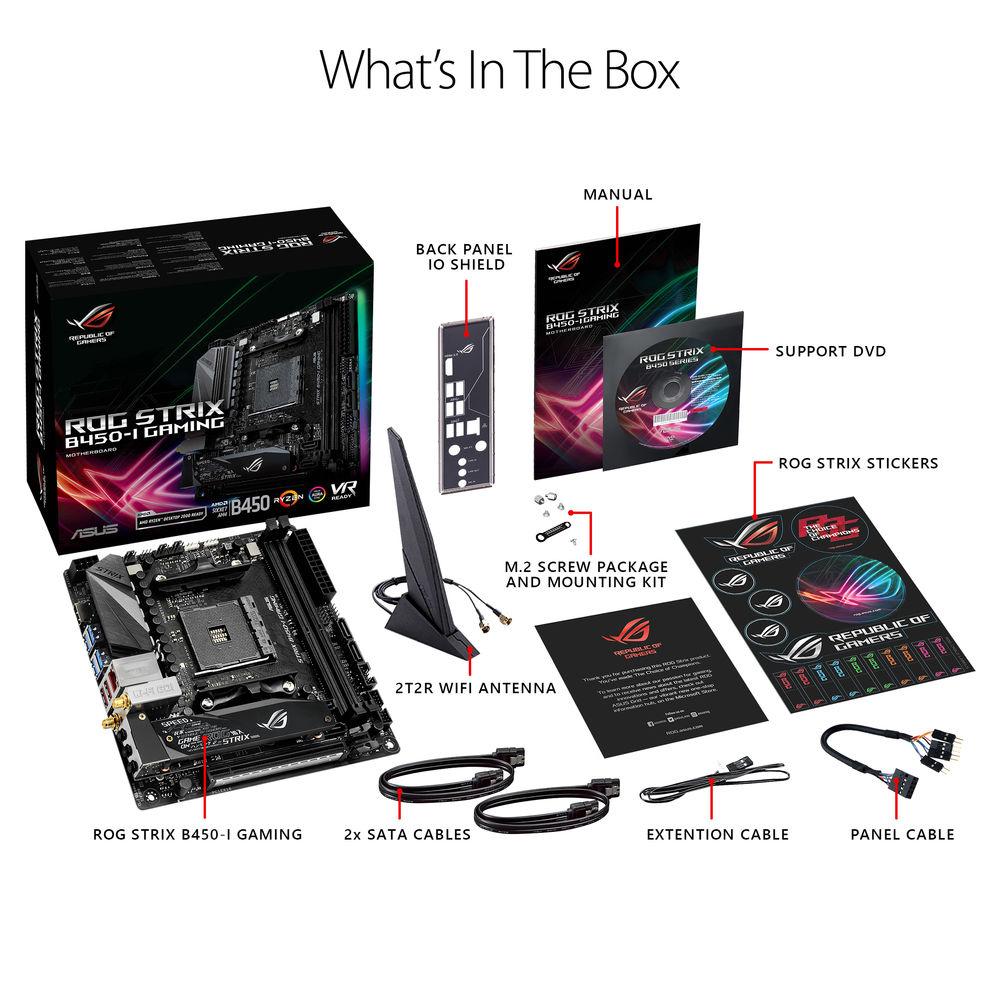

UPC: 192876081112 In the Box ASUS Republic of Gamers Strix B450-I Gaming AM4 Mini-ITX Motherboard I/O Shield Asus 2T2R Dual-Band Wi-Fi Antennas 2 x SATA Cable M.2 Mounting Kit 2 x M.2 Screw Package Addressable LED Extension Cable Panel Cable ROG Strix Sticker Cable Tie Package Limited 3-Year Warranty User Manual PDF 8mb More info from ASUS Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS Republic of Gamers Strix B450-I Gaming AM4 Mini-ITX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

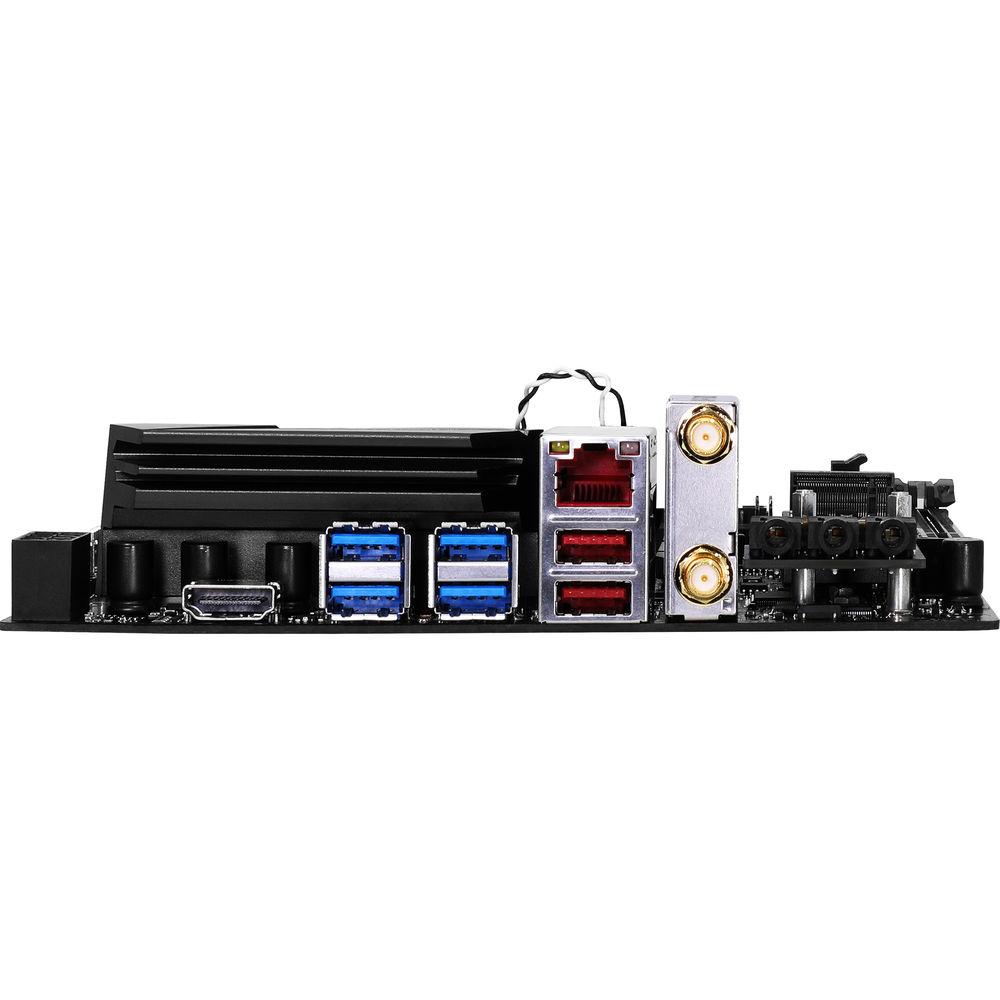

Technical parametersASUS ROG STRIX B450-I GAMING Specs | | | Chipset | AMD B450 | | CPU Socket | AM4 | | | | USB | 2 x USB 3.1 Gen 2 Type-A
4 x USB 3.1 Gen 1 Type-A | | Display | 1 x HDMI 2.0b | | Audio | 3 x 3.5 mm | | Ethernet / Controller | 1 x Intel I211-AT Gigabit | | Wi-Fi Antenna | 2 x Connector | | | | Memory Slots | 2 x 288-Pin | | Memory Support | DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3400, 3466, 3600 MHz | | Maximum Capacity | 32 GB | | Channel Architecture | Dual Channel | | ECC Support | Non-ECC Unbuffered | | | | SATA | 4 x SATA III | | M.2 | 1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA III)
1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4) | | U.2 | None | | Optane Memory Support | No | | RAID Support | RAID 0, 1, 10 | | | | Expansion Slots | 1 x PCIe 3.0 x16 | | USB | 1 x USB 3.1 Gen 1 Header (Supports 2 USB Type-A Ports)
1 x USB 2.0 Header (Supports 2 USB Type-A Ports) | | Multi-GPU Support | None | | Air Cooling | 1 x 4-Pin CPU
1 x 4-Pin System
1 x Thermal Sensor | | Liquid Cooling | 1 x 4-Pin Pump | | Power Connectors | 1 x 24-Pin Mainboard
1 x 8-Pin CPU | | LED Header | 2 x RGB | | Audio | 1 x Speaker | | Diagnostics | Clear CMOS | | | | I/O Connection Headers | AAFP, USB 3.1 | | | | Audio Codec | SupremeFX S1220A (8-Channel) | | | | Bluetooth | 4.2 | | Wi-Fi | Wi-Fi 5 (802.11ac) (MU-MIMO) | | | | Supported Operating Systems | Windows 10 (64-Bit) | | | | Form Factor | Mini-ITX | | Dimensions | 6.7 x 6.7" / 170.18 x 170.18 mm | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 9.0 x 7.25 x 3.75" |
