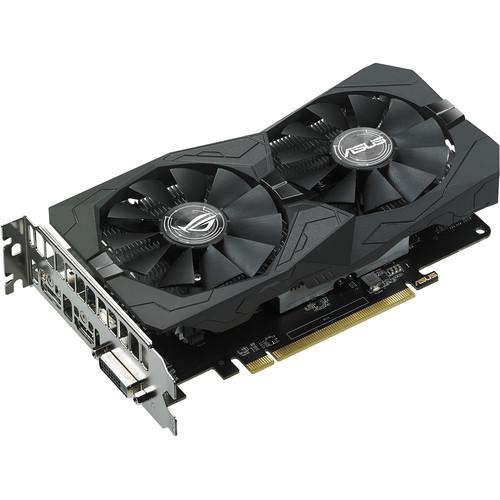

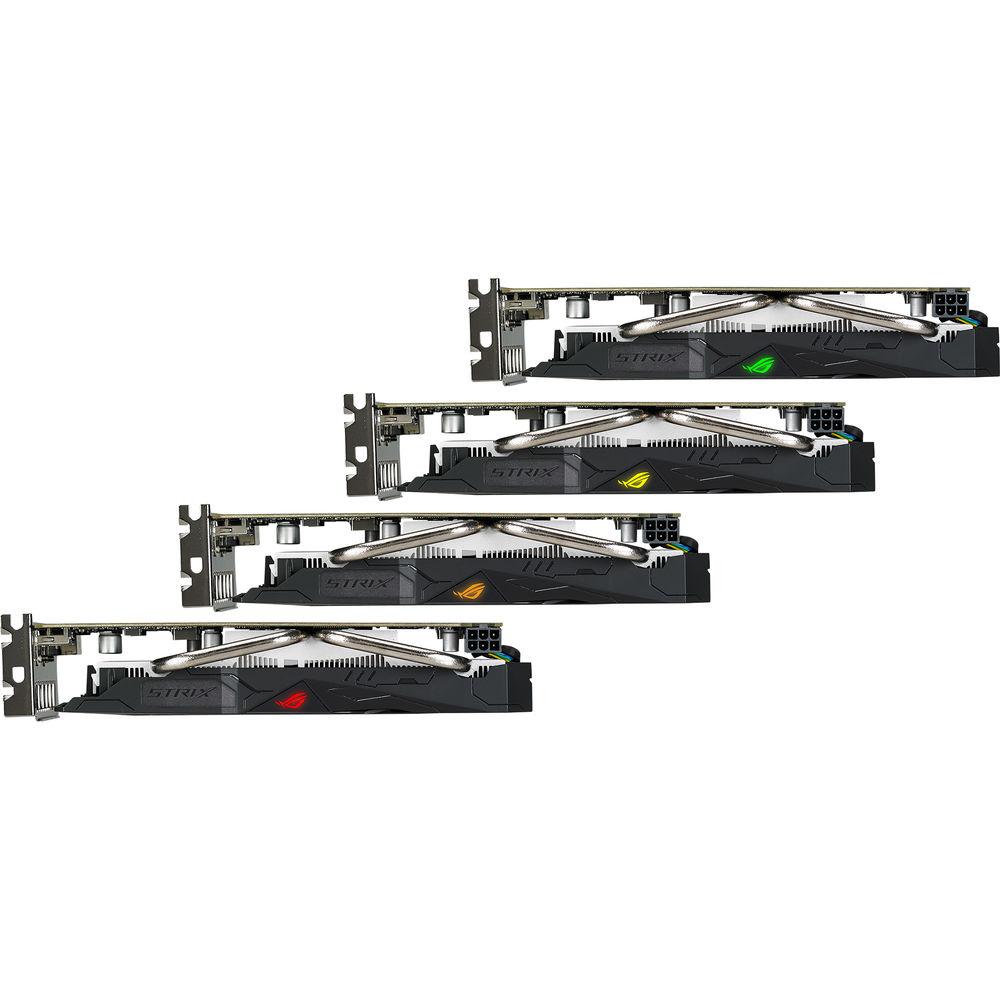

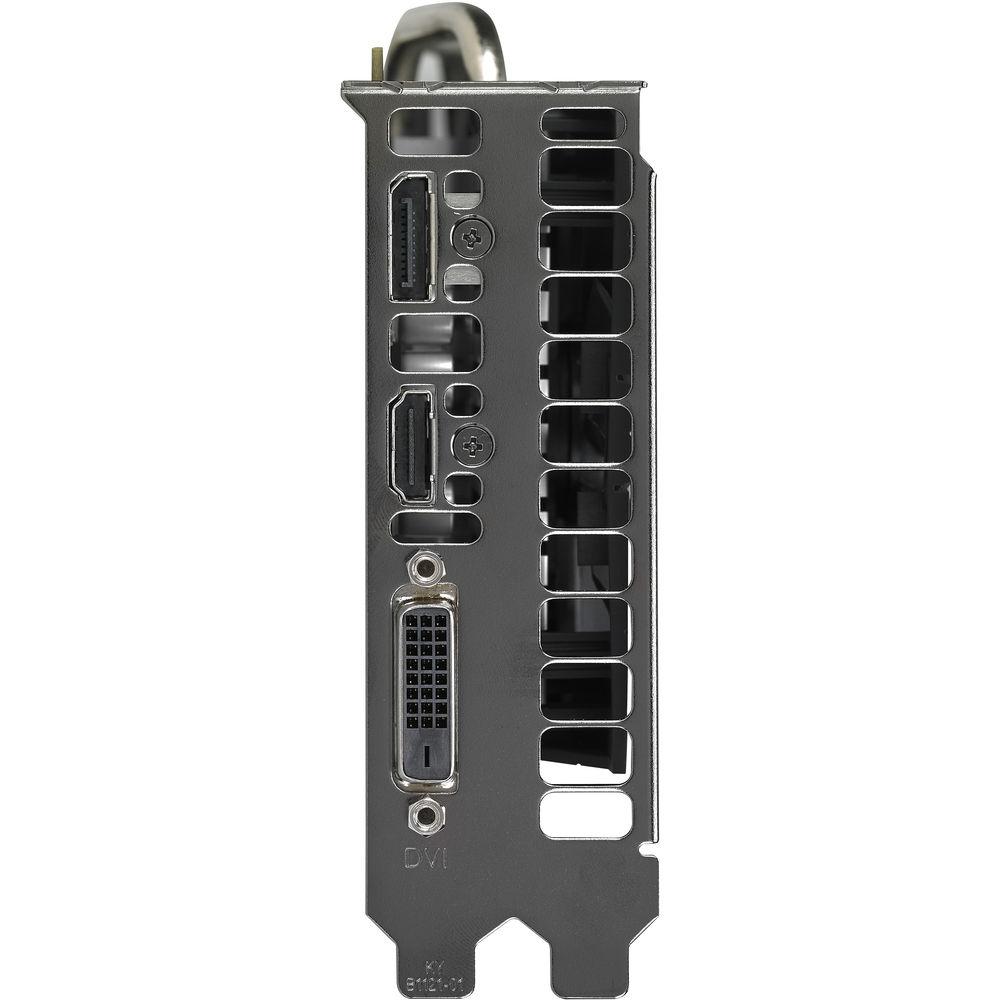

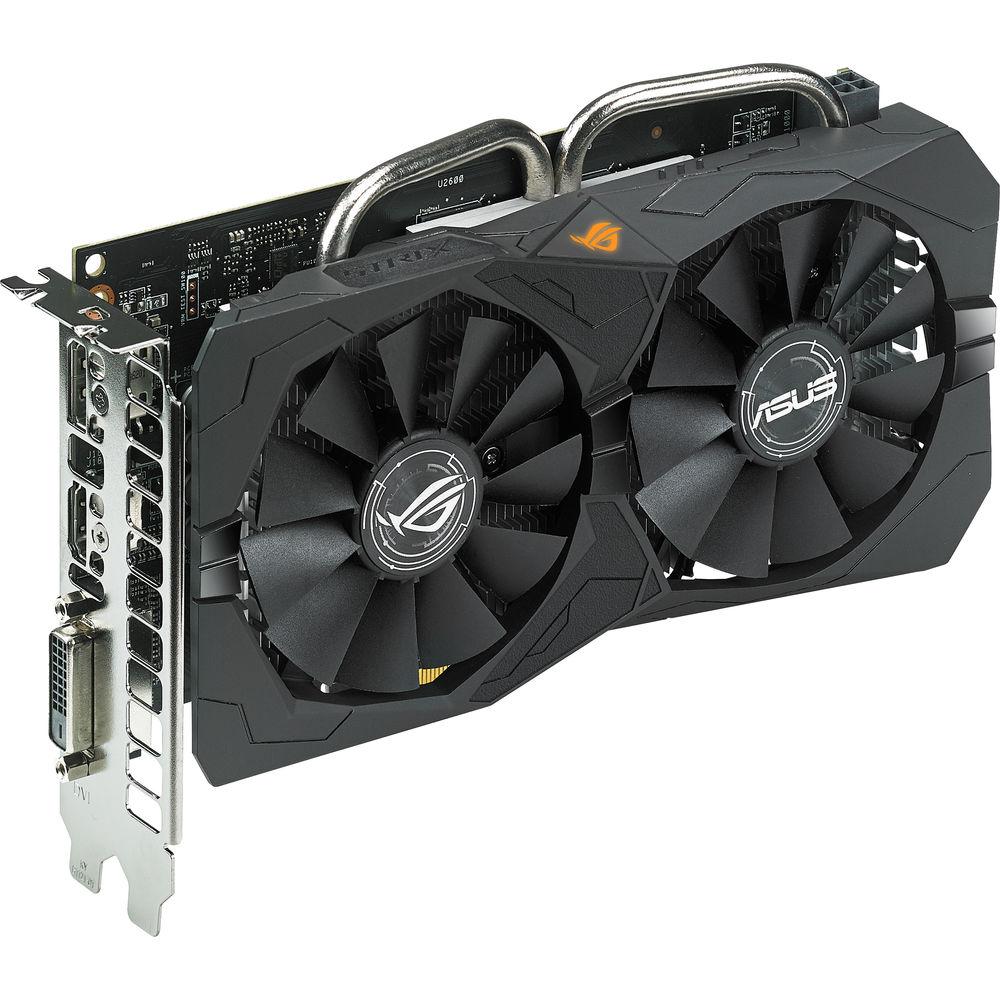

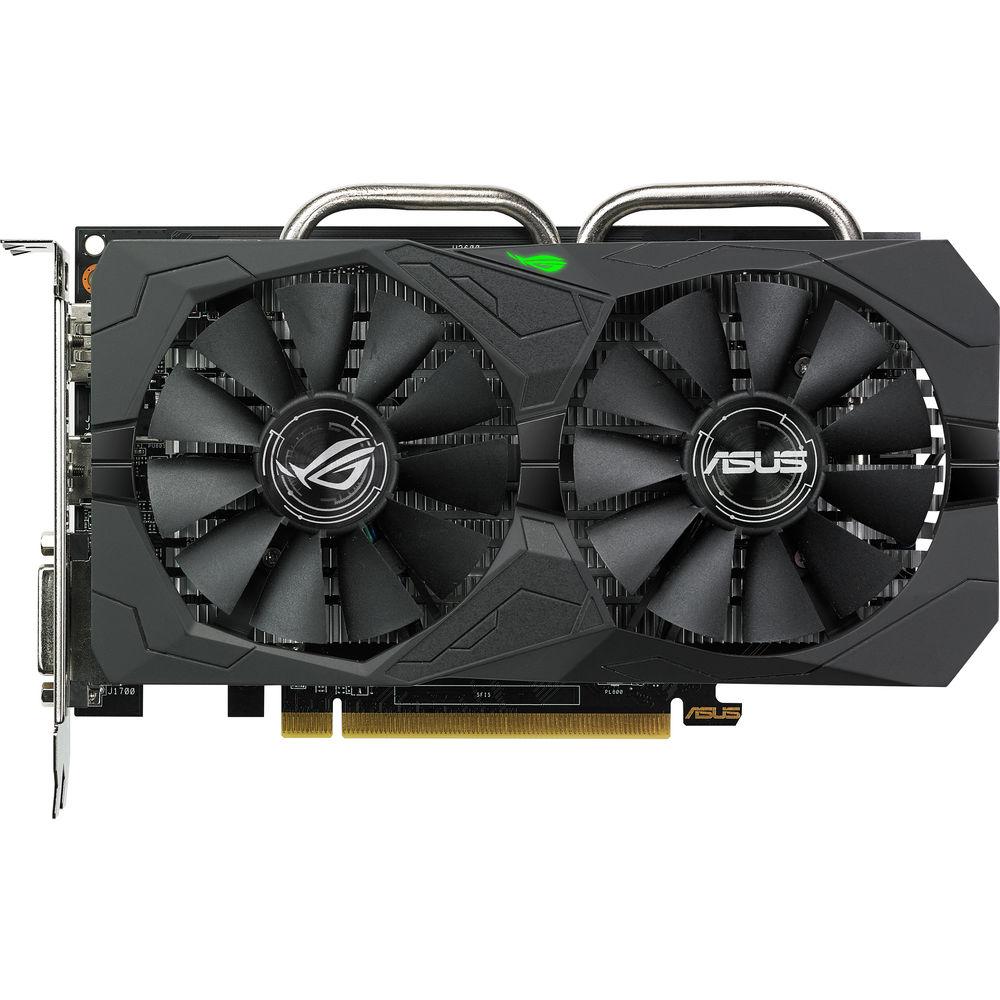

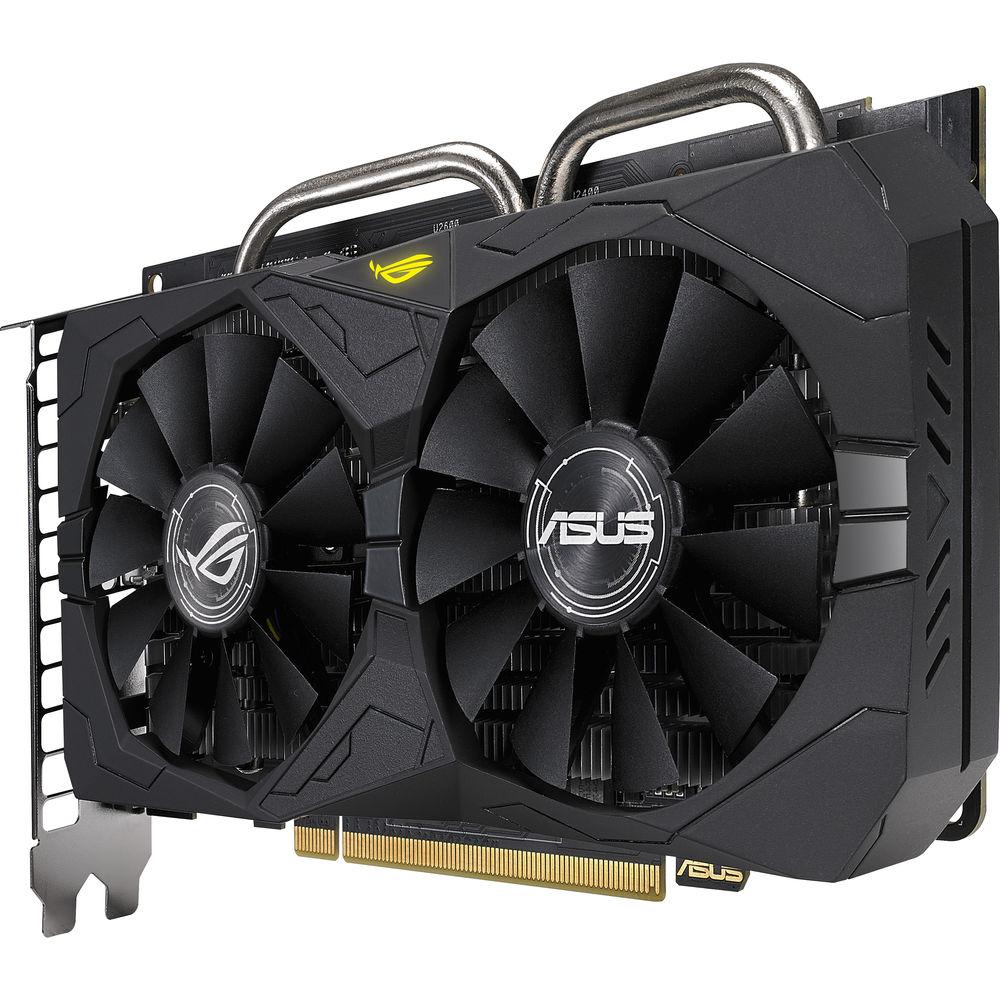

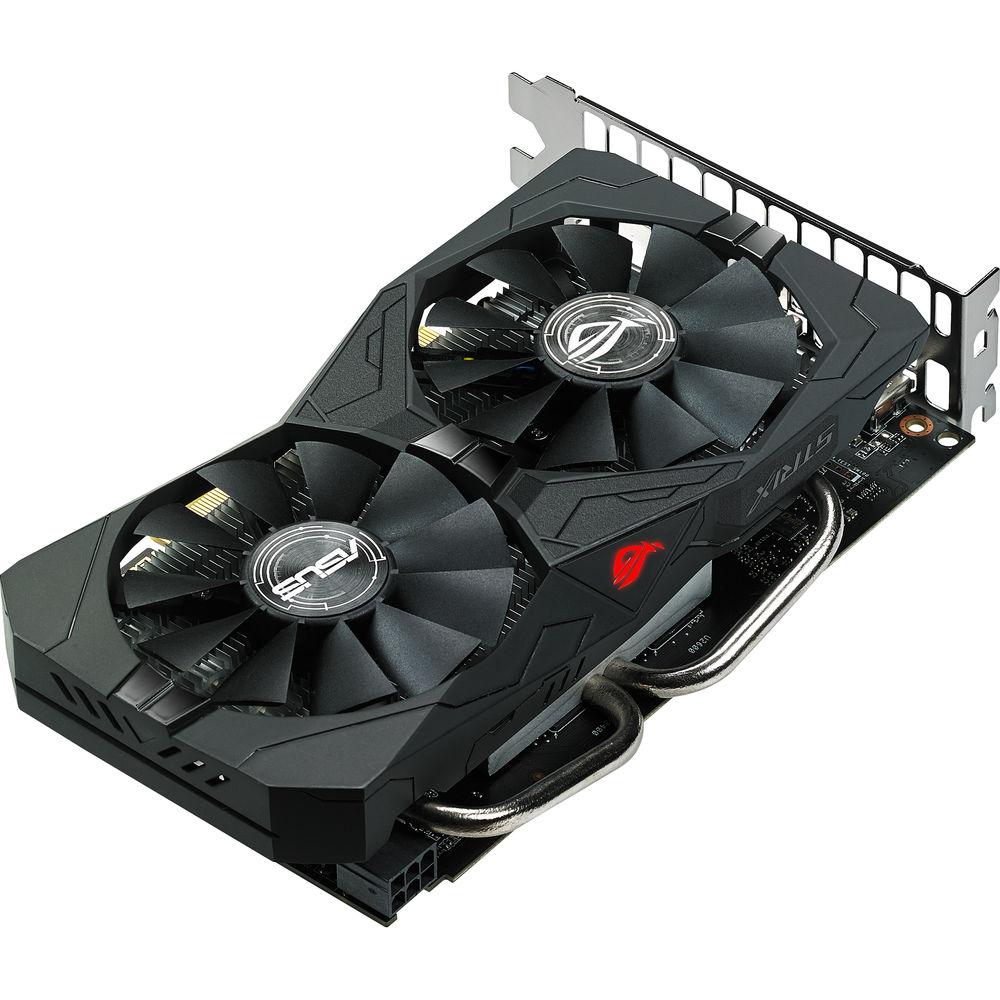

Product description Based on Polaris architecture, and featuring a factory overclocked core, the ASUS Republic of Gamers Strix OC Radeon RX 560 Gaming Graphics Card provides smooth gameplay at HD resolutions on DirectX 12, Vulkan, and e-Sports titles. The Radeon RX 560 is also compatible with HDR (high dynamic range) content so you can experience enhanced contrast and color. The front panel of the card features a variety of outputs. There is a DisplayPort 1.4 output, an HDMI 2.0b output, and a DVI-D output. Combined with AMD's Eyefinity, the GPU can provide an immersive gaming experience on multiple monitors. This GPU also has Aura RGB lighting with Modular Shroud so you can personalize your gaming style. To keep this card cool, ASUS implemented their DirectCU II cooler. The DirectCU II cooler quietly keeps the card's operating temperature in check. The cooler uses two large fans and direct-GPU contact heatpipes to transport heat away from the GPU. 0 dB technology allows for the card to stop the fans and be completely silent when the GPU remains under a set temperature. This type of cooler is most useful in medium to large towers where airflow inside the case is unobstructed. - HDR Ready
- This card is compatible with HDR (High Dynamic Range) content. When paired with an HDR capable display, you'll be able to experience enhanced contrast and colors for a sharp, vibrant visual experience.
- FreeSync Technology
- Reduce screen tearing with AMD's FreeSync Technology. FreeSync enables the monitor to dynamically adjust its refresh rate to the frame rate being output by the graphics card, thereby greatly reducing screen tearing, stuttering, and other artifacts.
- Eyefinity
- With support for multiple monitors, AMD Eyefinity allows you to customize how your displays are shown on your desktop. Having multiple displays can not only make you more productivity, but can also provide an immersive gaming experience. If you're looking to stream online via Twitch, having a separate display for the twitch chat as well as the capture window for both your gameplay and webcam can facilitate the process.
- CrossFire
- Is one graphics card not enough? AMD's CrossFire works with compatible motherboards and allows you to install and combine up to two of the same GPUs to split the processing load and render graphics with improved frame rates and image quality for supported applications.
UPC: 889349703397 In the Box ASUS Republic of Gamers Strix OC Radeon RX 560 Gaming Graphics Card 2 x Republic of Gamers Cable Ties 2 x Orange Color Decals Limited 3-Year Warranty User Manual PDF 10.5mbeadqvcerwczzdy Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS Republic of Gamers Strix OC Radeon RX 560 Gaming Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS Strix OC Radeon RX 560 Specs | GPU | AMD Radeon RX 560:
Stream Processors: 1024
Gaming Mode
Core Clock: Not specified by manufacturer
Boost Clock: 1326 MHz
OC Mode
Core Clock: Not specified by manufacturer
Boost Clock: 1336 MHz | | Memory | Speed: 7 Gbps
Configuration: 4 GB
Interface: GDDR5
Interface Width: 128-bit
Bandwidth: 112 GB/s | | Technologies | Microsoft DirectX: 12
OpenGL: 4.5
Vulkan: Yes | | Interface | PCI Express 3.0 x16 | | Display Support | Display Connectors:
1 x DisplayPort 1.4
1 x HDMI 2.0b
1 x DVI-D
Maximum Digital Resolution: 5120 x 2880
Multi Monitor Support: Yes | | Power Requirements | Power Consumption: Not specified by manufacturer
Recommended System Power Requirement: 450 W
PCI Power Connectors:
1 x 6-pin | | Dimensions | Height: 4.7" / 120 mm
Length: 7.6" / 194 mm
Width: Dual-Slot | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 12.0 x 8.6 x 2.1" |
