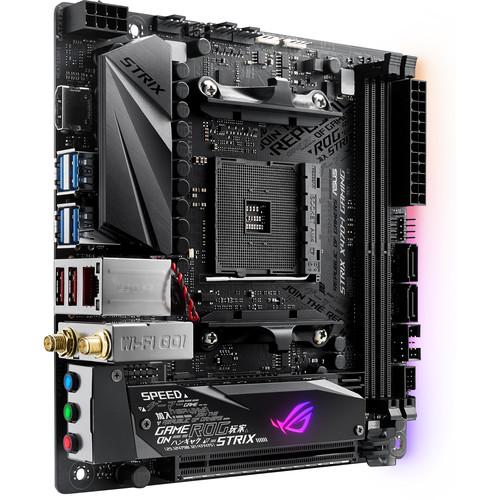

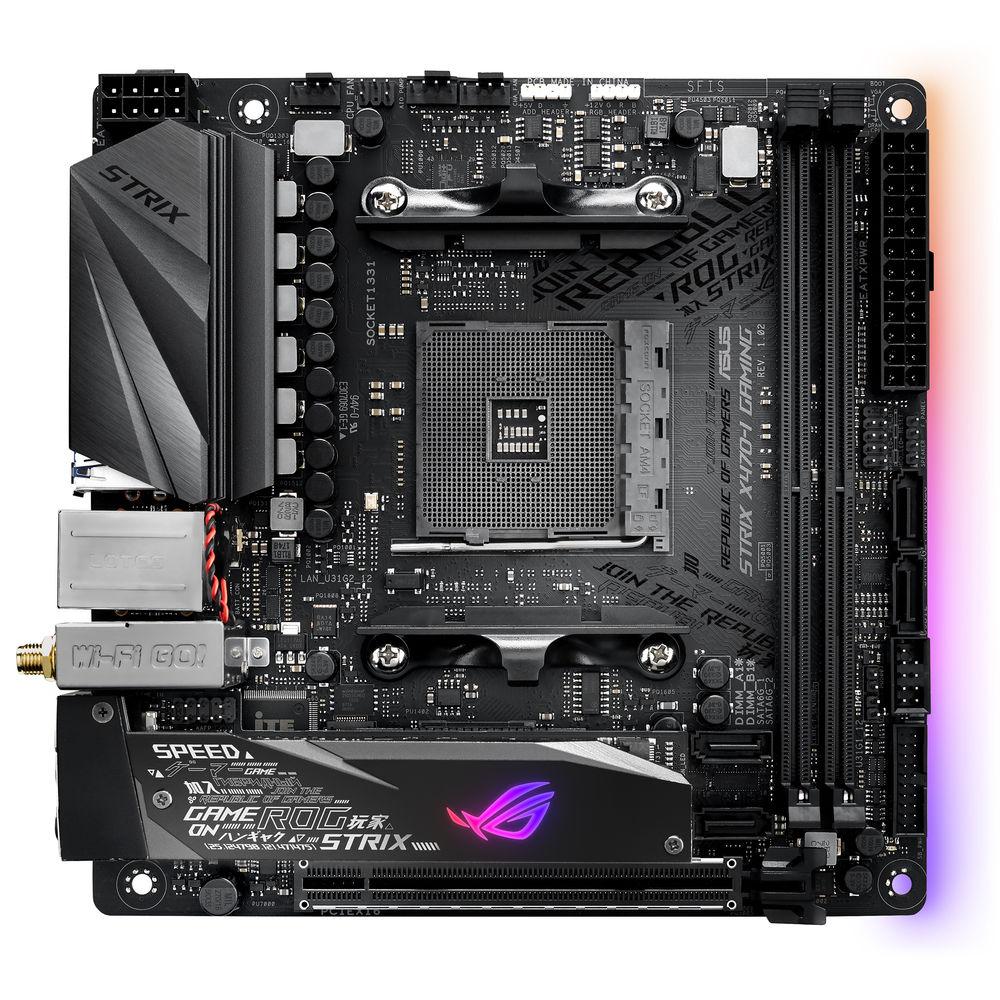

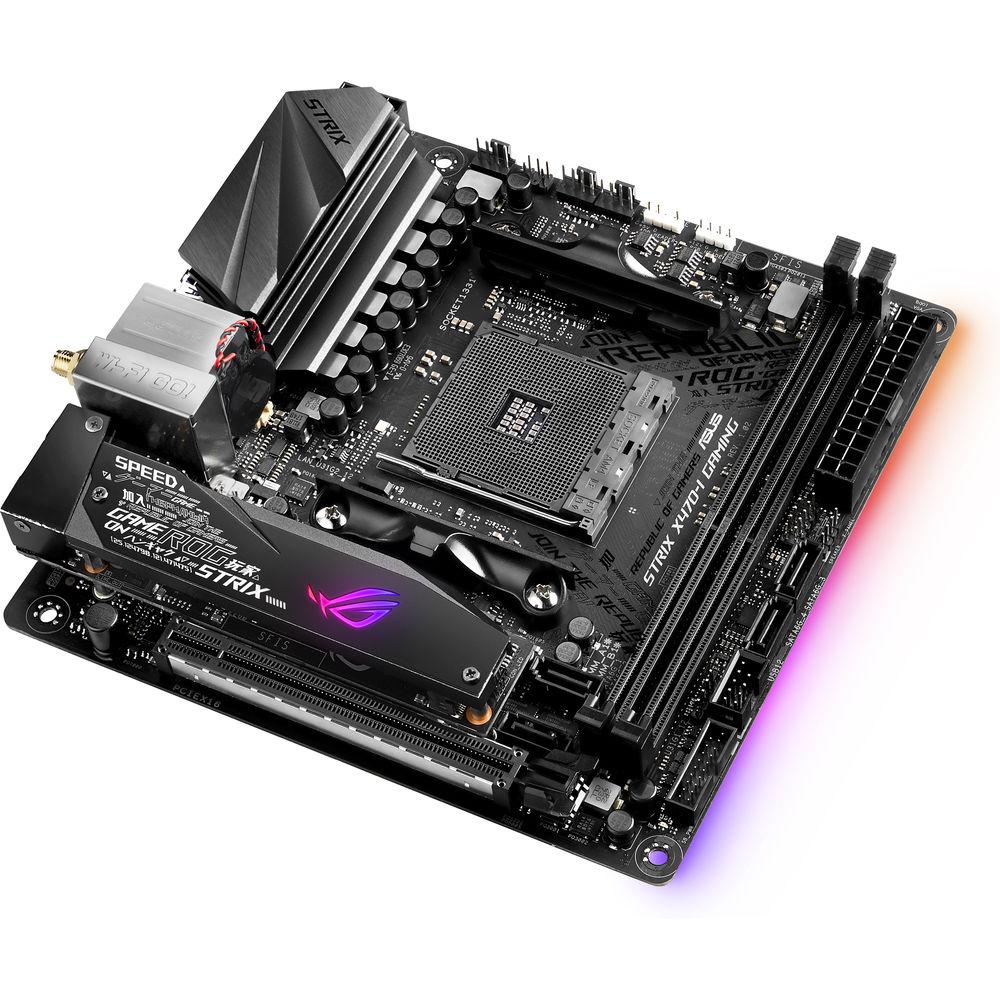

User Manual for ASUS Republic of Gamers Strix X470-I Gaming AM4 Mini-ITX Motherboard Click to enlarge the picture
Contents of the user manual for the ASUS Republic of Gamers Strix X470-I
- Product category: Motherboards ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Motherboards
 |
User manual for the ASUS Republic of Gamers Strix X470-I contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|

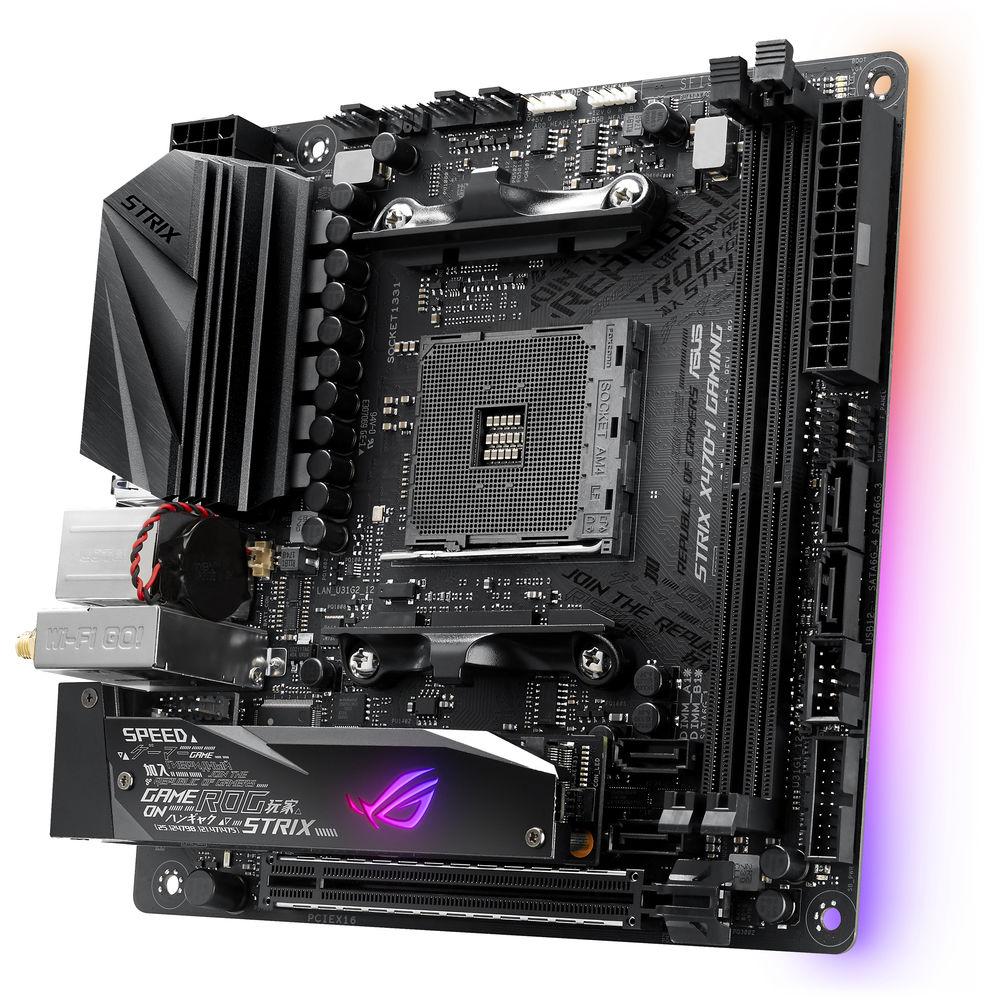

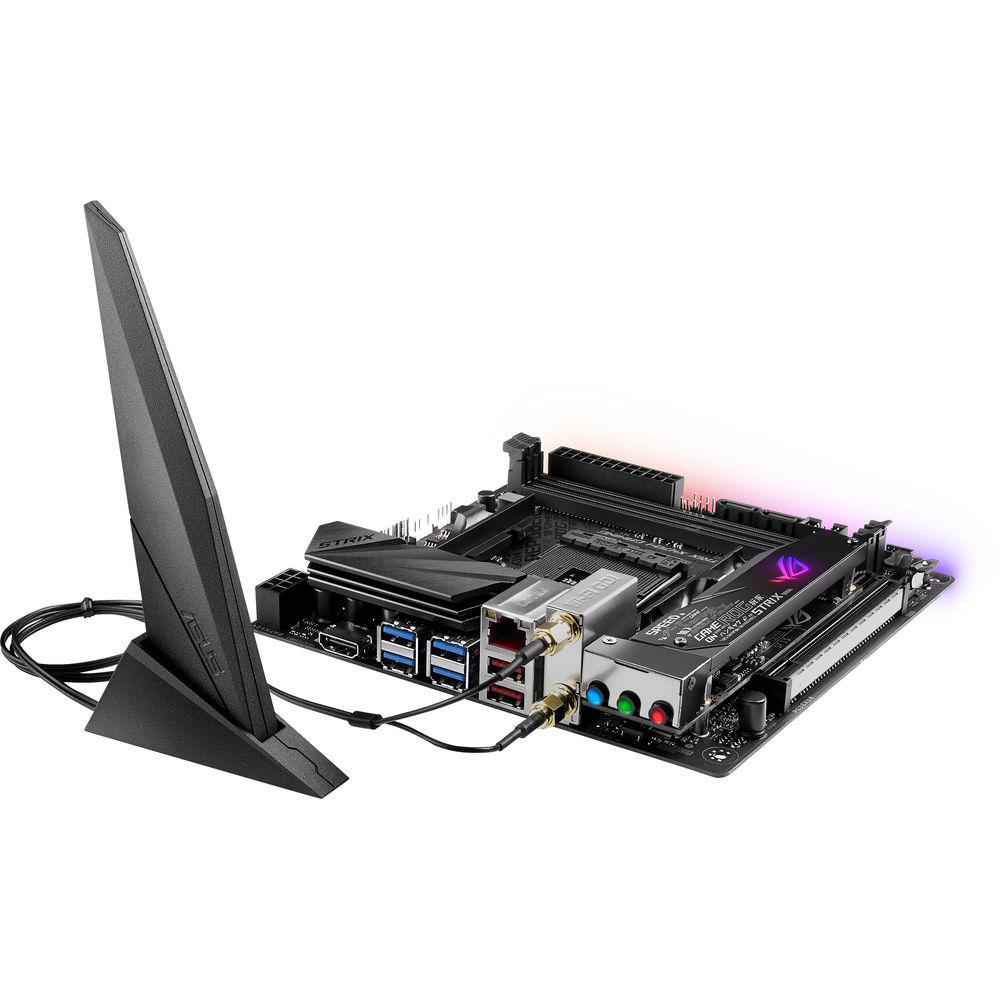

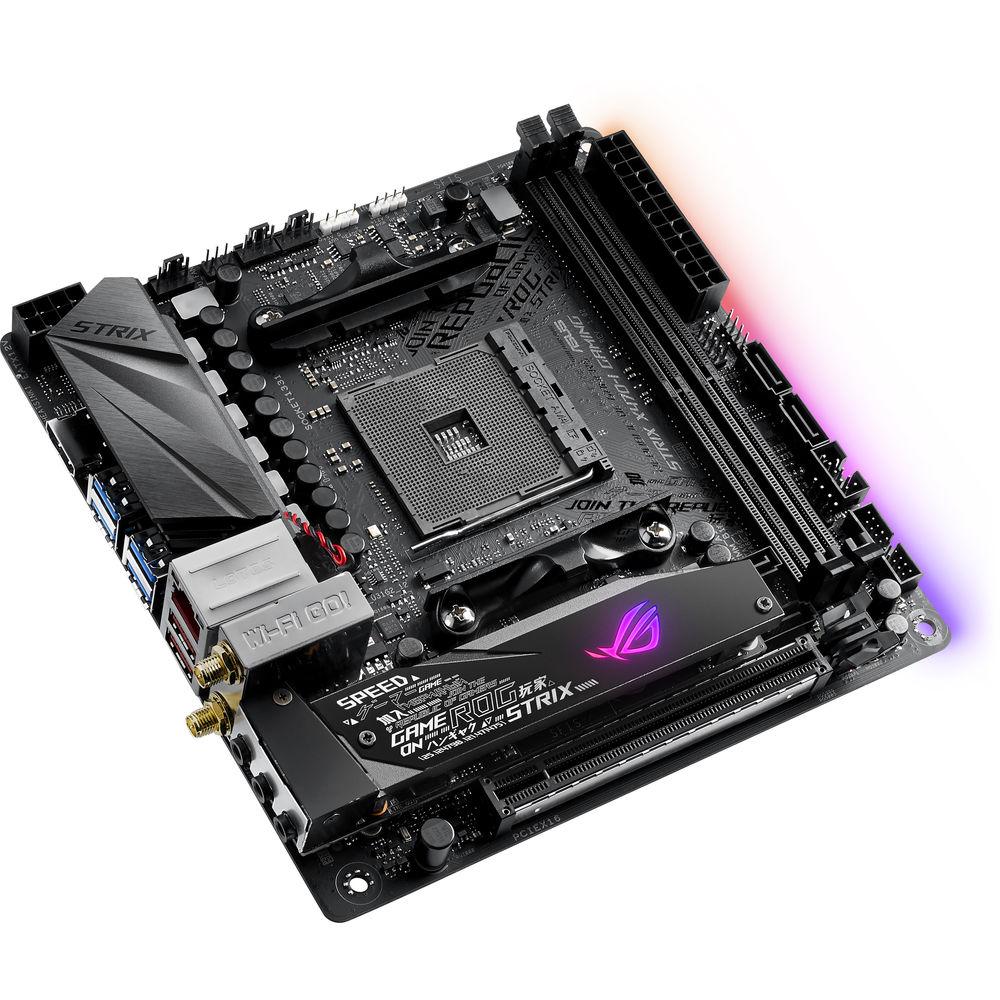

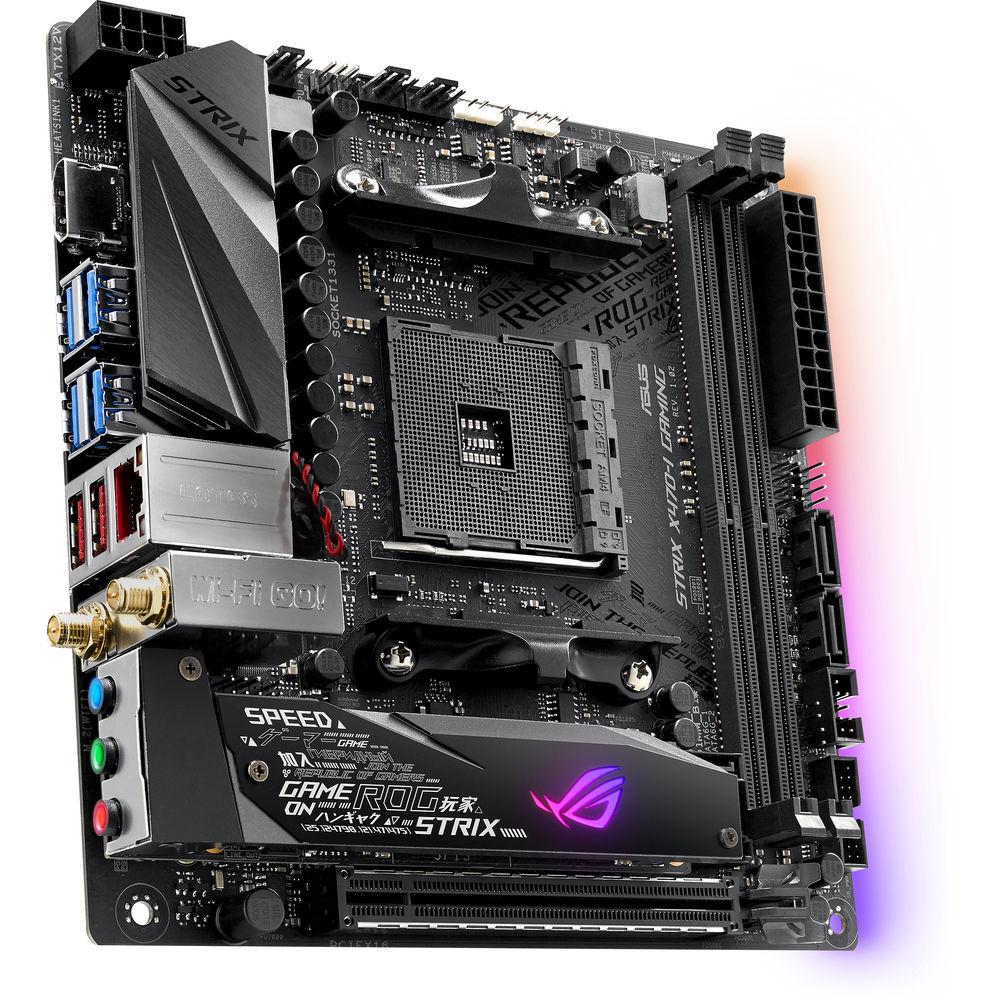

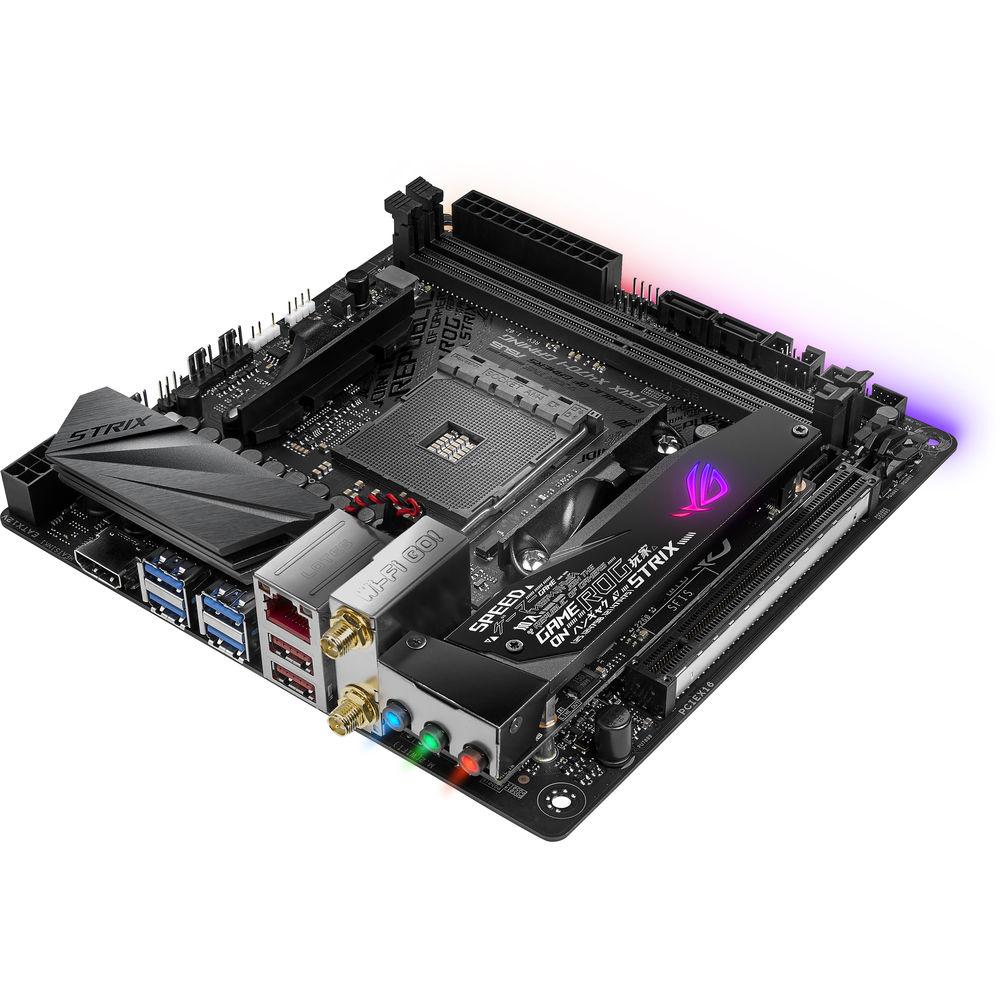

Product description The Republic of Gamers Strix X470-I Gaming AM4 Mini-ITX Motherboard from Asus is part of their RoG-series, designed with durable components and a gamer-themed aesthetic. It's built on the AMD X470 chipset with an AM4 socket that's compatible with 1st and 2nd generation Ryzen processors as well as 7th generation A-series and Athlon X4 processors. There are two dual-channel DDR4 slots, which support up to a max of 32GB of 3600 MHz overclocked RAM. For storage, it's equipped with four SATA III ports and two M.2 slots, one of which supports the PCIe 3.0 x4 mode for faster speeds. As for graphics cards, this motherboard has a single PCIe 3.0 x16 slot. Other notable mentions include Intel I211-AT Gigabit LAN, SupremeFX S1220A 8-channel HD audio, 802.11ac Wi-Fi, Bluetooth 4.2, and an HDMI port. - Asus Aura Sync
- This motherboard is equipped with Asus Aura Sync RGB LED lighting. Aside from plenty of colors to choose from, it also has multiple lighting effects such as static, breathing, rainbow, and more. Additionally, you can sync it with other Aura Sync-compatible hardware and accessories.
- Memory
- The Strix X470 can take advantage of high-bandwidth memory, supporting up to 32GB of 3600 MHz overclocked DDR4 RAM. You can also utilize RAMCache II to increase load times with unused RAM.
- Cooling
- This motherboard is equipped with multiple fan headers that support both PWM and DC modes, which lets you manually or automatically adjust fan speeds, so you can find a balance between cooling and noise.
- Storage
- There are two M.2 slots on this motherboard, one of which mounts to the audio card and has a heatsink to prevent thermal performance throttling. Additionally, it supports PCIe 3.0 x4, which can deliver faster read and write speeds compared to SATA.
- Sonic Studio III
- Sonic Studio III provides you with virtual surround sound, EQ options, and presets that you can use to customize your listening experience.
- Sonic Radar III
- Sonic Radar III gives you an onscreen radar that depicts where sounds are coming from, giving you an upper hand in locating your enemies.
- SupremeFX
- SupremeFX audio features a combination of hardware and software to deliver a better listening experience whether you're using speakers or headphones.
- GameFirst IV
- GameFirst IV is a software that helps to optimize your network traffic for faster, lag-free gaming. Manually adjust your priorities or let Intelligent Mode automatically compile a database by checking through your apps and games.

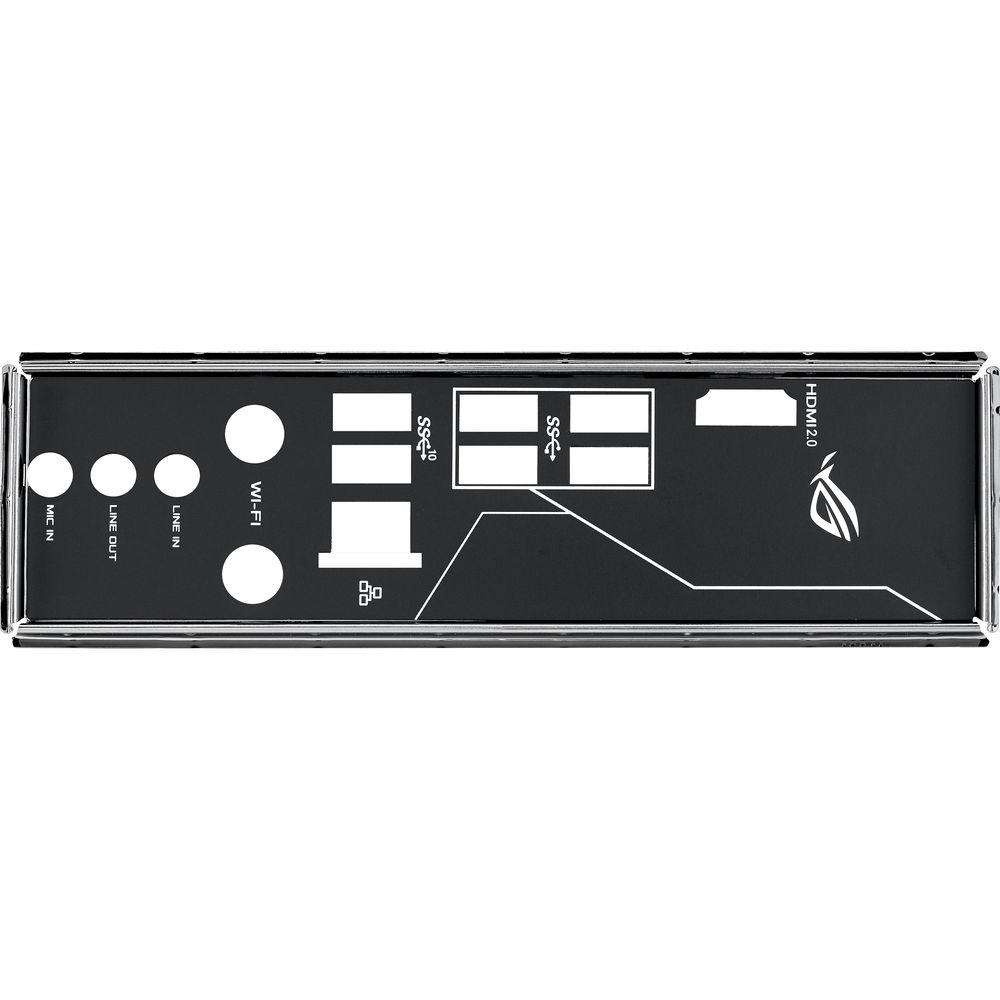

UPC: 192876018521 In the Box ASUS Republic of Gamers Strix X470-I Gaming AM4 Mini-ITX Motherboard M.2 Mounting Kit I/O Shield 4 x SATA III Cable 2 x M.2 Screw Package Asus 2T2R Dual-Band Wi-Fi Antennas RoG Strix Stickers Cable Ties Pack Extension Cable for Addressable LED Panel Cable Limited 3-Year Warranty User Manual PDF 7.2mb More info from ASUS Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS Republic of Gamers Strix X470-I Gaming AM4 Mini-ITX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

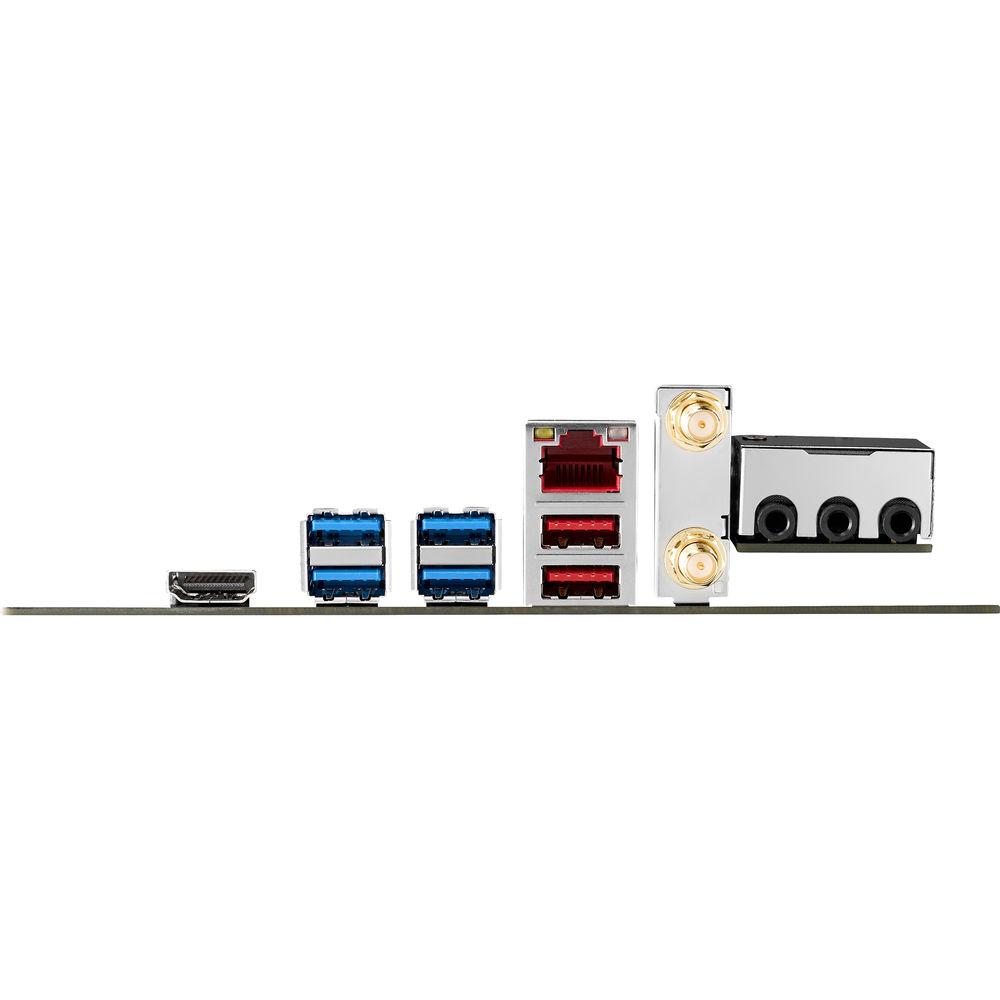

Technical parametersASUS ROG STRIX X470-I GAMING Specs | | | Chipset | AMD X470 | | CPU Socket | AM4 | | | | USB | 2 x USB 3.1 Gen 2 Type-A
4 x USB 3.1 Gen 1 Type-A | | Display | 1 x HDMI 2.0b | | Audio | 3 x 3.5 mm | | Ethernet / Controller | 1 x Intel I211-AT Gigabit | | Wi-Fi Antenna | 2 x Connector | | | | Memory Slots | 2 x 288-Pin | | Memory Support | DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3400, 3466, 3600 MHz | | Maximum Capacity | 32 GB | | Channel Architecture | Dual Channel | | ECC Support | Non-ECC Unbuffered | | | | SATA | 4 x SATA III | | M.2 | 1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA III)
1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4) | | U.2 | None | | Optane Memory Support | No | | RAID Support | RAID 0, 1, 10 (SATA) | | | | Expansion Slots | 1 x PCIe 3.0 x16 | | USB | 1 x USB 3.1 Gen 1 Header (Supports 2 USB Type-A Ports)
1 x USB 2.0 Header (Supports 2 USB Type-A Ports) | | Multi-GPU Support | None | | Air Cooling | 1 x 4-Pin CPU
1 x 4-Pin System
1 x Thermal Sensor | | Liquid Cooling | 1 x 4-Pin Pump | | Power Connectors | 1 x 24-Pin Mainboard
1 x 8-Pin CPU | | LED Header | 2 x RGB | | Audio | 1 x Speaker | | Diagnostics | Clear CMOS | | | | I/O Connection Headers | AAFP, USB 3.1 | | | | Audio Codec | SupremeFX S1220A (8-Channel) | | | | Bluetooth | 4.2 | | Wi-Fi | Wi-Fi 5 (802.11ac) (MU-MIMO) | | | | Supported Operating Systems | Windows 10 (64-Bit) | | | | Form Factor | Mini-ITX | | Dimensions | 6.7 x 6.7" / 170.18 x 170.18 mm | | | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 9.1 x 7.3 x 3.8" |
