ASUS Republic of Gamers Strix Z370-E

Search your instruction manual in PDF to download

User Manual for ASUS Republic of Gamers Strix Z370-E Gaming LGA1151 ATX Motherboard

Click to enlarge the picture
ASUS Republic of Gamers Strix Z370-E Gaming LGA1151 ATX Motherboard Contents of the user manual for the ASUS Republic of Gamers Strix Z370-E
  • Product category: Motherboards ASUS
  • Brand: ASUS
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for ASUS Motherboards

ASUS Republic of Gamers Strix Z370-E Gaming LGA1151 ATX Motherboard ASUS Republic of Gamers Strix Z370-E Gaming LGA1151 ATX Motherboard ASUS Republic of Gamers Strix Z370-E Gaming LGA1151 ATX Motherboard ASUS Republic of Gamers Strix Z370-E Gaming LGA1151 ATX Motherboard ASUS Republic of Gamers Strix Z370-E Gaming LGA1151 ATX Motherboard ASUS Republic of Gamers Strix Z370-E Gaming LGA1151 ATX Motherboard
User manual for the ASUS Republic of Gamers Strix Z370-E contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any ASUS product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!



Product description

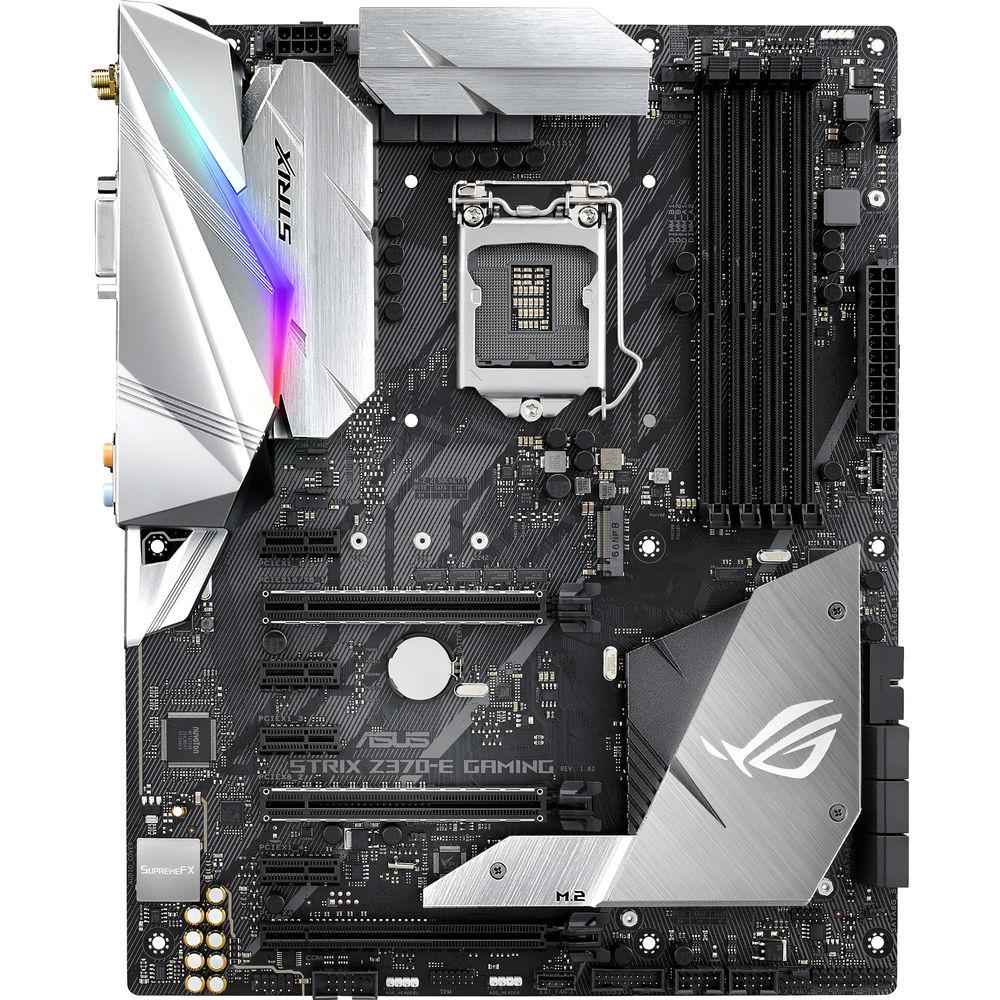

The ASUS Republic of Gamers Strix Z370-E Gaming LGA1151 ATX Motherboard comes equipped with an Intel Z370 chipset and an LGA1151 socket to make it compatible with Intel's 8th-generation Core processors. When compared to other versions of the Strix line of motherboards, this Strix Z370-E motherboard is outfitted with 802.11ac Wi-Fi and Bluetooth 4.2. For wired connections, the Z370-E motherboard has two USB 3.1 and two USB 3.0 ports as well as DVI-D, HDMI, and DisplayPort outputs. The two USB 3.1 ports transfer data at 10 Gb/s speeds, and one of the two ports features a USB Type-C design for a quick connection with a USB-C cable. Other notable differences between this motherboard and other Strix motherboards are the number of PCIe slots, which include three PCIe 3.0 x16 and four PCIe 3.0 x1. There's also onboard RGB lighting to illuminate the insides of your case.

ASUS has built this motherboard with six SATA ports and two M.2 sockets that support SATA- and NVMe-based storage drives. For short-term memory, four DIMM slots are available, and you can overclock user-supplied memory chips up to 4000 MHz frequencies. Aside from memory support, a SupremeFX S1220A audio processor delivers surround sound through the motherboard's six audio jacks. Additionally, your system can access the Internet reliably by using the motherboard's Gigabit Ethernet port.
    Intel Z370 Chipset
  • The Intel Z370 is a single-chipset design that supports 8th-generation Intel Core LGA1151 processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, the Z370 provides a maximum of ten USB 3.0 ports, six SATA 6 Gbps ports, and 32 Gbps M.2 and PCIe 3.0 lane speed support, for faster data retrieval. Intel Z370 also supports integrated-graphics.
    LGA1151 Core Processors
  • This motherboard supports 8th Generation Intel Core processors in the LGA1151 package. With integrated graphics, memory, and PCI Express controllers, it supports onboard graphics output with dedicated chipsets, dual-channel (4-DIMM) DDR4 memory, and 16 PCI Express 3.0/2.0 lanes.
    ASUS Aura
  • ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs and optional RGB strips connected to the onboard RGB headers. It provides Static, Breathing, Strobing, Rainbow, Color Cycle, Comet, Flash & Dash, Wave, Glowing Yo-Yo, Starry Night, Music, and CPU temperature effects. An addressable RGB header and pair of onboard 5050 RGB headers are compatible with lighting strips, fans, coolers, and PC cases, creating new illumination possibilities.
    5-Way Optimization
  • With one click, ASUS 5-Way Optimization dynamically optimizes essential aspects of the system, providing overclocking and cooling profiles that are tailored for performance.
    • TurboV Processing Unit (TPU) offers the ability to fine-tune voltages, monitor system stats, and adjust overclock parameters for optimal performance
    • EPU automatically optimizes power consumption and maximizes savings with Away mode
    • Fan Xpert 4 grants comprehensive control over fans and all-in-one (AIO) liquid coolers
    • Digi+ delivers real-time control over voltage droop, switching frequency, and power -efficiency settings, allowing you to fine-tune CPU voltage regulation
    • Turbo App allows you to define CPU overclocking, apply fan profiles, prioritize network data and optimize audio settings
    DDR4 Overclocking
  • ASUS OptiMem preserves memory signal integrity by routing memory traces to an optimal PCB layer, and a T-Topology layout ensures time-aligned signals by balancing trace lengths between memory slots. These enhancements offer more overclocking headroom and stability, allowing memory speeds of DDR4-4000 and higher with all slots populated.
    SupremeFX
  • ROG Strix's SupremeFX audio technology delivers a 113dB signal-to-noise ratio on the line-in connection for quality recording and 120dB on the line-out connection for clear sound. There's also a low-dropout regulator for clean power delivery to the SupremeFX S1220A codec. To provide high gain with low distortion, Texas Instruments RC4580 and OPA1688 op-amps are on board. Moreover, an audio cover and line shielding help preserve the audio signal.
    Additional Features
    • Dedicated 3D Mounts on the motherboard makes fitting 3D-printed parts easy
    • M.2 heatsink integrated into the PCH heatsink help cool M.2 SSDs
    • Each fan header can be set to monitor and react to three user-configurable thermal sensors, for workload-based cooling
    • Every onboard header supports auto-detection of PWM or DC fans
    • A dedicated PWM/DC header for self-contained water-cooling setups
    • Dedicated base-clock generator designed for 8th Generation Intel processors allows overclocked base-clock (BCLK) frequencies of up to 432 MHz
    • Intel Ethernet controllers reduce CPU overhead and offer high TCP and UDP throughputs
    • 802.11ac Wi-Fi and 2x2 dual-band 2.4/5GHz antennas with MU-MIMO offer up to 867 Mbps transfer speeds
    • RAID support with up to three PCIe 3.0 storage devices via two M.2 slots and one PCIe x16 slot
    • LANGuard grants signal-coupling technology and premium surface-mounting processes to protect the LAN connection
    • SafeSlot provides strong PCIe device retention and shearing resistance to support heavy graphics cards
    • Onboard LEDs indicate the power status as well as problem with the processor, memory, graphics card, or boot drive
    • CPU installation tool helps you install your processor
    • Digi+ VRM voltage-regulator module ensures smooth, clean power delivery to the CPU
    • Onboard resettable fuses protect all connection ports and DRAM modules against overcurrent and short-circuit damage
    • Chokes and capacitors are engineered to resist temperature variations between -67 to 221°F (-55 to 105°C)
    • The I/O panel is made with chromium-plated, corrosion-resistant stainless steel
    • ASUS Beyond VR Ready
    • Intel Optane Memory Ready
    Software Features
    • RAMCache II caches an entire storage device so that favorite games and apps launch quickly
    • Mouse-controlled graphical BIOS provides EZ and Advanced Modes to help novices and seasoned overclockers
    • CrashFree BIOS 3 helps you restore the computer to working order
    • EZ Flash 3 updates the system with the latest BIOS
    • GameFirst IV optimizes network traffic for faster, lag-free online gaming
    • Multi-Gate Teaming combines all the networks for fast bandwidth and smooth gameplay
    • Sonic Studio III offers a range of EQ options, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset
    • Sonic Studio Link VR functionality extends HRTF effects to VR headsets
    • App-specific profiles apply customized audio settings to different applications, so everything is tuned to the way you want to listen
    • Sonic Radar III processes sounds accurately and adds an on-screen arrow, so you're aware of what's going on around you
    • Overwolf lets you browse the Internet, email, IM, and stream or record gameplay
    • ROG Clone Drive is a cloning solution that quickly and efficiently replicates hard drives or SSDs
UPC: 889349854969 In the Box ASUS Republic of Gamers Strix Z370-E Gaming LGA1151 ATX Motherboard
  • ASUS Q-Shield
  • ASUS Fan Holder
  • 4 x SATA 6 Gb/s Cables
  • M.2 Screw Package
  • CPU Installation Tool
  • Support DVD
  • ASUS 2T2R Dual-Band Wi-Fi Moving Antennas Kit
  • Cable Tie Pack
  • 2-Way SLI HB Bridge
  • Pack of ROG Strix Stickers
  • ROF Fan Label Kit
  • 31.5" (80 cm) Extension Cable for RGB Strips
  • Extension Cable for Addressable LED
  • Thermistor Cable
  • 3D Printing Mount Package
  • Limited 3-Year Warranty
  • User Manual PDF 8.8mb More info from ASUS tdvrwctfssrw Table of Contents




    Upload User Manual

    Have you got an user manual for the ASUS Republic of Gamers Strix Z370-E Gaming LGA1151 ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    ASUS ROG STRIX Z370-E GAMING Specs

    CPU Intel Socket LGA 1151 for 8th-generation Core processors
    Chipset Intel Z370
    Memory 4 x DIMM, Max. 64 GB, DDR4 4000 (OC), 3866 (OC), 3733 (OC), 3600 (OC), 3466 (OC), 3400 (OC), 3333 (OC), 3300 (OC), 3200 (OC), 3000 (OC), 2800 (OC), 2666, 2400, and 2133 MHz non-ECC unbuffered memory
    Dual-Channel Memory Architecture
    Supports Intel Extreme Memory Profile (XMP)
    Graphics Integrated Graphics Processor - Intel HD Graphics support
    Multi-VGA output support: HDMI/DVI-D/DisplayPort
    - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
    - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
    - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
    Maximum shared memory of 1024 MB
    Expansion Slots 2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
    1 x PCIe 3.0/2.0 x16 (max at x4 mode)
    4 x PCIe 3.0/2.0 x1
    NVIDIA 2-Way SLI or AMD 3-Way CrossFireX
    Wireless 802.11a/b/g/n/ac with MU-MIMO support
    Bluetooth 4.2
    Audio SupremeFX 8-channel high definition audio CODEC S1220A
    120 dB SNR stereo playback output and 113 dB SNR recording input

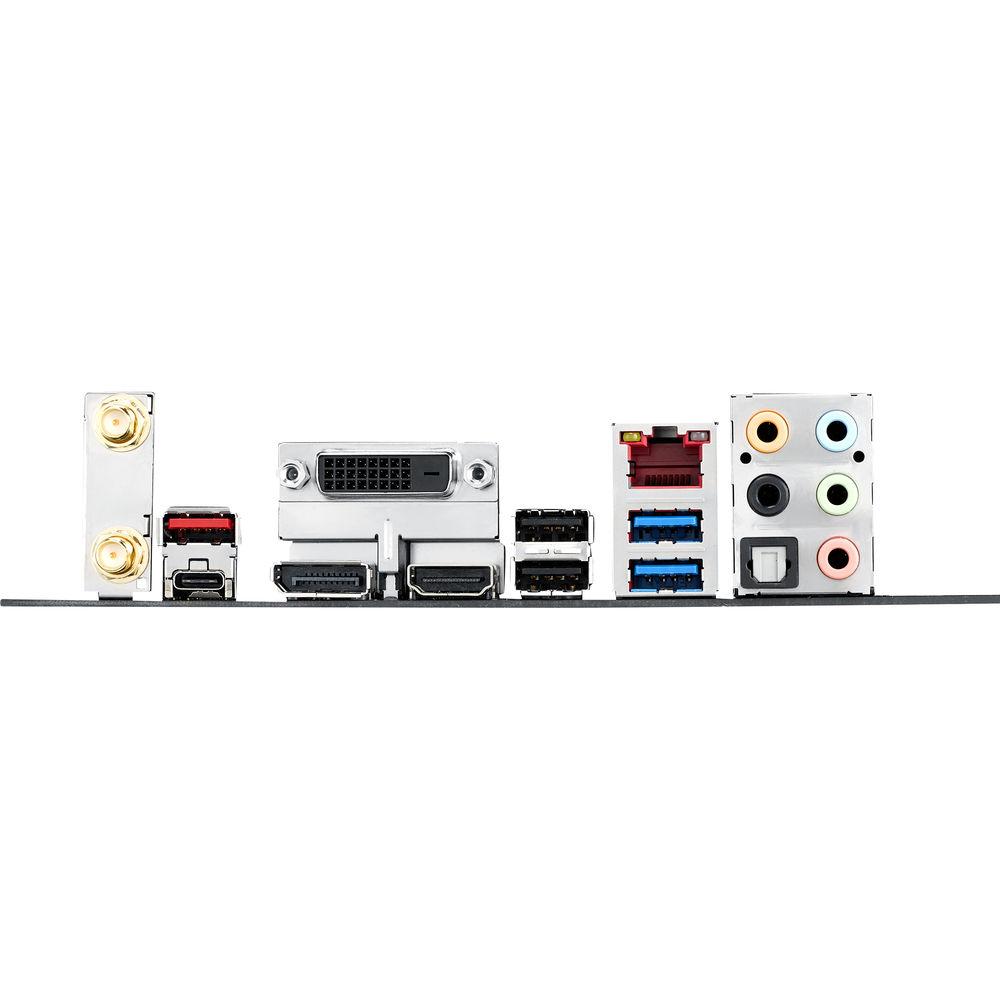

    I/O Ports 1 x DVI-D
    1 x DisplayPort
    1 x HDMI
    1 x Intel I219V Gigabit Ethernet port
    1 x USB 3.1 Type-A port
    1 x USB 3.1 Type-C port
    2 x USB 3.0 Type-A ports
    2 x USB 2.0 Type-A ports
    1 x Optical S/PDIF out
    5 x Audio jacks
    1 x ASUS Wi-Fi GO! module
    Internal Ports 1 x Aura Addressable Strip Header
    1 x AAFP connector
    2 x RGB Headers
    2 x USB 3.0 connectors (support additional 4 USB 3.0 ports)
    2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
    1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)
    1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & x4 PCIE mode)
    6 x SATA 6 Gb/s connectors
    1 x M.2_FAN connector
    1 x CPU Fan connector
    1 x CPU OPT Fan connector
    2 x Chassis Fan connectors
    1 x 24-pin EATX Power connector
    1 x 8-pin ATX 12V Power connector
    1 x System panel (Chassis intrusion header is inbuilt)
    1 x 5-pin EXT_FAN (Extension Fan) connector
    1 x Thermal sensor connector
    1 x CPU OV
    1 x Clear CMOS jumper
    1 x 14-1 pin TPM connector
    1 x COM port header
    1 x AIO PUMP Header
    3 x 3D Mount screw holes
    1 x USB 3.1 front panel connector
    Form Factor ATX
    Dimensions 12 x 9.6" / 30.5 x 24.4 cm
    Weight Not specified by manufacturer
    Package Weight 2.72 lb
    Box Dimensions (LxWxH) 13.6 x 10.8 x 3.1"

    Rating

    98% users recommend this product to others. And what about you?
    Rating: 4.9 of 5

    This product has already been rated by 15 owners. Add your rating and experience with the product.

    Discussion

    Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

    The discussion is empty - enter the first post

    Post a new topic / query / comment:

    Items marked with * are required.
    Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution.
    Processing of personal data in accordance with GDPR


    Request for user manual
    You can’t find the operation manual you are looking for? Let us know and we will try to add the missing manual:

    I’m looking for a manual / Request for manual
