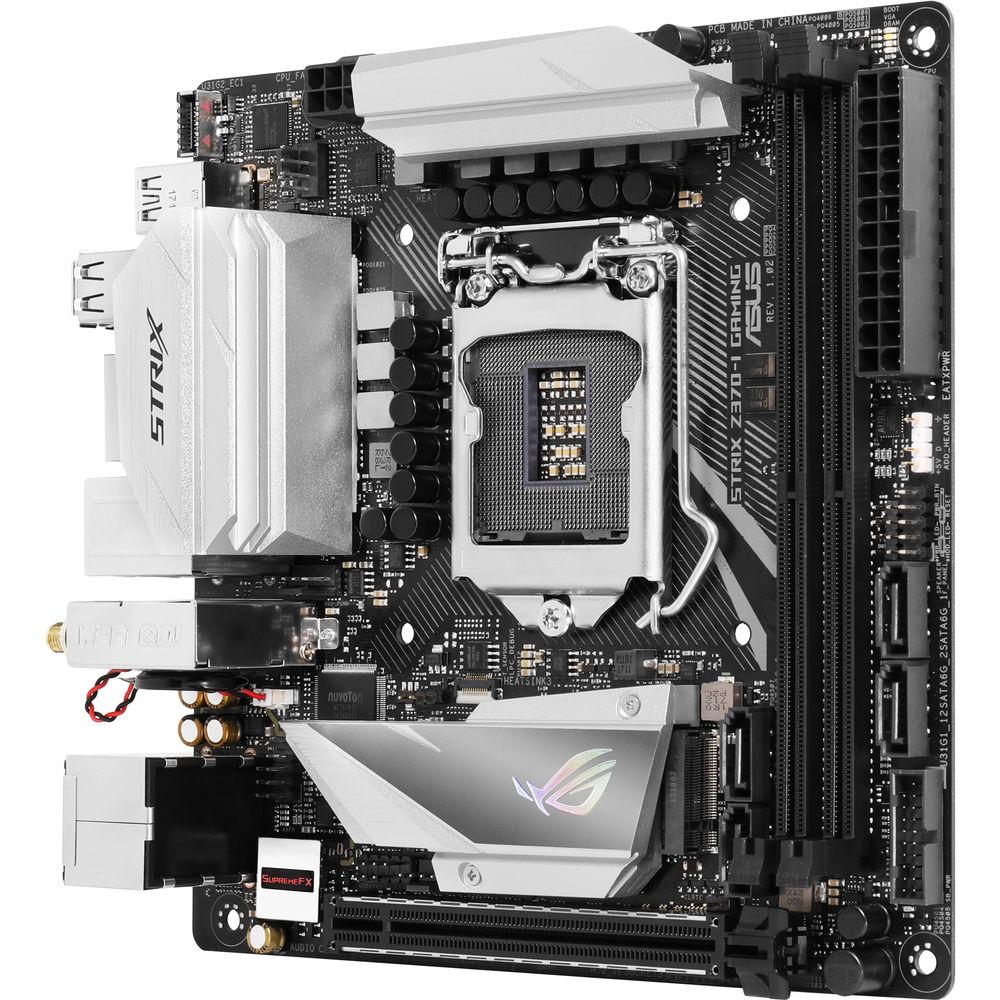

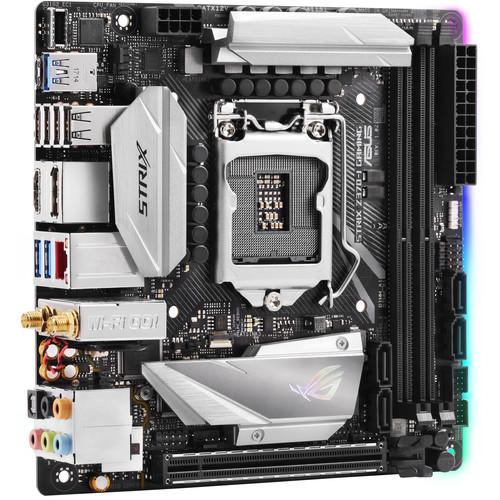

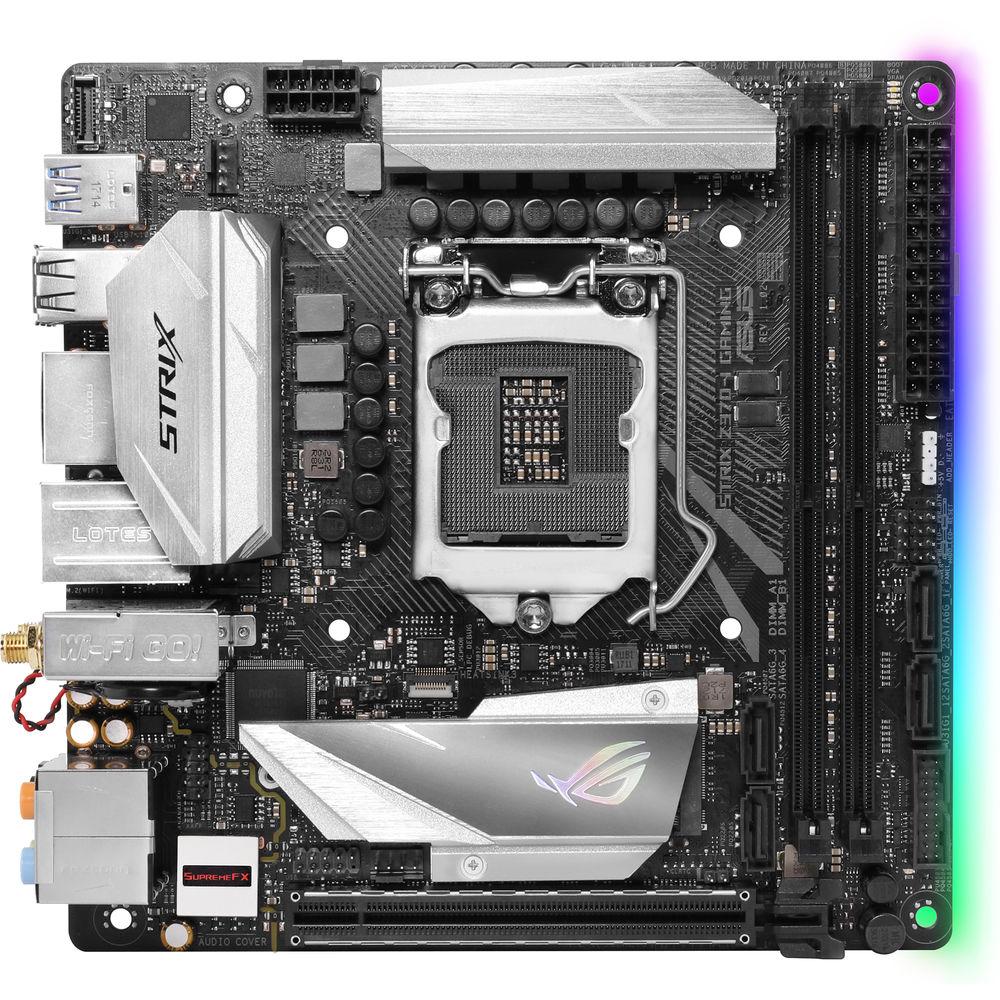

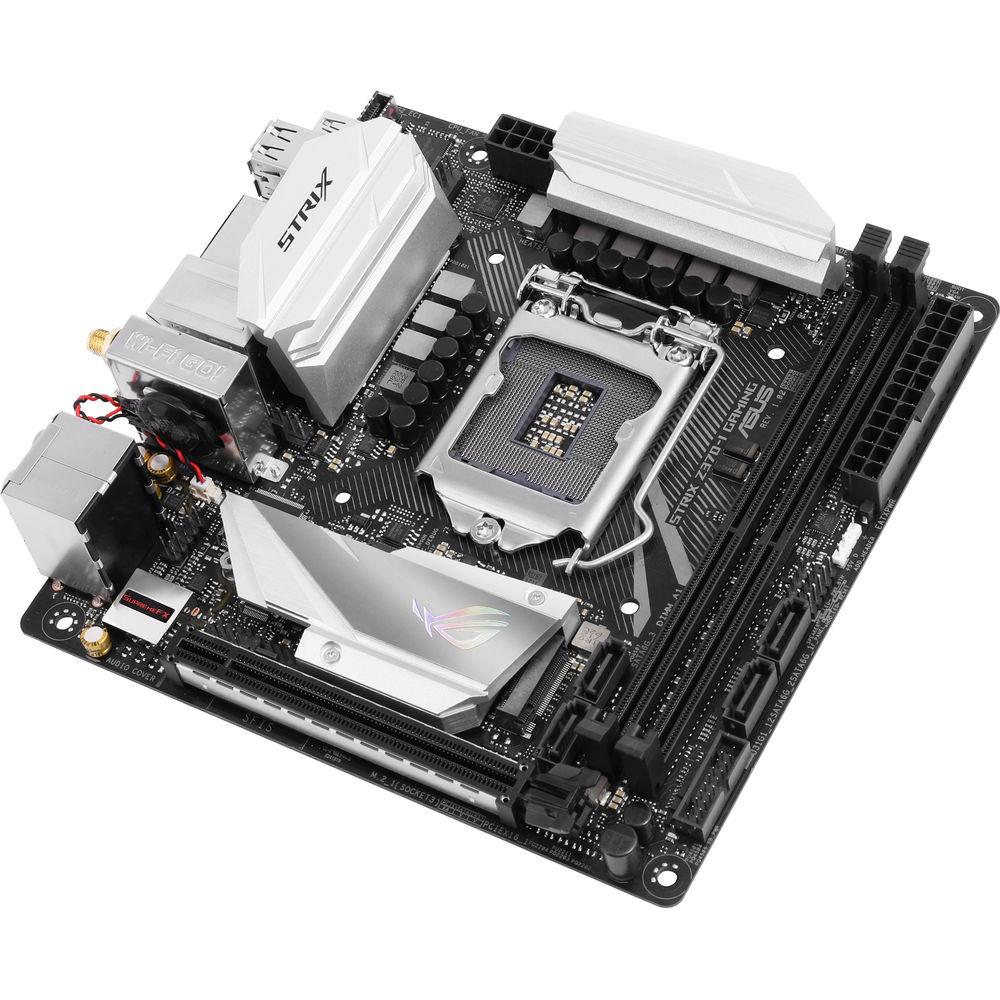

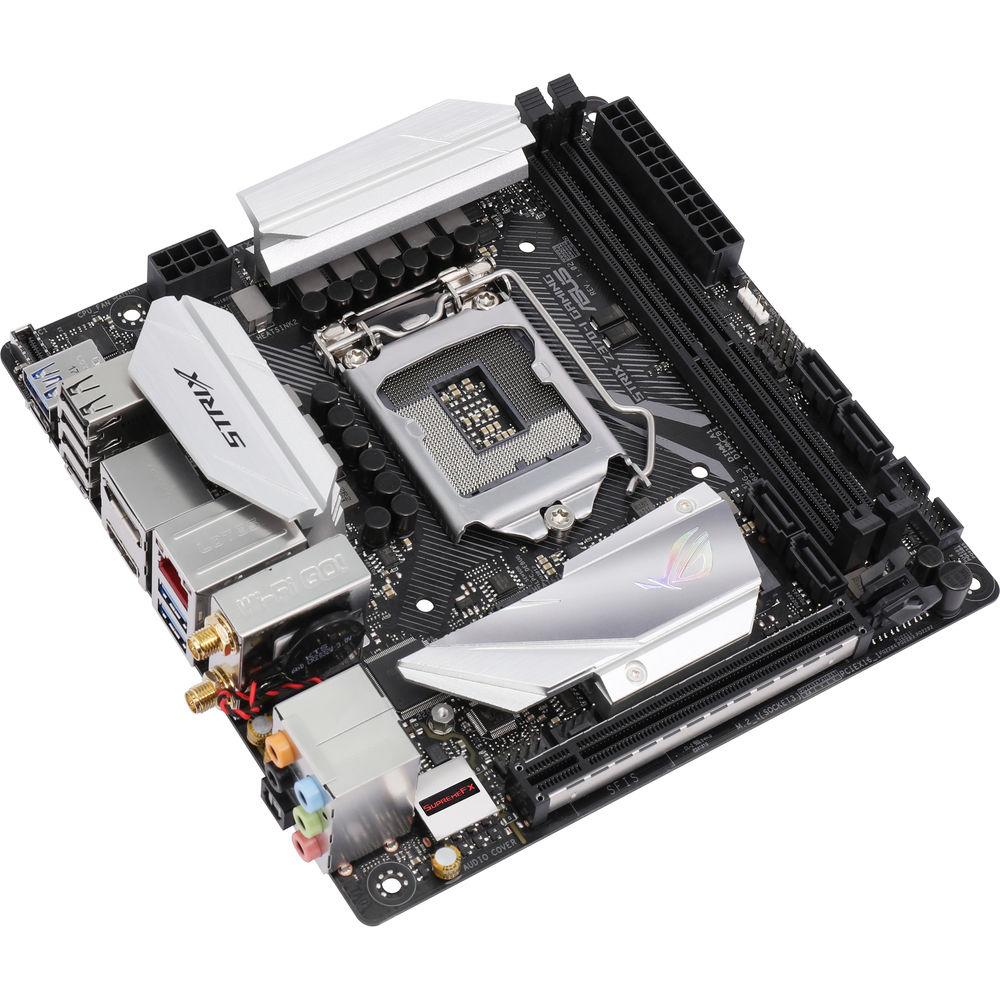

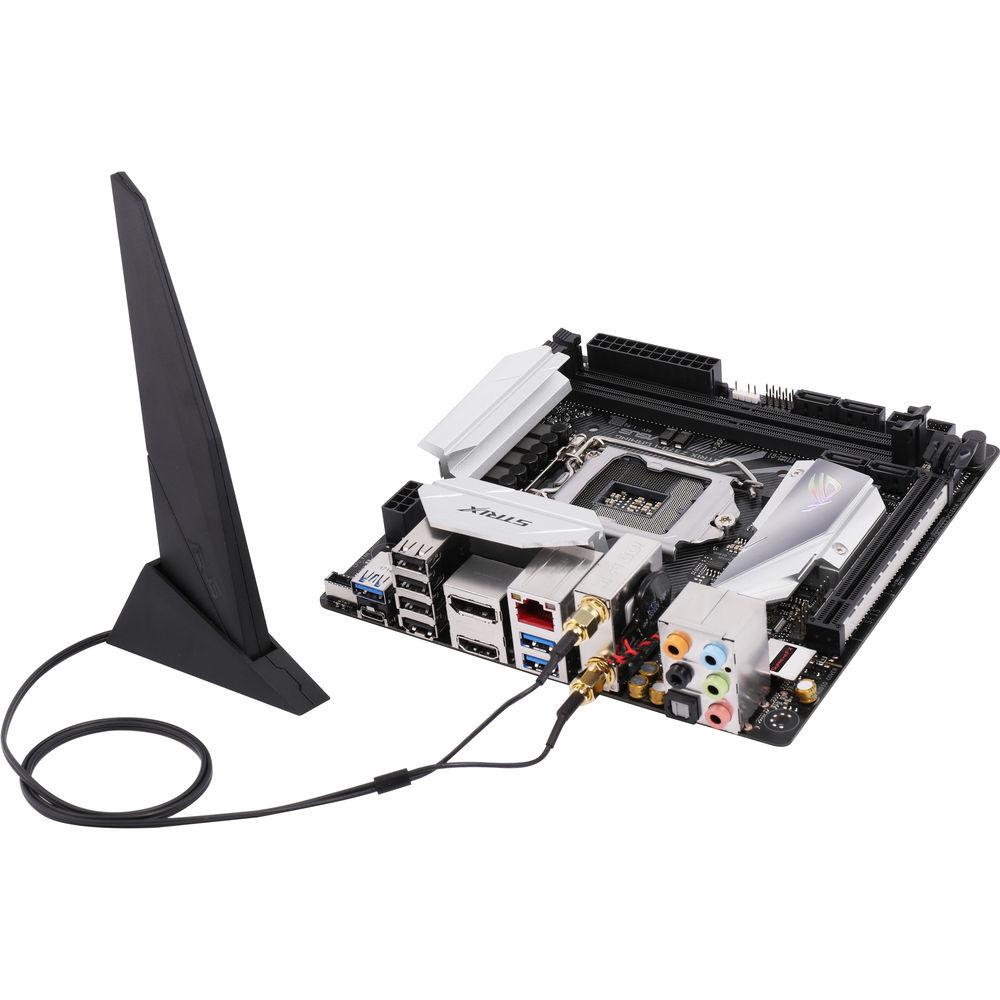

Product description The ASUS Republic of Gamers Strix Z370-I Gaming Motherboard provides an Intel Z370 chipset, LGA1151 socket, and mini-ITX form factor, so you can build a compact desktop system that runs on an 8th-generation Intel Core processor. The mini-ITX motherboard has enough space to offer one PCIe 3.0 x16 slot along with two DIMM slots. With a double-decker design, the Strix Z370-I lets you install up to two M.2 SSDs. For optical and 2.5"/3.5" storage drives, four SATA connectors are available. Other notable features include built-in LEDs along with an internal module that delivers 802.11ac Wi-Fi and Bluetooth 4.2 wireless connectivity.
This Strix Z370-I motherboard has four USB 3.0 and four USB 2.0 ports as well as DisplayPort and HDMI outputs, which utilize your processor's integrated graphics chipset to deliver up to 4K visuals. To complete the multimedia package, ROG's SupremeFX S1220A audio processor produces clear sounds through the motherboard's six audio jacks. Additionally, reliable Internet access can be accomplished by using the motherboard's Gigabit Ethernet port. - Intel Z370 Chipset
- The Intel Z370 is a single-chipset design that supports 8th-generation Intel Core LGA1151 processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, the Z370 provides a maximum of ten USB 3.0 ports, six SATA 6 Gbps ports, and 32 Gbps M.2 and PCIe 3.0 lane speed support, for faster data retrieval. Intel Z370 also supports integrated-graphics.
- LGA1151 Core Processors
- This motherboard supports 8th Generation Intel Core processors in the LGA1151 package. With integrated graphics, memory, and PCI Express controllers, it supports onboard graphics output with dedicated chipsets, dual-channel (4-DIMM) DDR4 memory, and 16 PCI Express 3.0/2.0 lanes.
- ASUS Aura

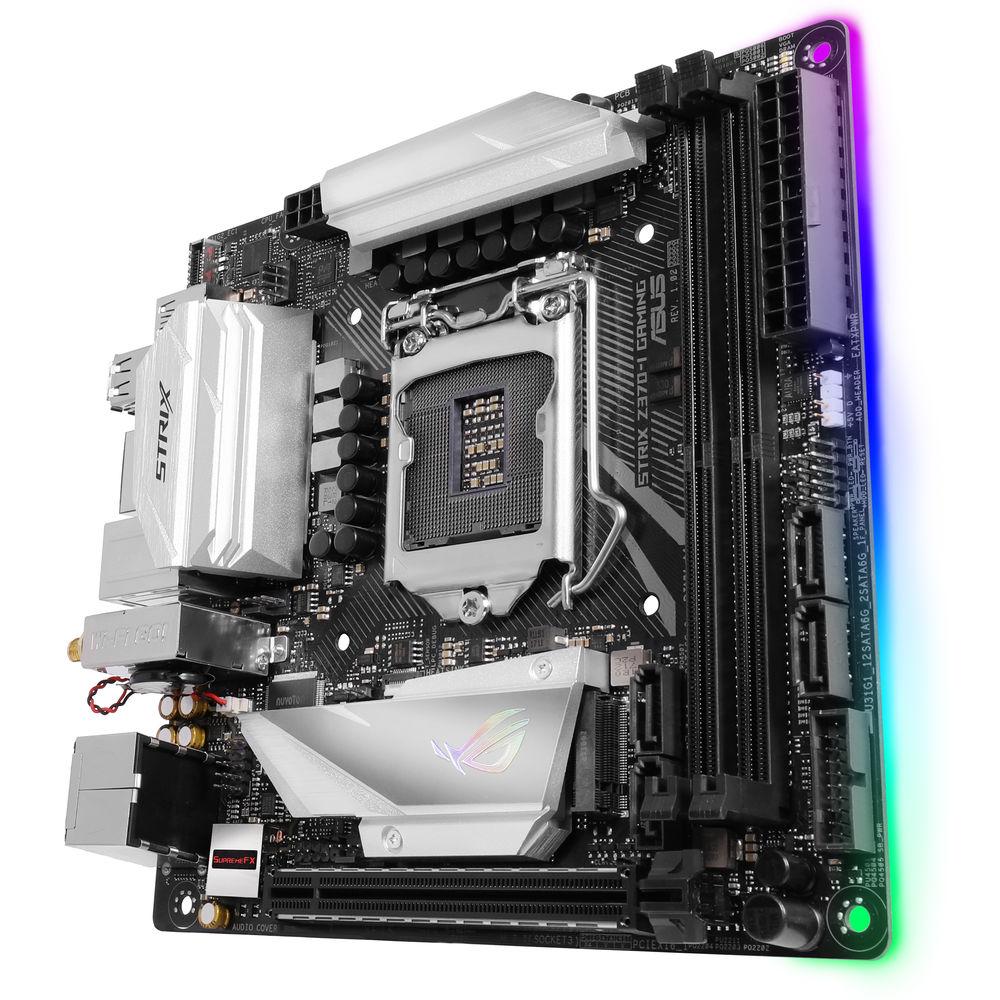

- ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs and an optional RGB strip connected to the onboard RGB header. It provides Static, Breathing, Strobing, Rainbow, Color Cycle, Comet, Flash & Dash, Wave, Glowing Yo-Yo, Starry Night, Music, and CPU temperature effects.
- Double Decker Heatsink
- The ROG Strix Z370-I Gaming has a double-decker heatsink design that allows the M.2 SSD to be stacked on top of the PCH heatsink, which is then topped off with an additional metal heatsink for the M.2 drive. The two heatsinks are thermally isolated to prevent the PCH and M.2 from affecting each other. The double-decker design maximizes the board space on a mini-ITX board and also improves heat dissipation.
- 5-Way Optimization
- With one click, ASUS 5-Way Optimization dynamically optimizes essential aspects of the system, providing overclocking and cooling profiles that are tailored for performance.
- TurboV Processing Unit (TPU) offers the ability to fine-tune voltages, monitor system stats, and adjust overclock parameters for optimal performance
- EPU automatically optimizes power consumption and maximizes savings with Away mode
- Fan Xpert 4 grants comprehensive control over fans and all-in-one (AIO) liquid coolers
- Digi+ delivers real-time control over voltage droop, switching frequency, and power -efficiency settings, allowing you to fine-tune CPU voltage regulation
- Turbo App allows you to define CPU overclocking, apply fan profiles, prioritize network data and optimize audio settings
- DDR4 Overclocking
- ASUS OptiMem preserves memory signal integrity by routing memory traces to an optimal PCB layer, and a T-Topology layout ensures time-aligned signals by balancing trace lengths between memory slots. These enhancements offer more overclocking headroom and stability, allowing memory speeds of DDR4-4333 and higher with all slots populated.
- SupremeFX
- ROG Strix's SupremeFX audio technology delivers a 113dB signal-to-noise ratio on the line-in connection for quality recording and 120dB on the line-out connection for clear sound. There's also a low-dropout regulator for clean power delivery to the SupremeFX S1220A codec. To provide high gain with low distortion, Texas Instruments RC4580 and OPA1688 op-amps are on board. Moreover, an audio cover and line shielding help preserve the audio signal.
- Additional Features
-
- Each fan header can be set to monitor and react to three user-configurable thermal sensors, for workload-based cooling
- Every onboard header supports auto-detection of PWM or DC fans
- A dedicated PWM/DC header for self-contained water-cooling setups
- Dedicated base-clock generator designed for 8th Generation Intel processors allows overclocked base-clock (BCLK) frequencies of up to 432 MHz
- Intel Ethernet controllers reduce CPU overhead and offer high TCP and UDP throughputs
- 802.11ac Wi-Fi and 2x2 dual-band 2.4/5GHz antennas with MU-MIMO offer up to 867 Mbps transfer speeds
- RAID support with up to two PCIe 3.0 storage devices via two M.2 slots
- LANGuard grants signal-coupling technology and premium surface-mounting processes to protect the LAN connection
- SafeSlot provides strong PCIe device retention and shearing resistance to support heavy graphics cards
- Onboard LEDs indicate the power status as well as problem with the processor, memory, graphics card, or boot drive
- CPU installation tool helps you install your processor
- Digi+ VRM voltage-regulator module ensures smooth, clean power delivery to the CPU
- Onboard resettable fuses protect all connection ports and DRAM modules against overcurrent and short-circuit damage
- Chokes and capacitors are engineered to resist temperature variations between -67 to 221°F (-55 to 105°C)
- The I/O panel is made with chromium-plated, corrosion-resistant stainless steel
- ASUS Beyond VR Ready
- Intel Optane Memory Ready
- Software Features
-
- RAMCache II caches an entire storage device so that favorite games and apps launch quickly
- Mouse-controlled graphical BIOS provides EZ and Advanced Modes to help novices and seasoned overclockers
- CrashFree BIOS 3 helps you restore the computer to working order
- EZ Flash 3 updates the system with the latest BIOS
- GameFirst IV optimizes network traffic for faster, lag-free online gaming
- Multi-Gate Teaming combines all the networks for fast bandwidth and smooth gameplay
- Sonic Studio III offers a range of EQ options, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset
- Sonic Studio Link VR functionality extends HRTF effects to VR headsets
- App-specific profiles apply customized audio settings to different applications, so everything is tuned to the way you want to listen
- Sonic Radar III processes sounds accurately and adds an on-screen arrow, so you're aware of what's going on around you
- Overwolf lets you browse the Internet, email, IM, and stream or record gameplay
- ROG Clone Drive is a cloning solution that quickly and efficiently replicates hard drives or SSDs

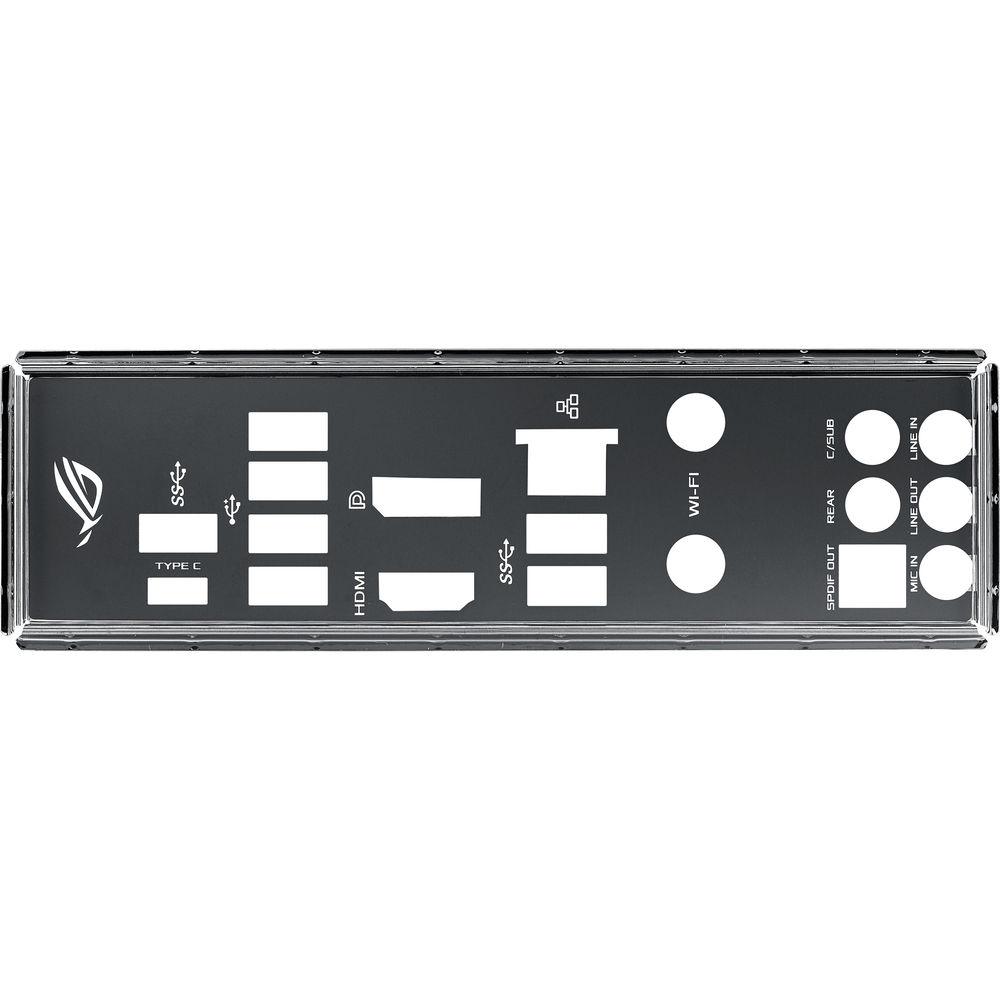

UPC: 889349854662 In the Box ASUS Republic of Gamers Strix Z370-I Gaming LGA1151 Mini-ITX Motherboard M.2 2242 Mounting Kit I/O Shield 4 x SATA 6 Gb/s Cables 2 x M.2 Screw Packages CPU Installation Tool 11.8" (30 cm) ROG Addressable LED Strip ASUS 2T2R Dual-Band Wi-Fi Moving Antennas Pack SCD Panel Cable Pack of Strix-Series Stickers Limited 3-Year Warranty User Manual PDF 7.5mbccuwusfqfcacxdsfdzsvwtwywbayueeuvqdcbz More info from ASUS Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS Republic of Gamers Strix Z370-I Gaming LGA1151 Mini-ITX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS ROG STRIX Z370-I GAMING Specs | CPU | Intel Socket LGA 1151 for 8th-generation Core processors | | Chipset | Intel Z370 | | Memory | 2 x DIMM, Max. 32 GB, DDR4 4333 (OC), 4200 (OC), 4000 (OC), 3866 (OC), 3600 (OC), 3333 (OC), 3300 (OC), 3200 (OC), 3000 (OC), 2800 (OC), 2666 (OC), 2400 (OC), and 2133 MHz non-ECC unbuffered memory
Dual-Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP) | | Graphics | Integrated Graphics Processor - Intel HD Graphics support
Multi-VGA output support: HDMI/DisplayPort
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
Maximum shared memory of 1024 MB | | Expansion Slots | 1 x PCIe 3.0 x16 | | Wireless | 802.11a/b/g/n/ac with MU-MIMO
Bluetooth 4.2 | | Audio | SupremeFX 8-channel high definition audio CODEC S1220A

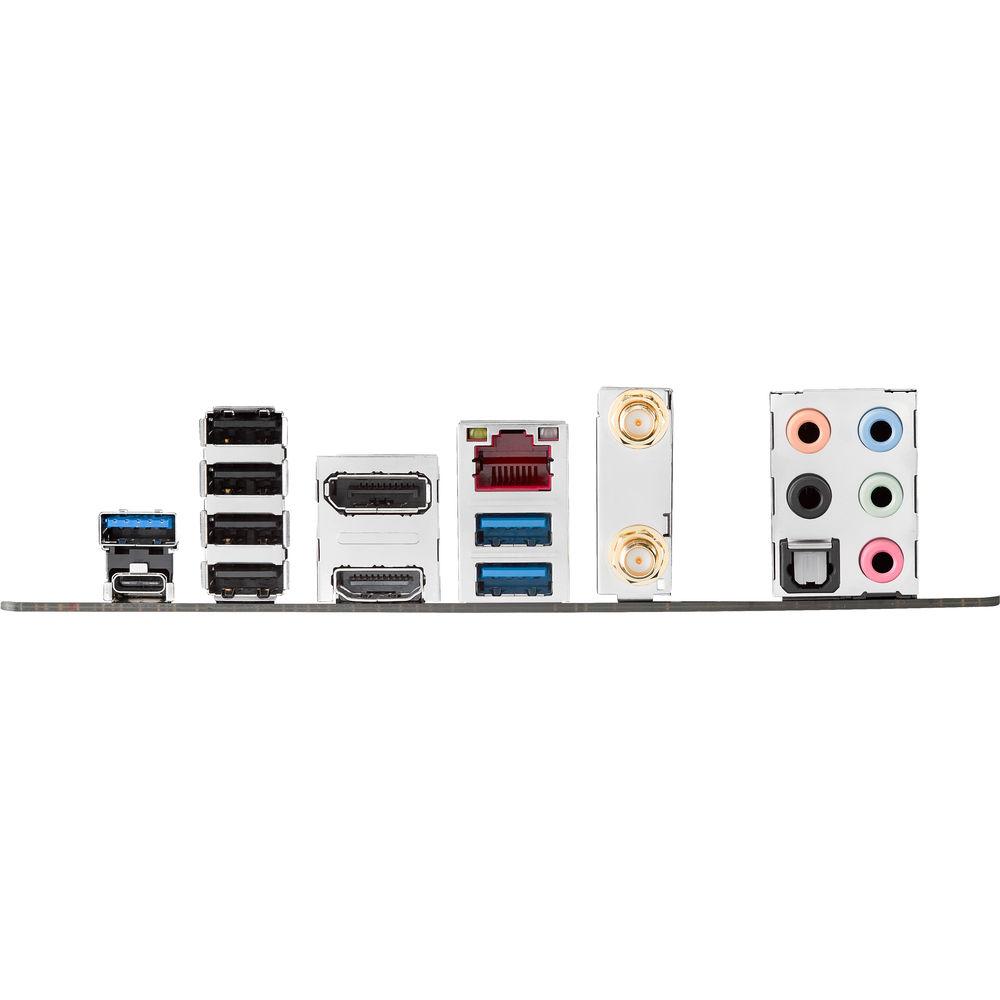

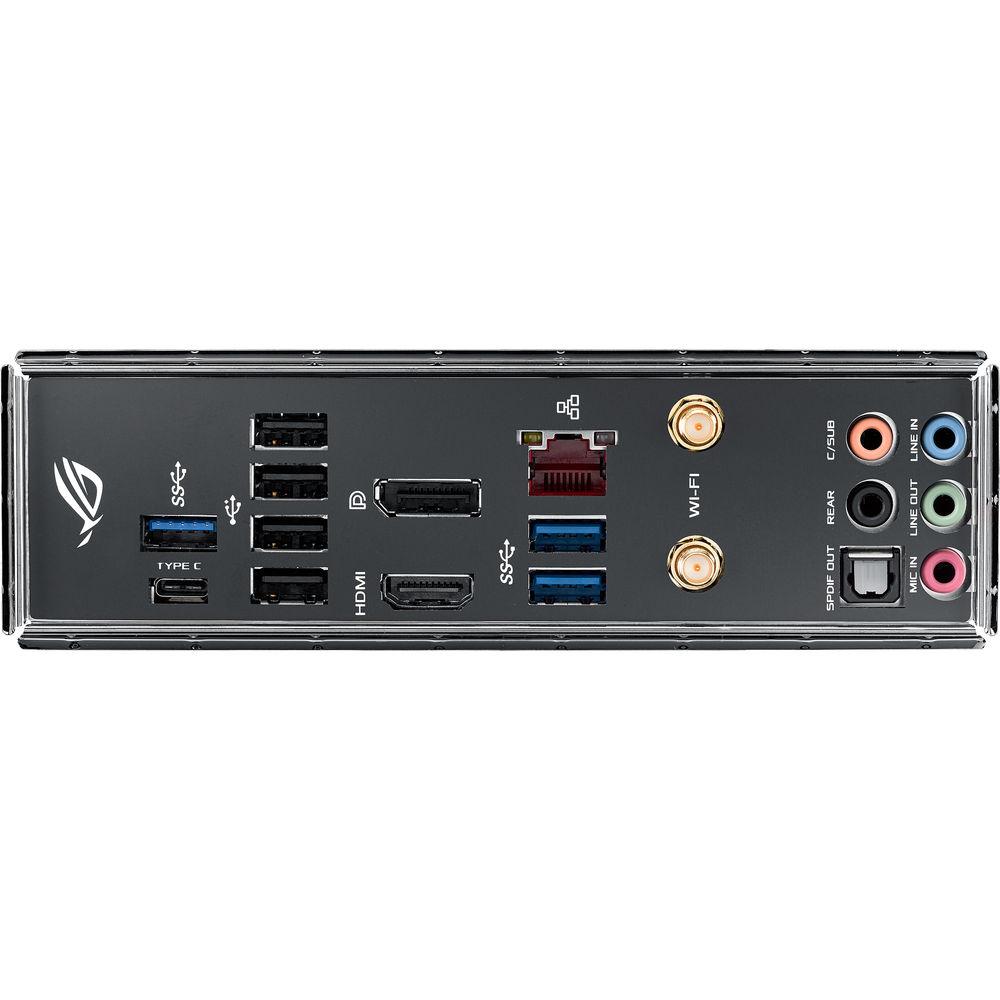

120 dB SNR stereo playback output and 113 dB SNR recording input | | I/O Ports | 1 x DisplayPort
1 x HDMI
1 x Intel I219V Gigabit Ethernet port
4 x USB 3.0 Type-A ports
4 x USB 2.0 Type-A ports
1 x Optical S/PDIF out
5 x Audio jacks
1 x ASUS 2x2 Wi-Fi module | | Internal Ports | 1 x Aura Addressable Strip Header
1 x AAFP connector
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & PCIe 3.0 x 4 mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIe 3.0 x 4)
4 x SATA 6 Gb/s connectors
1 x CPU Fan connector
1 x Chassis Fan connector
1 x AIO_PUMP connector
1 x 24-pin EATX Power connector
1 x 8-pin ATX Power connector
1 x System panel
1 x Clear CMOS jumper
1 x T_Sensor Connector
1 x USB 3.1 connector (supports additional 2 USB 3.1 ports)
1 x USB 3.0 connector (supports additional 2 USB 3.0 ports)
1 x USB 2.0 connector (supports additional 2 USB 2.0 ports) | | Form Factor | Mini-ITX | | Dimensions | 6.7 x 6.7" / 17 x 17 cm | | Weight | Not specified by manufacturer | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 9.0 x 7.4 x 3.8" |
