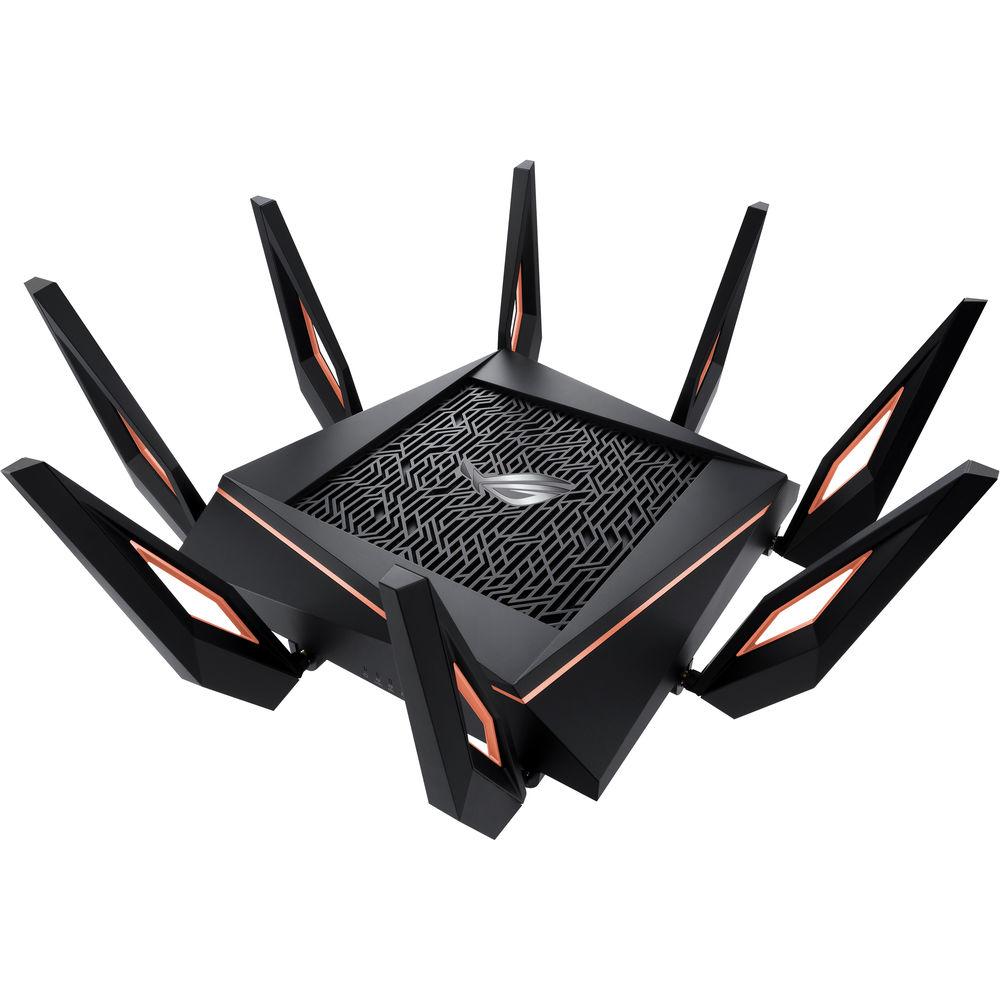

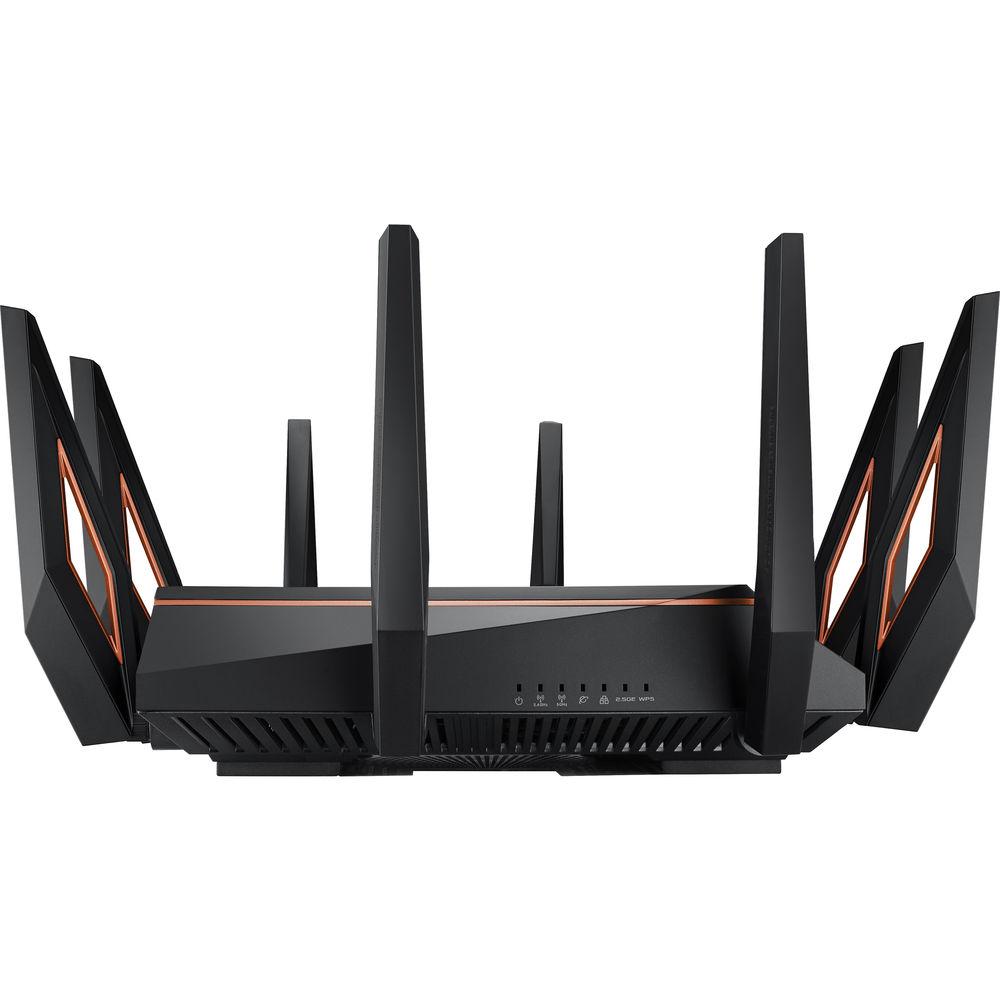

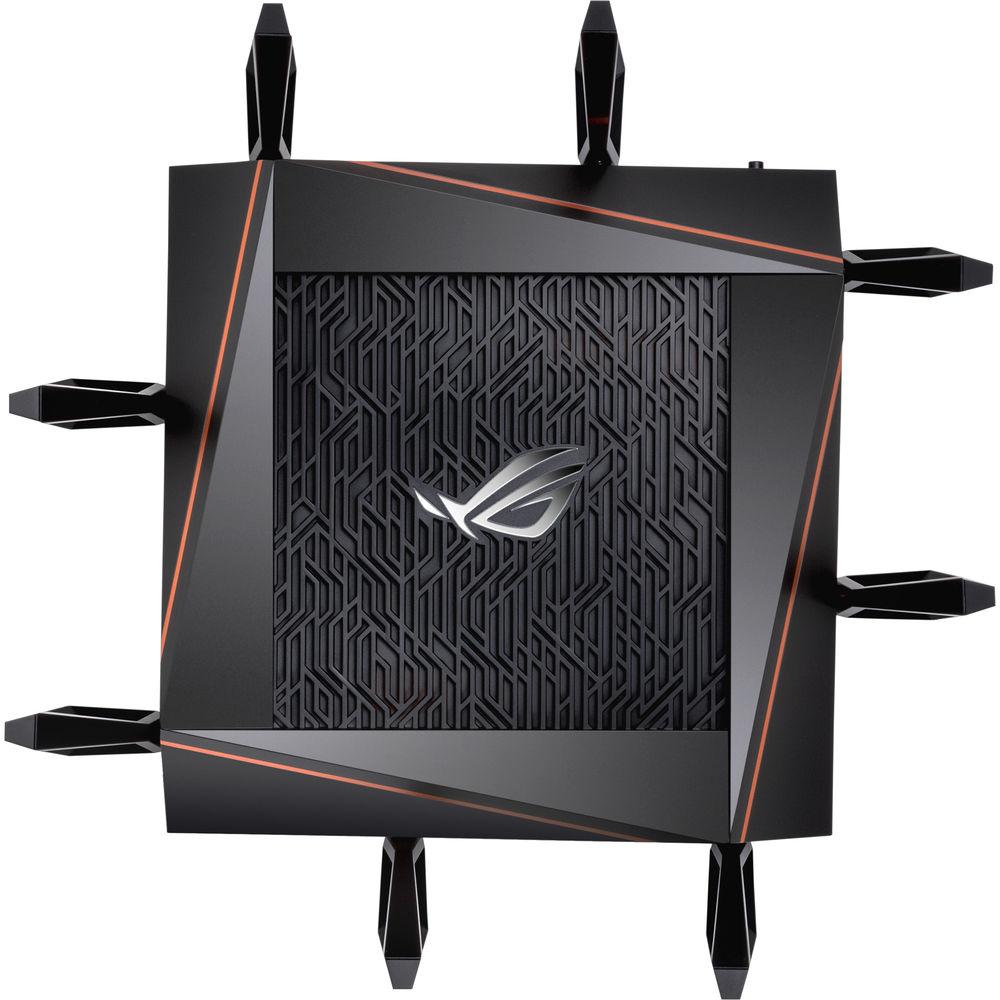

User Manual for ASUS ROG GT-AX11000 Tri-Band Wi-Fi Gaming Router Click to enlarge the picture
Contents of the user manual for the ASUS ROG GT-AX11000 Tri-Band Wi-Fi Gaming
- Product category: Wireless Routers ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Wireless Routers
 |
User manual for the ASUS ROG GT-AX11000 Tri-Band Wi-Fi Gaming contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|
Product description Take your online gaming performance to the next level with the ROG GT-AX11000 Tri-Band Wi-Fi Gaming Router from ASUS. Boasting a total aggregate data throughput of up to 11,000 Mb/s and eight external antennas, this tri-band router supports Wi-Fi 6 (802.11ax), a wireless standard that allows for data speeds up to 2.53 times faster than the Wi-Fi 5 standard. The ROG GT-AX11000 comes equipped with a 2.5 Gb/s WAN/LAN Ethernet port, as well as a Gigabit Ethernet WAN port, four Gigabit Ethernet LAN ports, and two USB 3.0/3.1 Gen 1 ports for sharing files or devices across the network. Compatible with ASUS AiMesh Wi-Fi routers, the ROG GT-AX11000 supports 4 x 4 multi-user MIMO, which allows the router to transfer data with multiple devices simultaneously. The router also supports a series of ASUS technologies that help to ensure gaming data packets are prioritized on the network. Wi-Fi 6 (802.11ax) Features - Multi-User MIMO and OFDMA Technology
- With a combination of OFDMA and MU-MIMO technology, 802.11ax technology provides up to four times greater network capacity and efficiency in traffic-dense environments. OFDMA divides each channel into small sub-channels, allowing signals from multiple devices to be bundled together and transmitted simultaneously, helping to reduce latency for a smoother, more responsive Wi-Fi experience. These sub-channels have a smaller bandwidth that enables them to travel up to 80% farther.
- Target Wait Time
- Allows the RT-AX88U to schedule designated intervals for devices to transmit data. This allows your devices to sleep when there is no need to wait for a router signal, reducing power consumption by up to a factor of seven.
- Standard Compatibility
- Wi-Fi 6 (802.11ax) is compatible with previous Wi-Fi standards including Wi-Fi 5 (802.11ac) and Wi-Fi 4 (802.11n).
General Features - ROG Eco System
- ASUS ROG-series PCs (motherboard, laptop, desktops) and ROG Wi-Fi routers with Game First V network acceleration software help to ensure smoother online gaming with up to 33% lower ping and less lag. Whether you're gaming over a wired or wireless connection, Game First and Game Boost are designed to prioritize gaming packets and decrease latency.
- Triple-Level Game Acceleration
-
- Game First V gives gaming packets on ASUS ROG devices top priority, helping to ensure gaming packets are always at the head of the internet queue.
- Game Boost analyzes network traffic and prioritizes gaming packets, giving games a second level of acceleration for the best possible performance. Game Boost can be activated instantly with a single click on the Gaming Center dashboard, and it supports many popular consoles, including PlayStation 3, PlayStation 4, PlayStation 4 Pro, PlayStation Vita, Nintendo Wii U, Nintendo 3DS, and Xbox One.
- ROG Rapture GT-AX11000 includes built-in support for the Gamers Private Network powered by wtfast, which provides private, optimized internet connections to game servers, minimizing ping and latency to help ensure smooth, lag-free gaming.
- Port Forwarding
- Port forwarding helps to avoid the awkward situation of not being able to team up with friends. Open NAT on the GT-AX11000 takes only three steps: select which game to play, select your gaming device, then activate.
- ROG-Themed Gaming Center Interface
- Provides easy point-and-click control over the GT-AX11000's various features.
- Game Radar
- When it comes to ranking, a great connection to your game server is critical. Game Radar lets you check ping times to different servers before you play, so you can choose the best server and gain the competitive edge. Supported games include League of Legends, Overwatch, Dota 2, Hearthstone, Diablo III, Hero of the Storm, Garena LoL, StarCraft II, World of Warcraft, World of Tanks, and World of Warplanes.
- Tri-Band Networking
- Lets you dedicate one 5 GHz band to gaming, so you can avoid competing for bandwidth with other devices on your home network. With dynamic frequency selection (DFS), ROG Rapture GT-AX11000 also unlocks 15 channels in the least-congested 5 GHz bands, providing more bandwidth for all of your wireless devices.
- VPN Fusion
- Lets you run a VPN and an ordinary internet connection simultaneously, allowing you to enjoy maximum gaming speeds even if other network users need to use a VPN.
- Aura RGB Lighting
- Capable of displaying hundreds of colors and multiple effects for a stylish vibe that matches other Aura-enabled gaming gear. Available effects include Static, Breathing, Color Cycle, Comet, and Flash & Dash.
- AiProtection Pro
- This Trend Micro-powered security feature is designed to defend your network from external attacks and threats. Even if your PC's security software isn't turned on, AiProtection Pro helps to protect your network from attacks and intrusions.
- Additional Wi-Fi Features and Specifications
- Coverage area: Designed for very large homes
Beamforming (standard-based and universal)
1024-QAM high data rate
20/40/80/160 MHz bandwidth - Access Control
- Parental controls
Network service filter
URL filter
Port filter - Management Features
- UPnP
IGMP v1/v2/v3
DNS Proxy
DHCP
NTP client
DDNS
Port trigger
Port forwarding
DMZ
System event log - VPN Support
- IPSec passthrough
PPTP passthrough
L2TP passthrough
PPTP server
OpenVPN server
PPTP client
L2TP client
OpenVPN client - Additional Features and Support
- Link aggregation (802.3ad)
Traffic analyzer
Adaptive QoS
Guest network (2.4 GHz x 3, 5 GHz-1 x 3, 5 GHz-2 x 3)
Mac OS backup
Enhanced media server (AiPlayer app compatible)
- Image : JPEG
- Audio : MP#, WMA, WAV, PCM, MP4, LPCM, OGG
- Video : ASF, AVI, DivX, MPEG, MPG, TS, VOB, WMV, MKV, MOV
AiCloud personal cloud service
3G/4G data sharing
Printer Server
- Multifunctional printer support (Windows only)
- LPR protocol support
ASUS Download Master
- Supports BT, NZB, HTTP, ED2K
- Supports encryption, DHT, PEX and magnet link
- Upload and download bandwidth control
- Download scheduling
AiDisk file server
- Samba and FTP server with account management
Dual WAN
IPTV support

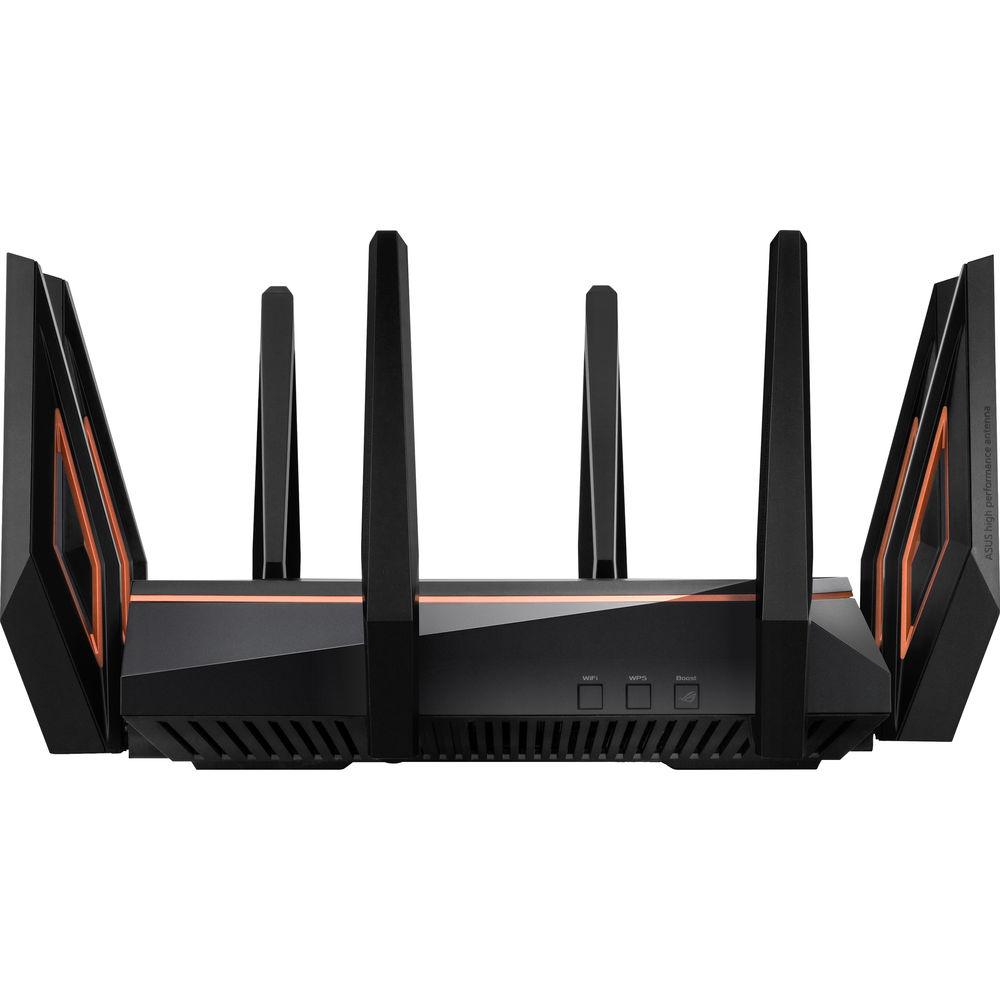

Roaming assist - Buttons
- WPS
Reset
Power
Wireless on/off
Boost Key - LED Indicators
- 1 x Power
2 x Wi-Fi
1 x WAN
1 x LAN
2 x USB
1 x WPS
1 x 2.5 Gb/s port - Operational Modes
- Wireless router mode
Access point mode
Media bridge mode - OS Support
- Windows 10 / 8 / 7
Mac OS X 10.8 / 10.7 / 10.6 UPC: 192876064740 In the Box ASUS ROG GT-AX11000 Tri-Band Wi-Fi Gaming Router AC Adapter RJ45 Network Cable 8 x External Antennas Limited 2-Year Warranty More info from ASUS sqxqaqtaacayca Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS ROG GT-AX11000 Tri-Band Wi-Fi Gaming Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS ROG Rapture GT-AX11000 Specs | | | Wireless Frequency Bands | 2.4 GHz, 5 GHz | | Number of Antennas | 8 | | MU-MIMO Support | 4 x 4 | | WLAN Mode | Wi-Fi 6 (802.11ax) | | Supported Protocols | IPv4
IPv6

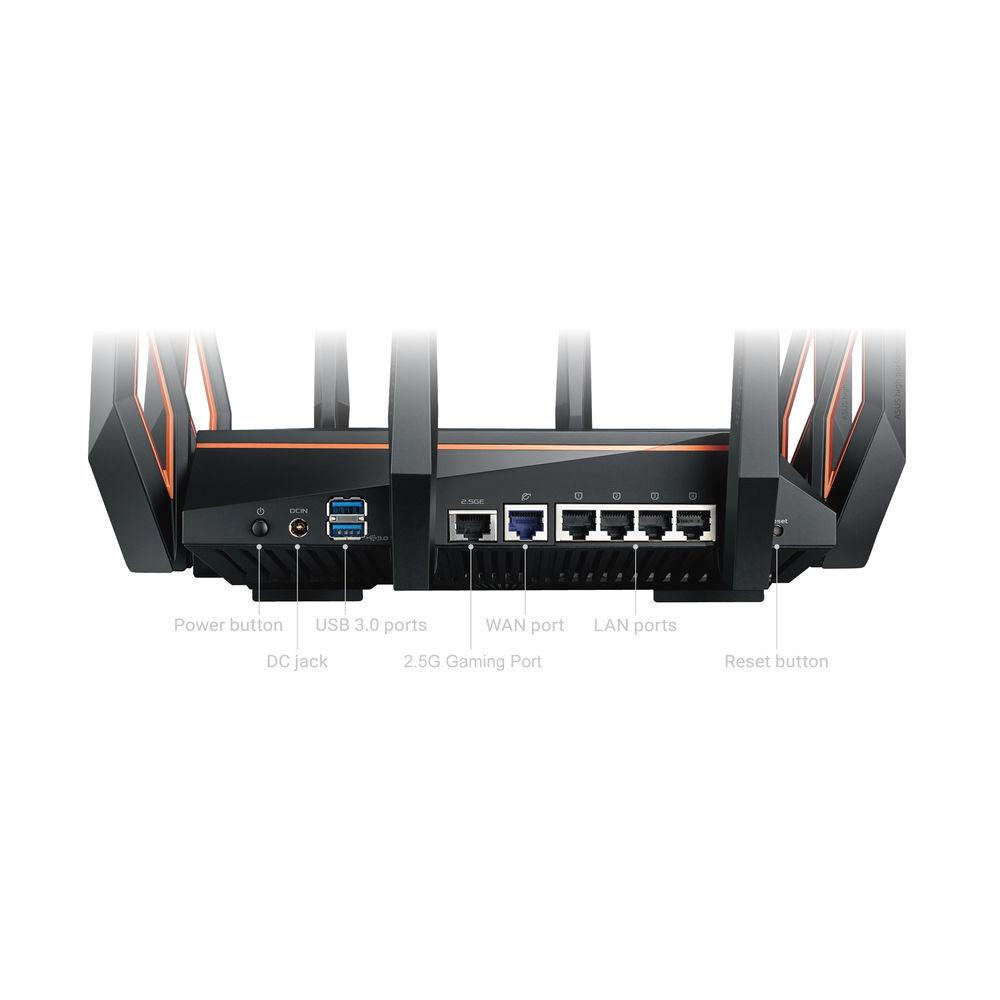

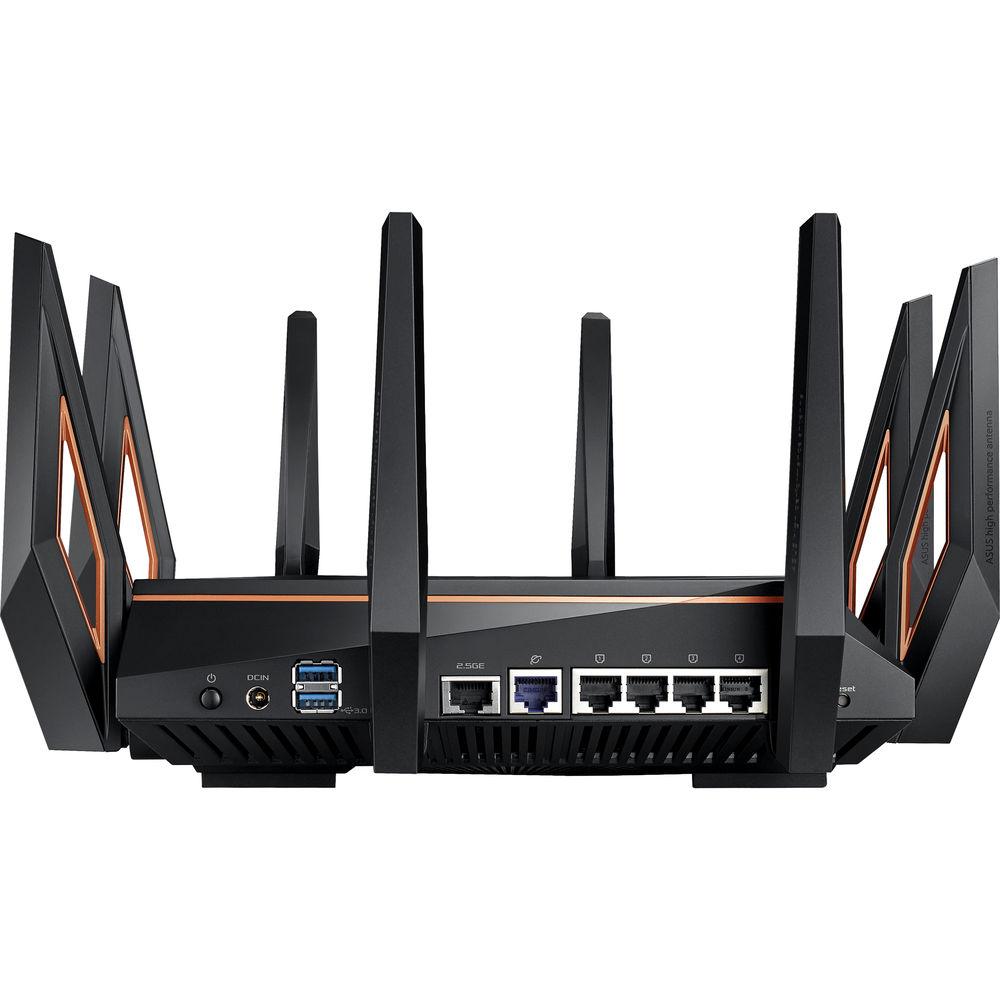

Link Aggregation | | Antenna Placement | External | | | | Ports | 1 x 2.5 Gb/s Ethernet (RJ45)
1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink)
4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
2 x 5 Gb/s USB Type-A | | USB Sharing Support | Yes | | | | Throughput | 2.4 GHz: 1148 Mb/s
5 GHz: 4804 Mb/s
5 GHz: 4804 Mb/s | | | | Guest Network Support | Yes | | Wireless Security | WEP 64, WEP 128, WPA-PSK, WPA2-PSK, WPS | | | | RAM | 1 GB | | Storage Capacity | 256 MB | | Processor | 1.8 GHz Quad-Core | | Supported IEEE Standards | 802.1x, 802.3ad | | | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz | | DC Input Power | 19 VDC at 3.42 A | | | | Dimensions | 9.5 x 9.5 x 2.4" / 241.3 x 241.3 x 60.96 mm | | Weight | 3.8 lb / 1.7 kg | | | | Package Weight | 6.995 lb | | Box Dimensions (LxWxH) | 14.9 x 11.3 x 4.8" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 55 owners. Add your rating and experience with the product.
