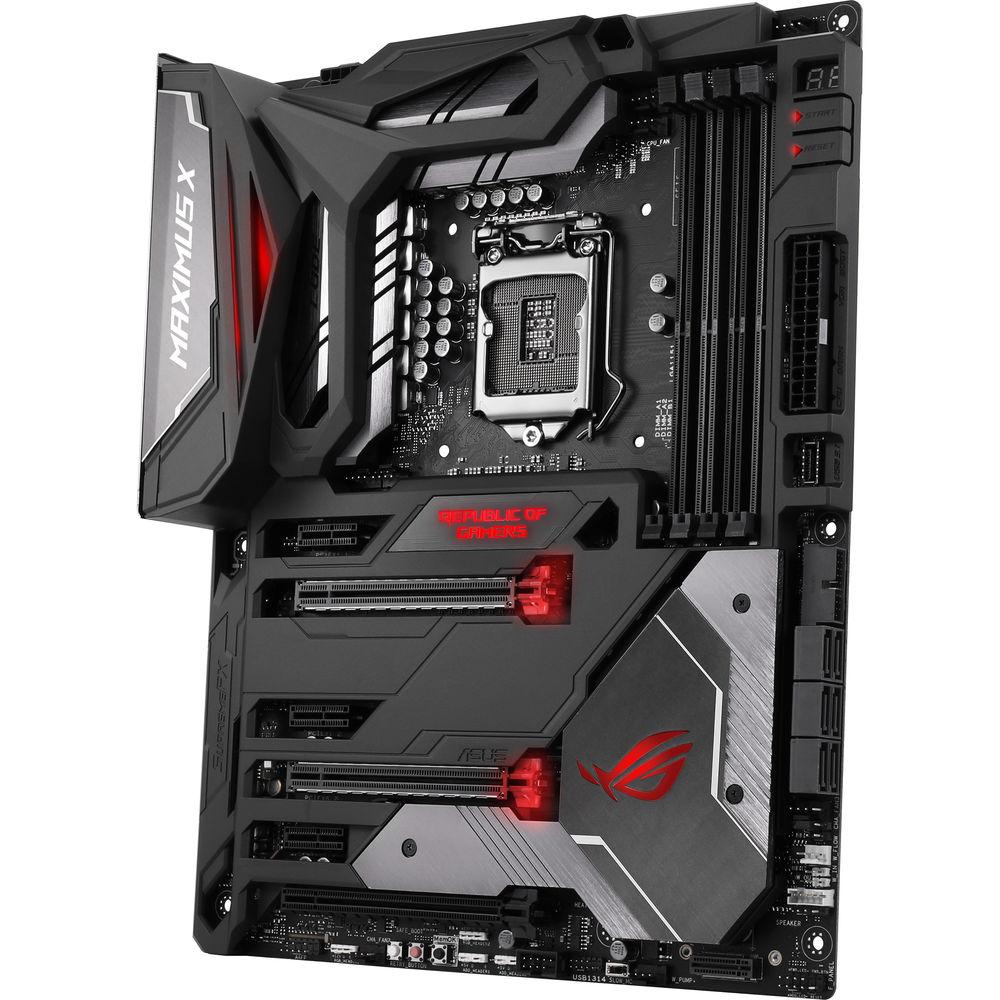

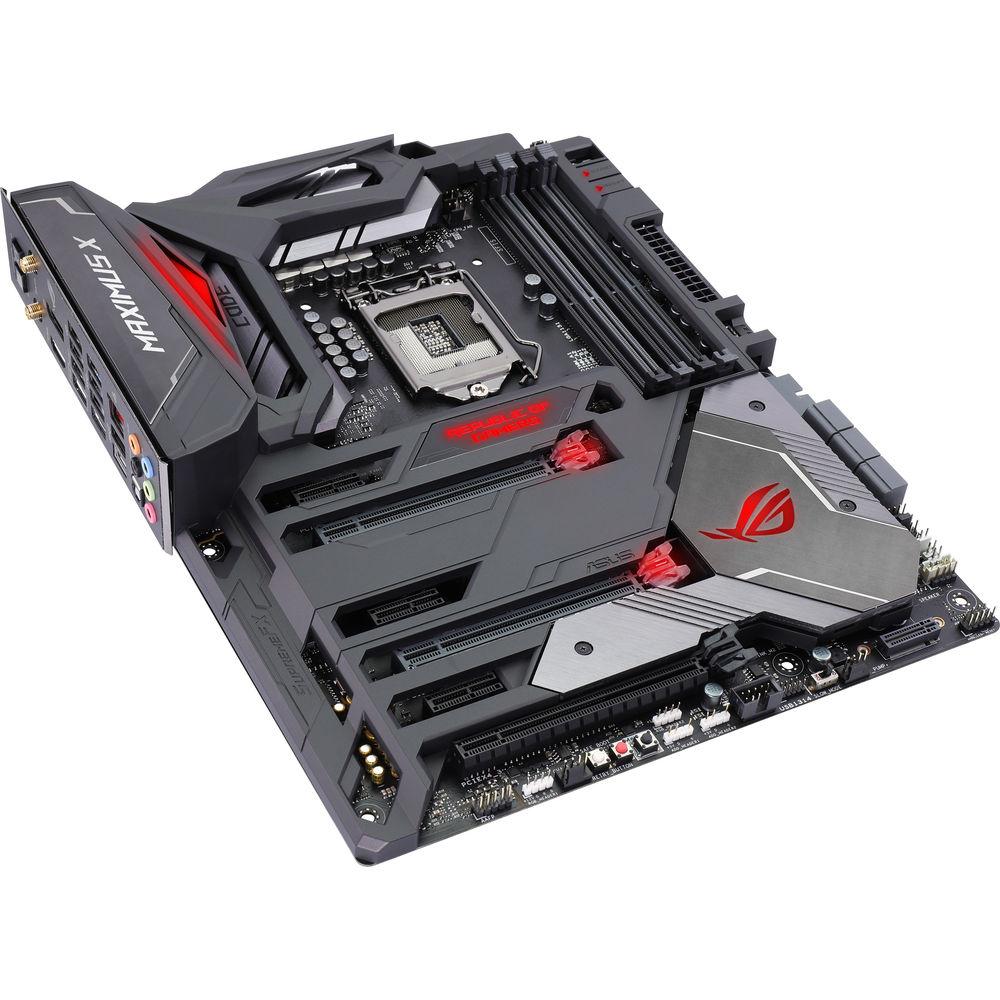

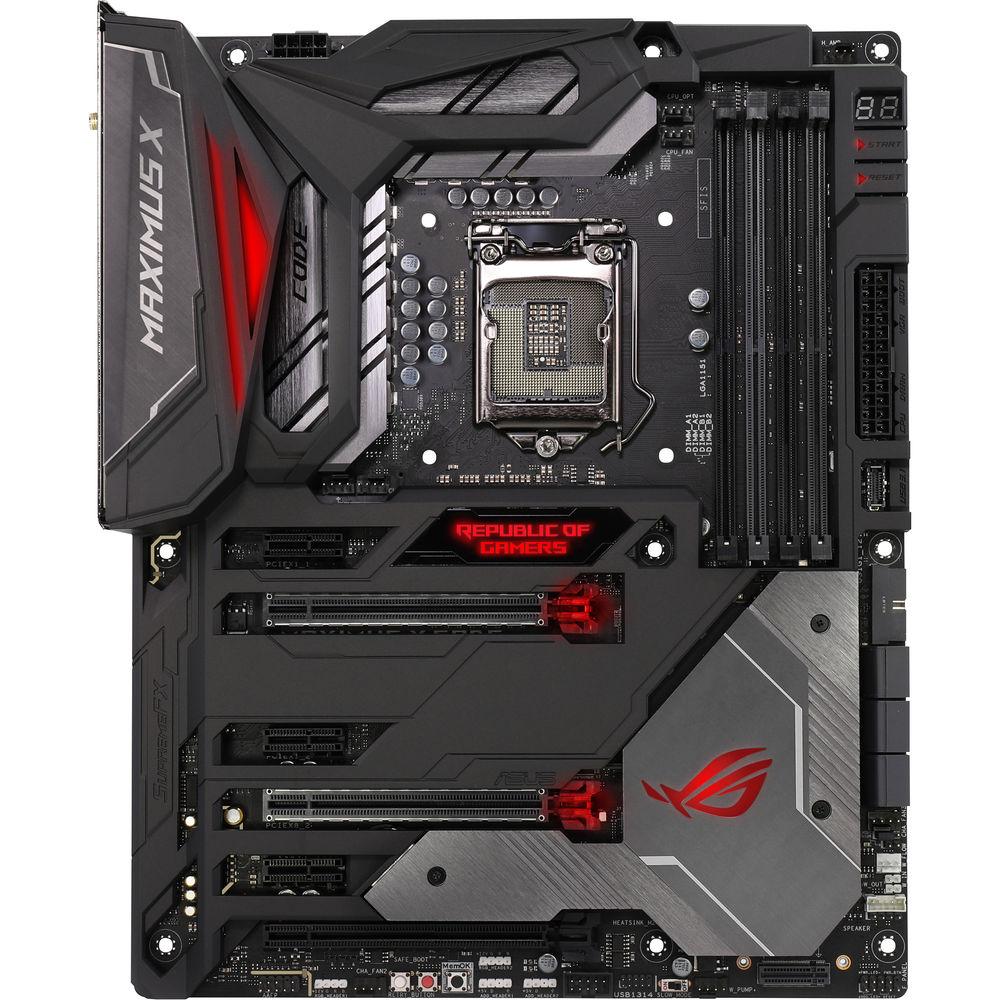

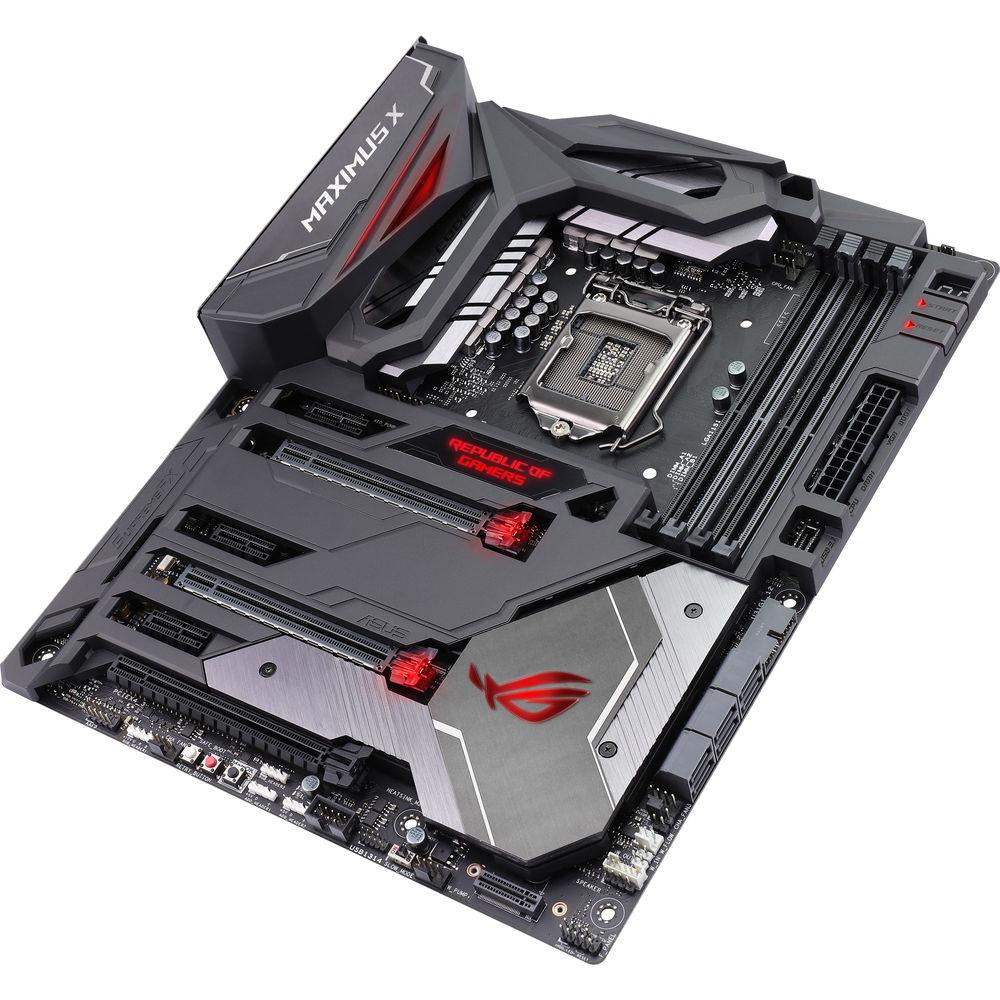

Product description The ROG Maximus X Code LGA 1151 Z370 ATX Motherboard from Asus is built on the Intel Z370 chipset and supports 8th generation Intel Core processors. Four DDR4 RAM slots support a max of 64GB at speeds of up to 4133 MHz when overclocked. For storage, this motherboard has six SATA III ports and two M.2 slots for a variety of drive configurations. After installing an Intel CPU with integrated graphics, it can deliver 4K visuals through its HDMI and DisplayPort outputs. For more graphical processing power, there are three PCIe 3.0 x16 and three PCIe 3.0 x1 slots to handle graphics cards. Connect to the Internet via the Gigabit Ethernet jack or wirelessly with 802.11ac dual-band Wi-Fi, and plug your peripherals into its multiple USB ports, one of which features the reversible USB Type-C interface. Hardware aside, this motherboard is packed with plenty of software additions to help you monitor, manage, and customize your build's performance and aesthetics. - Intel Z370 Chipset
- The Intel Z370 is a single-chipset design that supports 8th-generation Intel Core LGA1151 processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, the Z370 provides a maximum of ten USB 3.0 ports, six SATA 6 Gb/s ports, and 32 Gb/s M.2 and PCIe 3.0 lane speed support, for faster data retrieval. Intel Z370 also supports integrated-graphics.
- LGA1151 Core Processors
- This motherboard supports 8th Generation Intel Core processors in the LGA1151 package. With integrated graphics, memory, and PCI Express controllers, it supports onboard graphics output with dedicated chipsets, dual-channel (4-DIMM) DDR4 memory, and 16 PCI Express 3.0/2.0 lanes.
- Aura Sync
- ASUS Aura Sync offers full RGB control with a variety of functional presets for the built-in RGB LEDs as well as the LED strips connected to onboard RGB headers. It provides Static, Breathing, Strobing, Rainbow, Color Cycle, Comet, Flash & Dash, Wave, Glowing Yo-Yo, Starry Night, Music, and CPU temperature effects. ROG Maximus X Hero features a pair of onboard 5050 RGB headers and an addressable header to support lighting strips, fans, coolers, and cases.
- Additional RGB Lighting
- Located at the bottom of the Maximus X Code are a pair on 5050 RGB headers and a pair of addressable headers that can be used to connect compatible lighting strips, fans, cooler, and more.
- M.2 Support
- The Maximus X Code features a stylish, angular M.2 heatsink to keep your SSD cool and prevent throttling. Moreover, built-in sensors keep track of temperatures for instant monitoring. With two PCIe Gen3 M.2 slots, you'll be able to transfer files at up to 32 Gb/s.
- Cooler by Design
-
- Multiple temperature sensors
- Dedicated water pump header that can supply over 3 A
- 4-pin PWM/DC fan headers
- Fan extension header
- Dedicated integrated over-temperature and over-current protection
- Water in/out temperature monitoring
- Water flow monitoring
- Dedicated PWM/DC header for AIO units
- 802.11ac 2x2 Dual-Band Wi-Fi

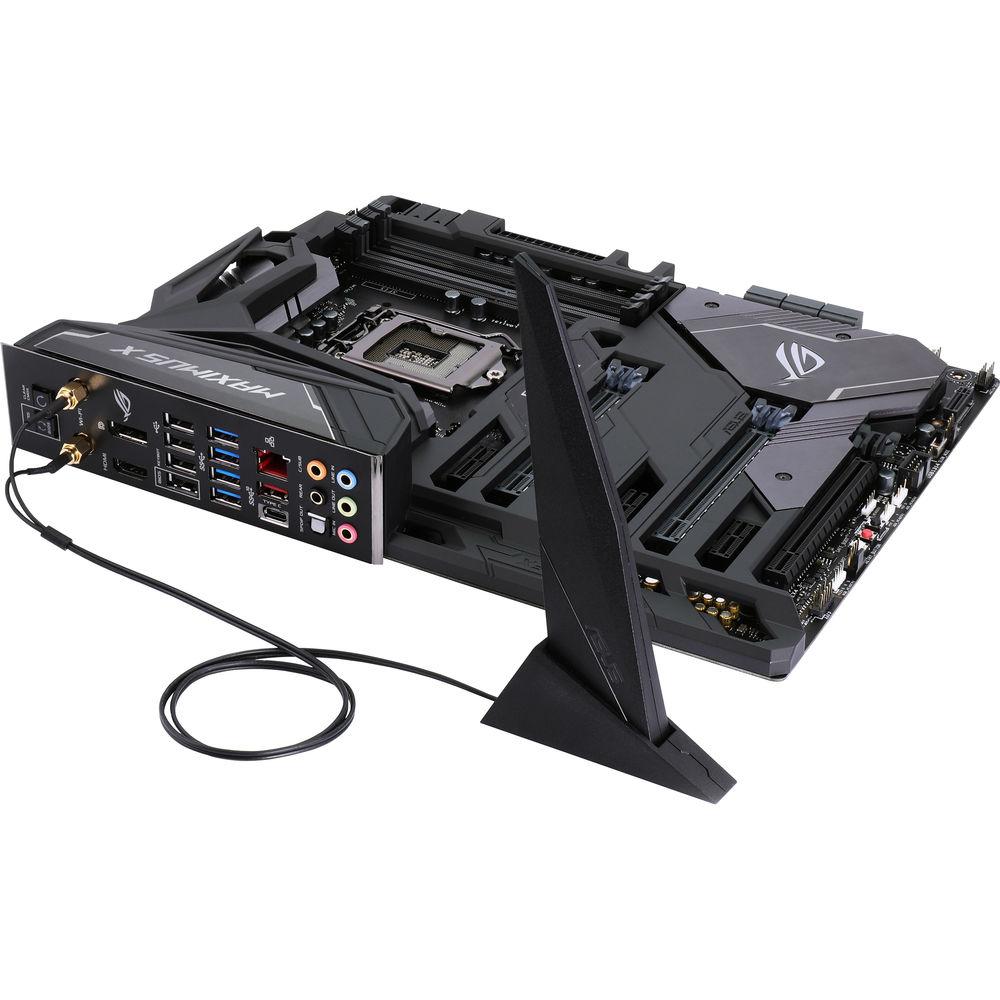

- The ROG Maximus X Code comes with an 802.11ac dual-band Wi-Fi antenna with 2x2 MU-MIMO support for up to 867 Mb/s transfer speeds.
- DDR4 Overclocking
- ASUS OptiMem preserves memory signal integrity by routing memory traces to an optimal PCB layer, and a T-Topology layout ensures time-aligned signals by balancing trace lengths between memory slots. These enhancements offer more overclocking headroom and stability, allowing memory speeds of DDR4-4133 and higher with all slots populated.
- 5-Way Optimization
- With one click, ASUS 5-Way Optimization dynamically optimizes essential aspects of the system, providing overclocking and cooling profiles that are tailored for performance.
- TurboV Processing Unit (TPU) offers the ability to fine-tune voltages, monitor system stats, and adjust overclock parameters for optimal performance
- EPU automatically optimizes power consumption and maximizes savings with Away mode
- Fan Xpert 4 grants comprehensive control over fans and all-in-one (AIO) liquid coolers
- Digi+ delivers real-time control over voltage droop, switching frequency, and power -efficiency settings, allowing you to fine-tune CPU voltage regulation
- Turbo App allows you to define CPU overclocking, apply fan profiles, prioritize network data and optimize audio settings
- SupremeFX
- ROG's SupremeFX audio technology delivers a 113 dB signal-to-noise ratio on the line-in connection. There's also a low-dropout regulator for clean power delivery to the SupremeFX S1220 codec. Additionally, an ESS Sabre Hi-Fi ES9023P digital-to-analog converter and OPA1688 op-amp are on board.
- Software Features
-
- GameFirst IV optimizes network traffic for fast, lag-free online gaming
- Overwolf lets you browse the Internet, email, IM, and stream or record gameplay
- ROG Clone Drive is a cloning solution that quickly and efficiently replicates hard drives or SSDs
- RAMCache II caches an entire storage device so that favorite games and apps launch quickly
- Keybot II lets you record macros directly from the keyboard, quickly switch profiles, enable special functions, and enhance S5 mode
UPC: 889349906330 In the Box ASUS ROG Maximus X Code LGA 1151 Z370 ATX Motherboard ROG Logo Plate Sticker 4 x SATA 6 Gb/s Cables M.2 Screw Package CPU Installation Tool Asus 2T2R Dual-Band Wi-Fi Moving Antennas SLI HB Bridge ROG Big Sticker Q-Connector M.2 Bracket Extension Cable for RGB Strips Extension Cable for Addressable LED ROG Coaster USB 3.0 Header to USB 2.0 Adapter Cable Limited 3-Year Warranty User Manual PDF 10mb More info from ASUS Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS ROG Maximus X Code LGA 1151 Z370 ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS ROG MAXIMUS X CODE Specs | CPU | Intel Socket LGA 1151 for 8th-generation Core processors | | Chipset | Intel Z370 | | Memory | 4 x DIMM, Max. 64 GB, DDR4
4133 (OC), 4000 (OC), 3866 (OC), 3733 (OC), 3600 (OC), 3466 (OC), 3400 (OC), 3333 (OC), 3300 (OC), 3200 (OC), 3000 (OC), 2800 (OC), 2666, 2400, and 2133 MHz non-ECC unbuffered memory
Dual-Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP) | | Graphics | Integrated Graphics Processor
Multi-VGA output support: HDMI/DisplayPort 1.2
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
Maximum shared memory of 1024 MB | | Expansion Slots | 2 x PCIe 3.0/2.0 x16 (x16, x8/x8, or x8/x4+x4)
1 x PCIe 3.0/2.0 x16 (x4 mode, black)
3 x PCIe 3.0/2.0 x1 | | Wireless | Wi-Fi 802.11 a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Supports MU-MIMO 2x2

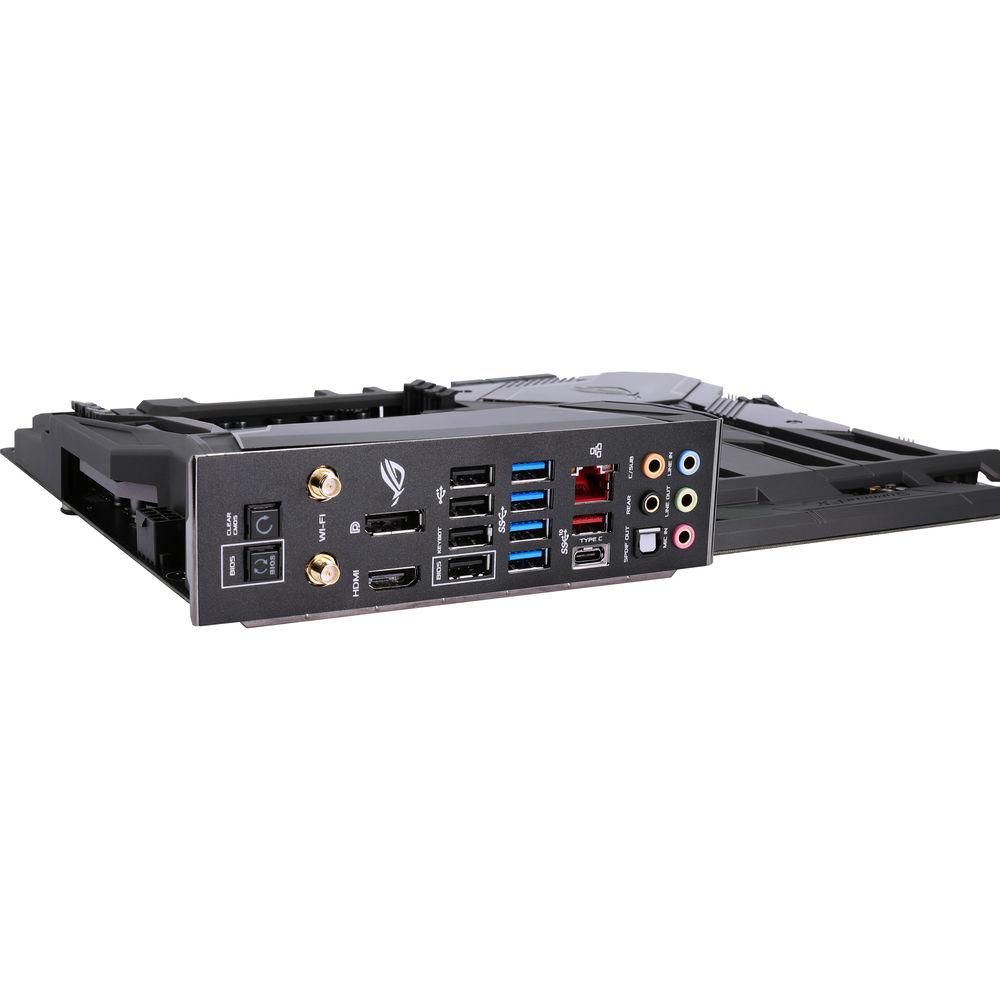

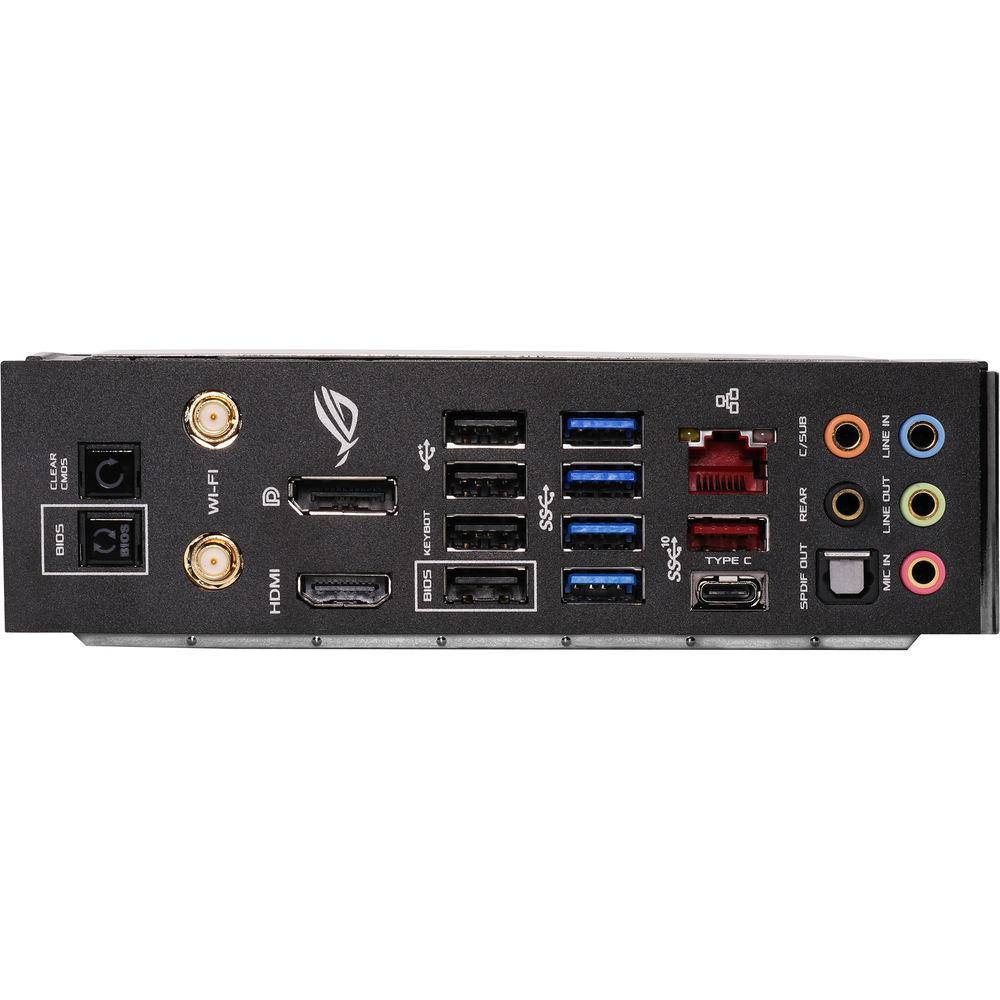

Bluetooth 4.2 | | Audio | SupremeFX 8-channel high definition audio CODEC S1220 | | I/O Ports | 1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port
1 x USB 3.1 Type-A (red)
1 x USB 3.1 Type-C (black)
4 x USB 3.0 (blue)
4 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x Clear CMOS button
1 x USB BIOS Flashback Button
1 x ASUS 2x2 Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.2 module | | Internal Ports | 2 x Aura Addressable Strip Headers
2 x Aura RGB Strip Headers
1 x USB 3.0 connector (supports additional 2 USB 3.0 ports)
1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connectors
1 x CPU Fan connector (1 x 4 -pin)
1 x CPU OPT Fan connector (1 x 4 -pin)
3 x Chassis Fan connector (3 x 4 -pin)
1 x H_AMP fan connector
1 x W_PUMP+ connector (1 x 4 -pin)
1 x AIO_PUMP connector (1 x 4 -pin)
1 x 24-pin EATX Power connector
1 x 8-pin ATX 12V Power connector
1 x Front panel audio connector (AAFP)
1 x System panel (Q-Connector)
1 x MemOK! button
1 x Slow Mode switch
1 x Reset button
1 x LN2 Mode jumper
1 x Safe Boot button
1 x ReTry button
1 x EXT_Fan header
1 x W_IN header
1 x W_OUT header
1 x W_FLOW header
1 x Thermal sensor connector
1 x Start button
1 x USB 3.1 front panel connector | | Form Factor | ATX | | Dimensions | 12 x 9.6" (30.5 x 24.4 cm) | | Weight | Not Specified by Manufacturer | | | | Package Weight | 6.55 lb | | Box Dimensions (LxWxH) | 14.6 x 12.2 x 4.4" |
