User Manual for ASUS ROG SWIFT PG248Q 24" 16:9 144 Hz LCD Gaming Monitor Click to enlarge the picture
Contents of the user manual for the ASUS ROG SWIFT PG248Q 24" 16:9
- Product category: Computer Monitors ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Computer Monitors
 |
User manual for the ASUS ROG SWIFT PG248Q 24" 16:9 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With a 1 ms response time and a 144 Hz standard refresh rate, the ROG SWIFT PG248Q 24" 16:9 144 Hz LCD Gaming Monitor from ASUS is designed to help reduce ghosting and tearing during intense, fast moving game scenes. The 144 Hz refresh rate can be overclocked up to 180 Hz an even more fluid gaming experience, and with support for a variety of NVIDIA technologies including G-Sync and NVIDIA 3D Vision 2 (kit required) you can virtually eliminate all motion blur. For the marathon gaming sessions, ASUS has included both an Ultra-Low Blue Light Filter and Flicker-free technology, built right in to the display, to help alleviate the strain placed on the eyes when viewing the screen for extended periods of time.
With a reduced size bezel, the PG248Q is great for multi-monitor configurations. Additionally, this display comes with both DisplayPort 1.2 and HDMI inputs along with built-in cable management functionality to make it easy to set up the monitor. You can also mount it to the wall using a VESA compatible mount for an even more comfortable viewing experience. Once configured, viewers benefit from a Full HD 1920 x 1080 resolution along with a 1,000:1 contrast ratio, 350 cd/m² brightness rating, and 170° horizontal and 160° vertical viewing angles. - Enhanced Viewing Experience
- The ROG Swift PG248Q is a competition-grade gaming monitor that gives you enhanced visuals and smooth gameplay. It features a 24-inch Full HD (1920 x 1080) panel with a 16:9 aspect ratio. It's NVIDIA G-SYNC-ready too. The ROG Swift PG248Q boasts an overclockable 180 Hz refresh rate and 1 ms gray-to-gray (GTG) response time to eliminate screen tearing and choppy frame rates.
- Overclockable 144 Hz Refresh Rate
- With an overclockable 180 Hz (native 144 Hz) refresh rate, fast-moving visuals pose no problem for ROG Swift PG248Q. There's no frustrating lag or motion blur, so you get the upper hand in first-person shooters, racing, real-time strategy and sports titles. You'll enjoy smooth gameplay even at the highest visual settings, allowing you to react instantly to what's happening onscreen so you'll get that first strike in.
- 1 ms Response Time
- The ROG Swift PG248Q offers a fast a 1 ms response time to eliminate smearing and motion blur.
- NVIDIA G-Sync Technology
- The ROG Swift PG248Q incorporates NVIDIA G-SYNC display technology to deliver a smooth, fast gaming experience. G-SYNC synchronizes the monitor's refresh rate to the GPU in your GeForce GTX-powered PC, eliminating screen tearing and minimizing display stutter and input lag. The ROG Swift PG248Q lets you enjoy smooth and lag-free gameplay when playing a variety of fast-paced first-person shooters, sports, and action-adventure titles.
- ASUS GamePlus Hotkey
- The ASUS GamePlus hotkey gives you in-game enhancements so you get more out of your game.
- ASUS GameVisual Technology
- ASUS GameVisual Technology has six pre-set display modes to optimize visuals for different types of content. This feature can be easily accessed through a hotkey or the On Screen Display (OSD) settings menu.
- NVIDIA 3D Vision Compatible
- The ROG Swift PG248Q is compatible with the NVIDIA 3D Vision 2 kit to open up a world of 3D gaming. All you need is a NVIDIA GeForce graphics card and 3D glasses for a more immersive gaming and movie-watching experience. And with the latest NVIDIA 3D LightBoost Technology, you'll enjoy brighter 3D visuals, without an increase in energy consumption.
- Great for Multi-Display Setups
- The ROG Swift PG248Q's slim profile and super-narrow bezel makes it perfect for almost seamless multi-display setups so your eyes move swiftly from one monitor to another. It can also be VESA wall-mounted - an even easier way to have a multi-display gaming setup.
- Flexible Inputs

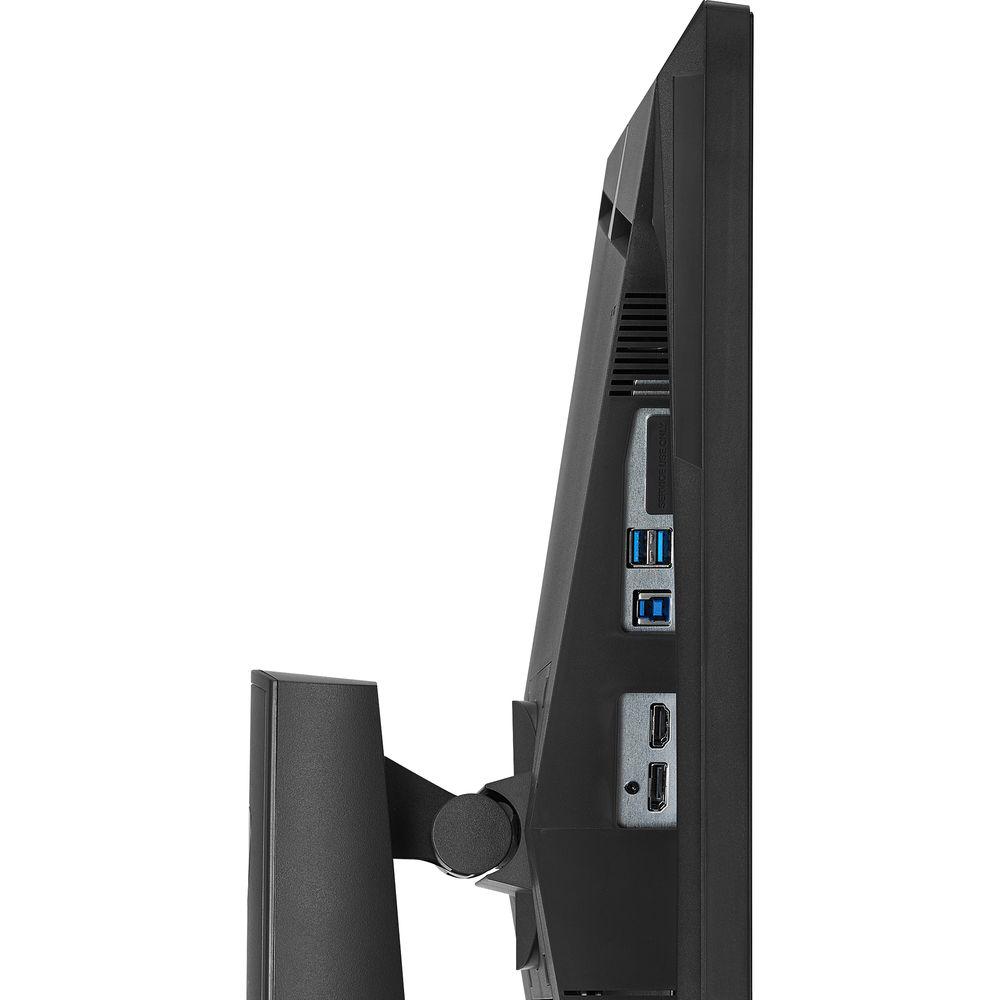

- The ROG Swift PG248Q gives you flexible connectivity options for Full HD (1920 x 1080) input via its DisplayPort 1.2 and HDMI ports. It also has two USB 3.0 ports for your mouse and keyboard, and can charge your mobile devices while gaming.
- Built-In Cable Management Design

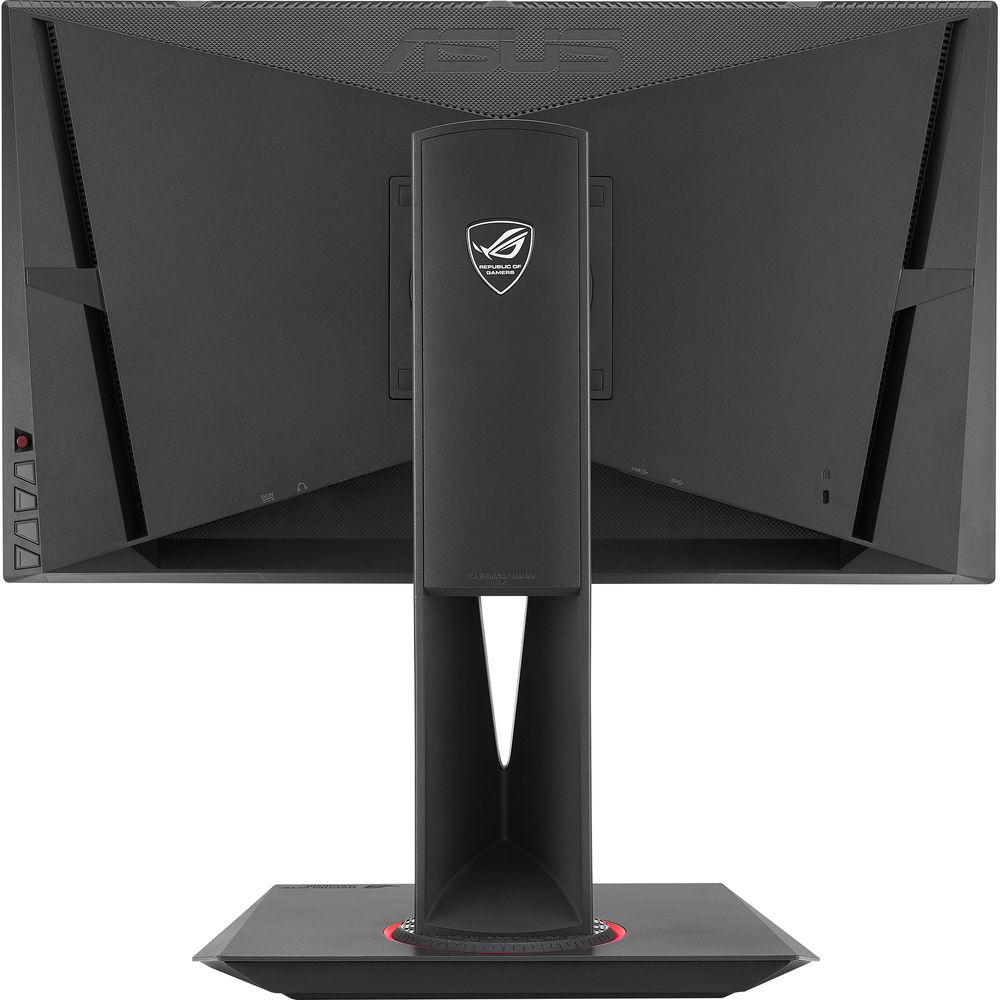

- A cable management design feature found on the back of the monitor allows you to organize and hide your cables to keep your gaming area tidy.
- ASUS Ultra Low Blue Light Filter
- The ROG Swift PG248Q also comes with the ASUS Ultra Low Blue Light filters to protect you from harmful blue light. You can easily access and select four different filter settings onscreen through a handy five-way joystick, which makes it easy to jump through the On-screen display (OSD) menus to fulfill your different scenarios.
The ROG Swift PG248Q gaming monitor has undergone stringent performance tests and is certified by TÜV Rheinland laboratories, a global provider of technical, safety, and certification services, to be flicker-free and to emit low blue light levels. - Built-in Flicker Free Technology
- Flicker-Free technology reduces flicker to give you a comfortable gaming experience. This minimizes instances of eyestrain and other damaging effects when you're embroiled in long, drawn-out gaming sessions.
- Keeping the ROG Swift PG248Q Monitor Cool
- The ROG Swift PG248Q employs a custom heatsink that's double the size to make sure the monitor stays cool during marathon gaming sessions. Cooling is also aided by a Smart Air Venting Design that uses convective currents to generate airflow. This passive setup works entirely without fans, making it completely silent and maintenance-free.
- Illuminated Monitor Base
- The ROG Swift PG248Q Gaming Monitor comes with a mysterious and intricately-patterned base that can illuminate with an LED Light-in-Motion feature.
UPC: 889349421147 In the Box ASUS ROG SWIFT PG248Q 24" 16:9 144 Hz LCD Gaming Monitor Power Cord Power Adapter DisplayPort Cable USB 3.0 Cable HDMI Cable Support CD Limited 3-Year Warranty User Manual PDF 4.9mbzuauqtbwfcsaxbrfytsreeycfbsf More info from ASUS Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS ROG SWIFT PG248Q 24" 16:9 144 Hz LCD Gaming Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS PG248Q Specs | Panel | Panel Size
24" / 61 cm
Aspect Ratio
16:9
Panel Type
TN | | Resolution | 1920 x 1080 @ 144 Hz (overclock to 180 Hz) | | Display Viewing Area | 20.9 x 11.8" / 531.36 x 298.89 mm | | Display Surface | Non-glare | | Pixel Pitch | 0.2768 mm | | Brightness | 350 cd/m² | | Contrast Ratio | 1,000:1 | | Viewing Angles (H/V) | 170°/160° | | Response Time | 1 ms (GtG) | | Display Colors | 16.7 million | | Video Specifications | Trace Free Technology
Yes
Color Temperature Selection
4 Modes
Gamma Adjustment
Yes (Support Gamma 1.8/2.2/2.5)
GamePlus (modes)
Yes (Crosshair/Timer/FPS Counter/Display Alignment)
Low Blue Light
Yes
HDCP Support
Yes
GameVisual
6 Modes (Scenery/Racing/Cinema/RTS/RPG/FPS/sRGB Modes) | | I/O Ports | Signal Input
HDMI, DisplayPort
USB Port
2 x USB 3.0 ports | | Digital Signal Frequency | HDMI: 30-90 kHz (H) / 24-60 Hz (V)
DisplayPort (Normal): 67-166 kHz(H) / 30-144 Hz(V)
DisplayPort (Overclock): 67-212 kHz(H) / 30-180 Hz(V) | | Power | Power ON Mode
<65 w (measuring a screen brightness of 200 cd> Power Saving/Off Mode
<0.5 W
Voltage
100-240 V, 50/60 Hz | | Mechanical Design | Tilt
-5-20°
Swivel
±60°

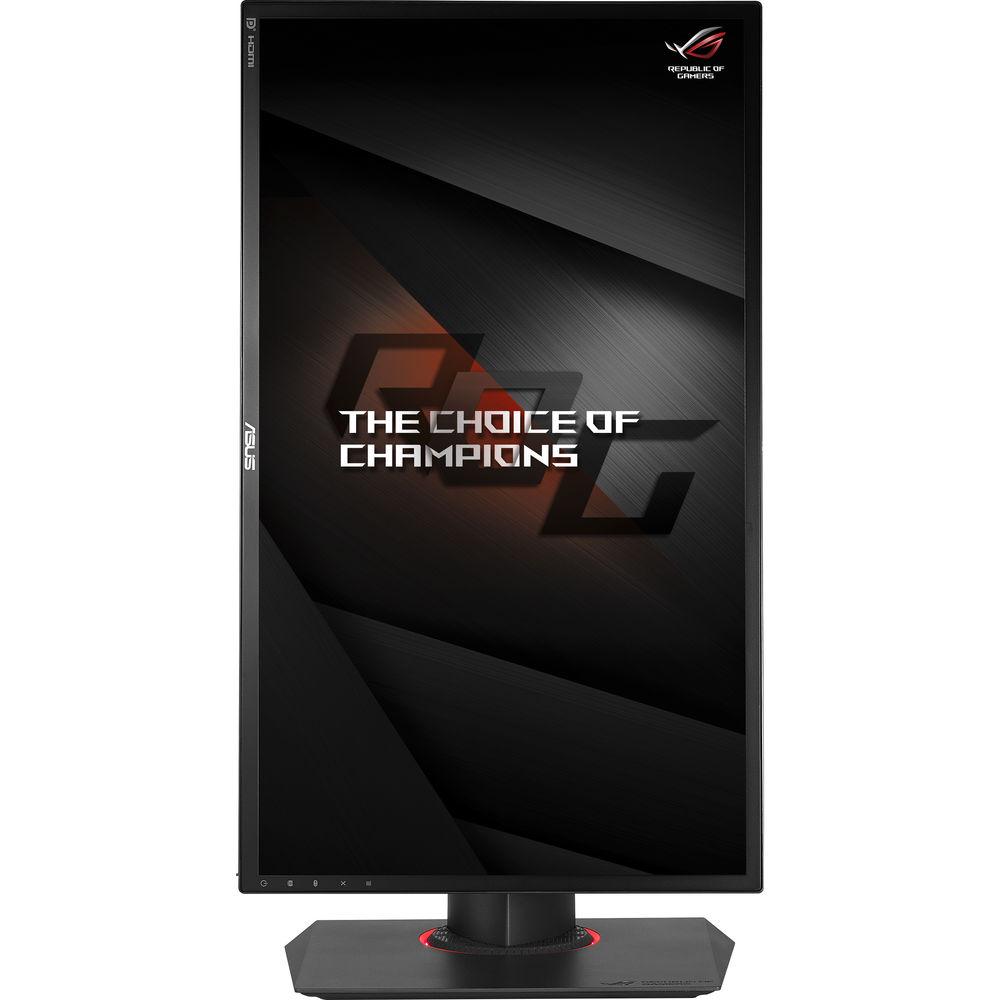

Pivot
±90°
Height Adjustment
0-4.7" / 0-120 mm
VESA Wall Mounting
100 x 100 mm
Super Narrow Bezel Design
Yes | | Kensington Lock Support | Yes | | Compliance and Standards | BSMI, CB, CCC, CE, CEL level 1, CU, ErP, FCC, J-MOSS, KCC, PSE, RoHS, UL/cUL, VCCI, WEEE, WHQL (Windows 10, 8.1, 7), RCM, TUV Flicker-free, eStandby, TUV Low Blue Light | | Dimensions | With Stand
22.1 x 16.5-21.2 x 9.4" / 561.6 x 418.2-538.2 x 237.9 mm
Without Stand
22.1 x 13 x 2.8" / 561.6 x 329.7 x 70 mm | | Weight | 14.6 lb / 6.6 kg | | | | Package Weight | 20.75 lb | | Box Dimensions (LxWxH) | 29.0 x 16.0 x 11.0" |
