User Manual for ASUS ROG XG Station 2 Thunderbolt 3 External PCIe Graphics Card Box and Docking Station Click to enlarge the picture
Contents of the user manual for the ASUS ROG XG Station 2 Thunderbolt
- Product category: Expansion Chassis ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Expansion Chassis
 |
User manual for the ASUS ROG XG Station 2 Thunderbolt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|

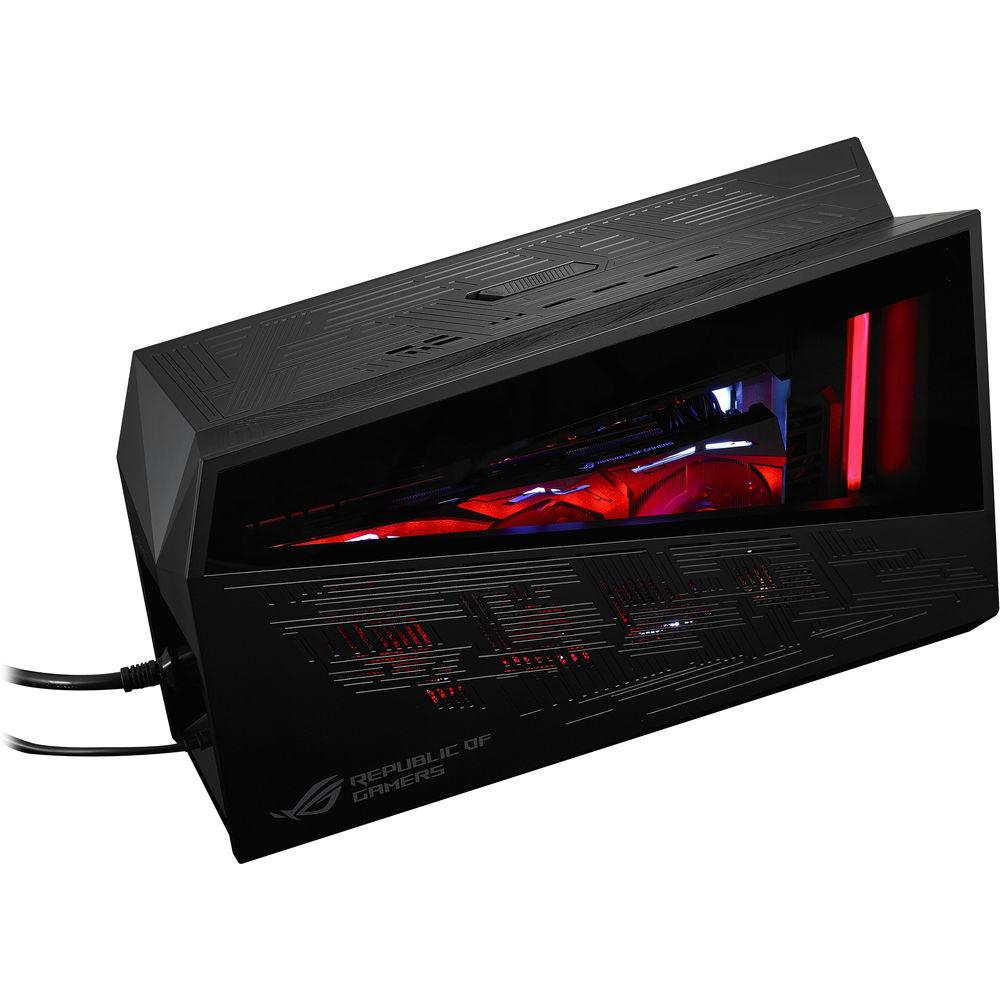

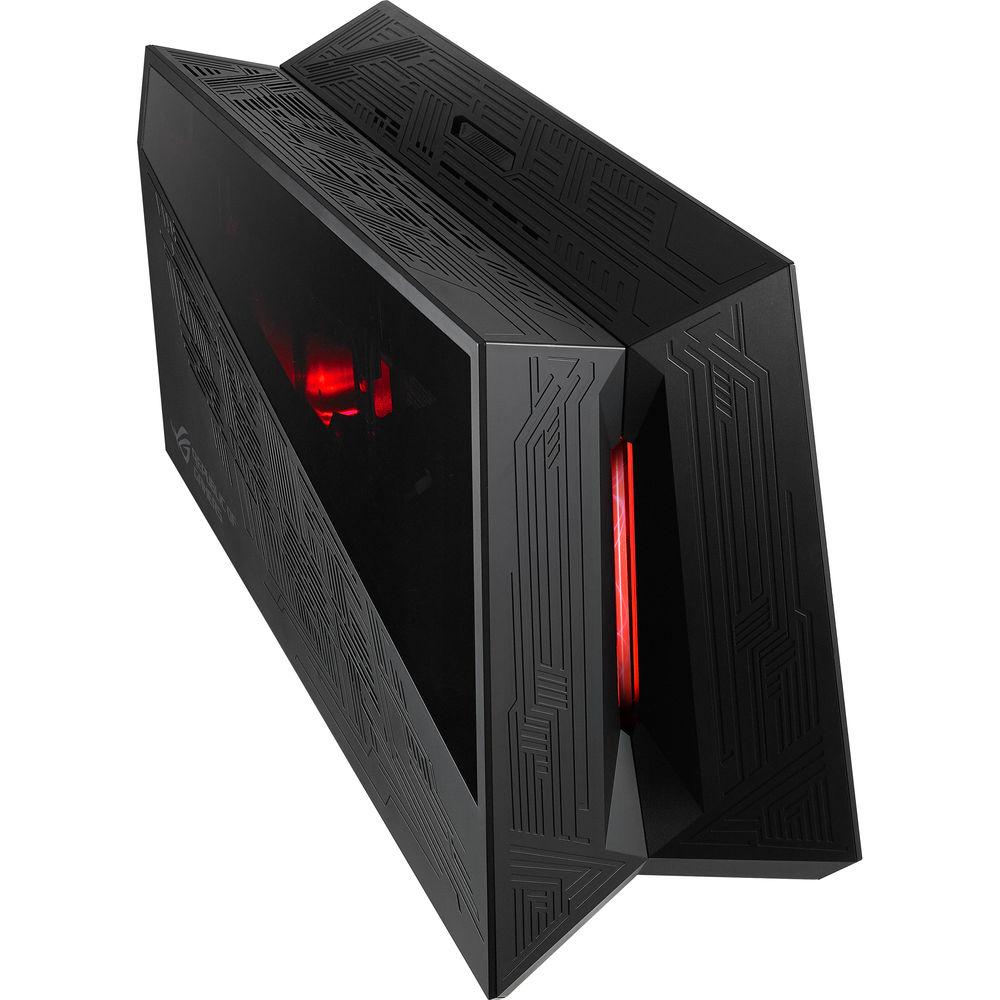

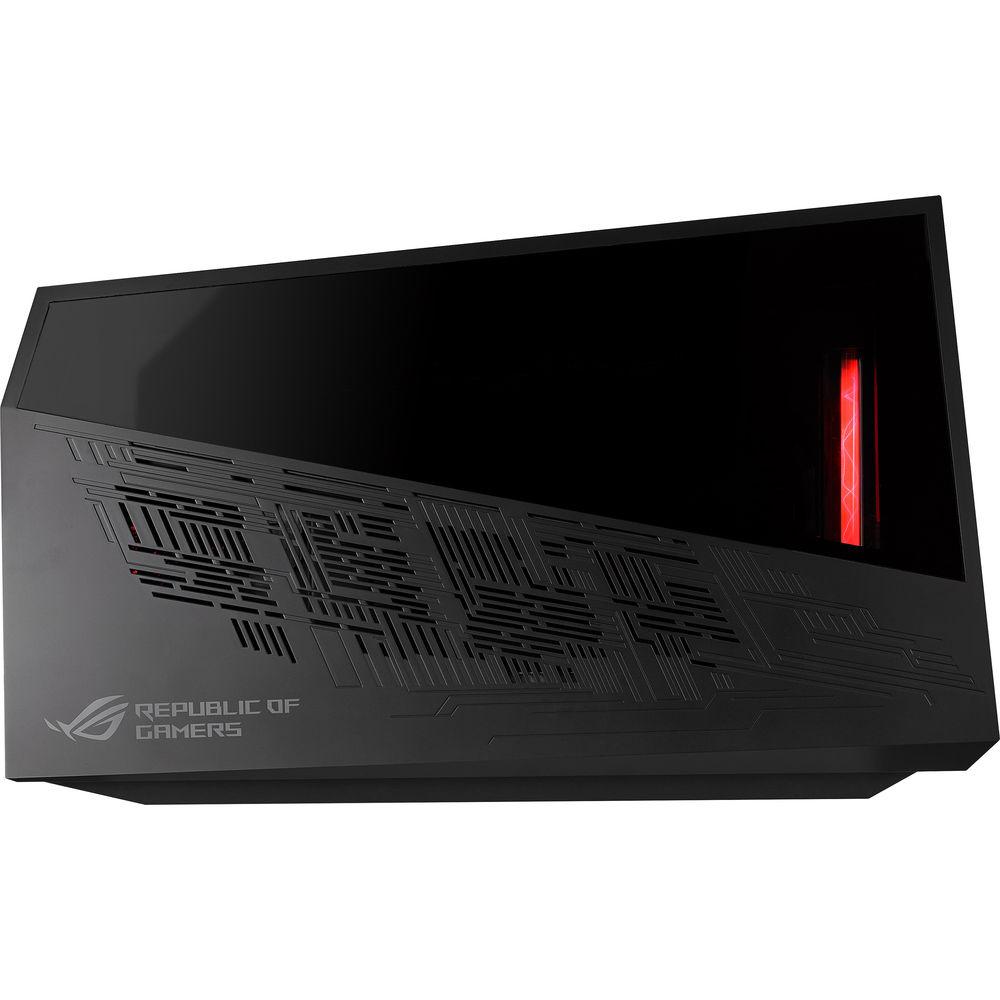

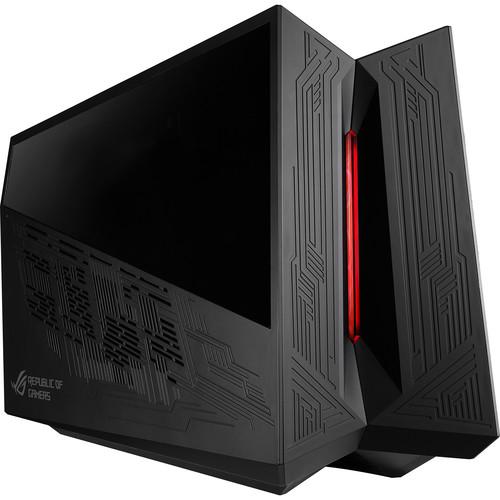

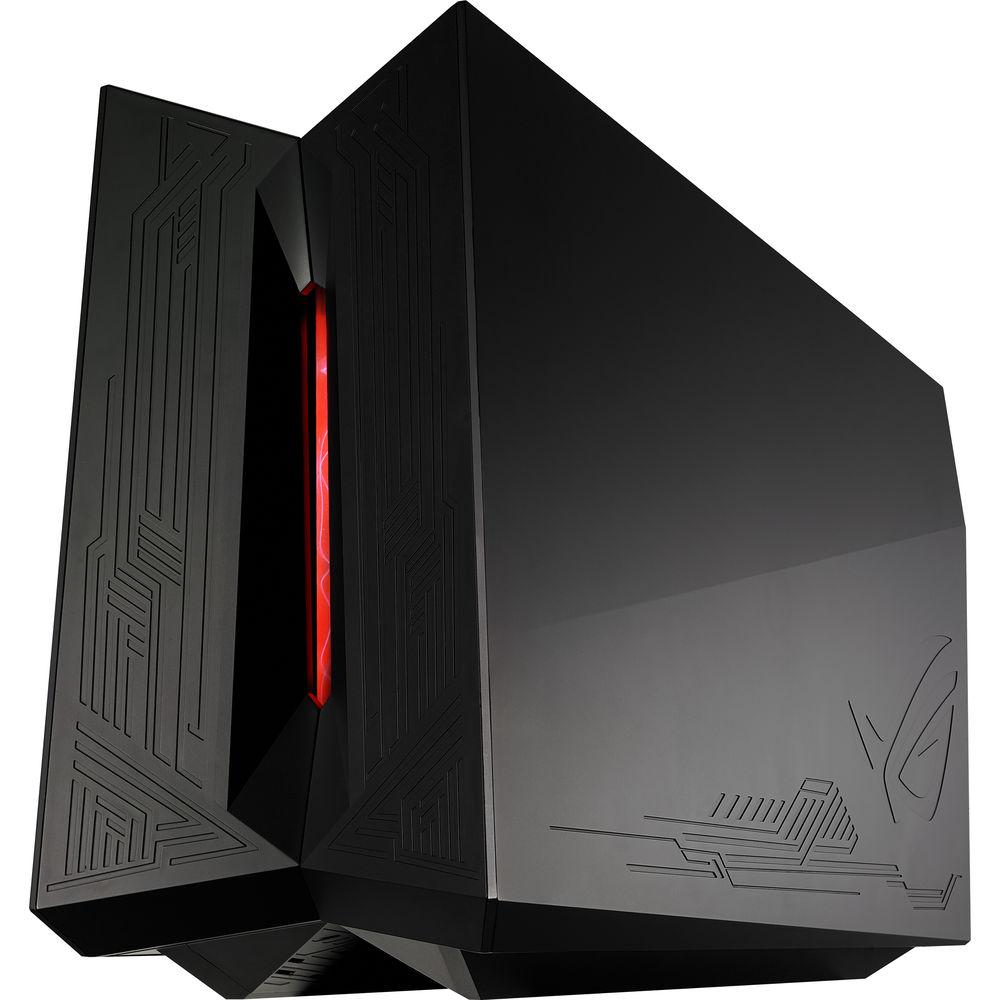

Product description The ROG XG Station 2 from ASUS is an external PCIe graphics card dock that turns a Thunderbolt 3-enabled notebook or AIO Windows computer into a gaming or video editing system. The ROG XG Station 2 is compatible with full-length, double-width graphics cards and connects to your system via a Thunderbolt 3 connection. To support power-hungry equipment, it comes outfitted with a 600W power supply that provides up to 500W of power for your graphics card and up to 100W for recharging a notebook's internal battery.
Other notable features include four USB 3.0 ports for printers, external storage drives, and other useful USB peripherals, as well as one Gigabit Ethernet port to reliably game online without lag. Moreover, there's a built-in RGB lightning system that syncs to supported gear. ROG XG Station 2 Features - VR Gaming and Portability
- With an optional VR-ready graphics card installed, the ROG XG Station 2 provides your notebook with a new level of gaming graphics without sacrificing the notebook's portability feature.
- Thunderbolt 3 Connectivity
- Thunderbolt 3 transfers data at rates of up to 40 Gb/s, allowing the system to provide desktop-grade performance from a dedicated GPU while gaming and editing 4K videos. It also supplies power to your devices.
- NVIDIA- and AMD-Compatible

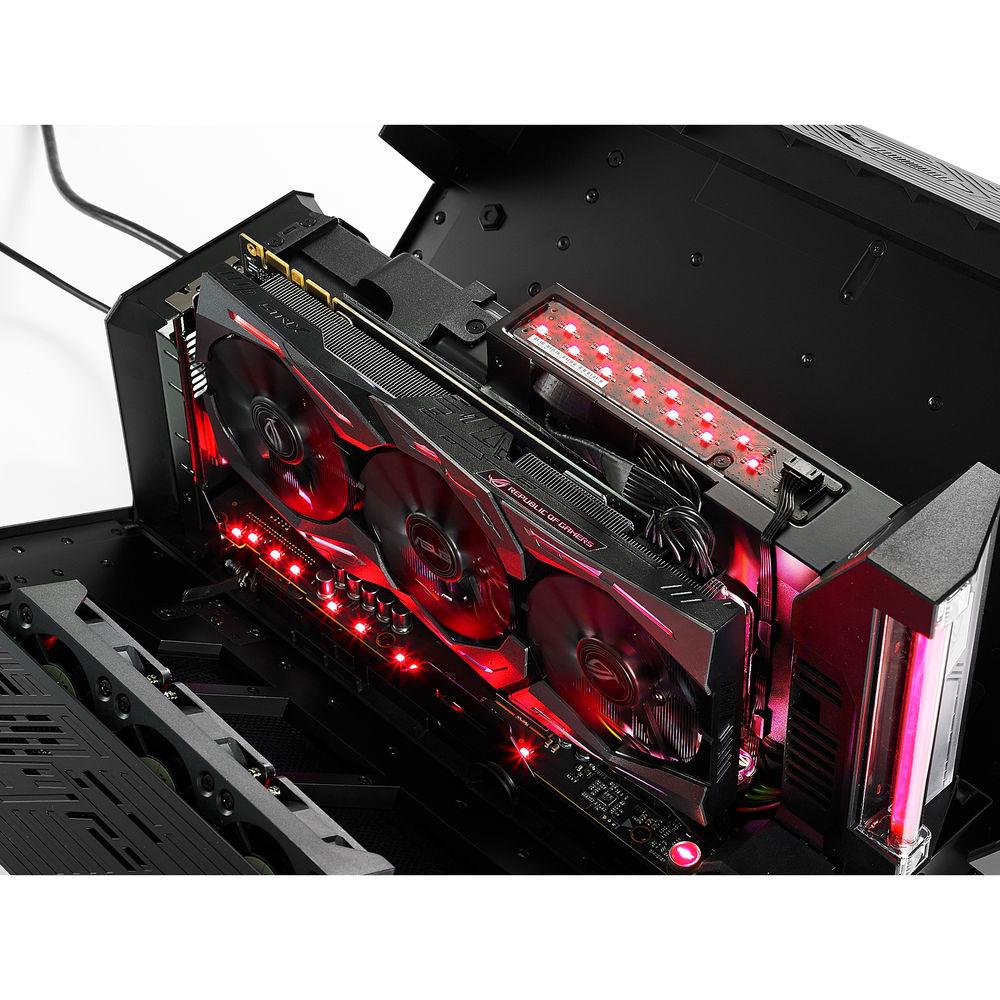

- The ROG XG Station 2 supports full-length desktop graphics cards with coolers up to 2.5 slots wide, so you can choose from a broad range of graphics cards from AMD or NVIDIA to suit your needs.
- Plug and Play
- The ROG XG Station 2 can be connected or disconnected from your notebook or 2-in-1 PC without restarting. It provides four USB 3.0 ports and one Gigabit Ethernet port for simultaneous keyboard, mouse, VR headset, monitor, and Internet connectivity. When connected via a Thunderbolt 3 cable and a USB Type-B cable, the ROG XG Station 2 uses the additional USB signal channel to deliver up to 2x faster random read speeds and 1.8x faster write speeds than with a single Thunderbolt 3 connection alone.
- 600W 80-PLUS Gold Power Supply
- The internal power supply provides up to 500W of power to a high-performance graphics card and up to 100W to your notebook or 2-in-1 PC via Thunderbolt 3, eliminating the need for a separate power cable to help keep your workspace tidy. With 80 Plus Gold certification, the power supply is up to 90% energy efficient, reducing electricity use and operating costs.
- ROG XG Station 2 Design

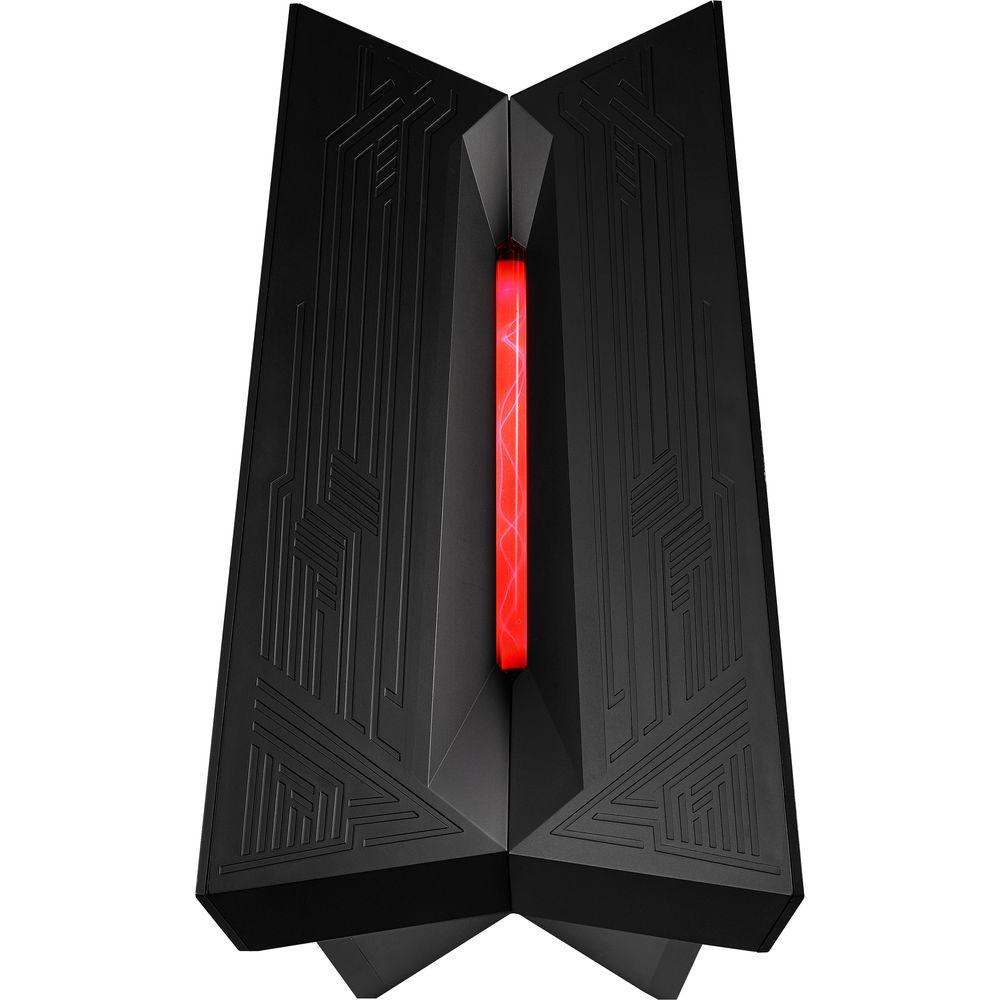

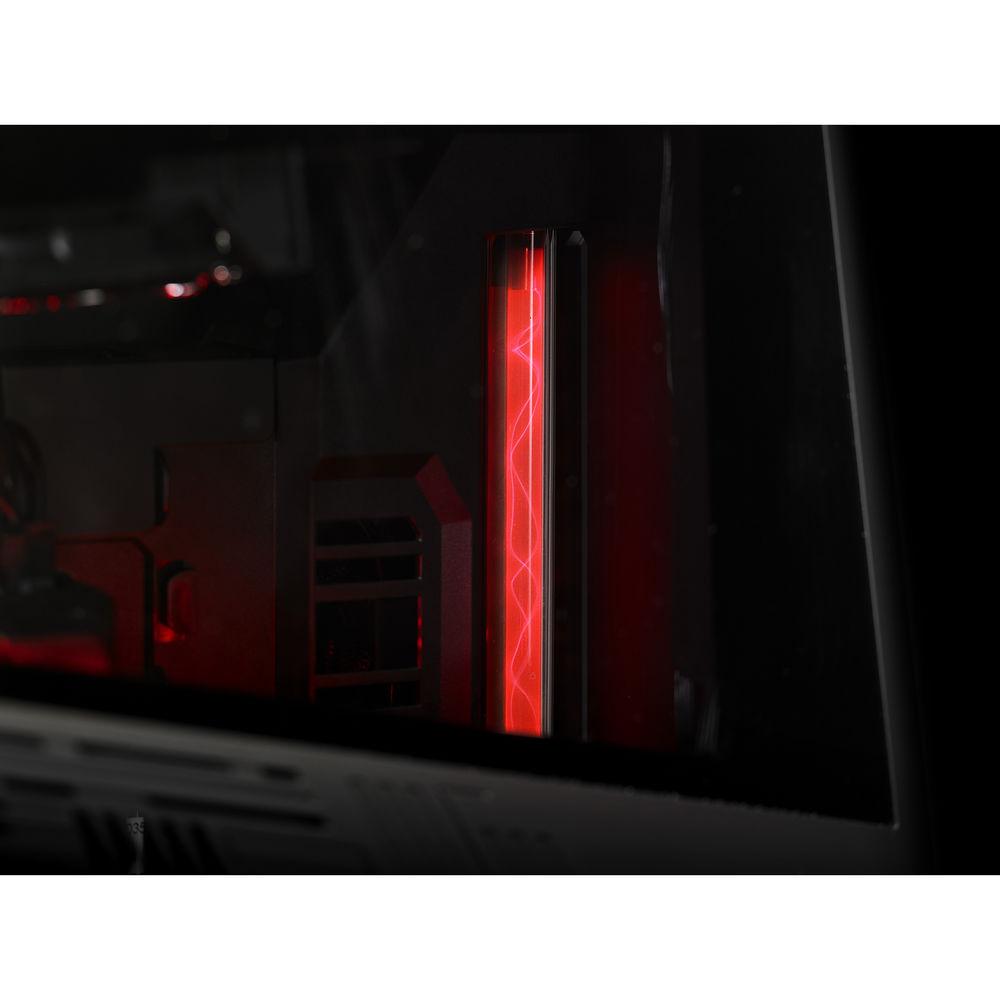

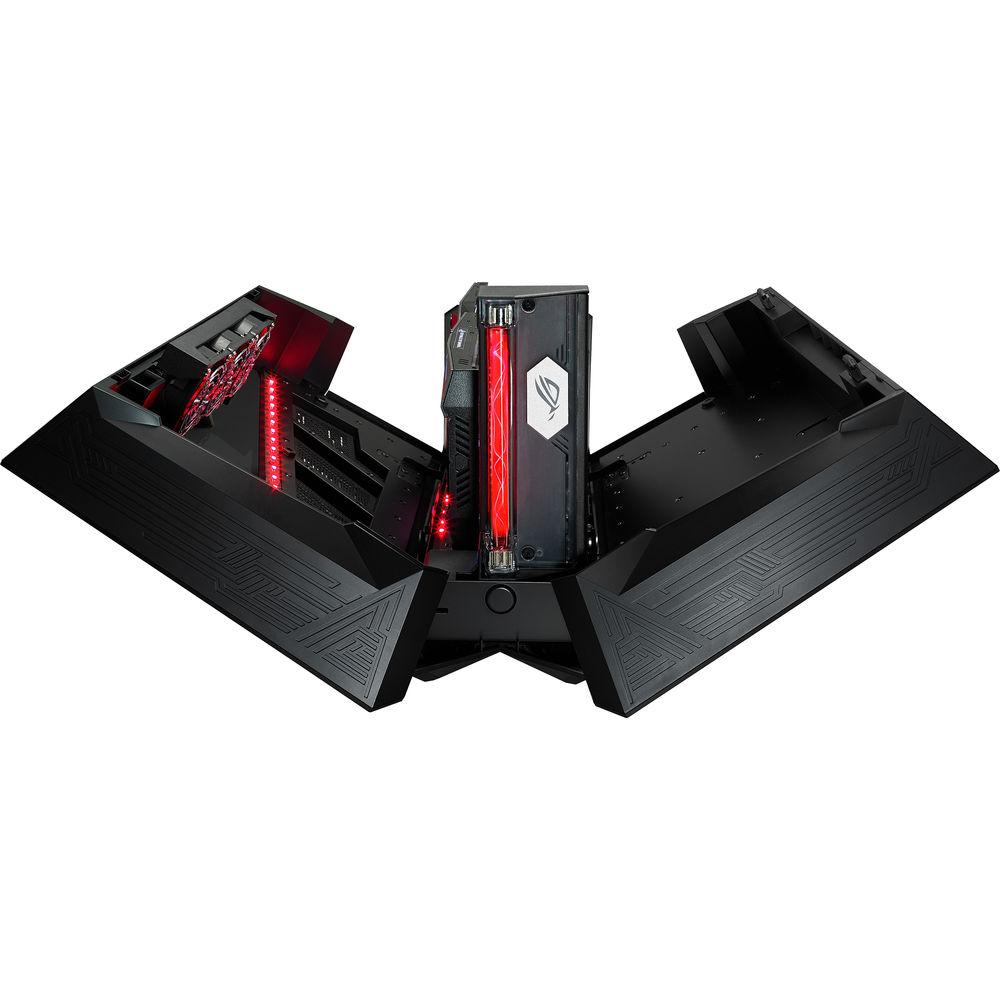

- When paired with an Aura-enabled ROG Strix gaming graphics card, ASUS Aura Sync technology synchronizes the internal RGB lighting to the GPU. Moreover, there's a plasma tube, which crackles with electricity, on the front of ROG XG Station 2.
Compatibility - ROG Gaming Series Notebooks
-
- ROG GL702VM
- ROG GL502VM
- ROG GL702VS
- ROG GL702VM (7th-Gen Intel Core)
- ROG GL502VM (7th-Gen Intel Core)
- ROG G701VI
- ROG G701VI (7th-Gen Intel Core)
- ROG G752VS
- ROG G752VS (7th-Gen Intel Core)
- ROG G752VL
- ROG G752VM
- ROG G752VT
- ROG G752VY
- ROG G501VW
- ROG GX800VH (7th-Gen Intel Core)
- ZenBook Series
-
- UX490UA
- UX501VW
- UX550VD
- UX550VE
- Intel NUC Kits
-
- NUC6i7KYK
- NUC7i5BNK
- NUC7i5BNH
- NUC7i7BNH
- NUC7i5BNHX1
- NUC7i7BNHX1
UPC: 889349598764 In the Box ASUS ROG XG Station 2 Thunderbolt 3 External PCIe Graphics Card Box and Docking Station USB 3.0 Type-B Cable Thunderbolt 3 Cable Power Cord Limited 1-Year Warranty More info from ASUS syczbxffsrxbxv Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS ROG XG Station 2 Thunderbolt 3 External PCIe Graphics Card Box and Docking Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

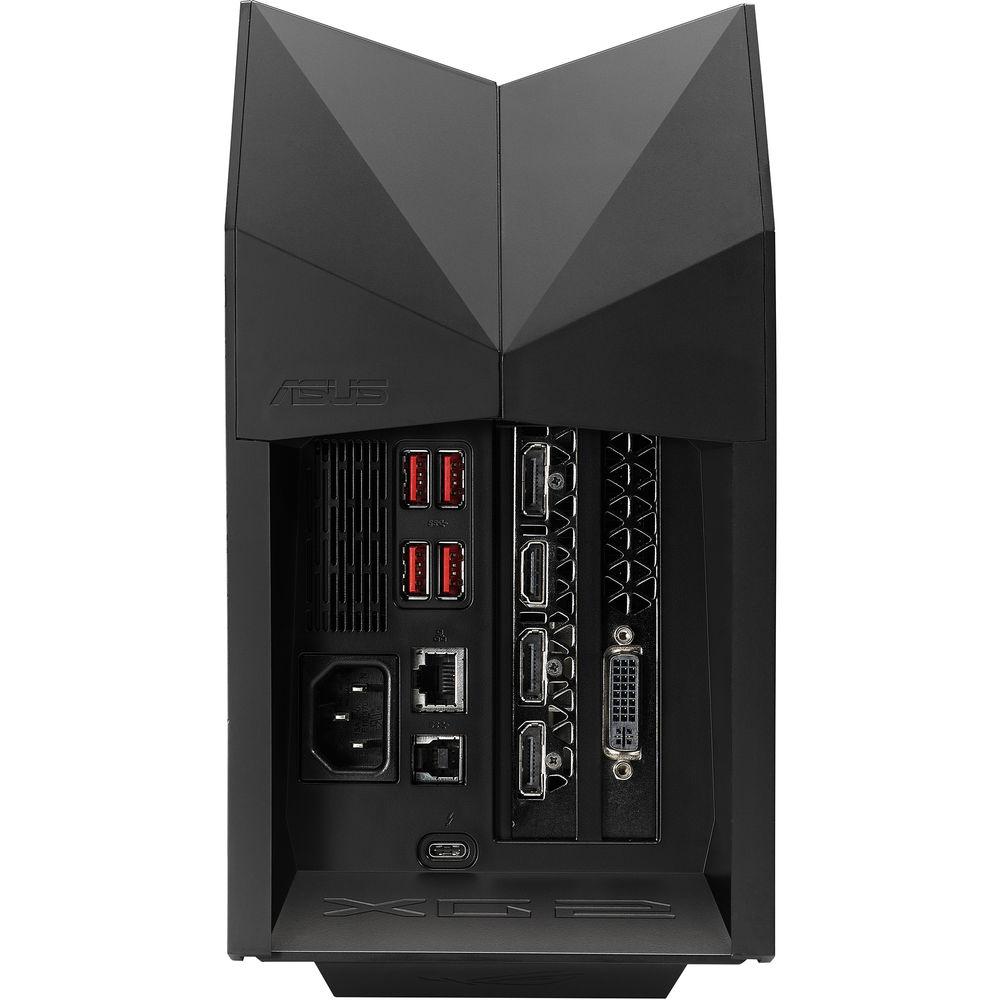

Technical parametersASUS ROG XG Station 2 Specs | | | Expansion Slots | 1 x PCIe 3.0 x16 (x16 mode) | | Host Connection | Thunderbolt 3, USB 3.0 | | Ports | 1 x RJ45 Gigabit Ethernet
4 x USB Type-A USB 3.0 | | | | Power Source Type | 600 W Internal PSU 80-PLUS Gold | | | | Dimensions | 18.0 x 6.2 x 10.9" / 45.7 x 15.7 x 27.7 cm | | Weight | 11.2 lb / 5.1 kg | | | | Package Weight | 12.0 lb | | Box Dimensions (LxWxH) | 21.5 x 15.2 x 10.0" |
