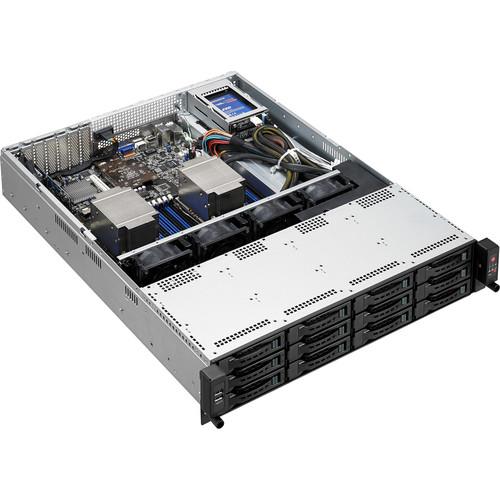

User Manual for ASUS RS520-E8-RS12-E V2 12-Bay 2U Rackmount Chassis Click to enlarge the picture
Contents of the user manual for the ASUS RS520-E8-RS12-E V2 12-Bay 2U Rackmount
- Product category: NAS Enclosures Others
- Brand: Others
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Others NAS Enclosures
 |
User manual for the ASUS RS520-E8-RS12-E V2 12-Bay 2U Rackmount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Others product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Others user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Others product will considerably shorten its lifespan!
|

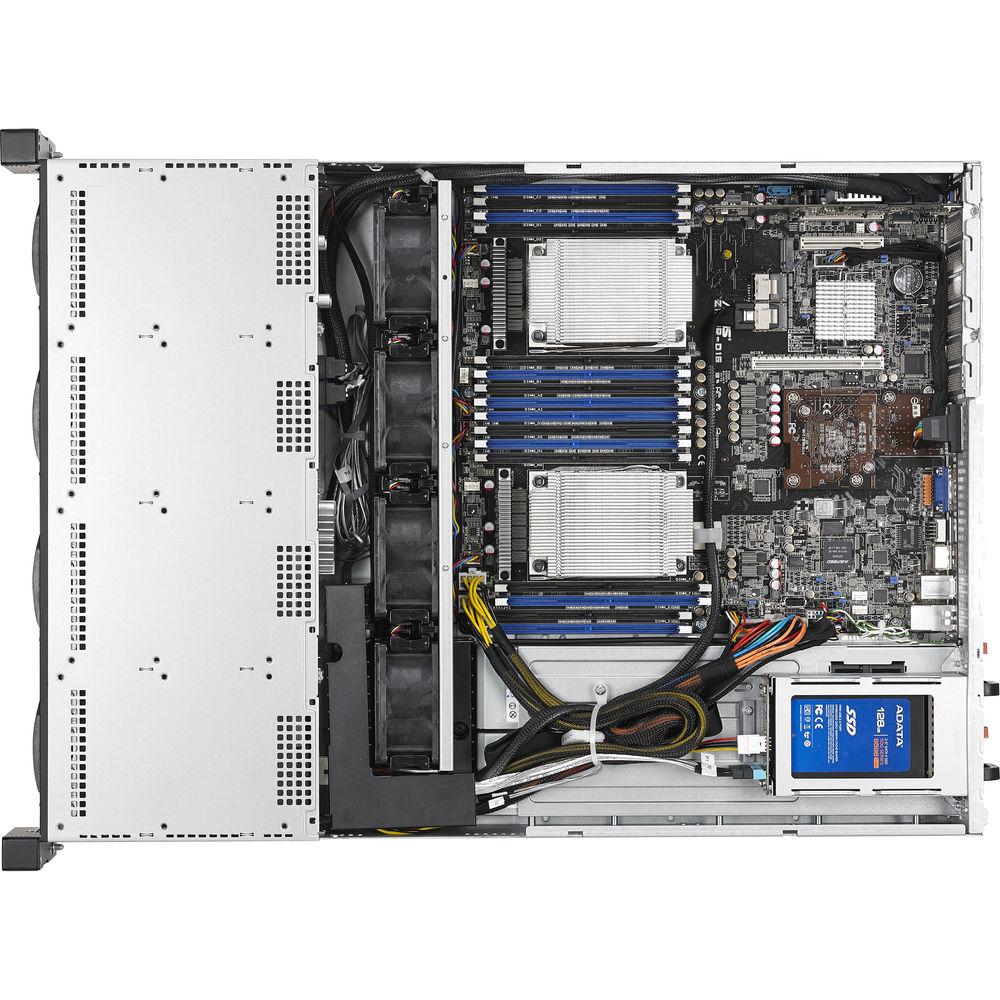

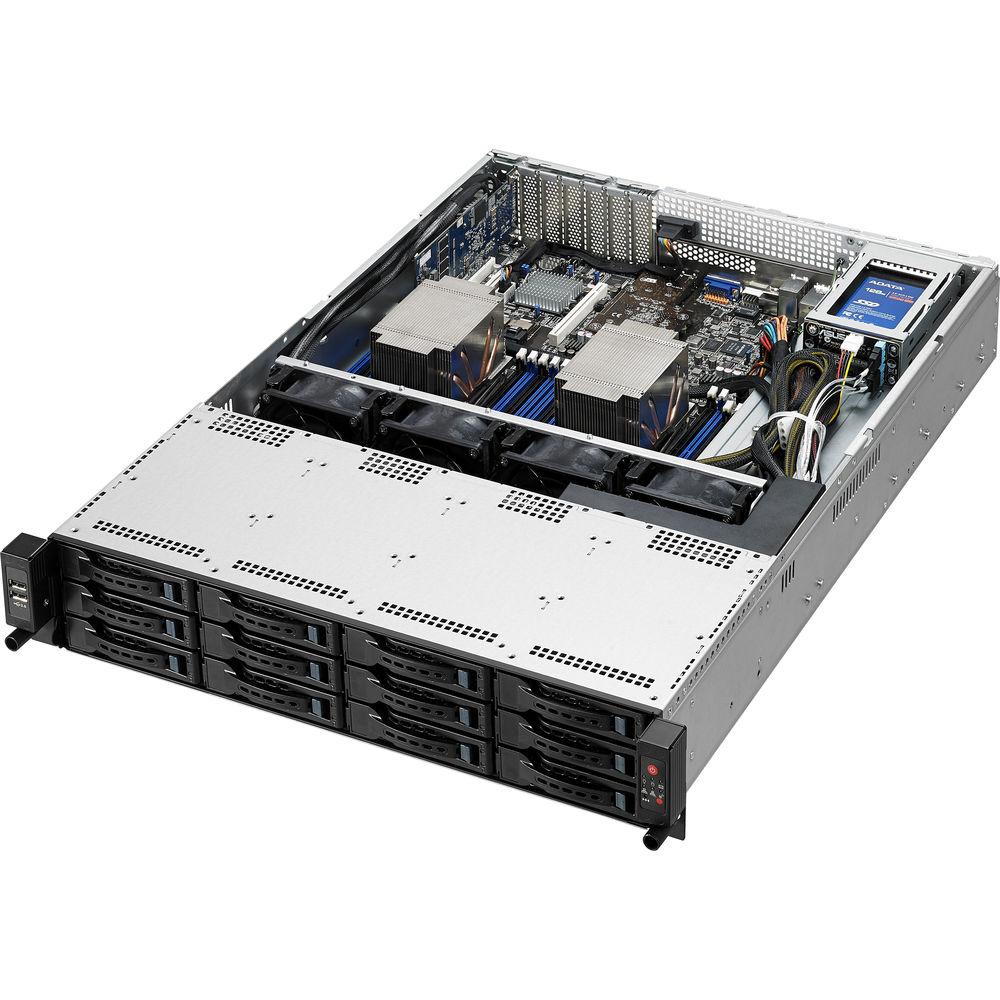

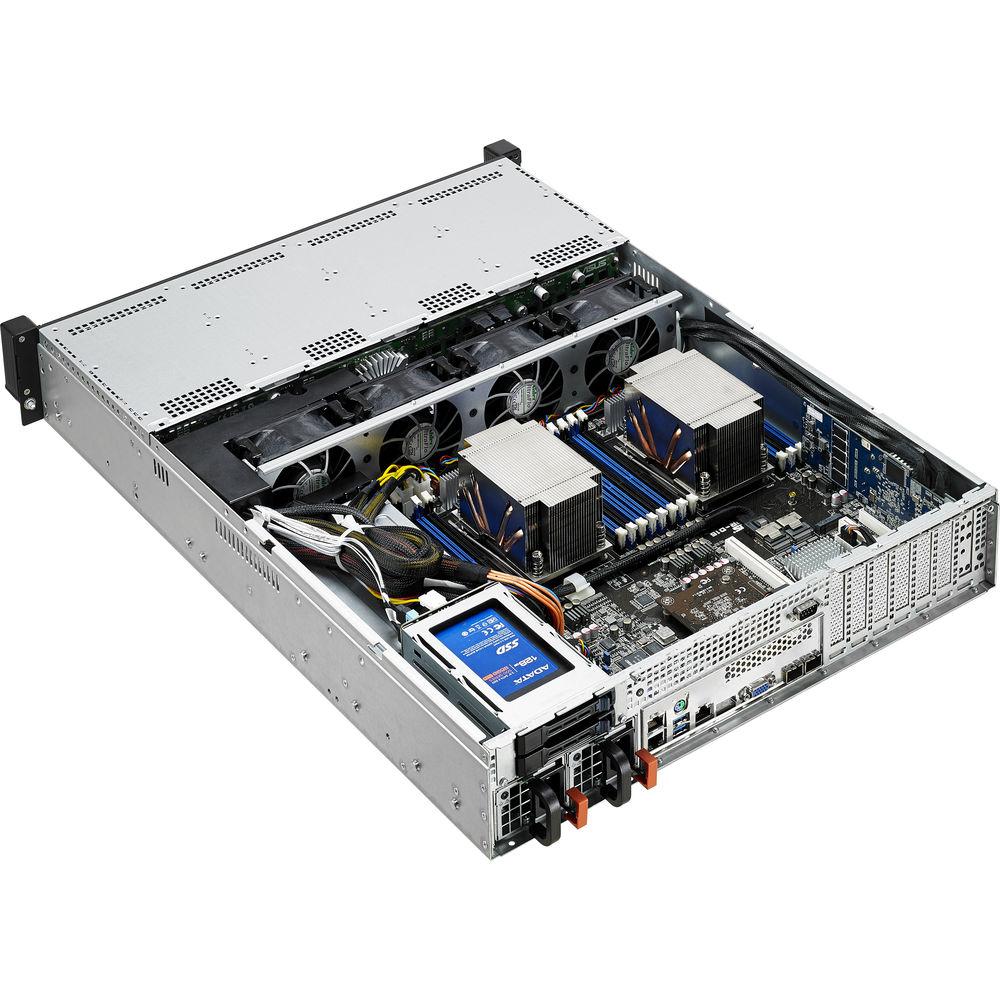

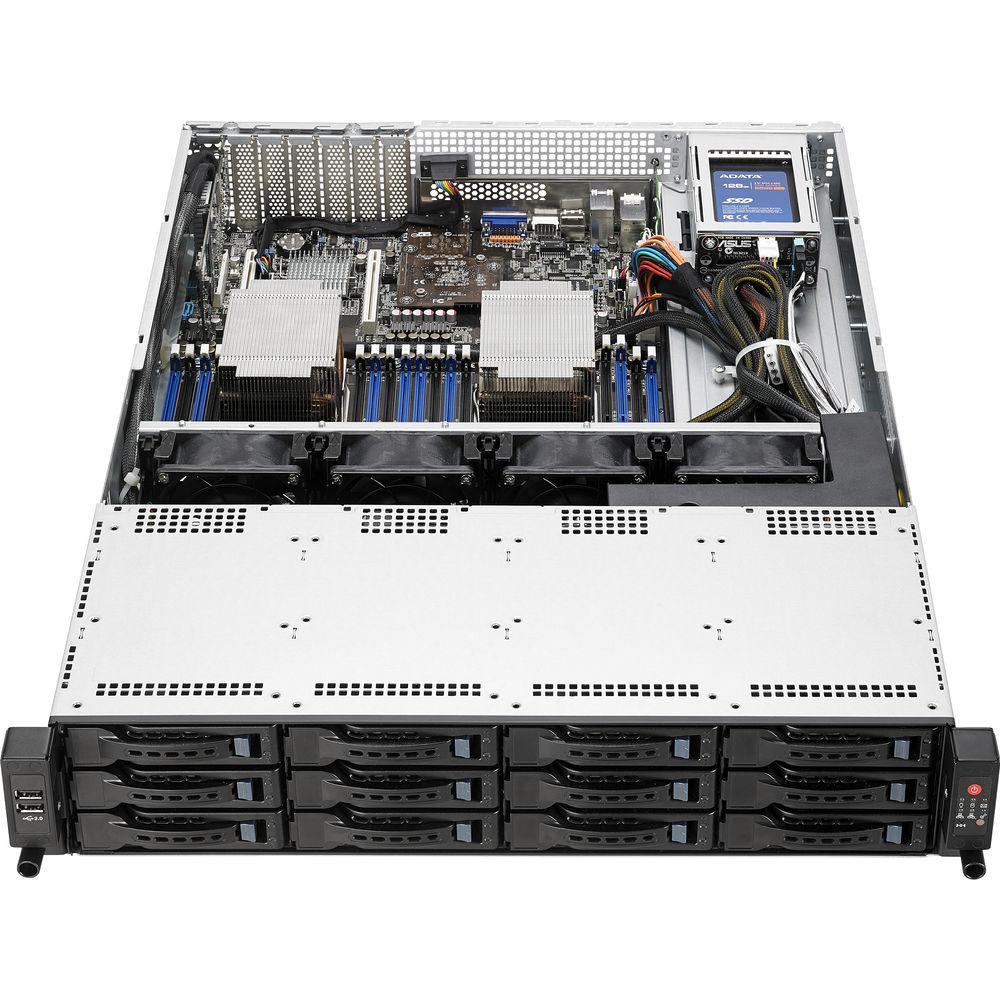

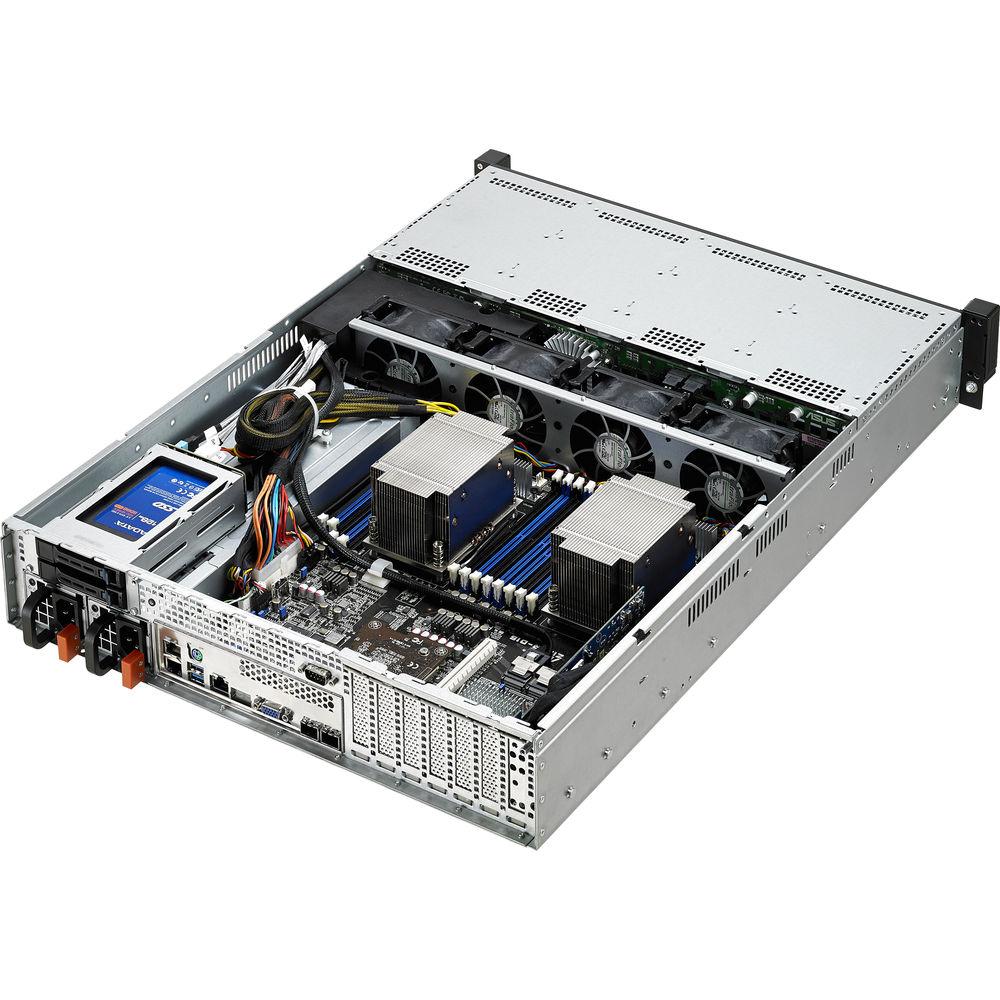

Product description The ASUS RS520-E8-RS12-E V2 12-Bay 2U Rackmount Chassis lets you build a NAS server with two optional Intel Xeon E5-2600 v3 processors. To keep up with these fast processors, it comes with eight DDR4 DIMM slots for each processor. It offers twelve hot-swappable bays to house your SATA 3.5" drives. It also has space to house two 2.5" drives in the rear. You can further upgrade these bays with an optional SAS HBA card to provide it with a data transfer up to 12 Gb/s. In addition, it has a slot to support M.2 drives.
The RS520-E8-RS12-E V2 comes with one PCIe Gen 3.0 x16 slot and two PCIe Gen 3.0 x8 slots. In addition, you have a single PCIe Gen 3.0 x8 link that is designed for a separately sold dual-port 10G Gigabit Ethernet card. To quickly deliver ample storage for your network, it features two Gigabit ports as well as a management LAN port. For visuals, it comes outfitted with a VGA port and Aspeed AST2400 graphics with 32MB of VRAM. It includes a 770 W 80Plus power supply and supports an optional redundant power supply. It also has two USB 3.0 ports and a Q-Code 80 LED indicator. - Effective Cooling with Rack-Optimized Design
- The four 80mm fans are adjusted manually, so you can have flexible control to meet different working environments. The RS520-E8-RS12-E V2 features air-duct technology and a 2U heat sink so it can work at high operating temperatures.
- Mass Storage and Flexibility
- The RS520-E8-RS12-E V2 is equipped with twelve SATA 3.5" drive bays. The hot-swappable design provides non-stop high availability, making short work of maintenance. It also offers an M.2 slot as well as two hot-swappable 2.5-inch SSD bays. You can install separately sold ASUS Pike II SAS 12 Gb/s HBA cards to enlarge the capacity, improve the performance, and strengthen the signaling of the RS520-E8-RS12-E V2.
- 3+1 Expansion
- The RS520-E8-RS12-E V2 has high expandability with 3+1 expansion ports in a configuration that means one PCI-E Gen3 x16 slot and two PCI-E Gen3 x8 slots. In addition, it comes with a fourth PCI-E Gen3 x8 slot that is designed for an optional OCP Mezzanine 10 Gbit/s LAN card. This flexible expansion offers diverse applications in storage and networking to meet the demands of future expansion.
- Reliable and Efficient
- With ASUS Beat thermal chokes, Dr. MOS, and a 770W 80Plus Gold power supply, it delivers durability and up to 94% power efficiency. With an optional redundant power supply, the server keeps working even if one power supply requires maintenance, enabling uninterrupted operation. RS520-E8-RS12-E V2 has 12k solid capacitors that are able to withstand up to 12,000 hours of high ambient temperatures. These 12K capacitors also boast lower equivalent series resistance (ESR) for increased efficiency and minimal heat generation.
- Diagnostic and Deployment
- From the early hardware-awakening stages to the launch of the operating system and beyond, the RS520-E8-RS12-E V2 has a built-in Q-code/port 80 LED display panel so you can monitor the entire boot process. A brightly lit indicator on the rear lets you check the server's status instantly. The RS520-E8-RS12-E V2 also benefits from a tool-less rail kit design, easing deployment for systems administrators for increasing efficiency.
- User Friendly Design
- This server also carries an asset tag for fast identification.
- Remote Server Management
- With the Intelligent Platform Management Interface (IPMI) 2.0-compliant ASMB8-iKVM module, you'll be able to monitor, control, and manage the server remotely. ASUS Server Web-based Management (ASWM) enterprise has a simple and intuitive web-based graphical user interface. Save time by flashing the BIOS remotely, use the screen-recording function for quick and easy trouble-shooting, and exploit the many efficiency benefits of one-to-many centralized management afforded by ASWM enterprise.
UPC: 889349105696 In the Box ASUS RS520-E8-RS12-E V2 12-Bay 2U Rackmount Chassis Support DVD ASWM Enterprise DVD ASMB8 DVD 2 x Bags of Screws 2 x AC Power Cables Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS RS520-E8-RS12-E V2 12-Bay 2U Rackmount Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS RS520-E8-RS12-E V2 Specs | Processor | 2 x Socket R3 (LGA 2011-3)
Intel Xeon processor E5-2600 v3 product family (145 W)
QPI 6.4 / 8.0 / 9.6 GT/s | | Generation | E8 | | Core | Intel C612 PCH | | Memory | Total Slots: 16 (4-channel per CPU, 8 DIMM per CPU)
Capacity: Maximum up to 1024 GB LRDIMM
Memory Type:
DDR4 2133/1866/1600/1333 RDIMM
DDR4 2133/1866/1600/1333 LRDIMM
DDR4 2133/1866/1600/1333/1066 NVDIMM
Memory Size:
32 GB, 16 GB, 8 GB, 4 GB RDIMM
64 GB, 32 GB LRDIMM | | Expansion Slot | Low-profile
1 x PCIe Gen 3.0 x16 (x8 link)
2 x PCIe Gen 3.0 x8 (x8 link)
1 x PCIe x8 (Gen 3.0 x8 link), OCP mezzanine | | Storage | Intel C612 SATA controller
9 x SATA III 6 Gb/s ports
1 x M.2 connector
Intel Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
Support Software RAID 0, 1, 5, 10 | | Drive Bays | 12 x hot-swap 3.5" storage bays
2 x hot-swap 2.5" storage bays | | Networking | 2 x Intel I210AT

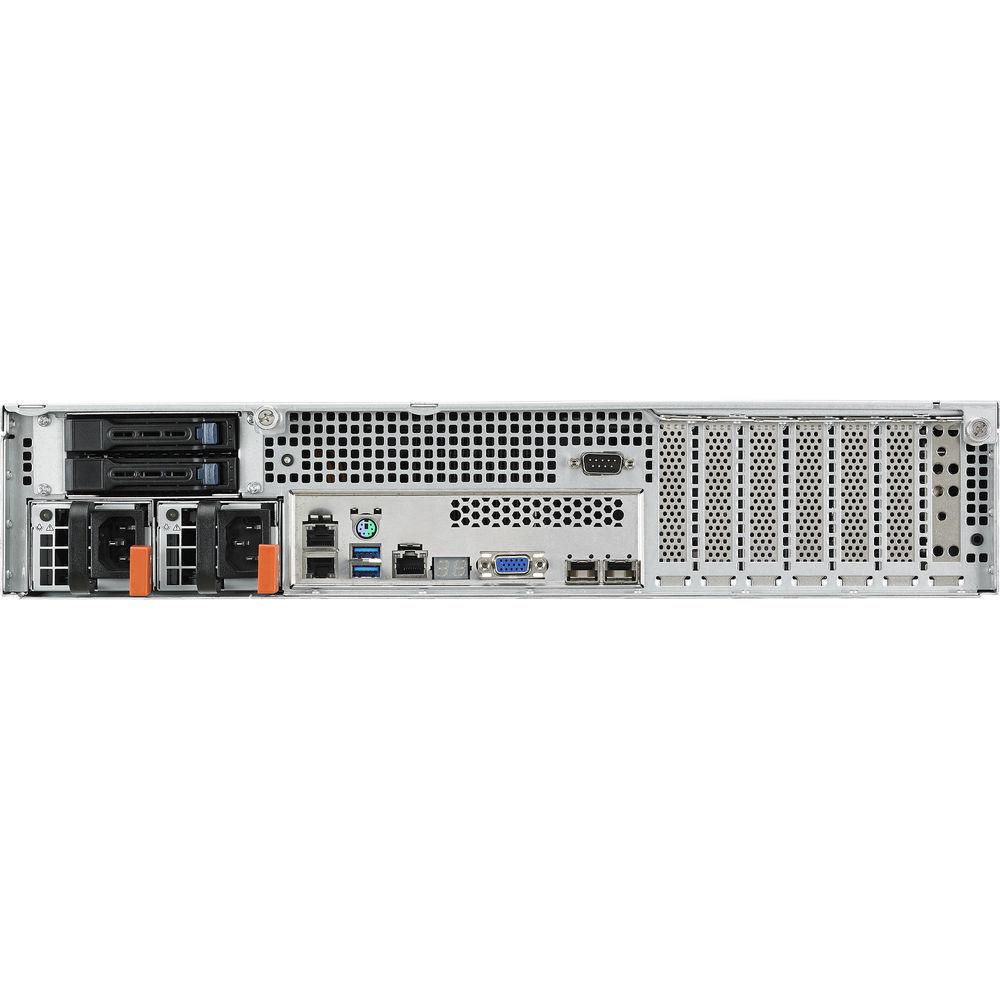

1 x Management LAN | | Graphics | Aspeed AST2400 with 32 MB VRAM | | Front I/O Ports | 2 x USB 2.0 ports | | Back I/O Ports | 2 x RJ-45 ports
1 x RJ-45 Mgmt LAN port
2 x USB 3.0 ports
1 x VGA port
1 x PS/2 KB/MS port
1 x Q-Code/Port 80 LED | | Operating System Supported | Windows Server 2012 R2
Windows Server 2012
Windows Server 2008 R2
RedHat Enterprise Linux
SuSE Linux Enterprise Server
CentOS
Ubuntu
VMware
Citrix XenServer | | Management | ASWM enterprise
On-board ASMB8-iKVM for KVM-over-IP | | Compliance | BSMI, CE, C-Tick, FCC(Class A) | | Form Factor | 2U | | Power Supply | 1 x 770 W 80Plus Gold
100 to 127 VAC, 200 to 240 VAC
5 to 10 A
50 to 60 Hz
Class I
Supports an optional redundant 770 W 80Plus Gold power supply | | Environmental | Operational Temperature: 50 to 95°F / 10 to 35°C
Storage Temperature: -40 to 158°F / -40 to 70°C
Humidity: 20 to 90% (non-condensing) | | Dimensions | 24.2 x 17.5 x 3.5" / 615.0 x 444.0 x 88.0 mm | | Weight | 50.7 lb / 23.0 kg |
