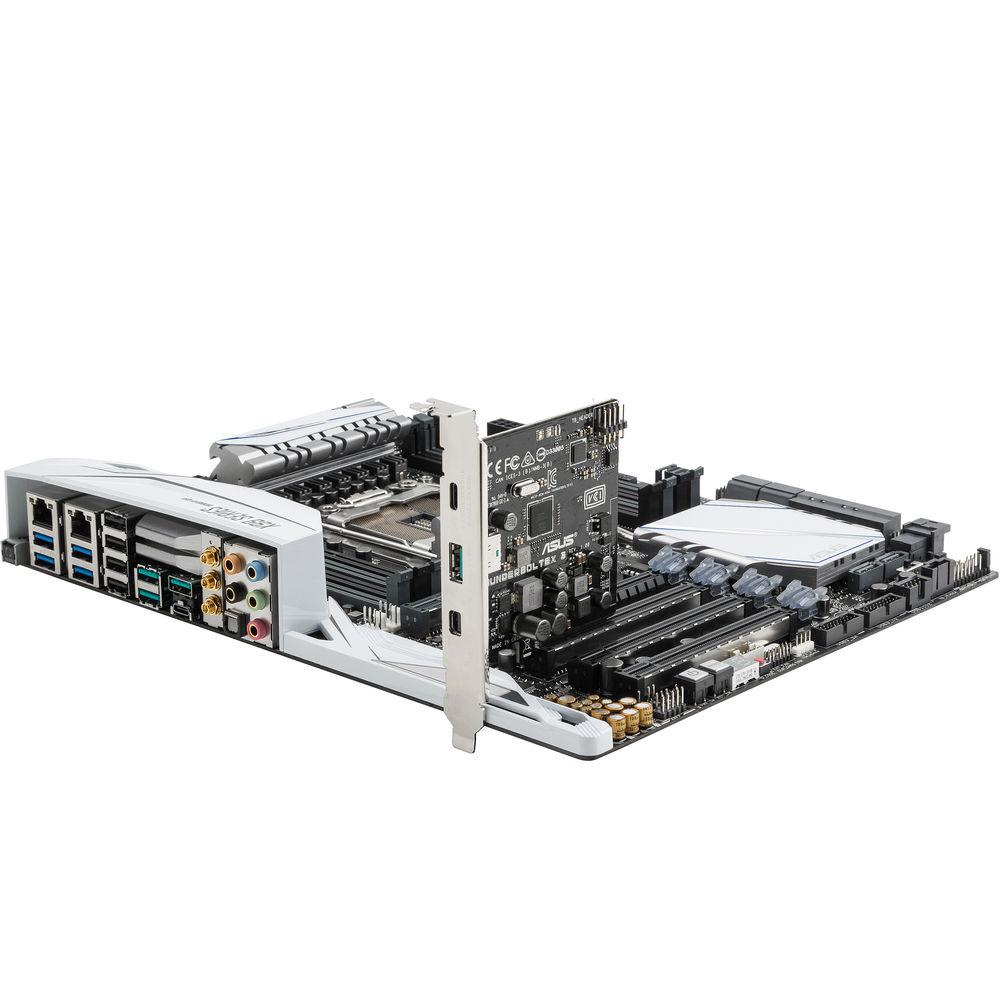

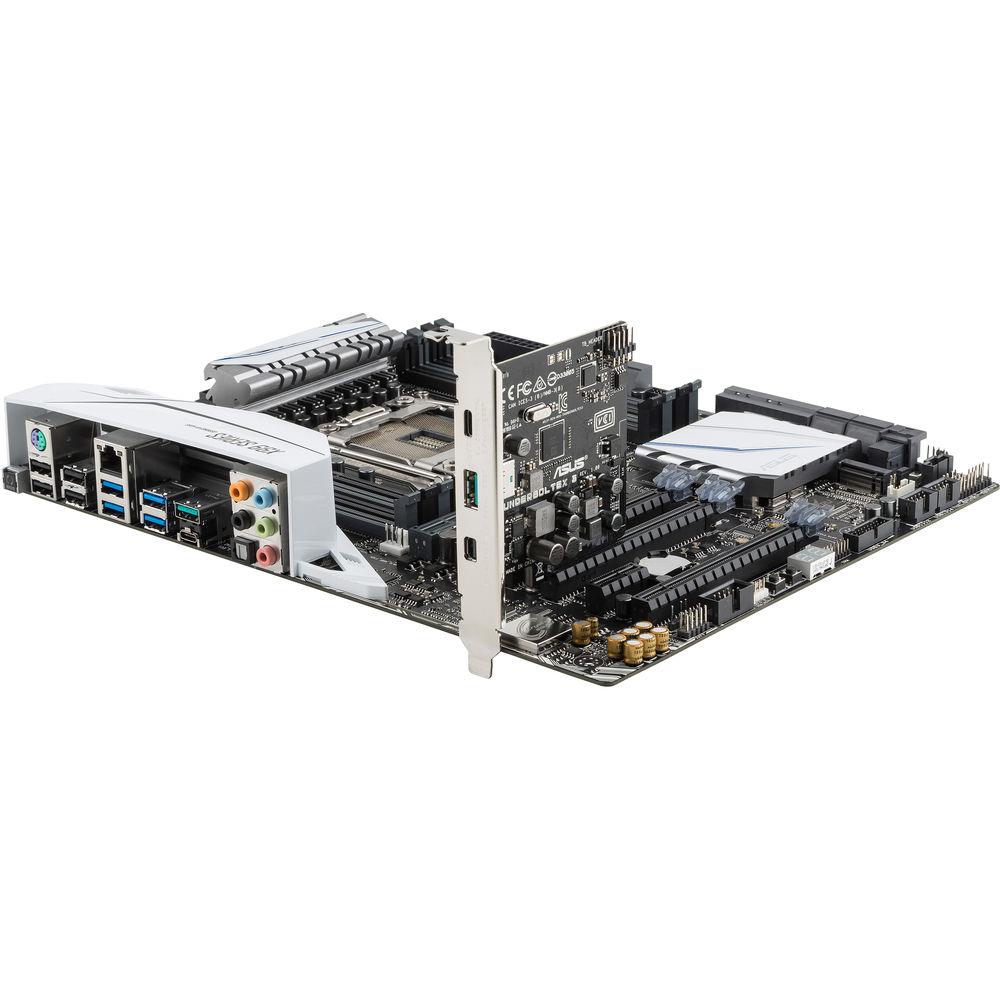

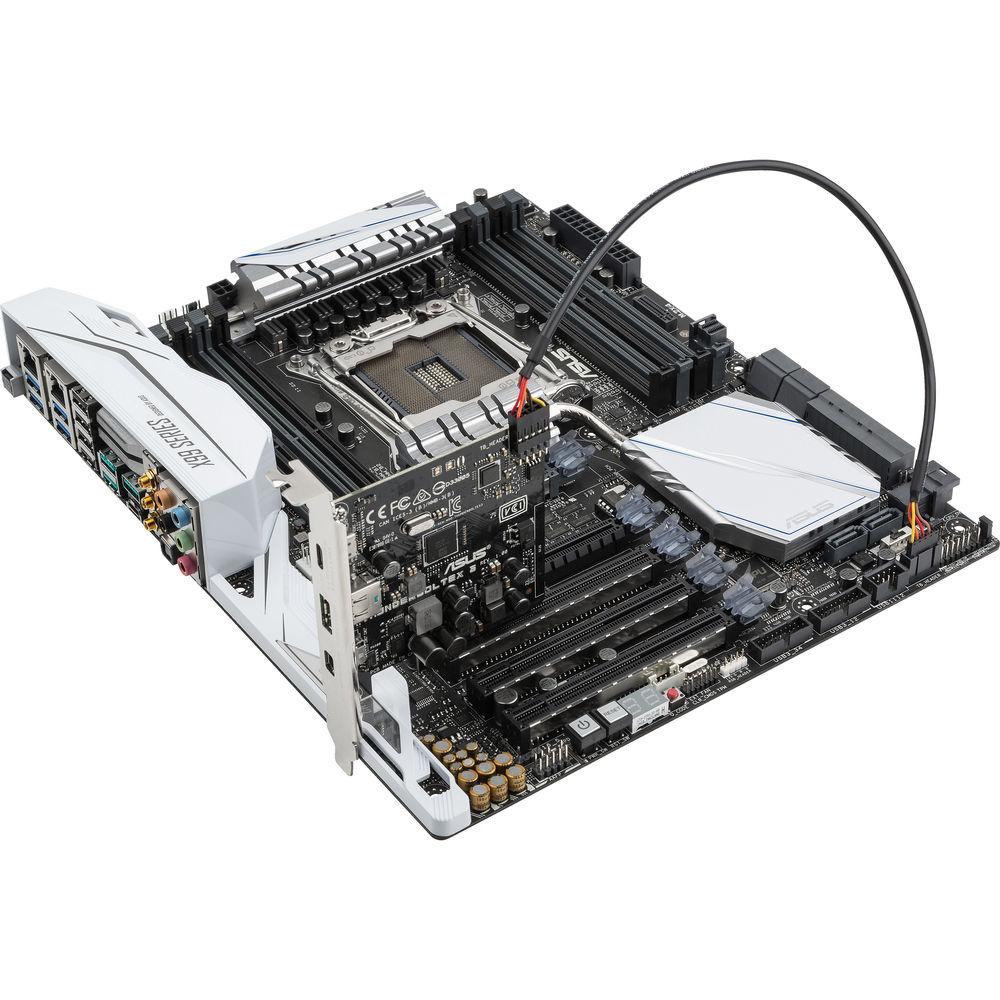

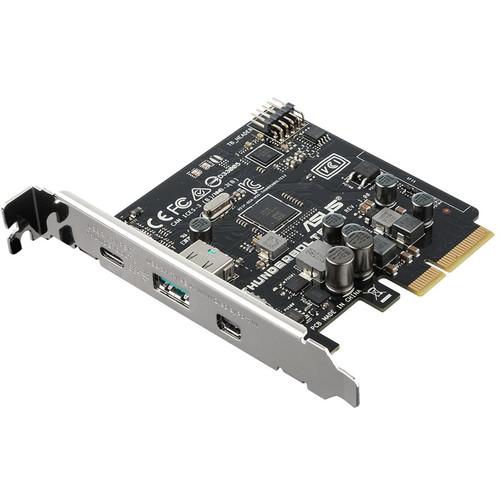

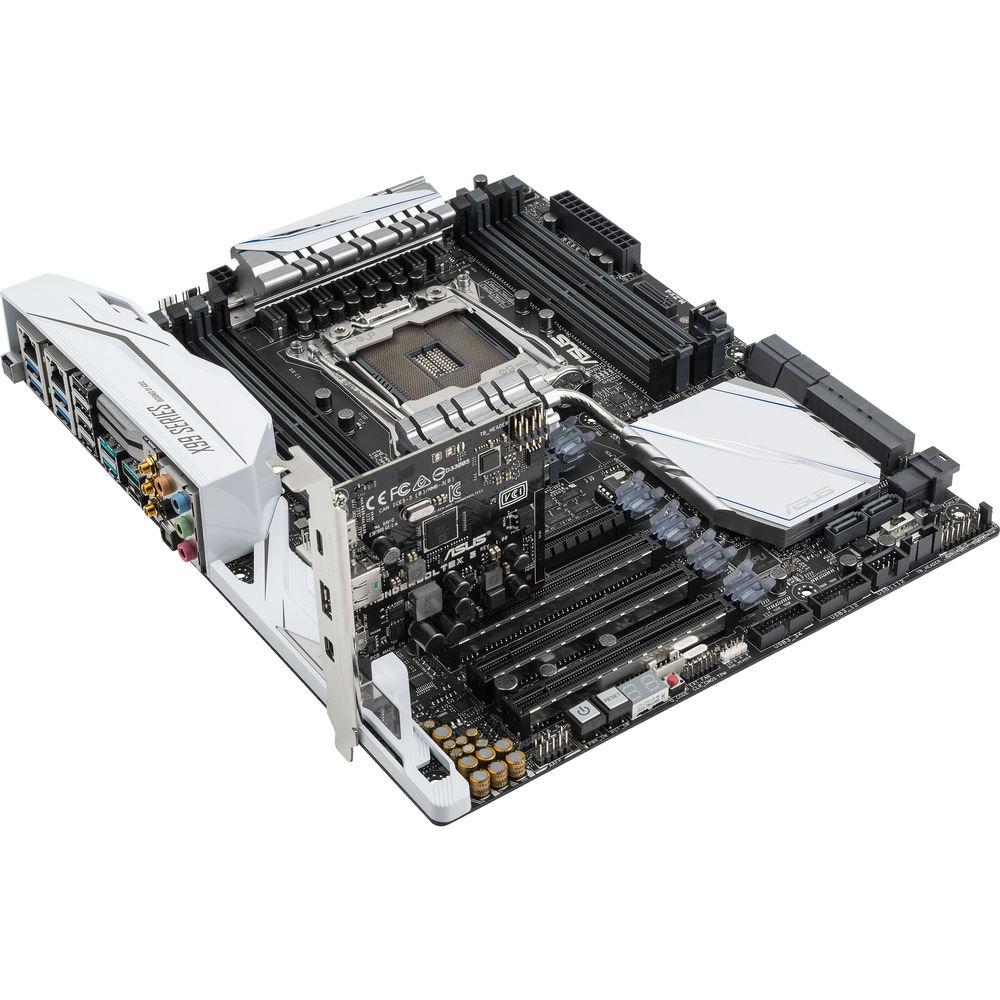

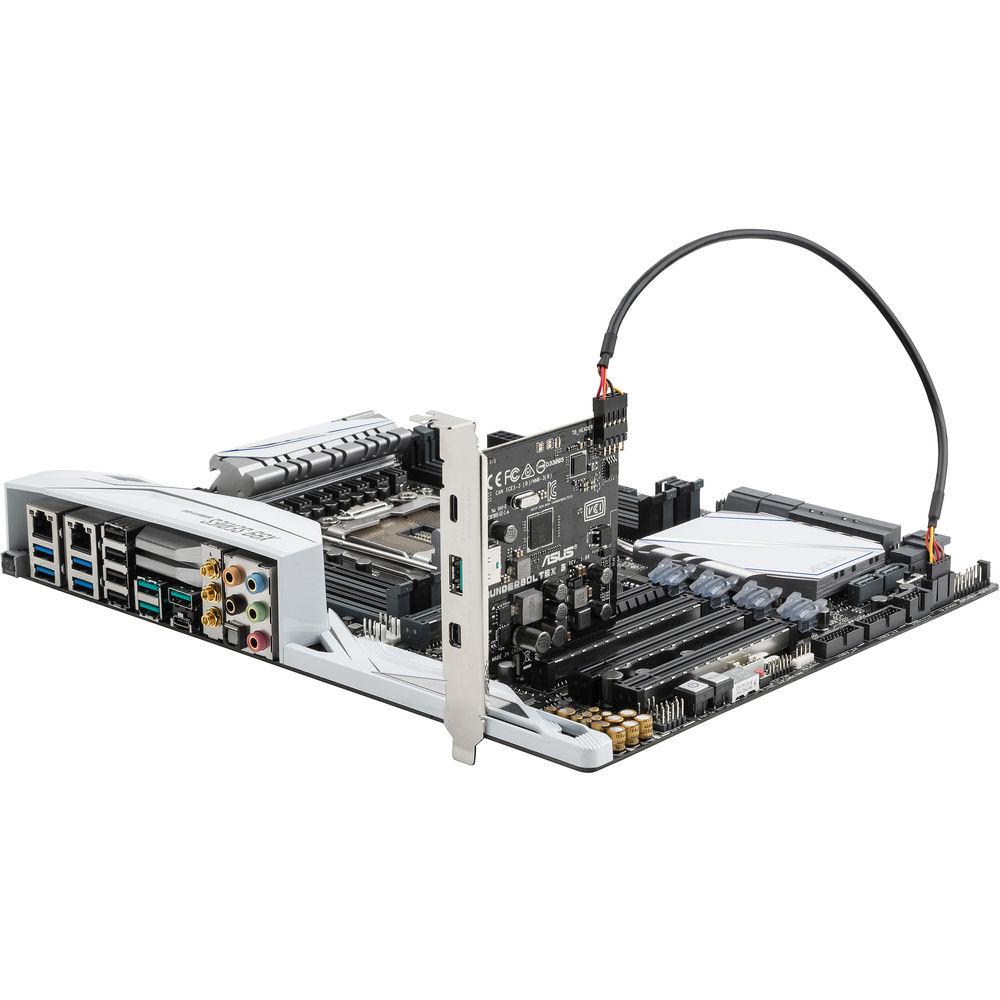

Product description The ASUS ThunderboltEX 3 Expansion Card provides a single Thunderbolt 3 port for motherboards that have an available PCIe 3.0 x4 slot, Thunderbolt header, and DisplayPort. The Thunderbolt 3 port sports a reversible USB Type-C interface and delivers a maximum throughput of 40 Gb/s. The port supports USB 3.1 at up to 10 Gb/s as well as DisplayPort 1.2, allowing you to connect multiple displays simultaneously. With USB Power Delivery specification, it charges USB Type-C devices with up to 36W of power. You can daisy chain up to six Thunderbolt-equipped devices from a single Thunderbolt 3 port. In addition to Thunderbolt 3, this expansion card comes with a USB 3.1 Type-A port with 10 Gb/s speeds. - Thunderbolt 3 Speed
- At 40 Gb/s, you'll experience fast transfers and large video bandwidths.
- Connectivity
- By integrating reversible USB 3.1 Type-C and DisplayPort 1.2, the ThunderboltEX 3 is compatible with high-speed devices, from external drives to 4K UHD displays. ThunderboltEX 3 supports the USB Power Delivery specification for charging of up to 36W. You can even daisy-chain up to six devices from a single port. The card also includes an additional USB 3.1 Type-A connector.
- 10-Gigabit Networking
- The ThunderboltEX 3 can create a peer-to-peer networking at 10 Gb/s speeds, enabling you to perform easy PC migrations or set up small workgroups with shared storage.
- Compatible Motherboards
- Z170-PREMIUM
Z170-DELUXE
Z170-PRO
Z170-A
Z170-AR
SABERTOOTH Z170 MARK 1
SABERTOOTH Z170 S
MAXIMUS VIII EXTREME
MAXIMUS VIII HERO
MAXIMUS VIII RANGER
X99-DELUXE II
X99-DELUXE
X99-PRO/USB 3.1
X99-PRO
X99-A/USB 3.1
X99-A
X99-A II
X99-E
SABERTOOTH X99
RAMPAGE V EXTREME/U3.1

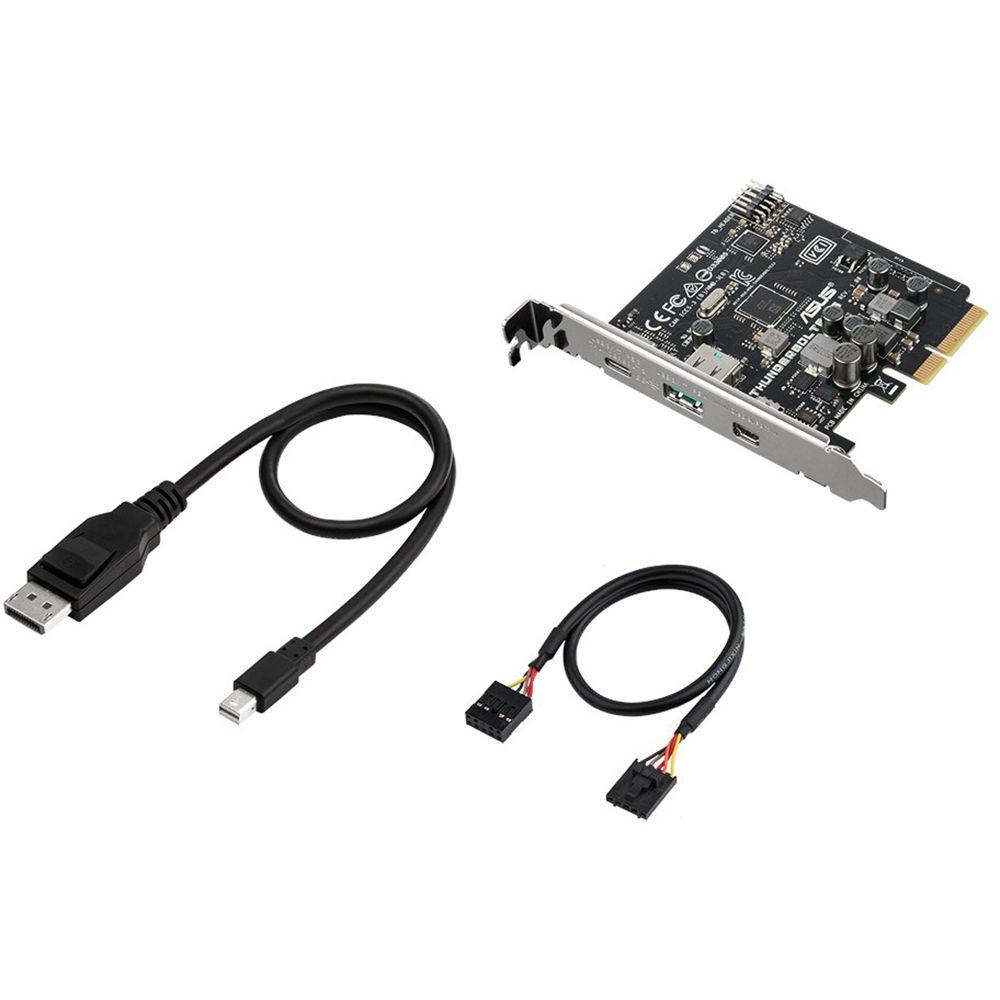

RAMPAGE V EXTREME UPC: 889349448632 In the Box ASUS ThunderboltEX 3 Expansion Card Mini-DisplayPort to DisplayPort Cable TB Header Cable Support CD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS ThunderboltEX 3 Expansion Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

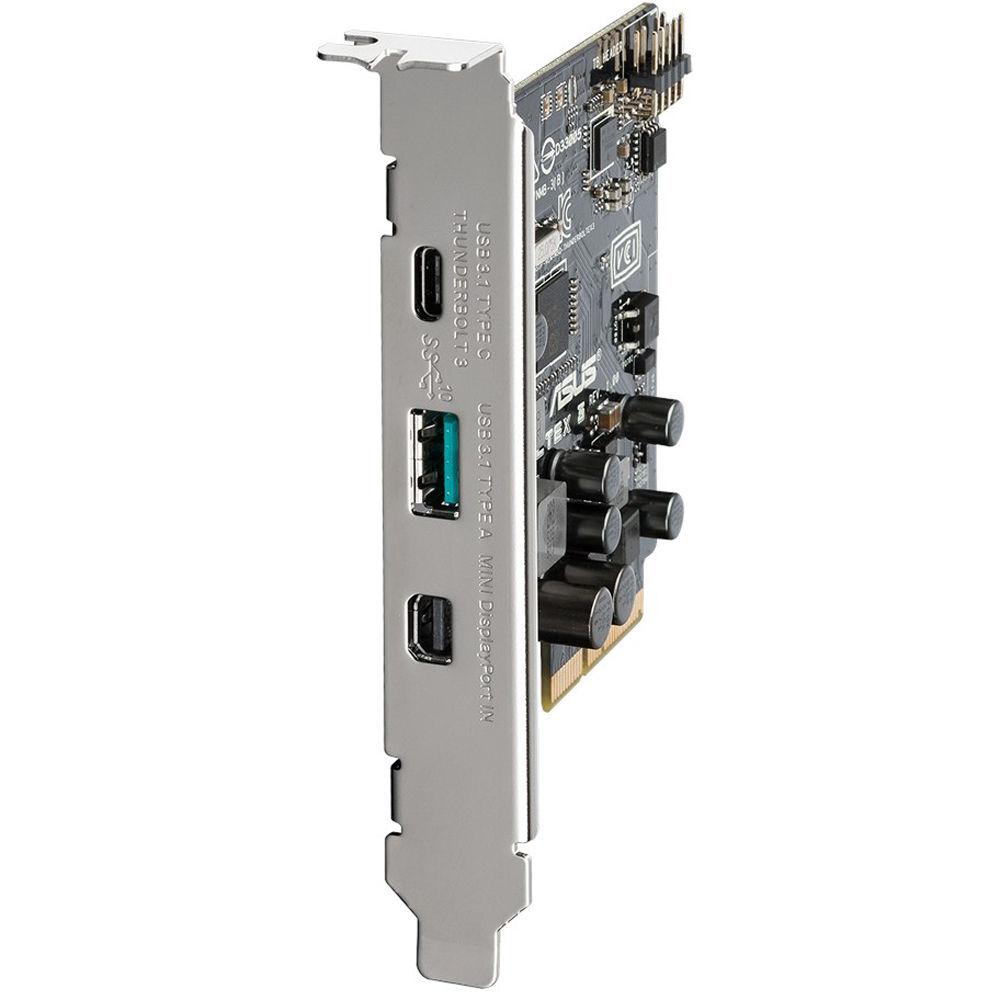

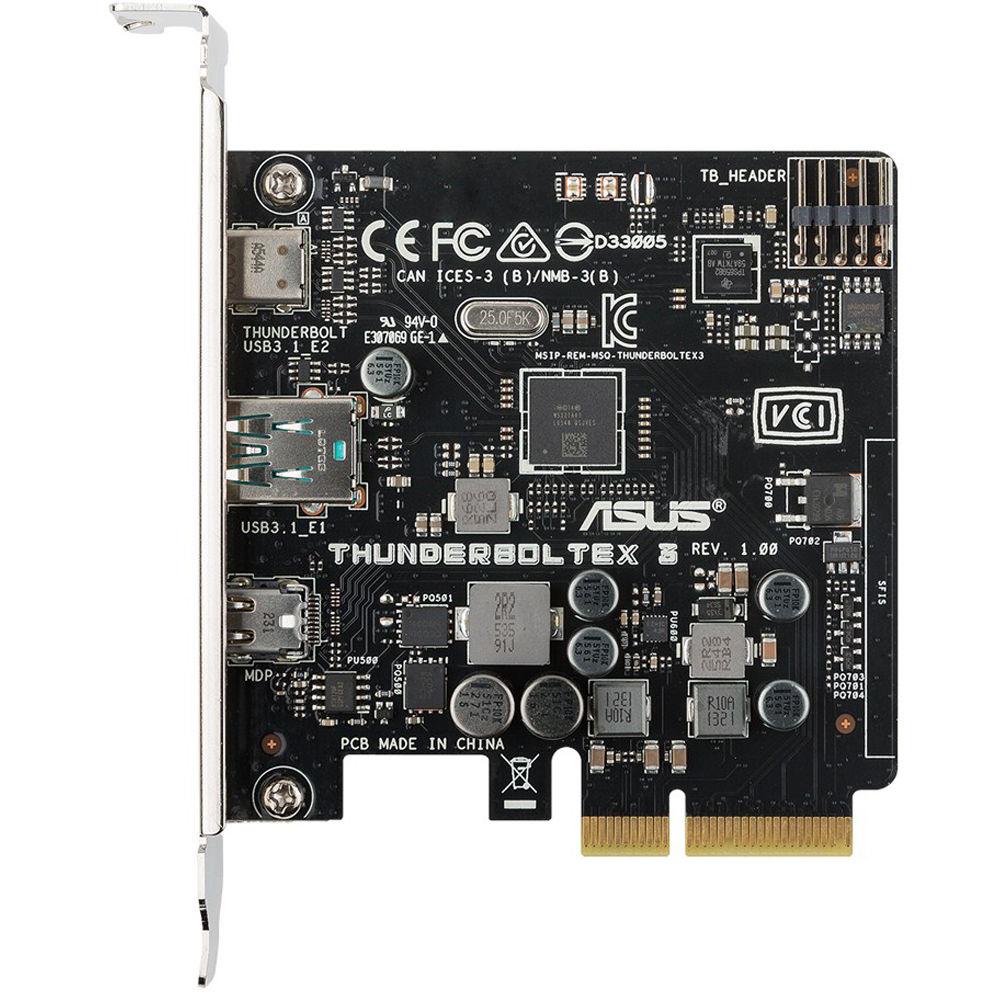

Technical parametersASUS THUNDERBOLTEX 3 Specs | Chipset | Intel Thunderbolt 3 controller | | Interface | PCI Express 3.0 x4 (compatible with PCI Express x16/x8/x4 slots) | | Connectors | 1 x Thunderbolt 3 port (Type-C, 12 V/3 A, 36 W charging support)
1 x USB 3.1 port (Type-A, support up to 10 Gb/s)
1 x 9-pin Thunderbolt header
1 x mini-DisplayPort (connects to graphics card) | | Video | Supports DisplayPort 1.2 with max. resolution of 4096 x 2160 @ 60/24 Hz | | Operating System Supported | Windows 10
Windows 8.1 (64-bit)
Windows 8 (64-bit)
Windows 7 (32-bit/64-bit) | | Dimensions | 3.4 x 3.9" / 8.5 x 10.0 cm | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 8.9 x 6.0 x 1.7" |
