Product description

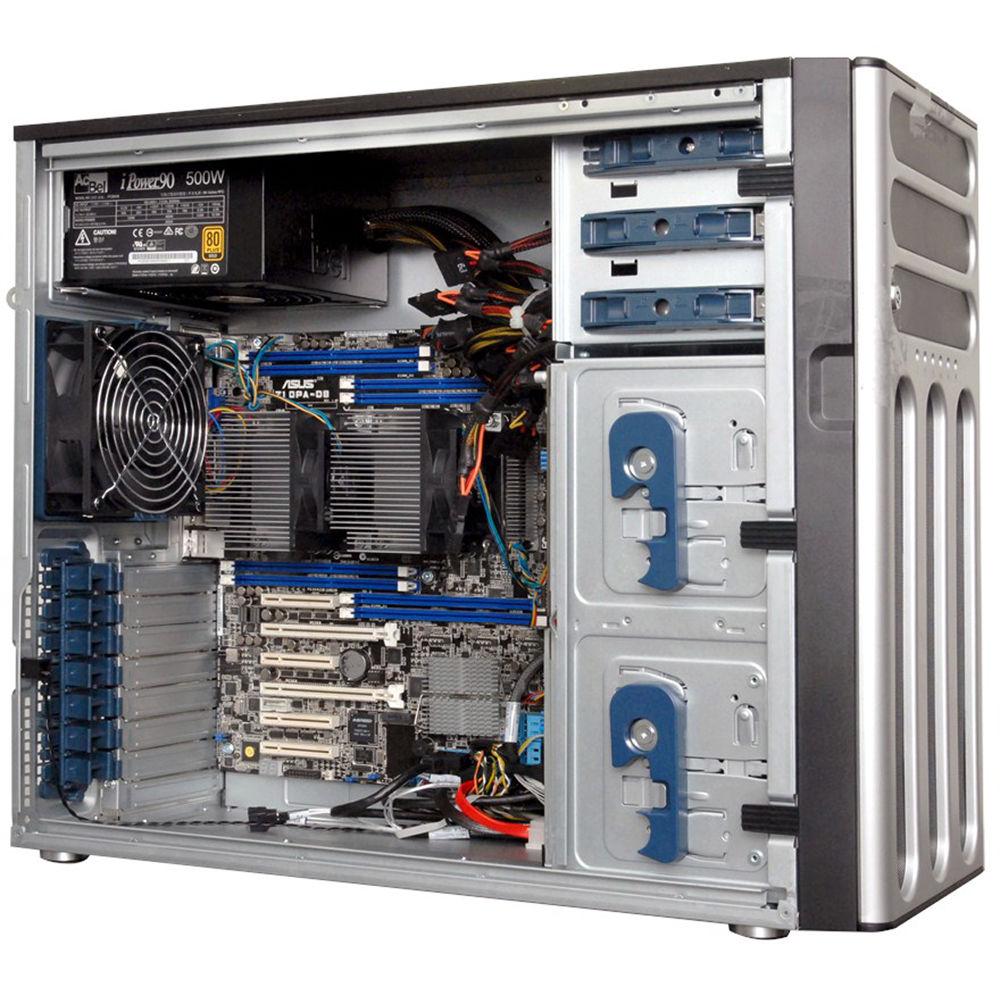

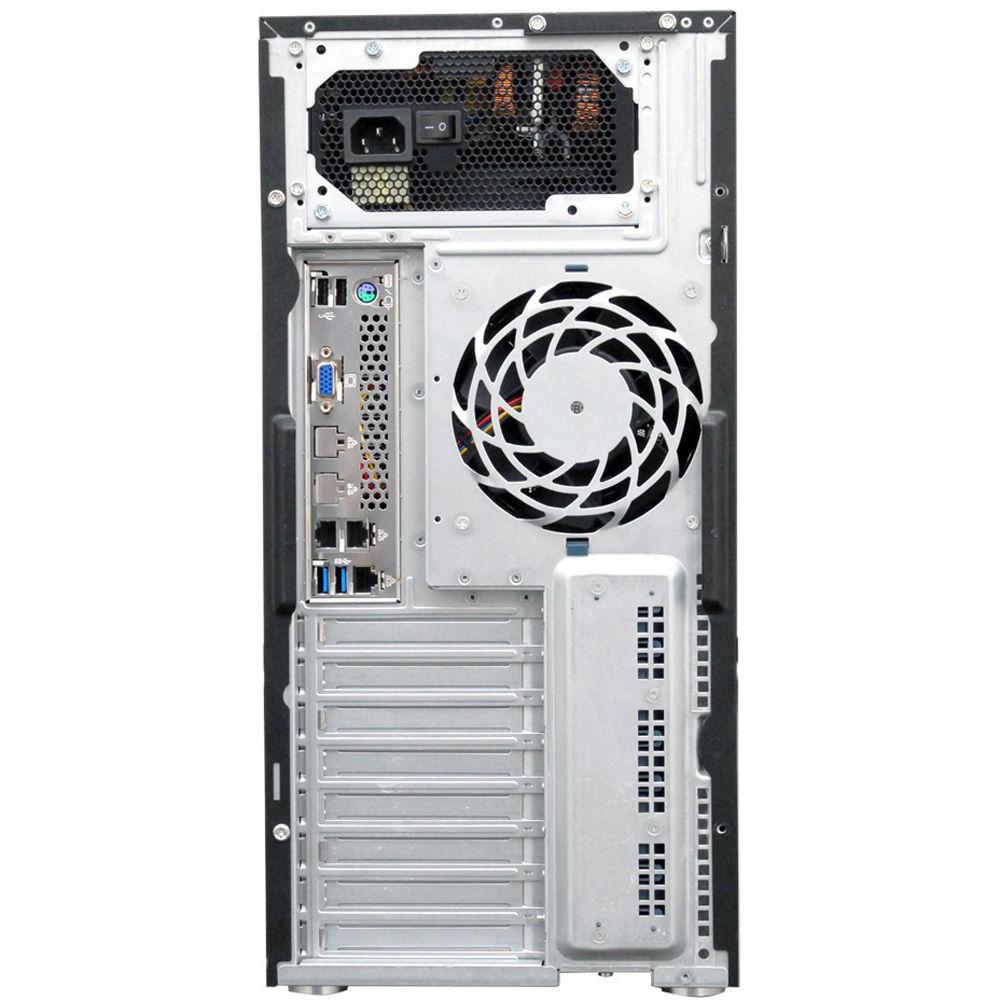

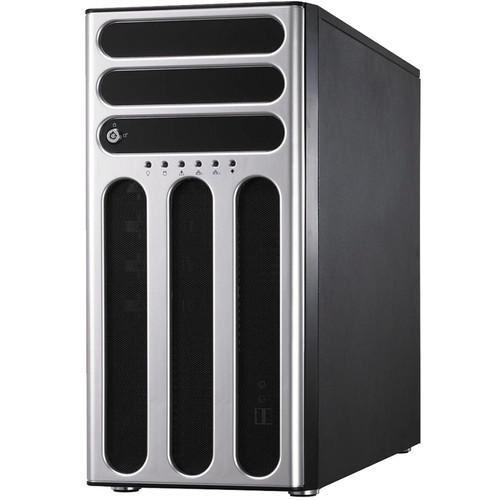

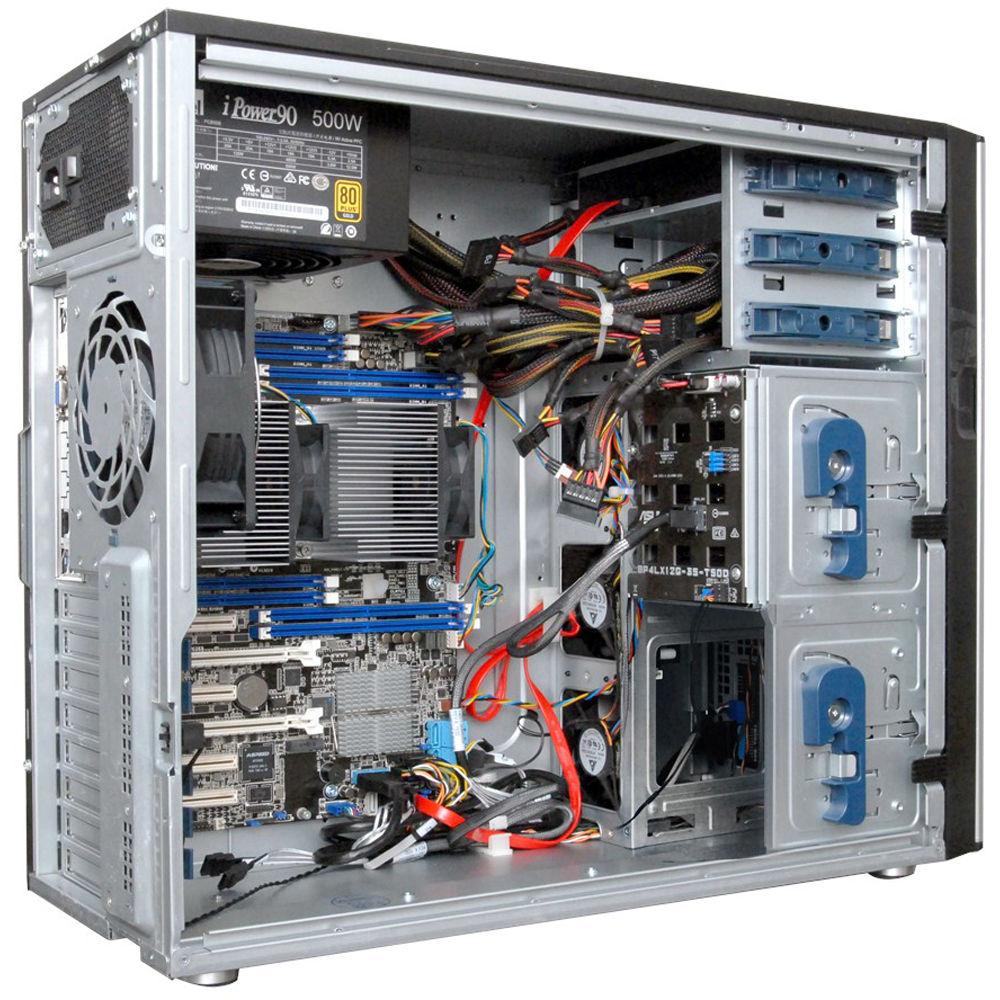

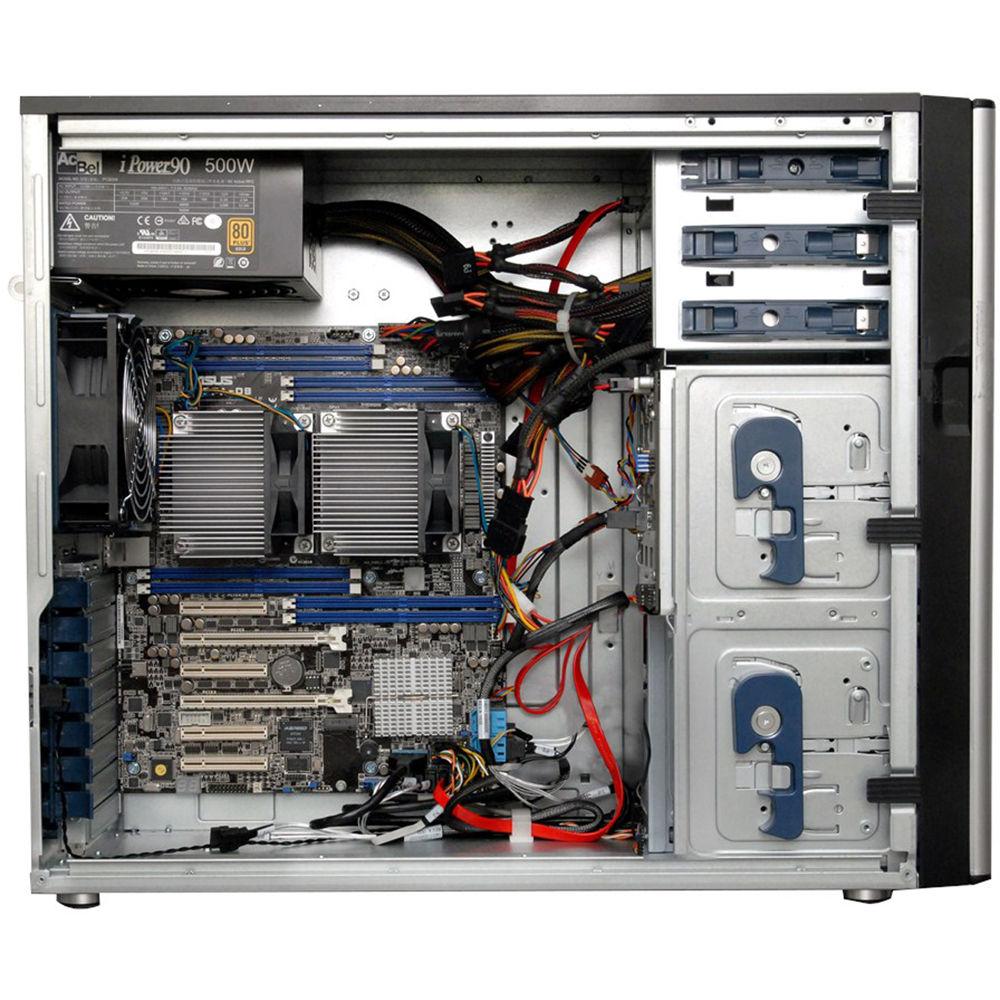

The TS500-E8-PS4 V2 Mainstream Barebone Tower Server from Asus is built for both workstation and server use. It is compatible with the Intel Xeon processor E5-2600 v3 product families, 8 DIMMs, six expansion slots, three 5.25” media bays, and a single 500W 80 plus Bronze power supply. The premium components offer up to 94% VR efficiency as well as a complete remote management solution.
    Flexibility
  • The tower server has 4 HDD bays and optional ASUS PIKE II upgrade kit performing high flexibility. There are four 3.5" hot-swap SATA/SAS HDD bays and is also upgradable to eight HDD bays for flexible storage requirement. Besides working as a pedestal server, the TS500-E8-PS4 V2 is also rack-mountable with the rack-mount kit (sold separately), saving space.
    Asus PIKE II & 12G SAS Integration
  • ASUS PIKE II offers the 12 Gb/s SAS together with PCI-E 3.0 solution. While ASUS 12 Gb/s SAS doubles the data rate of the previous generation, PCI-E 3.0 offers high reliability and a faster connection. It supports 6 Gb/s SATA and 12 Gb/s SAS storage with integrated RAID data protection. Installing the PIKE II card can immediately enlarge the capacity, improve the performance, and strengthen the signaling. Additionally, multiple HBAs allow multi-paths which improve over performance.
    Server & Workstation Dual Use
  • There are 6 expansion slots include 2 PCI-E Gen3 x16 slots supporting up to x16 link perfectly for graphic applications.
    Premium Components for Premium Efficiency
  • With ASUS Beat Thermal Chokes, Dr. MOS, it delivers great durability and up to 94% VR efficiency. TS500-E8-PS4 V2 has durable 12k solid capacitors that are able to withstand up to 12,000 hours of high ambient temperatures. These 12K capacitors also boast lower equivalent series resistance (ESR) for increased efficiency and minimal heat generation.
    Complete Remote Server Management
  • With the Intelligent Platform Management Interface (IPMI) 2.0-compliant ASMB8-iKVM module in TS500-E8-PS4 V2 you'll be able to monitor, control and manage the server remotely. ASUS Server Web-based Management (ASWM) Enterprise has a simple and intuitive web-based graphical user interface. Save time and effort by flashing the BIOS remotely, use the new screen-recording function for quick and easy trouble-shooting.
UPC: 889349152508 In the Box ASUS TS500-E8-PS4 V2 Mainstream Barebone Tower Server
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the ASUS TS500-E8-PS4 V2 Mainstream Barebone Tower Server in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    ASUS TS500 Specs

    Drive Expansion 35.25" (External)
    43.5" (External)
    1M.2 (Internal)
    Storage Drive None
    Drive Connections 9 x SATA III
    PCI Expansion 1 x PCIe Gen 2 x4
    3 x PCIe Gen 3 x8
    2 x PCIe Gen 3 x16
    Processor None
    Chipset Socket: 2 x R3
    Type: LGA 2011-3
    Chipset Model Intel C612
    Total Installed Memory None
    Maximum Memory Capacity 512 GB
    Memory Support DDR4 1600, 1866, 2133, 2400 MHz
    Available Memory Slots 8
    GPU Aspeed AST2400 with 32 MB
    Network 2 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
    1 x Ethernet (RJ45) Management
    Ports 2 x USB 3.1 Gen 1 Type-A
    2 x USB 2.0 Type-A
    1 x PS/2
    Display 1 x VGA
    Audio 1 x 1/8" (3.5 mm) Headphone Output
    1 x 1/8" (3.5 mm) Microphone Input
    Supported Operating Systems CentOS, Citrix, Redhat Linux, SuSE, Ubuntu, Vmware, Windows Server
    Rack Form Factor 5 RU
    Power Supply 1 x 500 W 80 PLUS Bronze
    AC Input Power 100 to 240 VAC, 50 / 60 Hz at 6 to 10 A
    Operating Temperature 50 to 95°F / 10 to 35°C
    Storage Temperature -40 to 158°F / -40 to 70°C
    Storage Humidity 20 to 90%
    Dimensions (W x H x D) 17.9 x 8.5 x 21.5" / 45.4 x 21.6 x 54.6 cm
    Weight 33.2 lb / 15.1 kg
