Product description The TUF B360M-Plus Gaming S LGA 1151 Micro-ATX Motherboard from Asus is built on the Intel B360 chipset, supporting 8th generation intel Core, Pentium, and Celeron processors with a LGA 1151 socket. It has four memory slots, which support up to 64GB of DDR4 RAM at speeds of up to 2666 MHz. For storage, there are six SATA III ports and two M.2 slots that can utilize the PCIe 3.0 x4 interface for speeds of up to 32 Gb/s when used with an appropriate drive. While it's equipped with DVI and HDMI outputs for integrated graphics, this motherboard also has one PCIe 3.0 x16 and two PCIe 3.0 x1 slots for dedicated graphics cards and other PCIe-based hardware. Other notable integrated features include Realtek ALC887 8-Channel HD Audio, Intel I219V Gigabit LAN, and Asus Aura Sync RGB Lighting. - Asus Aura Sync RGB Lighting

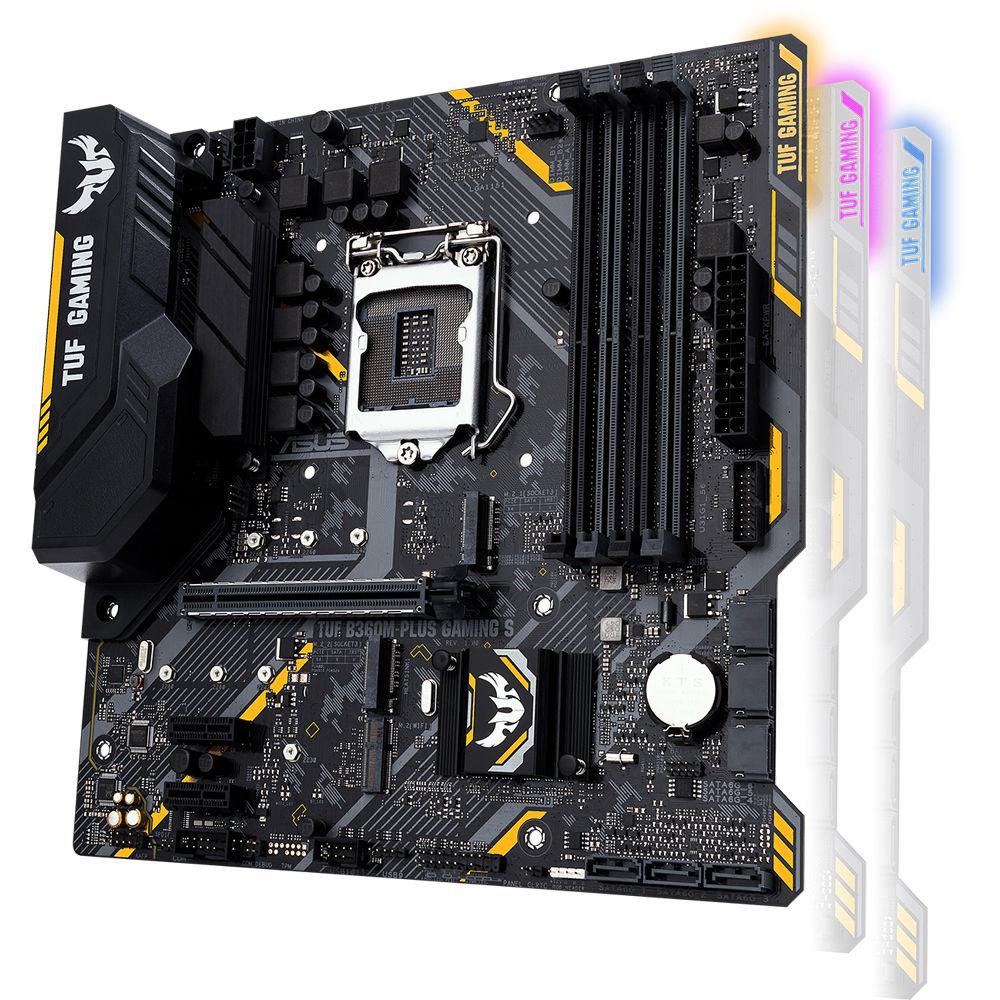

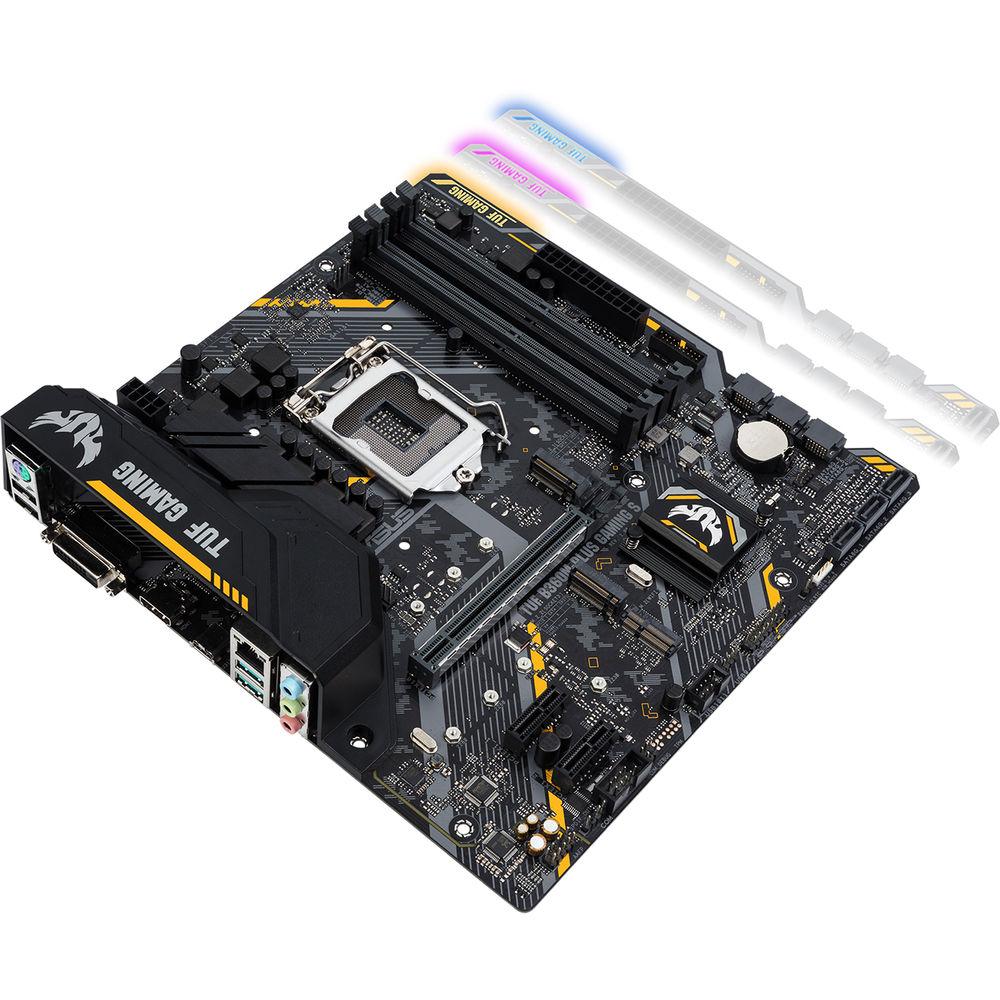

- Equipped with Asus Aura Sync RGB lighting support, this motherboard can manage all your LED equipment. Choose from millions of colors and plenty of lighting effects to fit your style. Moreover, you can sync it with other Aura Sync-compatible hardware and peripherals to complete your setup.
- Cooling
- There are multiple fan headers that support both DC and PWM modes, so you can adjust fan speeds within BIOS or a third-party software to find the perfect balance between cooling and noise.
- Memory
- The TUF B360M-Plus Gaming S has four memory slots that support up to 64GB of 2666 MHz DDR4 RAM. Moreover, the RAM slots feature an enhanced design for more stable overclocking and ease-of-use.
- Storage
- Aside from the six SATA ports on this motherboard, it also has two M.2 slots that support the PCIe 3.0 x4 interface for speeds of up to 32 Gb/s when used with an appropriate drive.
- Audio
- Realtek ALC 887 8-channel HD audio supports high-quality audio playback, impedance sense for both front and rear headphone outputs, EMI shielding, and dedicated audio PCB layers for a more immersive listening experience for all types of applications, whether you're using speakers or headphones.
- Optional Wi-Fi Connectivity
- This motherboard also has an E-key M.2 slot, so you can install a compatible Wi-Fi and Bluetooth combo module to wirelessly connect to the internet and other devices.
- Additional Features
-
- TUF Components
- Asus SafeSlot
- Asus LANGuard
- Asus Overvoltage Protection
- Asus Stainless-Steel Back I/O
- Asus DIGI+ VRM
- DRAM Overcurrent Protection
- ESD Guards on LAN, Audio, KBMS, and USB Ports
- Durable Components
- AI Suite 3
- AI Charger
- Asus Grid
- Asus Q-LED, Q-Slot, & Q-DIMM

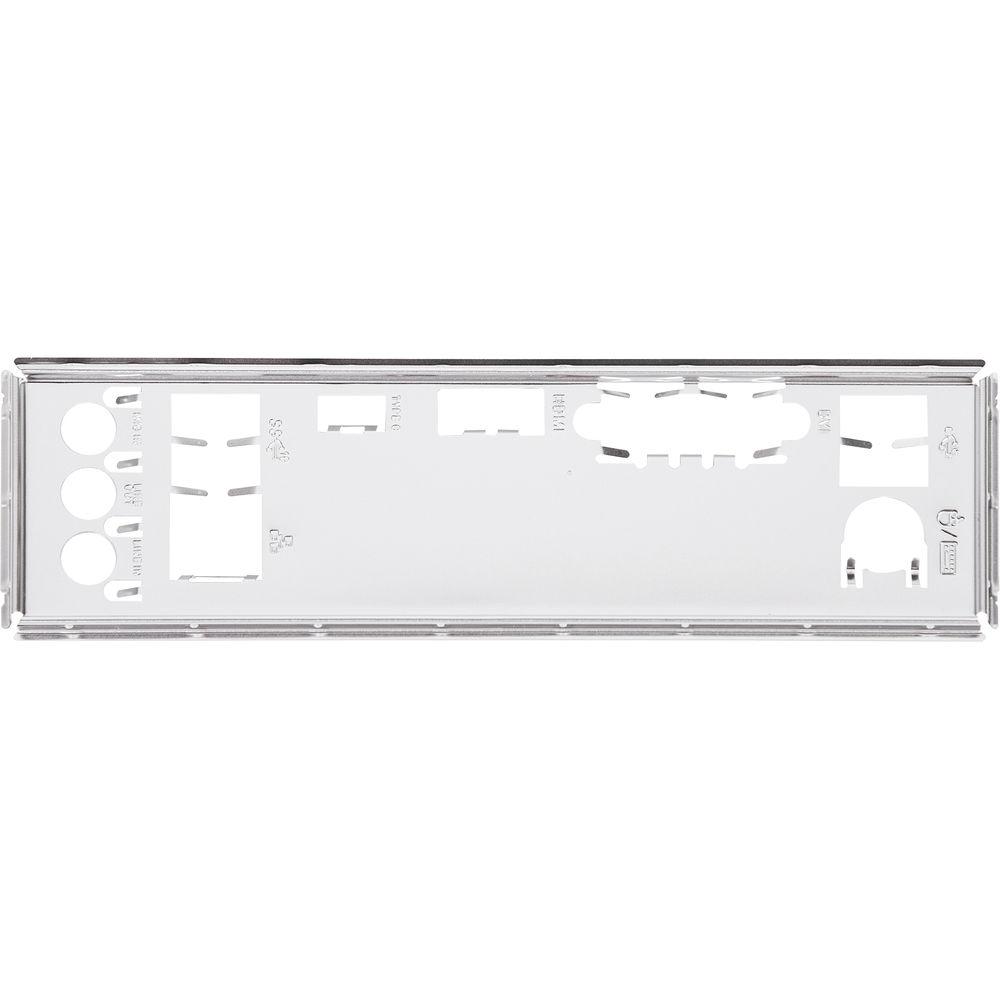

UPC: 192876085271 In the Box ASUS TUF B360M-Plus Gaming S LGA 1151 Micro-ATX Motherboard I/O Shield 2 x SATA 6 Gb/s Cables 2 x M.2 Screws TUF Gaming Sticker TUF Certification Card Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS TUF B360M-Plus Gaming S LGA 1151 Micro-ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS TUF B360M-PLUS GAMING S Specs | | | Chipset | Intel B360 | | CPU Socket | LGA 1151 | | | | USB | 2 x USB 3.1 Gen 2 Type-A
1 x USB 3.1 Gen 1 Type-C
2 x USB 2.0 Type-A | | Thunderbolt | None | | Display | 1 x DVI-D
1 x HDMI | | Audio | 8 x 3.5 mm | | Ethernet / Controller | 1 x Intel I219V Gigabit | | PS/2 | 2 x PS/2 | | | | Memory Slots | 4 x 288-Pin | | Memory Support | DDR4 2133, 2400, 2666 MHz | | Maximum Capacity | 64 GB | | Channel Architecture | Dual Channel | | ECC Support | Non-ECC Unbuffered | | | | SATA | 6 x SATA III | | M.2 | 1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA III)
1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4) | | U.2 | None | | Optane Memory Support | No | | | | Expansion Slots | 1 x PCIe 3.0 x16
2 x PCIe 3.0 x1 | | USB | 1 x USB 3.1 Gen 1 Header (Supports 2 USB Type-A Ports)
2 x USB 2.0 Header (Supports 4 USB Type-A Ports) | | Multi-GPU Support | None | | Air Cooling | 1 x 4-Pin CPU
2 x 4-Pin System | | Power Connectors | 1 x 24-Pin Mainboard
1 x 8-Pin CPU | | LED Header | 1 x RGB | | Audio | 1 x S/PDIF | | Diagnostics | Clear CMOS | | Legacy | 1 x Serial | | | | I/O Connection Headers | AAFP, USB 3.1 | | | | Audio Codec | Realtek ALC887 (8-Channel) | | | | Module Support | 1 E Key M.2 | | | | Supported Operating Systems | Windows 10 (64-Bit) | | | | Form Factor | Micro-ATX | | Dimensions | 9.6 x 9.5" / 243.84 x 241.30 mm | | | | Package Weight | 2.145 lb | | Box Dimensions (LxWxH) | 13.7 x 12.9 x 2.6" |
