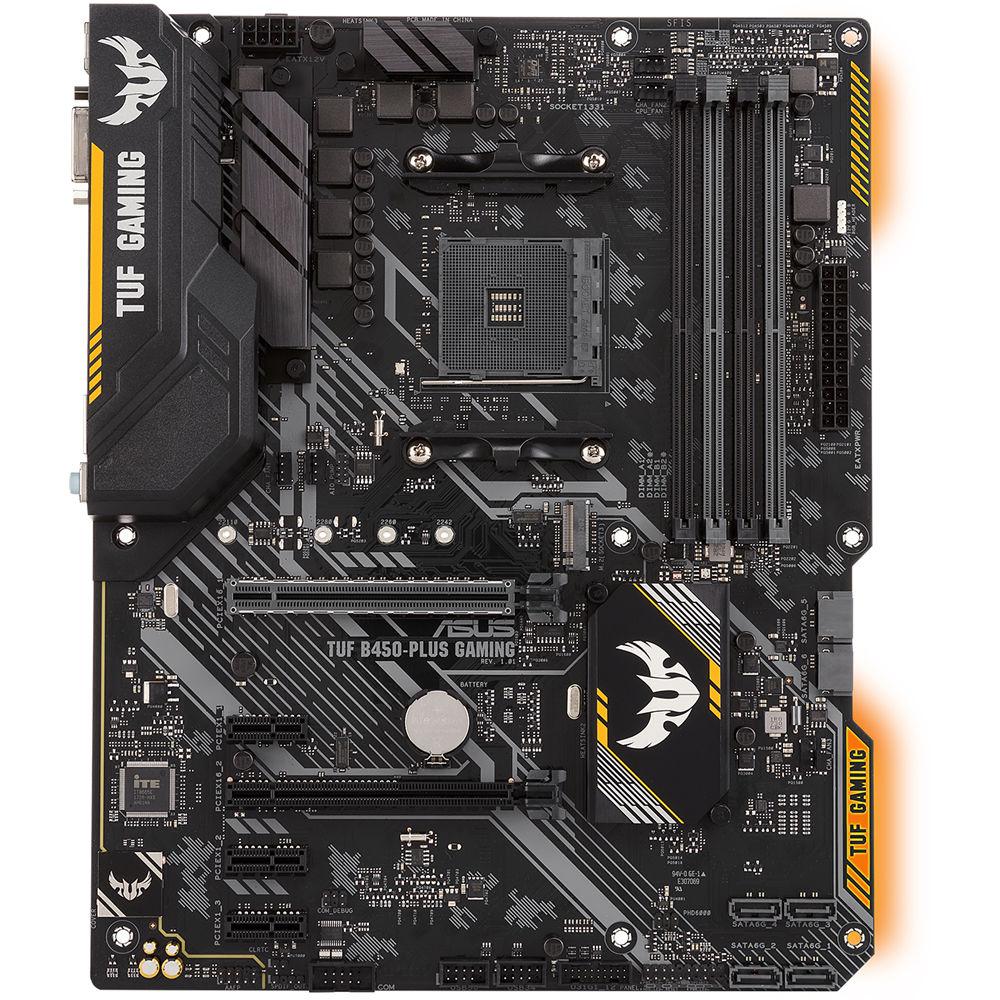

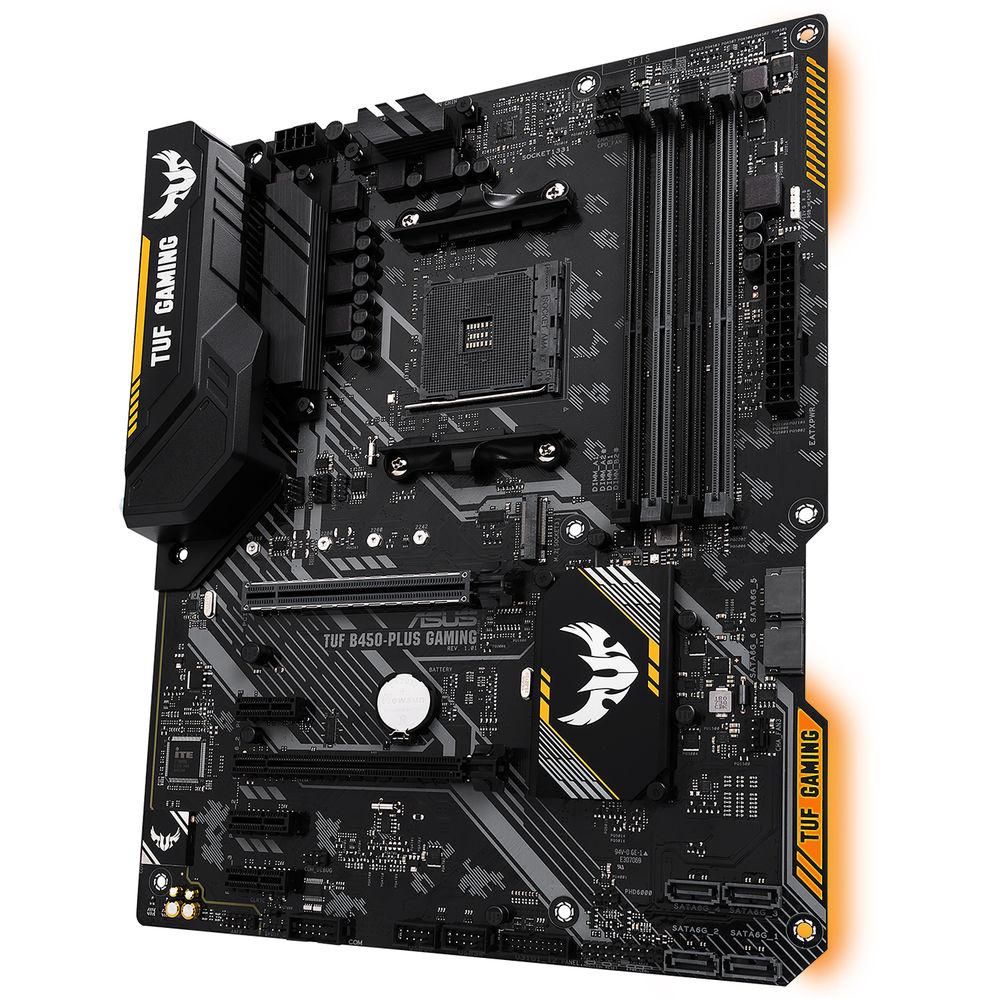

User Manual for ASUS TUF B450-Plus Gaming AM4 ATX Motherboard Click to enlarge the picture
Contents of the user manual for the ASUS TUF B450-Plus Gaming AM4 ATX
- Product category: Motherboards ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Motherboards
 |
User manual for the ASUS TUF B450-Plus Gaming AM4 ATX contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|
Product description The TUF B450-Plus Gaming AM4 ATX Motherboard from Asus is built on the AMD B450 chipset, supporting first- and second-generation Ryzen processors with an AM4 socket. It has four memory slots, which support up to 64GB of DDR4 RAM at speeds of up to 3200 MHz when overclocked. For storage, there are six SATA III ports and a single M.2 slot, which can utilize the PCIe 3.0 x4 interface for speeds of up to 32 Gb/s when used with an appropriate drive. While it's equipped with DVI and HDMI outputs for integrated graphics, this motherboard also has a PCIe 3.0 x16, a PCIe 2.0 x16, and three PCIe 2.0 x1 slots for dedicated graphics cards and other PCIe-based hardware. Other notable integrated features include Realtek ALC887 8-Channel HD Audio, Realtek 8111H Gigabit LAN, and Asus Aura Sync RGB Lighting. - Asus Aura Sync RGB Lighting
- Equipped with Asus Aura Sync RGB lighting support, this motherboard can manage all your LED equipment. Choose from millions of colors and plenty of lighting effects to fit your style. Moreover, you can sync it with other Aura Sync-compatible hardware and peripherals to complete your setup.
- Cooling
- There are multiple fan headers that support both DC and PWM modes, so you can adjust fan speeds within BIOS or a third-party software to find the perfect balance between cooling and noise.
- Memory
- The TUF B450 Gaming has four memory slots that support up to 64GB of DDR4 RAM that can reach up to 3200 MHz when overclocked. Moreover, the RAM slots feature an enhanced design for more stable overclocking and ease-of-use.
- Storage
- Aside from the six SATA ports on this motherboard, it also has a single M.2 slot, which supports the PCIe 3.0 x4 interface for speeds of up to 32 Gb/s when used with an appropriate drive.
- Audio
- Realtek ALC 887 8-channel HD audio supports high-quality audio playback, impedance sense for both front and rear headphone outputs, EMI shielding, and dedicated audio PCB layers for a more immersive listening experience for all types of applications, whether you're using speakers or headphones.
- Additional Features
-
- TUF Components
- Asus SafeSlot
- Asus LANGuard
- Asus Overvoltage Protection
- Asus Stainless-Steel Back I/O
- Asus DIGI+ VRM
- DRAM Overcurrent Protection
- ESD Guards on LAN, Audio, KBMS, and USB Ports
- Durable Components
- Aura Lighting Control
- AI Suite 3
- AI Charger
- Asus Grid
- Asus Q-LED, Q-Slot, & Q-DIMM
UPC: 192876075944 In the Box ASUS TUF B450-Plus Gaming AM4 ATX Motherboard I/O Shield 2 x SATA Cable M.2 Screw Package TUF Certification Card TUF Gaming Sticker Limited 3-Year Warranty User Manual PDF 2.9mbdsrwuxuzswfxe More info from ASUS Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS TUF B450-Plus Gaming AM4 ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS TUF B450-PLUS GAMING Specs | | | Chipset | AMD B450 | | CPU Socket | AM4 | | | | USB | 2 x USB 3.1 Gen 2 Type-A
2 x USB 3.1 Gen 1 Type-A
1 x USB 3.1 Gen 1 Type-C
2 x USB 2.0 Type-A | | Display | 1 x DVI-D
1 x HDMI 2.0 | | Audio | 3 x 3.5 mm | | Ethernet / Controller | 1 x Realtek 8111H Gigabit | | PS/2 | 1 x Combo | | | | Memory Slots | 4 x 288-Pin | | Memory Support | DDR4 2133, 2400, 2666, 2800, 3000, 3200 MHz | | Maximum Capacity | 64 GB | | Channel Architecture | Dual Channel | | ECC Support | Non-ECC, ECC Unbuffered | | | | SATA | 6 x SATA III | | M.2 | 1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA III) | | U.2 | None | | Optane Memory Support | No | | | | Expansion Slots | 1 x PCIe 3.0 x16
1 x PCIe 3.0 x1
3 x PCIe 2.0 x1 | | USB | 1 x USB 3.1 Gen 1 Header (Supports 2 USB Type-A Ports)
2 x USB 2.0 Header (Supports 4 USB Type-A Ports) | | Multi-GPU Support | 2-Way AMD CrossFireX | | Air Cooling | 1 x 4-Pin CPU
3 x 4-Pin System | | Liquid Cooling | 1 x 4-Pin Pump | | Power Connectors | 1 x 24-Pin Mainboard
1 x 8-Pin CPU | | LED Header | 1 x RGB | | Audio | 1 x S/PDIF | | Diagnostics | Clear CMOS | | Legacy | 1 x Serial | | | | I/O Connection Headers | AAFP, USB 3.1 | | | | Audio Codec | Realtek ALC887 (8-Channel) | | | | Supported Operating Systems | Windows 10 (64-Bit) | | | | Form Factor | ATX | | Dimensions | 12 x 9.6" / 304.80 x 243.84 mm | | | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 13.0 x 10.5 x 2.1" |
